1.Determine the scale of chicken feed mill.

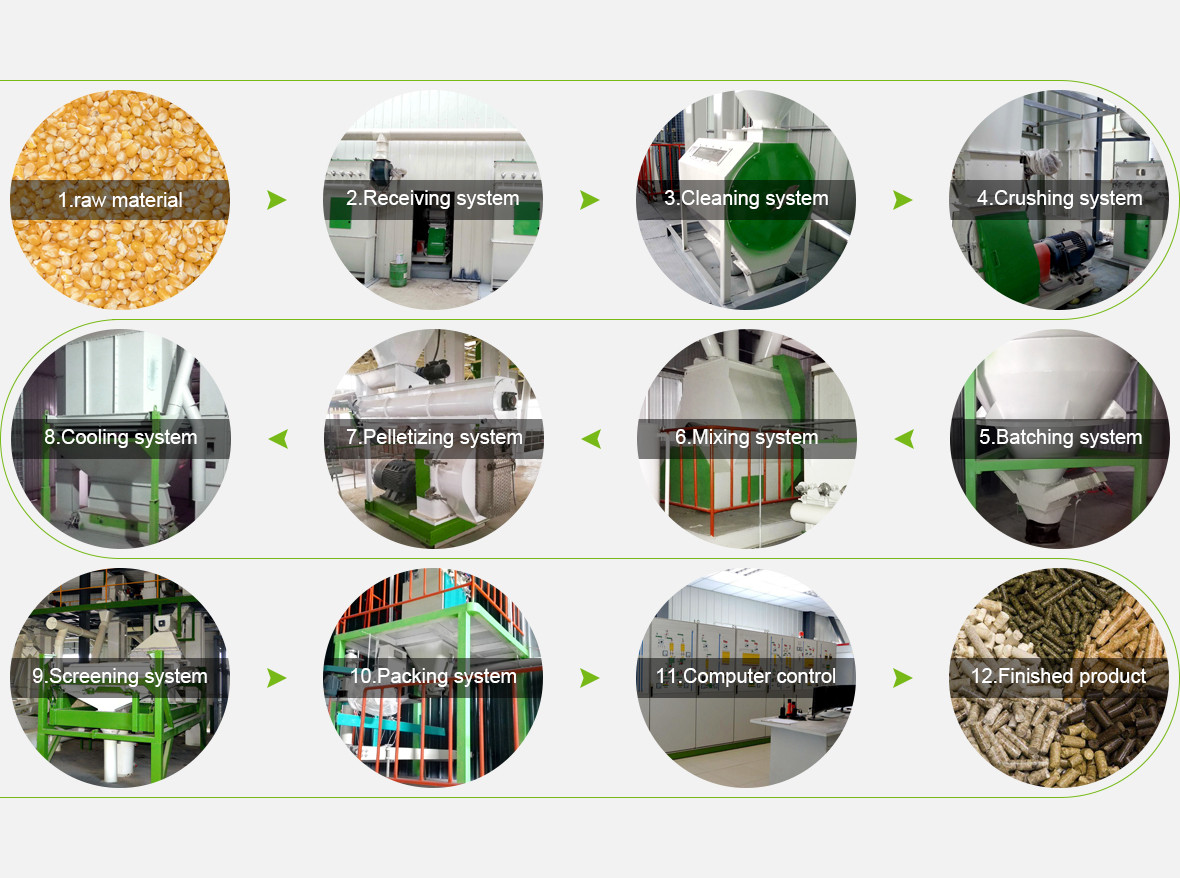

2.Determine the feed process and recommend chicken feed pellet machine.

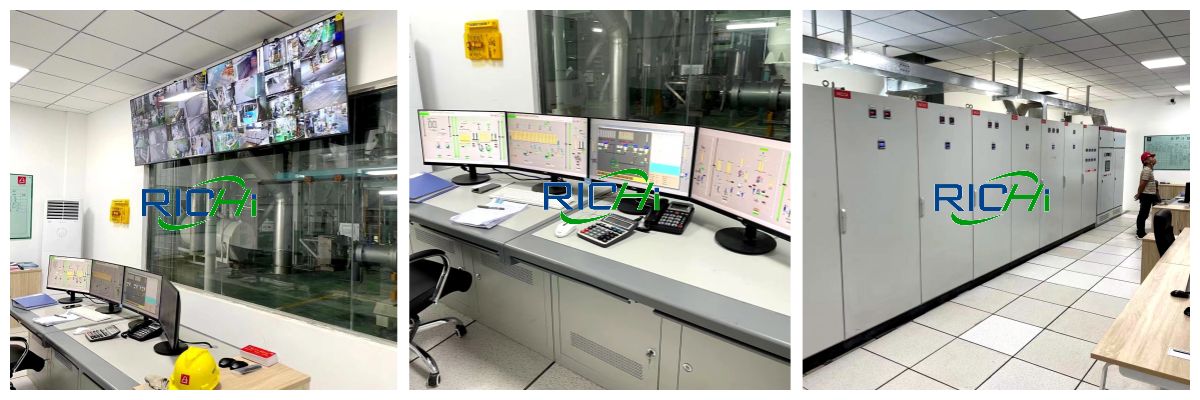

3.Control mode selection.

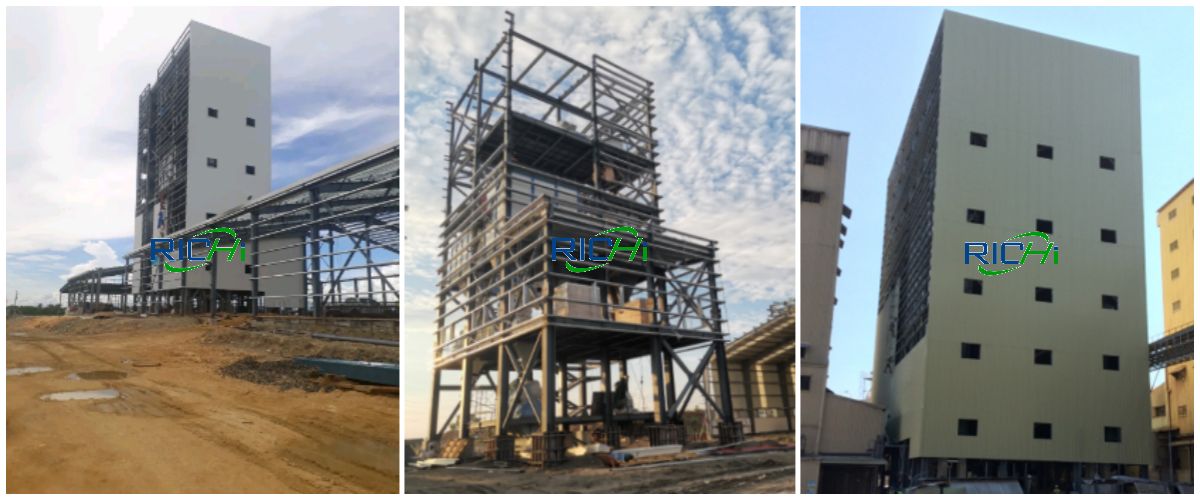

4.Chicken feed manufacturing plant structure selection.

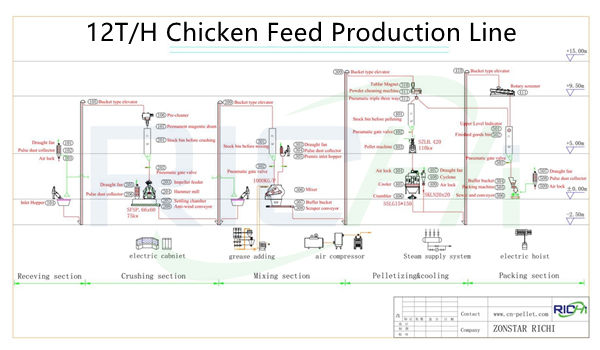

6.Planning the general drawing of chicken feed mill plant site
Overview
In order to satisfy the specific needs and requirements of our clients, we design and install all scales highly efficient poultry & livestock feed pellet plants. The capacity ranges from 1 t/h to 80 t/h, which is applicable for large feed factory&poultry farms use to make feed pellets for not only poultry like chicken, duck, geese, quail, but also livestock including cattle, cow, sheep, rabbit, pig, etc. The plant is made in strict adherence with the international standards, low cost and high efficiency.
Working Principle
For preparing the chicken feed pellets, the raw material(s) need to be converted into powdered form. The resultant mixture is then put into the hopper of the Pellets Machine. A very high pressure is exerted due to the continuous rotation of the roller and the mixture gets passed through the holes made in the die. As the holes are cylindrical in shape, the pellets take the same shape and then while coming out from the other end of the die they are cut into the desired length.
Parameters
| Model |
Capacity(TPH) |
Main Motor Power(kw) |
Feeder Motor Power(kw) |
Conditioner Power(kw) |
Dia.of Ring Die(mm) |
Final Pellet(mm) |
| SZLH250 |
1-2 |
22 |
0.75 |
1.5 |
250 |
2~12 |
| SZLH320 |
3-4 |
37 |
1.5 |
2.2 |
320 |
2~12 |
| SZLH350 |
5-7 |
55 |
1.5 |
3 |
350 |
2~12 |
| SZLH420 |
8-12 |
110 |
1.5 |
7.5 |
420 |
2~12 |
| SZLH508 |
10-18 |
160 |
2.2 |
11 |
508 |
2~12 |
| SZLH558 |
15-25 |
180/200 |
2.2 |
11 |
558 |
2~12 |
| SZLH558D |
14-22 |
160/180/200 |
1.5 |
7.5 |
558 |
2~18 |
| SZLH678 |
20-30 |
220/250 |
2.2 |
11 |
678 |
2~12 |
| SZLH678D |
15-25 |
200/220/250 |
2.2 |
11 |
673 |
2~18 |
| SZLH768 |
25-40 |
280/315 |
2.2 |
11 |
768 |
2~12 |
| SLZH858 |
25-42 |
280/315 |
2.2 |
15 |
858 |
2~18 |
