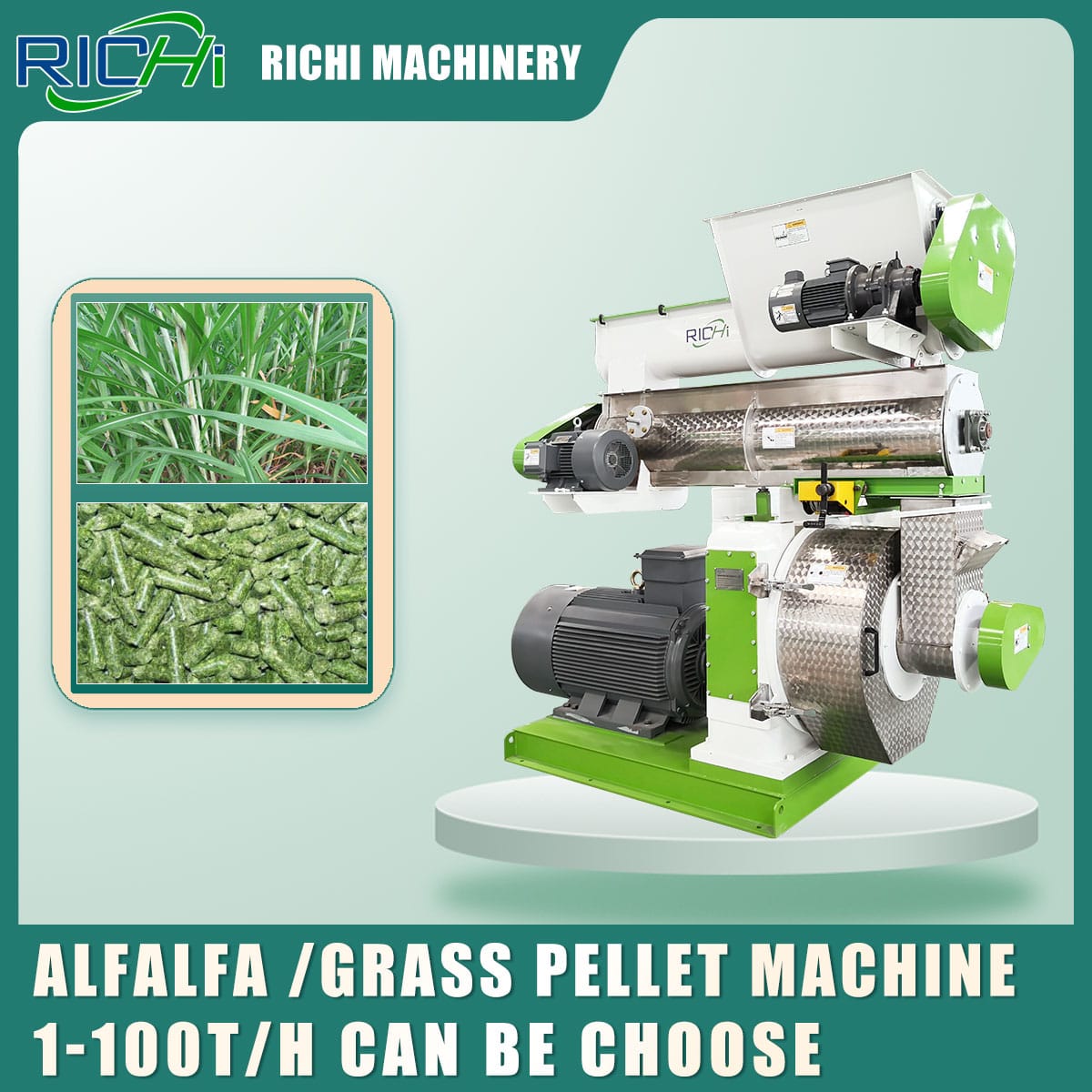

Grass/Alfalfa Pellet Machine

Home > Wood Pellet Mill >
Grass/Alfalfa Pellet Machine
APPLICATION: Feed, Fuel Pellets Industry
CAPACITY: 0.6-10T/H
MAIN POWER: 37-280kw
MODEL: MZLH
WhatsApp: +86 138 3838 9622

Grass pellet granulator is mainly suitable for feed mill plants, biomass pellet plants, and farms. As a longtime partner to hundreds of premium grass pellets/alfalfa pellets producers worldwide, RICHI provides comprehensive processing solutions and aftermarket services to keep your operations ahead of the curve. We have gathered the most comprehensive team of experts from all around the globe to create a network of knowledge and skills that make us the most valuable asset we can be for our customers in the feed or biomass industries.

24 hours to reply to technical inquiries

Applications Of Grass/Alfalfa Pellet Machine

As a grass pellet mill manufacturer from China, RICHI has a lot of experience in grass pellet processing. Our pellet making machine for grass is suitable for alfalfa, straw, timothy, wet grass, green grass, dry grass, napier grass, rod grass, foxtail, reed, hay, oat grass, hemp, wheet grass, switch grass, elephant grass, miscanthus, willow branches, giant king grass, etc.

Of course, because more and more customers will choose a variety of raw materials for pelleting, the following are some of the projects of design and construction of grass pellet machine we have done:

  • Machine making wood and grass pellets (using wood and grass as raw materials);
  • Making pellets from grass for rabbits (using grass meal and other feed ingredients);
  • Alfalfa lucerne grass straw hay pellet mill (using alfalfa, lucerne, straw and hay as raw materials);
  • Grass and leaves pellet machines (using grass and leaves as raw materials);
  • Rice husk straw hay alfalfa pellet machine (using rice husk, straw, hay, alfalfa as raw materials);Applications Of Grass/Alfalfa Pellet Machine
  • Peanut shell straw hay alfalfa lucerne grass pellet machine (using peanut shell, straw, hay, alfalfa, lucerne as raw materials);
  • Straw stalk grass bale pellet making machine (using straw, stalk, grass bale as raw materials);
  • Alfalfa lucerne hops grass rice husk pellet machine (using alfalfa, lucerne, hops, grass, rice husk as raw materials);
  • Hay forage pellet making machine (using hay and forage as raw materials), etc.
Get Price & Support

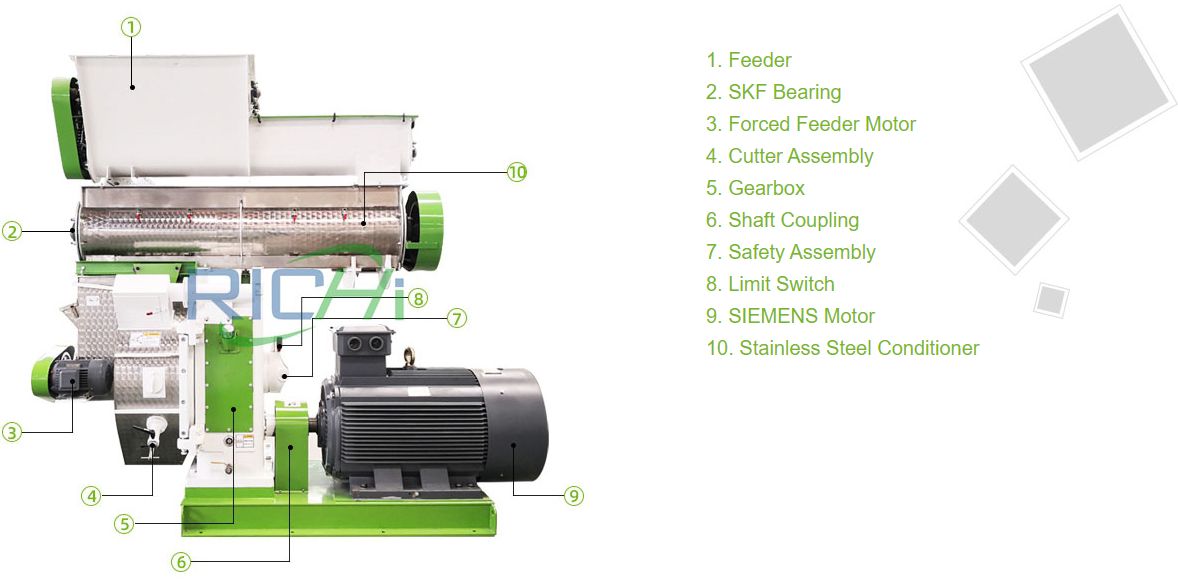

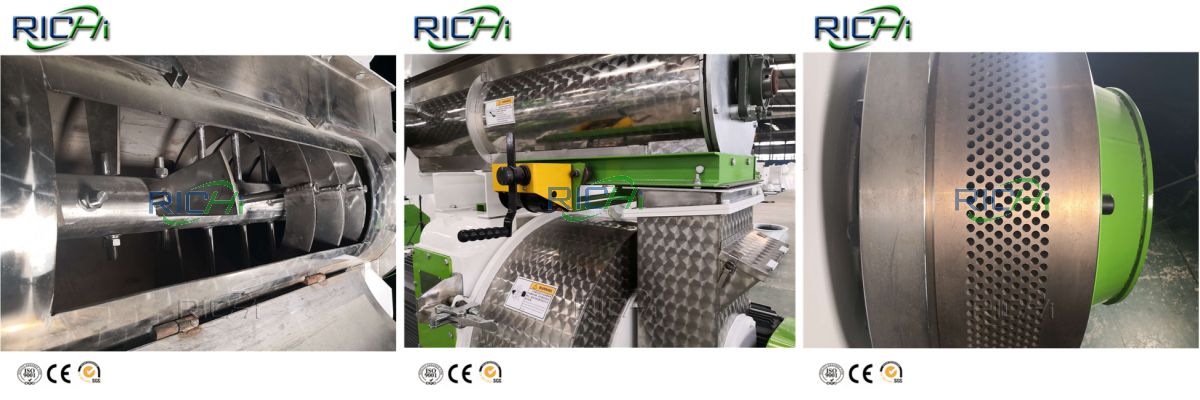

Technical Features Of Grass/Alfalfa Pellet Machine

  1. High quality imported bearings and oil seals are selected in the transmission part of the whole grass pellet making machine to ensure high efficiency, stability and low noise.
  2. The grass pellet mill's variable frequency feeding system adopts the electromagnetic valve speed control, which is convenient for speed adjustment and uniform feeding, and is fully applicable to the product requirements of different materials.Technical Features Of Grass/Alfalfa Pellet Machine
  3. RICHI grass pellet machine's compensation snake spring coupling with advanced international level has novel structure, compact, safe and low fault performance.
  4. RICHI grass pellet maker has high degree of automation, strong applicability. The cutter assembly can control the pellet length.
  5. Forged bearing, long durability.
Get Price & Support

Grass/Alfalfa Pellet Machine Specification

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Grass/Alfalfa Pellet Press Power 37KW 55KW 90KW 132KW 250KW 280KW
Capacity 600-800KG/H 800-1000KG/H 1.5-2 T/H 3-4 T/H 5-7 T/H 8-10 T/H
Final Pellet 2-12mm 2-12mm 2-12mm 2-12mm 2-12mm 2-12mm
Weight(KG) 2500 3500 4000 4500 5000 5500
Price of grass pellet machine 10000-100000USD

Working Principle Of Grass/Alfalfa Pellet Machine

The compress grass pellet mill is the main equipment in the grass pellet production line to make pellets, it compress the dry finely pulverized material and transform them into a cylinder shape pellet at a temperature of 80 degree.

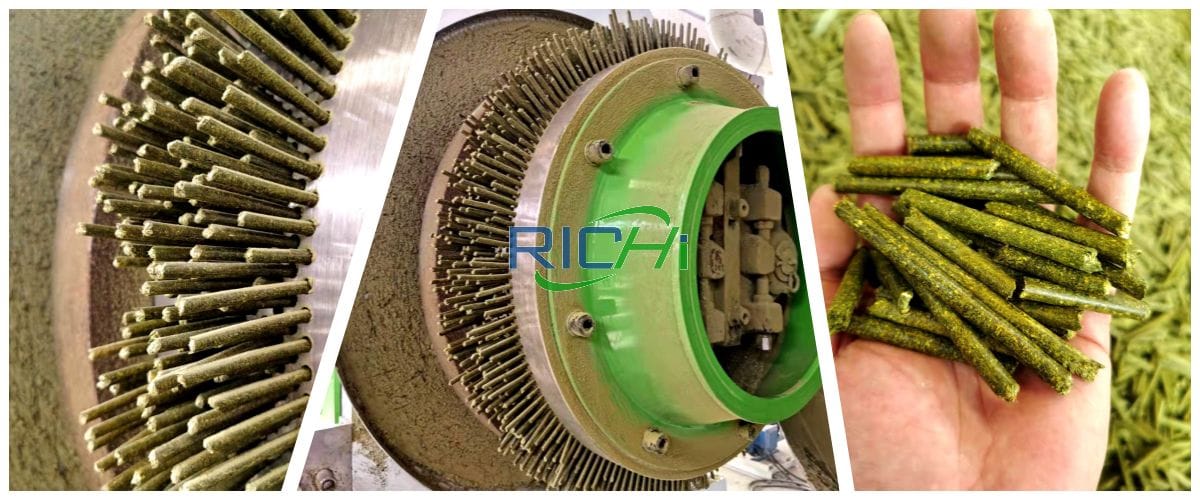

The raw material is delivered into the grass pellet mill though the conveyor and then transferred into a rotating ring die by a feeder. Finely pulverized grass material will be pressed into grass pellet making machine ring die through two press rollers. The resulting pressure compresses the material and extrudes it through the holes in the die. (Related post: How To Make Grass Pellets For Fuel? )

alfalfa  pellet mill price alfalfa  pellet mill supplier pine alfalfa  pellet mill alfalfa  dust pellet mill

Difference between grass pellet machine and wood pellet machine lies in the conditioner. For the most fuel use, grass pellets do not have to be tempered, unless you want to add pellet binder; but as feed pellets, they must be tempered, because this will increase the maturity of the grass pellets and is more conducive to the absorption of nutrients by the animals. At present, grass pellet press machines are mainly used to process grass pellets by granulating grass.

Get Price & Support

How to build your own grass pellet machine?

Kindly advise the following questions so that we can supply you with the proper proposal of grass pellet granulator.

  • What kind of grass pellets are you going to produce? (grass types and uses of final products)
  • What is your required capacity per hour?
  • Do you only need the single grass pelletizing machine or one complete grass pellet production line which includes all kinds of machiney?
    grass pellet machine animal feed
  • If it is to make grass feed pellets, what proportion of the grass is in the raw materials?
  • What is the moisture content of your grass material? Do you need supporting drying equipment?
  • Your other requirement if any.

Since above information will make the grass pellet mill price quite different, we are looking forward to hearing from you.

grass pellet machine animal feed

Anything unclear pls don't hesitate to write to Richi Machinery. If you want to start a new complete grass pellet production line or turnkey grass pellet plant project, then the following content is very suitable for you.

How to start a complete grass pellet plant?

Richi Machinery can offer services for the management of a single grass pelletizer machine, a single grass pelleting line or the whole grass pellet manufacturing process, depending on the needs. Complete grass animal feed pellet production lines used for pelletizing various grass pellets (including Pelletizing, Grinding, Screening, Cleaning, Conveying , Cooling and Packaging Machines) that we produce for Global Markets.

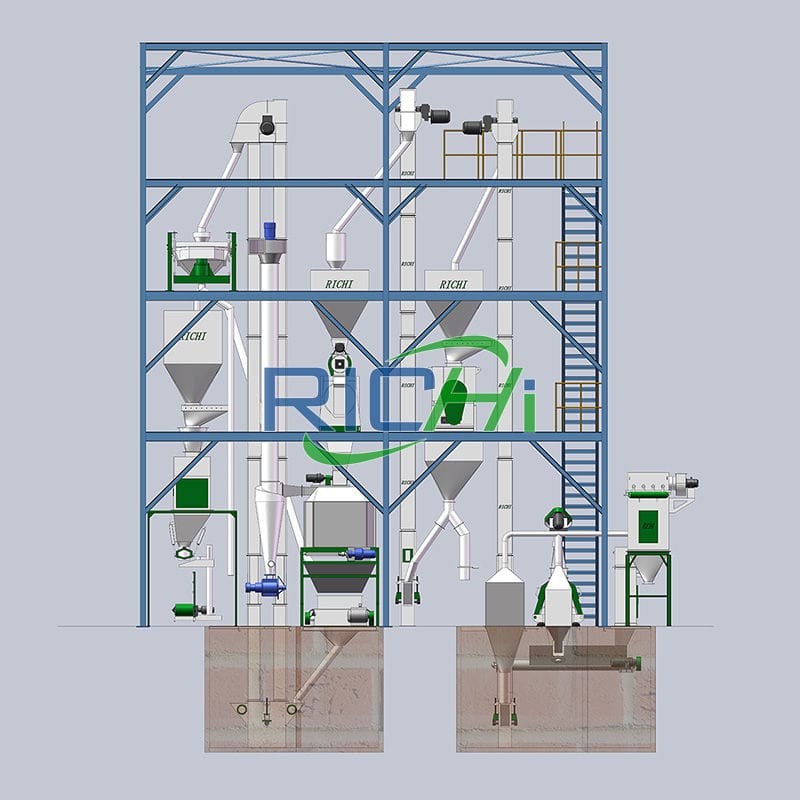

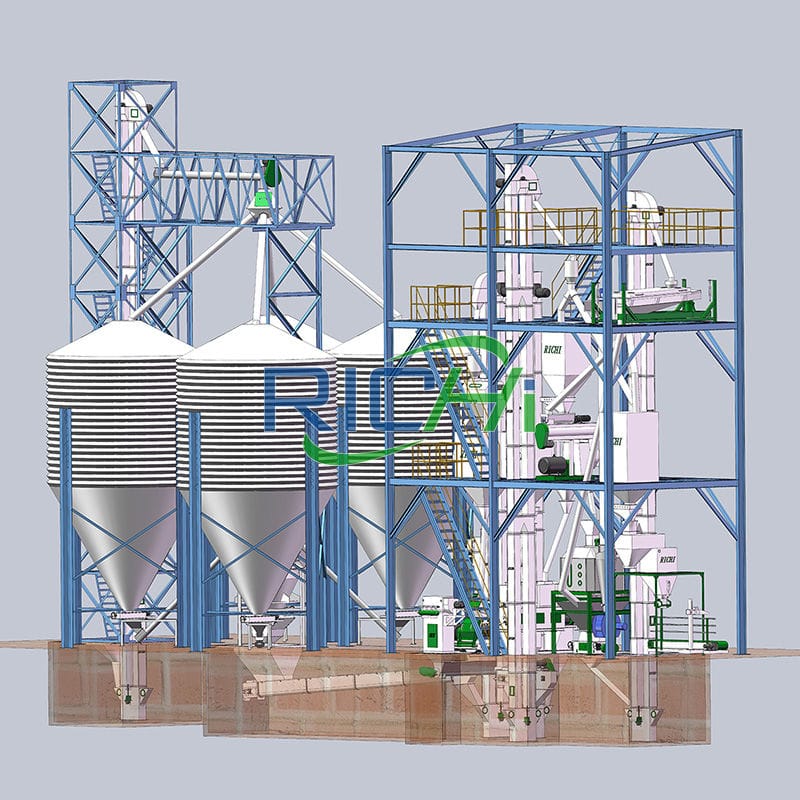

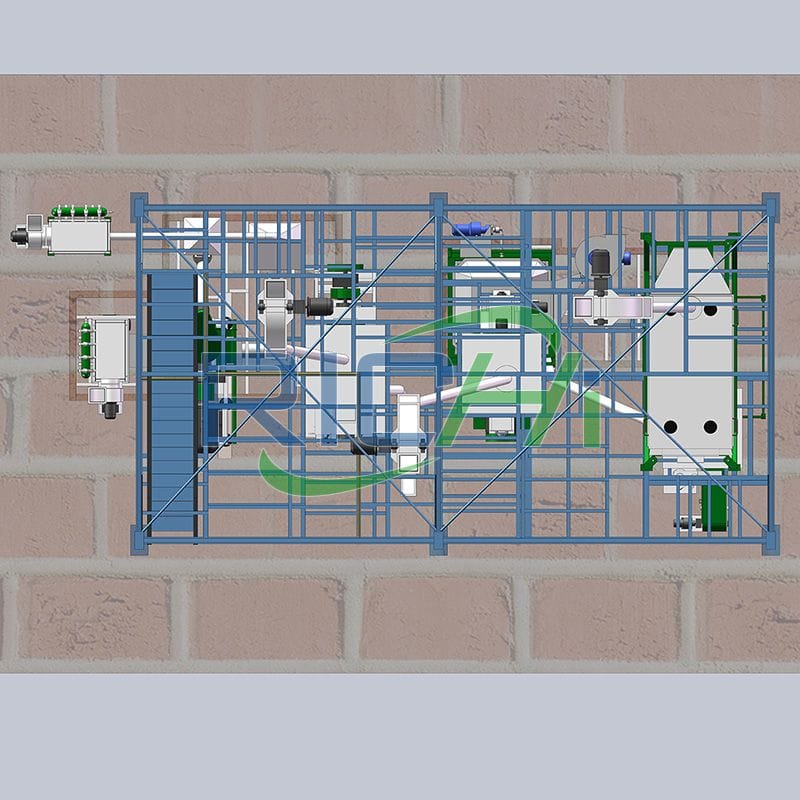

  • grass alfalfa pellet plant design
  • large grass alfalfa pellet plant design
  • 5 tons grass alfalfa pellet plant design
  • 10 tons grass alfalfa pellet plant design

Richi Machinery is a company which provides trust and ease to its customers with practical solutions and strong investments in the sector since its establishment in 1995.

Richi Machinery achieves its production activities in Zheng Zhou, a industry city of China, with its professional and experienced staff. Our company is a strong and growing brand of China in the industry, which is enthusiastic to its work, keeps research and development to be better, always faces out, disciplined and never compromises its programmed approach.

Below we briefly show you the two grass pellet production line projects we have done, hoping to help you further understand the processing technology of grass pellets.

01

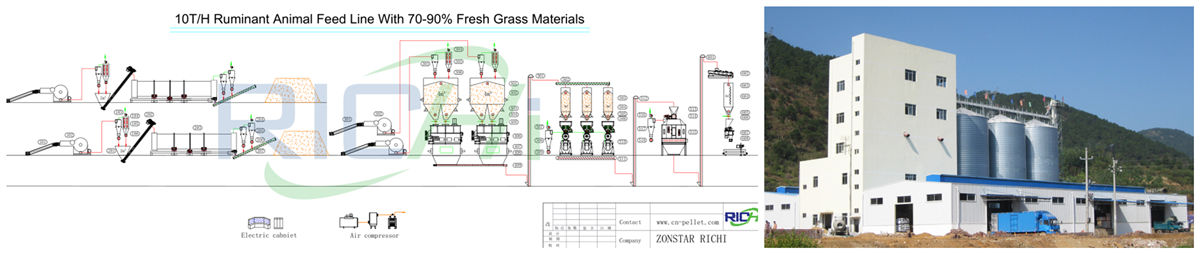

10T/H Ruminant Animal Feed Line With 70-90% Fresh Grass Materials

animal feed processing machine grass chopping design
Customized design of 10t/h cattle sheep grass feed pellet plant
Iterms Description Power (KW) Main Equipment
Crushing system 235.60 Grass crusher*9FQ50-120, Belt conveyor*TDSJ120*600, Cyclone*ф800*2, etc.
Drying system 188.00 Drum dryer for grass*ф2400*100000*3 Layer, Storage bin*2m³, U-Screw conveyor*TLSSU40, etc.
Second Crushing system 235.60 Hay grass crushing machine*9FQ50-120, Draught fan*4-72-6C, Pulse dust collector*TBLMa.36b, etc.
Mixing system 63.00 Single shaft double ribbon grass feed mixer*SLHY5.0L, Buffer bin*4m³, Scraper conveyor*TGSU32, etc.
Pelletizing and cooling system 551.45 Alfalfa grass pellet making machine*SZLH508(Stainless steel feeder, Force feeder, Stainless steel conditioner), Cooling Machine*SKLN20*20, etc.
Packing system 8.25 Rotary screener*SFJH125*2C, Automatic packing machine*DCS-50, Belt and sewing machine, etc.
MCC Control Center ;Mimic Control Panel / (power range from 22 kw for star triangle start, main electric components are delixi brand)
Customized 10t/h grass ruminant green sheep cattle feed plant cost: 550000-700000USD
(just for this grass feed mill plant business plan. Different customer needs, different process designs, different prices)

As for the grass feed ellet production line design, we always make the longest plan. It can be said that every pellet production plant program from RICHI is multi-functional, not limited to the current raw materials and products that customers want to process. Of course, this is added value, under the premise of protecting the existing needs of customers.

Feed From This 10T/H Grass Feed Line
Kinds of feed Size of feed Capacity Remark
Ruminant Cattle/Goat 6.0-12.0mm 10--12T/H 60%-80% Straw /alfalfa in Formula
Ruminant Cattle/Goat 6.0-12.0mm 12-15T/H Grain materials, Limited by cooler
Middle chicken 2.5-3.0mm 10-12T/H Limited by cooler
Big chickens 3.5-4.0mm 12-15T/H Limited by cooler
Layer feeds Powder feeds 15-16T/H But manual packing system
Sinking fish feed/Shrimp Feed 1.0-12.0mm 12-15T/H Limited by cooler, add a conditioner
Get Price & Support
02

2-3 T/H 100% Dryed Bale Straw/Hay Grass Pellet Production Line

2-3 T/H 100% Dryed Bale Straw/Hay Grass Pellet Production Line
Customized design of 2-3 t/h grass straw pellet plant
Iterms Description Power (KW) Main Equipment
Crushing system 126.10 Bale breaker*MPKJ170*225, Grass crusher*9FQ50-100, Belt conveyor*TDSJ100*600, Cyclone*ф1000, Pulse dust collector*TBLMa.36b, etc.
Storage and conveying system 9.00 Bucket elevator*TDTG40/23, U-Screw conveyor*TLSSU30, etc.
Pelletizing and cooling system 130.95 Grass pelletizer*MZLH420(Anti-caking equipment), Cooling Machine*SKLN11*11, Storage bin*4m³, etc.
Packing system 4.43 Rotary screener*TDZS80, Automatic packing machine*DCS-50, Belt and sewing machine, etc.
MCC Control Center ;Mimic Control Panel / (power range from 22 kw for star triangle start, main electric components are delixi brand)
Customized 2-3t/h simple straw grass hay cattle sheep feed plant cost: 100000-150000USD
(just for this grass hay straw pellet plant business plan. Different customer needs, different process designs, different prices)
Get Price & Support

Why Choose Richi

why choose richi
why choose richi

Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields.

All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization.

Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan

Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Quality Control

Delivery And Installation

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment.

According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training

After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs.

After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.
