Customer Guide For Pellet Production Line For Sale

• How to start a 40 tons per hour livestock and poultry feed pellet production line?
• How to set up a completely large ful automatic 45 tons per hour cattle and poultry feed pellet production line?
• How to build a 6-8 tons per hour high-end suckling pig feed pellet production line?
• How to start a 1 ton/hour pet food pellet production line?
• How to set up a 30t/h automatic complete poultry feed pellet line with reasonable price?
• How to set up a complete high return 6-8t/h chicken manure bio-organic fertilizer pellet production line?
• How to build a 3-5 tons per hour building template wood pelletizing production line?

How to start a 40 tons per hour livestock and poultry feed pellet production line?

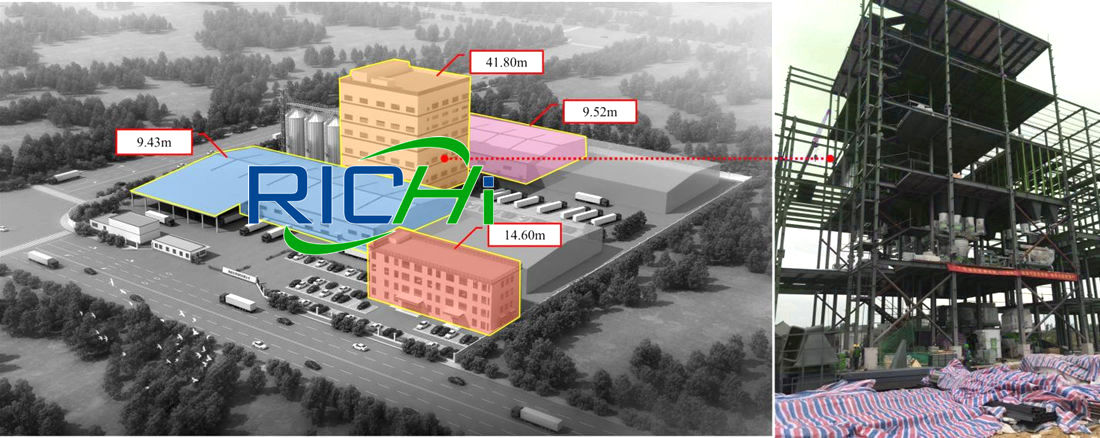

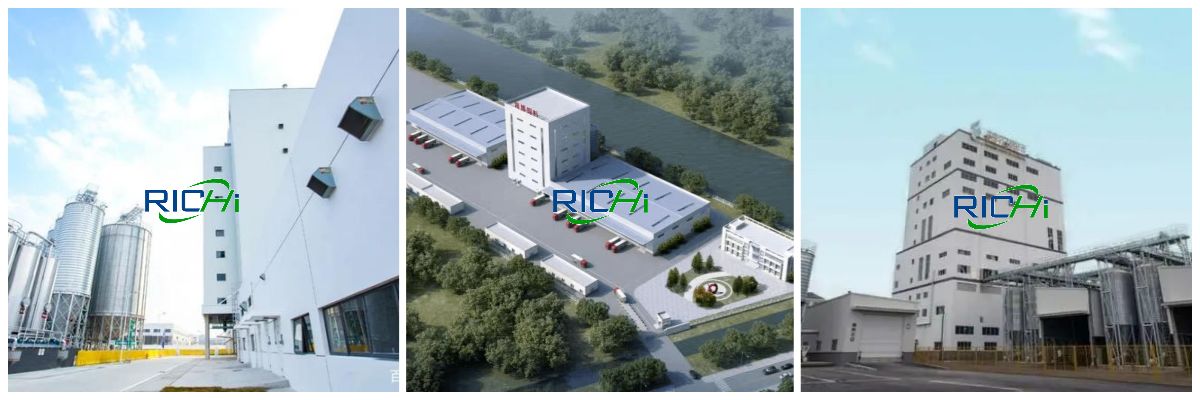

Take a 40t/h livestock and poultry feed production line that we have done as an example. The customer's raw materials are corn, wheat, barley, oats, sorghum, soybeans, soybean meal, fish meal, etc., and the grinding fineness (sieve aperture is 2-4mm), The maturation and tempering requirements are moderate (the granulator mostly uses a double-layer conditioner), and the diameter of the finished pellets is large (the diameter of the pellets is about 2.5-4mm).

The 40 tons/hour livestock and poultry feed production line in this case uses three crushing lines, two ingredient mixing lines, four pelletizing lines and four baling lines. The total power of the pellet line equipment is approximately: 1400KW; the construction area of ​​the production area is approximately: 24.5×22.5×35m; it is equipped with a 3T boiler. The whole line has compact design, reasonable structure, meets environmental protection requirements, and can be oriented design according to customer requirements.

Process flow of 40T/H livestock and poultry feed pellet production line:

1. Raw material receiving and cleaning section: In this section, the pellet feeding cleaning and powder feeding cleaning are separated independently, and the dust is removed separately, and the dust removal effect is good.
2. Crushing section: This section uses three crushers, each crusher is equipped with two smashing bins, which can crush different raw materials at the same time to improve production efficiency. Before the raw materials enter the warehouse, impurities are removed by a magnetic separator to ensure the safe operation of the animal feed crusher machine.
3. Batching mixing section: This section uses 36 batching bins, of which 4 shared bins are equipped with two sets of batching mixing systems, each set of batching system is equipped with two batching scales for simultaneous batching, which is controlled by the batching program independently developed by our company , Realize accurate fast and slow feeding, fast batching speed and high precision.
4. Granulation section: This section adopts four double-layer conditioner feed pellet making machines, and each feed pelletizer machine is equipped with two silos to be granulated, which makes it easy to switch between varieties. After granulation, it enters the pellet cooler, the pellet crumbler, and the elevator into the rotary grading sieve for screening. The finished product enters the packing bin, the powdered material is screened out and returned to granulation, and the large particles are screened out and returned to the animal feed hammer mill crusher for crushing.
5. Packing section: There are 16 finished product warehouses in this section, of which 8 warehouses are dedicated to storing finished pellets, and 4 powder and pellets can be stored. The powder finished product warehouse is designed with a unique anti-classification device. Granules or powders are finally automatically weighed and packaged by a packaging scale, and a bulk truck is designed for packaging and transportation.
6. Auxiliary section: Dust removal system to improve the working environment of workers; grease addition system, which is commonly added at mixers, to improve the palatability of feed.

According to the needs of different customers, the scheme can be optimized for configuration:

1. This scheme adopts a single-point dust removal mode, that is, each rotary distributor (powder) and granular material cleaning screen is equipped with a pulse dust collector, which has a good dust removal effect. Single-point dust removal is a humanized design for our company, providing a better working environment, but the cost increases, and customers can consider whether to adopt this configuration according to actual needs.
2. The number of silos can also be adjusted according to the customer's formula, the characteristics of the raw materials and other factors to achieve the highest utilization rate and effectively control the production cost.
3. The number of animal feed crushing machines can be selected according to needs. If there is less crushed material, you can consider setting aside some crushers;
4. A vibrating grading screen is equipped before the finished product is packaged, which can remove the fine powder in the particles, and the customer can configure it according to their needs;
5. The packaged dust removal design can improve the working environment of workers, and customers can configure it according to their needs.

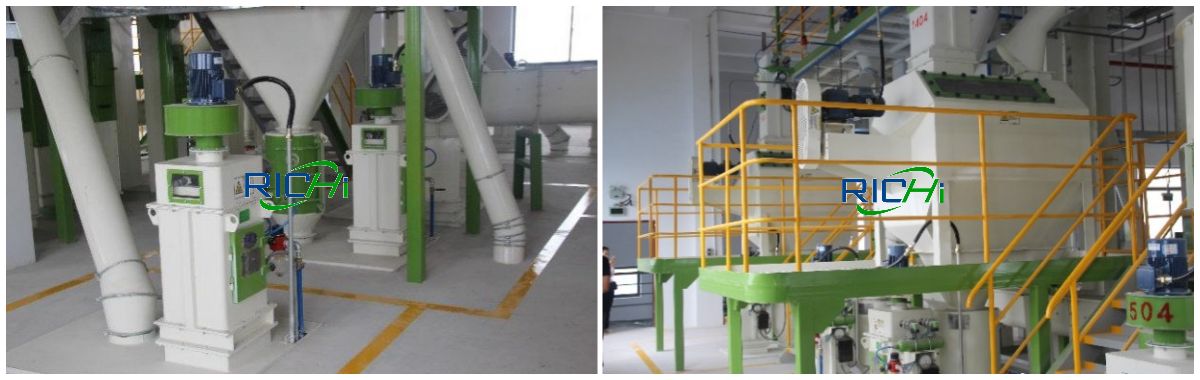

The main equipment of 40T/H livestock and poultry feed production line

How to set up a completely large ful automatic 45 tons per hour cattle and poultry feed pellet production line?

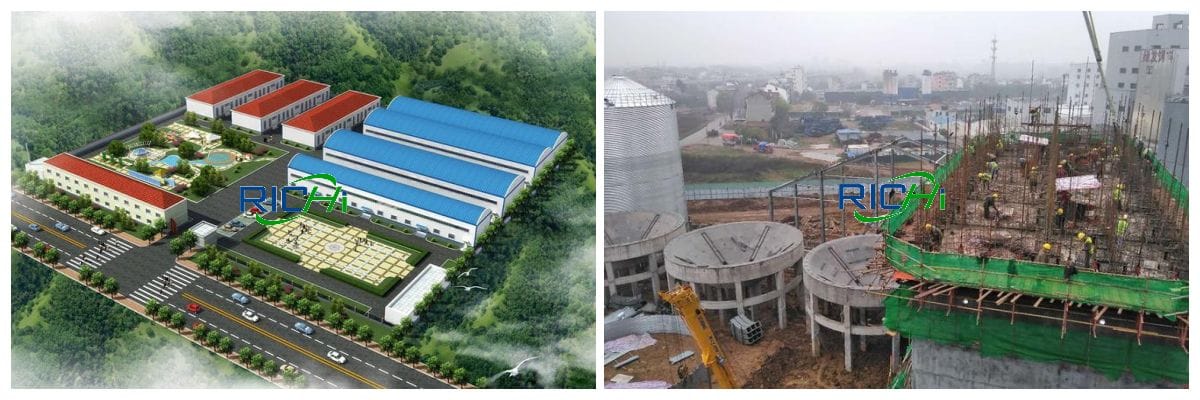

Take a case of our 45 tph compound animal poultry cattle feed pellet production line as an example. The customer wants to process cattle pellet feed and poultry pellet feed, and reserve a quality preserver to improve maturation to produce high-end feed. The finished pellet diameter is large (the pellet diameter is about 2.5- 6mm).

This cattle and poultry feed plant project is designed with an hourly output of 45T/H, using three crushing lines, one ingredient mixing line, three feed pelleting lines, two packing lines and bulk packaging lines. The total power of the equipment is approximately: 1650KW; the construction area of ​​the production area is approximately: 16.5×33×40.5m; it is equipped with a 4T boiler. The whole pelletizing line has compact design, reasonable structure, meets environmental protection requirements, and can be oriented design according to customer requirements.

The process flow of the 45 tons feed mills for poultry and cattle:

1. Silo storage section: This section is equipped with 32000T corn silos, which adopt a prefabricated structure, which reduces raw material storage costs, manual handling costs and storage area.
2. Raw material receiving and cleaning section: In this section, the granular material feeding and cleaning are separated from the powder feeding and cleaning, and the dust is removed separately, and the dust removal effect is good.
3. Crushing section: This section adopts three crushers and six smashing bins, and the crushing varieties can be changed alternately. Before the raw materials enter the warehouse, impurities are removed by a magnetic separator to ensure the safe operation of the animal feed grinder crusher.
4. Batching mixing section: This section uses 30 batching bins. Due to the large number of bins, three batching scales are designed for simultaneous batching, which is controlled by the batching program independently developed by our company to realize accurate fast and slow feeding, fast batching speed and high precision.
5. Granulation section: This section adopts three double-layer conditioners + reserved quality preserver granulators and six granulating bins, which is convenient for changing varieties. After granulation, it enters into the cooler and the elevator to enter the rotary grading sieve for screening, and then passes through the enzyme spraying, enters the finished product warehouse, and returns to the granulation or bag receiving.
6. Packing section: This section is designed with 6 automatic packaging finished product warehouses and 12 bulk release finished product warehouses. Among the automatic packaging finished product warehouses, 5 warehouses are dedicated to storing finished pellets, and 1 powder and pellets can be stored. A unique anti-classification device is designed in the powder product warehouse. The granular materials or powder materials are finally automatically weighed and packaged by the packaging scale, and the bulk storage truck at the bottom of the bulk warehouse can be directly loaded and transported away.
7. Auxiliary section: Dust removal system to improve the working environment of workers; grease addition system, which is commonly added at mixers, to improve the palatability of feed.

According to the needs of different customers, the scheme can be optimized for configuration:

• This scheme adopts a single-point dust removal mode, that is, each rotary distributor (powder) and granular material cleaning screen is equipped with a pulse dust collector, which has a good dust removal effect. Single-point dust removal is RICHI's humanized design, which provides a better working environment, but the cost increases. Customers can consider whether to adopt this configuration according to actual needs;
• The number of silos can also be adjusted according to the customer's formula, the characteristics of the raw materials and other factors to achieve the highest utilization rate and effectively control the production cost;
• In this plan, the animal feed pelletizer equipment adopts a double-layer conditioner to meet the needs of general customers. At the same time, it reserves space for a quality preserver. Customers can choose to use a quality preserver to further improve the maturity of the material and improve the quality of the finished feed;
• A pellet crumbler can be selected after the cooler, especially in the production of poultry feed, the crumbler can crumbling the finished large pellets into small pellets, improve production efficiency and reduce production costs;
• The distribution of finished products can select and match the bulk warehouse according to actual needs.

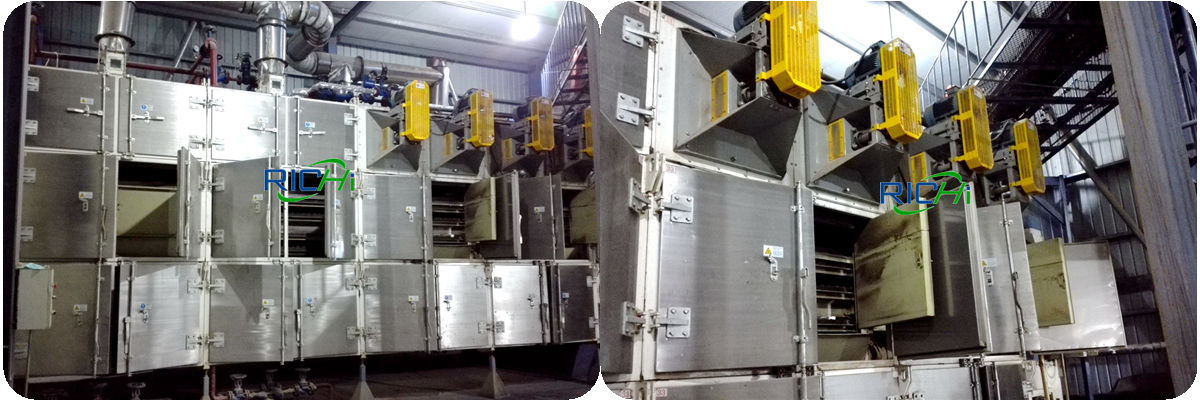

The main cattle and poultry feed machine in 45t/h cattle & poultry feed processing plant

How to build a 6-8 tons per hour high-end suckling pig feed pellet production line?

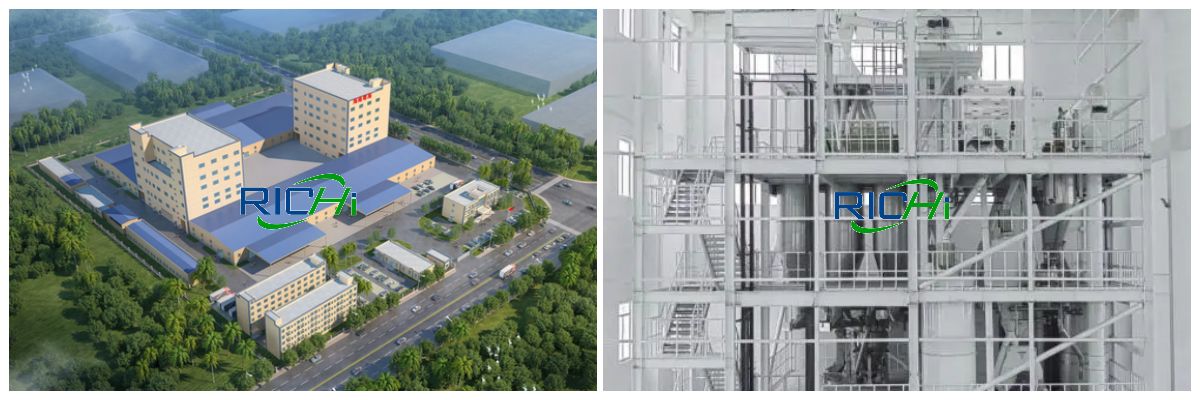

The following content takes a 6-8 tons per hour high-end suckling pig feed production line project that we have done as a case. The processing characteristics of high-grade suckling pig feed are fine grinding fineness (screen mesh aperture 1-2mm), high maturation requirements (raw materials are cured by an expander), low tempering temperature (using low-temperature granulation), and small pellet diameter ( The pellet diameter is about 2-3mm).

Generally, most of the raw materials are fully expanded (the raw materials have high maturity), and then use secondary crushing, secondary mixing, and then low-temperature granulation process. This high-end suckling pig feed production line is designed to produce 6-8T/H per hour, and adopts a crushing line, an ingredient mixing line, an expansion line, a feed pelleting line and a packing line. The total power of the equipment is approximately: 712KW; the construction area of ​​the production area is approximately: 19×17.5×29m; it is equipped with a 1T boiler. The whole feed pelleting line has compact design, reasonable structure, meets environmental protection requirements, and can be oriented design according to customer requirements.

The 6-8 tons/hour high-end suckling pig feed pellet production line manufacturing process:

1. Raw material receiving and cleaning section: In this section, the granular material feeding cleaning and the powder feeding cleaning are separated independently, and the dust is removed separately, and the dust removal effect is good.
2. Crushing section: This section adopts one animal pig electric feed grinder and three smashing bins, which can alternately replace the crushed varieties. Before the raw materials enter the warehouse, impurities are removed by a magnetic separator to ensure the safe operation of the pig feed grinder . Because the fineness of high-grade pig feed is fine, and a grinder in this section needs to do both primary and secondary pulverization, a high-power pulverizer is used.
3. Batching mixing section: This section uses 18 batching bins, two batching scales are used for batching at the same time, controlled by the batching program independently developed by our company, to achieve accurate fast and slow feeding, fast batching speed and high precision.
4. Expansion section: The raw materials are subjected to extrusion expansion treatment. The heat-sensitive raw materials are added to the expanded secondary ingredients, and then granulated at low temperature, which can reduce the loss of heat-sensitive elements. The expanded material is cooled, and then pulverized for a second time, and then transported to the batching bin as a raw material by a conveyor.
5. Granulation section: This section adopts a single double-layer conditioner pig feed pellet mill, and two silos to be granulated are arranged above the feed pelletizing machine. After granulation, enter the pellet cooler separately (because the high-grade suckling pig feed does not contain crushed material, there is no crumbler in this process), and then enter the rotary grading screen through the elevator for screening, the finished product enters the packing warehouse, and the rest is returned to the granulation or bag receiving .
6. Packing section: There are 2 finished product warehouses in this section, and the pellets are finally automatically weighed and packaged by the packing scale.
7. Auxiliary section: Dust removal system to improve the working environment of workers; grease addition system, which is commonly added at mixers, to improve the palatability of feed.

According to the needs of different customers, the scheme can be optimized for configuration:

1. This scheme adopts a single-point dust removal mode, that is, each rotary distributor (powder) and granular material cleaning screen is equipped with a pulse dust collector, which has a good dust removal effect. Single-point dust removal is a humanized design for our company, providing a better working environment, but the cost increases, and customers can consider whether to adopt this configuration according to actual needs;
2. The number of silos can also be adjusted according to the customer's formula, the characteristics of the raw materials and other factors to achieve the highest utilization rate and effectively control the pig feed production cost.

The main equipment of the high-end suckling pig feed making line with 6-8 tons/hour

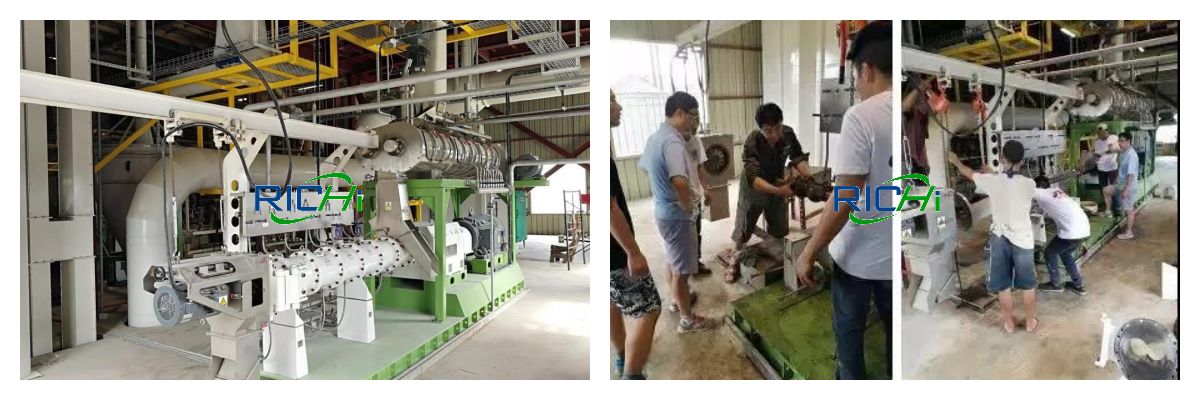

How to start a 1ton/hour pet food pellet production line?

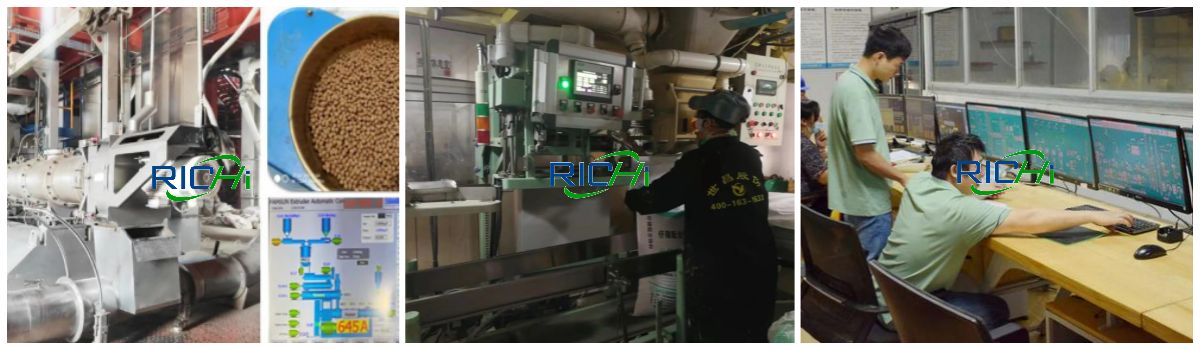

Pet feed refers to products that are industrially processed and produced for direct consumption by pets. It is also called pet food, including pet compound feed, pet additive premix feed and other pet feeds. Pet food is mainly based on protein and fat raw materials, including wheat, soybean meal, rapeseed meal, rice bran, bran, blood meal, bone meal, meat meal, oil, antibiotics, vitamins, etc.

The project is a small-volume pellet production line, and only produces cat food and dog food. The finished product of cat food and dog food has a large particle size, and the fineness of raw materials is generally required to be 60 mesh (no need for superfine grinding equipment, use micro Crushing equipment is sufficient), but the maturation and tempering requirements are high, and the oil content is high (using a combination of mixer + extruder + powder spraying and spraying), and the diameter of the finished particles is about 2-8mm.

The pet feed production line is designed to have a capacity of 1T/H. It adopts the ingredients first and then the crushing process, that is, one batching, one pre-mixing, micro-crushing (crushing fineness 60 mesh), second mixing, puffing, drying and powder spraying, Cooling and packaging of finished products. The total power of the equipment is approximately: 275KW; the construction area of ​​the production area is approximately 9×13.5×14.5m (height); it is equipped with a 0.5T boiler. The whole pellet production line has compact design, reasonable structure, meets environmental protection requirements, and can be oriented design according to customer requirements.

Process flow of 1ton/hour pet food production line

1. Raw material receiving and cleaning section: This section is equipped with a feeding port for separate dust removal and good dust removal effect.
2. First batching section: Since the project is a foreign project and the raw materials are single (only 2-3 solid raw materials), only 4 batching warehouses and one batching scale are designed, which are independently developed by our company. Batching program control, realizing accurate fast and slow feeding, fast batching speed and high precision. Due to the high fat and oil content of pet food raw materials, it would be more difficult for the grinder to crush a single raw material with high fat if the conventional powder-first-preparation process is adopted. Therefore, the pre-prepared powder-after process is generally used.
3. First mixing and crushing section: This section uses a double-shaft high efficiency feed mixer for pre-mixing to improve the uniformity of materials before crushing.
4. Micro-powder section: Because the extruder has relatively high requirements for the fineness of raw materials, generally above 40 mesh, this section uses a micro-pulverizer, adopts pneumatic discharge, and is equipped with brake dragons and pulse dust collectors. And the crushing fineness can be adjusted.
5. Secondary mixing section: This section uses a to-be-mixed warehouse to implement batch measurement, which reduces the investment in the secondary batching system. It has a double-shaft high-efficiency mixer and a small material addition port.
6. Expansion section: This section adopts a single-screw extruder. Above the extruder is a circular silo to be expanded and equipped with a pan feeder to prevent material arching and smooth discharge. In this process, in order to ensure that the expanded material is not deformed or broken, a Z-shaped elevator is specially designed. Compared with the conventional bucket elevator, the biggest advantage is to avoid particle crushing, and it can also effectively avoid the cross-contamination problem caused by the residue at the bottom.
7. Spraying and packaging section: After grease spraying is a method of adding certain components of pet food that have been lost or destroyed during processing in a specific method at the later stage of processing to prevent these components from being lost or destroyed. It also solves the requirement that the amount of grease added in the early material should not be too much to meet the requirements of the amount of grease added. The sprayed pet food not only looks good, but also has strong palatability and good nutrition. Because the temperature of the material just coming out of the extruder is very high, it needs to be cooled and finally enter the finished product packaging or bulk packaging. Finally, it is packaged after cooling and screening through a pendulum cooling screen.
8. Auxiliary section: Dust removal system, dust removal at the packing mouth, to improve the working environment of workers; grease addition system, water addition system, to improve the palatability of feed.

According to the needs of different customers, the scheme can be optimized for configuration:

• This plan adopts the first mixing and then powdering process, and the raw material warehouse is also used as an ingredient, which simplifies the process and saves costs. The number of silos and buffer hoppers can be adjusted according to customer needs. For example, setting two buffer hoppers can reduce the waiting time of batching and improve efficiency;
• For the micro-grinding process, a more efficient and fine-grained ultra-fine grinding equipment can be selected according to the customer's specific production materials, but the cost will increase;
• The configuration of the extruder is a single-layer conditioner, and other types of conditioners can be added as needed to further improve the maturation of the extruded material, but the cost will increase;
• Finished product packaging equipment can be customized according to the customer's packaging specifications and requirements. Generally, the finished product packaging of pet materials can be divided into small packaging and large packaging, and different packaging equipment will be used.

Main equipment of 1ton/hour pet food production line

How to set up a 30t/h automatic complete poultry feed pellet line with reasonable price?

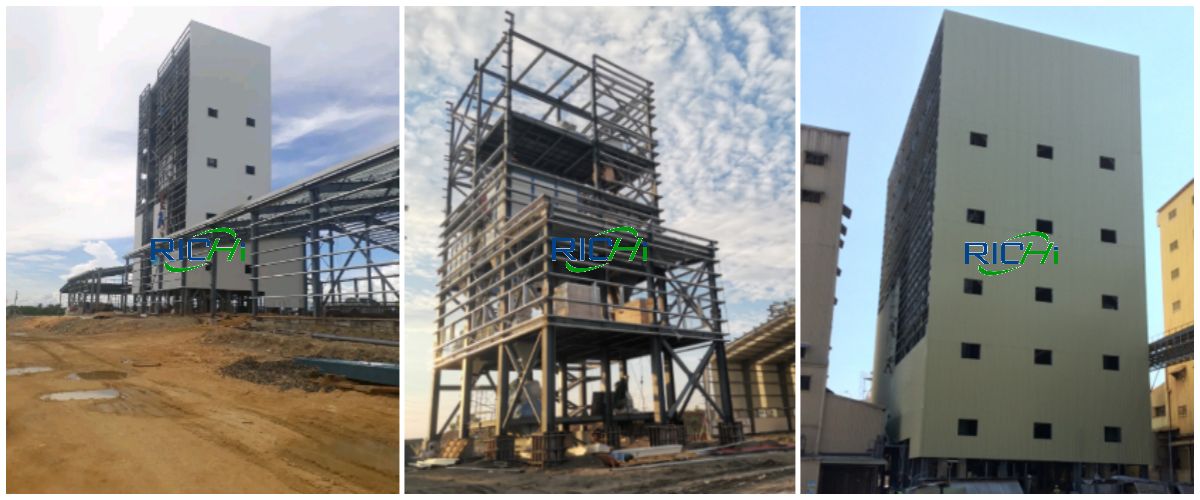

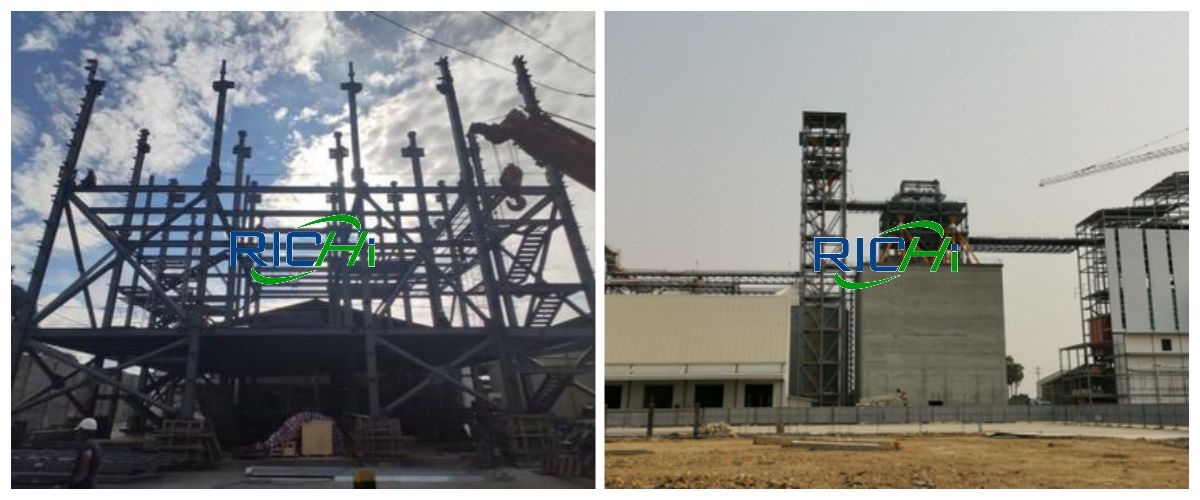

Poultry feed is characterized by moderate crushing fineness (sieve aperture 2-4mm), moderate maturation and conditioning requirements (poulltry feed pellet makers mostly use single-lauer or double-layer conditioners), and the finished particles have large diameters (pellet diameters are about 2.5-4mm). The 30 tons poultry feed production line is designed to produce 30T/H per hour.

It uses two crushing lines, one batching mixing line, two feed granulating lines and two packing lines. The total power of the equipment is approximately: 930KW; the construction area of ​​the production area is approximately: 24.5×22.5×35m; it is equipped with a 2T boiler. The whole poultry feed making line has compact design, reasonable structure, meets environmental protection requirements, and can be oriented design according to customer requirements.

How to set up a complete high return 6-8t/h chicken manure bio-organic fertilizer pellet production line?

Chicken manure bio-organic fertilizer refers to the use of chicken manure as the main raw material, mixed with some other organic matter, and processed into bio-organic fertilizer through fermentation, throwing, pretreatment, and final granulation. Chicken manure is a relatively high-quality organic fertilizer after fermentation. The nutrient content of chicken manure is very rich. It contains both a large amount of organic matter and a high content of three elements. The organic matter content is 25.5%, nitrogen is 1.63%, and phosphorus Vegetable manure is 1.54%, potassium is 0.85%, carbohydrate is 11%, so chicken manure is an important organic fertilizer.

The main functions of chicken manure bio-organic fertilizer are:

• Produce a variety of enzymes to inhibit a variety of soil-borne diseases such as stubble disease, root knot nematode disease, fusarium wilt, bacterial wilt and blight.
• The high-efficiency and beneficial microbial flora contained in the continuous activity can activate the nitrogen in the air, decompose and release the insoluble phosphorus and potassium nutrients. Replenish soil organic matter and slowly release nutrients needed for crop growth.
• Improve soil physical properties, keep the soil soft, easy to cultivate, promote soil aggregate structure, increase soil pores, and promote root mass growth. Increase soil water and fertilizer retention capacity and reduce leaching losses.
• Green and environmental protection, improve fertilizer efficiency. The fermented organic fertilizer of this product has no toxic and side effects, and is safe for crops and soil environment. Mixing with inorganic fertilizers also improves the use efficiency of chemical fertilizers and saves costs.
• Strong roots and strong seedlings, disease prevention and disease resistance. The proliferation of beneficial microorganisms secretes hormones, polysaccharides and other metabolites to the outside world, inhibits the growth of soil pathogenic bacteria, can promote the development of crop roots, grow vigorously, and reduce the spread of various diseases.

Complete 6-8T/H chicken manure bio-organic fertilizer pellet production process

1. Fermentation turning and throwing section
   ①For one aerobic fermentation, pile the stirred ingredients into strips with a width of 1.5 meters to 2 meters, a height of 0.8 meters to 1.2 meters and a length of not less than 3 meters. During the fermentation process, pay attention to proper oxygen supply and turning the pile (the temperature rises to 75). When the temperature is above or above, the temperature should be overturned several times), and the temperature rise should be controlled at about 65°C. Too high temperature will affect the nutrients. Composting is heated in 2 days, odorless in 3 days, loose in 7 days, fragrant in 9 days, and fertilizer in 10 days.
   ②Secondary itch fermentation is the so-called post-ageing stage, which can also be called secondary fermentation. After 7 days, the material can be decomposed and enter the post-ageing stage. Then enter the pretreatment and workshop granulation stage.
2. Pretreatment section
   6-8 Tons per hour chicken manure bio-organic fertilizer pretreatment section: itchy fermentation is stored for 7 days and then crushed, and the fermented organic fertilizer raw materials are crushed, sieved, and dried.
   The special crusher for organic fertilizer is widely used in bio-organic fermentation composting, municipal solid waste composting, grass peat carbon, rural straw waste, industrial organic waste, livestock and poultry manure and other bio-fermented high-humidity materials crushing process. This equipment has a moisture allowable value of 25-55% for biologically fermented organic fertilizer materials, which solves the problem of smashing high-water organic materials and has the best crushing effect on organic materials that have undergone fermentation.
   The drum cleaning screen can clean up the impurities in the raw materials, including large wood blocks, stones, agglomerated materials, etc., to prevent the mechanical equipment and conveying equipment of the next process from malfunctioning or being damaged. The primary cleaning screen has the characteristics of high output, low power consumption, simple structure, small space, easy maintenance and easy installation.
   The tumble dryer is used to dry the raw materials with excessive moisture, and the moisture of the raw materials is dried to about 20%, and the subsequent sections are granulated and formed. The roller ring and the retaining wheel support of the tumble dryer adopt a cast steel monolithic structure with high strength. , The operation is stable; the special design of the lifting plate in the cylinder, the layout is reasonable, can fully mix the material and the hot air, the material remains less, and the drying effect is good; the outer layer of the cylinder is insulated to prevent heat loss and improve the utilization rate of heat energy.
3. Crushing section
   In the crushing section of the 6-8T/H chicken manure bio-organic fertilizer production line, the dried materials are sent to the crusher through the conveying equipment for crushing, and the iron removal device is equipped before the crusher.
   The pulverizer has a drop-shaped structure with high pulverization efficiency; the pulverizing rotor can be operated positively and negatively to increase the service life of the hammer; it adopts a direct motor transmission mode, which has high transmission efficiency and convenient maintenance.
4. Mixed bacteria processing section
   Through the small material adding hopper, bacteria and raw materials can be added and mixed in the mixer, and then enter the next section after mixing evenly.
   The single-shaft paddle mixer is suitable for mixing organic or inorganic compound fertilizers with high uniformity and low residue; the mixer can be made of stainless steel, specially designed sealing and blade arrangement, low energy consumption and easy to maintain and maintain.
5. Granulation and packing section
   The 6-8T/H chicken manure organic fertilizer production line adopts the granulator to feed the auger uniformly in the granulation section, and the granulator is continuously granulated. The granulated granules enter the cooler for cooling, and the cooled finished granules pass Automatic weighing, packaging, transportation and transportation to the warehouse.
   The main shaft of the granulator adopts high-speed gear transmission, and the ring die adopts a quick-release hoop type, which is about 20% more efficient than the belt transmission type. The overall transmission part uses high-quality imported bearings and oil seals to ensure high-efficiency, stable transmission and low noise; Compensated serpentine spring coupling with international advanced level, with novel structure, compactness, safety and low failure performance.
   The chicken manure pellet cooler uses the principle of counter-current cooling to cool high-temperature and high-humidity particles, avoiding sudden cooling caused by direct contact between cold air and hot materials, thereby preventing surface cracking of the particle production line; pneumatic or hydraulic pushing the flap discharge structure to operate Stable and low residue; the cooling box adopts an octagonal shape, with observation ports around it; it adopts upper and lower material level control, which has a high degree of automation; it is suitable for the cooling of bio-organic fertilizer pellets.
   6-8T/H chicken manure bio-organic fertilizer pellet line adopts packing scale in the packing section. According to the customer's local sales needs, choose the appropriate packing scale to facilitate the customer to sell the product. There are usually two specifications of small bag and ton bag. The packaging specification of the small bag packaging scale is : 20-50kg/bag, ton bag scale packaging specification: 500-1000kg/bag. The packing scale has a high degree of automation and high packaging accuracy. The weighing system is a sensor measurement with high sensitivity and strong anti-interference ability.

Main equipment of 6-8T/H chicken manure bio-organic fertilizer pellet production line

How to build a 3-5 tons per hour building template wood pellet production line?

The raw materials of this 3-5 tons per hour building template pellet production line project mainly include waste formwork, waste veneer and other waste engineering construction materials. Use a template crusher to process the discarded engineering template into wood chips with a size of 20-30mm and a thickness of 5-10mm; then the crusher will finely powder into wood chips of 3-4mm. After entering the cleaning screen and screening, the raw materials with a moisture content of 30% are dried to about 15% through a three-layer tumble dryer, and finally granulated.

The diameter of the processed finished product is 6-10mm. After the granulation is cooled, the small bag packing scale is packed into 20-50kg/bag. Convenient to transport and sell. This project is a biomass pellet production line with an output of 3-5 tons per hour. The total equipment power is about 825kw.

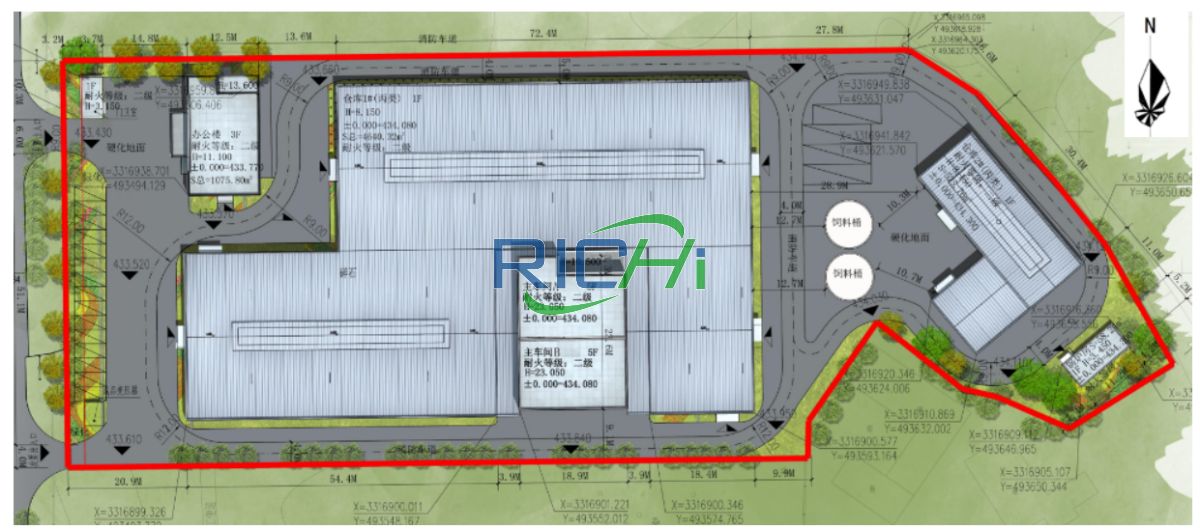

The workshop covers an area of ​​1,800 square meters, including a raw material warehouse and a finished product warehouse. The entire pellet line is compact in design, reasonable in structure, and meets environmental protection requirements. According to customer requirements for directional design.

Process flow of building template pellet production line with an output of 3-5 tons per hour:

1. Formwork crushing section: A dedicated building formwork crusher can process combustible wood materials such as waste formwork and waste single boards into wood chips, with a size of 20-30mm and a thickness of about 5-10mm, before entering the subsequent processing section.
2. Crushing section: There is no dust emission in this section. After crushing, the pulverizer is used for conveying and discharging by the negative pressure suction air force of the fan. The pulverizer is a drop-shaped structure, and the pulverizing rotor can be operated positively and negatively to increase the service life of the hammer. The motor is directly connected to the transmission mode.
3. Drying section: three-layer tumble dryer, the moisture of wood chips after drying is about 13-18%.
4. Granulation section: The diameter of biomass pellets is 6-10mm. Biomass pellets have the characteristics of high calorific value, no pollution and low ash content. They can be widely used in biomass power plants, biomass steam boilers, household fireplaces, etc. Drying furnace and biomass gasification furnace, etc.
5. Cooling and packing section: used to reduce particle temperature and particle moisture. The particle temperature after cooling is generally not higher than room temperature 5℃, the particle moisture after cooling is about 8-10%, and the particle bulk density is 650-750kg/m³. Packing can be based on the customer's local sales needs, and choose the appropriate packing scale to facilitate the customer to sell the product. There are usually two specifications of small bag and ton bag. The packaging specification of the small bag packaging scale is: 20-50kg/bag, and the packaging specification of the ton bag scale is: 500 -1000kg/bag.

According to the needs of different customers, the scheme can be optimized for configuration:

• If required, buffer bins can be added between each section to replace the storage yard. The advantage is that it can increase the automation of the production line and reduce the dust pollution in the workshop; the disadvantage is that it will increase the construction cost of the production line and is caused by crushing. The bulk density of the rear material is very light, and it is easy to form arches in the warehouse.
• If the moisture content of the raw material is not higher than 15%, it is not necessary to use a dryer, and granulate directly after crushing; if it is higher than 15% but lower than 20%, consider using dry material and wet material to mix After the moisture is neutralized and reduced, granulation is carried out.
• The packaging equipment can be adjusted according to the customer's requirements for finished product packaging. It can also be stored in bulk or steel silo.

Main equipment of 3-5t/h building template pellet producing line:
