1.Gear driving system, with good transmission rate, stable and reliable performance and low noise.
2.The key components are imported to ensure longer service life and lower cost for maintenance.
3.Simple structure, suitable for small farmers in rural areas to use. Easy maintenance, safe and reliable, less investment and quick effect.
4.Application from one single mobile plant to multiply combined plants.
5.The key components are imported to ensure longer service life and lower cost for maintenance.
6.Professional services for global customers.
Overview
According to customer different feed types, different output configuration can be customized. We devote ourselves to undertaking all ruminant feed mill 1-20T/H and to providing more value added service to all the customers.
(1)Determine the scale of ruminant feed mill.
(2)Determine the feed process and recommend ruminant feed machine.
(3)Control mode selection.
(4)Ruminant feed manufacturing plant structure selection.

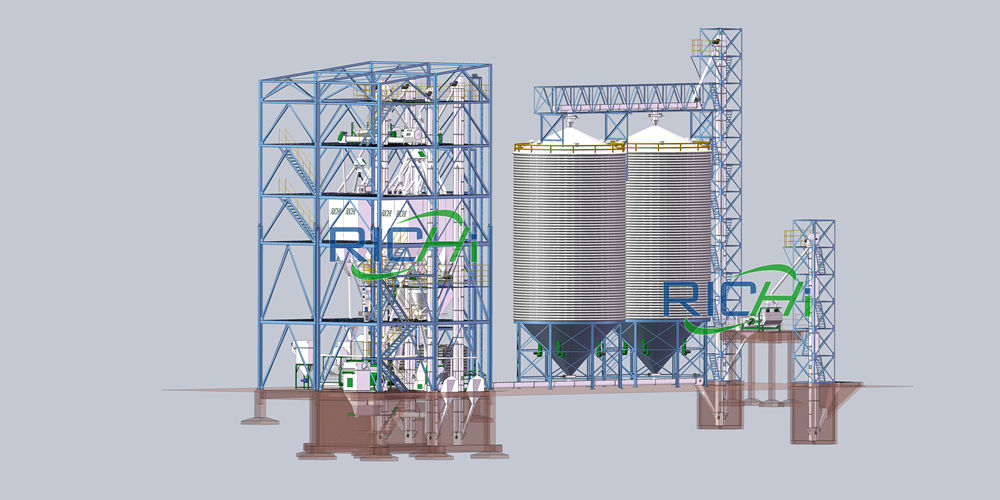

(5)Planning the general drawing of ruminant feed mill plant site.(1)Determine the scale of ruminant feed mill.
Working Principle

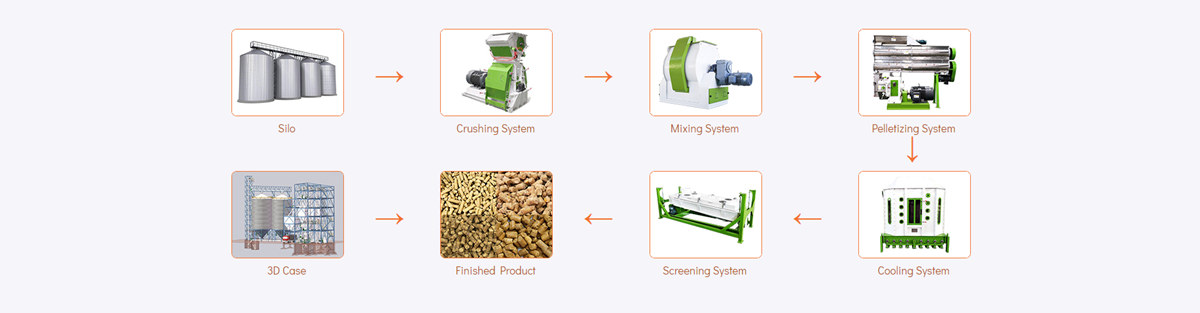

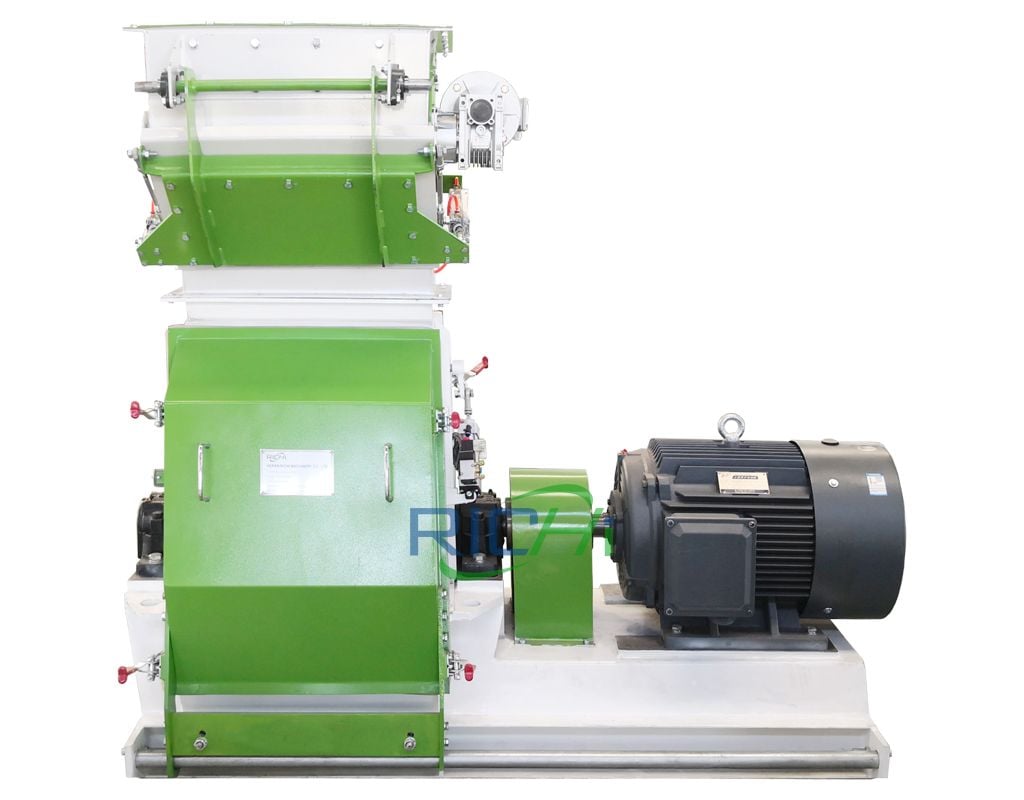

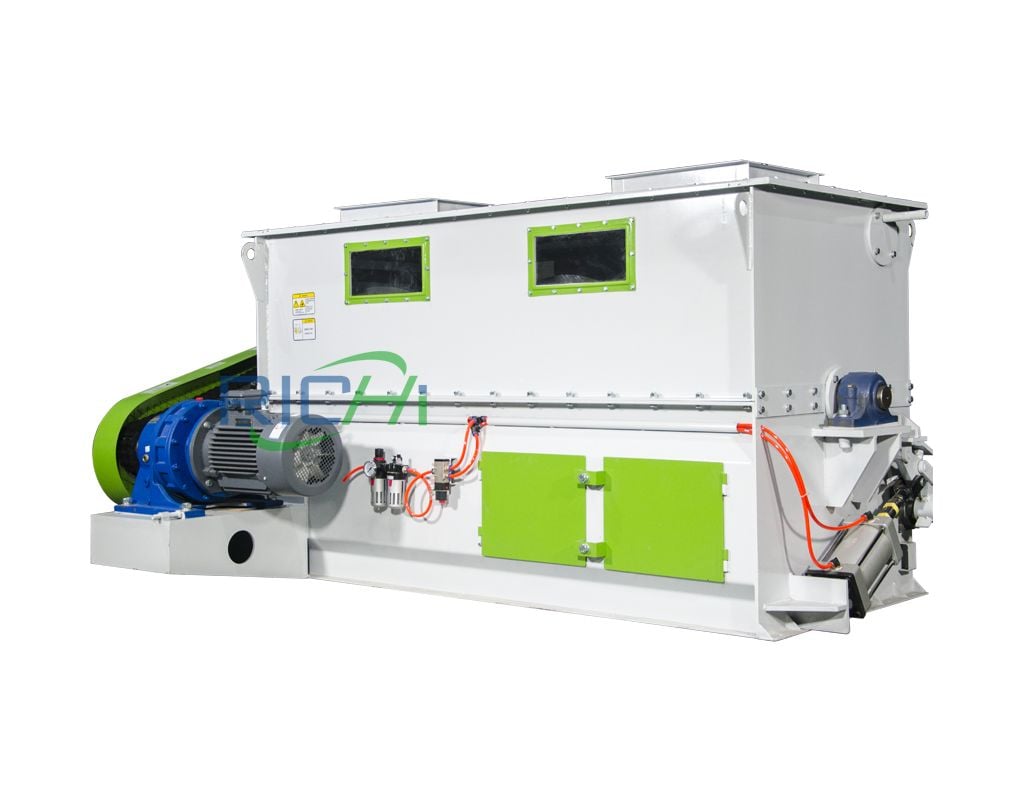

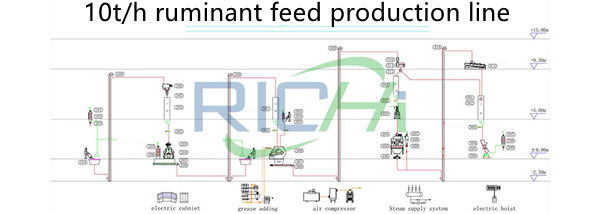

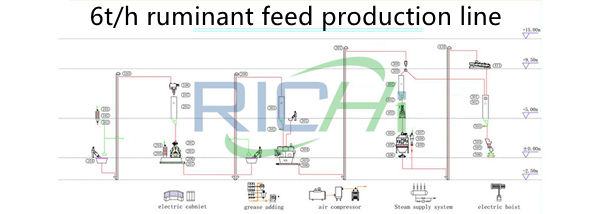

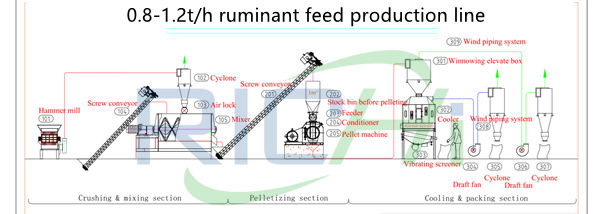

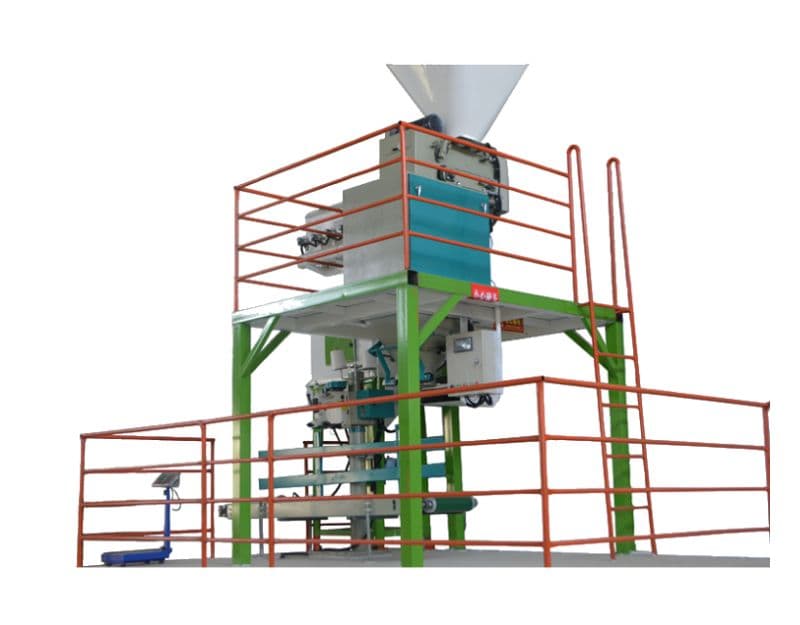

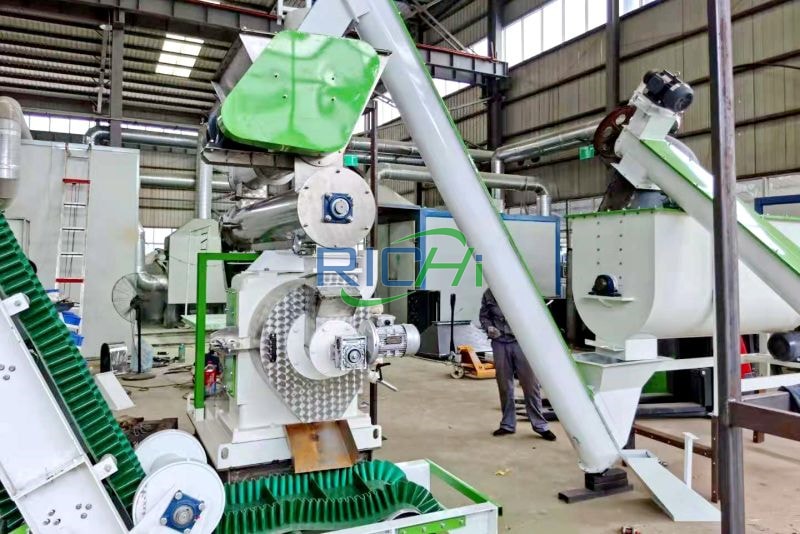

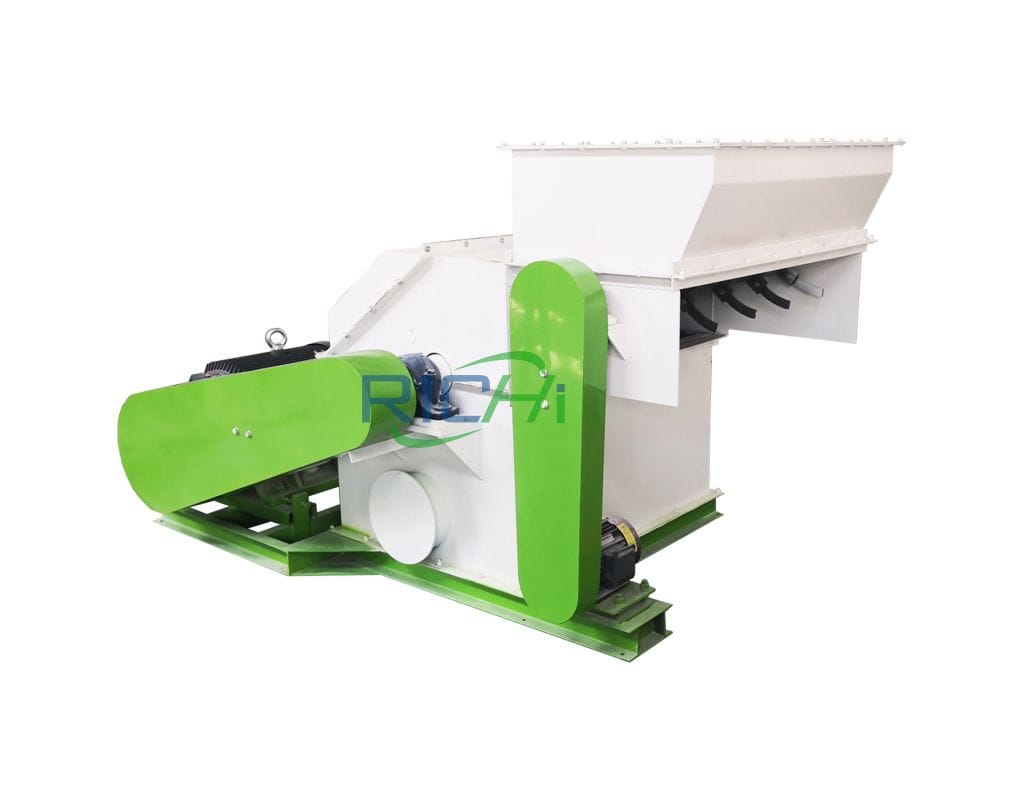

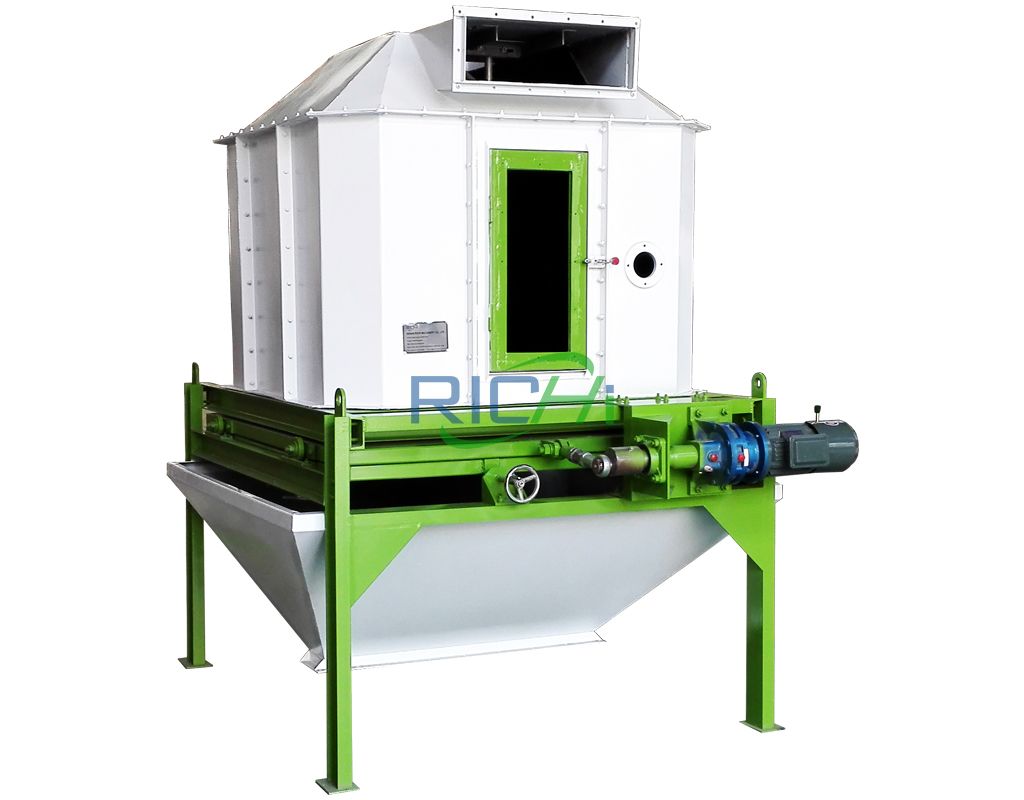

Animal Feed pellet production line process: Feed Crusher—Feed Mixer–Feed Pellet Mill–Pellet Cooler–Feed Package.
Firstly, the raw materials will go through the crushing and grinding process, and they will be processed into powder and then mixed completely. Then, through the feed pellet mill machine, the mixed feed mash will be made into pellets. After the cooling process, the feed pellets can pack directly.

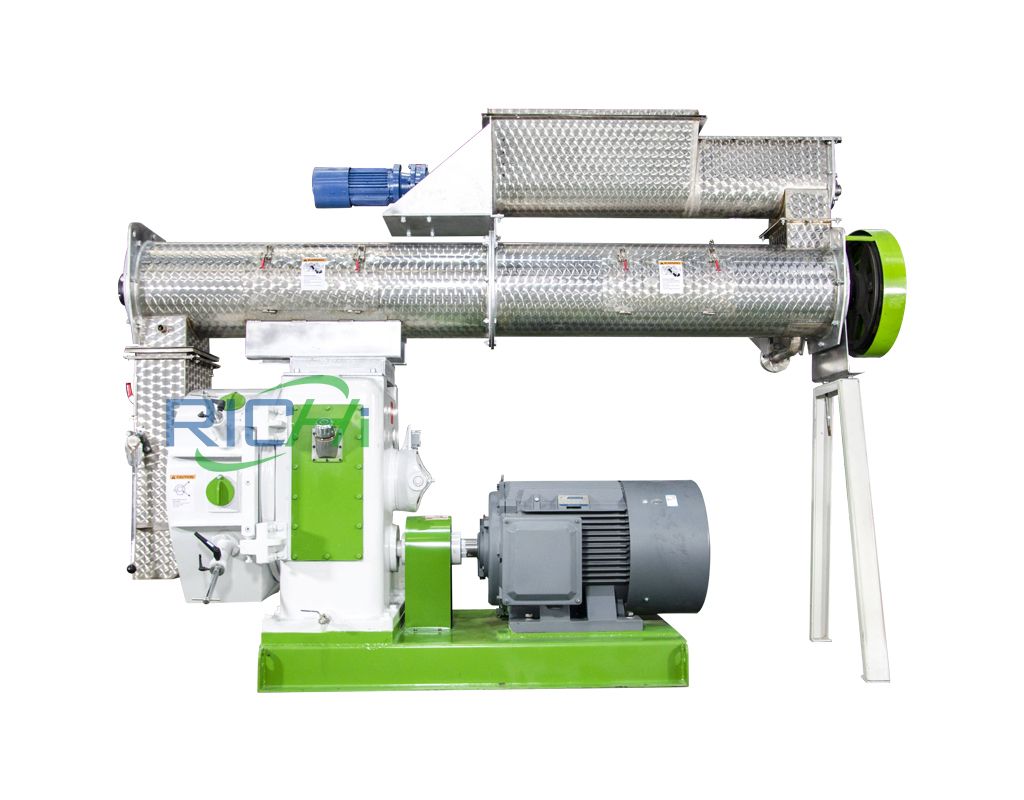

Parameters
| Model |
Capacity(TPH) |

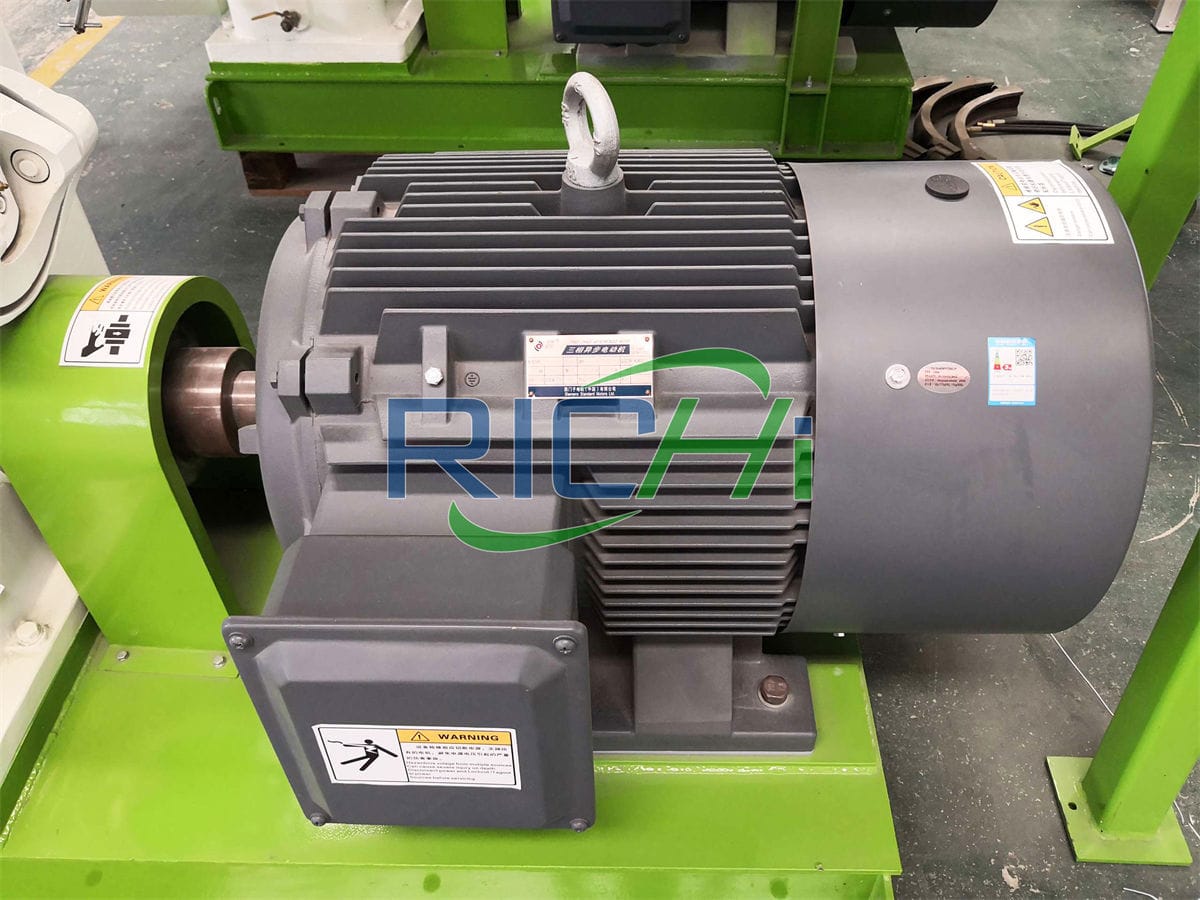

Main Motor Power(kw) |
Feeder Motor Power(kw) |
Conditioner Power(kw) |

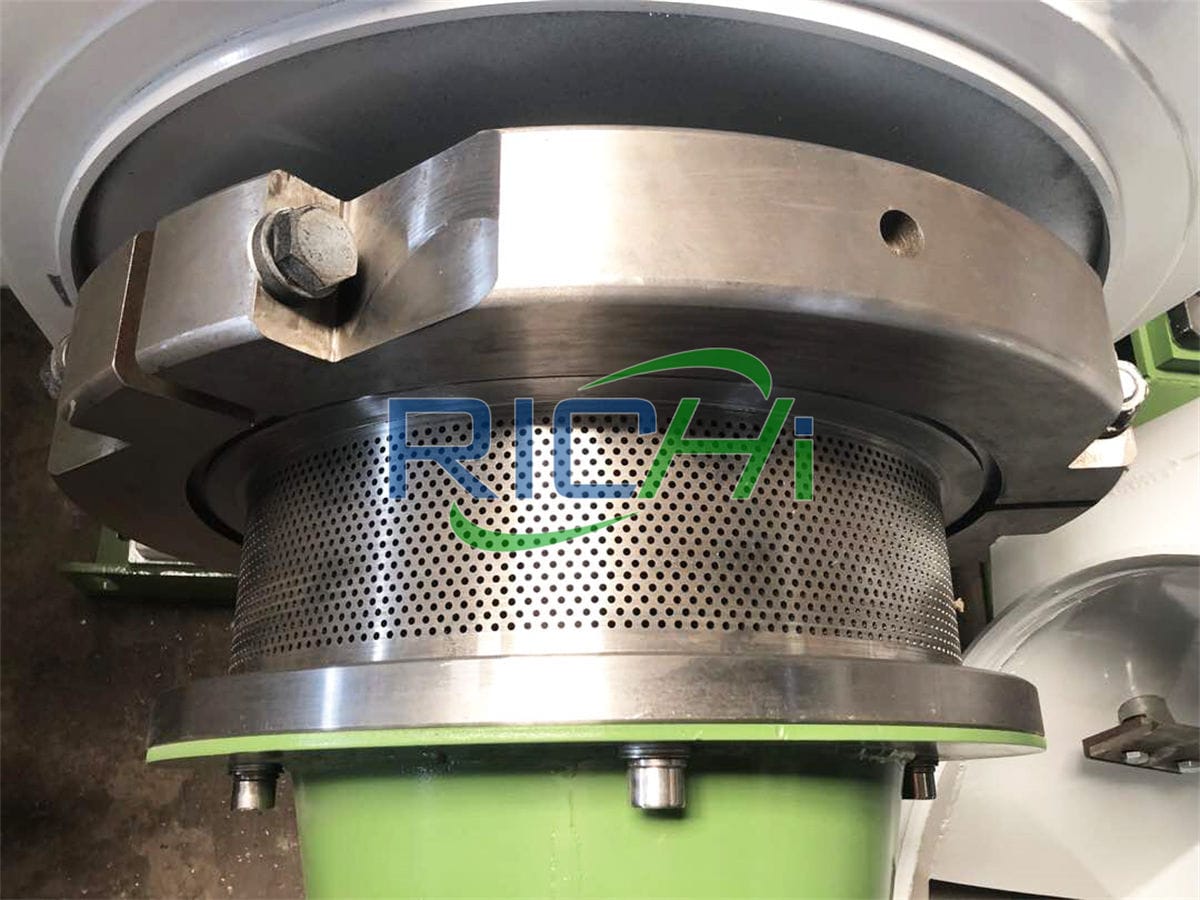

Dia.of Ring Die(mm) |
Final Pellet(mm) |
| SZLH250 |
1-2 |
22 |
0.75 |
1.5 |
250 |
2~12 |
| SZLH320 |
3-4 |
37 |
1.5 |
2.2 |
320 |
2~12 |
| SZLH350 |
5-7 |
55 |
1.5 |
3 |
350 |
2~12 |
| SZLH420 |
8-12 |
110 |
1.5 |
7.5 |
420 |
2~12 |
| SZLH508 |
10-18 |
160 |
2.2 |
11 |
508 |
2~12 |
| SZLH558 |
15-25 |
180/200 |
2.2 |
11 |
558 |
2~12 |
| SZLH558D |
14-22 |
160/180/200 |
1.5 |
7.5 |
558 |
2~18 |
| SZLH678 |
20-30 |
220/250 |
2.2 |
11 |
678 |
2~12 |
| SZLH678D |
15-25 |
200/220/250 |
2.2 |
11 |
673 |
2~18 |
| SZLH768 |
25-40 |
280/315 |
2.2 |
11 |
768 |
2~12 |
| SLZH858 |
25-42 |
280/315 |
2.2 |
15 |
858 |
2~18 |
