Alfalfa Pellet Making Machine

Home > Wood Pellet Mill >
Alfalfa Pellet Making Machine
Application: Alfalfa pellet production line, feed mill plant
Capacity: 0.7-40T/H
Main Power: 22-280 KW
WhatsApp: +86 138 3838 9622

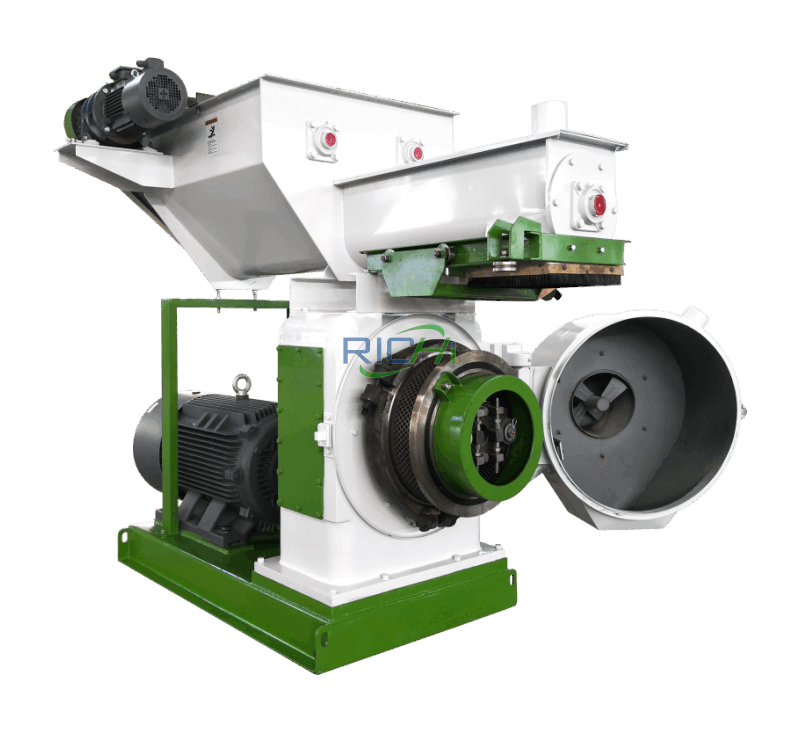

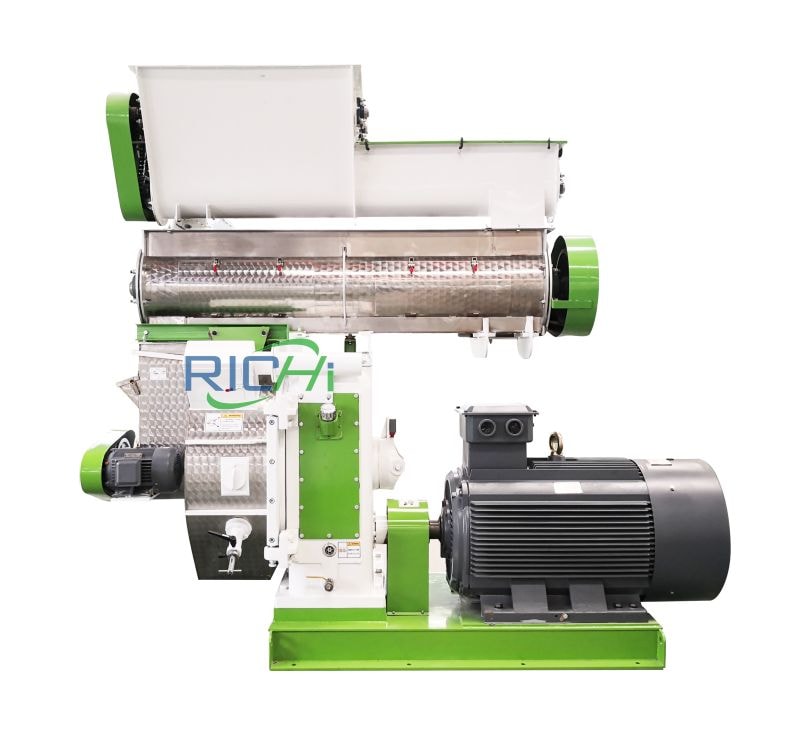

Alfalfa pellet making machine is a pelletizing equipment that specializes in making alfalfa feed pellets from alfalfa meal, alfalfa hay, bales of alfalfa, alfalfa haystacks and other materials. RICHI SZLH Series alfalfa pellet machine is mainly suitable for the production of ruminant and livestock feed pellets. In addition to alfalfa, the equipment can also be used to process various other types of grass pellets. No matter how much your alfalfa or grass raw materials account for in your formula, RICHI alfalfa pelleting can achieve value-added applications.

24 hours to reply to technical inquiries

Why use alfalfa pellet making machine to process alfalfa pellet?

Why use alfalfa pellet making machine to process alfalfa pellet

Alfalfa is a grass widely planted in the world. Due to its vigorous vitality and rapid growth rate, alfalfa can be harvested 1-13 times per growing season and can grow for more than 20 years. With these characteristics, it can be widely used in the production of biomass pellets and the production of animal feed.

Alfalfa pellets are feed compressed from alfalfa grass and are in the shape of cylindrical pellets. Alfalfa is a high-quality feed that contains a large amount of protein, fiber and other nutrients, as well as a variety of minerals and vitamins. The content and proportion of these nutrients are very suitable for the feeding needs of ruminants.

Alfalfa pellets made by alfalfa pellet making machine are suitable for feeding ruminants such as cattle and sheep. They can provide rich nutrients and help increase the weight and growth rate of animals. At the same time, alfalfa pellets have a long shelf life, are not easy to deteriorate, and are also very convenient for long-distance transportation and storage.

If you want to make feed pellets from fresh alfalfa or dehydrated alfalfa, alfalfa cubes, alfalfa meal, please stay on this page for more product information. If you want to "make alfalfa pellets into fertilizer", please go directly to our organic fertilizer pellet machine page to view detailed product information.

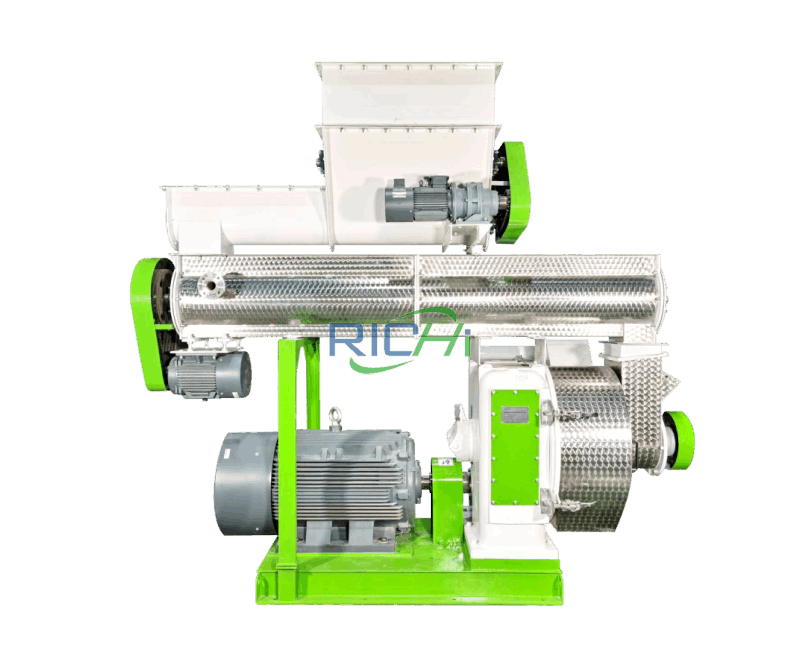

Features of alfalfa pellet making machine

  • RICHI's patented alfalfa feed pellet mill has an innovative feeding mechanism that ensures uniform and reliable feeding. It is specially designed for pasture, peanut seedlings, straw, and crude fiber materials;
  • Using high-precision gear transmission and quick-release hoop-type ring mold, the output is about 20% higher than that of the belt-driven type;
  • The transmission part of the whole alfalfa biomass pellet mill uses high-quality SKF bearings to ensure that the transmission is effective, stable and reliable;
  • The Stainless steel ring die manufactured by internationally advanced equipment and technology has long service life, smooth material discharging and high quality;
  • The ring die is made of internationally advanced steel, fully automatic gun drill drilling, and quenched in a vacuum heat treatment furnace. The working surface hardness is HRC62-65, and the service life is more than 500 hours;
  • The internationally advanced compensated serpentine spring coupling has excellent properties such as novel structure, compactness, stability, low noise, and low failure rate.
Features of alfalfa pellet making machine
Features of alfalfa pellet making machine
Features of alfalfa pellet making machine
Features of alfalfa pellet making machine
Features of alfalfa pellet making machine
Features of alfalfa pellet making machine
Features of alfalfa pellet making machine
Features of alfalfa pellet making machine

According to the status of the alfalfa material, the alfalfa pellet machine is also called alfalfa cubed pellet machine, alfalfa hay pellet machine, and alfalfa meal pellet machine. If you are interested in our alfalfa pellets machine, feel free to contact us to get a complete equipment quotation, transportation and installation plan.

Advantages of alfalfa pellet making machine

The alfalfa pelleting machine is a very practical machine with the advantages of easy operation, good processing effect, long service life and reasonable price. It can quickly process alfalfa into granules for easy storage and use.

  1. The design of this alfalfa pelletizer machine is very user-friendly and easy to operate. It uses advanced automation technology. You only need to put alfalfa into the machine, and the machine can automatically process it into particles without manual intervention, which greatly improves work efficiency.
  2. This machine also has multiple functions and can perform different processing according to different needs, making it very flexible.
  3. The processing effect of this alfalfa pelletizer is very good. It uses efficient compression technology to compress alfalfa into uniform particles, which is not only easy to store, but also maintains the nutritional content of alfalfa and improves its utilization value.
  4. Compared with traditional processing methods, it can save a lot of time and labor costs, and is a very economical and practical processing method.
  5. This alfalfa pellet mill has a very long service life. It uses high-quality materials and exquisite manufacturing, with very good durability and stability. Even if it is used for a long time, it is not prone to failure and damage, and can work stably for a long time, ensuring the production of alfalfa pellets.
  6. The price of this alfalfa granulating machine is very reasonable. Compared with other similar products, it has a very high cost performance, can improve production efficiency and economic benefits, and is very suitable for use in various scales of alfalfa pellet processing.

Working principle of alfalfa pellet making machine

The alfalfa pellet making machine is a machine that softens the alfalfa by heating and then presses it through the mold holes under high pressure into cylindrical or polygonal granules of different diameters. Its working principle includes the following parts:
Working principle of alfalfa pellet making machine

  1. Feeding system: The process of feeding alfalfa raw materials into the alfalfa hay pellet machine is called feeding. In the feeding system, the mixture of raw materials and moisture is transported to the hopper through a screw conveyor, and then the rotating feeding wheel brings the raw materials into the pressure roller and mold system.

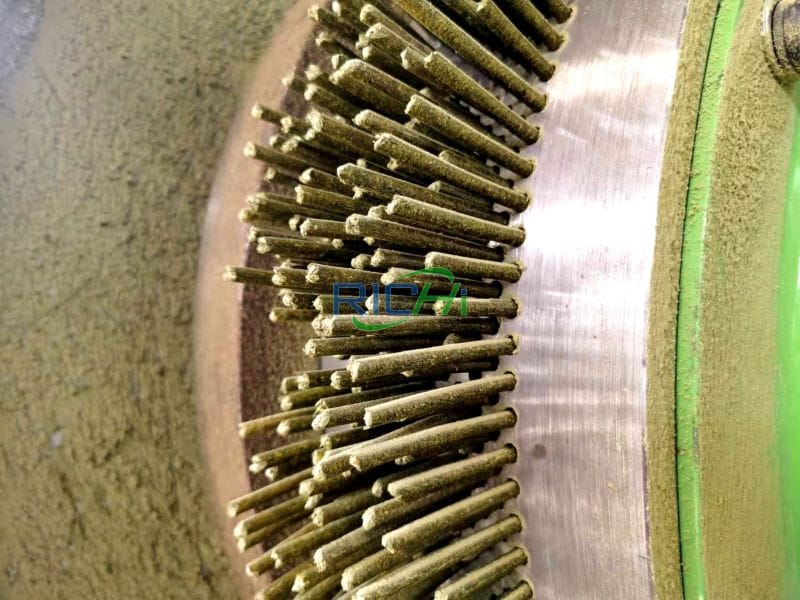

  2. Pressure roller and mold system: This system is the core component of the alfalfa hay pellet mill and consists of pressure rollers, molds and bearings. In this system, the pressure roller presses the alfalfa raw materials into alfalfa pellets of a certain shape through friction and pressure. The mold is pre-designed according to the shape and size of the alfalfa pellets. Pellets of different calibers and shapes can be produced by replacing molds with different specifications.
  3. Shearing system: During the alfalfa granulation process, due to the friction and compression between the raw material and the mold, the size and shape of the alfalfa pellets are different. The shearing system, on the other hand, adjusts the length and shape of the alfalfa pellets through components such as radiators and cutting devices.

In the alfalfa hay pellet mill, due to the high temperature and high pressure, a certain amount of heat will be generated inside the granules. Therefore, after the particles are made, their temperature needs to be reduced through a cooling system to ensure their quality and stability.

The grading system reprocesses the alfalfa pellets that do not meet the standards through the screening device to ensure the quality and consistency of the product.

Configuration of alfalfa pellet making machine

  • Ring die material: 42CrMo
  • Stainless steel conditioner
  • Door of pelleting room: 6mm /SUS304
  • Forced feeding: Worm gear reducer
  • Gear box: HT250
  • Gear: 42CrMo
  • Gear shaft: 42CrMo
  • Spindle: 42CrMo
  • Empty shaft: 42CrMo
  • Bearings: The gear shaft and main shaft bearings are SKF, and the pressure roller bearings are domestic high-quality bearings
  • Oil seal: Germany/Taiwan
  • Overload mechanical protection: safety pin
  • Serpentine spring coupling drive
  • Lubrication system: Configurable automatic oil injection system

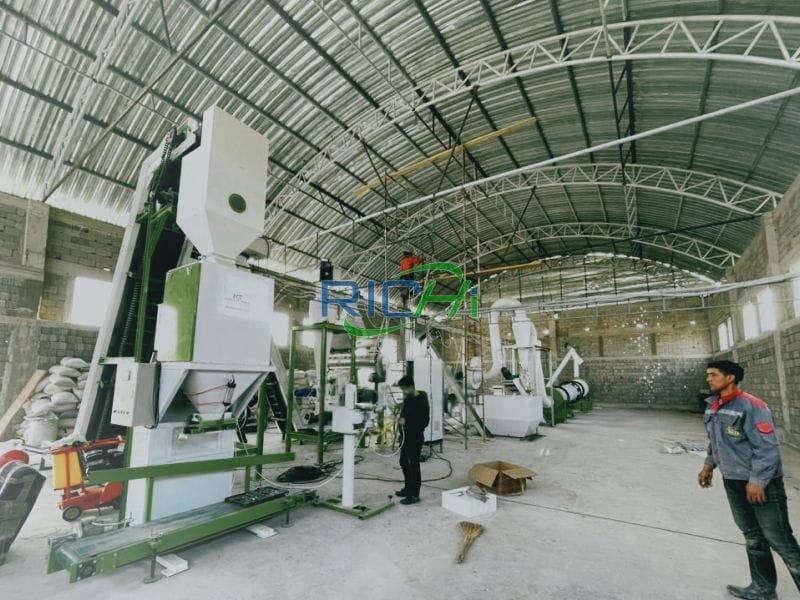

Video of alfalfa pellet making machinee

Specifications of alfalfa pellet making machine

Type MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Output(t/h) 0.7-4 1~6 2~10 3~15 4~30 5~40
Main motor power(kw) 22 37 90 132 250 280
Main motor series 6/8P
Forced Feeder (KW) 1.1 1.5 1.5 1.5 2.2 3
Conditioner Power(kw) 2.2 4 7.5 7.5 11 15
Ring die diameter (mm) 320 350 420 520 762 858
Finished pellet diameter (mm)  2-12mm

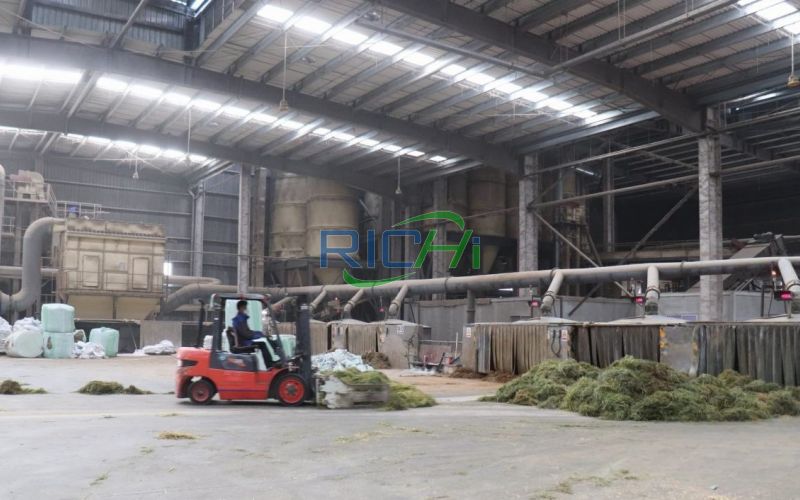

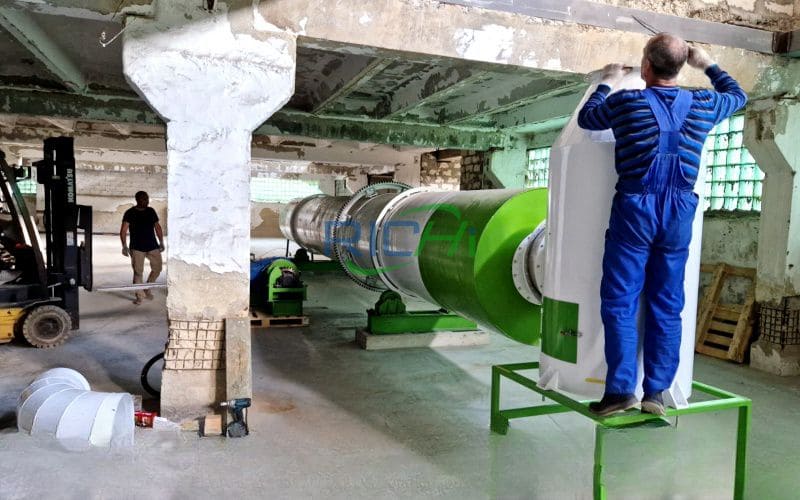

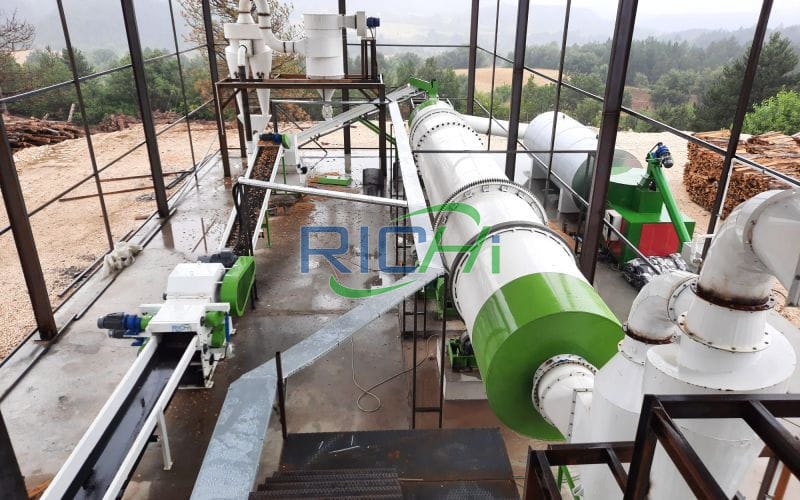

alfalfa pellet making machine projects

At present, our alfalfa pelletizer machines have been exported to the United States, Argentina, Australia, New Zealand, Brazil, Russia, Kazakhstan, Saudi Arabia, India, Indonesia, Austria and other countries. These exported equipment are mainly used for processing of grass feed for cattle, sheep, horses, rabbits and other livestock.

  • alfalfa pellet machine for sale Australia

    alfalfa pellet machine for sale Australia

  • alfalfa pellet machine for sale Thailand

    alfalfa pellet machine for sale Thailand

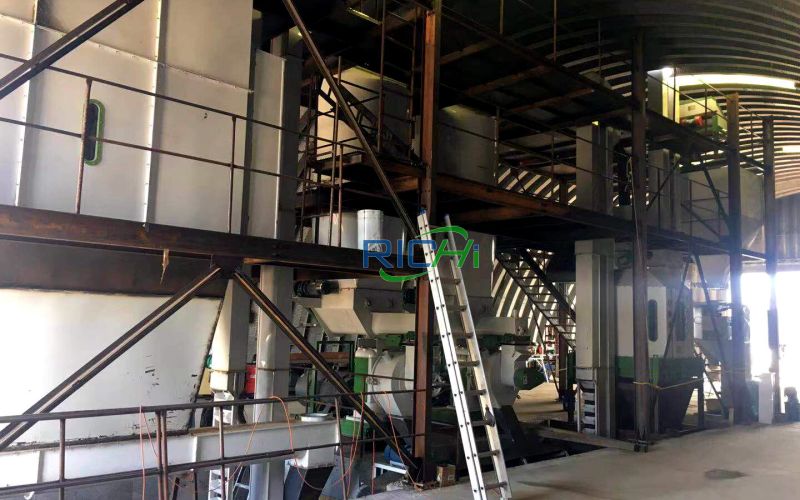

  • alfalfa pellet machine for sale Canada

    alfalfa pellet machine for sale Canada

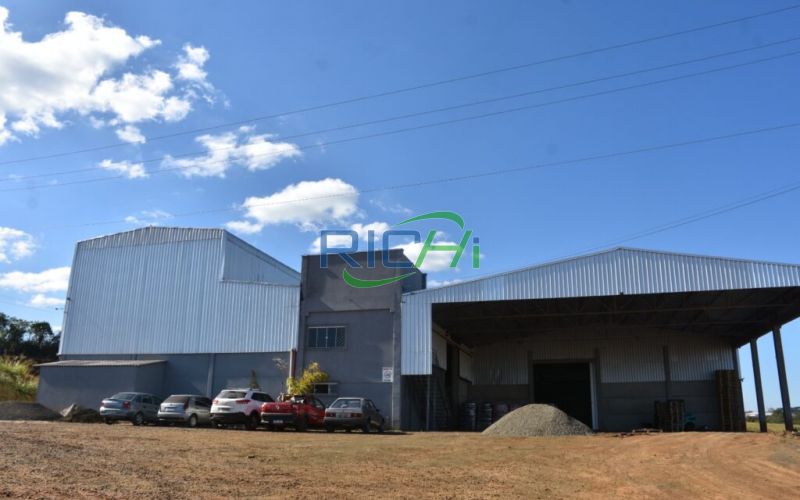

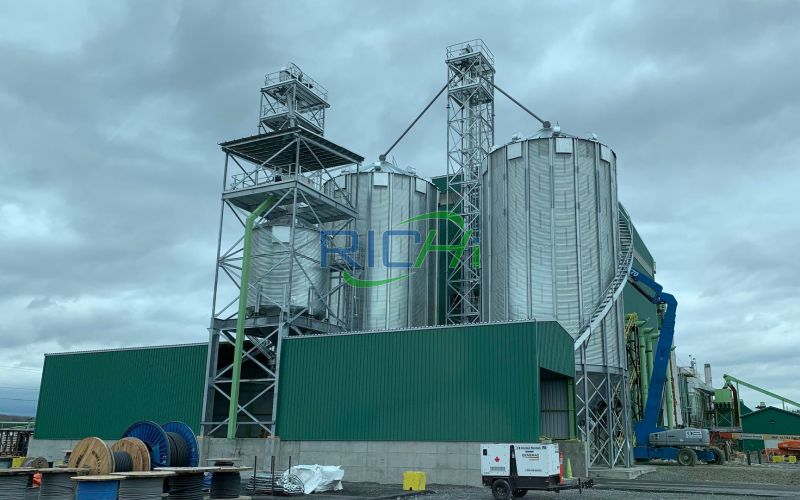

  • alfalfa pellet machine for sale Argentina

    alfalfa pellet machine for sale Argentina

  • alfalfa pellet mill for sale Russia

    alfalfa pellet mill for sale Russia

  • alfalfa pellet mill for sale USA

    alfalfa pellet mill for sale USA

  • alfalfa pellet mill for sale Brazil

    alfalfa pellet mill for sale Brazil

  • alfalfa pellet making machine for sale Vietnam

    alfalfa pellet making machine for sale Vietnam

  • alfalfa pellets machine for sale New Zealand

    alfalfa pellets machine for sale New Zealand

  • alfalfa pellet making machine for sale Saudi Arabia

    alfalfa pellet making machine for sale Saudi Arabia

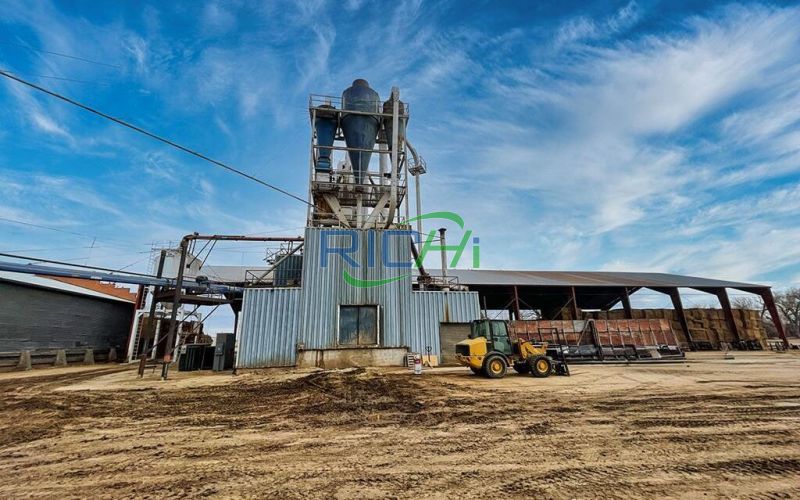

  • alfalfa pellet making machine for sale Indonesia

    alfalfa pellet making machine for sale Indonesia

  • Alfalfa pellet making machine for sale U.K.

    Alfalfa pellet making machine for sale U.K.

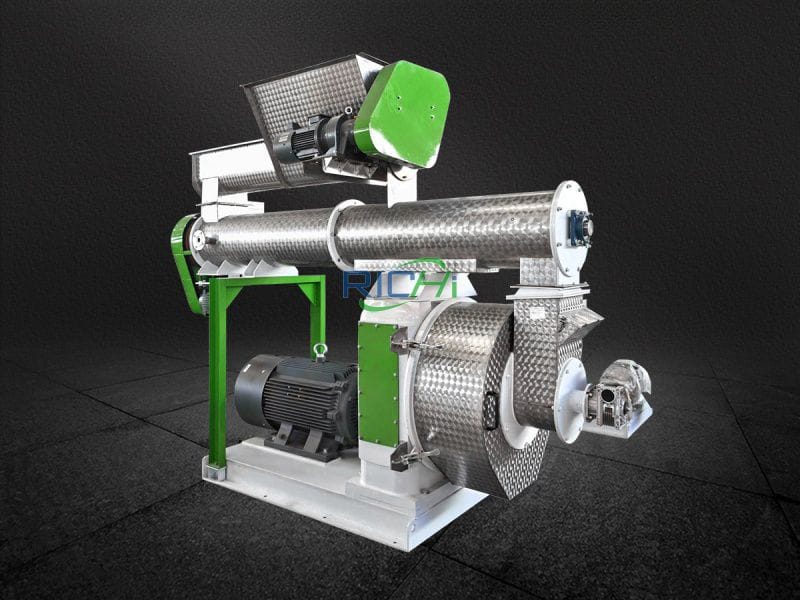

alfalfa pellet making machine price

The price of an alfalfa hay pellets machine is generally 10,000-100,000 USD. Each manufacturer's alfalfa pellet machine quotation is different. Here we will analyze the factors related to the price of the alfalfa meal pellet machine to help customers better understand the reasons behind the price of the equipment.


Market competition

The market for alfalfa pellet mills is highly competitive, and competition among many brands and manufacturers has brought about price fluctuations.

On the one hand, there are multiple brands and models of alfalfa meal pellet mill machines on the market, and consumers can choose equipment of different brands and specifications according to their own needs; on the other hand, the production costs and sales strategies of different manufacturers will also lead to price differences.

Therefore, consumers should fully consider the market competition and comprehensively evaluate the cost performance when choosing an alfalfa granulator.


Equipment performance

The price of alfalfa pellet mill is closely related to its performance. Generally speaking, the better the performance of the equipment, the price will increase accordingly.

For example, a high-performance alfalfa pellet making machine can complete more granulation tasks in a shorter period of time and improve production efficiency, but its price is relatively high; while some alfalfa pellet presses with low output are priced lower. Suitable for use in small alfalfa pellet production lines.

Therefore, alfalfa pellet processors need to choose a suitable model based on their own needs and budget when purchasing equipment to avoid over consumption.


Raw materials and processes

The raw materials and processes used in the alfalfa pellet mill will also affect alfalfa pellet making machine price.

On the one hand, the quality and cost of raw materials will directly affect the quality and price of equipment. For example, an alfalfa pellet mill made of high-quality steel is more sturdy and durable, but the price will increase accordingly.

On the other hand, different production processes and technical levels will also lead to price differences. Some manufacturers use advanced production processes and technologies to improve the performance and stability of their equipment, but their prices will also be higher.

Therefore, consumers should have a certain understanding of raw materials and processes when purchasing equipment, and make choices based on specific circumstances.


After-sales service

After-sales service is also an important factor affecting the price of alfalfa pellet press machine. Some brands and manufacturers provide complete after-sales services, including equipment installation and commissioning, technical training, maintenance, etc., and the prices are usually higher than other manufacturers.

This is because good after-sales service can ensure users' normal use and maintenance, provide timely technical support and solutions, and bring convenience and value to users. When choosing a pelletize alfalfa machine consumers should consider the quality of after-sales service and maintenance cycles, and comprehensively evaluate the relationship between price and service.

The price of pelletizer of alfalfa is affected by many factors such as market competition, equipment performance, raw materials and processes, and after-sales service.

When purchasing an alfalfa pellet machine, alfalfa pellet processors should fully understand the market conditions, choose suitable equipment according to their own needs and budget, and at the same time comprehensively consider the performance of the equipment, raw materials and processes, and after-sales service.

Only through comprehensive analysis can we find a cost-effective alfalfa pellet making machine to provide users with better user experience and economic benefits.

How to choose alfalfa pellet making machine?


Understand the types of alfalfa pellet machines

Alfalfa pellet machines are mainly divided into two types: flat die feed pellet machines and ring die feed pellet machines.

The price of the flat-die alfalfa feed pellet machine is relatively low, but the output is small and the pellet quality is poor, so it is only suitable for very small-scale farmers; while the ring-die alfalfa feed pellet machine is more expensive but has a large output and is currently the most suitable for grass feed processing.

The standard model is suitable for use in various animal cattle sheep ruminant feed mills and medium and large-scale breeding farms. Alfalfa pellet processors should choose the appropriate machine model based on their production scale and production needs.


Pay attention to the compression ratio of the feed alfalfa pelletizing machine

Compression ratio is one of the important indicators to measure the performance of alfalfa feed pellet machine. The higher the compression ratio, the better the pelleting effect and the higher the feed utilization rate.

Therefore, when choosing an alfalfa pellet machine, you should pay attention to its compression ratio. Generally speaking, a feed pellet machine with a compression ratio of above 1:8 is ideal.


Consider the power consumption of the alfalfa pellet making machine

Power consumption is an important factor that customers cannot ignore when choosing a roller mill for alfalfa pellets. Low power consumption means low production costs, which is beneficial to improving production efficiency.

When purchasing a feed pellet machine, you should choose equipment with low energy consumption and high efficiency to reduce production costs.
How to choose alfalfa pellet making machine


Pay attention to the stability of the alfalfa pellets machine

Stability is one of the important criteria to measure the quality of dehydrated alfalfa pellets mill. A stable alfalfa pellet machine can ensure the continuity and stability of production and improve production efficiency.

Therefore, when choosing an alfalfa pellet machine, you should pay attention to its stability and choose equipment with reliable quality and stable performance.


Compare alfalfa pellet machines from different manufacturers and models

When choosing an alfalfa pellet machine for animal, you should compare equipment from different manufacturers and models. Take comprehensive consideration of price, performance, quality, after-sales service and other aspects to select the most cost-effective equipment.

Additionally, look to the experience and advice of other alfalfa pellet processors to make a more informed choice.


Testing and acceptance

When purchasing an alfalfa pellet making machine, you should conduct an on-site test to observe the operation status and pelletizing effect of the equipment.

At the same time, during acceptance, attention should be paid to the appearance quality, assembly accuracy, and operation stability of the equipment to ensure that the purchased equipment meets the requirements.

To sum up, choosing a suitable alfalfa pellet mill machine needs to consider many aspects, including machine model, compression ratio, power consumption, stability, cost performance, test machine and acceptance, etc.

Customers should consider the above factors based on their actual situation and choose an alfalfa pellet machine that is cost-effective, stable and suitable for them. This will help improve the efficiency of alfalfa pellet processing, reduce production costs, and bring more economic benefits to yourself.

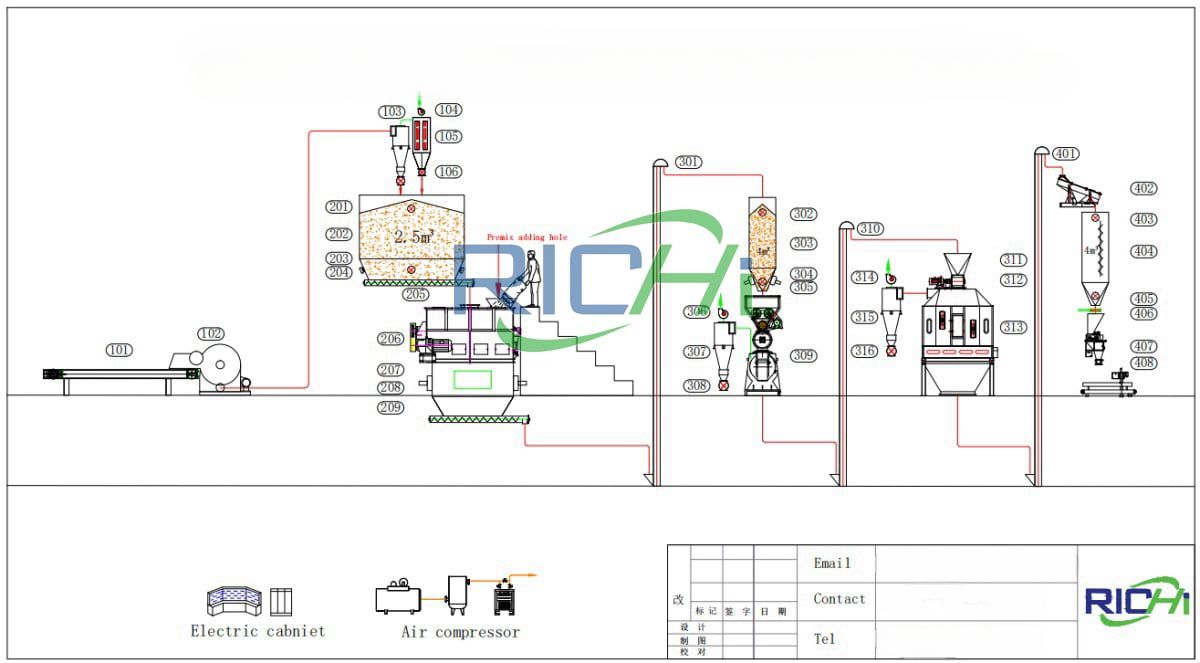

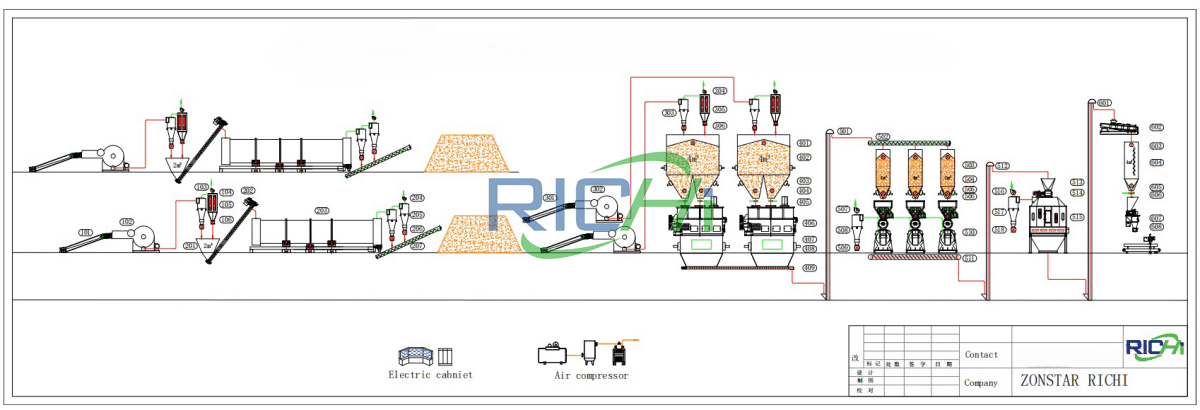

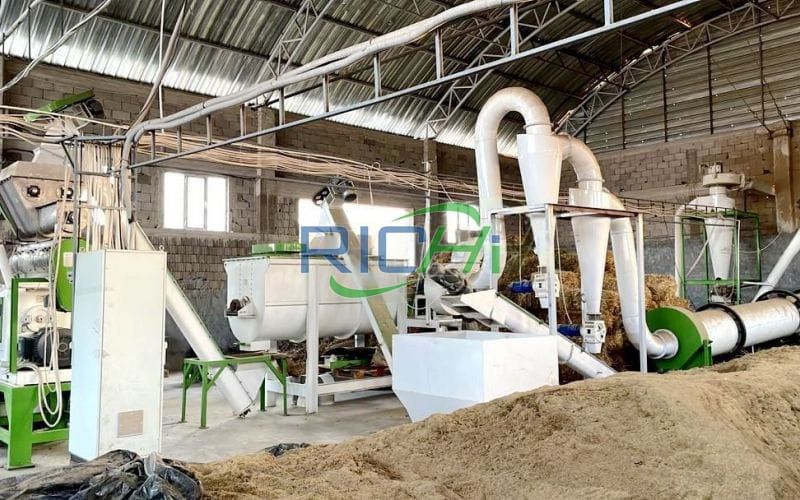

Complete alfalfa pellet machine system technology

Complete alfalfa pellet machine system technology

The alfalfa pellet making machine is only used in the granulation section of the alfalfa pellet production line. To complete the alfalfa granulation, many processes are required to form a complete system, and this system is alfalfa pellet plant.

The method of using mechanical pelleting technology to press hay into finished pellets is called the alfalfa pellet making process.

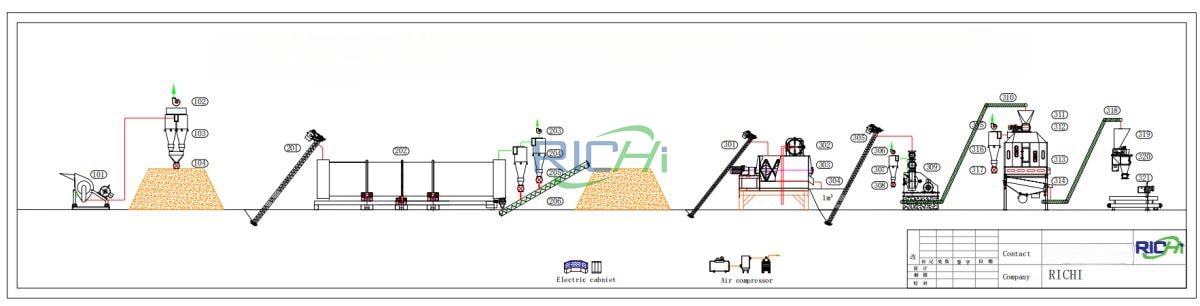

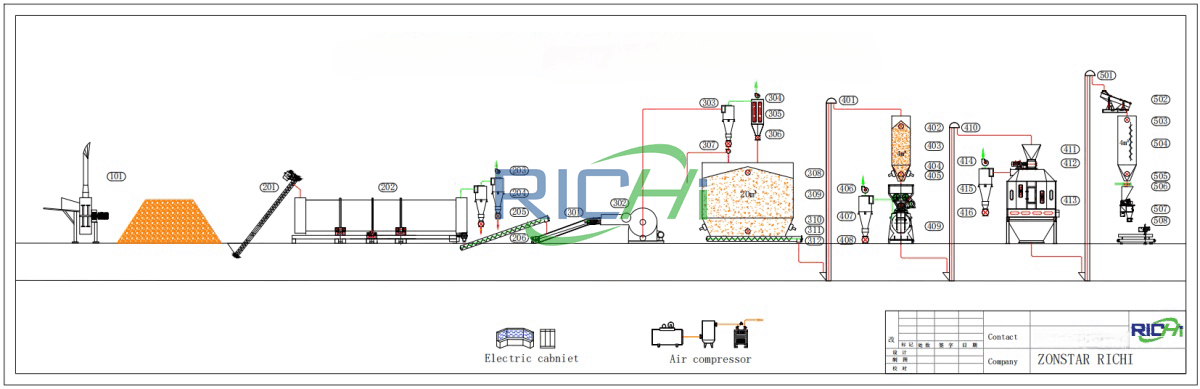

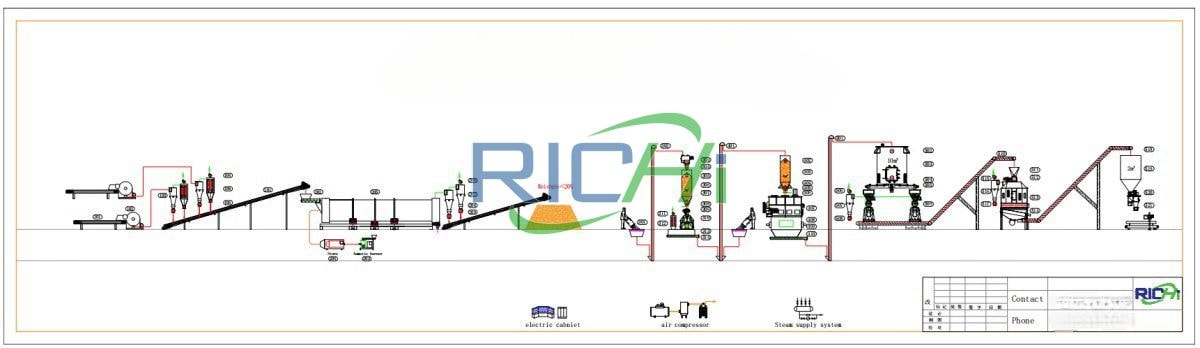

Generally speaking, the standard alfalfa pellet production process flow is: raw material processing → crushing → drying → batching → mixing and stirring → granulation and molding → dry packaging.


Raw material processing

After the raw materials are screened to remove impurities and mold, they are cleaned and sent to the silo for later use (choose the appropriate mesh size according to different materials).

During the feeding process, it is necessary to prevent debris from entering the machine cavity and causing blockage. (Since the alfalfa forms of each customer are different, some are in bundles, some are alfalfa powder, some are wet alfalfa, and some are alfalfa hay, the pretreatment and cleaning methods of these raw materials are different, and the equipment that needs to be configured is also different.)



Send the cleaned alfalfa to the crushing chamber via a belt conveyor for coarse crushing (choose the appropriate crushing method according to different materials). (If the raw material is grass meal, there is no need to crush it.)



The coarsely crushed wet material is discharged from the discharge port into the alfalfa dryer for drying treatment (appropriate temperature control parameters can be selected according to the characteristics of different materials), so that the water evaporates and reaches the required moisture content before being sent back.

The crushing chamber continues secondary crushing until the required fineness is met. (If the raw materials meet the moisture requirements, drying is not necessary.)



The dried finished product is sent to the vibrating screen by a screw conveyor for screening to remove impurities and ensure that the product quality is up to standard. (Appropriate vibration frequency and amplitude values can be selected according to the characteristics of different materials to achieve the ideal screening effect.



The dried material is sent to the silo, and then enters the alfalfa pellet making machine through the conveyor for granulation. The granulation process is the process of compressing materials into granules for easier storage and transportation. This link is a key step in the entire process and requires precise control of the size and quality of the alfalfa granules.



After the granulation is completed, we use a conveyor belt to send the high-temperature granules into the cooling machine for cooling treatment. This step is to quickly cool down the high-temperature particles and prevent them from sticking together. It also helps to improve the hardness and wear resistance of the alfalfa pellets.



Finally, the cooled alfalfa pellets enter the packaging machine for packaging for sale and transportation. The packaging process needs to be customized according to customer needs to ensure that the product meets market requirements.

Throughout the entire alfalfa biomass pellet plant process, RICHI focuses on the continuity and stability of each link to ensure the best quality and output of the final product. In addition, we also improve production efficiency and reduce costs through continuous technological innovation and improvement to provide customers with better services.

equipment needed to start alfalfa pellet making machine line

Generally speaking, in addition to the alfalfa pellet mill, if you want to process pellets and achieve continuous and automated operation of the system, you also need a bale breaker, alfalfa crusher, dryer, conveyor, cleaning equipment, dust removal equipment, Equipment such as packaging scales and buffer bins.

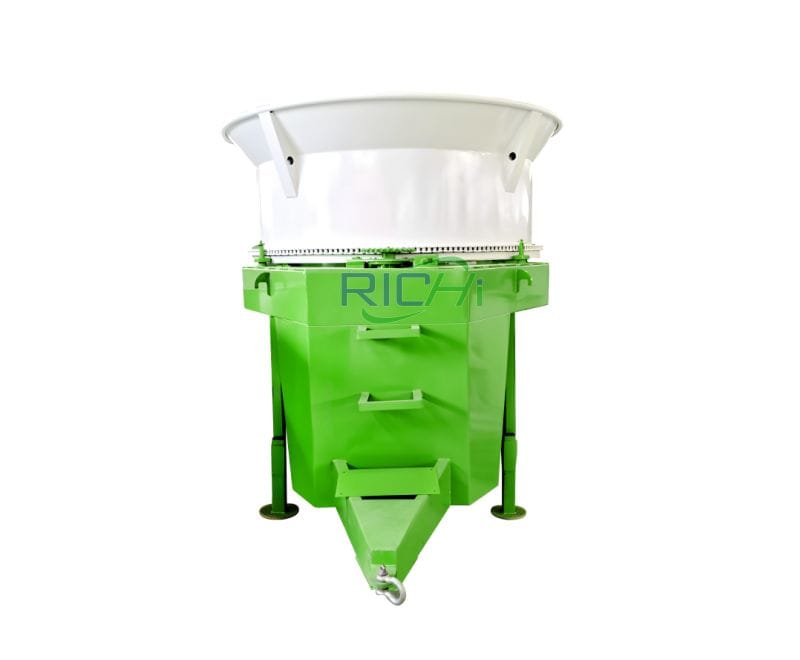

Bale breaker for alfalfa bale

Bale breaker

Main Power:

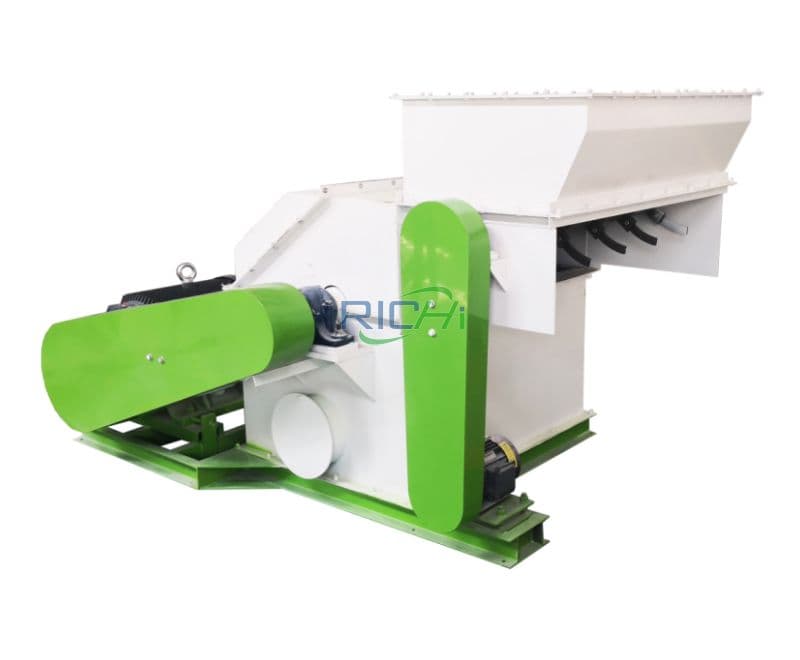

alfalfa crusher

alfalfa crusher

Rotate Speed:
22-93 KW
Rotary Dryer for alfalfa

Rotary Dryer

Rotate Speed:
3-8 R/Min
alfalfa feed Hammer Mill

alfalfa feed Hammer Mill

Main Power:
alfalfa feed mixer machine

alfalfa feed mixer machine

Main Power:
alfalfa feed Pellet Cooler

alfalfa feed Pellet Cooler

Main Power:
0.75-2.05 KW
alfalfa pellet screener

alfalfa pellet screener

Main Power:
1.5-5.5 KW
alfalfa pellet Bagging Machine

alfalfa pellet Bagging Machine

6-12 Bags/Min
Main Power:

Alfalfa pellet processing prospects

Alfalfa pellet processing prospects

It is known that animals have different nutritional needs. Providing proper nutrition to livestock is an important way to ensure their health. Through post-processing in an alfalfa pellet making machine, alfalfa can become nutritionally balanced livestock rations better for animals.

No waste, 10% savings compared to loose hay. It is easier and more accurate to estimate the amount of feed needed by cattle and horses than with traditional hay and grain feeding programs. Nutritionally optimized to meet the dietary needs of animals.

With the development of animal husbandry and feed processing industry, the demand for alfalfa feed is increasing day by day. At the same time, there are also higher requirements for the palatability, utilization, nutritional value, storage and processing of alfalfa feed.

In such a situation under the background, ordinary grass products (hay, bales, grass blocks, grass meal) can no longer meet the needs of the market. Forage alfalfa pellet products with good palatability and effective improvement of forage utilization and digestibility are widely favored by the market and are also the main development directions of grass product processing.

If you are also interested in alfalfa pellet processing, feel free to contact RICHI Machinery to get quotations and solutions for alfalfa pellet making machines, alfalfa pellet production lines, on-site operation videos and past project information.

alfalfa pellet mill

Why Choose Richi

why choose richi
why choose richi

Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields.

All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization.

Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan

Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Quality Control

Delivery And Installation

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment.

According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training

After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs.

After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.

Related Project
Contact Us



Demands: (Submit your requirement here, eg. equipment, materials, product type, production size, etc.)

* We will store the information you have provided us. We will only use this information for the purpose of helping to answer your inquiries. We will not disclose your information to third parties.

Copyright © 2015-2023 by HENAN RICHI MACHINERY CO,LTD.All rights reserved.
Fill Out The Form To Get Quotation
