PROJECT

COMPLETE PELLETIZING PLANT PROJECTS, ALL IN HERE

For a long time, RICHI has accumulated rich experience in the pellet production lines construction, and has established cooperative relations with thousands of customers in more than 130 countries and regions, providing complete solutions for animal feed mill plants, aqua feed production lines, wood pellet production line, and agricultural waste biomass pellet production lines, organic fertilizer production line, cat litter production lines, etc., and provide services covering the entire life cycle of products.

Home > Feed Production Line >

12-15 T/H Animal Feed Mill in the Philippines

Name:Animal Feed Mill For Chicken and Pig Feed
Country:Philippines
Date:July 10, 2022
Capacity:12-15 T/H
Pellet Size:2-6mm
The install period:60 Days
Control Mode:Automatic
Guiding Price:630,000 USD

12-15 T/H Animal Feed Mill in the Philippines

Project Introduction

Here, RICHI will introduce to you our 12-15 t/h animal feed mill in the Philippines project. This is a poultry feed mill expansion project. The customer's raw feed production capacity is 40t/h.

Due to the development needs of his company, he plans to expand the feed factory to increase production capacity and supply it to livestock and poultry farmers in the Philippines and surrounding countries.

The customer's raw feed equipment is not supplied by us. Since many problems occurred during the operation of the original animal feed mill machine, the customer looked for multiple manufacturers to formulate feed mill expansion plans.

In the end, RICHI stood out among more than ten manufacturers and won the project with its unique feed mill process design, advanced feed equipment and reliable service processes.
12-15 T/H Animal Feed Mill in the Philippines

  1. Project construction content:
    This 12-15 t/h animal feed mill in the Philippines expansion project expands a feed production line in the original factory area, covering an area of 1.35 acres, with a construction area of 900 square meters, an expanded production workshop of 200 square meters, a warehouse of 700 square meters, and three corn barns. New elevators, double-shaft high-efficiency mixers, animal feed granulators and other equipment were added, totaling 33 sets.
  2. Project investment:
    The total investment of the 12-15 t/h animal feed mill in the Philippines project is US$630,000, of which environmental protection investment accounts for 5% of the total investment.
  3. Feed mill personnel:
    Based on the needs of customers, in the design of our automation solution, there is no need to add new employees. The labor quota for this project is still 20 people, with a one-shift system of 8 hours per shift and 350 days of work per year.
  4. Production scale:
    The new production capacity of this expansion project is 35,000t of feed per year. After the completion of the expansion project, the production scale of the entire animal feed productioon line will reach an annual feed production of 155,000t (i.e. 55t/h).
Get Price & Support

Equipment for 12-15 t/h animal feed mill in the Philippines

After the expansion project is completed, the main production equipment of the whole poultry livestock feed production line will be as follows:

Device Name Existing Quantity New Quantity (set/unit)
Bucket elevator 11 11
Permanent magnet cylinder 3 3
Scraper conveyor 2 2
Speed regulating auger 3 3
horizontal auger 3 3
Double-shaft high-efficiency mixer 1 2
Single shaft mixer 1 1
Granulator 1 1
Granulator 1 1
Multi-stage plane rotary screen 1 1
Counter flow cooler 1 1
Empty aircraft 1 1
Fan 1 1
Clean screen 1 1
Grinder 1 1

Raw materials and energy consumption

The main raw material consumption before and after the 12-15 t/h animal feed mill in the Philippines project is constructed is shown in the table below:

Name Annual Consumption Of Existing Projects (t/a) Annual Consumption Of Expansion Projects
Corn 71640t/a 20895t/a
Soybean meal 35820t/a 10447.5t/a
Rice bran meal 11940t/a 3482.5t/a
Soybean oil 1271.37t/a 370.9t/a
Electricity 700,000kW·h/a 200,000kW·h/a
Water 350t/a 0

Public works

01

Water supply and drainage

02

Power supply:

The electricity consumption of this project is increased by 200,000 kWh/a. The power supply relies on existing projects and can meet the power demand of the factory area.

03

Heating:

No heating is required during the production process, and air conditioning is used for office heating.

Get Price & Support

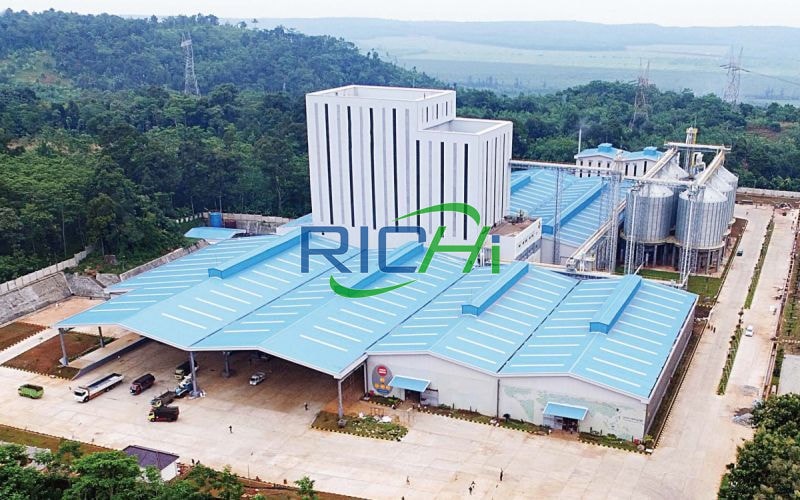

Philippines 12-15 t/h animal feed mill layout

The 12-15 t/h animal feed mill in the Philippines will build a new production workshop, a warehouse and three corn warehouses.

The layout of the entire factory building is reasonable, and the layout of the production area conforms to the process flow, reducing roundabouts and round trips in the production process, which is conducive to production.YouTube

Process flow of 12-15 t/h animal feed mill in the Philippines

01

Raw corn processing

  • The purchased bulk corn is manually poured into the hopper, and then sent to the powder sieve and pellet cleaning sieve by a sealed elevator.
  • After screening, large impurities and small impurities are separated from the impurity separation port of the cleaning screen respectively. The corn is sent to the upper mouth of the corn bin by a closed elevator and enters the corn bin through a manual distributor.
  • During production, the corn falls by gravity from the bottom of the corn bin to the closed scraper conveyor, and then is sent to the bin to be crushed by the sealed elevator.
  • The crushed corn falls into the closed elevator by gravity. Inside, it is sent to the batching bin by a closed elevator through a pneumatic distributor. The speed-adjusting auger, permanent magnet cylinder and pulverizer of this process are all arranged in the underground workshop.

02

Excipient processing

The purchased raw material rice bran meal in bags is manually poured into the hopper, and then sent to the closed elevator through the horizontal auger, and then enters the batching bin through the distribution plate.

03

Raw material soybean meal processing

The purchased raw material soybean meal in bags is manually poured into the hopper, and then sent to the warehouse to be crushed by a closed elevator. The raw materials are sent from the warehouse to be crushed through the speed-adjusted auger to the permanent magnet cylinder to separate the iron-containing impurities, and then sent to the crusher.

After being crushed, the raw materials are sent to the closed elevator by the horizontal auger, and then sent to the batching bin through the distribution plate.

04

Mixing of raw materials

The processed corn, soybean meal and rice bran meal are quantified by electronic scale buckets respectively and then enter the twin-shaft high-efficiency mixer for mixing.

While mixing, the soybean oil stored in the oil storage barrel is sprayed into the mixer in the form of mist through the upper nozzle of the mixer to mix with the raw materials.

The mixed raw materials enter the intermediate silo, and then are sent to the closed elevator by the horizontal auger. After being distributed by the pneumatic distributor, part of the raw materials are sent to the powder finished product silo by the closed scraper conveyor, and the rest is sent to the pellet feed preparation process.

05

Discharging and packaging of finished powder products

The powder in the finished powder warehouse is bagged and packaged by an automatic packaging machine and sent to the warehouse for storage.

06

Preparation and packaging of pellet feed

  • The raw materials from the raw material mixing process are separated from impurities by a permanent magnet cylinder by a closed elevator and then enter the granulation bin. Then they enter the animal feed pellet making machine by gravity, and the crushed materials in the animal feed pellet machine are pressed into granules.
  • Since heat is released during the compression of raw materials, the temperature of the molded pellets can reach a maximum of 75°C to 85°C, so cooling is required.
  • The granules fall from the bottom of the animal feed pellet press into the counter-flow cooler, in the counter-flow cooler. The cold air is blown in from the bottom of the cooler, exchanges heat with the pellets, and is filtered by the filter above the cooler before being discharged from the cooler.
  • The cooled pellets fall downward into the pellet crumbler for crumbling. The crumbled pellets are sent to the closed multi-stage rotary screen by the closed elevator for screening. The pellets with too large particle size on the screen are sent to the crusher by the closed conveyor for crushing. The pellets with too small particle size under the screen are sent to the crusher for crushing. Return to the granulation warehouse.
  • Pellets with particle sizes that meet the requirements are sent to the finished product warehouse, and are then bagged and packaged manually and sent to the warehouse for storage.
Get Price & Support

Strong Philippine animal feed market - starting animal feed mill in the Philippines

The Philippines is located in tropical Southeast Asia, with sufficient sunshine and abundant rainfall, providing excellent basic conditions for the development of agriculture, animal husbandry and breeding. Agriculture and animal husbandry are an important part of the Philippine national economy.

About 48% of the country's labor force is engaged in agricultural production activities. The population of the Philippines is expanding rapidly. Livestock and poultry are an important part of agricultural production, accounting for about 76% of the total agricultural output value.

The Philippine government also strongly supports this industry and adopts a strategy of giving priority to the development of the livestock and poultry industry. The Philippines is also known as Asia's largest exporter of aquaculture production. This is all inseparable from government support and local superior natural conditions.

Due to the increasing demand for more food variety and protein intake, the demand for higher value and quality foods such as meat, eggs and milk is increasing compared to plant-based foods such as cereals. Changes in consumption structure, coupled with substantial population growth, have led to a significant increase in the overall demand for animal products in the Philippines.

starting animal feed mill in the Philippines

Poultry meat is the country's top producer, with 1.37 million tons in 2018 and 2.1 million tons in 2020, according to the United Nations Food and Agriculture Organization. Beef production fell 16% due to weak demand. Beef is generally considered a luxury product in the Philippines due to its high price relative to income. The beef portion of feed production accounts for the smallest share among other animal types.

In addition, the Philippines' consumption mainly relies on imports. In recent years, the Philippines has adopted active support policies to develop the livestock, poultry and dairy industries. The scale of investment has increased year by year, and it has very good market potential.

Do you also see the prospect of starting animal feed production business in the Philippines? If you are interested in building an aqua poultry livestock animal feed mill in the Philippines, contact Richi Machinery to get the world's leading feed mill solutions!
