Thailand 10T/H Poultry Premix And Powder Feed Production Line For Animal Feed Premix Company

Raw material system design

Thailand is rich in local agricultural resources. The poultry premix and powder feed production line in Thailand  project adopts a raw material solution that takes both cost and quality into consideration to meet the daily nutritional needs of poultry and has market competitiveness:

• Corn and wheat flour: local high-yield food crops with favorable costs and simple logistics;
• Soybean meal: the main source of protein, mostly imported from Vietnam and other surrounding areas;

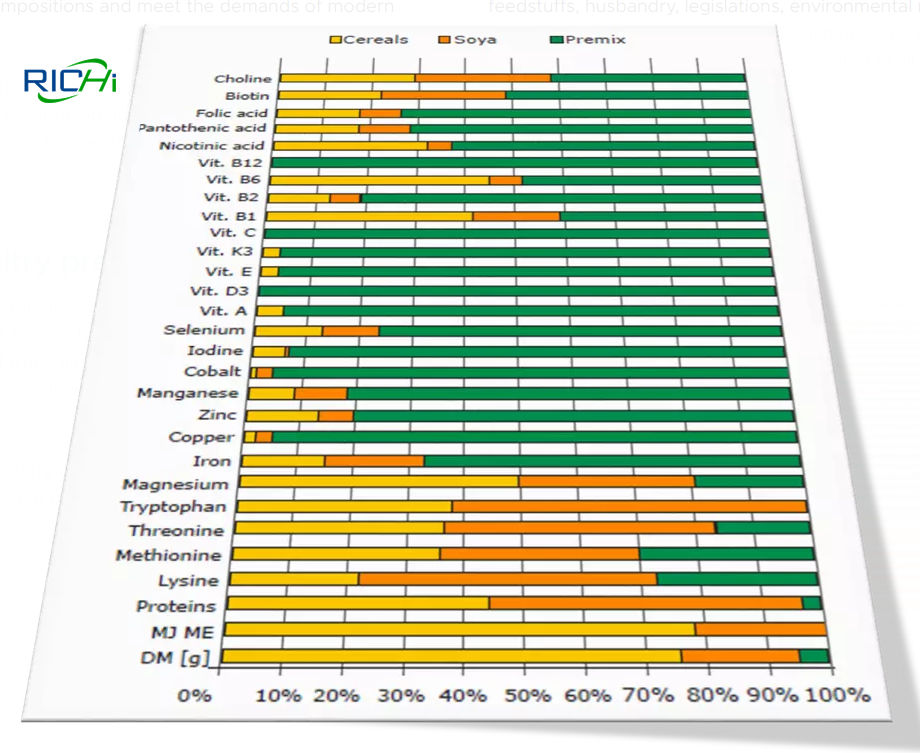

• Vitamin and mineral premixes: key nutritional supplements, especially suitable for modern poultry breeding systems;
• Amino acid and antioxidant additives: provide growth performance and feed stability guarantees;
• Carbohydrate fillers: optimize the finished product structure, improve fluidity and powder properties;

Based on the above raw material combination, the customer focuses on the production of poultry vitamin mineral premixes, which can also be expanded to poultry powder feed to meet the subsequent market demand for increased production.

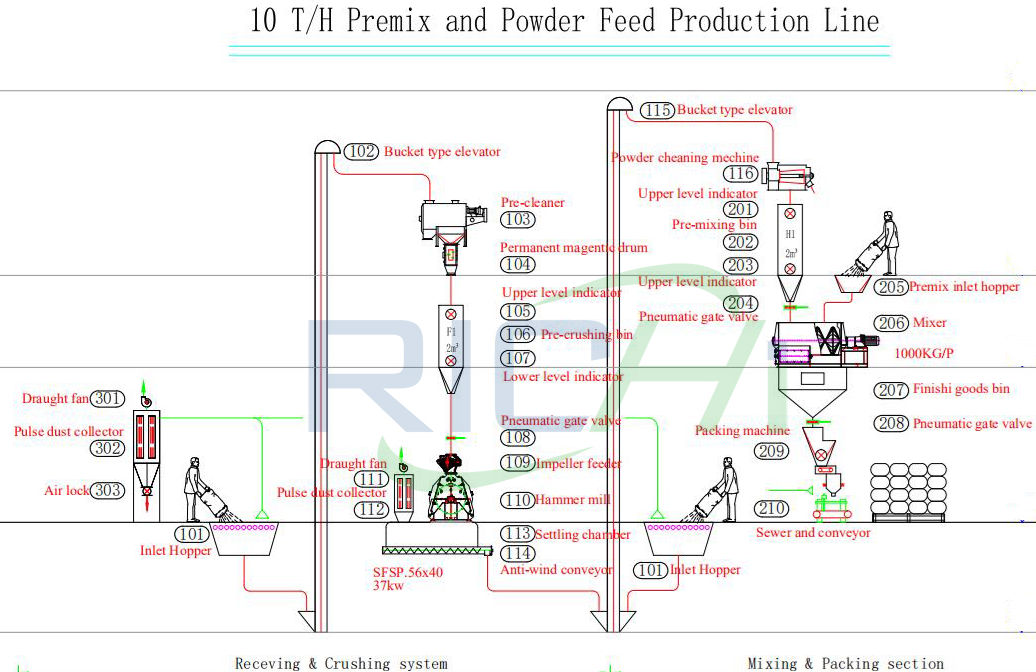

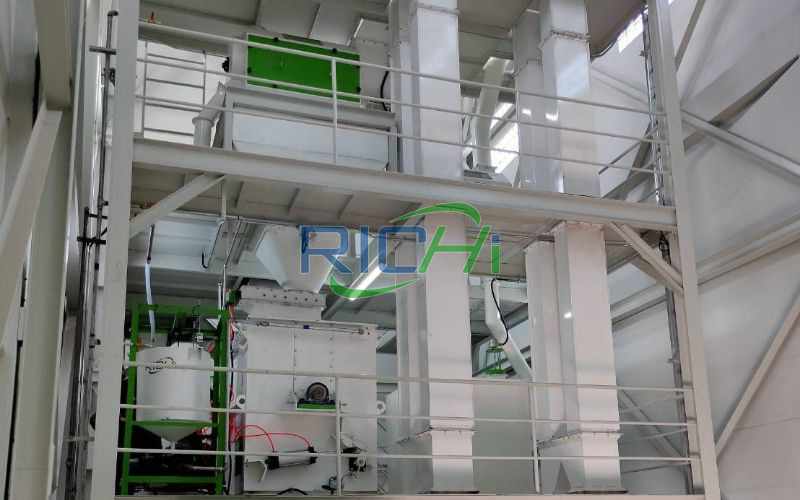

Efficient process flow design of poultry premix and powder feed production line in Thailand

The Thailand animal feed production line takes "accurate ingredients, strict dust control, and efficiency first" as its core concept. The actual layout details are as follows:

1. Raw material reception and initial screening: All storage is in a closed, dry and clean raw material warehouse. The feed inlet is equipped with a SCY63 drum pre-cleaner and an electronic scale to ensure the quality of raw materials and the accuracy of the formula.

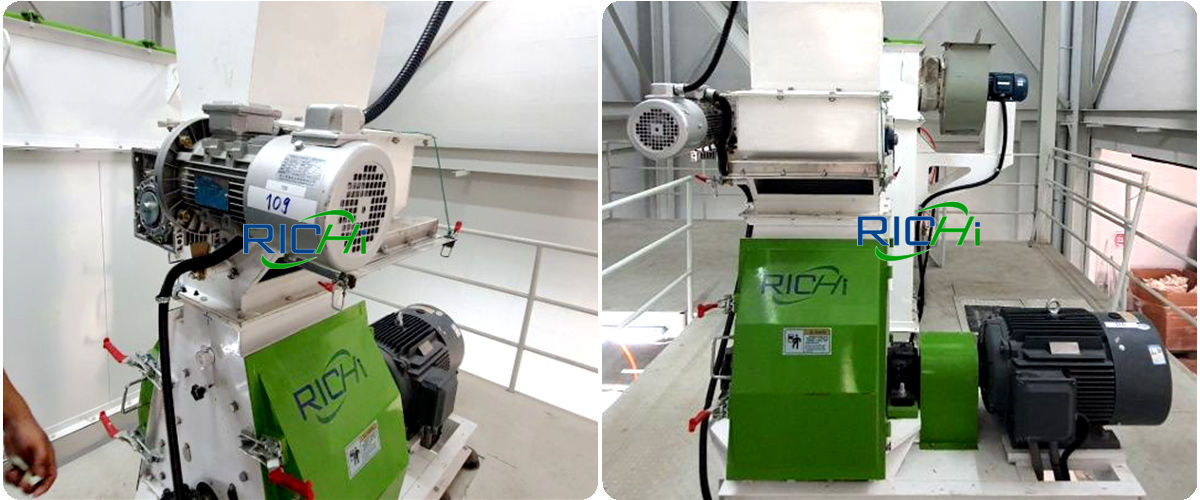

2. Crushing stage: The SFSP56×40 crusher is operated with a variable frequency feeding system, which is more efficient, has uniform crushing particle size, and good powder output performance.
3. Pneumatic conveying and dust removal: The crushed powder is fed into the storage bin through the pulse dust collector TBLMB.12B and the supporting air conveying equipment, and the process is dust-free.

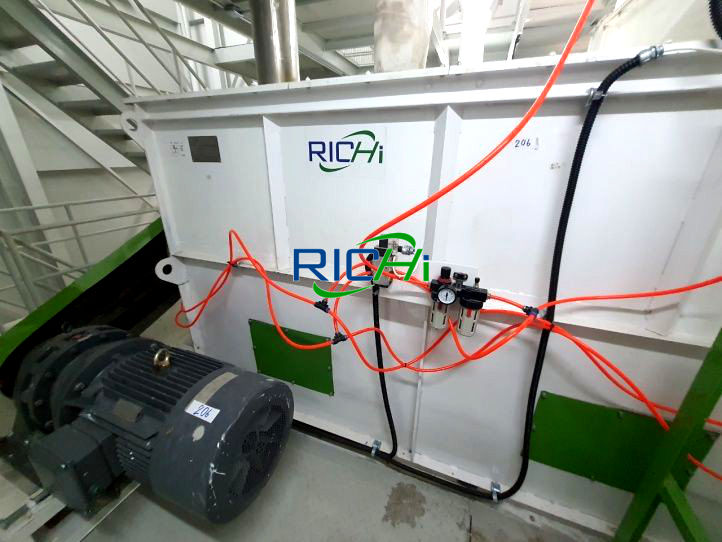

4. High-precision batching and mixing: The silo is measured by an electric scale and fed into a 1000kg/batch high-efficiency mixer. It adopts a closed double helix structure and a mixing uniformity CV≤3%, which meets the accuracy requirements of the premix formula.
5. Final packaging: The mixed powder enters the DSC-50 quantitative packaging system after buffering, and the packaging error is ≤0.2%. It is equipped with a bag sewing machine and a belt conveyor to ensure the bag output efficiency and finished product quality.
6. Centralized control: The MCC central control system is combined with the Mimic panel to realize full-line monitoring of crushing → mixing → packaging, which is easy to operate and supports daily records and fault diagnosis.

The entire process configuration of poultry premix and powder feed production line in Thailand  ensures high-quality premix production, while the design space supports the introduction of granulation equipment in the future to cope with the elastic changes in market demand.

Equipment List and Technical Highlights

The following table shows the core equipment configuration of the poultry premix and powder feed production line in Thailand :

The full set of core equipment has stable performance, moderate system power, and easy maintenance. The cost of whole set production equipment is US$97,000, which is in line with the medium-sized production layout.

Potential for expansion of multiple varieties

The poultry premix and powder feed production line in Thailand  has the ability to expand in the future and can produce:

• Chicken, duck, and goose powder feed: adjust the formula and packaging specifications;
• Small crucian carp floating and sinking premix: ± granulation expansion space;
• Small pet feed powder: suitable for small and medium-sized consumer markets;
• Biomass powder raw materials: future cross-border energy consumption potential.

This configuration can easily meet the needs of product line expansion and reduce the pressure of secondary investment in the future.

Prospects and value of the poultry market in Thailand

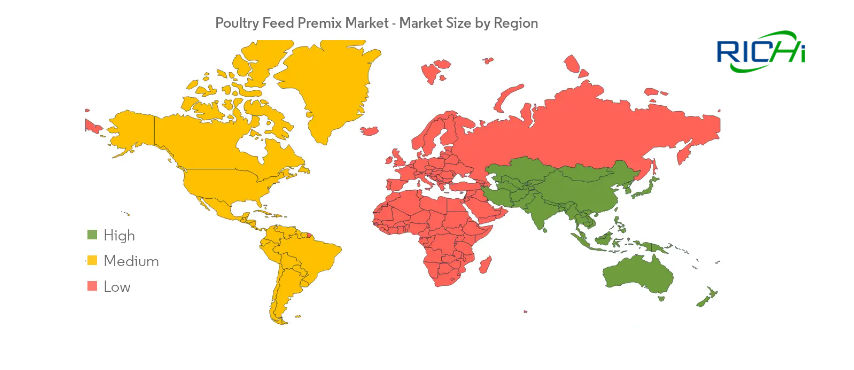

The consumption of eggs and chicken in Asia continues to be high, and the country's standards for veterinary drugs and feed safety have been improved. As a key market for regional poultry exports and consumption, Thailand has a strong demand for high-quality premixes. The customized poultry premix and powder feed production line in Thailand has the following advantages:

• Stable quality and self-controlled production costs;
• Comply with feed safety regulations and help build brands;
• Annual production capacity of 20,000 tons can cover the domestic market;
• Combined product lines support the coverage of multiple market segments.

At the same time, the Thai government supports independent feed production, which is conducive to the rapid establishment of an industrialized premix brand.

Contract performance and service support

The poultry premix and powder feed production line in Thailand  project was designed in just one month from consultation to implementation, and the equipment was delivered within 30 days after signing the contract (construction period: May 28, 2020-end of June).

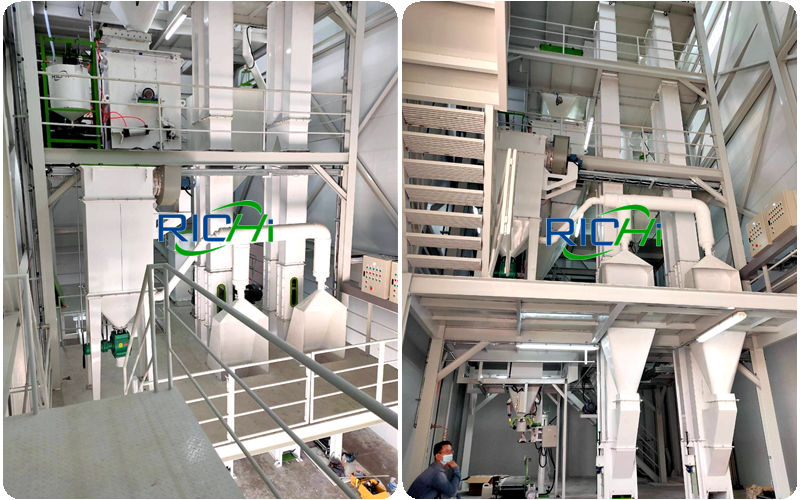

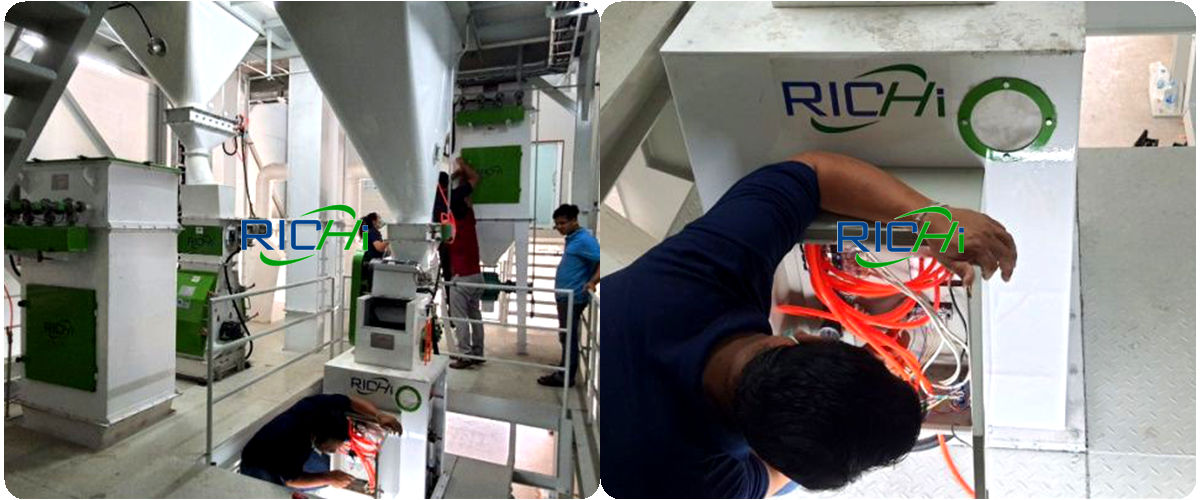

The customer is responsible for compiling the plant structure, and RICHI provides basic drawings + system construction guidance. The premix feed mill equipment installation and commissioning took 30 days. After it was put into operation, the customer reported that the formula adjustment was smooth, the dust control was good, and the packaging quality was stable.

After-sales service includes:

• Provide equipment manuals, maintenance guides and formula recommendations;
• One-year warranty, quick response to accessories supply;
• Customer managers regularly visit remotely to provide technical and business support;
• Can support later automation upgrades and technical training needs.
• Customer praise: It took only three months from plant planning to equipment launch, communication was fast, and the solution was in line with market and business needs.

Localized optimization features and technical highlights

In response to Thailand's environmental and cost requirements, RICHI Machinery provides the following advantages:

• Pneumatic system integration, effectively reducing workshop pollution and optimizing the use environment;
• The mixing system is efficient and closed, meeting the chemical safety standards of premixes;
• Modular control system design, with compatible expansion or intelligent control interface in the later stage;
• The packaging system is high in precision and easy to maintain, suitable for small and medium-sized enterprises;
• The procurement cost is controllable and the maintenance threshold is low, reducing the difficulty and cost of enterprise operation.

This poultry premix and powder feed production line in Thailand  project focuses on the establishment of poultry premix + powdered feed production, has a strong regional market fit, and meets the investment operation and development upgrade requirements. The project investment budget was determined to be US$50,000-150,000 during the contract negotiation, and the local expectation was lower than this range, reflecting the customer's smart strategy for compliant and low-cost production.

RICHI provides a one-stop solution that covers everything from model selection, design, manufacturing, installation, training to maintenance, without requiring customers to bear excessive technical risks or operational difficulties.

We believe that this type of high-quality poultry nutrition animal feed factory project has the potential to be promoted in Thailand and even Southeast Asia. We welcome customers with foresight in the industry to consult for customized solutions and jointly build an efficient poultry feed production network.
