1.Determine the scale of poultry feed mill.
2.Determine the feed process and recommend poultry feed machine.
3.Control mode selection.
4.Poultry feed manufacturing plant structure selection.

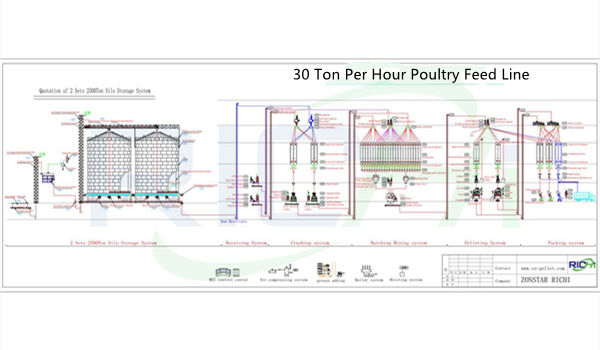

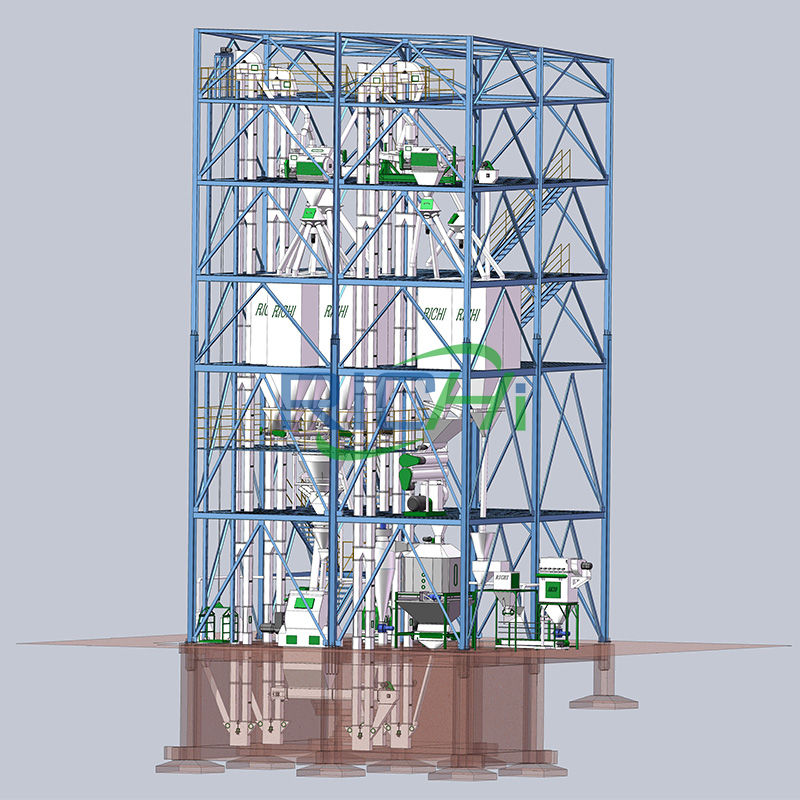

5.Planning the general drawing of poultry feed mill plant site.
6.We devote ourselves to undertaking all poultry feed production line 1-20T/H.
Overview
Poultry farming is a short-term, fast-acting industry. The potential for developing poultry breeding markets is huge and long-term.

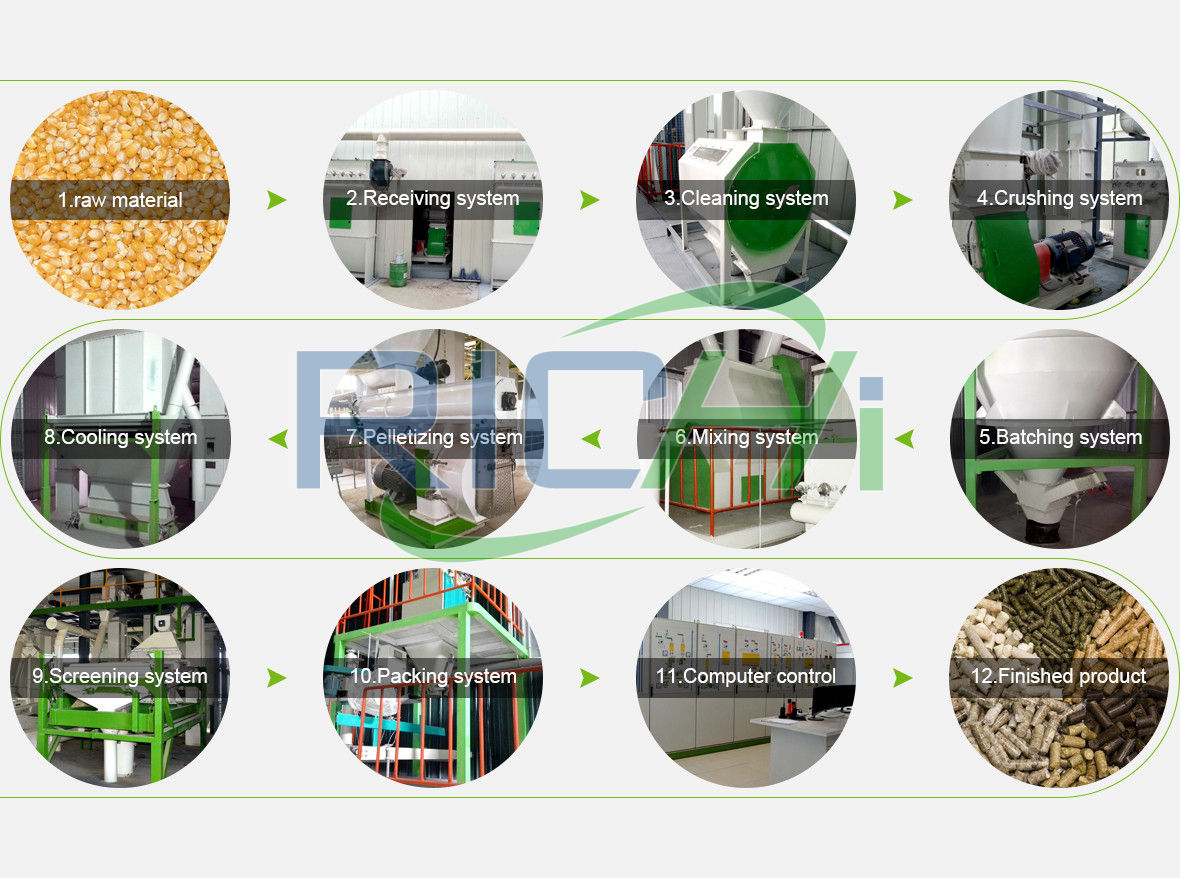

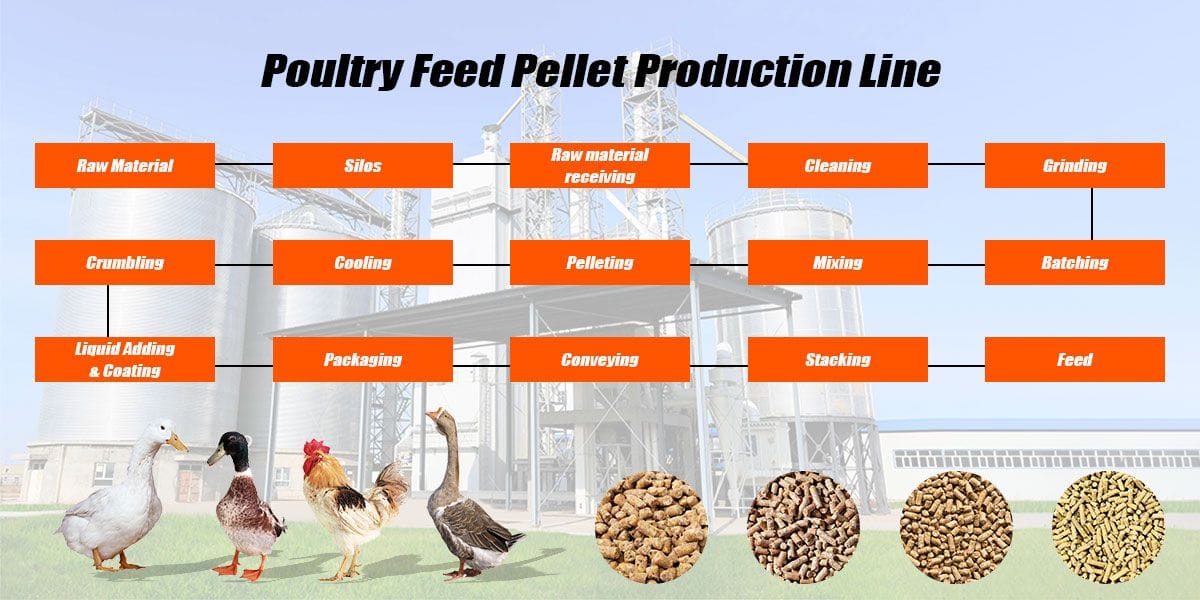

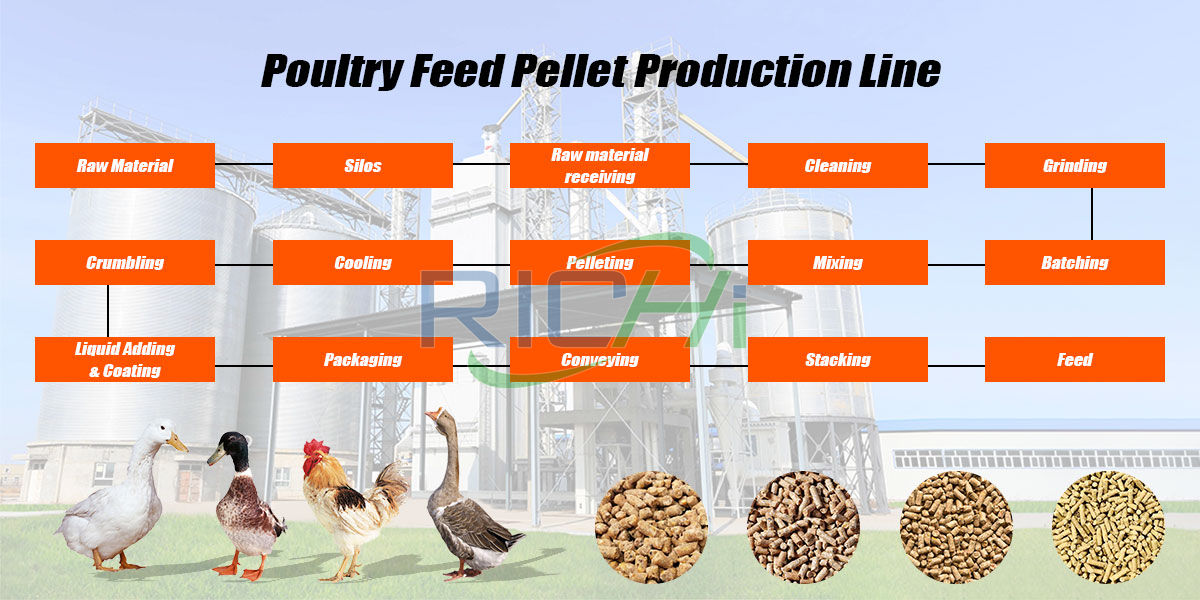

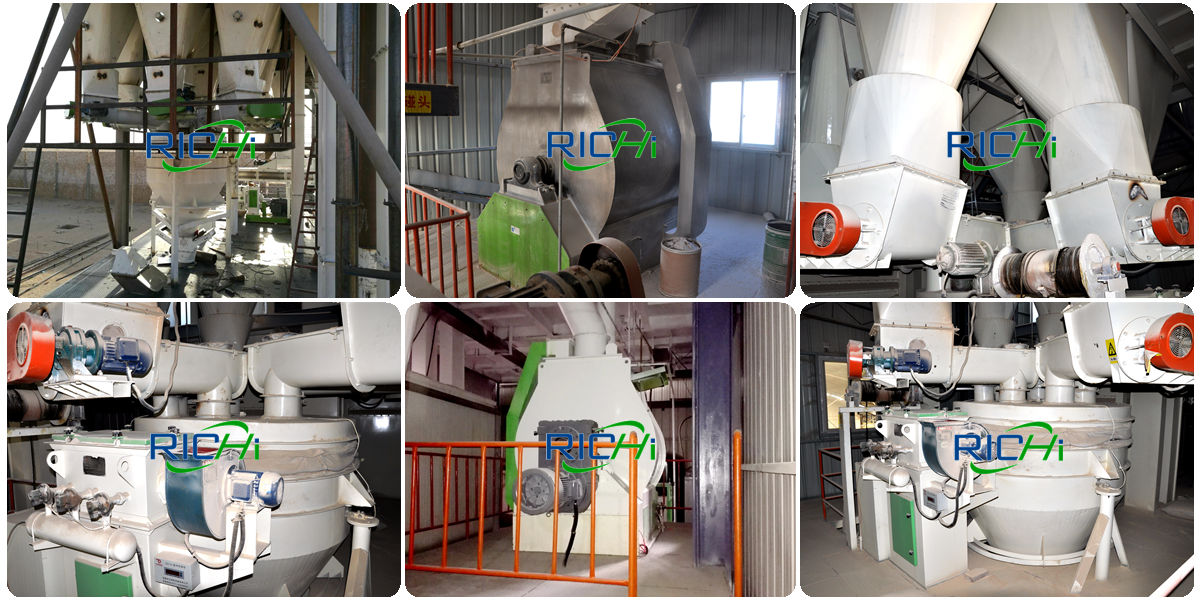

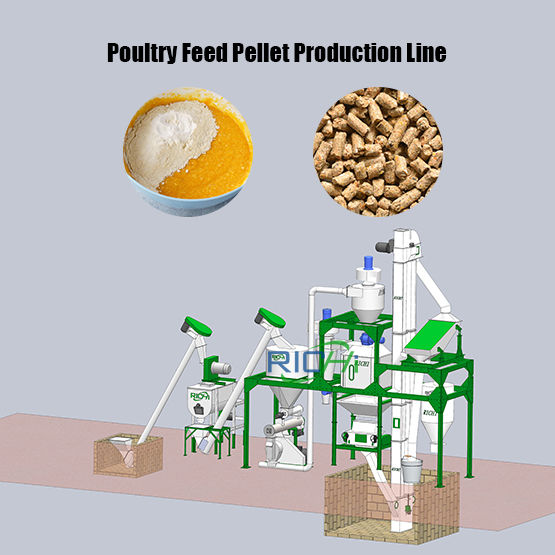

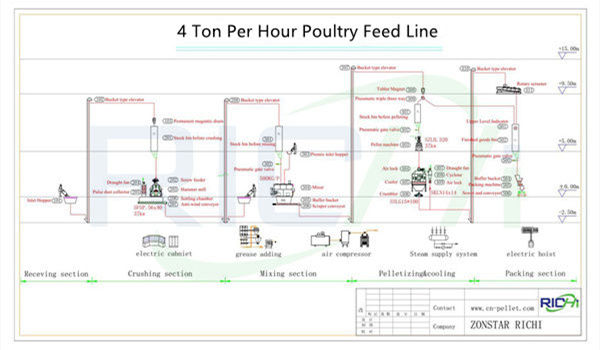

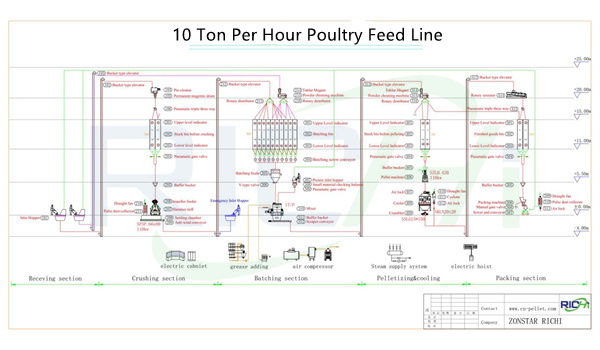

Poultry feed pellet production line configuration system:
1.Materials storage system in feed mill.

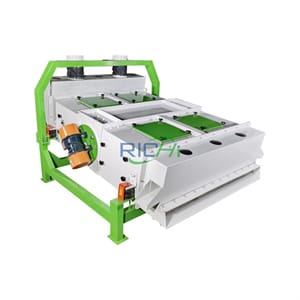

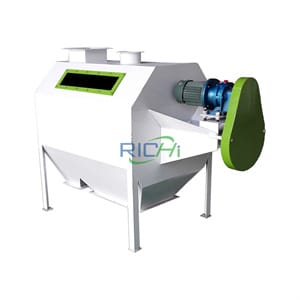

2.Pre-cleaning system in feed mill.

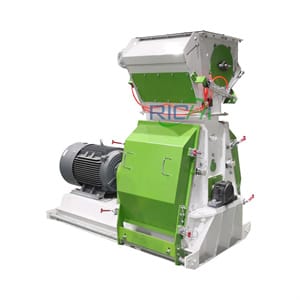

3.Crushing system of feed mill.

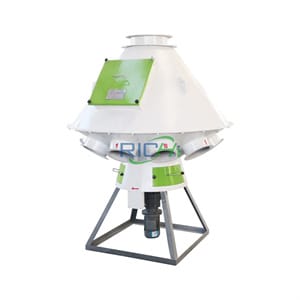

4. Proportion feed plant system: batch weighing, rotary distributor, batch box

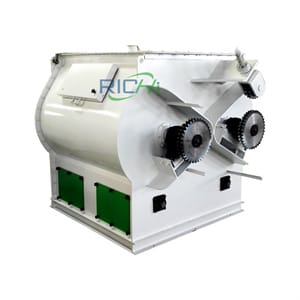

5. Mixing system in feed mill: mixer

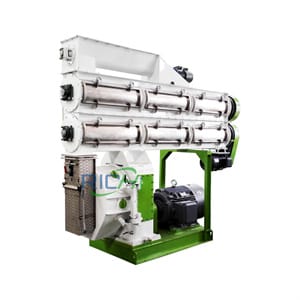

6. Granulation system of feed mill: ring mould granulator

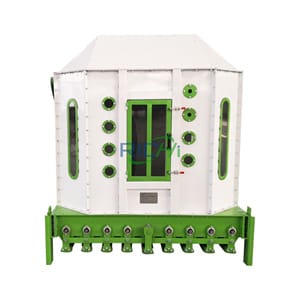

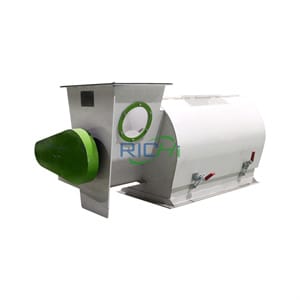

7. Cooling system of feed mill: cooler, cyclone separator
8. Screening system feed mill: grade sieve
9. Packaging system of feed mill: packaging scale
Working Principle
Put the material into feeding device. The material will be extruded and expanded by the screw shaft with high pressure and temperature to make the material fully cooked and sterilized. Then the expanded material will be formed into different shapes through different molds.
Parameters
| Model |
Capacity(TPH) |
Main Motor Power(kw) |
Feeder Motor Power(kw) |
Conditioner Power(kw) |
Dia.of Ring Die(mm) |
Final Pellet(mm) |
| SZLH250 |
1-2 |
22 |
0.75 |
1.5 |
250 |
2~12 |
| SZLH320 |
3-4 |
37 |
1.5 |
2.2 |
320 |
2~12 |
| SZLH350 |
5-7 |
55 |
1.5 |
3 |
350 |
2~12 |
| SZLH420 |
8-12 |
110 |
1.5 |
7.5 |
420 |
2~12 |
| SZLH508 |
10-18 |
160 |
2.2 |
11 |
508 |
2~12 |
| SZLH558 |
15-25 |
180/200 |
2.2 |
11 |
558 |
2~12 |
| SZLH558D |
14-22 |
160/180/200 |
1.5 |
7.5 |
558 |
2~18 |
| SZLH678 |
20-30 |
220/250 |
2.2 |
11 |
678 |
2~12 |
| SZLH678D |
15-25 |
200/220/250 |
2.2 |
11 |
673 |
2~18 |
| SZLH768 |
25-40 |
280/315 |
2.2 |
11 |
768 |
2~12 |
| SLZH858 |
25-42 |
280/315 |
2.2 |
15 |
858 |
2~18 |
