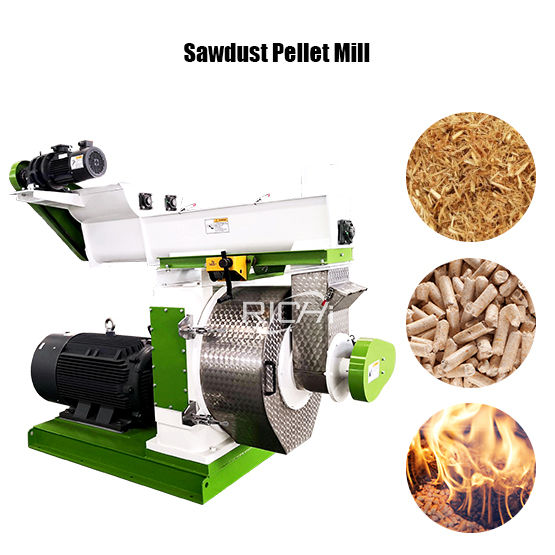

Sawdust Pellet Mill

Home > Wood Pellet Mill >
Sawdust Pellet Mill
APPLICATION: Biomass Production Industry
CAPACITY: 0.3-5T/H
MAIN POWER: 37-250KW
MODEL: MZLH
WhatsApp: +86 138 3838 9622

Richi Machinery is an international pelletizing technology group and a globally supplier of sawdust pellet plants, sawdust pellet making equipment, and services for a broad range of industries. RICHI sawdust pellet making machine is designed to provide biomass pellets producers with a way to maximize production capacity while also achieving the best quality biofuel pellets under the safest possible conditions.

24 hours to reply to technical inquiries

Applications Of Sawdust Pellet Mill

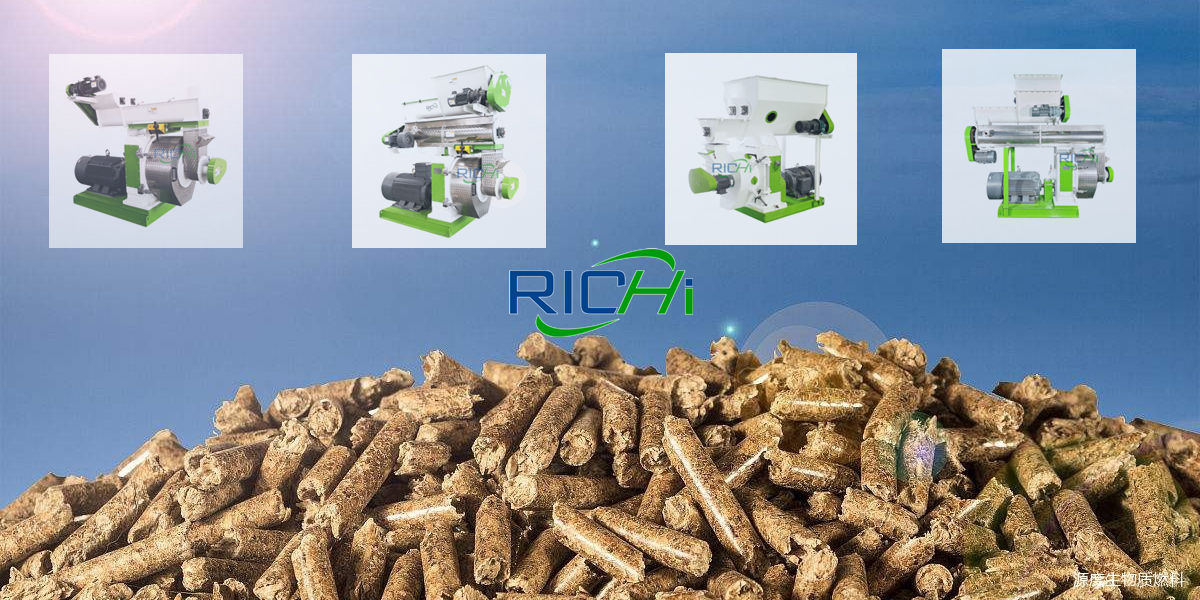

The sawdust pellet machine is the key equipment of the sawdust pellet production line. Richi Machinery is one step ahead in the sector by designing a special machine for biomass wood fuel pelleting with its R&D studies on the biomass sawdust pellet mill, which is the main machine of the wood pelleting process.

Biomass sawdust is the name given for all non-fossilized biological material. Biomass is an important energy source as it constitutes the fourth largest energy source in the world. In many developed countries, bioenergy is seen as the primary energy source of the future.

Biomass processing is a growing industry due to the increasing importance of renewable energy. Sawdust bioenergy values of biofuel materials, such as agricultural products and forest residues, after thickening processes such as pelleting are becoming commonly used fuels.

A quality sawdust pellet fuel made by biomass pellet machine can be created when two or more agricultural wastes are mixed in appropriate proportions and pelleted by determining their burning characteristics and energy values.
rice husk sawdust straw granulator wood pellet mill press machine sawdust pellet maker sawdust recycling machine

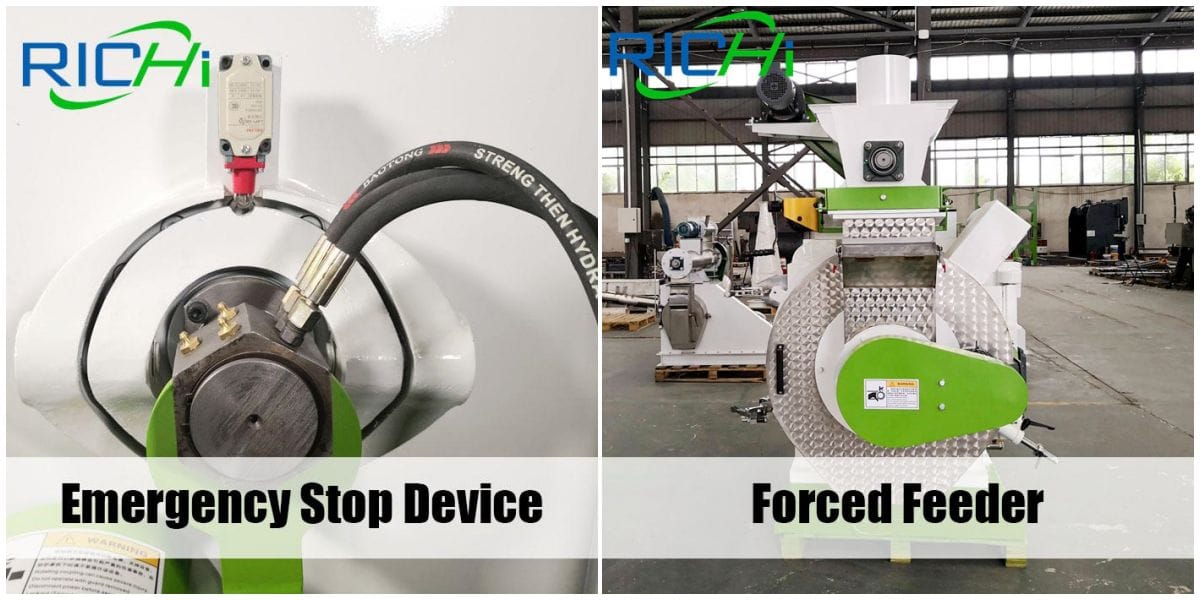

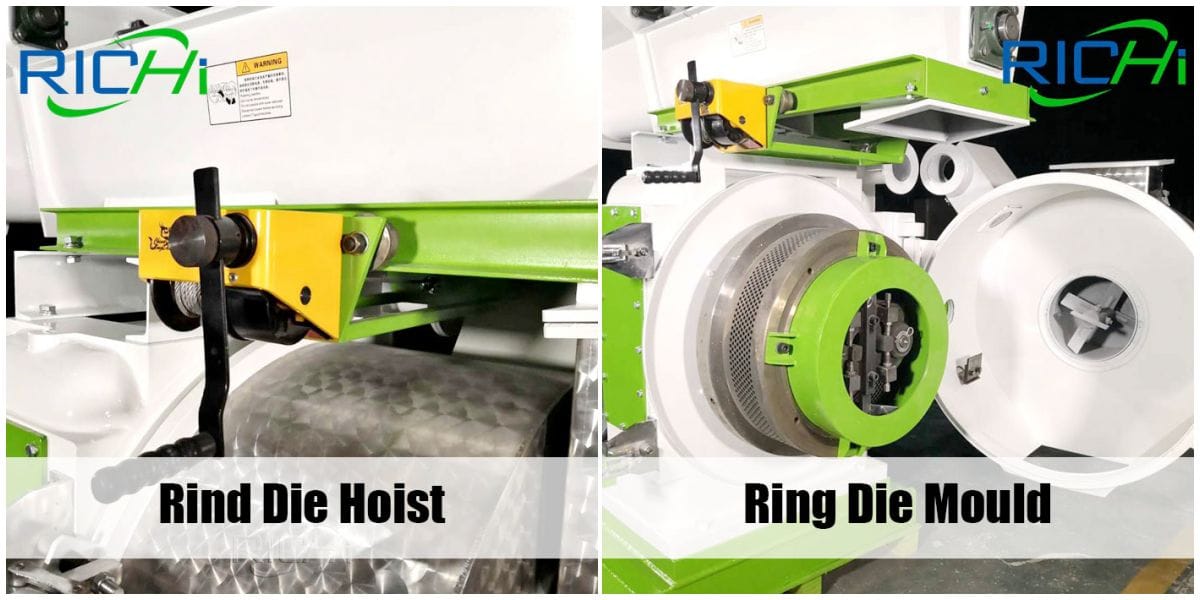

Technical Features Of Sawdust Pellet Mill

  1. The sawdust pellet machine ring die and roller use high strength forgings, automatic gun-drill drilling and vacuum heat treatment. The ring die service time﹥500 hours.
  2. The sawdust pellet mill has high gear transmission efficiency, large transmission torque, large roller friction, production is increased by 15%.
  3. Mandatory feeding assures uniformity.Technical Features Of Sawdust Pellet Mill
  4. The sawdust pellet maker adopts design of spiral feeding plate to ensure uniform intake of sawdust pellets and balanced extruding stress.
  5. Easily operated control cabinets. Sawust pellet press machine automatic control system is connected to central control room.
  6. Sawdust pellet making machine has intelligent system including working reports, working time, oil temperature alarm and lubricant replacement reminding.
Get Price & Support

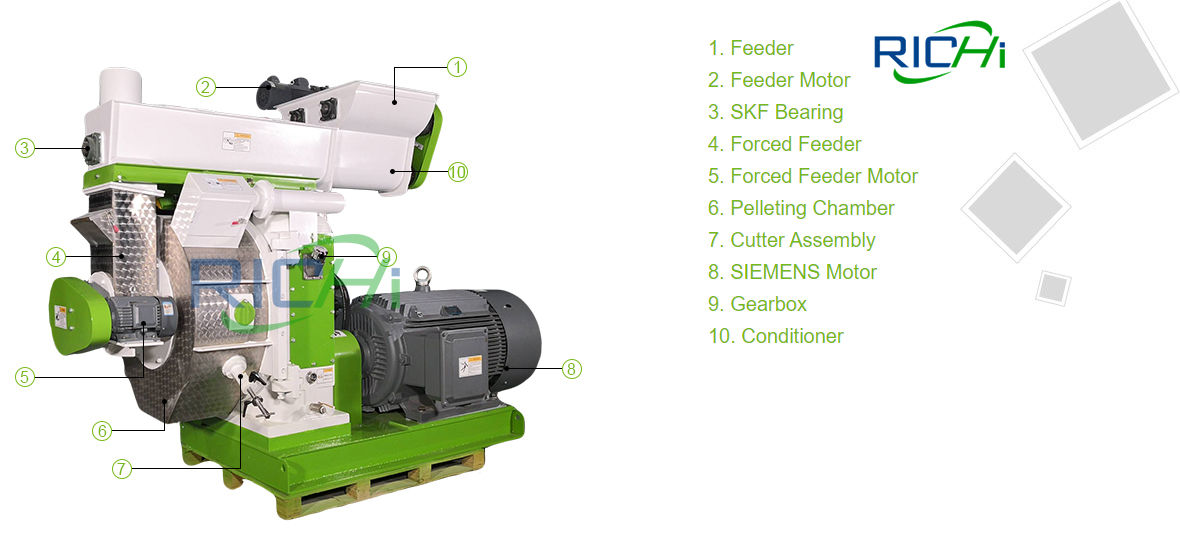

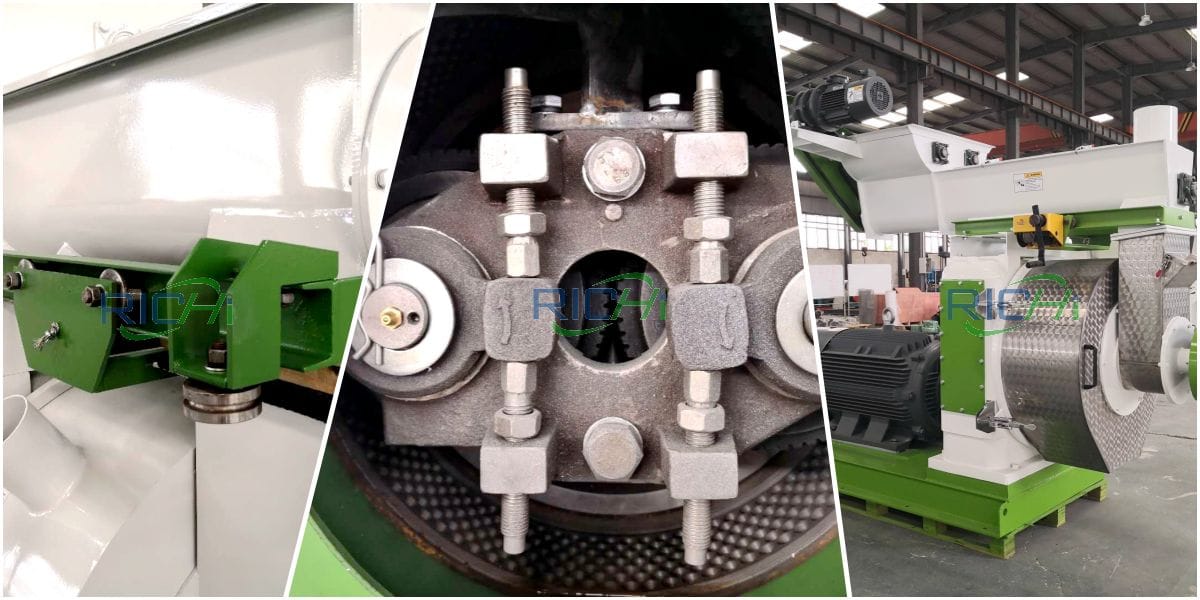

Working Principle Of Sawdust Pellet Mill

RICHI sawdust pellet press machines are constructed from the most durable materials to insure proper die roll support and are energy efficient due to their single reduction gear system. Die casings and housings are lined with stainless steel and the main shaft is machined to precision tolerances and then heat treated to reduce wear and tear and increase the lifetime of your sawdust pellet mill equipment.

  • Working Principle Of Sawdust Pellet Mill
  • Working Principle Of Sawdust Pellet Mill

Additionally, the cartridge assembly of sawdust pellet making machine is designed to make die changes fast, easy and safe, saving the operation from unnecessary down-time.

The constant exposure to extreme pressure, fluctuations in temperature and abrasion that comes along with shaping raw plant based materials into saw pellets, requires precision die design. Richi Machinery sawdust pellet makers are strong and dependable, built specifically to withstand these tough conditions.

Sawdust Pellet Making Machine Specification

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Fuel Pellet Machine Power 37KW 55KW 90KW 132KW 250KW 280KW
Capacity(wood sawdust,biomass) 300-400KG/H 500-700KG/H 1.0-1.2 T/H 2.0-2.5 T/H 2.5-4 T/H 3-4.5 T/H
Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm
Weight(KG) 2500 3500 4000 4500 5000 5500
Sawdust Pellet Machine Price 7000-100000USD

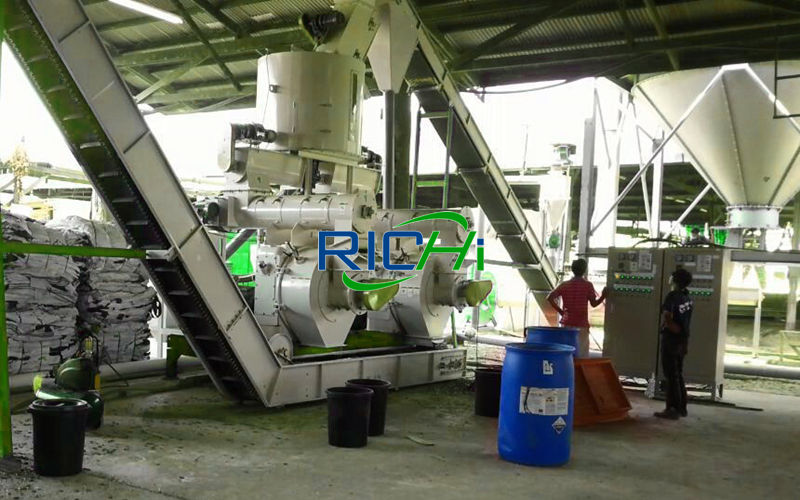

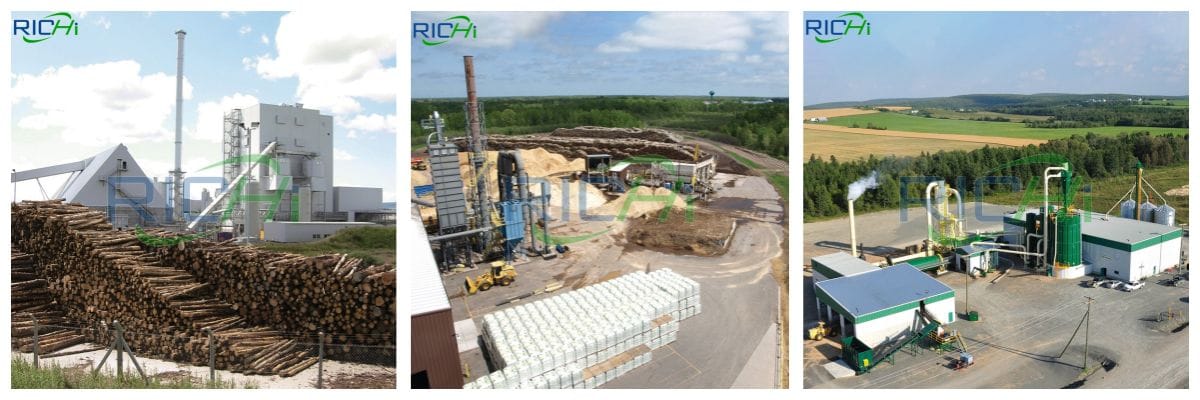

Sawdust Pellet Machine For Sale The World (Typical Case)

Sawdust Pellet Machine For Sale The World
Capacity Country Raw Materials Capacity Country Raw Materials
10 Tons/Hour Wood Sawdust Pellet Plant Wood waste, wood sawdust United States 2-2.5 Tons/Hour Wood Sawdust Pelletizing Plant Softwood and hardwood Germany
5T/H Sawdust Pellet Mill Factory Wood chips, wood sawdust Austria 2-3T/H Sawdust Pelleting Plant Wood logs, wood shavings, wood sawdust Canada
1-1.5T/H Sawdust Pellet Production Plant Wood logs and wood chips,wood sawdust Indonesia 1-1.5 T/H Sawdust Biomass Pelleting Plant Wood sawdust Iceland
1-1.2 T/H Sawdust Pellet Plant Wood blocks and sawdust Congo 1-1.5T/H Sawdust Pelleting Plant Rice husk and wood waste(shavings, sawdust) China
1-2T/H Biomass Wood Sawdust Pelletizing Plant Wood plate, wood sawdust TAIWAN, China 10 T/H Biomass Wood Sawdust Pellet Mill Plant Wood logs, wood shavings, wood sawdust Mexico
2T/H Biomass Wood Sawdust Pellet Production Plant Wood chips, wood sawdust Netherlands 2-2.5 T/H Biomass Wood Sawdust Pelleting Plant Wood logs, wood sawdust Australia
1-2T/H Biomass Wood Sawdust Pellet Processing Plant Wood chips, wood sawdust Brazil 500-700KG/H Biomass Wood Sawdust Pellet Production Line Wood logs, wood sawdust Ukraine
1-1.5T/H Biomass Wood Sawdust Pelletizing Plant Wood waste (sawdust, chips, shavings) Lebanon 2-2.5TPH Biomass Wood Sawdust Pellet Plant Wood sawdust Romania
4-5T/H Biomass Wood Sawdust Pellet Plant Waste wood plate, wood sawdust Indonesia 1.5T/H Biomass Wood Sawdust Pellet Plant Wood sawdust and crop straw(corn, wheat, cotton) Japan
600-700KG/H Biomass Wood Sawdust Pellet Plant Wood sawdust China 2T/H Biomass Wood Sawdust Pellet Plant Waste shavings, sawdust, straw China
22-23T/H Biomass Wood Sawdust Pelleting Plant Waste straw stalk and wood sawdust, shavings China 3T/H Biomass Wood Sawdust Pellet Production Line Wood sawdust China
6TPH Complete Biomass Wood Sawdust Pellet Plant Crop straw China 12-13 T/H Biomass Sawdust Pellet Factory Waste wood, sawdustand straw China
16T/H Biomass Wood Sawdust Pellet Plant branches, wood sawdust and straw China 7-8T/H Biomass Wood Sawdust Pellet Plant Agricultural and forestry straw and wood sawdust wastes China
3-5TPH Biomass Wood Pellet Plant Wooden waste, wood sawdust China 5T/H Biomass Wood Sawdust Pelleting Plant Wood shaving, sawdust, straw China
6T/H Biomass Sawdust Pellet Mill Plant Bamboo shavings and wood sawdust China 13-14T/H Biomass Wood Sawdust Pellet Plant Hardwood sawdust China

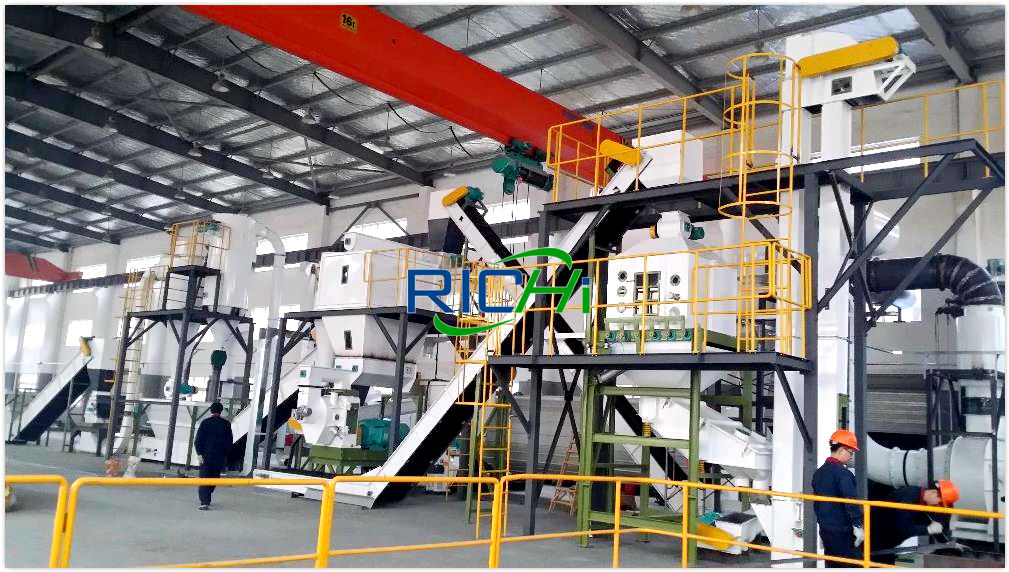

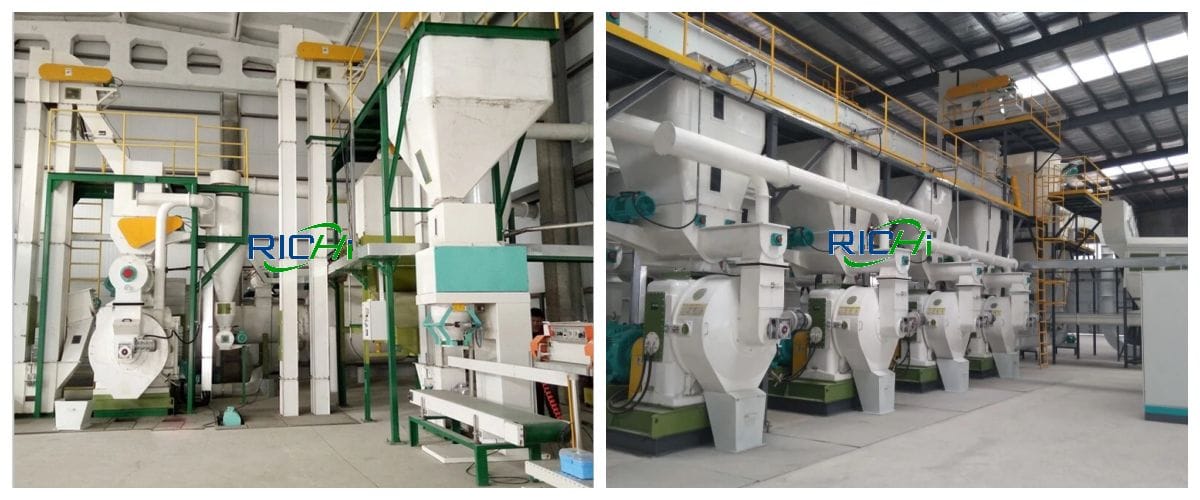

How To Set Up A Complete Biomass Fuel Sawdust Pellet Production Line?

How To Set Up A Complete Biomass Fuel Sawdust Pellet Production Line
To process sawdust pellets, sawdust pellet mills are not enough, and a lot of sawdust pellet line equipment is needed. And these equipment will jointly form the finished sawdust pellet production line or sawdust pellet factory.

Every sawdust biomass pellet production line needs to be designed, from the pellet production process to the layout design, and even the design of some basic buildings, which is a very complicated process.

how much sawdust to make pellets sawdust dryer sawdust pellet making machine

How to make sawdust pellets? How to make wood pellets from sawdust? Let's take a 4.5 ton per hour wood sawdust pellet production line projet as an example to show you the sawdust pellet making process we have customized for our customer.

01

Raw materials preparation stage

Use sawdust as the main raw materials. To ensure sufficient raw material supplement and continuous production, the storage area should be around 500 square meters. You are suggested to prepare 500~600 tons of sawdust, which can ensure at least 15 days of sawdust pellet production.

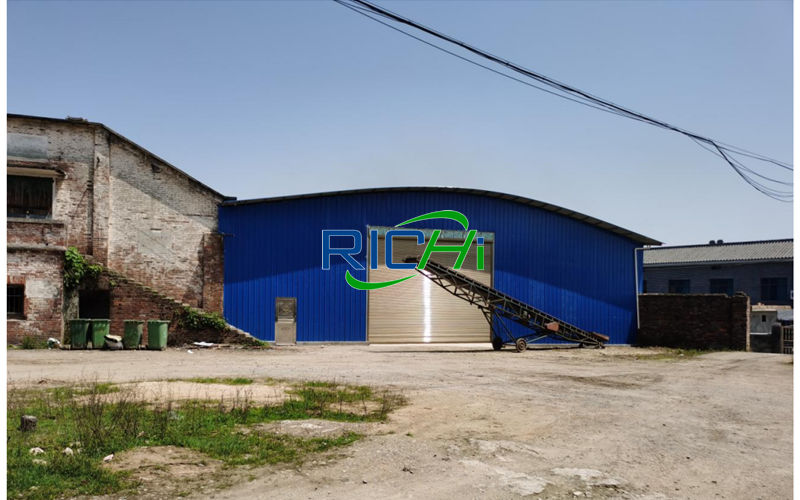

The ceiling of raw material warehouse should be able to resistant rain, lighting and wind. Set the production area at least 50 meters away from the living area, 30 meters away from the highway and power transformer. Besides, isolation measure and fire prevention facilities are also necessary, in order to ensure production safety.

02

Drying stage

Biomass pelletizing has strict requirements on the moisture content of raw materials. After screening, the saw dust will be sent to roller dryer by spiral conveyor. In the wood sawdust dryer machine, the sawdust can be dried to preset moisture content through hot air.

03

Pelletizing stage

Sawdust pelletizer is the key equipment of the complete biomass pellet plant. In this system, we adopt 3 sets of ring die wood pellet press for making pellets from sawdust which is featured of stable operation. The capacity of each set can reach 1.5 ton per hour.

This sawdust pellet mill machine can process wood sawdust, corn stalk, haulm, cotton stalks, peanut shells and many other biomass materials. The density of finished pellets can reach 1.0~1.3t/ m3.
wood pellet mill 7.5 hp make your own fuel pellets from 100 sawdust in stock other alternative fuel & energy sawdust wood pellet mill sawdust pelletizing machine

04

Cooling stage

When discharging from the biomass sawdust pallet making machine, the temperature is around 80~90 ℃. The structure is relatively loose and easy to be broken. Through counter flow cooling system, the sawdust pellets will be cooled to room temperature and become tight and durable.

Then, they can be packaged in bags or be conveyed to storage silo. Except cooling fan, the cooling system is also designed with cyclone separator which is used to separate the powder from the pellets and send the powder back to the front pelletizing procedure.

05

Screening stage

After cooling, screening system is needed to filter out broken pellets, so that to ensure the quality of final products. The broken pellets will also be sent to the front pelleting process.
factory supply 5 ton per hour customized biomass wood pellet line project

06

Packaging stage

Before packaging, the sawdust pellets will be screened again for recycling the fines. And then the pellets will be packaged. For domestic users, the pellets are preferred to be packed into bags with the sizes of 12, 15, or 20 kg.

While for exporting, the pellets are usually shipped in one tone bags or in bulk which are usually wrapped in plastic to keep the moisture out. Compare with the large bulks or bags, the small bags are better for the pellets because the pellets are subject to less abrasion during delivery.

sawdust logs for sale pelleted sawdust pelletizer sawdust

07

Storage stage

During summer, the production of sawdust pellets probably exceeds the demand and the pellets may have to be stored for several months. The storage facility should bee constructed of high concrete side walls that can withstand the pressure of the pellets.

As stated, pellets easily disintegrate once they get wet, so it is very important that the building is water-tight, to prevent rain or condensation.

Get Price & Support

Sawdust pellet business plan & sawdust pellet manufacturing project report

Richi Machinery have provided 1-40t/h sawdust pellet production lines, sawdust pellet manufacturing plants and single sawdust pellet making machines for hundreds of sawdust pellet manufacturers, and we hope that in the future, we can also help you successfully realize a high-efficiency, high-quality, and high-return sawdust pellet production business.

The followings are some sawdust wood pellet plant project proposal / biomass sawdust pellet business plan/ biomass sawdust pellet manufacturing project report for you:

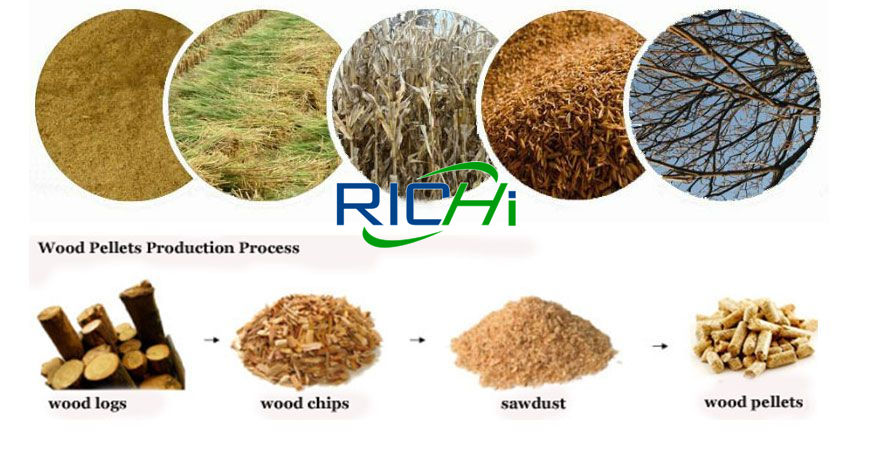

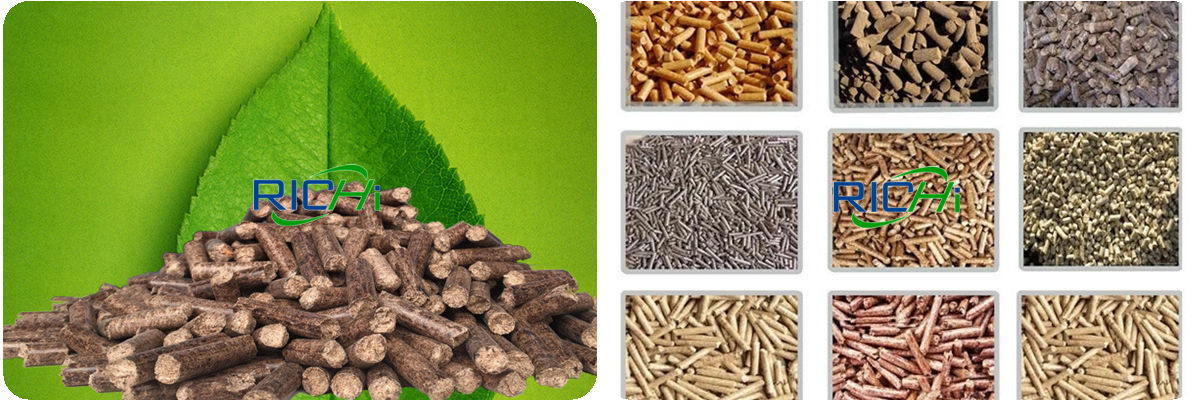

Raw Materials of sawdust pellets made by saudust pellet machine

The raw materials for biomass sawdust include dedicated energy resources such as trees, crops, grasses, and algae. Various waste streams such as agricultural waste, human and animal waste, forest product and paper mill waste, and municipal solid waste can also be collected as biomass sources. Furthermore, biomass sawdust sources can be used to produce higher value biomass fuels in the form of solids (e.g., wood sawdust pellets).

how much sawdust to make pellets

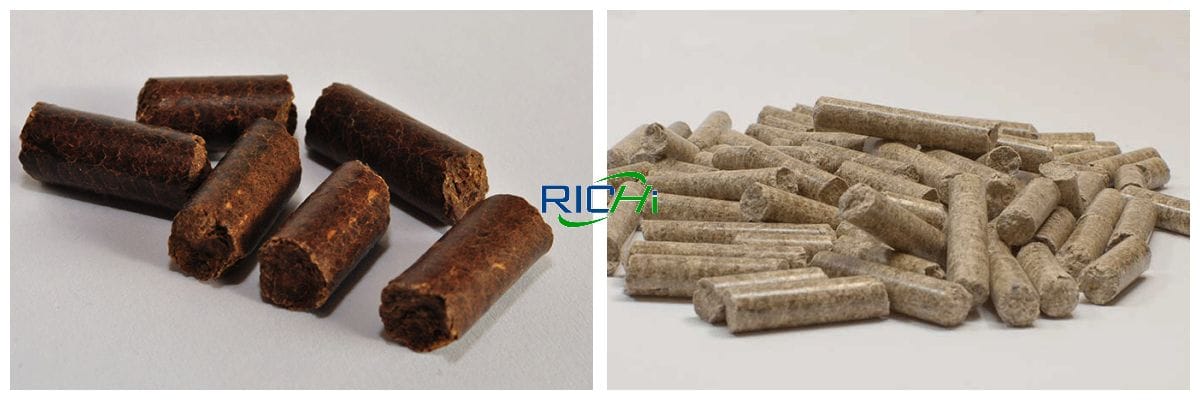

Physico-chemical characteristics of biomass pellet made by wood sawdust pellet making machine

Biomass wood sawdust pellets are classified according to their physical and chemical properties. These properties affect the possibilities of pellet use in energy conversion technologies.

For instance, a comparatively low amount of dust and ash in the pellet is an important factor for small heating systems, while larger power systems can cope with higher amounts of dust and ash. Other important parameters include durability, surface smoothness, and resistance to swelling.
sawdust dryer machine furnace design for sawdust dryer sawdust pellet sell dryer for sawdust buy

Parameters Effects
Chemical Characteristics
Elements -
CI Emission of dioxynes and furanoids, corrosion issues
Emission of NOx, HCN, N2O
N Emission of SOx
S Corrosion issues, low melting point of ashes
K High melting point of ashes, pollutants in exhaust fumes
Mg, Ka, P -
Heavy Metals -
Composition of Ashes Polluting emissions, ash disposal issues
Physical Characteristics
Moisture Storage issues, Low Heating Value (LHV), auto-combustion
Density Transport and storage issues, combustion properties
Pellet Size Fluidity, transport safety, production of dust
Mechanical Durability Changes in pellet quality, leakage

Regulatory quality standards set within different nations

Pellet Quality Standard According To UNI EN ISO 17225-2

Features Category
A1 Tree Trunks and/or Untreated Wood without Bark (No Additives) A2 Tree Trunks and/or Untreated Wood without Bark (No Additives) B Forestry Wood, Wood Processing By-Products, Used Wood
Diameter D (mm) and Length L (mm D = 6–8 L = 3.15–40 D = 6–8 L = 3.15–40/8 ± 0.5 6 ± 0.5/8 ± 0.5/ From D > 10 ± 1.5 To D < 25 ± 1.0
Moisture (%) 10 10 10 18 10 10 10/18
Ashes (%) 0.7 1.5 3/To be declared
Durability (%) 1 1 1/To be declared
Additives (%) Not allowed To be declared (1) To be declared
Sulfur (%) 0.05 0.05 0.05/To be declared
Nitrogen (%) 0.3 0.3 0.3/To be declared
Chlorine (%) 0.03 0.03 To be declared
Density (kg/m3) 620–720 620–720 620–720/550
LHV (MJ/kg) 16.9 16.9 16.2/To be declared
Quality standards for pellets

Quality standards for pellets in different EU Countries and in the USA

Parameter Austria Sweden Germany USA
Size (mm) 3 < D < 4L ≤ 100 L = 5D - -
Density (kg/m3) - ≤500 - ≤639
Durability (%, <3 mm) - ≤1.5 - ≤0.5
Energy Density (MJ/kg) ≤18.0 ≤16.9 17.5–19.5 -
Moisture (% mass) ≤12 ≤10 ≤12 -
Ashes Content (% mass) ≤0.5 ≤1.5 ≤1.5 ≤1
Sulfur (% mass) ≤0.04 ≤0.08 ≤0.08 -
Nitrogen (% mass) ≤0.3 - ≤0.3 -
Chlorine (% mass) ≤0.02 ≤0.03 ≤0.03 -
Additives (glues) Not allowed To be declared - -
Get Price & Support

Why Choose Richi

why choose richi
why choose richi

Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields.

All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization.

Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan

Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Quality Control

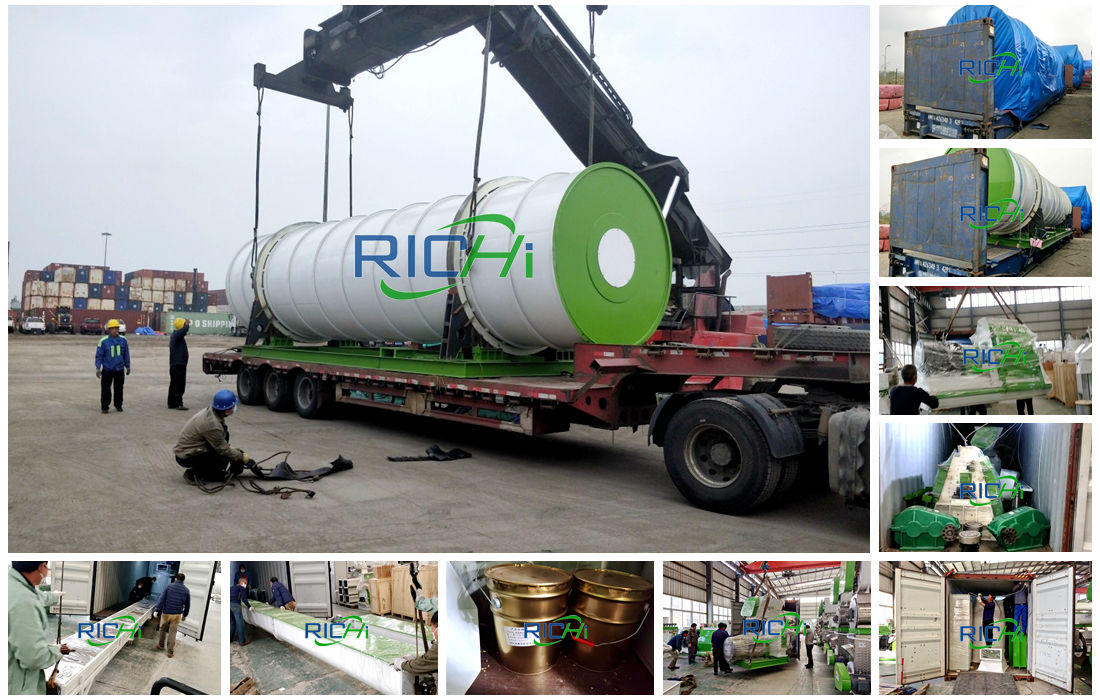

Delivery And Installation
