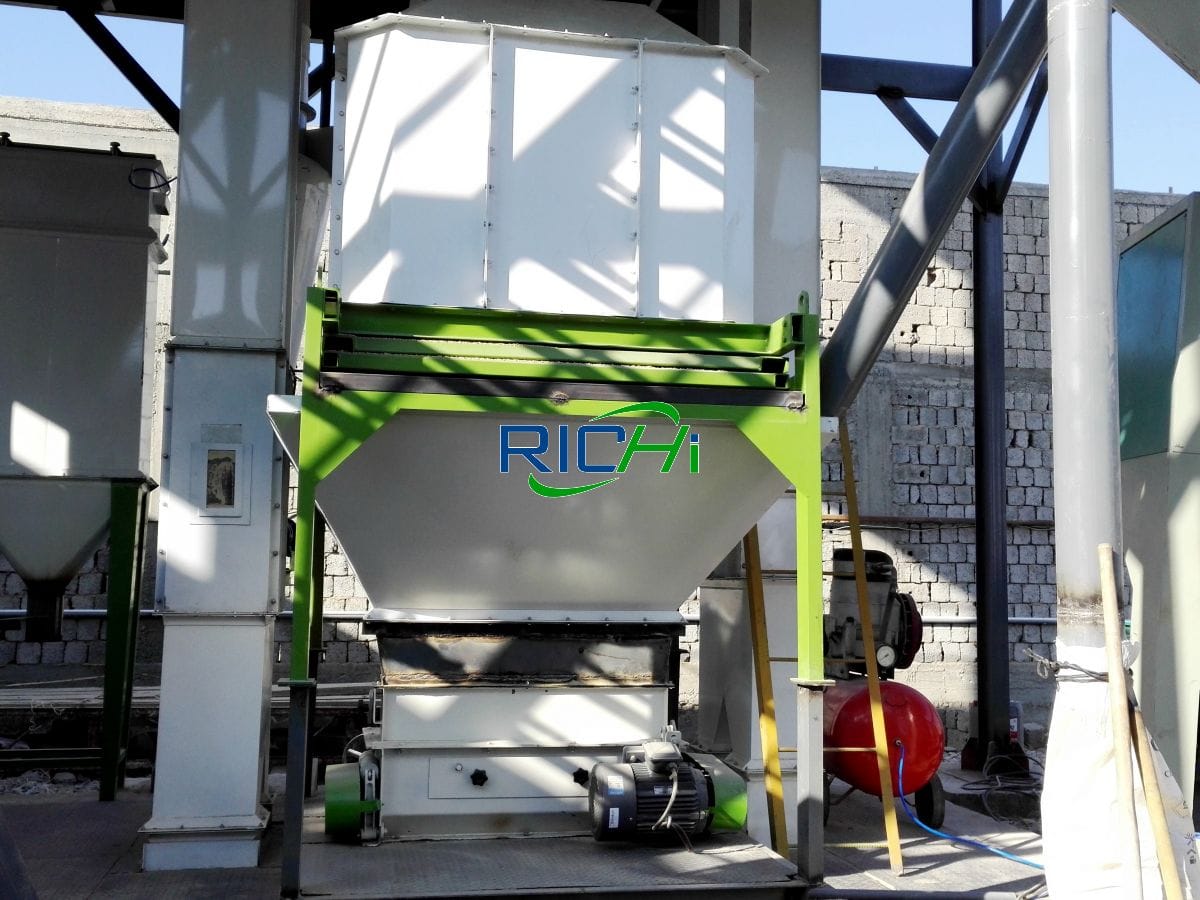

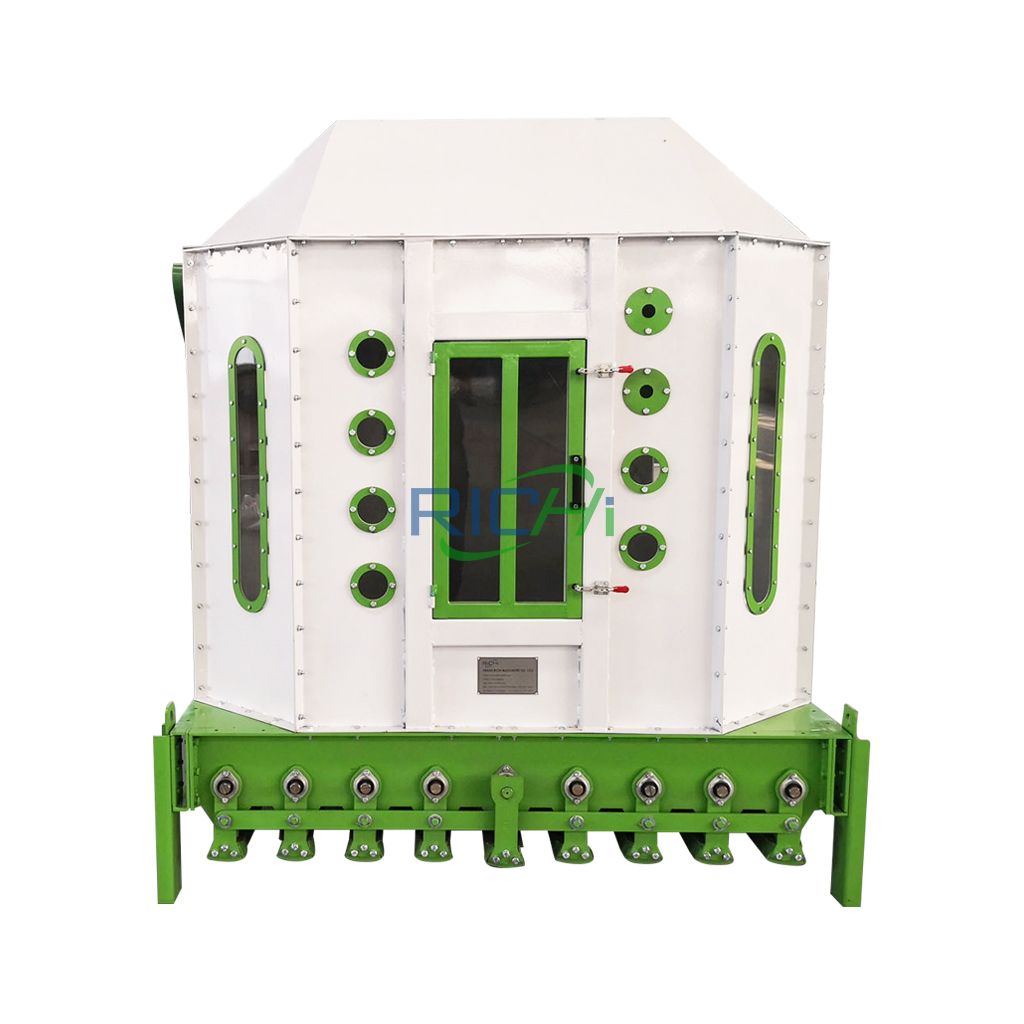

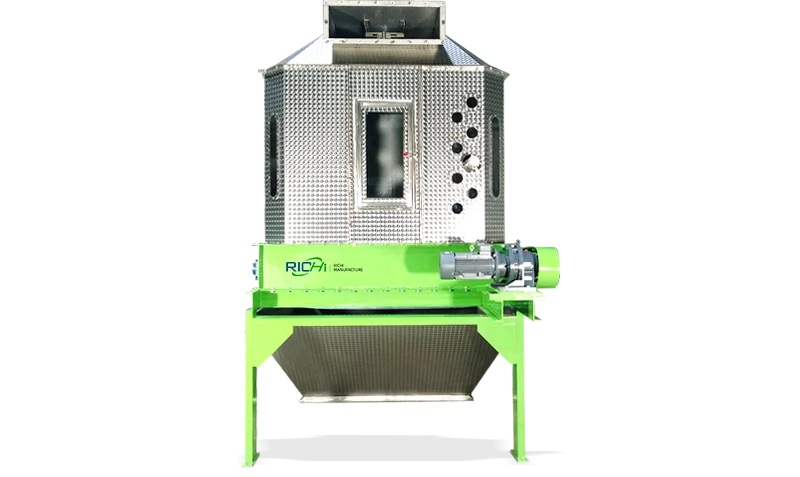

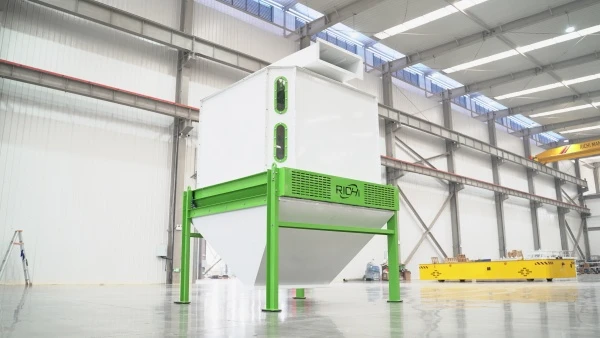

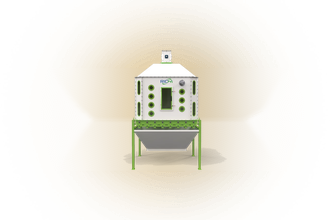

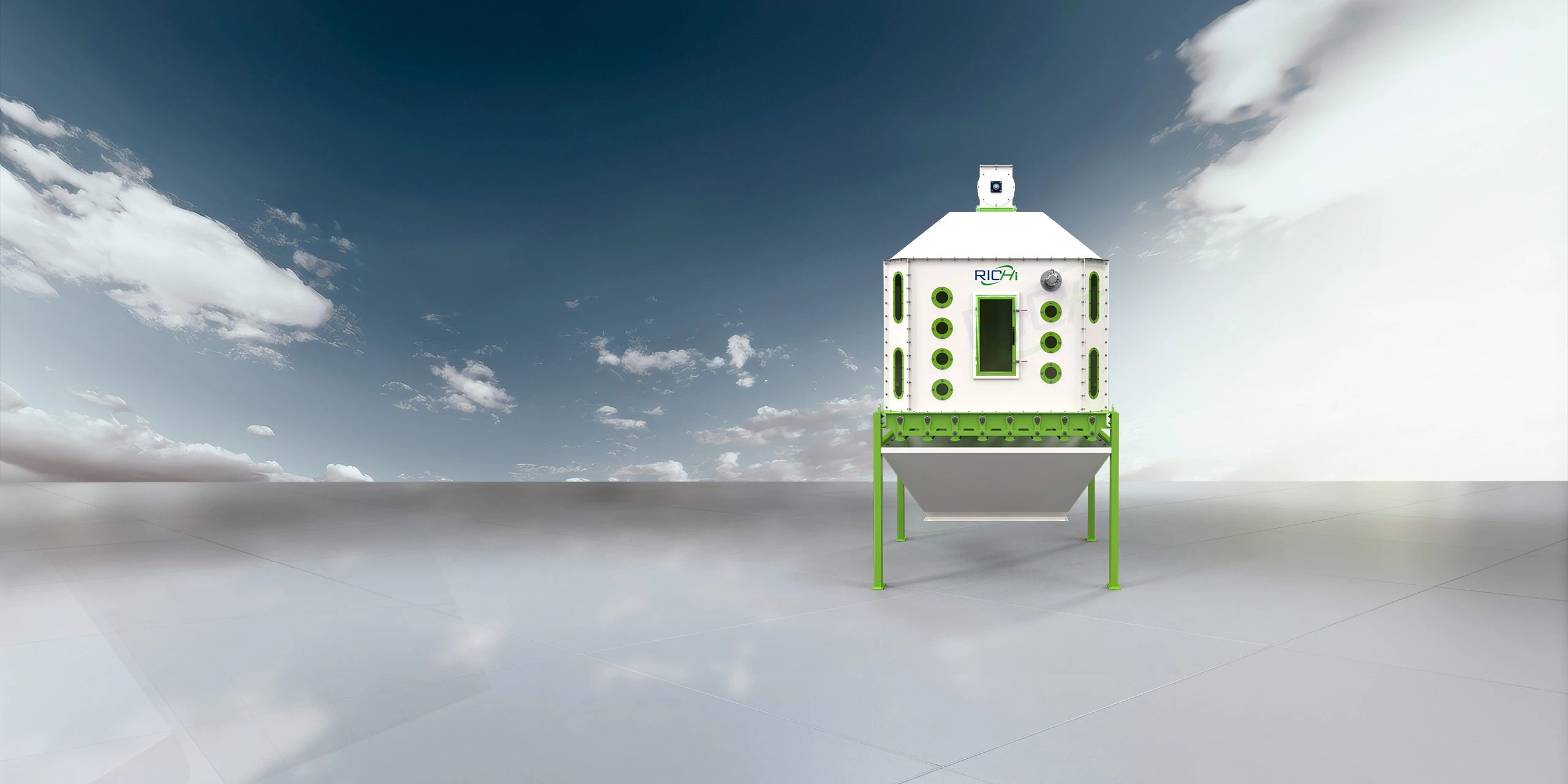

Counterflow Pellet Cooler

Home > Dryer & Cooler >
Counterflow Pellet Cooler
APPLICATION: Pelletizing Industry
CAPACITY: 3-5T/H
MAIN POWER: 0.75KW
MODEL: SKLN
WhatsApp: +86 138 3838 9622

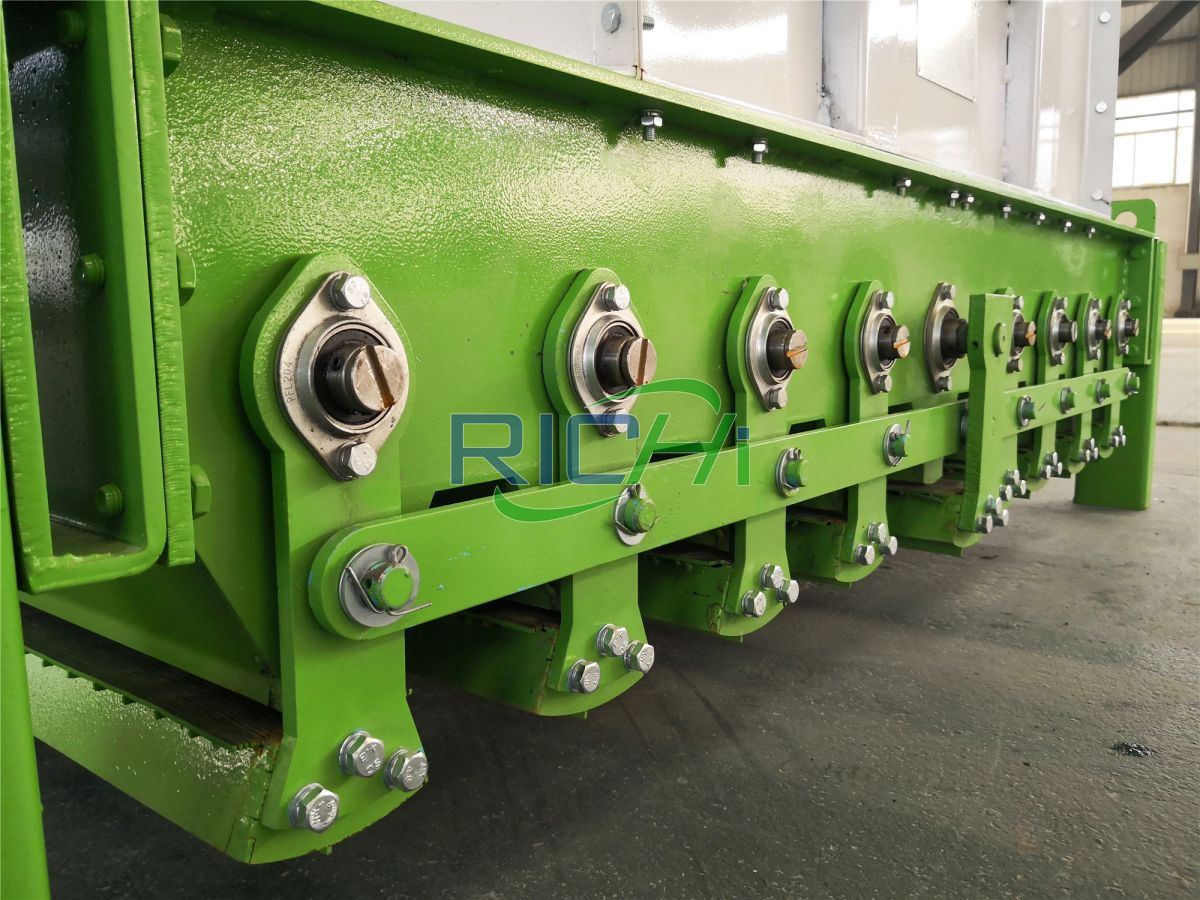

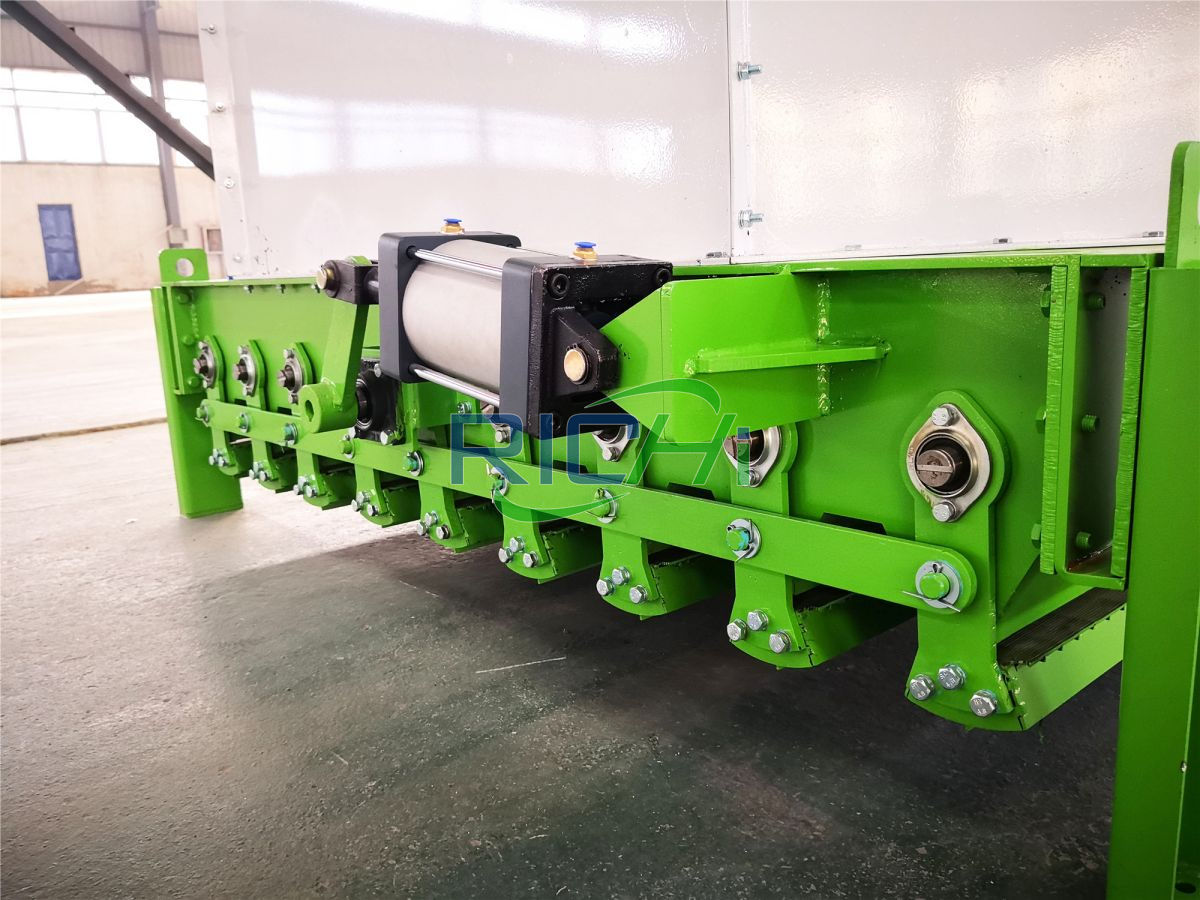

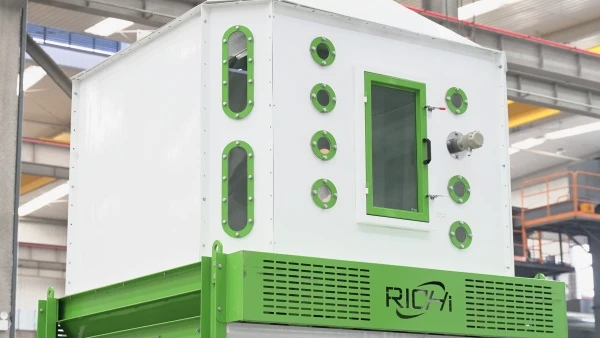

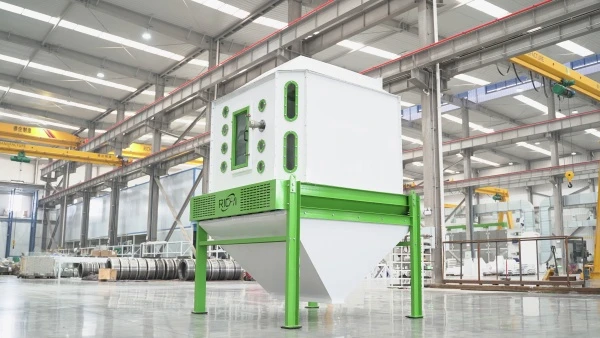

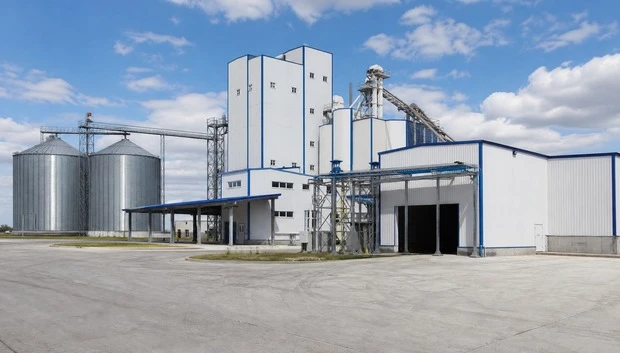

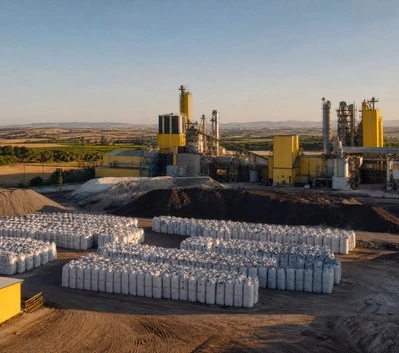

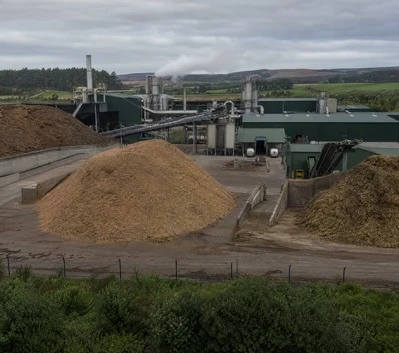

The pellet cooler adopts the principle of counterflow cooling. The pellets sufficiently and evenly cooled. The machine adopts a unique sliding valve mechanism to discharge materials, and the operation is smooth and the discharge is smooth. Currently, this equipment is mainly used in the cooling systems of feed plants, wood pellet plants, biomass pellet plants, grass pellet plants, straw pellet plants, cat litter pellet plants, and organic fertilizer pellet plants.

24 hours to reply to technical inquiries

Applications Of Counterflow Pellet Cooler

RICHIcounter flow cooler is a new type of cooler popular in the world. It uses the principle of counter current cooling to cool high temperature and high humidity pellets, that is, the ambient cold air passes vertically through the layer, first with the cold phase. The hot air heated in contact with the hot material and the direction of the wind flow is opposite to the direction of the flow.

So that the pellets gradually cooled in the forward direction, and the other coolers can prevent from directly contact with cold air and high-temperature pellets, thereby quenching the pellets.

And then cracked surface of the particle. Since the cold air enters the cooling machine from the bottom in all directions, the air inlet area is large and the cold air utilization rate is high.

Therefore, the cooling effect is remarkable, and the machine has low energy consumption and easy operation, so the counter flow cooler is excellent. Therefore, the counter flow cooler is an upgraded product that is superior to the previous vertical and horizontal coolers.

Technical Features Of Counterflow Pellet Cooler

  • The mixing time is 90s, the mixing is uniform, and the cv is not more than 5%.
  • The distribution of various materials after mixing is uniform, and the material does not decompose.
  • The filling can change into a wide range, and the filling coefficient can vary from 0.1 to 0.8. Which can use for mixing various proportions and granular materials in many fields.
  • Select the full-length door structure, the discharge is rapid, and there is no residue.
Technical Features Of Counterflow Pellet Cooler
Technical Features Of Counterflow Pellet Cooler
Technical Features Of Counterflow Pellet Cooler
Technical Features Of Counterflow Pellet Cooler
Technical Features Of Counterflow Pellet Cooler
Technical Features Of Counterflow Pellet Cooler
Technical Features Of Counterflow Pellet Cooler
Technical Features Of Counterflow Pellet Cooler

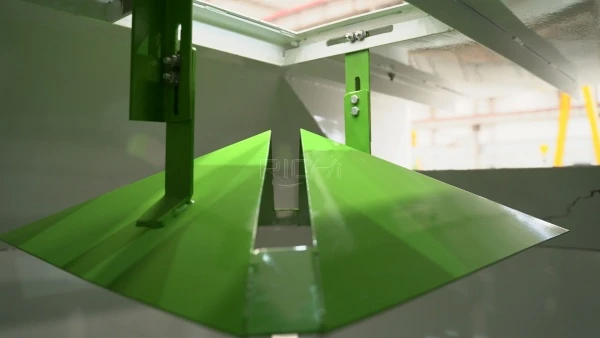

Working Principle Of Counterflow Pellet Cooler

Working Principle Of Counterflow Pellet Cooler

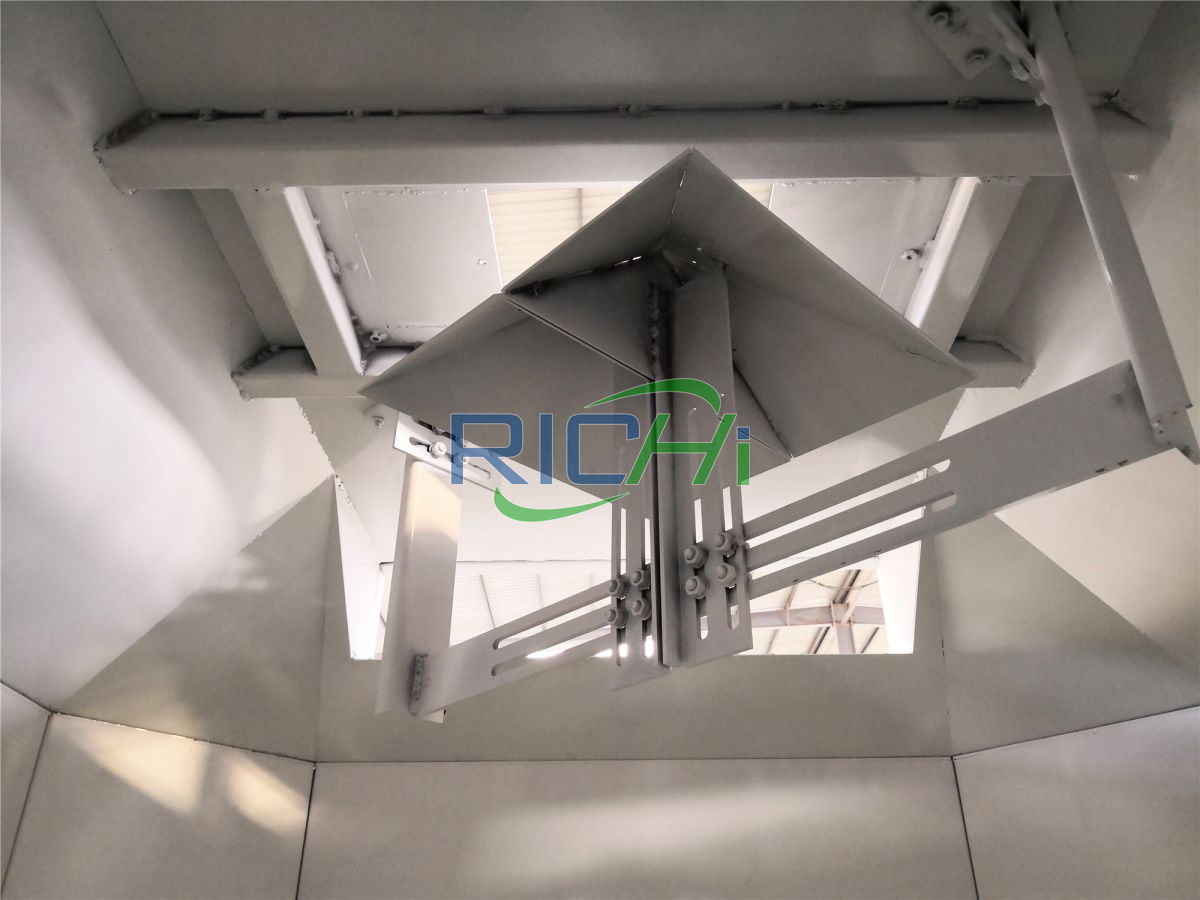

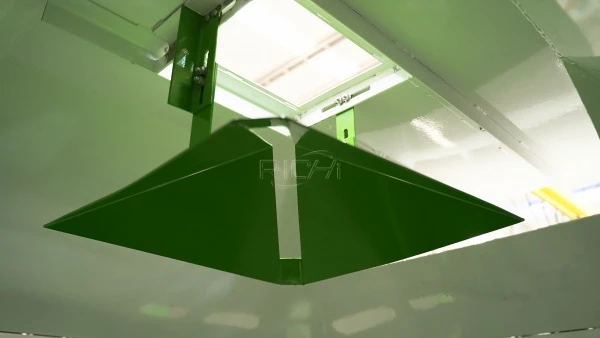

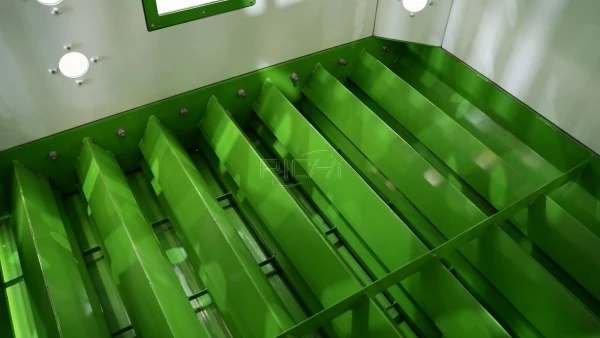

Which is discharged from the feed pellet machine and is uniformly stacked in a cooling box through a rotary conical bulker. And the cold air is slide-type from the lower side of the cooling box.

The bottom of the discharge mechanism and the upper part of the collecting hopper enter the cooler in all directions. Pass through the material layer to exchange heat with the moist heat particles, and then suck out through the suction system. So that the pellets can cool.

Technical Parameters of Counterflow Pellet Cooler

Model SKLN11*11 SKLN14*14 SKLN17*17 SKLN20*20 SKLN24*24
Capacity(t/h) 1.5-2 3-5 5-8 9-12 13-18
Power(kw) 0.75 0.75 1.1 2.05 2.05

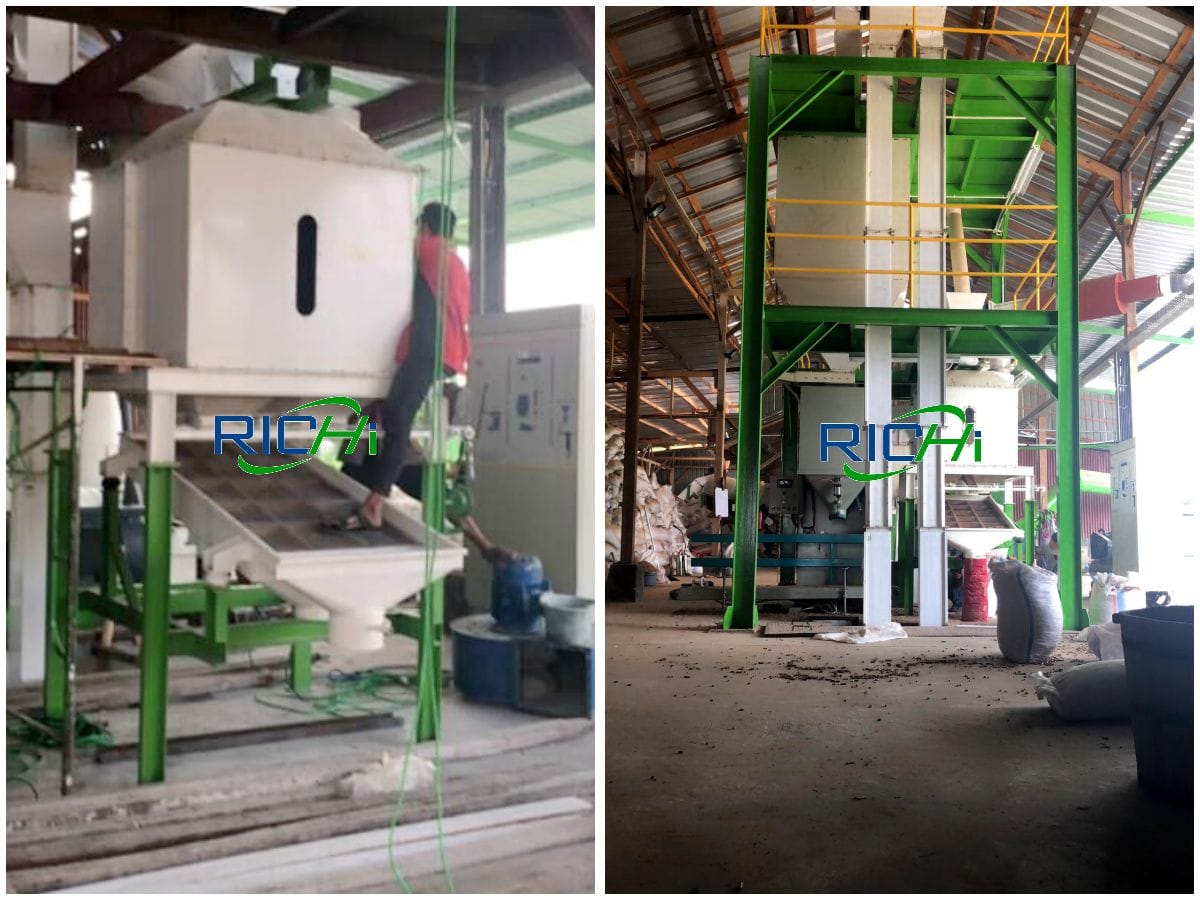

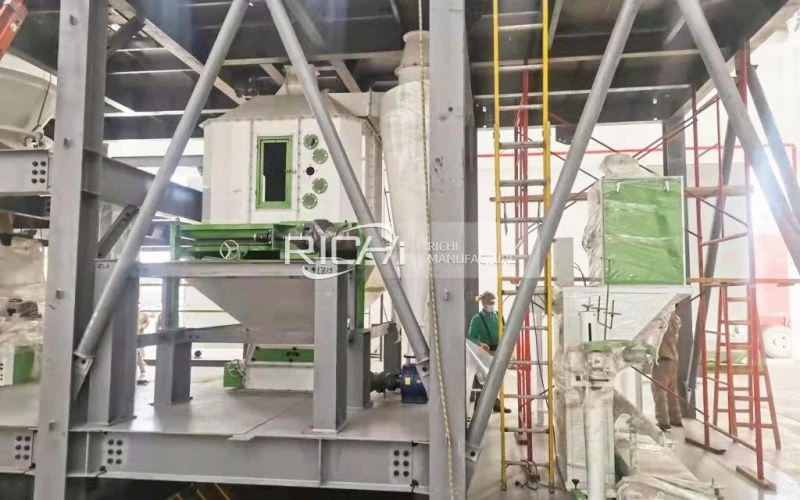

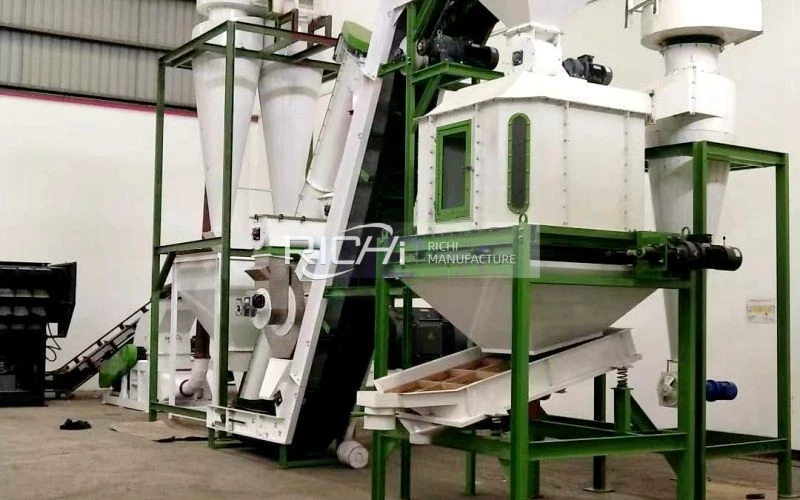

projects Of Counterflow Pellet Cooler Machine

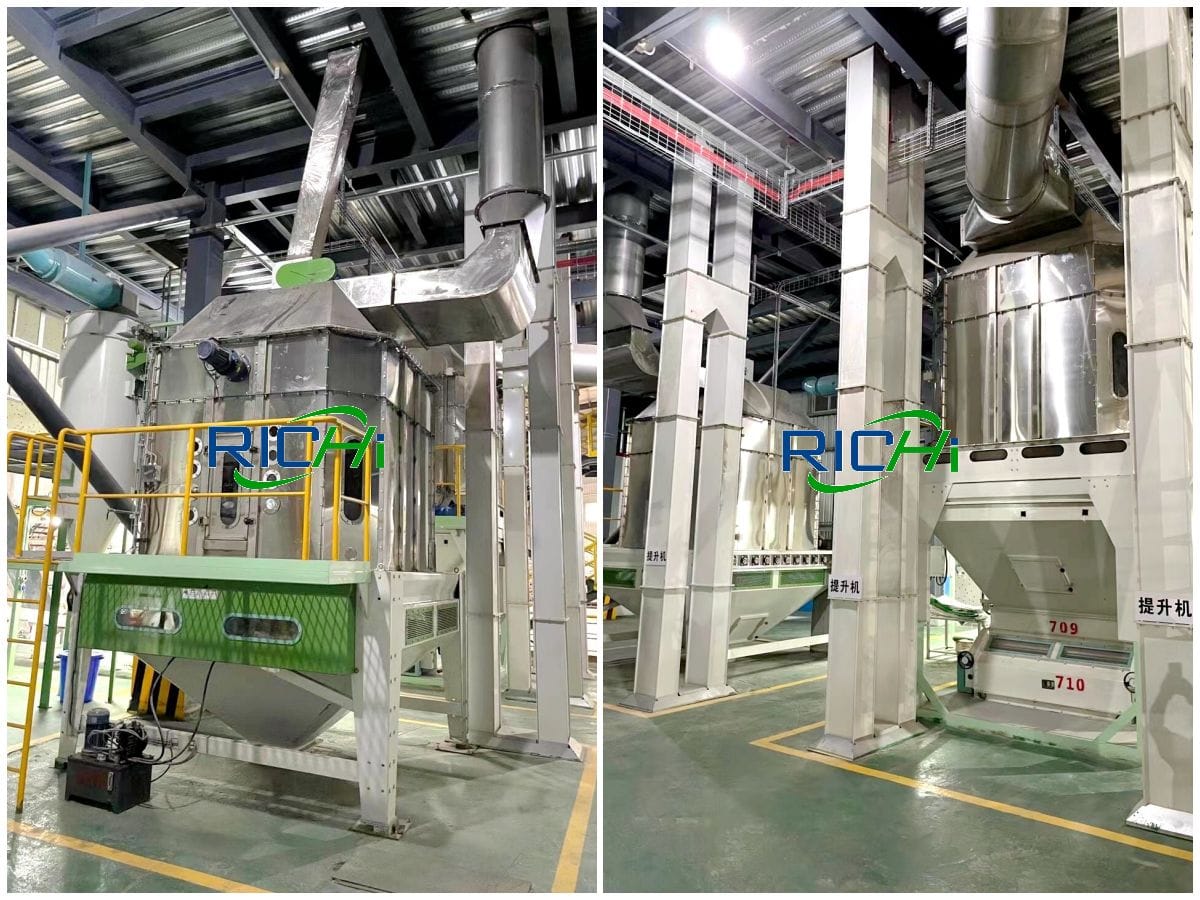

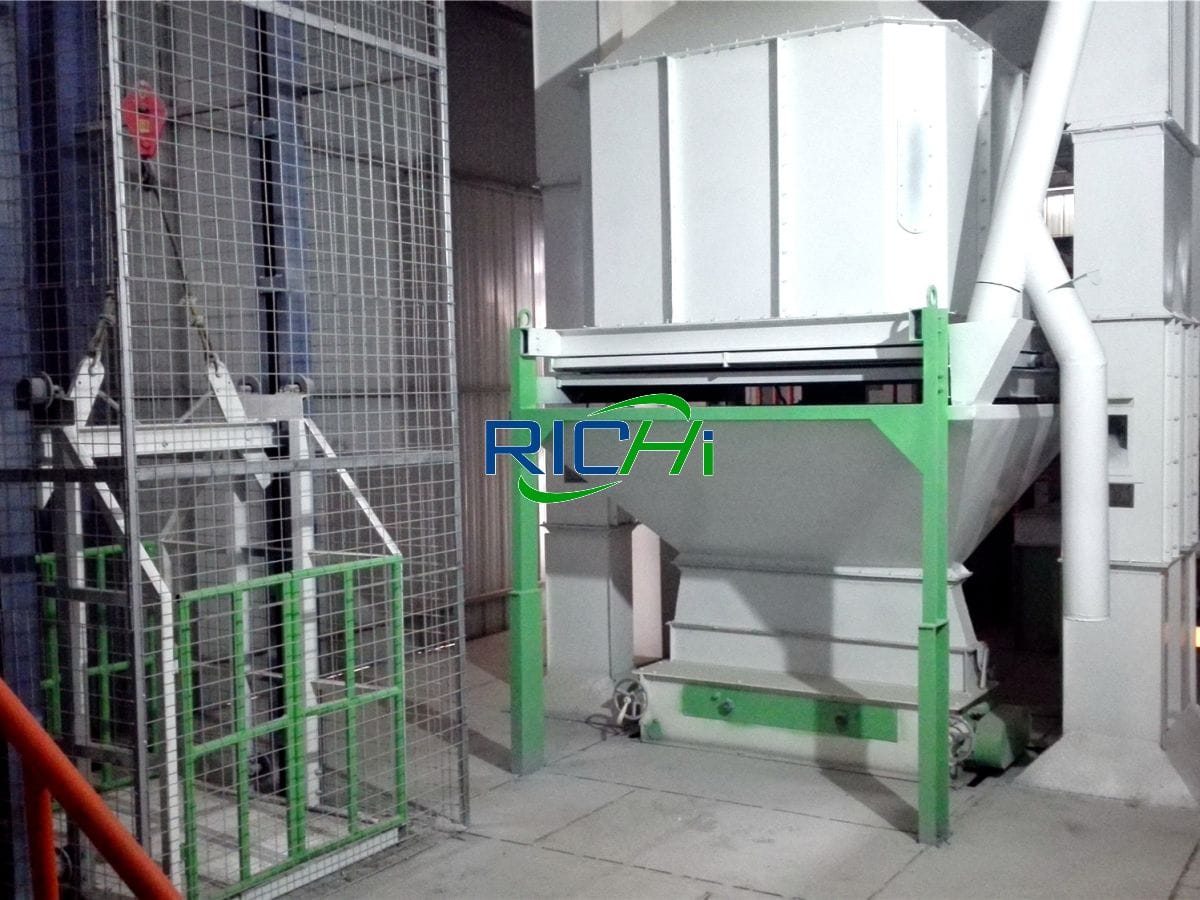

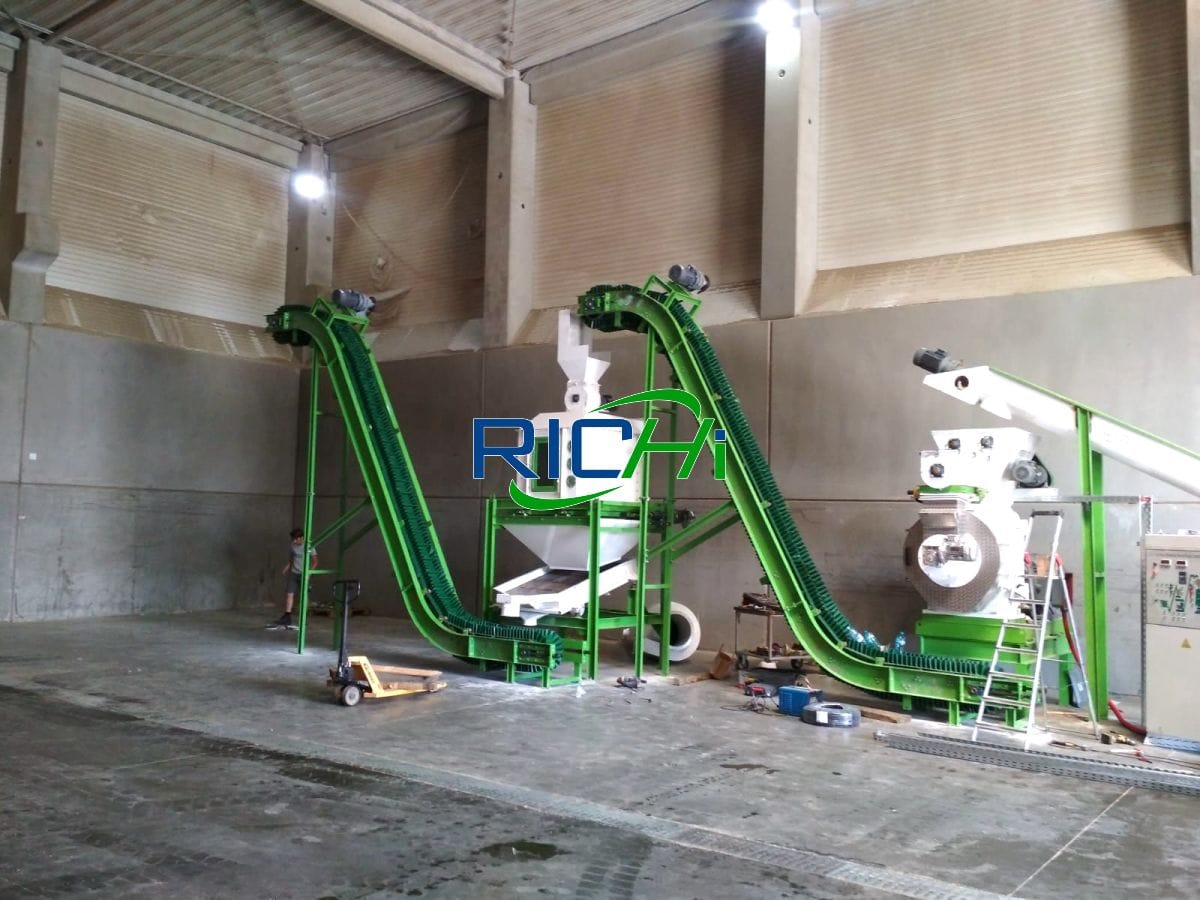

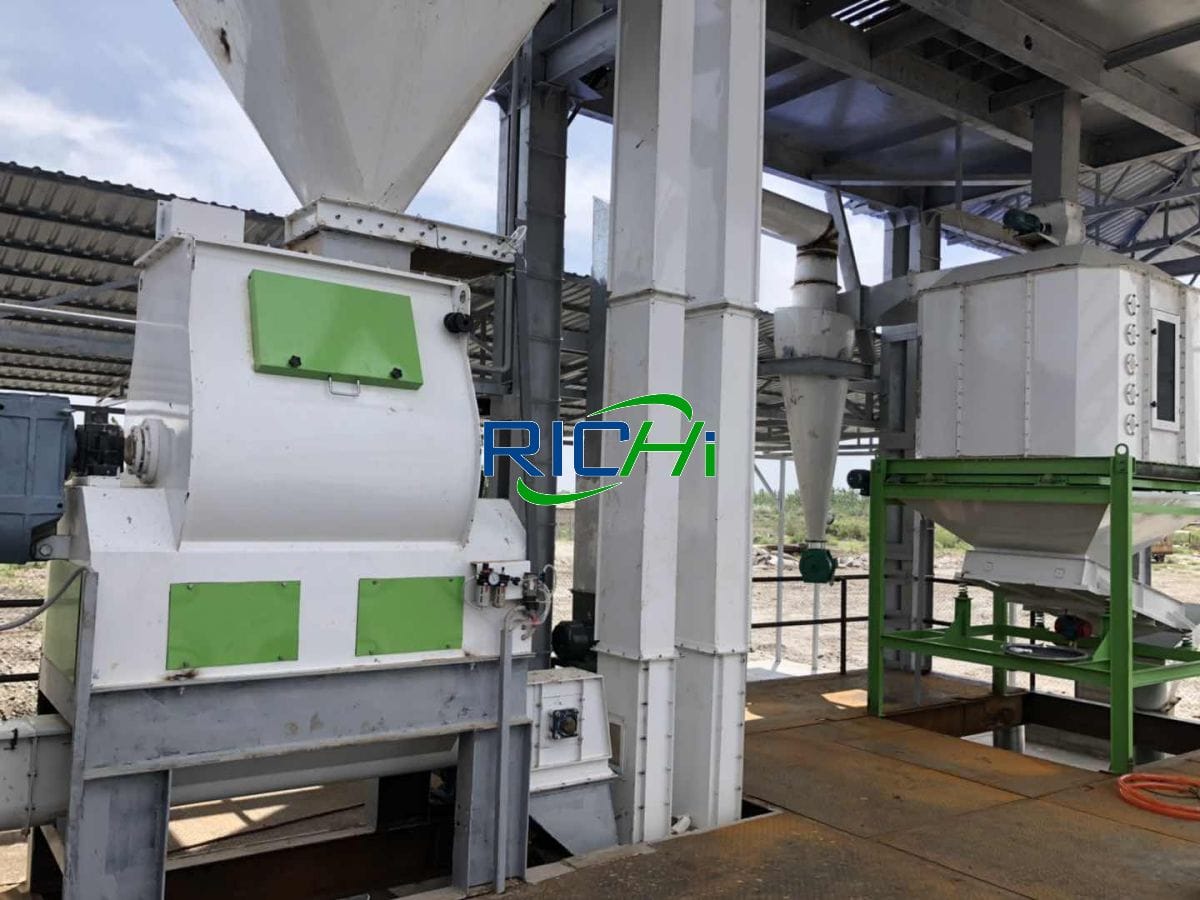

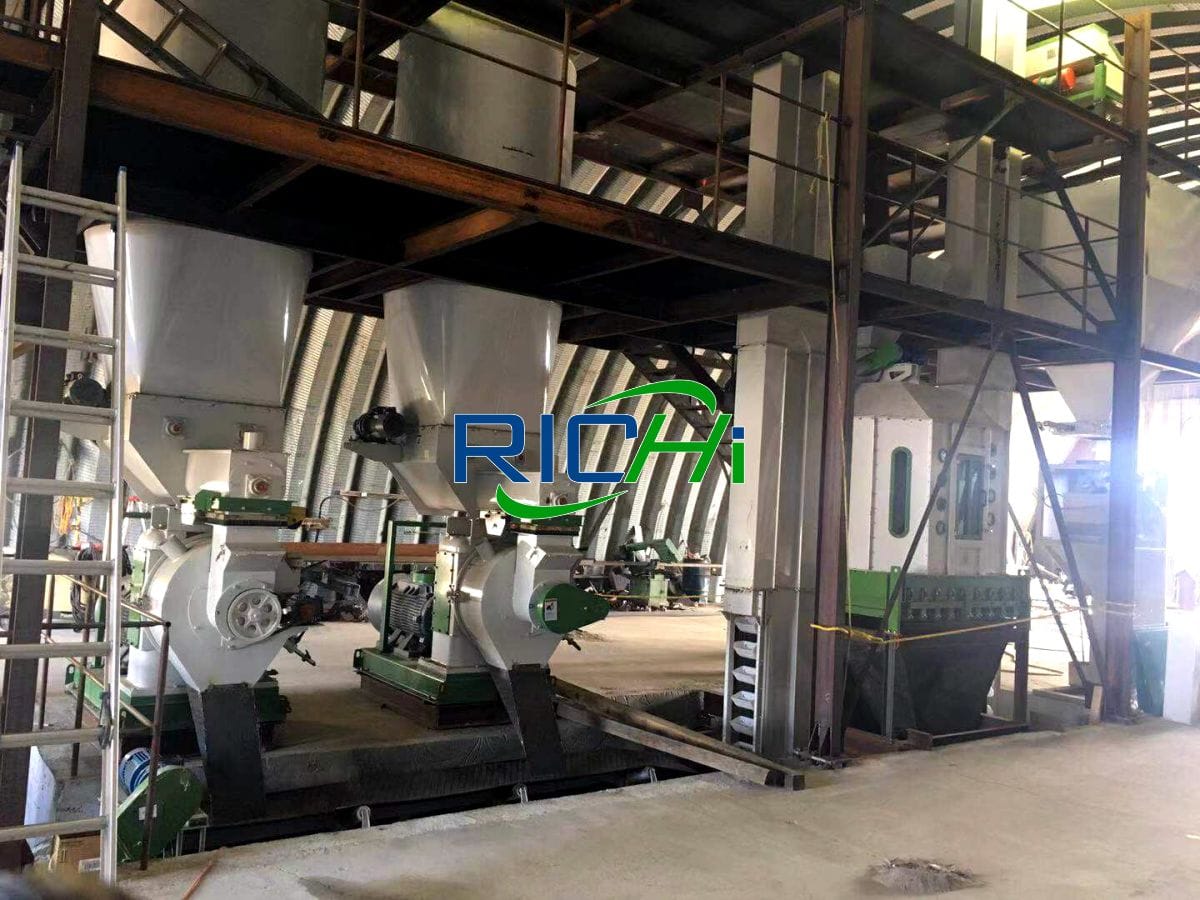

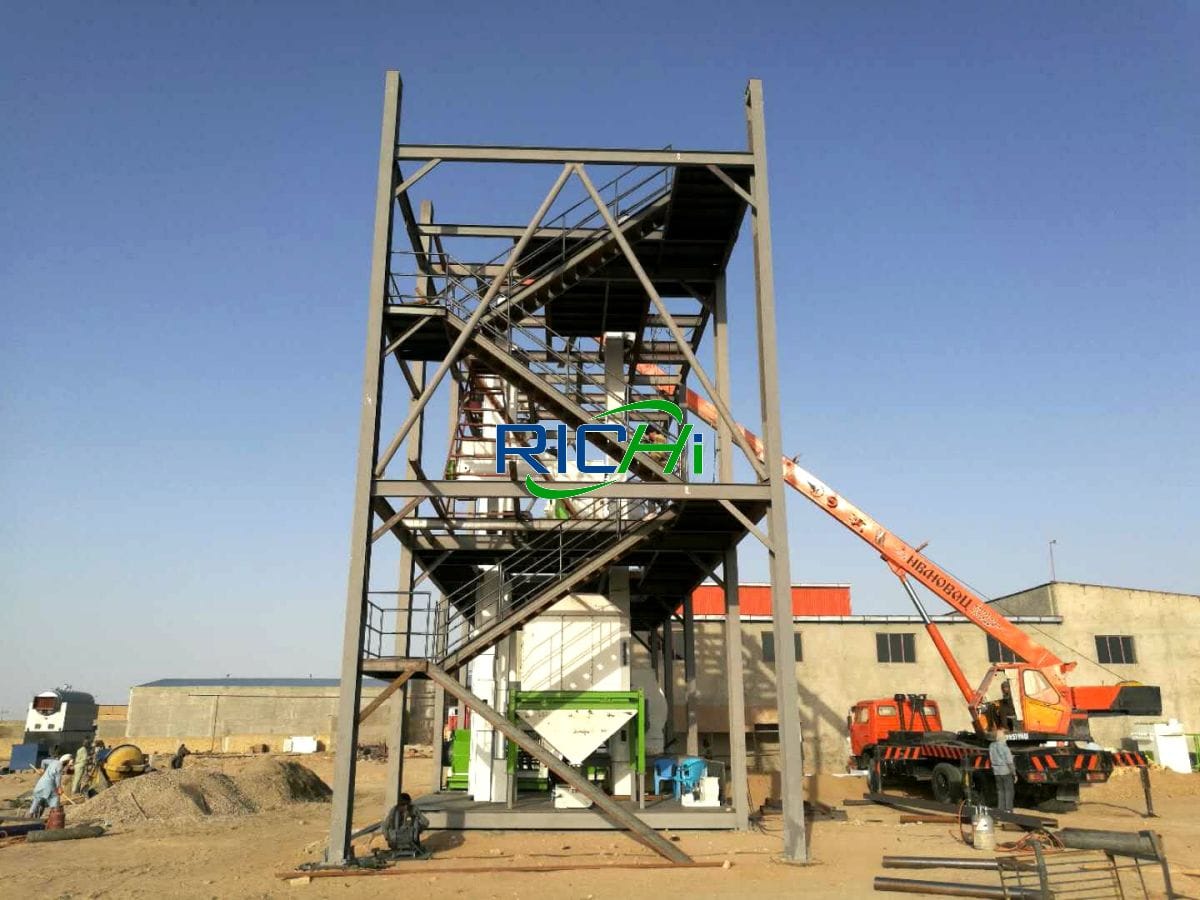

  • 10T/H animal feed pellet cooler in russia

    10T/H animal feed pellet cooler in russia

  • cattle feed pellet cooler in south africa

    cattle feed pellet cooler in south africa

  • poultry feed pellet cooler in Afghanistan

    poultry feed pellet cooler in Afghanistan

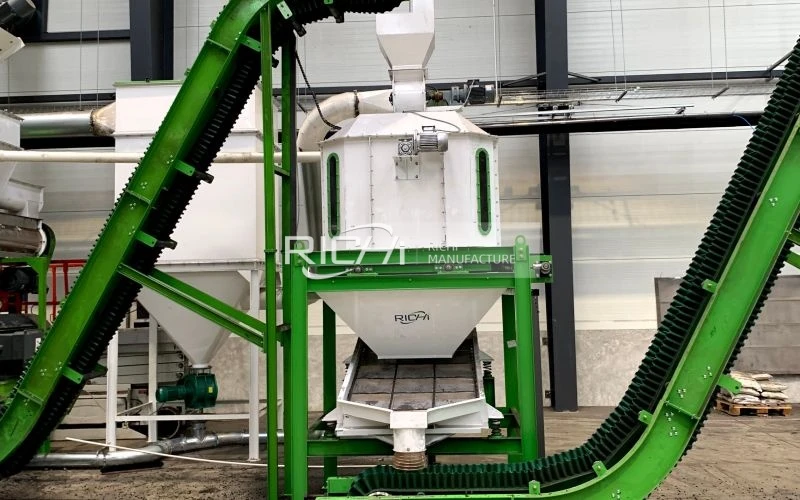

  • wood pellet cooler in canada

    wood pellet cooler in canada

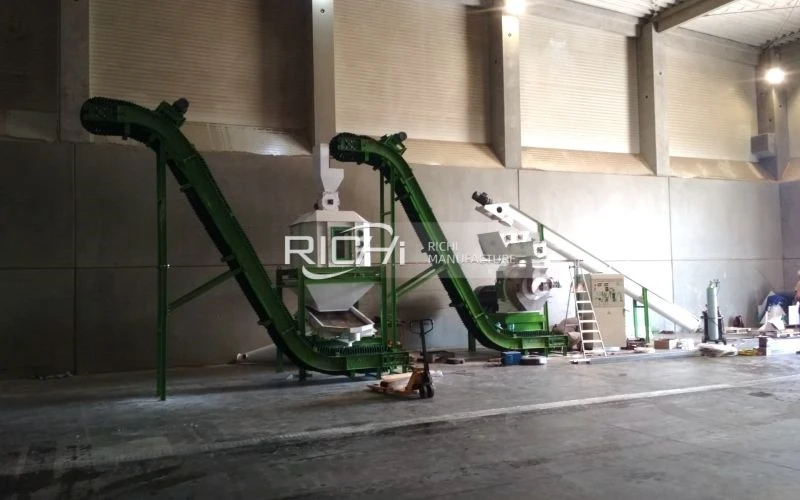

  • biomass wood pellet cooler in indonesia

    biomass wood pellet cooler in indonesia

  • livestock feed pellet cooler in oman

    livestock feed pellet cooler in oman

  • animal feed pellet cooler in Iran

    animal feed pellet cooler in Iran

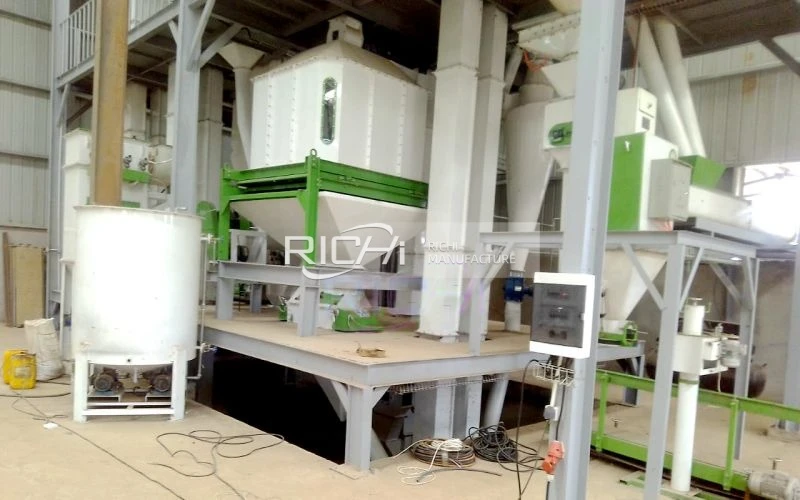

  • chicken feed pellet cooler in uzbekistan

    chicken feed pellet cooler in uzbekistan
