Olive Pomace Pellet Machine & Pellet Plant

Home > Wood Pellet Mill >
Olive Pomace Pellet Machine & Pellet Plant
APPLICATION: Olive Pomace Paper Pellet Plant
CAPACITY: 0.3T/H-10T/H
MAIN POWER: 37KW-280KW
MODEL: MZLH
WhatsApp: +86 138 3838 9622

Olive pomace pellet machine is a kind of biomass pellet machine, which can make olive pomace into olive pomace pellets. Powdered and dried olive pomace can be turned into pellets of different sizes with Richi Machinery olive pomace pellet mills. Olive pomace was previously used only in soap production. However, advancing technology has allowed us to produce pomace oil as well following a second extraction process. Now, pomace can also be converted into a biofuel and animal feed in pellet form after fully removing its oil content.

24 hours to reply to technical inquiries

Applications Of Olive Pomace Pellet Machine & Pellet Plant

Olive pomace is a valuable by-product extracted from olive oil, it is a thick sludge, the main residue of the olive oil extraction process. It is the remaining pulpy material after removing most of the oil from the olive paste and it consists of pieces of skin, pulp, stone, and olive kernel. It still contains a certain amount of oil and water, and is used in the production of solid fuel, animal feed, composite fertilizer and olive pomace oil.

Applications Of Olive Pomace Pellet Machine

The olive pomace pelleting process is economic and efficient with robust RICHI olive pomace pellet making machines. Olive pomace pellet, which is generally produced in the form of small cylinders with a length of 1-3 cm and a diameter of 6-10 mm, contains less moisture than dried olive pomace and adapts better to existing solid fuel systems.

Although not common in many countries, in Italy and Spain, olive pomace is mixed with various biomasses and used as fireplace fuel. A 1-kilogram olive pomace briquet can burn efficiently for approximately 1 hour.

Olive pomace is used as solid fuel in pellet form especially in the Aegean region. It is preferred because it is ecological, contains 5000 kcal/kg, is affordable, and is low in ash compared to other fuels such as coal. There are exclusive boilers for olive pomace pellets.

Benefits Of Olive Pellets Made By Olive Pomace Pelletizer

  • The product is oil-bearing and is therefore water repellent on storage and contains less dust;
  • A much better combustion value compared to wood pellets;
  • The ash of olive burning has no disposal rights and is therefore suitable for spreading over the crops or the land as fertilizer because of its purity;
  • Olive pellets and olive cake are available throughout the year with residue from production;
  • No burden on the environment by cutting down trees;
  • A higher and better CO2 compensation.

Uses of olive pomace pellets

  • Apartments and sites
  • Pellet stoves
  • Nutshell pellet stoves
  • Boilers with stoker
  • Chicken farms
  • Animal feed production line
  • Bread ovens
  • All areas where coal is used.
Olive
Olive waste
Olive
Olive Pomace pellet

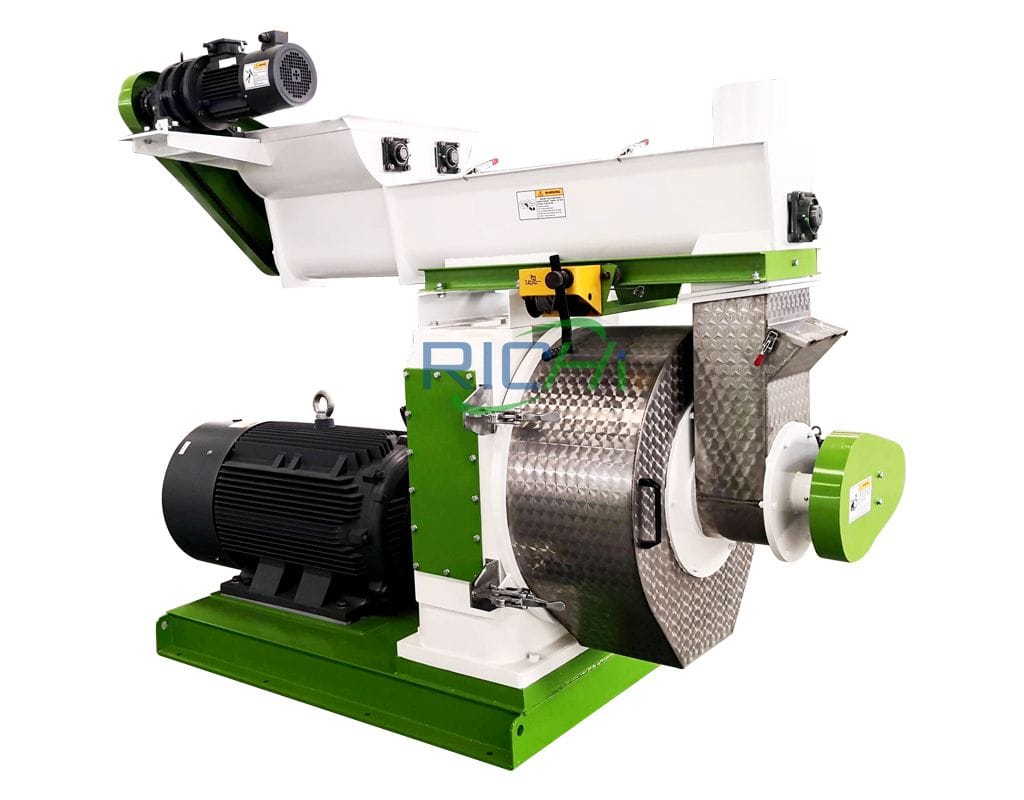

Olive Pomace Pellet making machine 1-20tph
Olive Pomace pellet

Types of olive pomace pellet machines

Advancing technology has allowed us to produce pomace oil as well following a second extraction process. Now, pomace can also be converted into a biofuel and animal feed in pellet form after fully removing its oil content.

According to the application of olive pomace, the olive pomace biomass pellet mill can be divided into three types:

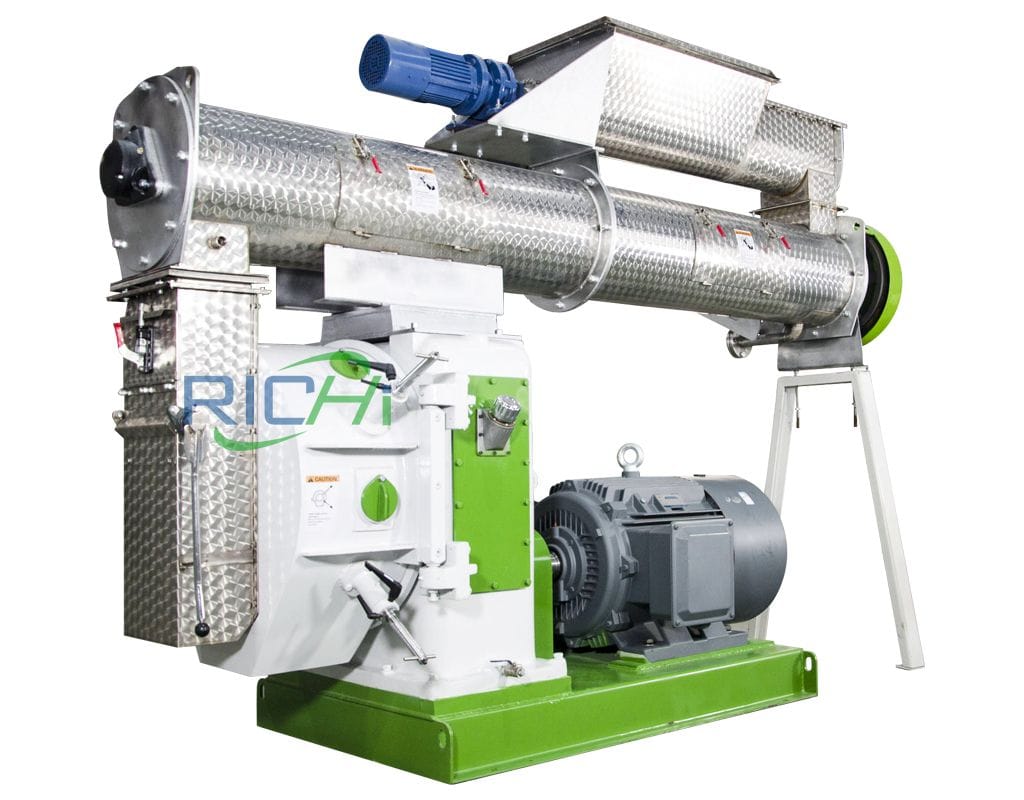

Olive Pomace fuel pellet machine

Olive Pomace fuel pellet machine

Olive pomace is a byproduct which is produced during the process of olive oil production. It is used as biomass fuel in agricultural and industrial processes.

The pomace is dehydrated and dried through a pomace dryer to a moisture content of about 20%, which can be passed through specific technology Made into biomass pellet fuel.

Olive Pomace feed pellet machine

Olive Pomace feed pellet machine

Olive pomace contains high amounts of total energy, crude fat and soluble fiber, and is rich in polyunsaturated fatty acids, making it a good ground-source feed resource.

Through preliminary research, it was found that feeding olive pomace increased the content of unsaturated fatty acids in the meat of livestock and poultry, and significantly improved the color and quality of the meat.

Olive Pomace organic fertilizer granulator

Olive Pomace fertilizer granulator

Pomace organic fertilizer granules are a good helper for improving soil. There is a lot of fiber and sugar left in the pomace.

After crushing the pomace, fully mixing the soil and pomace can help the fruit trees absorb nutrients and increase sugar content. Through repeated improvements in this way, the organic matter in the soil will also become richer, and the fruit trees can better absorb nutrients.

Here, we mainly take the processing of olive fuel pellets as an example to introduce the olive pellet machine. If you want to process olive feed or olive organic fertilizer granules, please refer directly to our animal feed pellet machine and organic fertilizer pellet machine. Because, if used for processing feed or organic fertilizer, olive pomace is just one of the raw materials and is not special.

RICHI Machinery is one of the biggest pellet making machines manufacturers and suppliers in the world, click the link below to get olive pomace pellet machine quotation, and we have professional staff to answer you!

Technical Features Of Olive Pomace Pellet Machine

The olive pomace pelleting process is economic and efficient with robust RICHI olive pomace pellet mills. Olive pomace pellet, which is generally produced in the form of small cylinders with a length of 1-3 cm and a diameter of 6-10 mm, contains less moisture than dried olive pomace and adapts better to existing solid fuel systems.

Our olive pomace pellets making machine can also be used to process Olive cake pellets, Olive pulp pellets, Olive stones pellets, Olive pits pellets and other types of pellets for a variety of uses.

  • Advanced gear-driving system with motors on this olive pomace pellet machine, stable and reliable.
  • Adopting high-qualified components on this olive pomace pelletizer machine, with stable performance, long service life and low noise.
  • Whole transmission parts (including motor) of this olive pomace pelletizing machine chooses high-quality NSK/SKF bearings to ensure the transmission efficient, stable, low noise. Main motor choose Siemens.
  • This olive pomace pellet making machine is equipped with full single layer stainless steel feeder, forced feeder, ring die and cutter.
  • Adopting international advanced technology on this olive pomace pellet processing machine: German gun drill and vacuum furnace heat manufacturing process in ring die making to ensure the pellets smooth and of high quality.
Technical Features Of Olive Pomace Pellet Machine
Technical Features Of Olive Pomace Pellet Machine
Technical Features Of Olive Pomace Pellet Machine
Technical Features Of Olive Pomace Pellet Machine
Technical Features Of Olive Pomace Pellet Machine
Technical Features Of Olive Pomace Pellet Machine
Technical Features Of Olive Pomace Pellet Machine
Technical Features Of Olive Pomace Pellet Machine

Hot selling factory price olive pomace pellet mill machine provided by RICHI Machinery has several models according to its different production scaless. For detailed machine parameters and price list, welcome to contact RICHI anytime!

Working Principle Of Olive Pomace Pellet Machine

The olive pomace pellet press machine process: crushed olive pomace material is fed evenly by the forced feeding device, the centrifugal force generated by the rotation of the ring die, and the action of the feeding scraper.

The two pressing areas in the ring die are in the wedge-shaped space formed by the two press rollers and the ring die.

Under the strong squeezing action of the ring die and the press roller, the olive pomace material is gradually compacted, squeezed into the die hole of the ring die and shaped in the die hole.

Because the extrusion of the material between the die and the roller is continuous, the formed olive pomace material is continuously discharged from the die hole in a columnar shape, and then cut into olive pomace pellets of the required length by the cutter, and then enters the next process.

Olive Pomace Pellet Making Machine Price & Specification

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Power 37KW 55KW 90KW 132KW 250KW 280KW
Capacity 300-400KG/H 500-700KG/H 1.0-1.2 T/H 2.0-2.5 T/H 2.5-4 T/H 3-4.5 T/H
Final Pellet 2-12mm 2-12mm 2-12mm 2-12mm 2-12mm 2-12mm
Weight(KG) 2500 3500 4000 4500 5000 5500
Olive Pomace Pellet Machine Price 7000-100000USD

Sugarcane Bagasse Pellet Machine & Pellet Plant projects

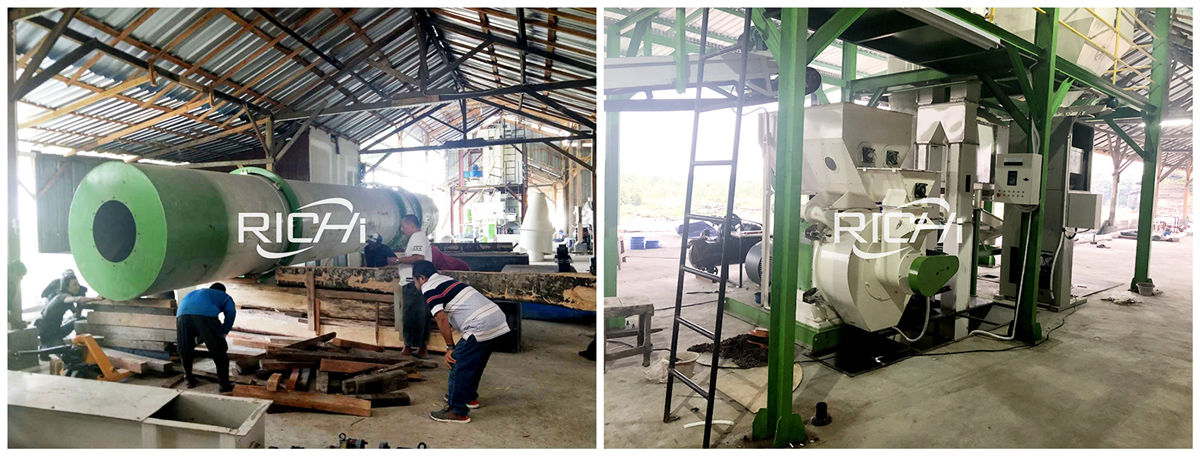

  • Olive Pomace pellet plant in Spain

    Olive Pomace pellet plant in Spain

  • Olive Pomace pellet plant in Italy

    Olive Pomace pellet plant in Italy

  • Olive Pomace pellet plant in Vietnam

    Olive Pomace pellet plant in Vietnam

  • Olive Pomace pellet plant in Argentina

    Olive Pomace pellet plant in Argentina

  • Olive Pomace pellet plant in Turkey

    Olive Pomace pellet plant in Turkey

  • Olive Pomace pellet plant in Chile

    Olive Pomace pellet plant in Chile

  • Olive Pomace pellets plant in Egypt

    Olive Pomace pellets plant in Egypt

  • Olive Pomace pellets mill in Morocco

    Olive Pomace pellets mill in Morocco

Although not common in Turkey, in Italy and Spain, olive pomace is mixed with various biomasses and used as fireplace fuel. A 1-kilogram olive pomace briquet can burn efficiently for approximately 1 hour.

Olive pomace is used as solid fuel in pellet form especially in the Aegean region. It is preferred because it is ecological, contains 5000 kcal/kg, is affordable, and is low in ash compared to other fuels such as coal. There are exclusive boilers for olive pomace pellets.

How to Make Olive Pomace Pellets? Complete Olive Pomace Pellet Production Line Design

How to Make Olive Pomace Pellets

When burned directly, the energy stored in the olive pomace is transformed and released as heat. The calorific value of olive pomace is quite high and comparable to that of coal. And its calorific value largely exceeds that of wood waste biomass.

Therefore, the potential of making pellets out of olive pomace is a viable alternative. With several biomass pellet plant processes, the natural waste resource is turned into high-value energy products and a premium quality biomass fuel pellet. The following are complete olive pomace pellet manufacturing processes:

01

Step 1: Cleaning& grinding section for pellet plant

Raw material intake is the first step of the biomass pellet production line process. During the cleaning and sieving process, foreign objects are removed from the raw material.

Grinding is an essential step of most processes. Olive cake is crushed with the help of olive pomace hammer mills or a olive pomace grinder to reduce the size of the olive cake and finally produce a fine powder.

02

Step 2: Drying section for pellet plant

Olive pomace has a high moisture content of 40-70%, depending on the olive oil extraction process. Then a rotary drum dryer is essential. The rotary dryer has a slight inclination, acting as a conveying device and stirrer. The goal of the drying process is to reduce the moisture of olive pomace to approximately 12%, which is suitable for pelletizing.

03

Step 3: Pelleting section for pellet line

After drying, the olive pomace can be pelletized directly without any further treatment. The ring die olive pomace pelleting machine is more proper for olive pomace pellet production. And the ring die compression ratio should be higher than 1:6.5. No adhesive added in this procedure.

04

Step 4: Cooling section for pellet production line

Pomace pellets discharged from olive pomace pellet milling machine are high in temperature and moisture content. Our counter current pellet cooler is used to remove pellet heat as well as the moisture content to ensure pellets quality and shelf-life.

05

Step 5: Sieving section for pellet making plant

The powder materials or unshaped pomace pellets are sieved and send to the olive pomace pellet mill equipment again.

06

Step 6: Packaging section for pellet production plant

These olive pomace pellets are then packed into different capacity bags for distribution.

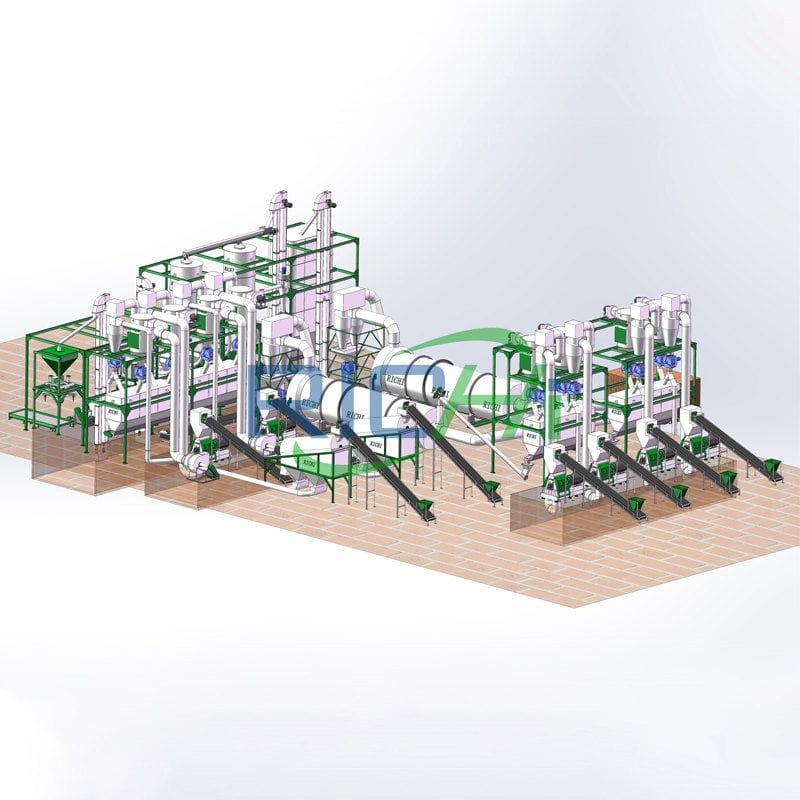

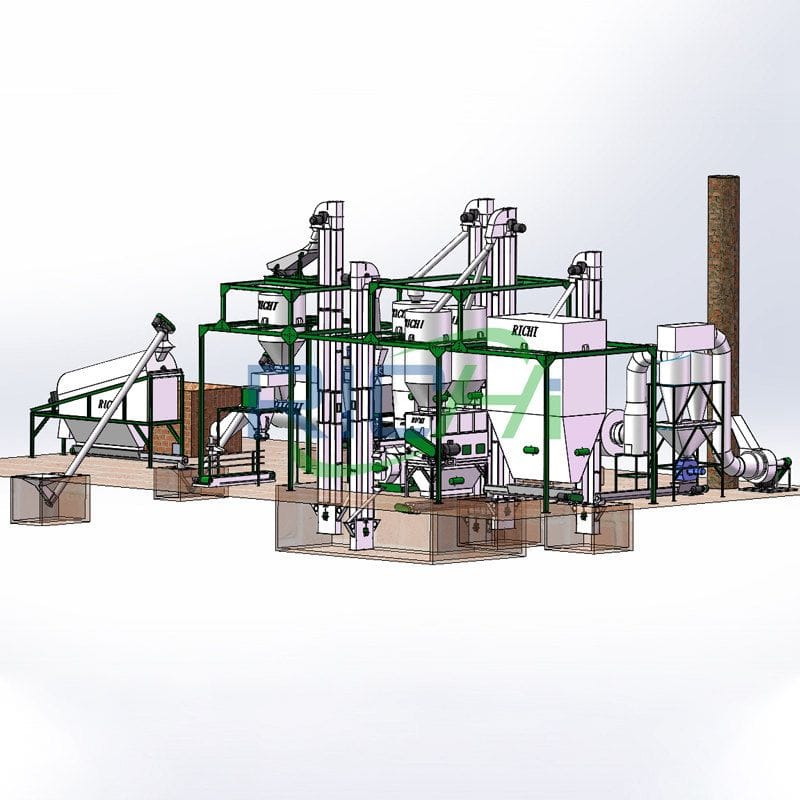

1-2 t/h Olive Pomace Pellet Production Line
4-5t/h Olive Pomace Pellet Production Line
8-10 t/h Olive Pomace Pellet Production Line

As a result of agroindustrial activities in southwestern Europe, a great amount of residues are generated; among them, olive pomace stands out as one of the most abundant. One interesting alternative to increase its potential as biofuel can be its densification. However, in order to achieve high quality pellets, it is necessary to blend this material with other feedstocks.

supporting Equipment needed in olive pomace  pellet production line

olive pomace Hammer Mill

olive pomace Hammer Mill

Capacity:
3-25T/H
Main Power:
30-160KW
olive pomace Dryer machine

olive pomace Dryer machine

Capacity:
Customized
Rotate Speed:
3-8 R/Min

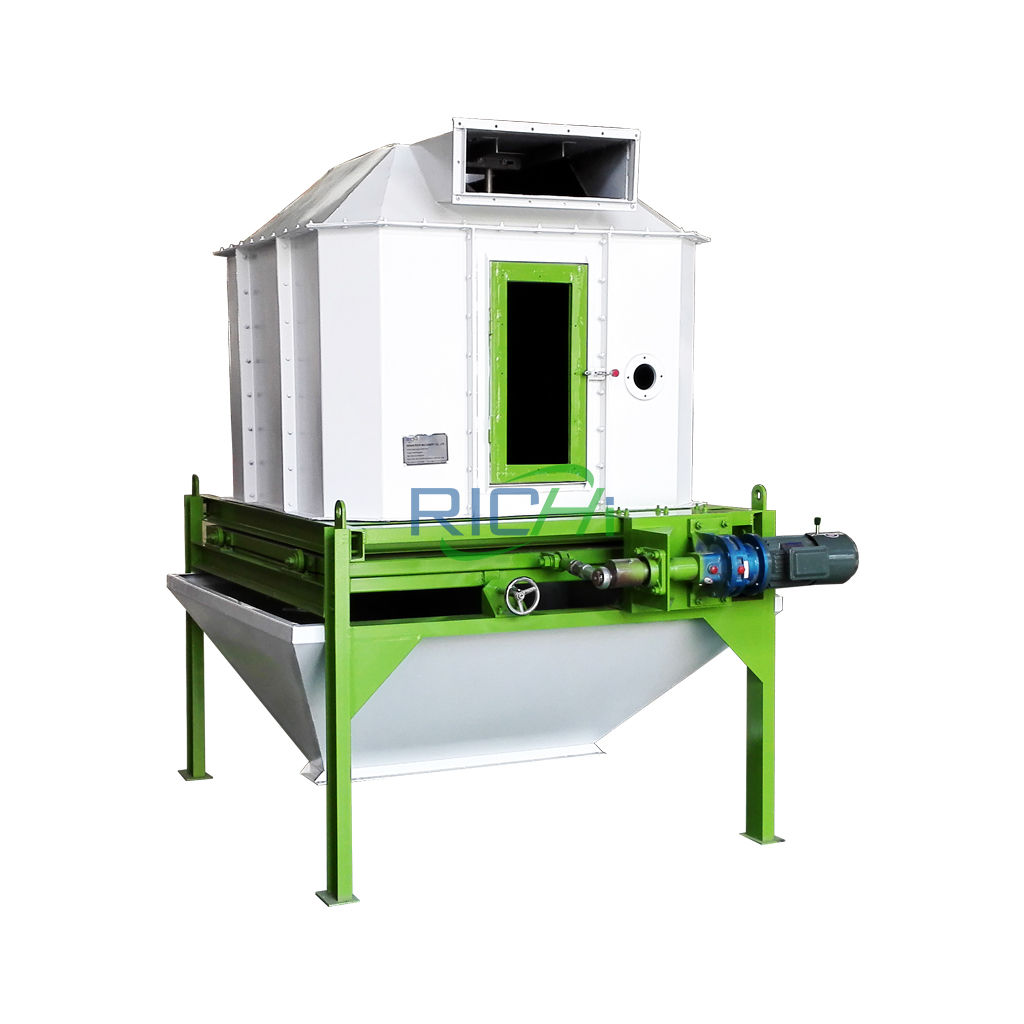

olive pomace Pellet Cooler

olive pomace Pellet Cooler

Capacity:
1.5-18T/H
Main Power:
0.75-2.05 KW
olive pomace pellet Bagger

olive pomace pellet Bagger

Speed:
6-12 Bags/Min
Main Power:
1.1-5KW

It is obtained by pressing dry olive pomace in special machines. The pellets have a cylindrical shape with a diameter of 6-10 mm. It contains less moisture than dry pomace, does not contain powder.

  • Lowest Calorific Value: 4300 KCAL / KG (DRY BASE 5000 KCAL / KG)
  • Highest Calorific Value: 4700 KCAL / KG. (DRY BASE 5500 KCAL / KG)
  • Moisture%: 8 (MAX. 10)
  • Oil%: 0.8 (MAX. 1, 5)
  • Ash%: 3

What are the specifications of Olive cake pellet?

Olive cake pellet is a by-product of the second industrial olive oil extraction process obtained by the pelletizing of the olive cake.

Main characteristic:

  • NCV: 16,2 GJ/ton
  • Ash: 9%
  • Moisture: 12%

Which countries are suitable for customers to start olive pellet processing business?

Generally speaking, the countries suitable for carrying out olive pellets processing business are mainly olive producing areas.

01

Mediterranean Region

The Mediterranean region is one of the main olive-producing regions, including countries such as Spain, Italy, Greece, Morocco and Tunisia. These countries have suitable climate and soil conditions that allow olive cultivation to be highly productive.

Among them, Spain is the world's largest olive producer, and its olive oil production accounts for more than one-third of the world's total production. Olive oil is an important part of the Mediterranean diet, so in these regions olive cultivation contributes significantly to the economy.

02

Americas

Olive cultivation in the Americas is mainly distributed in countries such as Argentina, Chile, the United States and Canada. Although the Mediterranean region remains the world's main olive-producing region, olive cultivation is gradually increasing in the Americas.

  • On the one hand, this is due to the increasing demand for olive oil and olive products;
  • On the other hand, the climatic conditions in the Americas are not that different from those in the Mediterranean, so some olive varieties can grow successfully in these areas as well.
03

Asia

Olive cultivation in Asia is mainly concentrated in Türkiye. Turkey is one of the largest olive oil producers in the world, second only to Spain in its olive oil production.

The climate and soil conditions in Asia are relatively similar to those in the Mediterranean region, which provides favorable conditions for olive cultivation.

Top 10 Countries for Olive Production

  Top 10 Countries Metric Tons Last YoY 5 years CAGR
01 Spain 9,176,929.00 2019 -6.5 % +15.0 %
02 Italy 1,945,324.00 2019 +3.6 % -0.2 %
03 Turkey 1,674,377.00 2019 +11.6 % -1.1 %
04 Greece 1,525,543.00 2019 +41.4 % -10.1 %
05 Morocco 1,479,853.00 2019 -5.2 % -1.2 %
06 Egypt 892,753.00 2019 +16.2 % +9.6 %
07 Algeria 854,377.00 2019 -0.7 % +12.1 %
08 Portugal 791,410.00 2019 +6.9 % +11.7 %
09 Tunisia 744,757.00 2019 -9.8 % +14.7 %
10 Syria 358,666.00 2019 -10.3 % -1.8 %

If you are from these areas, whether you are engaged in olive growing business or not, you can consider processing olive pellets with olive pomace pellet machine & pellet production line as one of your investment options, which may bring you unexpected economic benefits!

Why choose olive pomace pellet as a biofuel?

The pomace pellet made by olive pomace pelleting machine is ideal for feeding boilers, fireplaces, stoves, ovens and all types of multi-fuel boilers with feeder. Here are the main features that makes it a super efficient fuel:

  • Excellent value for money
  • Reduction of smoke and ash production, ensuring less maintenance and longer life for the boilers
  • Low humidity and reduction of mold creation
  • High calorific value, even higher than wood pellets:
    Olive pomace pellet: 6700
    Wood pellets:4500
    Firewood: 3500
  • Eco-friendly: does not require the felling of trees, does not use chemical additives
  • Easily to store: it can be packaged in compact and perfectly palletizable bags.

Olive pomace pellet is a natural and economic fuel with a high calorific value, therefore a valid alternative to common wood pellets. The olives are able to provide us with this precious highly ecological fuel: the pomace is in fact composed of peels, pulp and fragments of olive pits.

If I want to process olive pomace granules, how do I package them?

Richi Machinery able to supply packaging machines combined with palletisers, wrappers, case packers for olive pomace pellets and for any type of natural fuel present on the market.

The packaging machine represents the ideal solution for packing this kind of olive pomace pellets.

About bags, those made from plastic reels are the most common, but PP woven bags are also often used with the aim of more aerating the packaged product.

Each olive pomace pellet packaging system can be customized according to your needs.

What are the applications of olive pomace fuel pellets?

Olive biomass pellets made by olive pomace fuel pellet making machine can be used from heating a house to producing energy for the industry.

For burning it is necessary to use burners or stoves of wood based fuel or poly-burners, suitable for a plurality of solid biofuels . Installing a biomass burning system offers flexibility and can be depreciated over a short period of time, as Olive Biomass has a low cost.<

How economical are olive pomace fuel pellets?

Olive pomace pellets made by olive pomace pellet machine offers maximum economy, which can reach 30% compared to wood pellets, or up to 55% compared to oil. Its price is low and stable compared to imported raw materials (petroleum, wood pellets), while its thermal power is significantly higher than other cheaper fuel (wood, core).

In addition, the cleanliness of the final product, which has consistent performance and low maintenance costs for the burners, leads to a reduction in hidden costs.

Why Choose Richi

why choose richi
why choose richi

Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields.

All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization.

Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan

Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Quality Control

Delivery And Installation

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment.

According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training

After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs.

After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.

Related Project
Contact Us

GET A QUOTATION

Application:

Demands: (Submit your requirement here, eg. equipment, materials, product type, production size, etc.)

* We will store the information you have provided us. We will only use this information for the purpose of helping to answer your inquiries. We will not disclose your information to third parties.

Copyright © 2015-2023 by HENAN RICHI MACHINERY CO,LTD.All rights reserved.
×
Fill Out The Form To Get Quotation
