Project Case About Pellet Machine & Production Line
Home > Feed Production Line >

Uzbekistan 1T/H Floating Fish Feed Plant And 1-2T/H Poultry Feed Mill Combined Project

Name:FIsh poultry feed processing plant
Country:Gizak, Uzbekistan
Date:Jan 16th,2019
Capacity:2-3T/H
Feed Pellet Size:1-4mm fish and poultry pellets
MAIN POWER:150KW
Workshop size(L*W*H):15M*9.5M*8M
Fish poultry feed plant price:25000-150000 USD

sales@cnrichi.cn sales@cnrichi.cn
Send Inquiry Send Inquiry

Overview Of Uzbekistan 1T/H Floating Fish Feed Plant And 1-2T/H Poultry Feed Mill Combined Project

This is a customized feed mill plant for poultry and floating fish feed mill project, advanced structure and smooth operation, the Uzbekistan customer's raw materials are corn, soybean meal, oil, premix, used in the production of floating fish feed 1-1.2t/h, poultry chicken feed 1-2t/h, feed pellet size is 1-4mm.

Uzbekistan floating fish and poultry feed feed manufacturing plant project project customer visitUzbekistan floating fish and poultry feed feed manufacturing plant project project customer visit

This 1t/h floating fish feed mill and 1-2t/h poultry feed mill combined project started in January 2019, the installation cycle is 60 days, covers an area of 15*9.5*8 meters, and the fish poultry feed mill plant project was put in production in March 2020. The main poultry feed making machine and fish feed making machine of the feed production project includes: fish poultry feed grinder machine, fish poultry feed mixer machine, floating fish feed extruder, poultry feed pellet machine, pellet cooler, vibrating shifter, automatic packing machine, 1t/h steam boiler, etc

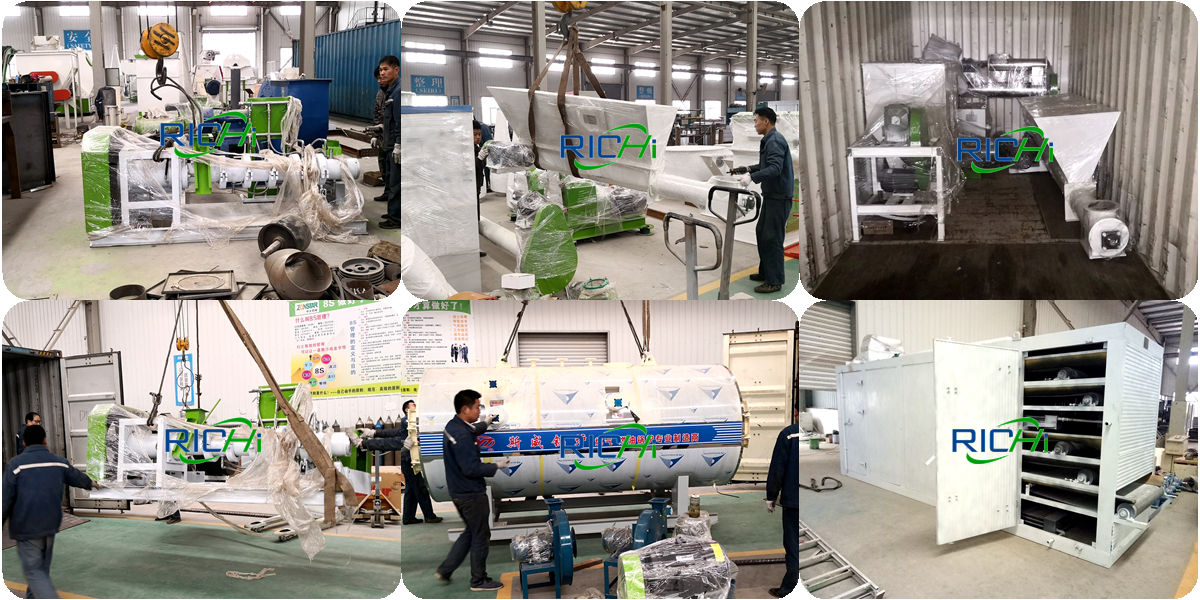

Equipment delivery of 1T/H Floating Fish Feed Making Plant And 1-2T/H Animal Feed Line Combined Project for sale UzbekistanEquipment delivery of 1T/H Floating Fish Feed Making Plant And 1-2T/H Animal Feed Line Combined Project for sale Uzbekistan

Configuration features:

1.37KW fish poultry feed grinder

This poultry feed grinder can reach perfect balance between fineness and production. Once crushing mesh≤∅1.8, grease content ≤8%, moisture content ≤10.5%. Transmision : Directly driving type with hammers.

2.90KW aquatic fish feed extruder

The new type conditioner of the fish feed maker machine can soften material fibers, improve gelatinization degree, reduce power consumption and increase production capacity. Intelligent control system, key data on-line monitoring, improve efficiency.
Uzbekistan 1T/H Floating Fish Feed Plant And 1-2T/H Animal Feed Mill Combined Project

Site of floating fish and poultry feed feed manufacturing plant project in Uzbekistan

3.Double-shaft Efficient Poultry Feed Mixer

Many kinds of liquid and solid can be added at the same time. The spraying is accurate and the control is convenient. Mixing period of the poultry feed mixer: 180s. High uniform,patent the ribbon design enhanced material flow, mixing uniformity very good, CV≦5%.  The feed mixer ribbon and chassis, to ensure the retention rate is very low, to prevent cross-contamination of materials;  discharge gate fully open, the material instantly emptied, no residue.

4.SZLH250 ring die poultry feed pellet making machine

The poultry feed pelletizer feeding system adopts stepless speed changing motor control, adjust speed conveniently and reliably. This poultry feed pellet milling machine could be equipped with microcomputer automatic control system adjusts feed-in quantity and throttle flow automatically, make poultry feed pellet mill in the best working condition all the time. This model pellet machine for poultry uses one-motor straight gear+belt drive system, with the ideal gear ratio, drive torque, stable transmission, highoutput, low noise, easy operation and maintenance.
SZLH250 ring die poultry feed pellet making machine

5.SSLG pellet crumbler machine

It uses the differential speed principle of rollers to extrude and shear the materials, which breaks the large pellets into irregular small particles. Roll protection device makes the roll automatically avoid collision when encountering hard foreign bodies, and protects the roll from damage. Double-roller structure contributes to uniformly reduced pellet size and high percentage of quality product. Widely used for crushing poultry and livestock pellets and aquatic pellets.
SSLG pellet crumbler machine

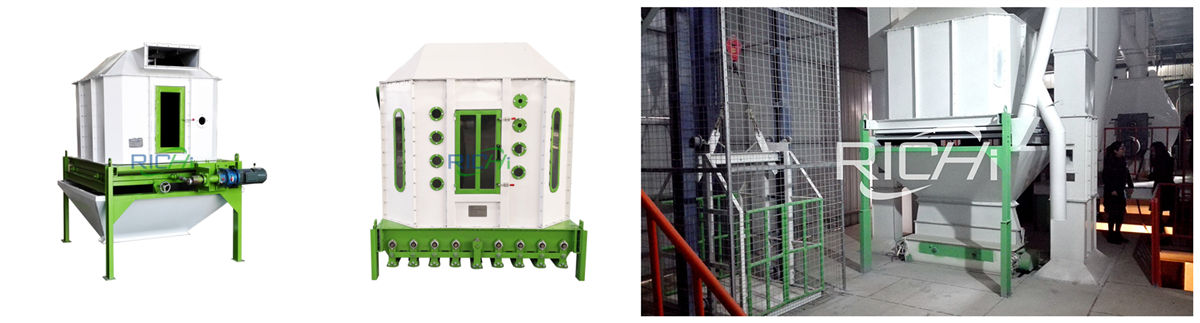

6.SKLN11*11 Feed Counter-flow Cooler

Use counter-flow cooling principle, full and uniform cooling. Use special slide valve discharging mechanism to discharge. The discharging mechanism runs smoothly and reliably, the discharging is smooth.Use mechanical leveling device, the discharging is accurate and sensitive. Belt driven, low vibration, small noice.
SKLN11*11 Feed Counter-flow Cooler

7.Automatic bagging machine

The reasonable feeding structure of the poultry feed bagging machine ensures smooth flowing of materials. All parameters can be input by the panel. Automatic control of fast/slow feeding, bag clamping and loosening. Unique anti-shock device to ensure measusrement accruracy, fast packing. Through the introduction of automated feed equipment, the fish poultry feed making plant project can significantly reduce the labor costs and improve the animal feed mill production efficiency for the customer.

How to start your animal feed plant for making fish and poultry feed?

Nutritionists – the dieticians of the animal food world – formulate animal food to provide animals with the necessary, balanced nutrients for proper growth, development and maintenance. Animal food is designed to compensate for nutrients and supplements that may be absent from an animal's natural diets.

How to start your animal feed plant for making fish and poultry feed

Four basic steps for animal feed manufacturers to producing animal food

  1. Receive raw ingredients
    Animal feed mills receive raw ingredients from suppliers. Upon arrival, the ingredients are weighed, tested and analyzed for various nutrients and to ensure their quality and safety.
  2. Create a formula
    Nutritionists work side-by-side with scientists to formulate nutritionally sound and balanced diets for poultry. This is a complex animal feed production process, as every species has different nutritional requirements.
  3. Mix ingredients
    Once the animal feed formula is determined, the animal feed mill factory mixes the ingredients to create a finished product.
  4. Package and label
    Animal feed manufacturers determine the best way to ship the product. If it is prepared for retail, it will be “bagged and tagged,” or placed into a bag with a label that includes the product's purpose, ingredients and instructions. If the product is prepared for commercial use, it will be shipped in bulk.floating fish feed production and poultry feeds production

If you own a breeding farm, and you have medium or big-size commercial feed mills, our feed production line of fish feed machine and poultry feed machine are your best choice because they use super automation controls and are highly efficient. Please feel free to contact us if you have any questions about floating fish feed production and poultry feeds production or interested in getting more details of other animal feed milling machines!

RICHI feed mill plant and feed machine for sale Uzbekistan

As of the end of 2020, we have established 24 feed plant and feed machine projects in Uzbekistan, including 18 complete animal feed production lines and 6 single feed machine projects. The products sold cover chicken feed production, cattle feed production, laying hen feed production, broiler feed production, stock feed production, fowl feed production, fish feed production, etc.

RICHI feed mill plant and feed machine for sale Uzbekistan

The following is a list of all our current feed production projects in Uzbekistan, all the information is true. (Currently, only some Uzbekistan feed production cases have been updated on the website. Because some cases are ongoing or lack relevant pictures, there is no specific detail page. You can directly contact our sales staff for more case information)

Projects in Uzbekistan Area Order Time
3-5T/H Broiler Feed Plant Samarkand 2015.10.13
3-5T/H Chicken Feed Pellet Line Samarkand 2020.07.06
3-5T/H Poultry Feed Mannufacturing Plant Urgench 2018.12.10
2-3 T/H Fish Cattle Feed Plant Tashkent 2017.08.07
10T/H Poultry Chicken Feed Mill Fergana 2018.09.25
10T/H Poultry Feed Plant+5T/H Premix Feed Plant Tashkent 2018.12.30
5T/H Poultry Mash Feed Line+1T/H Grass Pellet Plant Tashkent 2018.03.29
10T/H Animal Poultry Feed Manufacturing Plant With Silos Urgench 2019.07.01
5T/H Sinking Fish Feed Mill Tashkent 2017.11.21
Uzbekistan 3-5T/H Chicken Feed Plant Urgench 2018.11.23
3-5T/H Poultry Feed Plant Samarkand 2018.12.17
0.8-1.2T/H Sheep Cattle Feed Plant Karshi 2020.09.21
1-2T/H Chicken Powder Feed Mill Urgench 2020.09.21
1-2T/H Small Chicken Feed Pouduction Plant Samarkand 2020.07.24
5T/H Livestock Feed Plant Tashkent 2018.02.26
1-2T/H Animal Feed Pellet Mill Tashkent 2017.04.06
3-4T/H Floating Fish Chicken Feed Production Project Gizak 2018.03.08
1-2T/H Anima; Feed Pelleting Machine Fergana 2019.11.27
3-5T/H Animal Feed Processing Plant Nukus 2020.07.06
1-2T/H Floating Fish Feed+2T/H Chicken Feed Lines Nukus 2018.09.12
DGP40 Fish Feed Extruder Machine Tashkent 2020.09.24
1-2T/H Chicken Feed Milling Machine Tashkent 2020.12.01
1-2T/H Chicken Feed System Project Karshi 2020.12.01
DGP50C Fish Feed Making Machine Tashkent 2020.09.27
