Elephant Grass Pellet Mill

Home > Wood Pellet Mill >
Elephant Grass Pellet Mill
APPLICATION: Elephant Grass Pellet Plant
CAPACITY: 0.6T/H-10T/H
MAIN POWER: 37KW-280KW
MODEL: MZLH
WhatsApp: +86 138 3838 9622

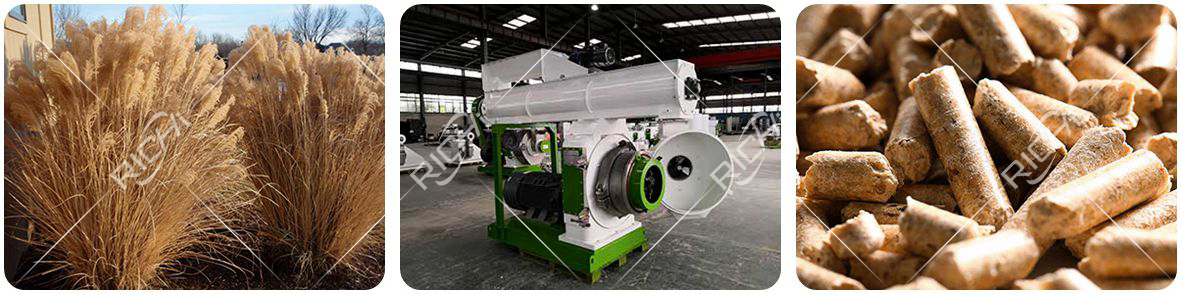

Elephant grass pellet mill, also known as miscanthus pellet machine. All belong to ring die pellet machines. Elephant grass pellet machine can make miscanthus into biomass fuel pellets, feed pellets, bedding, etc., as needed. The 2-12mm elephant grass pellets made by the ring die pellet machine are better for fuel and animal breeding.

24 hours to reply to technical inquiries

videos Of Elephant Grass Pellet Mill

Applications Of Elephant Grass Pellet Mill

Elephant Grass commonly known as Miscanthus, is a high yielding energy crop that grows over 3 metres tall, resembles bamboo and produces a crop every year without the need for replanting. The rapid growth, low mineral content, and high biomass yield of Miscanthus increasingly make it a favourite choice as a biofuel, outperforming maize (corn) and other alternatives.

(The following content is mainly based on the nature of the biomass fuel of elephant grass. If you want to process feed pellets, please click and refer to the post: grass pellet machine.)

Miscanthus/Elephant Grass Properties

Miscanthus/Elephant Grass Properties

Property Description
Moisture content at harvest 20-50%
Bulk Density(baled) 130-150kg/m³
Bulk density at harvest(chopped) 70-100kg/m³
Calorific value(net) ~17Gj/tonne(dry basis)
Ash content Typically2-3%
Ash fusion(melting)temperature 1090℃
Temperature which some sintering observed 600℃

Uses Of Elephant Grass and Miscanthus

  • Firstly, Miscanthus can be used as animal bedding – production of horse bedding
  • Then, Miscanthus is considered to be a raw material for the paper industry, a source of fiber to be used in building materials.
  • And, Miscanthus is also widely used as a fiber material in geo-textiles. Its use as canes to support ornamental pot plants and the use of miscanthus ash arising from combustion processes as a fertilizer is also being done.
  • The most important one is miscanthus has 80-90% of the energy value of the initial biomass material and can be manufactured into pellets or briquettes used as a raw material for energy production and co-firing. Energy production alternatives that have been examined are co-combustion with coal and combustion in heating plants.
Uses Of Elephant Grass and Miscanthus

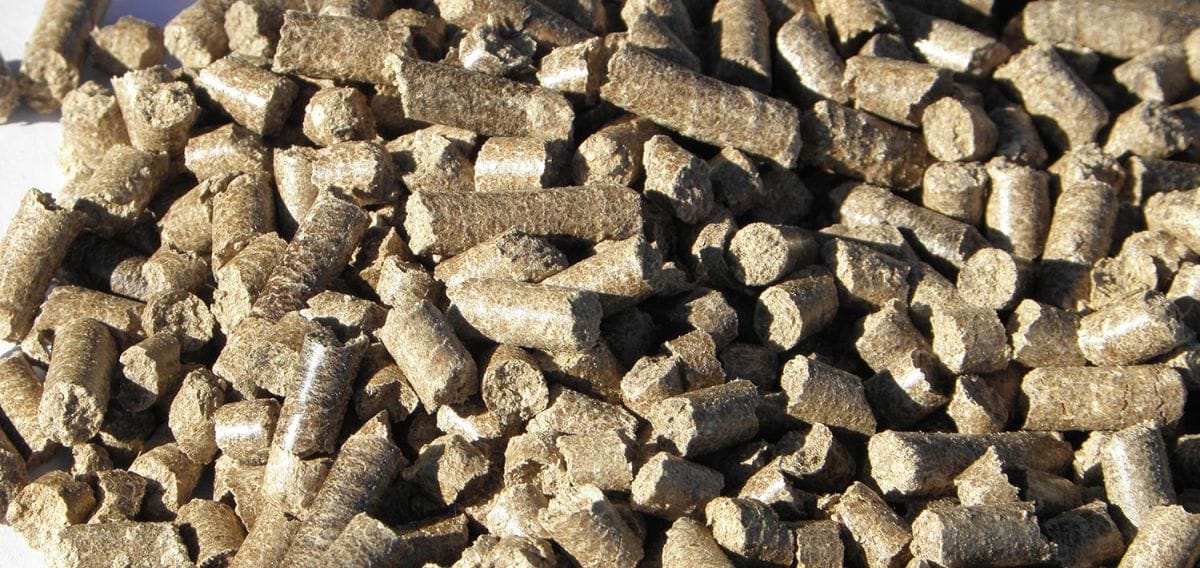

Advantages Of Elephant Grass Pellets

Advantages Of Elephant Grass Pellets Made By Elephant Grass Pellet Equipment

  • Lower moisture content , which will be much more suitable for burning.
  • Lower ash content, which will reduce the risk of slag during burning.
  • Higher colorific value, which will generating more heat during burning.
  • Higher density which will be much more easy and convenient for transportation and storage.
  • Densified and uniform pellets makes the burning much more clear and stable.

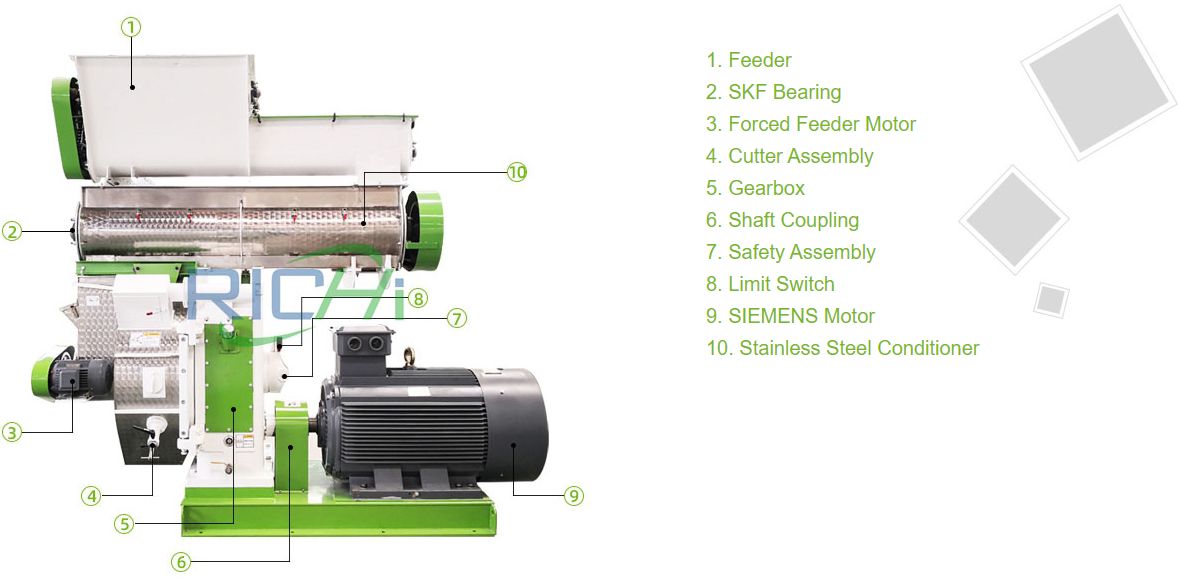

Technical Features Of Elephant Grass Pellet Mill

  • Advanced gear-driving system with motors on this elephant grass pellet machine, stable and reliable.
  • Adopting high-qualified components on this elephant grass pellet mill, with stable performance, long service life and low noise.
  • Whole transmission parts (including motor) of this elephant grass pellet making machine chooses high-quality SKF bearings to ensure the transmission efficient, stable, low noise. Main motor choose Siemens.
  • This elephant grass pelletizer is equipped with full single layer stainless steel feeder, forced feeder, ring die and cutter.
  • Adopting international advanced technology on this elephant grass pelletizing machine: German gun drill and vacuum furnace heat manufacturing process in ring die making to ensure the pellets smooth and of high quality.
Technical Features Of Elephant Grass Pellet Mill
Technical Features Of Elephant Grass Pellet Mill
Technical Features Of Elephant Grass Pellet Mill
Technical Features Of Elephant Grass Pellet Mill
Technical Features Of Elephant Grass Pellet Mill
Technical Features Of Elephant Grass Pellet Mill
Technical Features Of Elephant Grass Pellet Mill
Technical Features Of Elephant Grass Pellet Mill

Working Principle Of Elephant Grass Pellet Mill

Working Principle Of Elephant Grass Pellet Mill

The elephant grass pellet press machine process: crushed elephant grass material is fed evenly by the forced feeding device, the centrifugal force generated by the rotation of the ring die, and the action of the feeding scraper. The two pressing areas in the ring die are in the wedge-shaped space formed by the two press rollers and the ring die.

Under the strong squeezing action of the ring die and the press roller, the elephant grass material is gradually compacted, squeezed into the die hole of the ring die and shaped in the die hole.

Because the extrusion of the material between the die and the roller is continuous, the formed elephant grass material is continuously discharged from the die hole in a columnar shape, and then cut into elephant grass pellets of the required length by the cutter, and then enters the next process.

Elephant Grass Pellet Machine Specification

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Elephant Grass Pelletizer Power 37KW 55KW 90KW 132KW 250KW 280KW
Capacity 600-800KG/H 800-1000KG/H 1.5-2 T/H 3-4 T/H 5-7 T/H 8-10 T/H
Final Pellet 2-12mm 2-12mm 2-12mm 2-12mm 2-12mm 2-12mm
Weight(KG) 2500 3500 4000 4500 5000 5500
Elephant grass pellet machine cost 10,000-100,000 USD

Elephant Grass Pellet Mill Machine & Pellet Plant projects

  • Elephant Grass pellet plant in Russia

    Elephant Grass pellet plant in Russia

  • Elephant Grass pellets plant in Thailand

    Elephant Grass pellets plant in Thailand

  • Elephant Grass pelleting plant in Indonesia

    Elephant Grass pelleting plant in Indonesia

  • Elephant Grass pelletizing plant in Argentina

    Elephant Grass pelletizing plant in Argentina

  • Elephant Grass pellet line in France

    Elephant Grass pellet line in France

  • Elephant Grass pellet plant in Canada

    Elephant Grass pellet plant in Canada

  • Elephant Grass pellets plant in USA

    Elephant Grass pellets plant in USA

  • Elephant Grass pellets mill in Germany

    Elephant Grass pellets mill in Germany

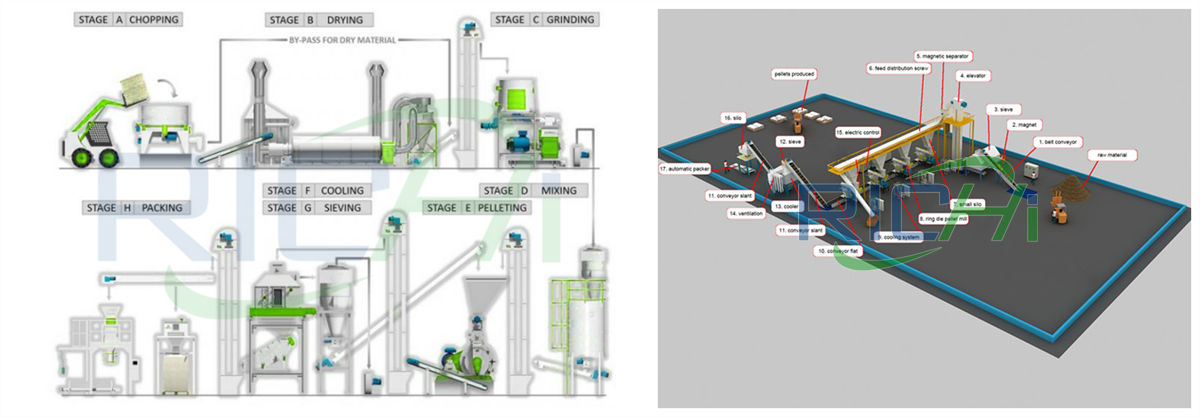

How to Make Elephant Grass Pellet By Complete Grass Pellet Produciton Line?

01

Chopping system

When elephant grass is harvested and baled in the field to increase density and maximize transport efficiency, it is then transported to the processing facility where it is chopped. elephant grass is chopped into fibers (25mm-35mm lengths) using a chopper or bale shredder then dried and pelleted.

02

Drying system

The chopped miscanthus is further dried using an elephant grass dryer machine to allow processing to pellets. The required moisture content for pelleting is 10%-15%.

03

Grinding system

Before pelleting, the raw material must be reduced to an average particle size. For elephant grass, this will require two separate grinding operations. Bales will go through a chopper or bale shredder, then through a elephant grass hammer mill.

04

Pelleting system

Pellet formation takes place in the elephant grass pelletizer where the feedstock is extruded through a ring die elephant grass pellet machine. As the elephant grass pellets begin to extend outside the die, they are broken off with knives at a specified length. There are specialized elephant grass pellet forming machine or biomass pellet plant for elephant grass pellet production.

05

Cooling system

Cooling is necessary to stabilize, dry and firm the elephant grass pellets. The counter-flow cooler is the most popular type in the industry. It pulls ambient air through a bed of pellets to remove moisture and heat through evaporative and convective cooling.

06

Screening system

When the pelleting is completed, some amount of the material will have not formed pellets. These materials are called fines. Screening is necessary to separate this materials out. It is then sent back through the elephant grass pellet mill machine. When the elephant grass pelleting process is functioning correctly less than 3% of the material will be screen out.

07

Bagging system

After screening, elephant grass pellets are bagged for residential sales or stored in bulk. For automatic packaging, pellet packing machine can service you. Pellets are conveyed to a bag-out bin where a scale measures the correct weight for each bag. The bags are then sealed and stacked on pallets.

Equipment needed in elephant grass pellet production line

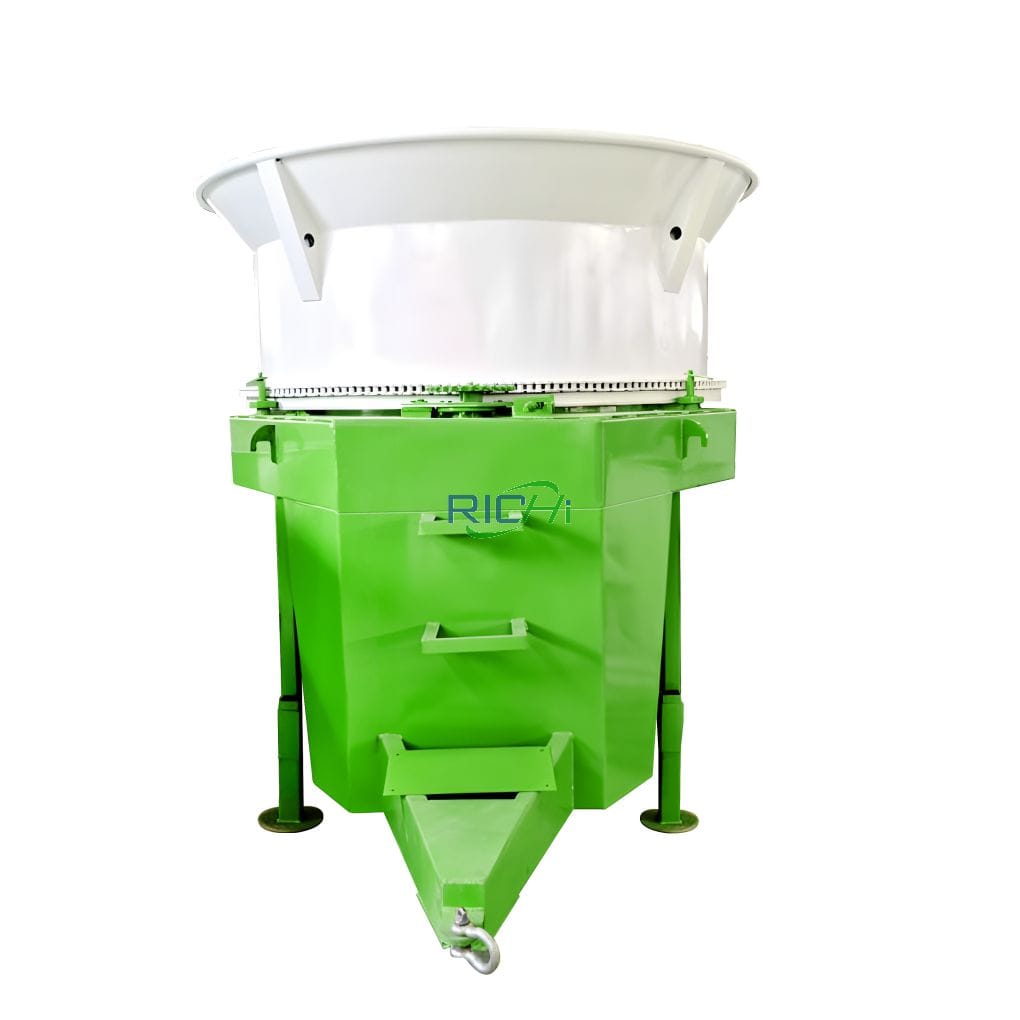

Bale Breaking Machine

Bale Breaking Machine

Capacity:
1-20T/H
Main Power:
30-90KW
Elephant Grass Hammer Mill

Elephant Grass Hammer Mill

Capacity:
3-25T/H
Main Power:
30-160KW
Elephant Grass Dryer

Elephant Grass Dryer

Capacity:
Customized
Rotate Speed:
3-8 R/Min
Elephant Grass Crusher

Elephant Grass Crusher

Capacity:
0.3-3 T/H
Main Power:
22-93 KW
Elephant Grass Pellet making machine

Elephant Grass Pellet making machine

Capacity:
0.3-4.5T/H
Main Power:
37-280KW
Elephant Grass Pellet Cooler Machine

Elephant Grass Pellet Cooler Machine

Capacity:
1.5-18T/H
Main Power:
0.75-2.05 KW
Elephant Grass pellet Screening Machine

Elephant Grass pellet Screening Machine

Capacity:
3-20T/H
Main Power:
1.5-5.5KW
Elephant Grass pellet Bagging Machine

Elephant Grass pellet Bagging Machine

Speed:
6-12 Bags/Min
Main Power:
1.1-5KW
