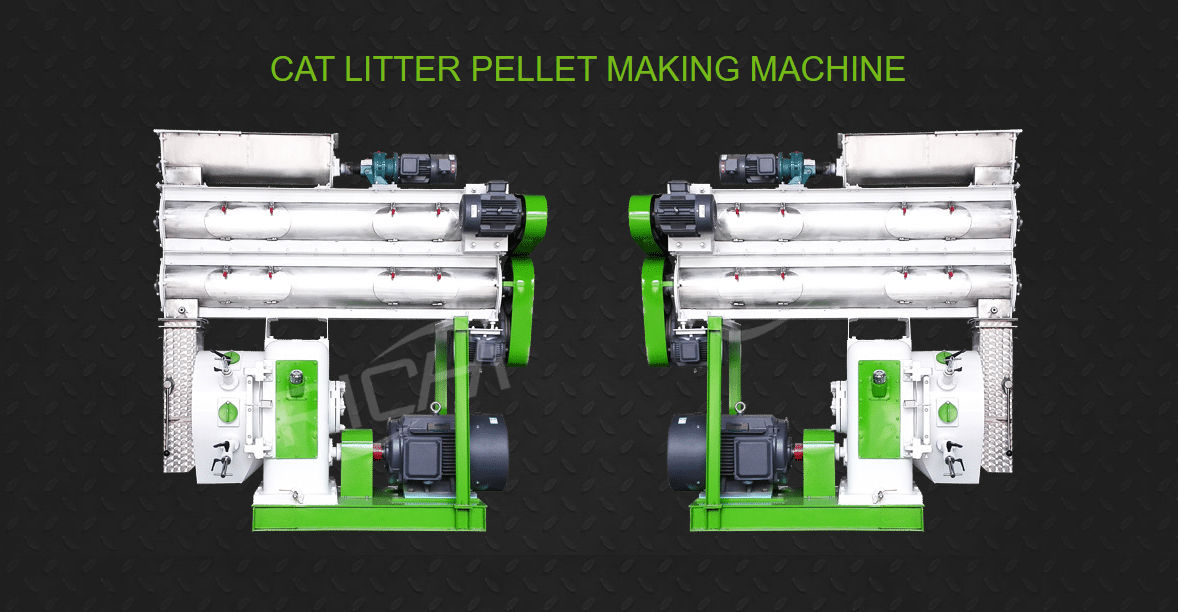

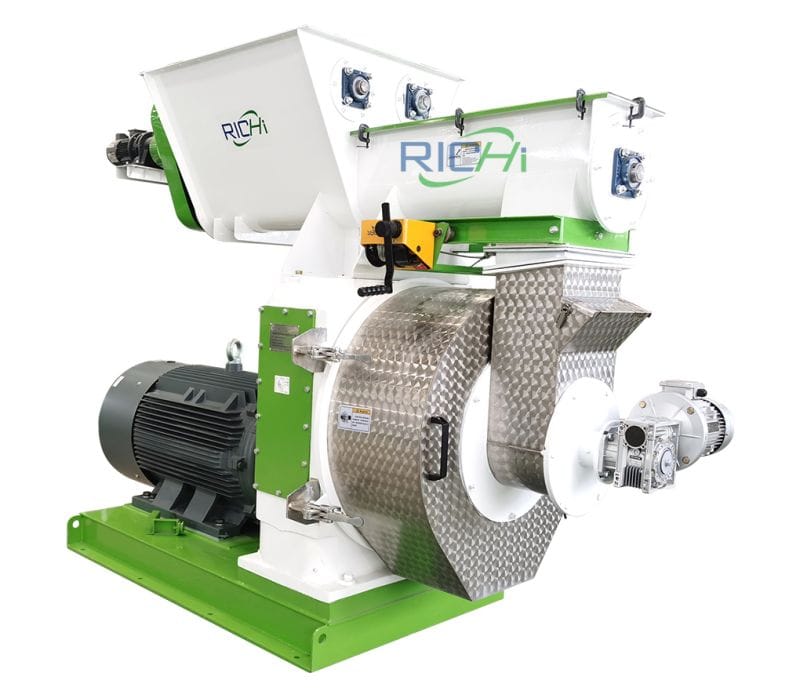

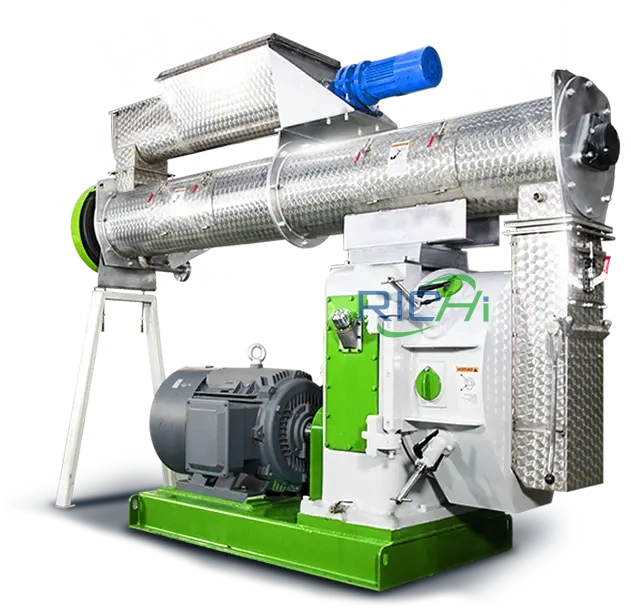

Cat Litter Pellet Making Machine

Home > Feed Pellet Machine >
Cat Litter Pellet Making Machine
APPLICATION: Cat Litter Production Industry
CAPACITY: 1-42T/H
MAIN POWER: 110KW
MODEL: SZLH
WhatsApp: +86 138 3838 9622

Cat litter is important for cat owners. Good cat litter features strong water absorption and odor removing. Pellet is an ideal form of cat litter and it is especially easy to clean up. RICHI's cat litter pellet machine can be used to process crystal cat litter, bentonite cat litter, tofu cat litter, pine wood cat litter, grain cat litter, zeolite cat litter, etc.

24 hours to reply to technical inquiries

videos of cattle litter making machine

Applications Of Cat Litter Pellet Making Machine

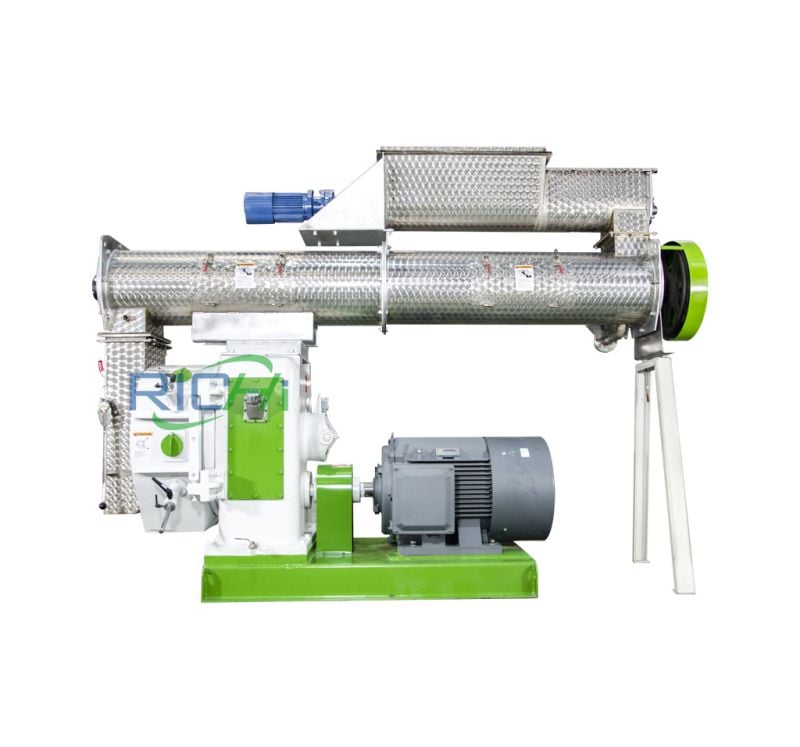

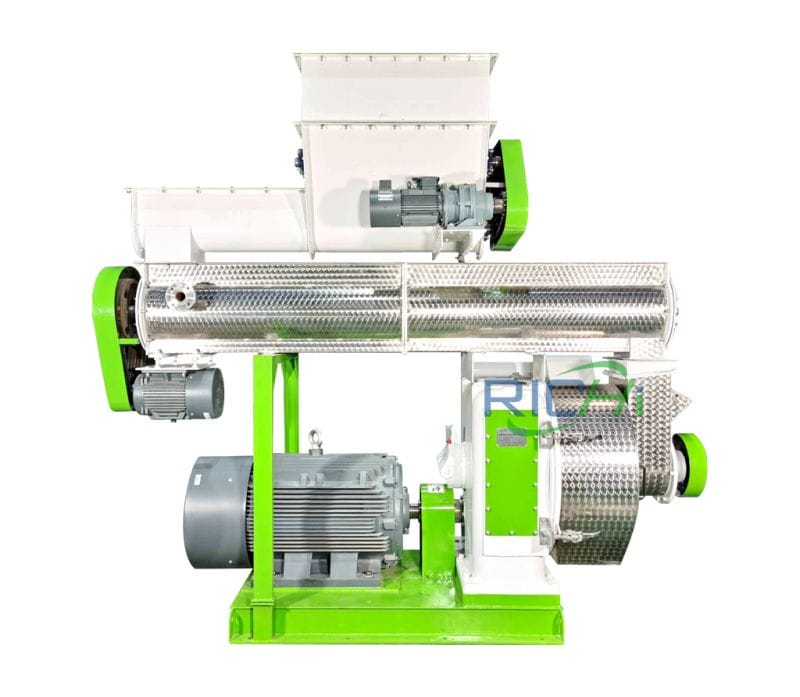

RICHI cat litter pellet making machine is a special equipment for processing cat litter pellets with pellet size: 0.5-8mm.

It has a wide range of applicability. It can be used to process cat litter pellets using bentonite, attapulgite, wood, wood fiber, bark, sawdust, wheat, corn, grass, alfalfa, peanut shells, citrus, biodegradable recycled paper, newspapers, recycled paper mill by-products, and biodegradable silica gel.

Applications Of Cat Litter Pellet Making Machine

Cat litter making machine types:

  • Tofu cat litter making machine
  • Bentonite cat litter making machine
  • Wood sawdust cat litter making machine
  • Crystal cat litter making machine

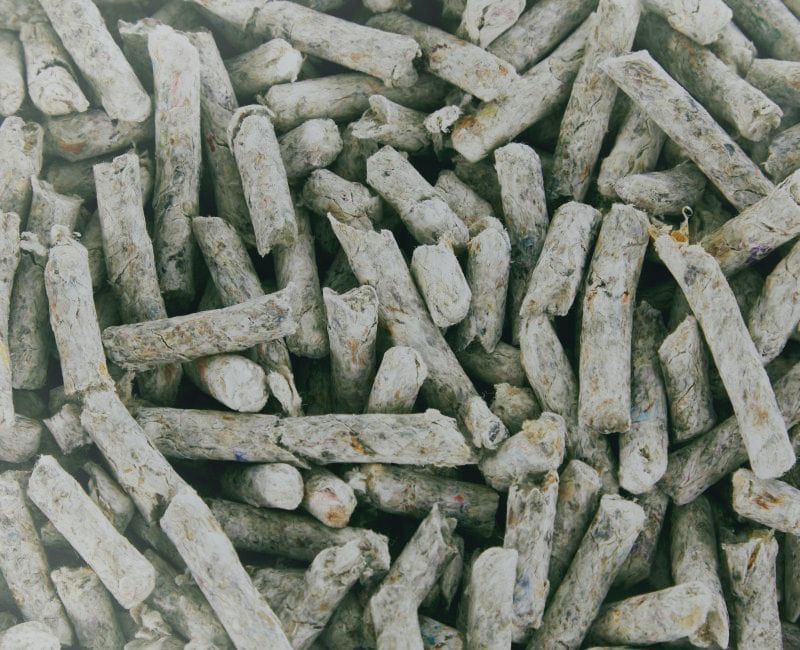

  • Paper cat litter making machine

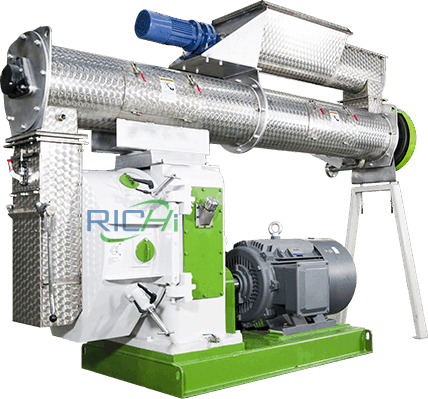

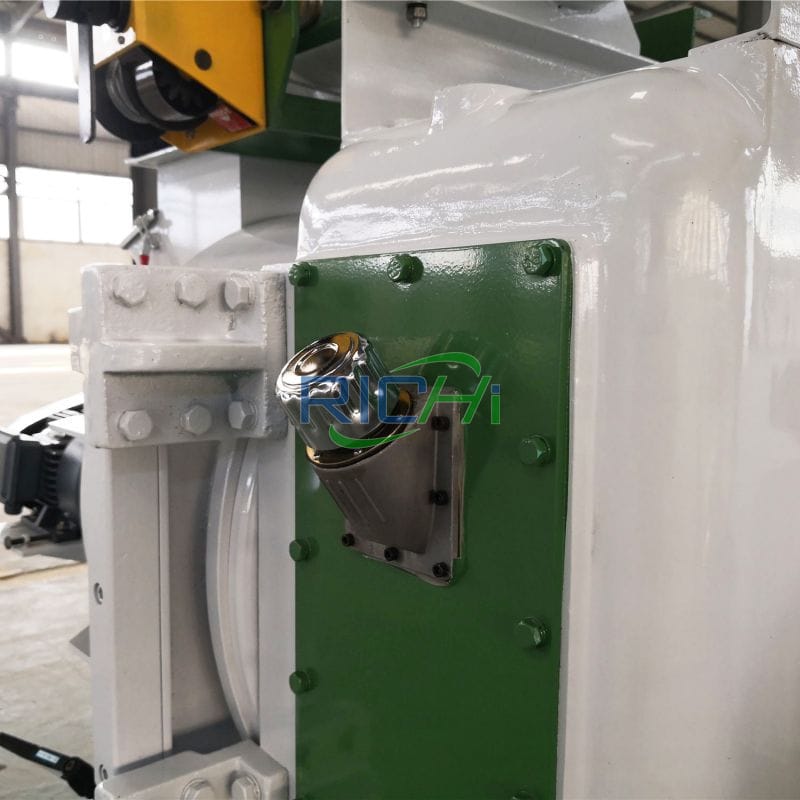

Technical Features Of Cat Litter Pellet Making Machine

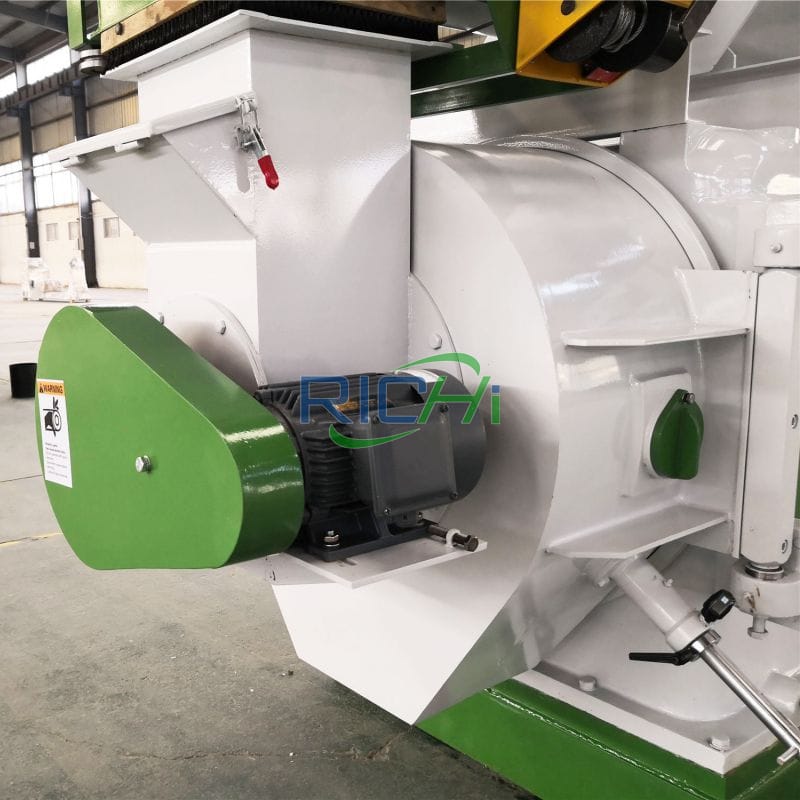

  • RICHI cat litter pellet machine equipped with one-layer or double-layer conditioner, better for making cat litter. Manufacturing according to internationally advanced technology standard; The quality matching with the European standard.
  • Cat litter pellet making machine adopts gear driving system, with good transmission rate, stable and reliable performance and low noise.
  • The key components of this series cat litter pelletizer are imported to ensure longer service life and lower cost for maintenance.
  • Raw material contacting parts are made by stainless steel.
  • Hydraulic system for ring die change and roller adjustment(optional), quick ad precise operation; auto-lubrication system(optional)and die & roller lifting device, save labor; on-site touch screen control.
Technical Features Of Cat Litter Pellet Making Machine
Technical Features Of Cat Litter Pellet Making Machine
Technical Features Of Cat Litter Pellet Making Machine
Technical Features Of Cat Litter Pellet Making Machine
Technical Features Of Cat Litter Pellet Making Machine
Technical Features Of Cat Litter Pellet Making Machine
Technical Features Of Cat Litter Pellet Making Machine
Technical Features Of Cat Litter Pellet Making Machine

Working Principle Of Cat Litter Pellet Making Machine

The working principle of the cat litter pellet granulator: When the ring die is driven to rotate, the raw material of the cat litter is brought between the die rollers, and is gradually squeezed and forced to pass through the ring die hole. The cylindrical pellet after the hole is cut the resulting cat litter pellets with a knife.

Working Principle Of Cat Litter Pellet Making Machine

Before entering the cat litter pellet production machine, the raw materials of cat litter should have been pulverized into a loose body composed of dispersed particles with fluidity. Under the action of squeezing force, the gas between the powder particles continuously escapes, and the gap becomes smaller. However, the bonding force between the particles increases, the plasticity is produced by heating, and the water vapor acts as a binder.

Finally, the powdery material is pressed into cat litter particles with a certain density and strength. It is this extrusion thermoplastic process that makes the ring die cat litter pellet equipment has many advantages.

Get Latest Price

Parameter And Model Of Cat Litter Pellet Making Machine

Model Capacity(TPH) Main Motor Power(kw) Feeder Motor Power(kw) Conditioner Power(kw) Dia.of Ring Die(mm) Final Pellet(mm)
SZLH250 1-2 22 0.75 1.5 250 2~12
SZLH320 3-4 37 1.5 2.2 320 2~12
SZLH350 5-7 55 1.5 3 350 2~12
SZLH420 8-12 110 1.5 7.5 420 2~12
SZLH508 10-18 160 2.2 11 508 2~12
SZLH558 15-25 180/200 2.2 11 558 2~12
SZLH558D 14-22 160/180/200 1.5 7.5 558 2~18
SZLH678 20-30 220/250 2.2 11 678 2~12
SZLH678D 15-25 200/220/250 2.2 11 673 2~18
SZLH768 25-40 280/315 2.2 11 768 2~12
SLZH858 25-42 280/315 2.2 15 858 2~18

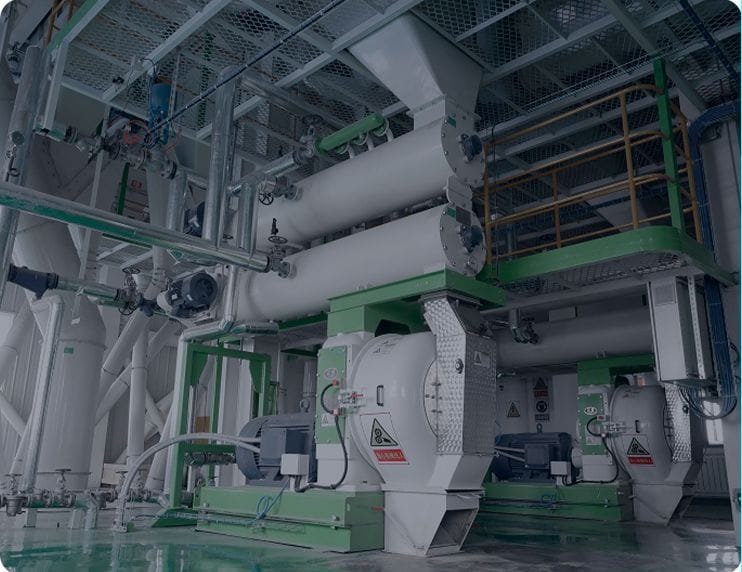

Cost To Set Up Standard/Customized Cat Litter Pellet Machine

Cost To Set Up Standard/Customized Cat Litter Pellet Machine

Cat Litter Pellet Making Machine Price: FOB 7000-100000USD

What's cat litter pellet machine price? Because different customers have different requirements for pellets, there will be many differences in the details of our pellet machine design. Therefore, the actual cat litter pellet maker machine price for different projects are different.

Even if the customer wants to produce the same type of pellets, if the customer's raw materials, and production technology are different, the cat litter pelletizer machine ring die, conditioner, etc. will be different.

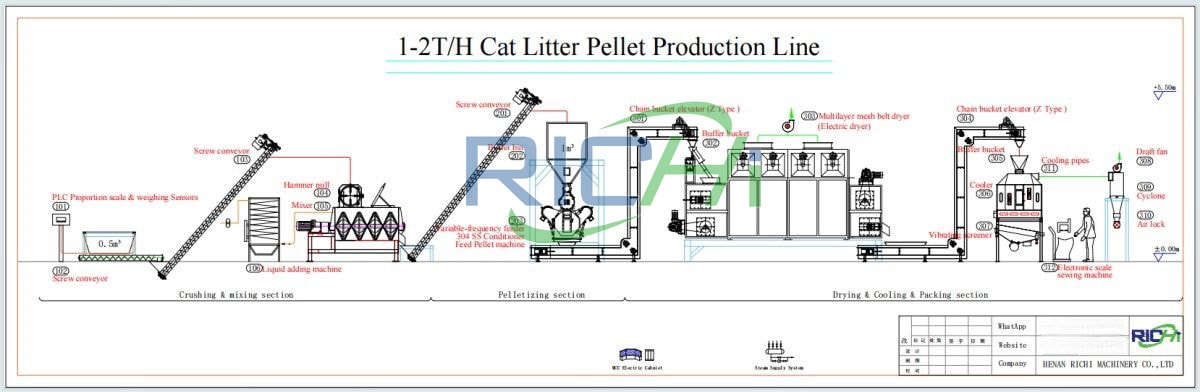

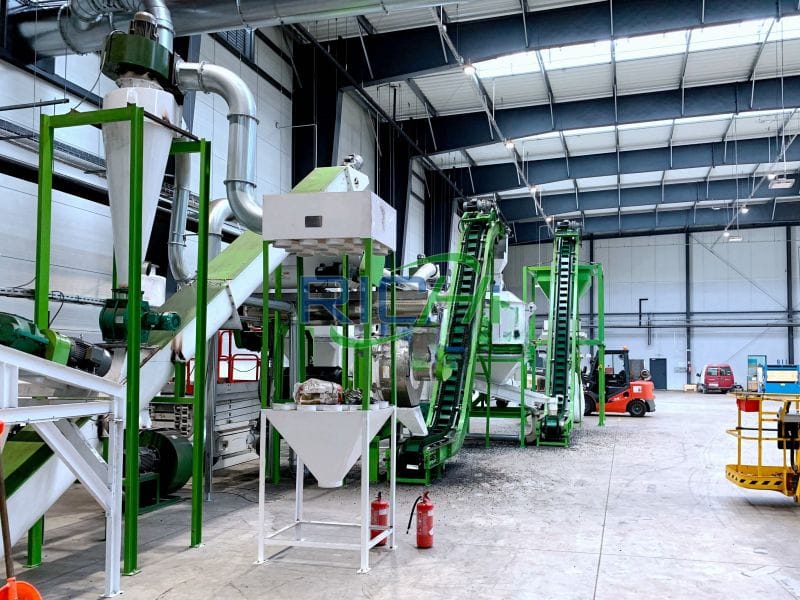

Build complete cat litter pellet production line - pellet manufacturing process

Cat litter is mainly used to remove domestic pet feces and its peculiar smell. Cat litter has a strong air purification and adsorption function, so as to keep indoor air fresh and environmental sanitation. It is proved by application that cat litter enjoys a high market share. With the continuous development of social economy, the scale of cities will also continue to expand. It has become a fashionable trend for modern people to keep pets, and cat litter is an indispensable pet product.

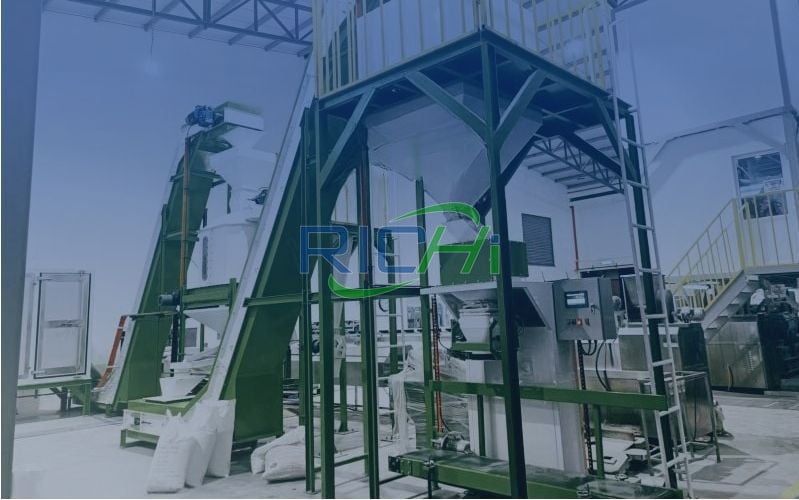

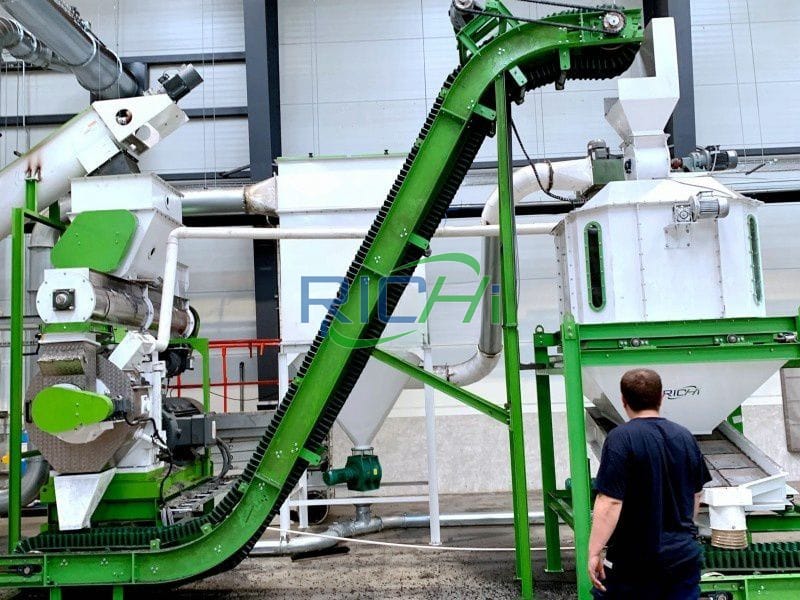

Build complete cat litter pellet production line
Build complete cat litter pellet production line
Build complete cat litter pellet production line

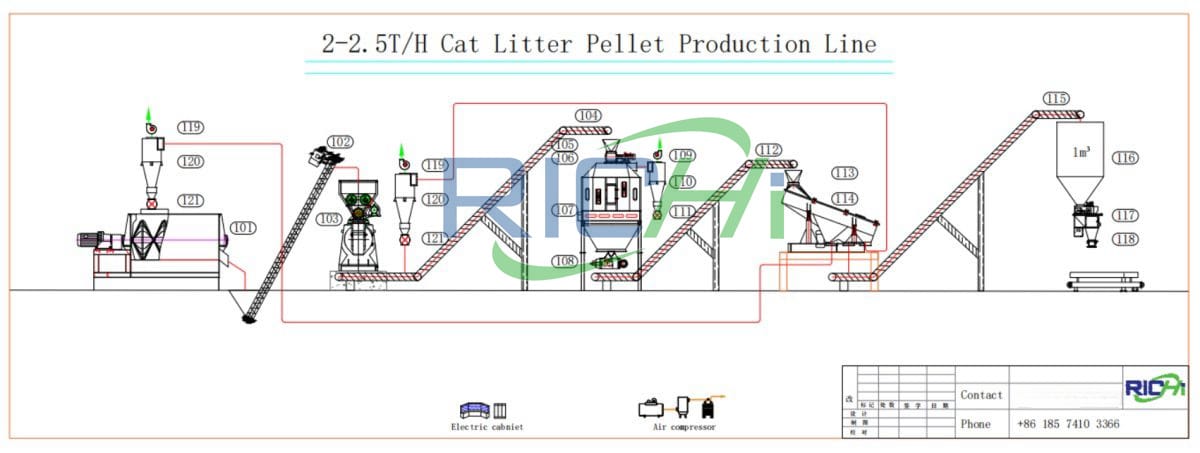

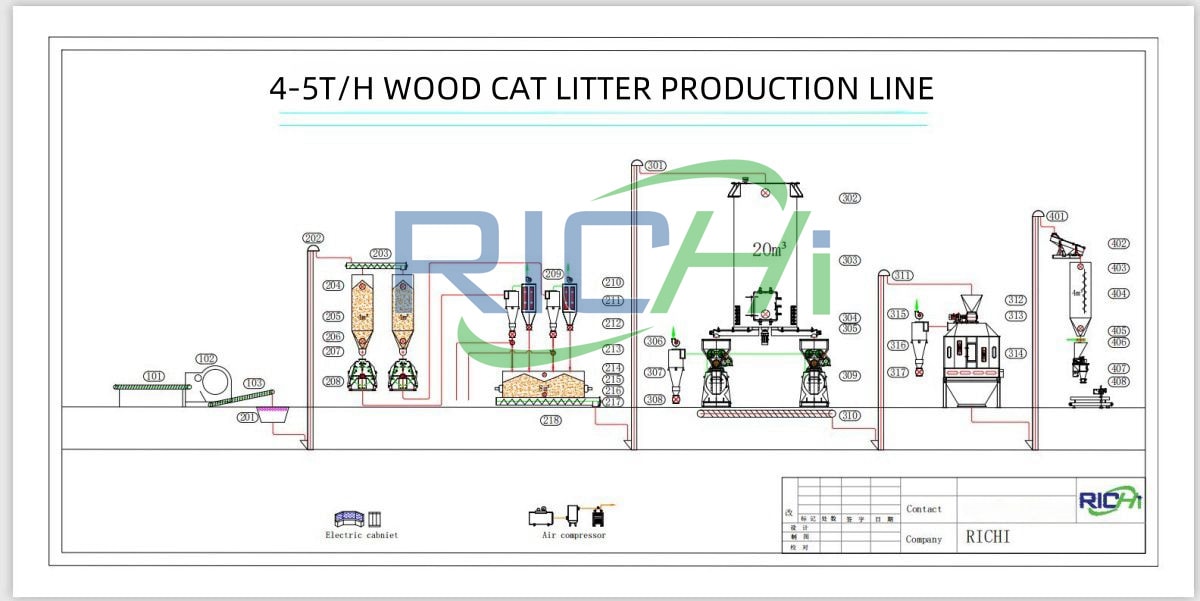

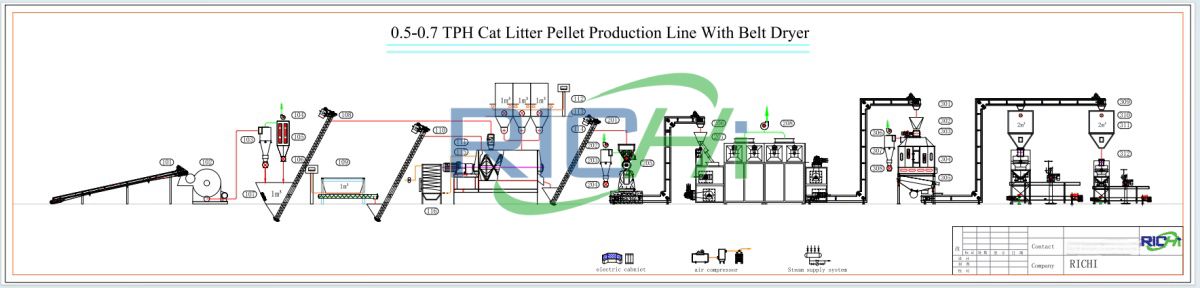

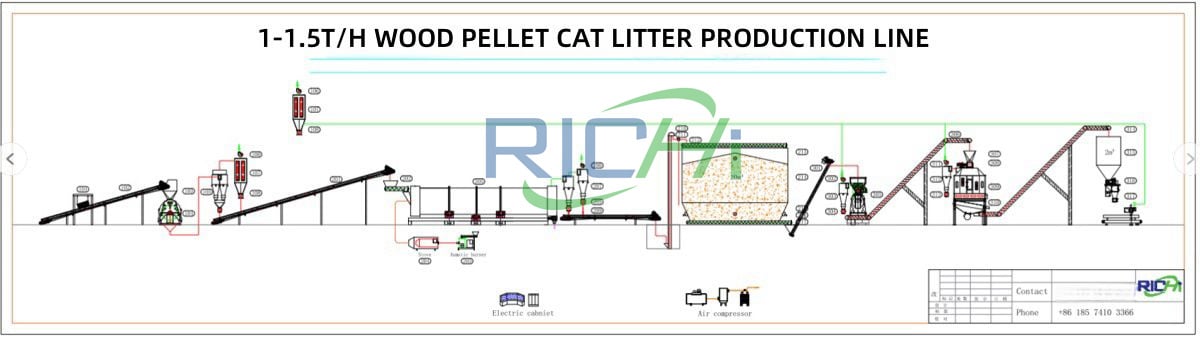

The following is the complete cat litter pellet production line technology. (Because there are many types of cat litter pellets, and the raw materials are also quite different, the processing technology of different types of cat litter pellets is very different.

No matter which type of cat litter pellets you want to process, you are welcome to contact RICHI Machinery directly. We will customize the exclusive cat litter factory business plan for you according to your raw materials and pellet manufacturing processes)

  1. Raw material configuration: According to customer requirements, a certain proportion of the raw materials of cat litter particles are pre-mixed and prepared, and the raw materials after the preparation are entered into a double-shaft paddle mixer for full mixing.
  2. Mixing and stirring: The pre-mixed raw materials are manually fed into the double-shaft paddle mixer for further mixing and stirring. During the mixing process, guar gum, calcium carbonate, flavor and a certain proportion of fresh water are added according to the needs. , The ratio of water and powdered raw materials is about 1:10. The raw material preparation and mixing process is fully enclosed, and there is no dust emission.
  3. Granulation: After the cat litter materials are fully mixed and stirred, they are sent to the cat litter pellet making machine through a closed belt conveyor for granulation. After granulation, the water content of the cat litter is about 20%.
  4. Cat litter pellets drying: The granulated cat litter is sent to the drying tunnel through a closed conveyor belt with a plexiglass observation hole. Then use a natural gas hot blast stove for drying, and the finished cat litter after drying has moisture content, control it at about 9.2%. The unqualified products are screened in the drying tunnel, and the unqualified products enter the mixing and mixer for reprocessing.
    The entire pelletizing and drying process is operated in a closed device. The drying machine has a cyclone system, and the hot air circulates inside. The humidity inside When a certain value is reached, moisture will be discharged and no dust will be discharged. Only the combustion exhaust gas of the natural gas hot blast stove is discharged at the top through a 15m exhaust pipe.
  5. Fan cooling: The qualified cat litter after drying enters the fan cooling system for cooling.
  6. Automatic packaging: the cooled cat litter enters the silo to be packaged, and the bag is sealed by an automatic vacuum baler and then enters the finished product warehouse for temporary storage.
Get Price & Support

Equipment for cat litter Production line construction

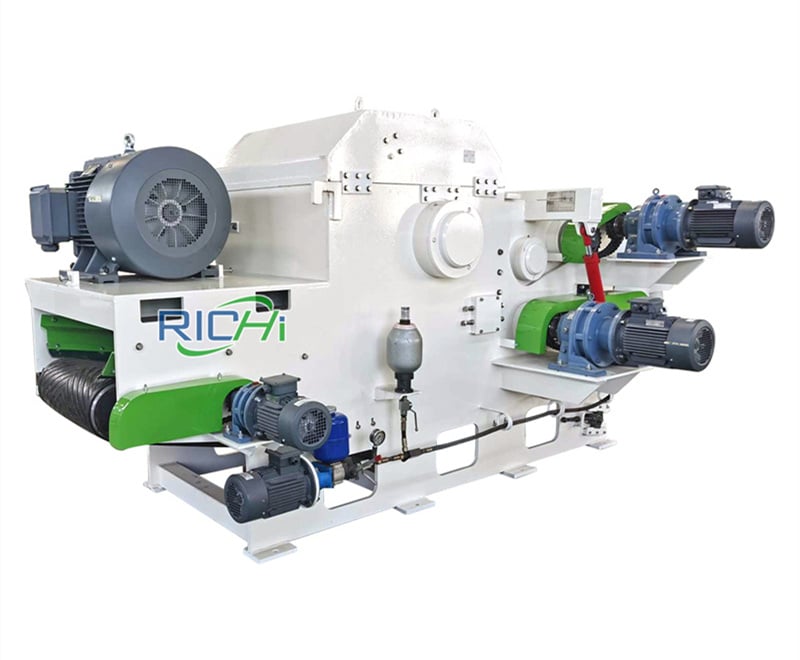

cat litter crusher Machine

cat litter crusher Machine

Capacity:
3-25 T/H
Main Power:
30-160 KW
cat litter mixer Machine

cat litter Mixer machine

Capacity:
250-2000 KG
Main Power:
4-55 KW
cat litter pellet machine

cat litter pellet machine

Capacity:
1-48 T/H
Main Power:
22-315 KW

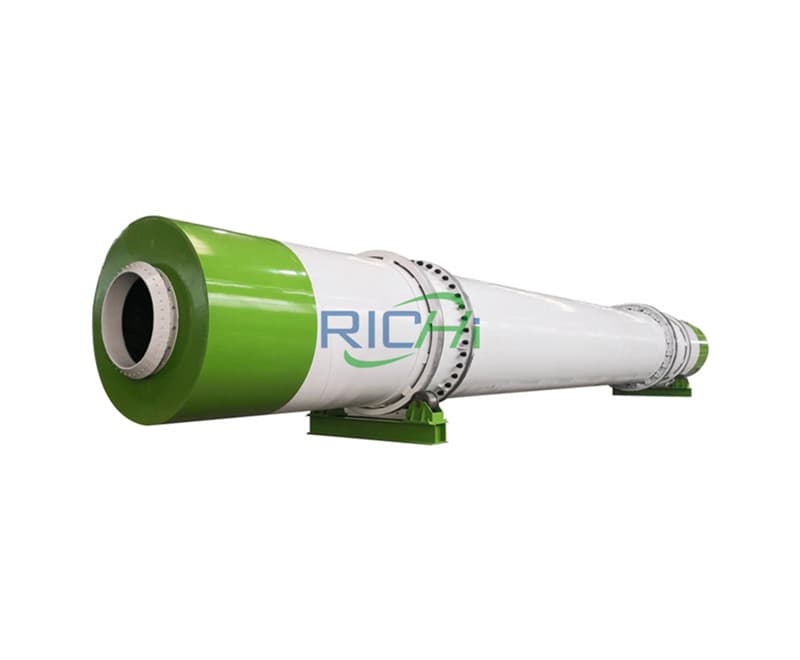

cat litter dryer machine

cat litter dryer machine

Capacity:
Customizable
Rotate speed:
3-8 R/Min
cat litter pellet Cooler

cat litter pellet Cooler

Capacity:
3-25 T/H
Main Power:
30-160 KW

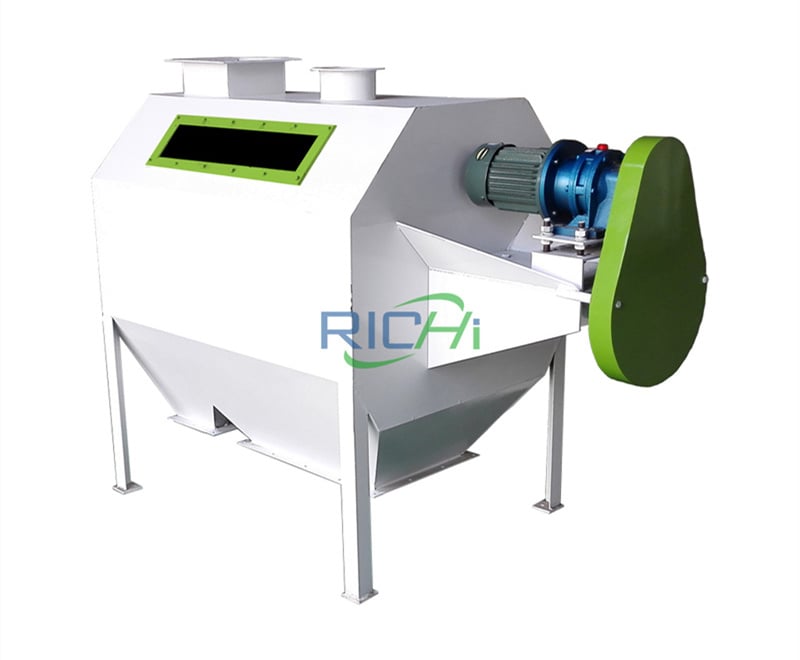

Vibrating Screening Machine

Vibrating Screening Machine

Capacity:
3-20 T/H
Main Power:
1.5-5.5 KW
Pellet Crumbler Machine

Pellet Crumbler Machine

Capacity:
2-20 T/H
Roller::
2-3
cat litter Bagging Machine

cat litter Bagging Machine

Capacity:
6-12 Bags/Min
Main Power:
1.1-5 KW

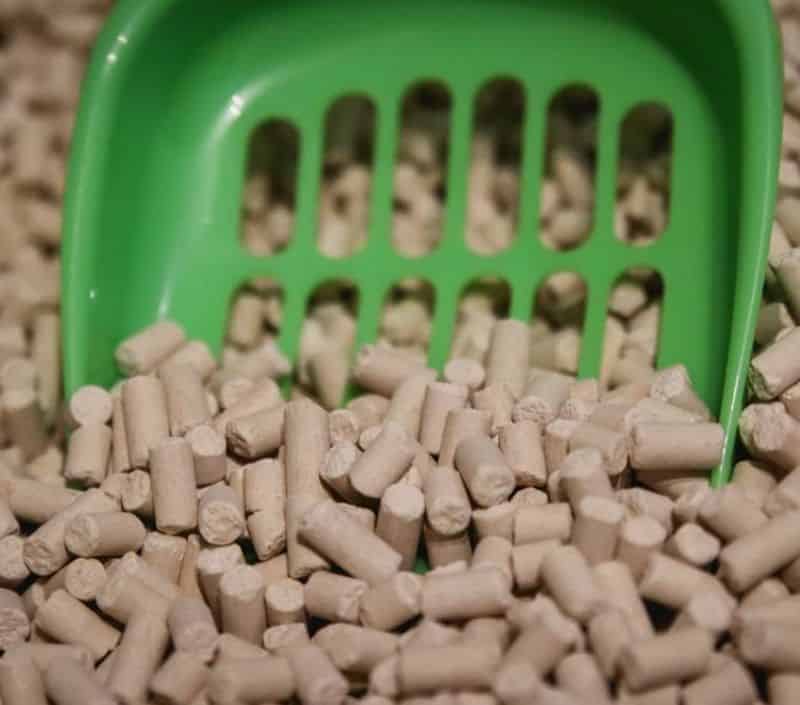

Several common cat litter processed by cat litter pellet making machine

01

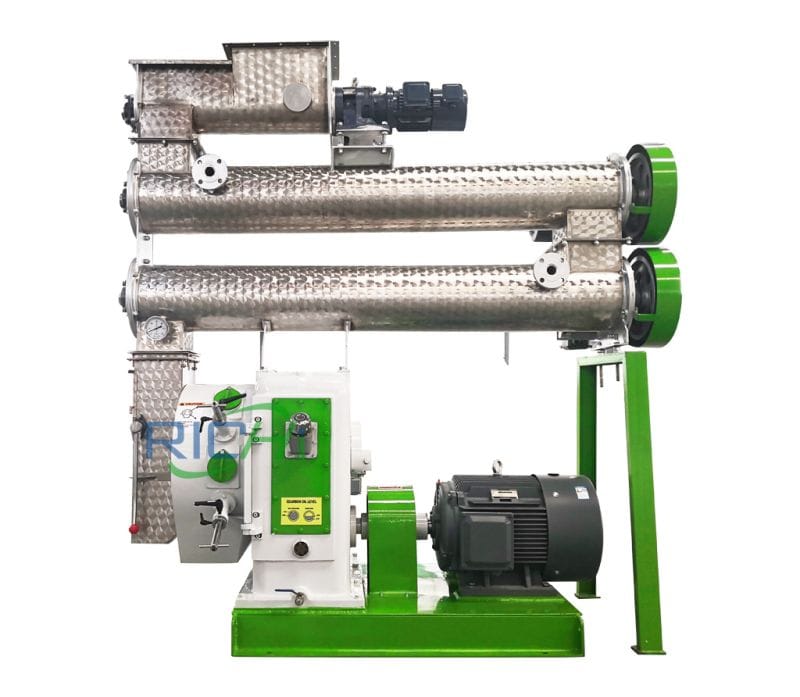

1. Bentonite cat litter

Bentonite is the main component, which is the most commonly used cat litter. Some cat litter manufacturers also add attapulgite and other materials, which are very hygroscopic and can quickly absorb the moisture in the feces, forming a big hard mass. Condensed cat litter solves the problem of urine. It can condense the urine into blocks and remove them together, which is hygienic and convenient.

If you encounter diarrhea, it will be successfully sucked into a ball, and there will be no more troubles that ordinary cat litter can't hold. When the condensed cat litter is gradually consumed, new cat litter can be added to the cat litter at any time, and there is no need to give up the whole basin.

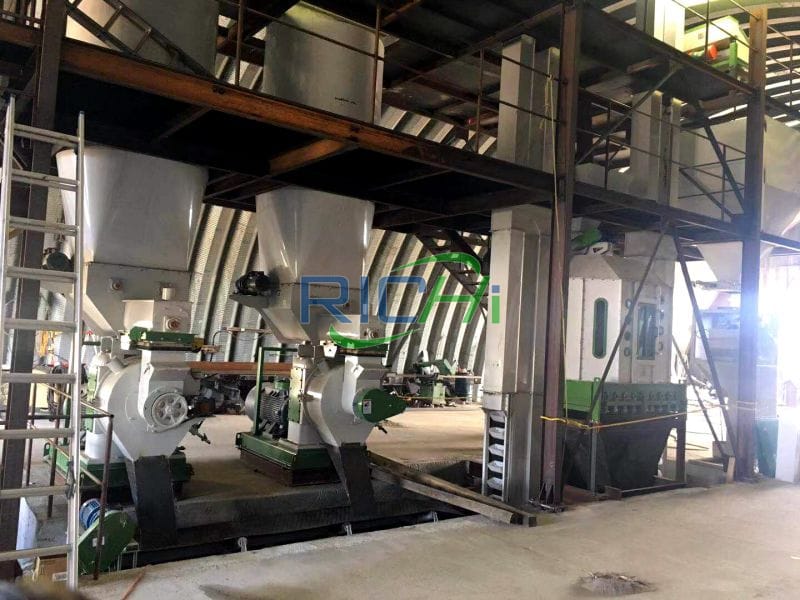

how to start bentonite cat litter production line

Specifications of bentonite cat litter by cat litter pellet machine:

Appearance Water absorption Bulk density Pellet size Moisture
White, yellow, gray ball or block ≥260% 850-950g/L 0.5-3.5mm、1-4mm 5%
02

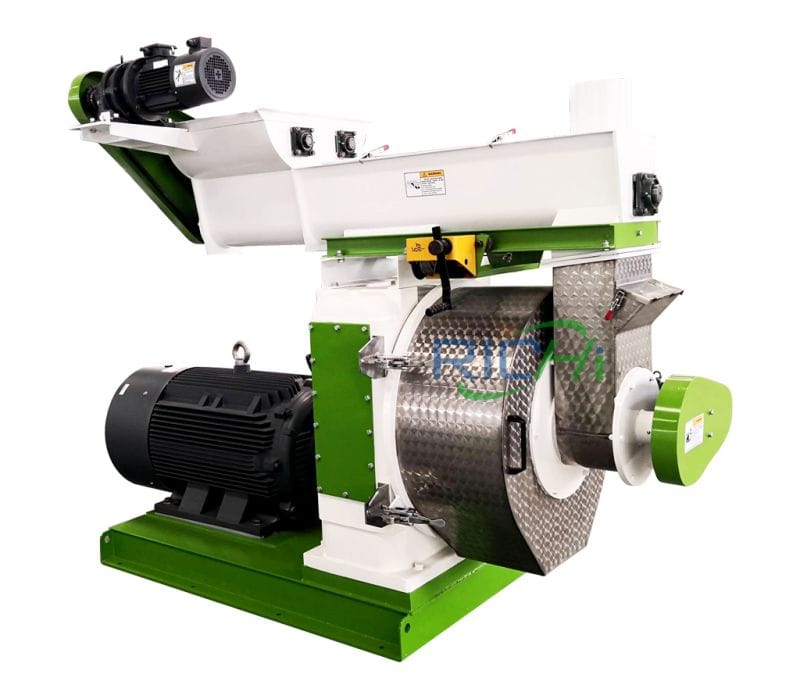

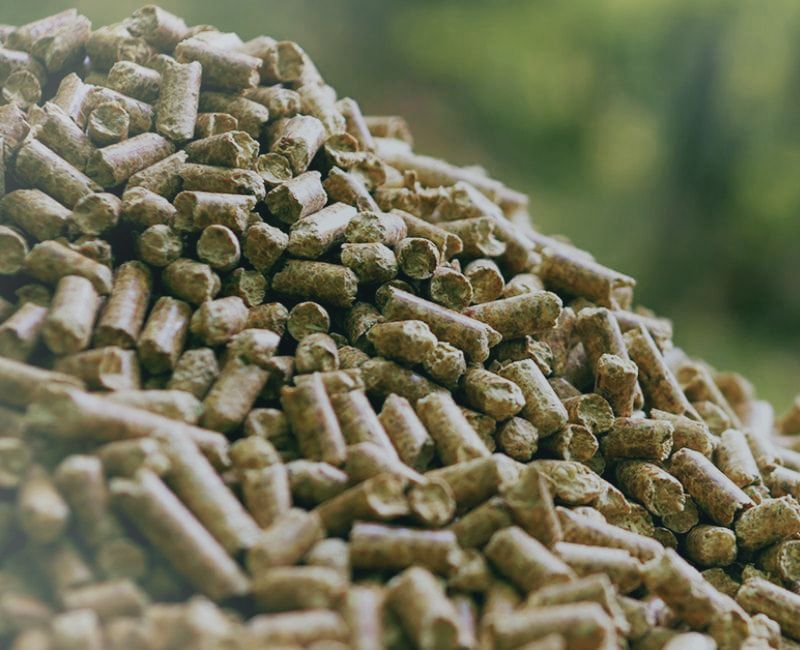

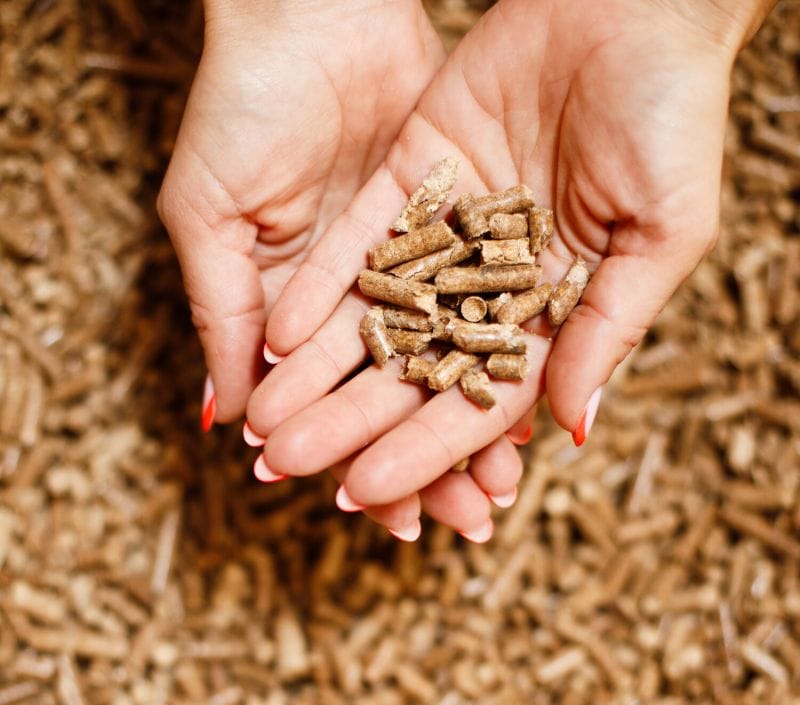

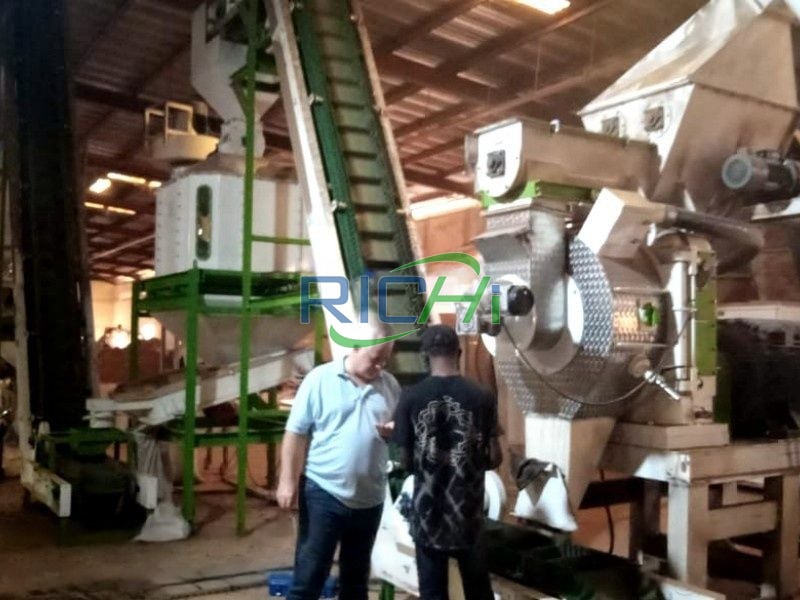

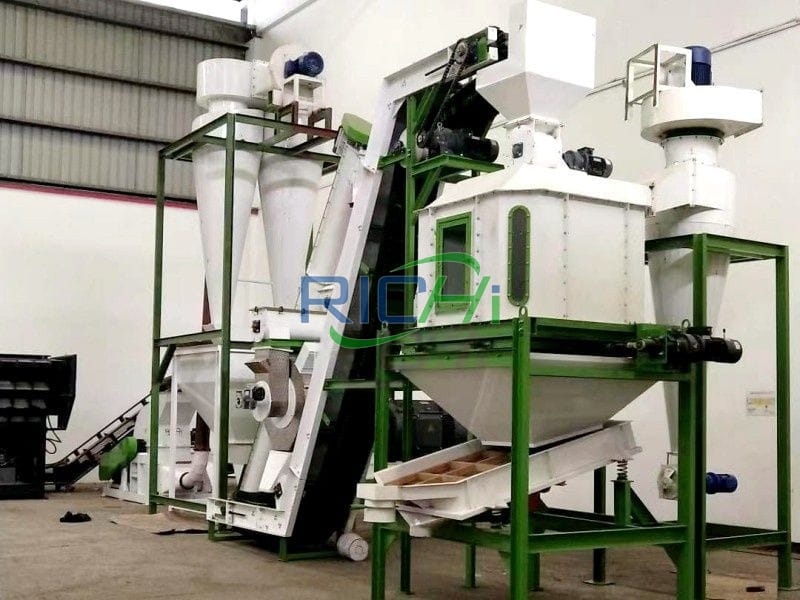

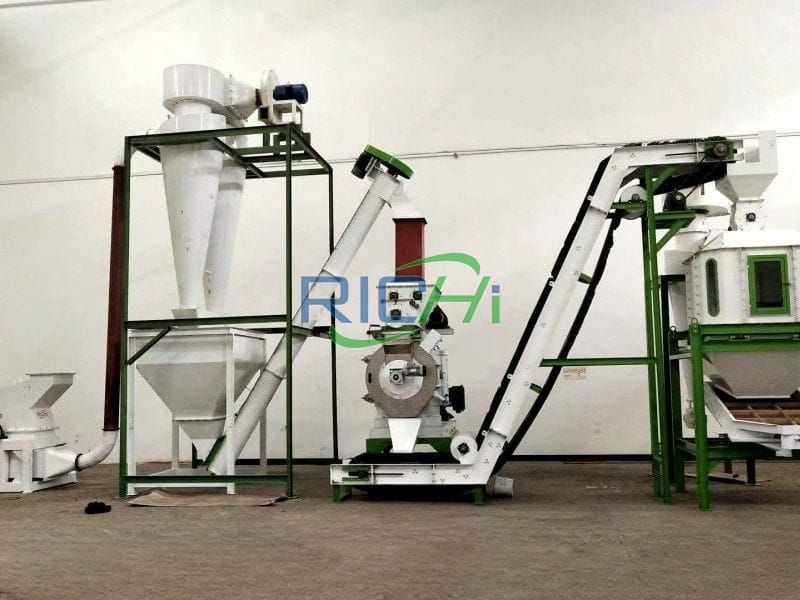

Wood sawdust cat litter

This cat litter product is an environmentally friendly cat litter product based on recycled pine wood, paper pulp or wheat by-products as raw materials. The basic effect of sawdust cat litter is similar to that of crystal cat litter. This kind of cat litter is made from sawdust as the main raw material, supplemented by a small amount of natural binder granulation.

There is no dust or dust is very small, it will not cause air pollution, and it is anti-seepage The ability is very strong, with better clumping and flavor absorption functions. It can directly absorb urine and can be directly discarded into the toilet to flush away.

Usually, it does not need to be cleaned too much. However, the wood sawdust cat litter will become powdery after absorbing urine. When the whole pot is almost powdered, it can be discarded completely and has a long service life. Basically, sawdust cat litter is relatively non-smelly, but the smell of wood is bound to be there. If you don't like the smell of pine or other sawdust, the owner should consider whether to buy it. The price is slightly higher than condensed cat litter and crystal cat litter.
Specifications of wood cat litter by cat litter pellet machine

Specifications of wood cat litter by cat litter pellet machine:

Compressive strength Pellet size Pellet length Moisture Bulk density
≥900g ¢5mm-6mm 6-15mm 8% 1.1g/cm3
03

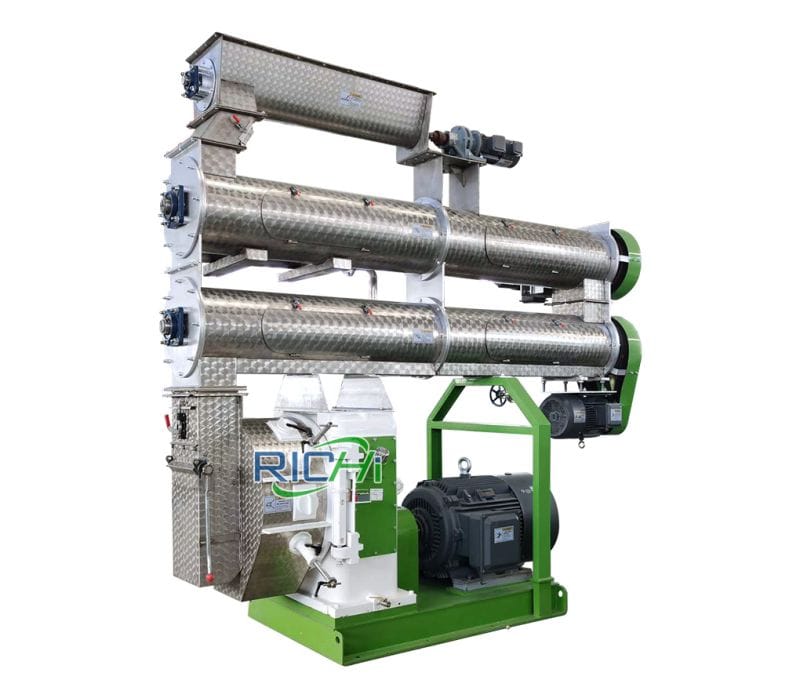

Crystal cat litter

Crystal cat litter is semi-transparent granular beads or some irregular particles. Some brands will incorporate beads of different colors for anti-mildew, antibacterial, deodorant and more. The advantage of crystal cat litter is that it has strong absorption. The beads will change color after absorbing urine, and they can be replaced with new ones when the whole pot is about 80% discolored. Of course, the stool will not disappear, and it must be cleaned every day.

Specifications of crystal cat litter by cat litter pellet machine:

Cat litter pellet size Bulk density Water content
1-8mm or customer requirements 450g/L—500g/L 5%

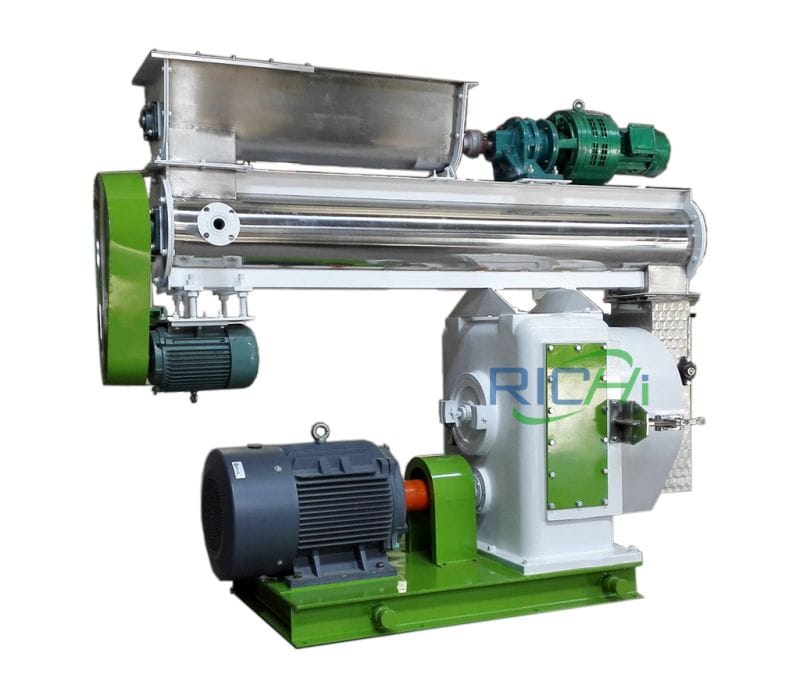

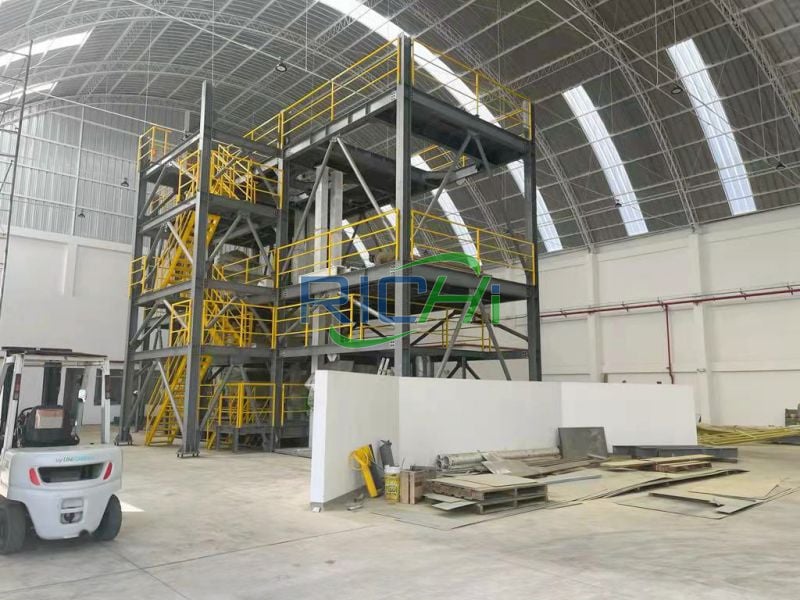

how to start Tofu cat litter production line
04

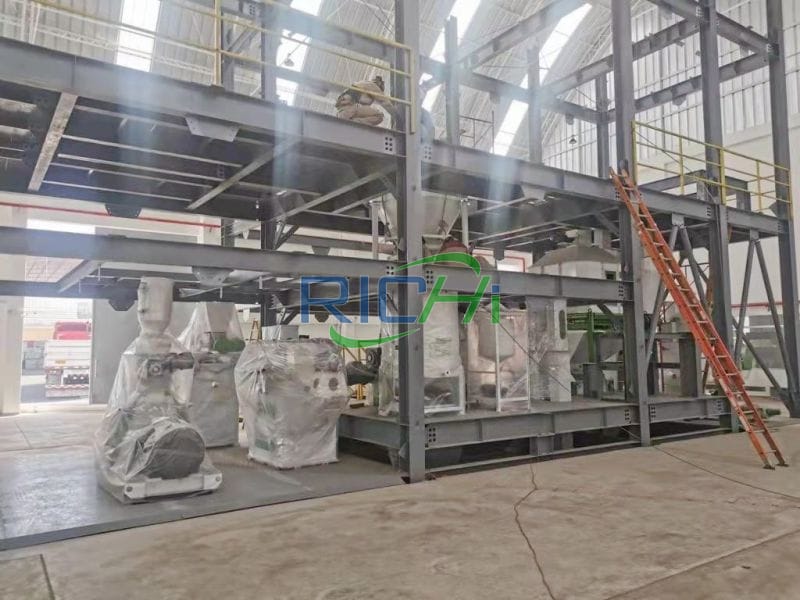

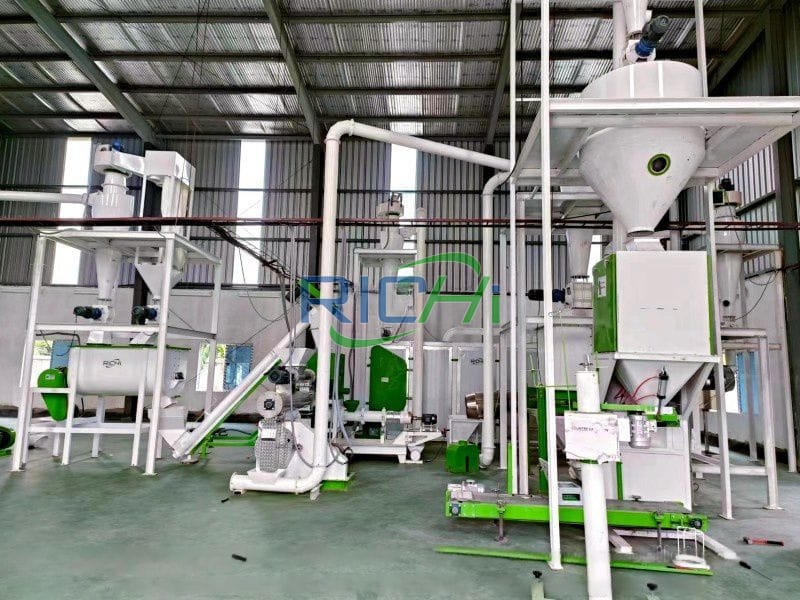

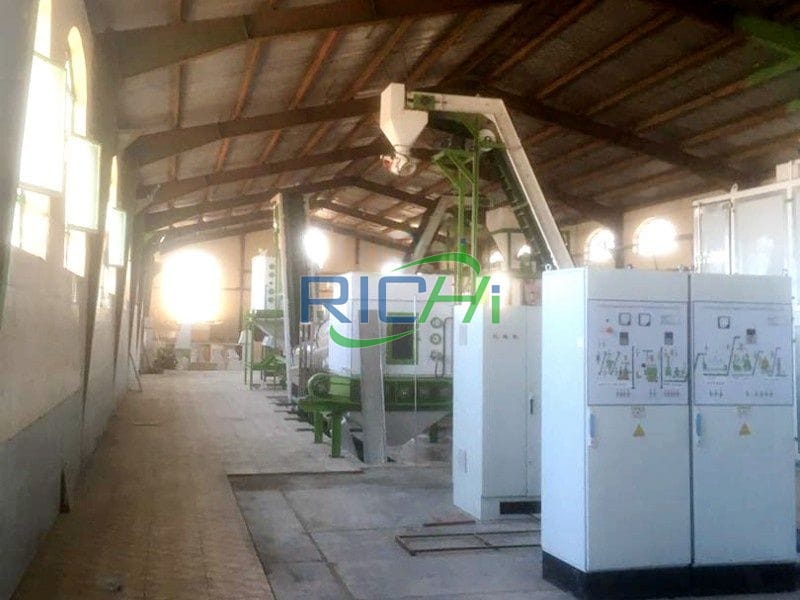

Tofu cat litter

As the name suggests, tofu cat litter is made from the residue of tofu. Environmental protection, waste utilization, you can flush the toilet directly.

No dust, no poison, harmless to cats to people. Condensable, easy to clean. Natural ingredients, bean flavor, various derived varieties (including tofu traditional Chinese medicine sand, tofu discoloration sand, tofu pine core sand, tofu corn core sand), flavored, dyed, charcoal-free, and dust-free.

Get Price & Support

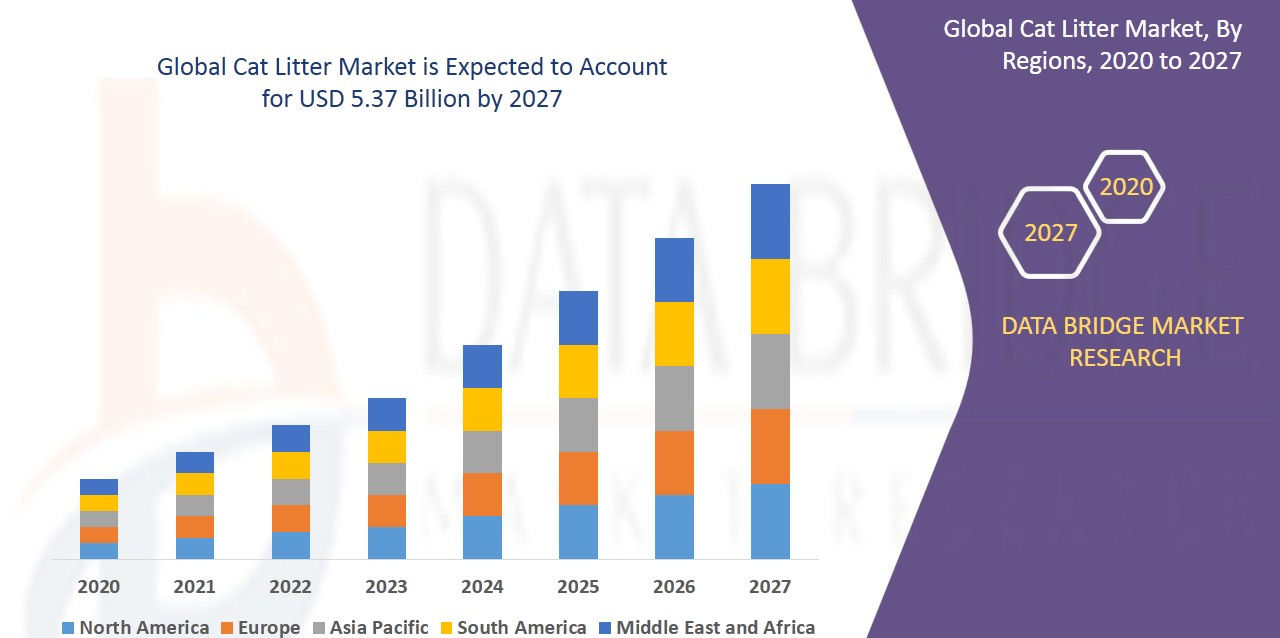

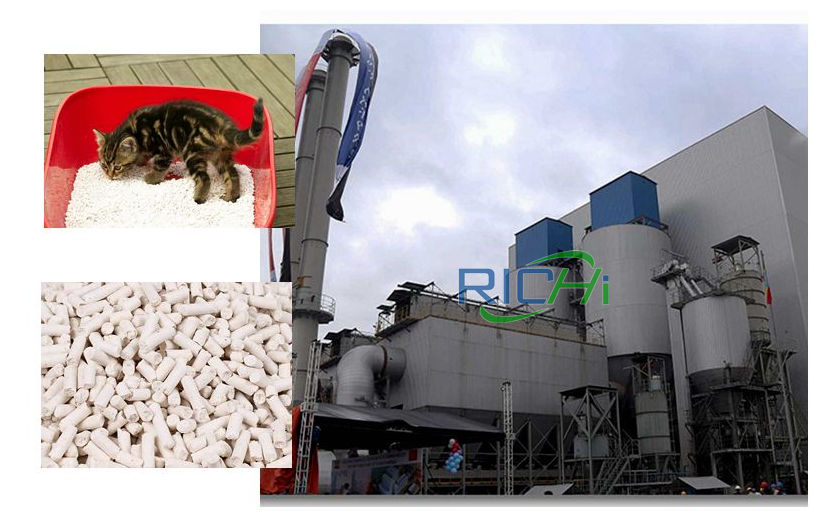

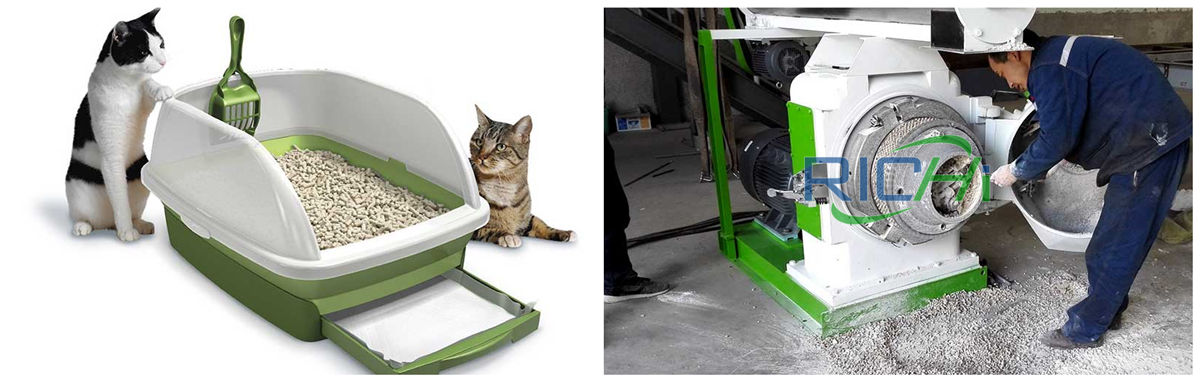

The growing market demand for cat litter pellets

growing market demand for cat litter pellets

Pet cat litter made by cat litter pellet making mahcine is a product used to treat pet excrement and is usually used together with a cat litter box. Pet cat litter is a very large consumption pet product, which has the characteristics of good water absorption, low dust, and deodorization.

After years of development, the types of pet cat litter products have gradually increased. According to different manufacturing materials, pet cat litter can be divided into bentonite cat litter, plant cat litter, silicone cat litter and other cat litters. Among them, plant cat litter can be divided into sawdust cat litter, confetti cat litter, tofu cat litter, etc.

In recent years, with the increasing number of domestic pets, the market demand for pet cat litter has gradually released, and the scale of the industry has been expanding year by year.

Globally, the main consumer markets for pet cat litter are concentrated in North America, Europe, Japan, China and other countries and regions. The well-known pet cat litter brands include Nestlé, PMC, Clorox, Dewey, Mars, etc.

In recent years, the pet industry has developed rapidly. As a pet product with very large consumption, the market scale of pet cat litter is expanding with the expansion of the pet market. With the increase in the number of pet owners, there is still a large room for development in the pet cat litter market.

With the upgrading of residents' consumption, the development prospects of the environmentally friendly and high value-added pet cat litter market are better.

Why Choose Richi

why choose richi
why choose richi

Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields.

All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization.

Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan

Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Quality Control

Delivery And Installation

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment.

According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training

After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs.

After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.

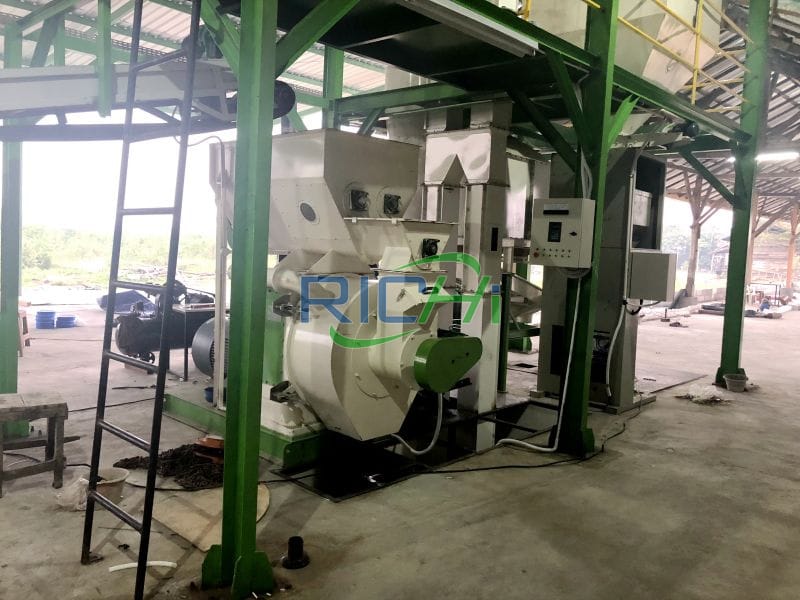

Related Project
