Pellet Feed Crumbler

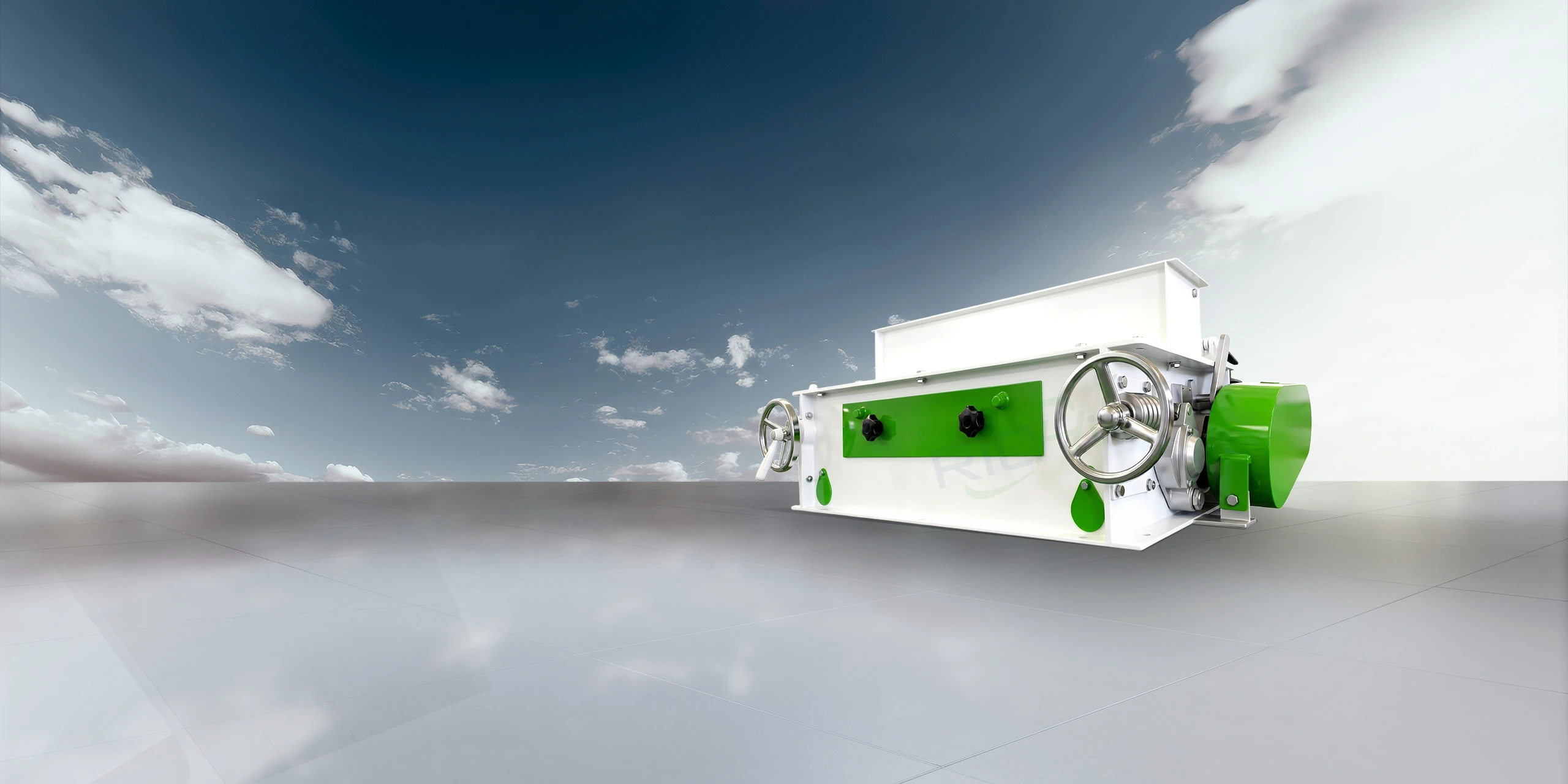

Pellet Feed Crumbler

CAPACITY: 3-8T/H
:
MODEL: SSLG15X120
APPLICATION: Feed, Pellet Industry

The crumbler adopts the principle of the differential speed of the roller to extrude and shear the incoming material, so that the large granular material is broken into irregular small granular materials.

WhatsApp: 0086-18574103366

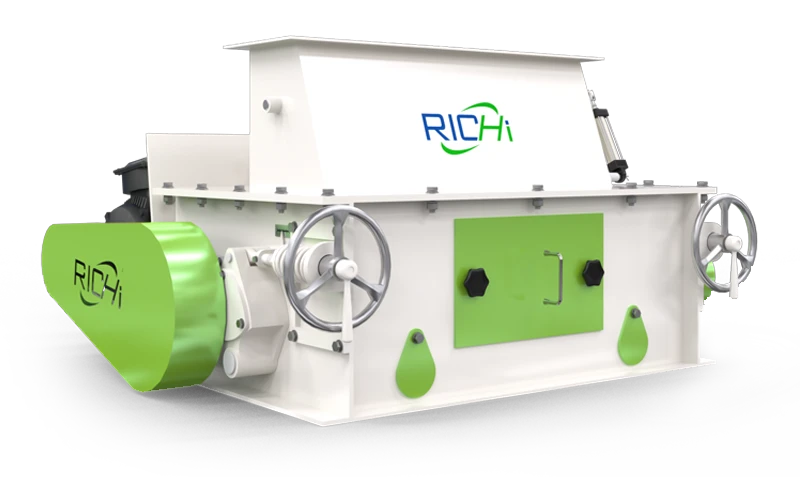

Pellet Feed Crumbler

Applications Of Pellet Feed Crumbler

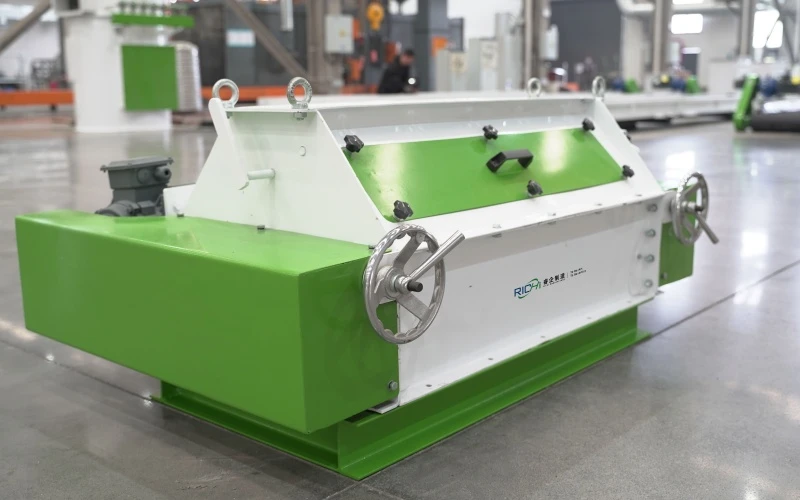

The pellet crumbler is essential equipment in feed pellet production, which is dedicated to crumble large feed pellets into irregular small ones to meed different demands of different animal in different growth periods. It is suitable for crushing the feed pellets of various sizes to 0.6-1.5mm (fine tooth type) or 1-2.5mm (common tooth type). Small space occupation and optimal design of main drive ensure the high efficiency and perfect crushing effect, largely saving operating costs and highly flexible to meet the different demands of clients. We have both double-roller and three-roller type feed pellet roll crushers for your selection.

Technical Features Of Pellet Feed Crumbler

1.Compact structure, uniform crushing performance, and convenient adjustment of final particle size.

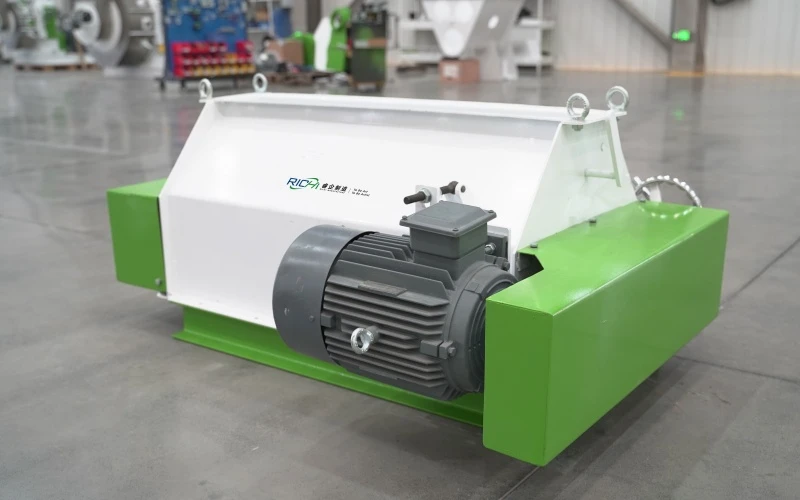

2.Unique feeding hopper ensures even feeding, and the feeding volume can be adjusted.

3.Rollers running in differential speed, the pellets are squeezed, cut and torn between the rollers, so as to achieve the ideal crushing effect.

4.Bypass device design, the materials that do not need to be crushed flow to bypass, and it can automatically shut down when the bypass flow through the travel switch.

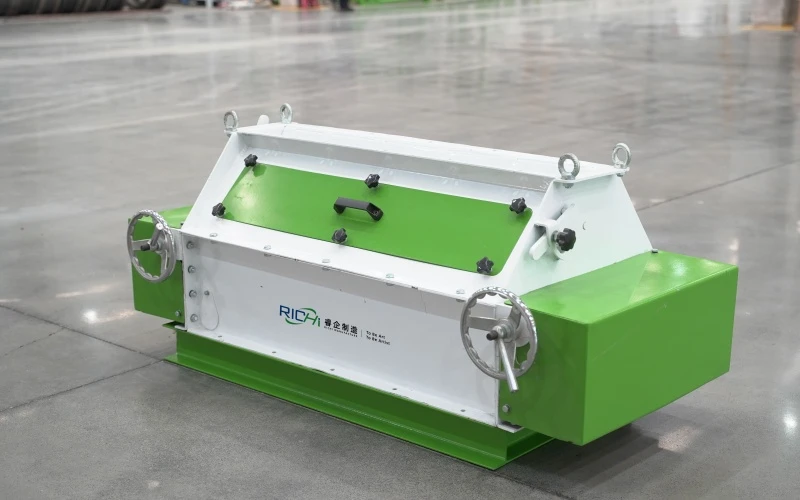

5.Adopt narrow V-belt drive, smooth transmission, low noise, reliable and convenient operation.

6.Equipped with flange observation hole, convenient to operate and maintain.

7.Adopt packing seal, prolong the service life of bearing, and prevent ash leaking.

Working Principle Of Pellet Feed Crumbler

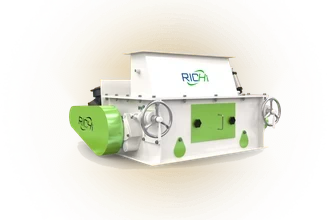

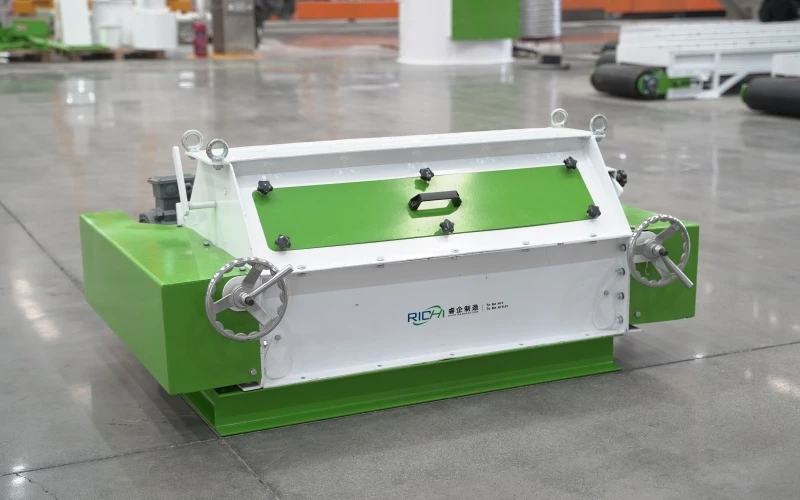

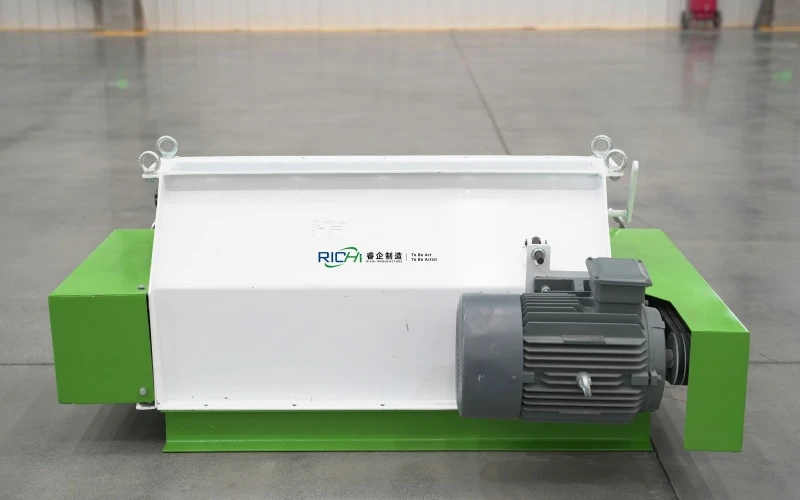

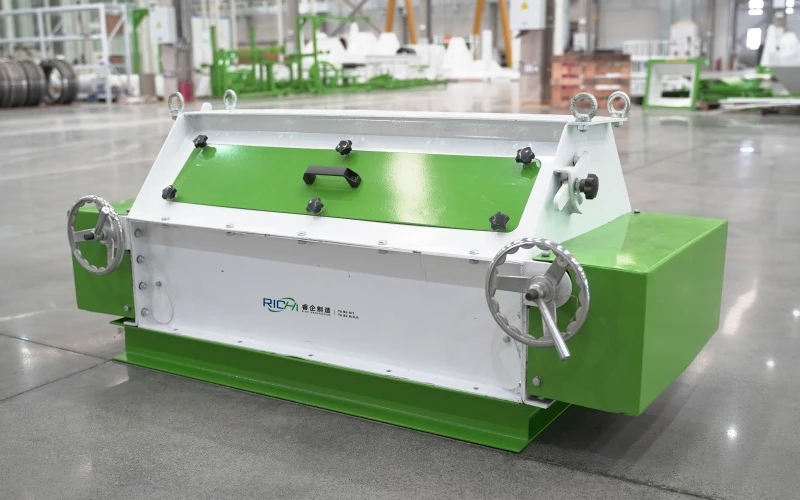

Roller feed pellet crumbler consists of quick and slow roller, transmission mechanism, roll gap adjusting mechanism and tightening devices. After being cooled by the feed pellets cooler, the supressed feed pellets come to the entrance of the granulator, then via the feeding roller to the open valve and next into rollers. Being equipped with rollers running in differential speed can make the pellet materials are squeezed, cut and tore between the two rollers, which produces perfect crushing effect. If the pellets need to be broken,start the cylinder and the valve will open.The materials between the rollers are broken into tiny particles. If not, retract the cylinder and the valve will close. The particles go from the bypass, while the trip switch on the cylinder makes the main motor stop running.

Model SSLG15X80 SSLG15X100 SSLG15X120 SSLG15X150 SSLG20X170 SSLG20X140 SSLG20X170b
Roller 2 2 2 2 2 3 3
Capacity 2-4t/h 2-5t/h 3-8t/h 5-10t/h 8-18t/h 8-17t/h 10-20t/h

Why Choose Richi

why choose richi
why choose richi
Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields. All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Get Price & Service

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization. Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Get Price & Service
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Get Price & Service
Quality Control

Delivery And Installation

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment. According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Get Price & Service
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training
After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs. After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.

Get Price & Service

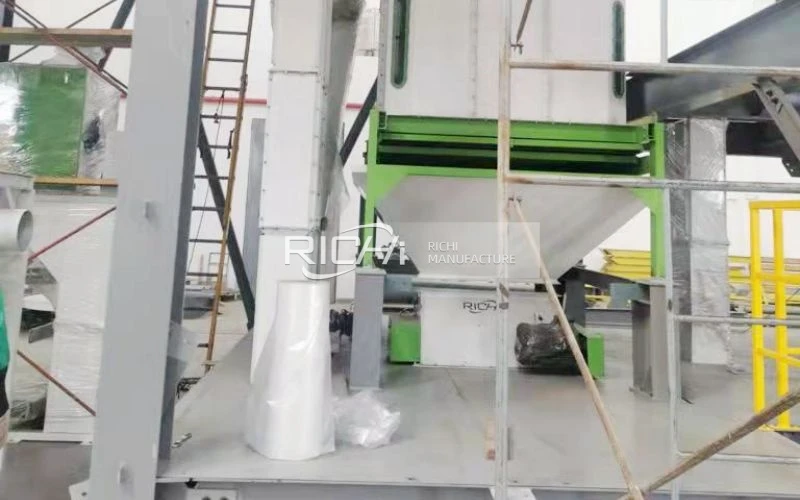

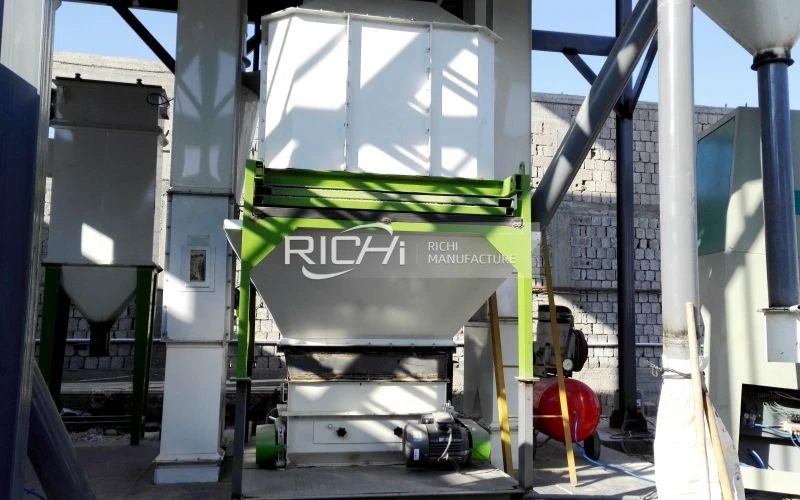

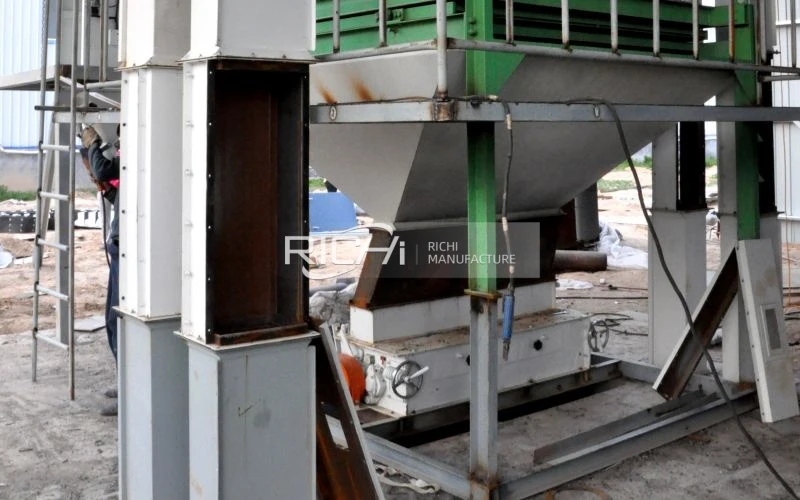

Related Project
