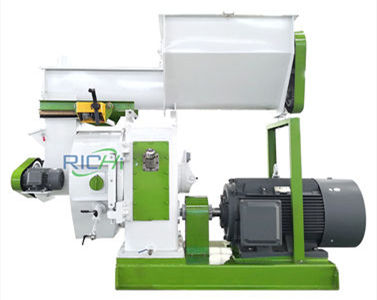

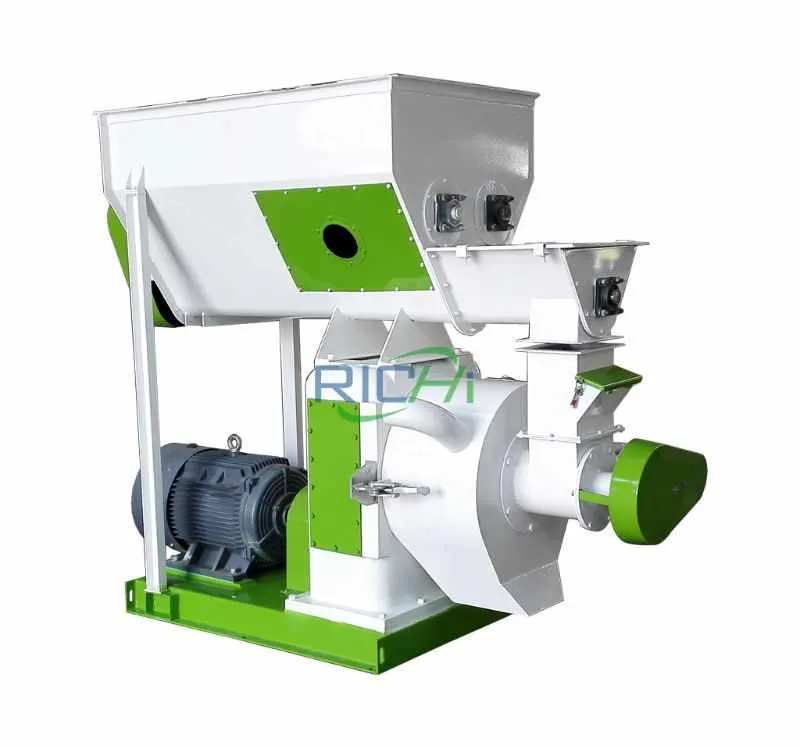

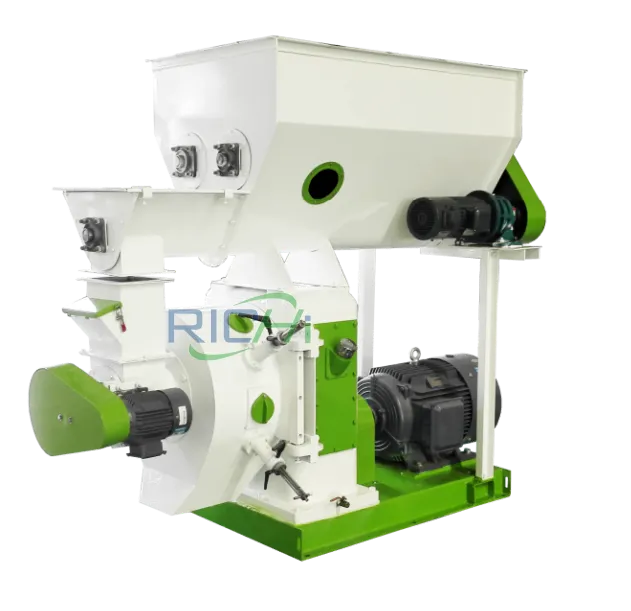

Horse Manure Pellet Machine

Home > Wood Pellet Mill >
Horse Manure Pellet Machine
APPLICATION: Horse Manure Pellet Plant
CAPACITY: 1T/H-12T/H
MAIN POWER: 37KW-280KW
MODEL: MZLH
WhatsApp: +86 138 3838 9622

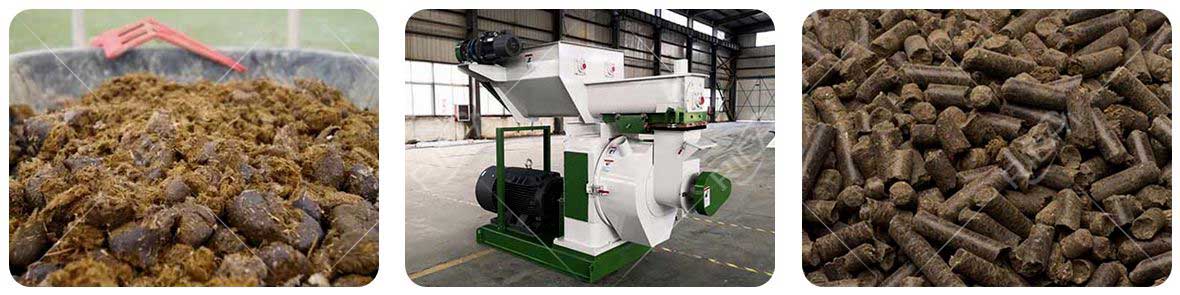

RICHI 1-12t/h horse manure pellet machine can be a horse manure fertilizer pellet machine or a horse manure fuel pellet machine. Whether used as fertilizer pellets or fuel pellets, horse manure is a good raw material. In addition to stand-alone equipment, Richi Machinery also provide a full set of horse manure pellet production line process customization and supporting equipment processing. At present, our horse manure pellet equipment has been exported to Algeria, Thailand, Mexico, Malaysia, Australia and other countries.

24 hours to reply to technical inquiries

Applications Of Horse Manure Pellet Machine

The horse manure pellet machine is a very amazing mechanical equipment, which can make horse manure and horse manure bedding materials: straw, hay, shavings, or in some cases, the actual wood pellet bedding can be made into combustible pellets or fertilizer pellets.
Applications Of Horse Manure Pellet Machine & Pellet Production Line

And the raw materials are not limited to horse manure, but also cow manure, chicken manure, bird manure, pig manure, etc. If you want to use animal manure to make fertilizer pellets or fuel pellets, please contact Richi Machinery!

Any plant matter that is left to its own devices will eventually decay. Composting is just one way to control the natural process. When you use the horse manure pellet machine to make the wastes into fertilizer pellets, you can make nutrient-rich fertilizer for your crops, plants and other landscaping projects with low cost.

Richi Machinery has been in the pellet manufacturing equipment industry for almost two decades. The compost fertilizer pellet making machine is our recently upgraded horse manure pellet machine, which is specially used for making fertilizer pellets. Welcome you to ask for horse manure pellet maker price list. (If you want to process horse manure fuel pellets, you can refer to our biomass pellet production line plan!)

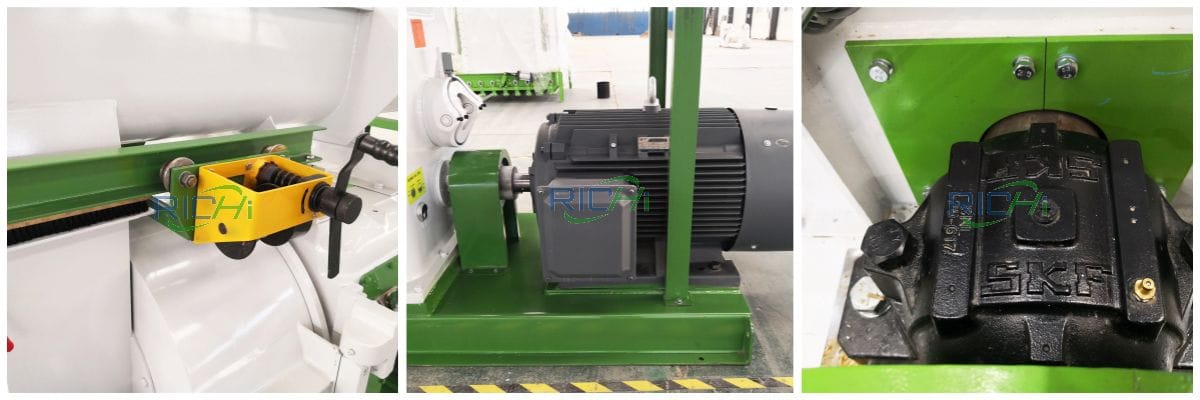

Technical Features Of Horse Manure Pellet Machine

  • The organic content can be high to 100%, can make pure organic pellets from horse manure;
  • Feeding ground speed of the horse manure granulator machine is adjustable, can apply various production requirements;
  • The whole horse manure pellet machine is equipped with iron and overload protection device, give full consideration to the protection of the machine in use process;
  • The horse manure pellet making machine's main transmission gear drive with high precision, uses the quick-release ring die type of anchorear type, output is about 15% higher than type belt drive;Horse Manure Pellet Machine
  • The grow fast horse manure pelletizer machine transmission part selects Japan high quality bearing, ensure transmission efficient, stable and reliable;
  • Adopt international advanced equipment and process of manufacturing of steel ring die, long service life, the final horse manure fertilizer pellets is smooth, high quality.
  • The new type of organic fertilizer horse manure briquette maker can realize continuous mixing, granulation, spheroidization, densification and other processes in the machine by utilizing the high speed rotating mechanical stirring force and the resulting aerodynamic force, so as to achieve the purpose of making organic fertilizer pellets.
  • With the amount of material mixture and spindle speed, the size of organic fertilizer pellet diameter will appropriately. Generally, the lower the amount of mixture, the higher the speed, the smaller the pellets will be.
  • The material putted on the new type horse manure pellet machine must be powdery. And the finer the organic raw material, the higher the sphericity and the quality of the fertilizer pellets will be better.Horse Manure Pellet Machine manufacturers
  • It is generally required that the particle size of materials before granulation should be less than 200 mesh. Furthermore, the new type organic fertilizer horse manure pellet maker machine can be used to handle horse manure, chicken manure, pig manure, cow manure, carbon black, clay, kaolin, etc.
Get Price & Support

Horse Manure Pellet Machine Price & Specification

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Power 37KW 55KW 90KW 132KW 250KW 280KW
Capacity 1-2 T/H 3-4 T/H 5-6 T/H 7-8 T/H 9-10 T/H 10-12 T/H
Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm
Weight(KG) 2500 3500 4000 4500 5000 5500
Horese manure pellet machine cost 7000-100000USD

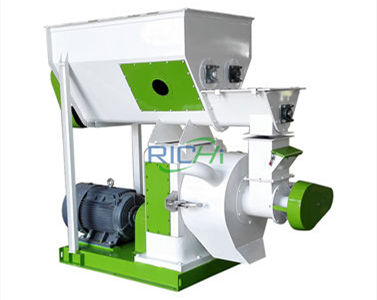

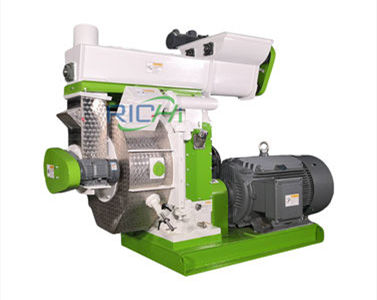

MZLH 320 horse feed pellet machine

MZLH 320 horse manure brick maker

MZLH 350 horse feed pellet machine

MZLH 350 horse manure granulator machine

MZLH 420 horse feed pellet machine

MZLH 420 horse manure briquette machine

MZLH 520 horse feed pellet machine

MZLH 520 horse manure briquette maker

MZLH 768 horse feed pellet machine

MZLH 768 horse manure pelletizer machine

MZLH 858 horse manure pellet machine

MZLH 858 horse manure pellet press

Working Principle Of Horse Manure Pellet Machine

The crushed horse manure material is passed through the chute through the compression die cover, and the centrifugal force generated by the gravity and the rotation of the ring die and feeding The action of the scraper is evenly fed into the two pressing areas in the horse manure pellet machine ring die.

Under the strong squeezing action of the horse manure pellet machine ring die and the pressure roller, the material is gradually compacted and extruded into the die hole of the ring die and continuously extruded in a columnar shape. And adjust the distance between the horse manure pellet mill cutter and the surface of the ring die to control the length of the horse manure pellets.
horse manure pellet making process

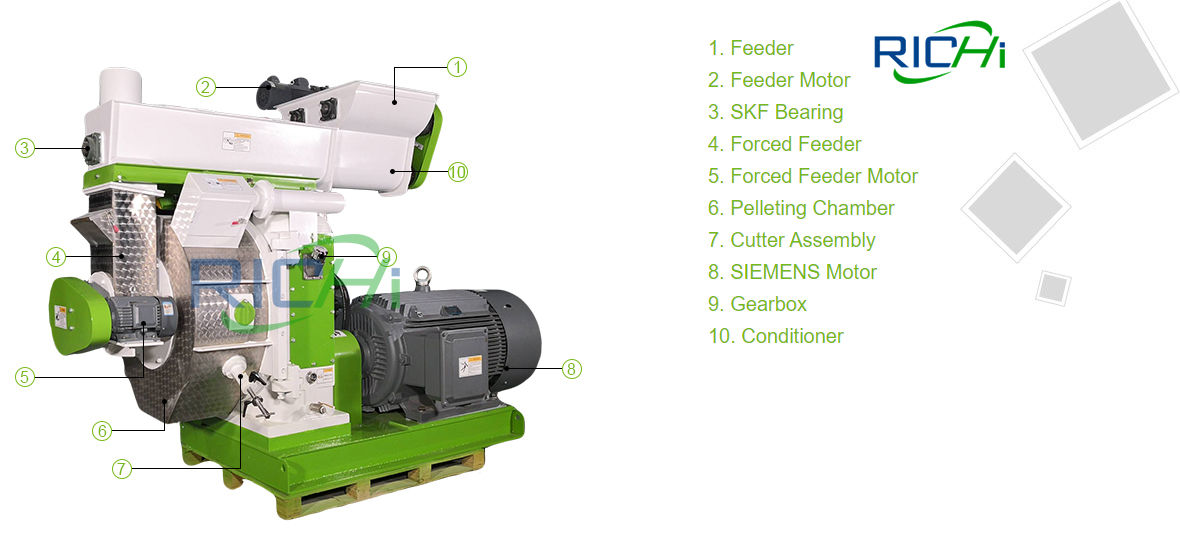

The advantages of horse manure pellet machine design

  • The design of horse manure pellet maker machine is reasonable and easy to operate. Before you use the fertilizer pellet mill, you'd better know the character of the organic horse manure fertilizer granulator machine.
  • Large capacity. With our professional design, RICHIorganic fertilizer horse manure pellet machine has large capacity. By using the largest organic manure pellet machine, you can get 1-10 ton fertilizer pellets in one hour.
  • RICHI horse manure pellet machine machine is made of stainless steel. It has the character of high strength and long service life.
  • RICHI horse manure pellet machines have a wide range of applications. You can handle various organic fertilizer raw material, such as: poultry manure, livestock manure, vermicompost, seaweed fertilizer, kaolin, etc. RICHI horse manure pellet machine can also help you to make these fertilizer.

Except organic fertilizer horse manure pellet machine, Richi Machinery still have cow manure pellet making machine and chicken manure pellet machine can handle these animal dung.

How to build a high quality horse manure fertilizer pellet production line?

Do you know how to convert horse manure into fertilizer? How to build a new horse manure fertilizer pellet production line?

Horse manure organic fertilizer production line process mainly includes fermentation system, drying system, deodorizing dust removing system, grinding system, batching system, mixing system, pelleting system, sieving system and finished product packing system.

Generally speaking, horse manure fertilizer production is to compost the waste raw materials together to let them start ferment naturally. But, different applications ask different horse manure pellet plant processes, especially in this era which requires less cost and high return.

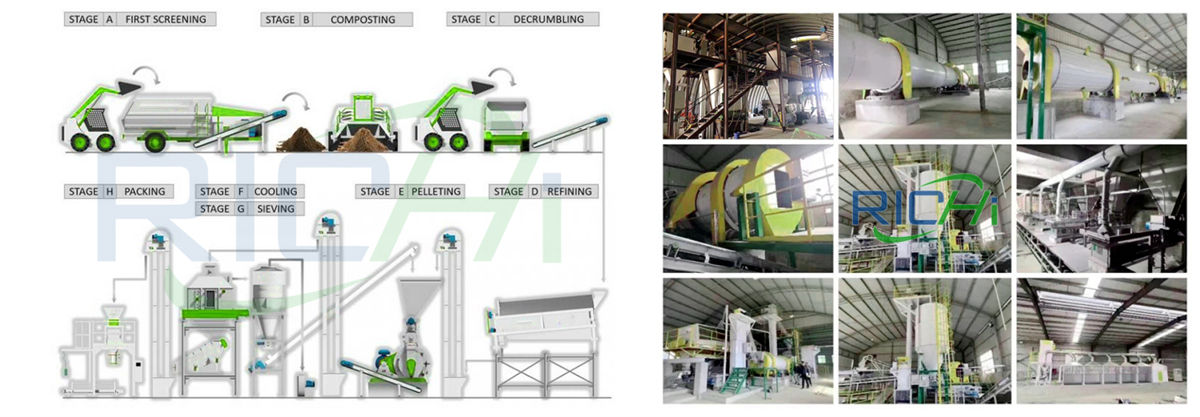

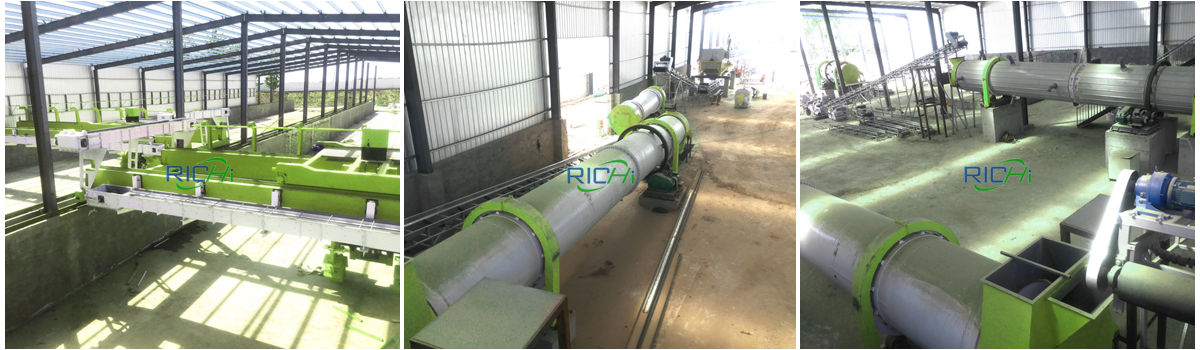

horse manure fertilizer pellets production line

01

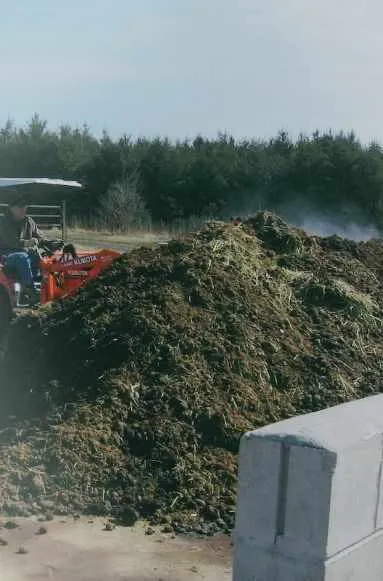

Composting

The first step of composting with fertilizer pellets processing equipment is to control the moisture of the raw material, especially when the raw material is manure, you need to use water squeezing equipment, which can quickly reduce the moisture to the most appropriate level for making horse manure pellets, in preparation for making horse fertilizer pellets afterwards.

Since there is too much water in horse manure, a solid-liquid separator should be used to dehydrate horse manure.horse manure as fuel burning horse manure can you burn horse manure horse manure biofuel horse manure sawdust

02

Fermentation

The second step is fermentation, which is one important process of making compost fertilizer. When the dewatered raw materials enter the fermentation tank, under the sealing space, the multiple raw materials will be made into the black, friable substance.

So need to use an organic fertilizer composting machine to help the horse manure ferment. If the raw horse manure is directly applied to the farmland, it will damage the crops and cause some adverse effects.horse manure pellets horse manure fuel horse manure as fuel burning horse manure can you burn horse manure horse manure biofuel

By the point above in the fertilizer production process, the compost pile is almost done. Now is to use the pellet production equipment to make pellets of the same size and shape from the loosely fermented raw materials, which can extend the shelf life. Also, if you make fertilizer for sale, it costs more.

03

Crushing

Then the raw material of horse manure organic fertilizer (manure, garbage, dead leaves, waste residue, bacteria etc.) is conveyed to semi wet material crusher for crushing after fermentation. Since some horse manure fertilizers will agglomerate after fermentation, a hammer crusher is required to crush horse manure. The purpose of this step is to help you easily make horse manure pellets.

04

Mixing

Next, you can go to the next step. Nitrogen and phosphorus potassium (pure nitrogen, phosphorus pentoxide, potassium chloride, ammonium chloride, etc.) are added so as to make mineral elements content to reach the standard, and then mix it with a blender and convey to the horse manure pellet maker for pelleting. You can achieve this by using a Richi horizontal mixer.how to make organic fertilizer pellets from horse manure

05

Pelleting

Granulating is an important part of the horse manure pellet plant process. The purpose of this step is to help you make horse manure pellets. If you use our horse manure pelletizer, it will greatly reduce your pelleting time. And the fertilizer pellets made by RICHI horse manure pellet machine are very uniform, the surface is smooth, and the pellets quality is high.how to make organic fertilizer pellets from horse manure

06

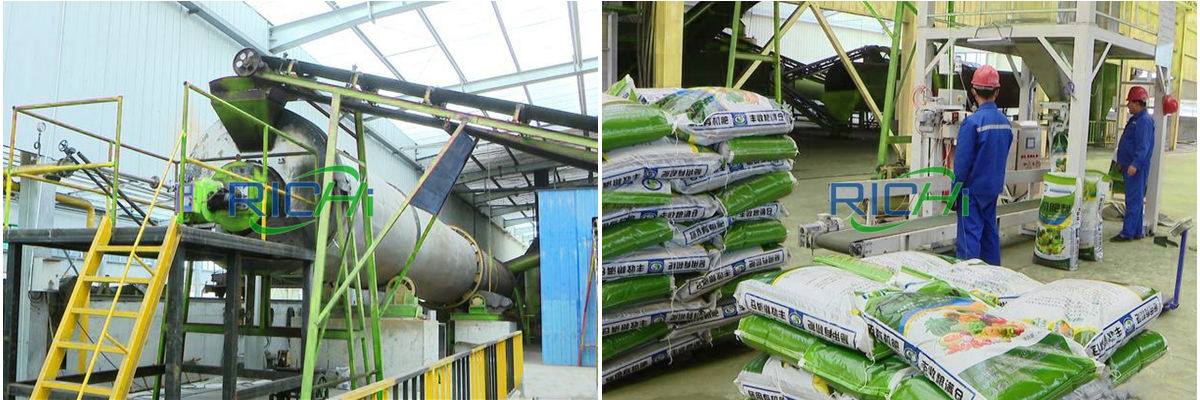

Drying & Screening & Packing

And then come to drying, sieving process. Qualified products are packed and unqualified conveyed to horse manure pellets making machine for granulation again.
In order to get good quality horse manure pellets, you also need to use rotary drum horse manure drying machine, pellet cooling machine, vibrating screen machine and automatic packing machine to achieve your horse manure fertilizer pellet line produciton.

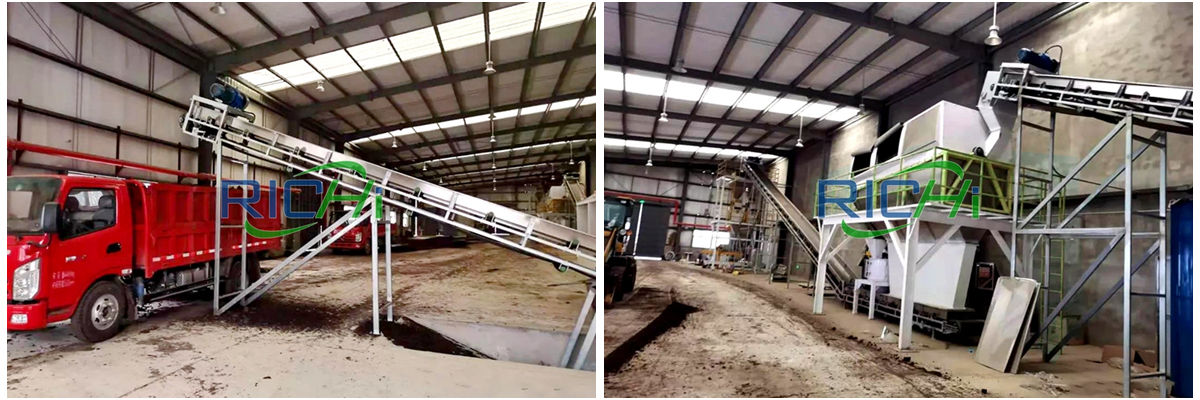

Machinery needed to start horse manure pellet plant

If you have the powdery fertilizer, then you can get the organic fertilizer horse manure pellets easily. But if you only have horse manure raw material, you can't start your own organic manure making business just using organic fertilizer pellet machine.

You should have other organic fertilizer equipment, such as, solid-liquid separator machine, groove type compost turner, vertical crusher. Here are the reasons why you need to use our organic fertilizer horse manure.
Machinery needed to start horse manure pellet plant

Because there is too much moisture existed in the organic fertilizer raw material. It's necessary to use a solid-liquid separator machine to dehydrate.

Do you know unfermented fertilizer is harm for crops? Unfermented manure, especially poultry manure and livestock manure, has heavy salt content, which can easily salinize the soil and increase the salt concentration of the soil. If it is serious, it will lead to germination of seeds, burning of seedlings and burning of roots.

The manure crusher can crush solid fertilizer to help you get powdery organic fertilizer. Then you can get organic fertilizer pellets from powdery fertilizer.

With these facilities for processing granulated horse manure pellets, you can build an organic horse manure pellet prodction line in your horse farm or fertilizer pellet plant.

  • Cow dung compost machine

    Horse manure compost machine

  • Cow dung mixing machine

    Horse manure mixing machine

  • Cow dung dryer machine for dried cow manure pellets

    Horse manure dryer machine

  • Cow dung crushing machine

    Horse manure crushing machine

  • Organic fertilizer screening machine

    Horse manure cleaning machine

  • Belt conveyors

    Horse manure belt conveyors

  • Organic fertilizer pellets cooling machine

    Horse manure cooling machine

  • Automatic packaging machine

    Horse manure bagging machines

Get Price & Support

How to get more beneficial pellets from horse manure pellet production line?

Although the organic fertilizer pellets are good for crops, we notice that somebody want to get more beneficial organic fertilizer. If you also want to get more beneficial organic fertilizer pellets, next the specific operation methods can help you.

After the process of crushing, you will get the powdery organic fertilizer. Then you can add biological bacteria to powdery organic fertilizer in a certain proportion with SEEC disc mixer. By adding biological bacteria, you will get more balanced organic fertilizer powder.

Then you can put the powdery organic fertilizer into the new type organic fertilizer granulator machine for getting organic fertilizer particles. This kind of fertilizer pellets is better than ordinary organic fertilizer.

Get Price & Support

Uses Of Horse Dung Pellets Made By Horse Manure Pellet Machine

  • Horse Manure Pellets Used As Fertilizer
    As we all know, the horse manure can apply to the farmland and help crops grow. Because there are many good nutritional ingredients exist in the horse manure. These ingredients will make crops grow better. In addition, the horse dung belongs to the organic fertilizer, so it won't hurt the soil as the chemical fertilizer.
  • Horse Manure Pellets Used As Biofuel
    The dried horse manure took a little longer than wood to ignite and once it lit it burnt well if not intensly. The manure gave off a good heat and lasted for longer than I expected - a little longer than cedar, but not as long as oak.
  • Horse Dung Used As Building Material
    Horse manure has also been used in brick making. It's one of the components of adobe. What would a house made of manure bricks smell like in damp weather? While most people may not find the smell of horse manure offensive, most of us would draw the line here.

Currently, horse manure is most widely used as organic fertilizer. Therefore, the following content is mainly based on the processing of horse manure organic fertilizer pellets.

How To Make Horse Manure Pellets?
How To Make Horse Manure Pellets?

01

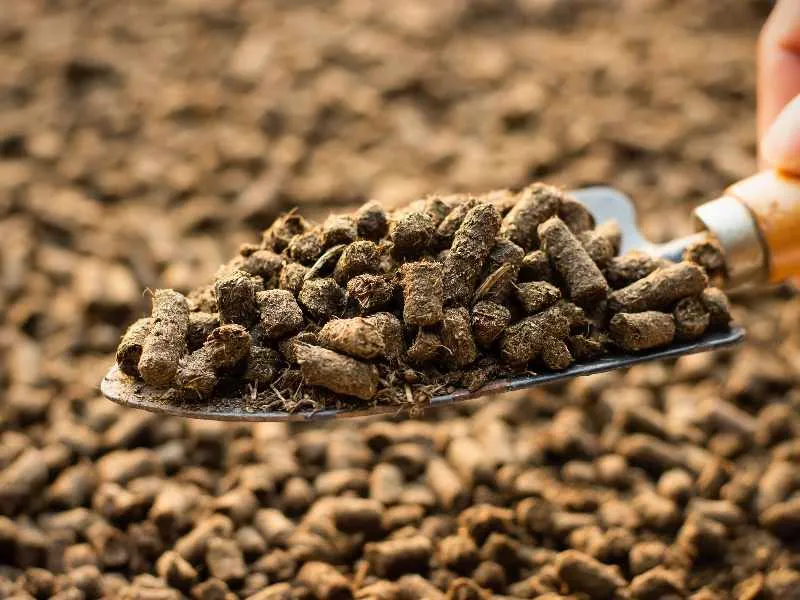

Benefits of Horse Manure Fertilizer Pellet

Horse manure contains 21% organic matter, 0.4-0.5% nitrogen, 0.2-0.3% phosphorus, and 0.35-0.45% potassium. Horse manure contains more cellulose and hemicellulose. In addition, it also contains lignin, protein, fats, organic acids and various inorganic salts.

The water in horse manure is easy to evaporate and contains more cellulosic bacteria. It is a thermal fertilizer. The application of horse manure can improve the properties of clay.

  • Easy use – the fertilizer is supplied as pellets;
  • Gradual release of nutrients;
  • Increases the humus content in the soil and contributes to improved fertility;
  • Contains no germinable weed seeds.horse manure pellet making plant
02

Dosage of Horse Manure Fertilizer Pellets Made By Horse Manure Pelleting Machine

The horse manure pellet fertilizer is mainly used for basic fertilization before planting of vegetables; it is also very suitable for fertilizing flowerbeds or preparing the soil before planting of trees and shrubs. The horse manure fertilizer is thrown over the surface evenly and incorporated into the soil.

Recommended Dosage
Basic fertilization before planting per 10 m2 Fertilization of soil in the greenhouse before planting per 10 m2 Dose per box (50 cm) of balcony plants
1.5–3 kg 2–4 kg 0.2–0.3 kg
Roses and perennials in grams per plant Vegetables and fruits in grams per plant Conifers and other ornamental shrubs in grams per plant
100–200 g 300–400 g 600–800 g
Get Price & Support

What kind of raw material can used?

  • Cow manure contains 14.5% organic matter, 0.30 ~ 0.45% nitrogen, 0.15 ~ 0.25% phosphorus and 0.10 ~ 0.15% potassium. So it is a valuable resource that can be used by farming as a source of soil fertilizer.
  • Pig manure contains 15% organic matter, 0.5-0.6% nitrogen, 0.45-0.5% phosphorus, 0.35-0.45% potassium. Pig manure is fine in texture and complex in composition. It contains proteins, fats, organic acids, cellulose, hemicellulose and inorganic salts. It is also a good fertilizer for crops.
  • Chicken manure is rich in nutrients, according to the relevant determination: chicken manure contains 89.8% dry matter, 28.8% crude protein, 12.7% crude fiber, 14.4% digestible protein, 2.6% phosphorus, 8.7% calcium, 0.23% histidine, 0.11% methionine, 0.87% leucine, 0.53% lysine, 0.46% phenylalanine.

These animal waste belong to organic fertilizer. Therefore, by using horse manure pellet machine, or chicken manure pellet machine, cow dung pellet making machine, you will get fertilizer pellets from the animal waste. If you are looking for horse manure pellet maker UK, manure briquette maker Australia,horse manure briquette maker USA, etc., find Richi Machinery!

Horse manure vs poultry chicken cow sheep pig manure, which is better?

Horse manure, poultry chicken manure, cow manure, sheep manure, pig manure, which one is better for fertilizer pellet production line? Manure is rich in organic matter and various nutrient elements required by crops. It has a good effect on increasing crop yields and improving soil fertility.

It has been widely used in agricultural production for a long time. In recent years, as the phenomenon of unreasonable application of manure has increased, various problems have also followed. The main components of various types of animal manure: cellulose, hemicellulose, lignin, protein and its decomposition components, fat, organic acids, enzymes and various inorganic salts.
livestock poultry manure for fertilizer pellet production line

  • Pig manure for fertilizer pellets production line
    Pig manure contains 15% organic matter, 0.5% nitrogen, 0.5-0.6% phosphorus, and 0.35-0.45% potassium. Pig manure has a finer texture and a more complex composition. It contains protein, fat, organic acids, cellulose, hemicellulose, and inorganic salts. Because it contains more nitrogen, the ratio of carbon to nitrogen is small, about 14:1. Generally, it is easily decomposed by microorganisms and releases nutrients that can be absorbed by crops. Pig manure contains the highest humus content, the largest amount of yang ion substitution, and the strongest fertility retention, but it has more water content and less cellulosic bacteria. Mixing a small amount of horse manure to inoculate cellulosic bacteria can greatly increase the fertilizer efficiency.
  • Cow dung fertilizer pellets production line
    Cow manure contains 14.5% organic matter, 0.30-0.45% nitrogen, 0.15-0.25% phosphorus, and 0.10-0.15% potassium. The organic matter and nutrient content is low in all kinds of livestock, with fine texture, more water content, slow decomposition, low calorific value, and it is a late-acting fertilizer.
    Since the cow dung contains high water content and poor ventilation, the organic matter is difficult to decompose, and it is a cold fertilizer. Cow manure can be directly composted, and it can also improve the soil after application.how to make organic fertilizer pellets from horse manure
  • Sheep dung fertilizer pellets production line
    Sheep manure contains 24-27% organic matter, 0.7-0.8% nitrogen, 0.45-0.6% phosphorus, and 0.4-0.5% potassium. Sheep manure contains more organic matter than other animal manures, with finer manure and thick fat.
    Sheep dung heats up between horse dung and cow dung. It is also a thermal fertilizer, also called a warm fertilizer. It is effective when applied on sandy soil and clay soil.
  • Poultry manure fertilizer pellets production line
    The poultry manure contains 25.5% organic matter, 1.63% nitrogen, 1.54% phosphorus, 0.85% potassium, 11% carbohydrates, and 7% fiber. Fresh poultry manure has a higher water content.how to make organic fertilizer pellets from horse manure
    The nitrogen in poultry manure (chicken manure, duck manure, goose manure, pigeon manure, etc.) is mainly in uric acid form. Uric acid cannot be directly absorbed by crops and is harmful to the growth of crop roots. At the same time, fresh poultry manure is easy to attract underground pests.

Organic fertilizer horse manure granulator machine is a machine that can make various organic fertilizer pellets. With the help of horse manure pellet machine, the animal poop will turn into organic fertilizer pellets. This means you can get any poultry livestock fertilizer granules from horse manure through a horse manure granulator.

Furthermore, RICHI horse manure pellet machine is made by using the latest technology in the field of manure organic fertilizer production. So it is different from the traditional method of fertilizer granulation. You can get more efficient horse manure fertilizer pellets.

And you can get up to 1-10 ton fertilizer granules in an hour though organic fertilizer horse manure pellet machine. Thus, if you want to get horse manure granules, you'd better have an organic fertilizer horse manure granulation machine.

If you have any interest or need of our horse manure pellet machine or horse manure pellet production line, just feel free to send inquiry to Richi Machinery!

Why Choose Richi

why choose richi
why choose richi

Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields.

All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization.

Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan

Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Quality Control

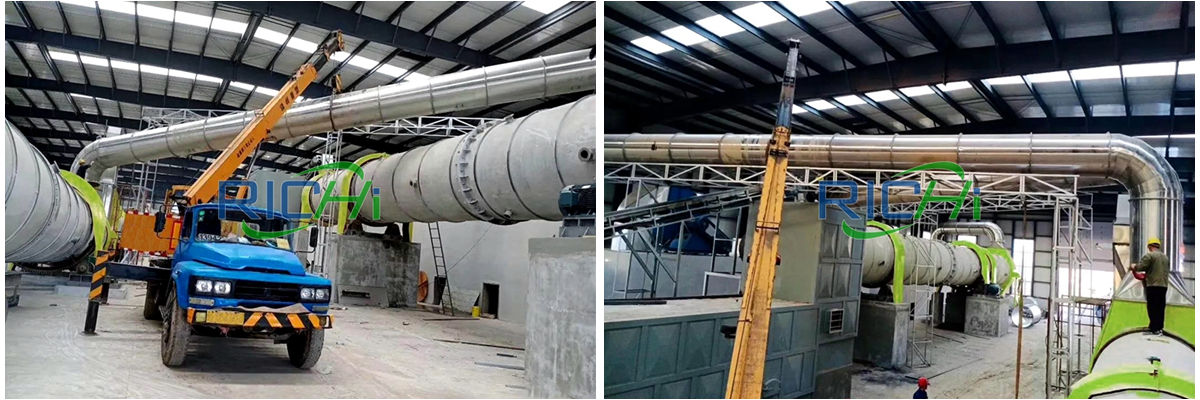

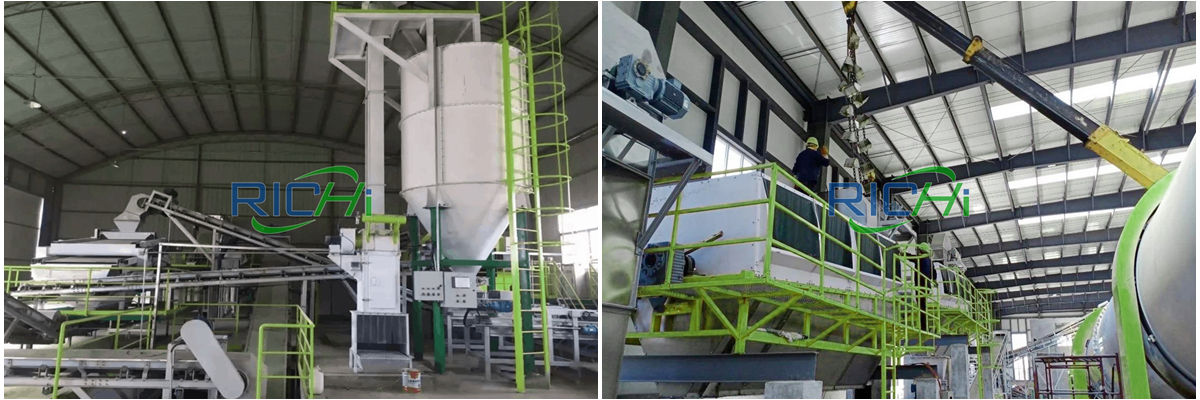

Delivery And Installation
