Bamboo Pellet Machine & Pellet Production Line

Home > Wood Pellet Mill >
Bamboo Pellet Machine & Pellet Production Line
Application:: Bamboo Biomass Pellet Plant
Model:: MZLH
Capacity:: 0.3t/h - 4.5t/h
Pellet Size: 6-12mm
WhatsApp: +86 138 3838 9622

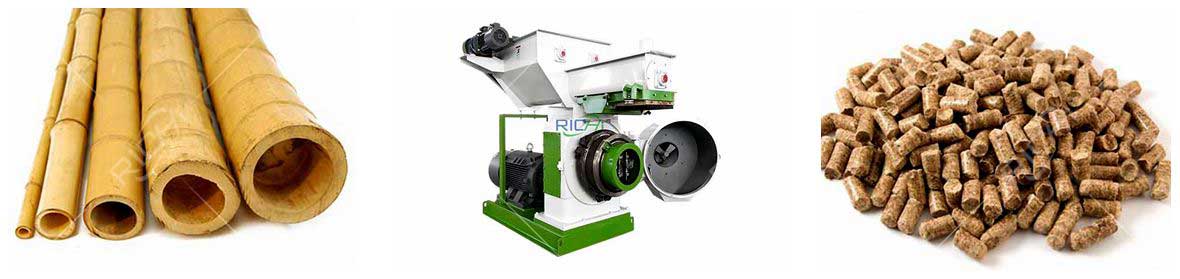

Bamboo pelletizer machine is a new type of biomass fuel pellet machine with high efficiency and low consumption produced by Richi Machinery. Its raw materials are mainly waste bamboo, bamboo boards, bamboo leaves, bamboo powder and bamboo chips. Bamboo pellet mills as the core of bamboo pellet production decides bamboo quality of the whole production line. RICHI bamboo pellets mills is highly recommended for its high adaptability, long life, easy operation and easy maintenance.

24 hours to reply to technical inquiries

why make bamboo into bamboo pellets?

Bamboo is a natural choice for biomass energy production. Bamboo is a member of grass family though they are woody in nature. There are here are about 1250 species of bamboo in the world with a height of 10-40 cm. Bamboo can be harvested 4 times in a year and with millions and millions hectares world widely, which means bamboo is potentially a kind of sustainable biomass fuel.

Bamboo plants are a kind of renewable biological resources with multiple uses. How to make full use of the abundant bamboo resources has attracted increasing attention. What’s more, because of its high growth rate and easy process, good mechanical properties, such as, low costs, multitude applications, bamboo is a promising renewable resource.

The calorific value of bamboo is 18.3 -19.7 MJ/kg , which is just like or a little bit higher than beech, spruce, and eucalypt, etc. when bamboo are harvested, bamboo chips can be crushed into sawdust and then be molded into pellets and briquettes which can be used for fireplaces and stoves.

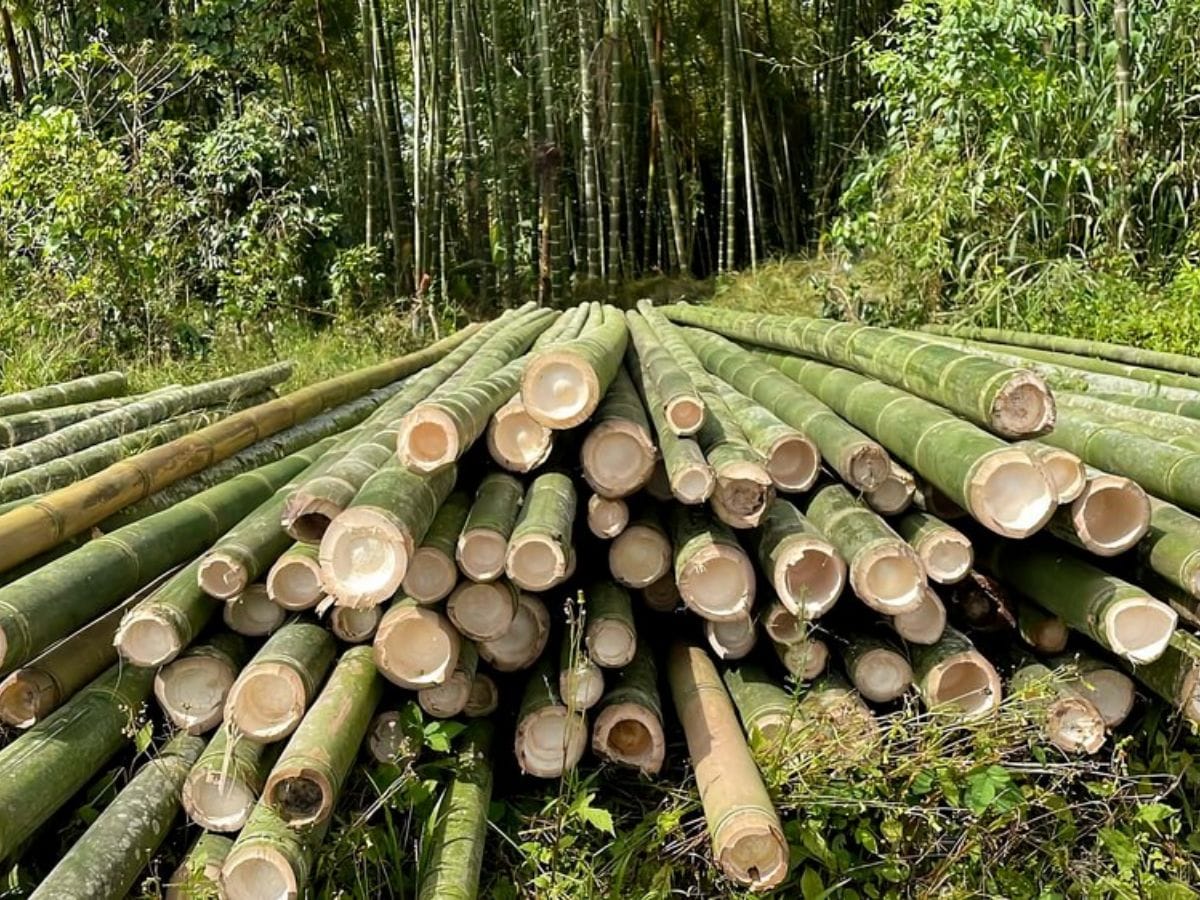

Bamboo pellets are made of bamboo stalks, bamboo leaves and recycling bamboo powders after production of other bamboo products, by crushing the bamboo into powder and pressing together into pellets with 6-12mm length. Bamboo pellets deliver extremely high BTU's and low ash content, and they are a reliable, cost-effective and environment-friendly source of energy for heating systems.

bamboo waste
bamboo waste
bamboo waste
bamboo waste

For a long time, the research and utilization of bamboo have involved timber use, bamboo shoots, paper-making, and so on. Bamboos are characterized by fast growth and strong adaptability. This means that bamboo will be an ideal sustainable biomass fuel.

Technical Features Of Bamboo Pellet Machine

  • The bamboo pellet machine is widely used for pelletizing of biomass materials, such as wood chips, sawdust, straw, husk, shells, pasture, chrysanthemum, palm leaf and so on;
  • The bamboo pellet mill feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of biomass substances with the density of 0.15-0.65g/cm3;
  • The feeder, conditioner and chute of bamboo pelletizing machine are made of stainless steel with long service life;
  • The bamboo pellet making machine is with magnet and over load protection system which can protect machine well during production;
  • The bamboo pellet forming machine makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey;
  • The bearings and oil seals in the main drivers are imported to ensure highly-efficient,stability and credibility.
Technical Features Of Bamboo Pellet Machine
Technical Features Of Bamboo Pellet Machine
Technical Features Of Bamboo Pellet Machine
Technical Features Of Bamboo Pellet Machine
Technical Features Of Bamboo Pellet Machine
Technical Features Of Bamboo Pellet Machine
Technical Features Of Bamboo Pellet Machine
Technical Features Of Bamboo Pellet Machine

Bamboo pellets making machine also refers to bamboo pellet making machine and bamboo pelletizing machine. The machine is specifically used to turn bamboo material into bamboo pellet fuel.

Bamboo biomass pellet mills have been playing a big role in transformation of energy structure. RICHI bamboo pelletizer machines are very adaptable, easy to operate and maintain. Our bamboo pellet making machines can be divided into 6 model ring die bamboo pelletizer mill. All of them have made a big contribution to environment protection and energize renewable energy development in a healthy manner.

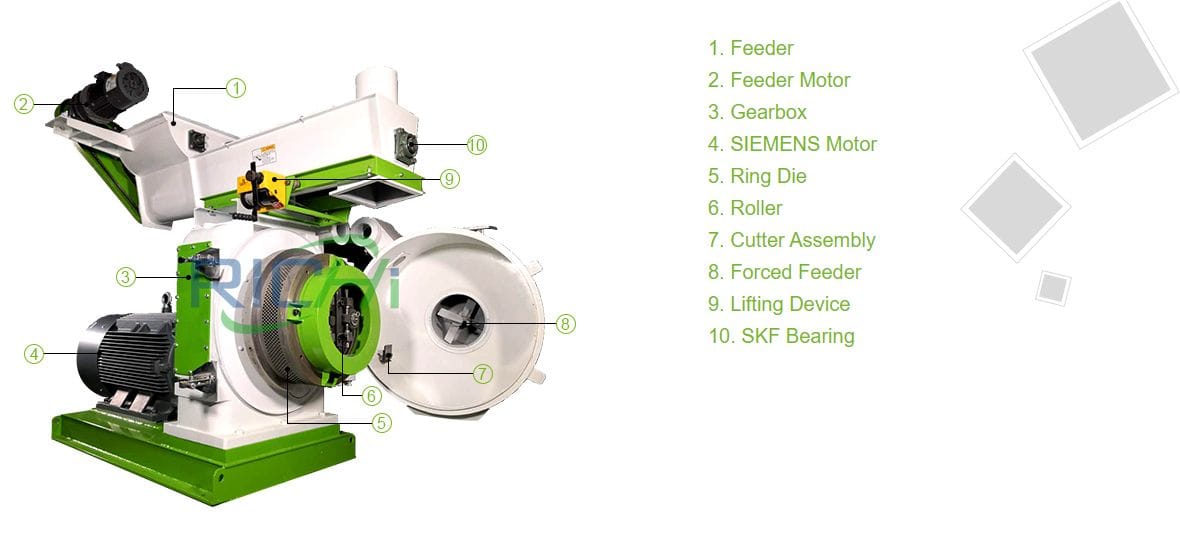

Working Principle Of Bamboo Pellet Machine

Working Principle Of Bamboo Pellet Machine

The bamboo pellet pressing machine process: crushed bamboo material is fed evenly by the forced feeding device, the centrifugal force generated by the rotation of the ring die, and the action of the feeding scraper. The two pressing areas in the ring die are in the wedge-shaped space formed by the two press rollers and the ring die.

Under the strong squeezing action of the ring die and the press roller, the bamboo material is gradually compacted, squeezed into the die hole of the ring die and shaped in the die hole. Because the extrusion of the material between the die and the roller is continuous, the formed bamboo material is continuously discharged from the die hole in a columnar shape, and then cut into bamboo pellets of the required length by the cutter, and then enters the next process.

Our bamboo pellet mill machines are guaranteed stable performance and the production output can also be guaranteed. In addition, it can also be used to process other biomass materials into pellets, including sawdust, wood chips, peanut shell, coconut shell, coffee grounds, cotton stalk, corn stalk, grass, etc.

Bamboo Pellet Machine cost & Specification

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Bamboo Pellet Press Power 37KW 55KW 90KW 132KW 250KW 280KW
Capacity 300-400KG/H 500-700KG/H 1.0-1.2 T/H 2.0-2.5 T/H 2.5-4 T/H 3-4.5 T/H
Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm
Weight(KG) 2500 3500 4000 4500 5000 5500
Bamboo Pellet Machine Price 10,000-100,000 USD

Specification of compressed Bamboo Pellets

As clean bio-energy, bamboo pellets have better flow properties. Densification into pellets reduces material wastage and improves ease of transporting and storage. Bamboo Pellet's Specification is as follows:

Specification of compressed Bamboo Pellets
  • Density: >1.22kg/m3
  • Diameter: 6-12mm
  • Length: 6-12mm
  • Calorie: 4500-4800KCAL/KG (18.8-20MJ/kg)
  • Moisture: standard 8.7%, 9.6%max
  • Ash Content: standard 0.9%, 1.1%max

Kindly notice that moisture content and pellet size affects the physical and combustion properties of bamboo pellets. The effects of moisture content on bamboo pellet’s physical properties include length, diameter, pellet moisture content, unit density and bulk density.

And some researches have proved that when moisture content is about 16% and pellet sizes mixed in the bamboo pellets manufacturing process id the optimum choice.

On that condition, all properties of bamboo pellets could meet the requirement of Pellets Fuel Institute Standard Specification for Residential/Commercial Densified, and the gross calorific value of bamboo pellets could also meet the minimum requirement for making commercial pellets of DIN 51731 (>17500J/g), respectively.

Bamboo pellets are the proposed new biomass solid fuel and had the potential to be development as commercial pellets.

How to Make Bamboo Pellets? Complete Bamboo Pellet Production Line process

How to Make Bamboo Pellets

The bamboo residues transported into bamboo pellet plant will be reduced into proper size, and the processed bamboo dusts will be dried and fed into bamboo pellet mills and be compressed into pellets.

The newly pressed bamboo pellets will be cooled down to become solid and gain strength and at same time will be screened to separate the bamboo pellets and bamboo dust, then packed for storage or transportation.

The whole production process of making bamboo pellets is similar to other biomass pellets production such as sawdust pellets, wood pellets, rice husk pellets and others. The bamboo pellets can be made for small scale household use and large scale commercial use.

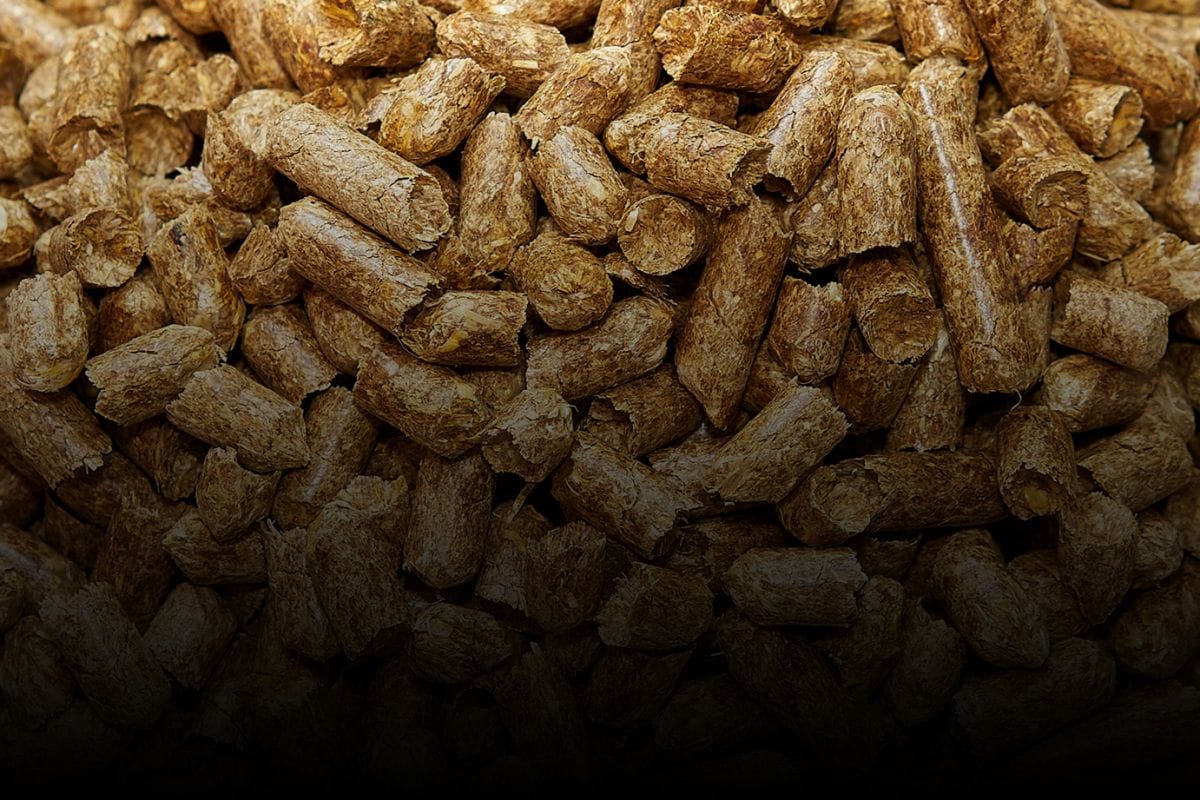

Bamboo pellets are small and often look like enlarged capsules. They are shinny with an appearance of a furnished piece of wood. The bamboo biomass pellet production line process usually includes crushing, drying, pelletizing, cooling and bagging, storage.

Detail information about the bamboo pellet manufacturing process are shown below:

01

Crushing system

Crushing is used to break the thick and long bamboo stalks into small pieces by use of a bamboo chipper and into powder by use of a bamboo hammer mill. But before the beginning of the crushing process, one needs to separate the bamboo materials from dust and debris. Thereafter, the bamboo waste can be crushed into powder.

(Screen the bamboo stalks and leaves from the impurities and hard objects, put the pure raw materials into the bamboo hammer mill and crush them into bamboo powder. Bamboo material with large size is not available for pelletizing directly. Our bamboo crusher has the function of raw material chipping and crushing, which is the optimal choice for bamboo pre-processing. Different bamboo materials will have different types and quantities of crushers.)

02

Drying system

Before pelletizing, the moisture content of bamboo powder need be about 12%-15%. Dry them in the sun or by dryer machine if the moisture content is higher. The drum dryer can help you to adjust the moisture content of the bamboo powder.

03

Pelletizing system

The pelletizing process will see the compression of the dried powder into pellets at high speeds and high pressure. A bamboo pellet press or bamboo pellet making machine is required for this process. You can use a ring die bamboo pellet press machine for domestic purposes or an industrial bamboo pellet mill for large scale commercial production.

RICHI bamboo fuel pellet making machine capacity ranges from 300-4500kg/h, you can purchase suitable bamboo pellet machine according to your practical needs. A ring die pellet machine for bamboo pellets can process pellets in both large and small quantity in biomass fuel pellet plant.

04

Cooling system

Note that palletization usually leaves the pellets with high temperatures hence there is need to cool them down in order to maintain their quality and durability. A bamboo pellet cooling machine is used to cool down the bamboo pellets’ temperatures.

If the moisture content of the material is too high, the amount of steam added during pelleting will be reduced, which will affect the increase of the poultry feed making machine pelleting temperature, thereby affecting the yield and quality of pelleted feed.

05

Packing & storaging system

After pelletizing, the moisture content and temperature of bamboo pellets are high, so it is necessary to cool down pellets. The counterflow cooler can cool the bamboo pellets efficiently, or the high temperature bamboo pellets can't keep in shape.

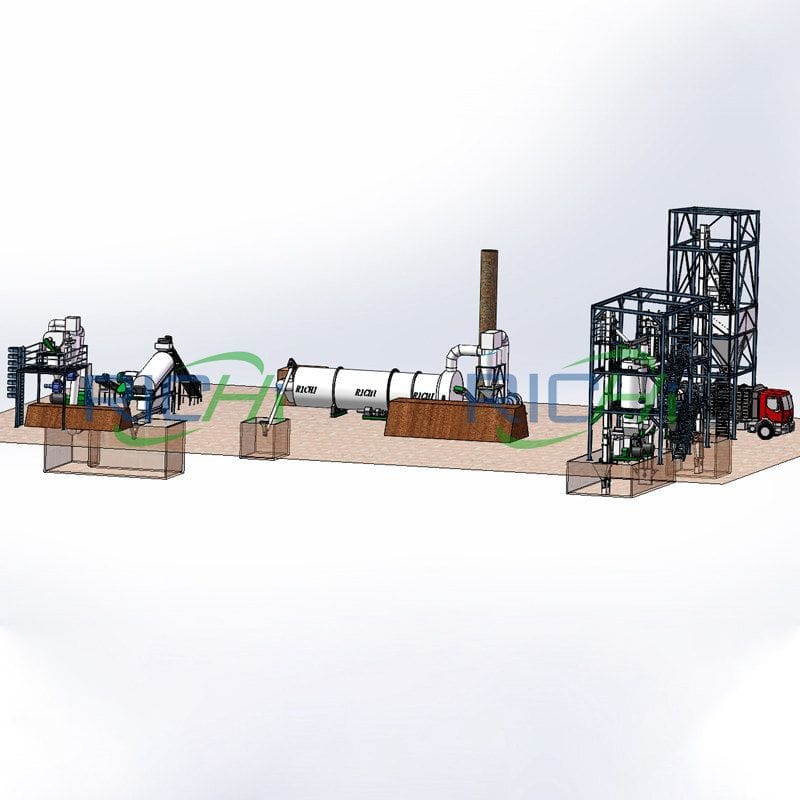

Complete Bamboo Pellet Production Line process
Complete Bamboo Pellet Production Line process
Complete Bamboo Pellet Production Line process

If you have abundant bamboo source, it is a chance to make fuel pellets by a bamboo pellet machine and bamboo pelletizing plant for household use or for profit. Well, it's time to think of the possibility.

Equipment needed in bamboo pellet production line

bamboo Hammer Mill

bamboo Hammer Mill

Capacity:
3-25T/H
Main Power:
30-160KW
bamboo Dryer machine

bamboo Dryer machine

Capacity:
Customized
Rotate Speed:
3-8 R/Min

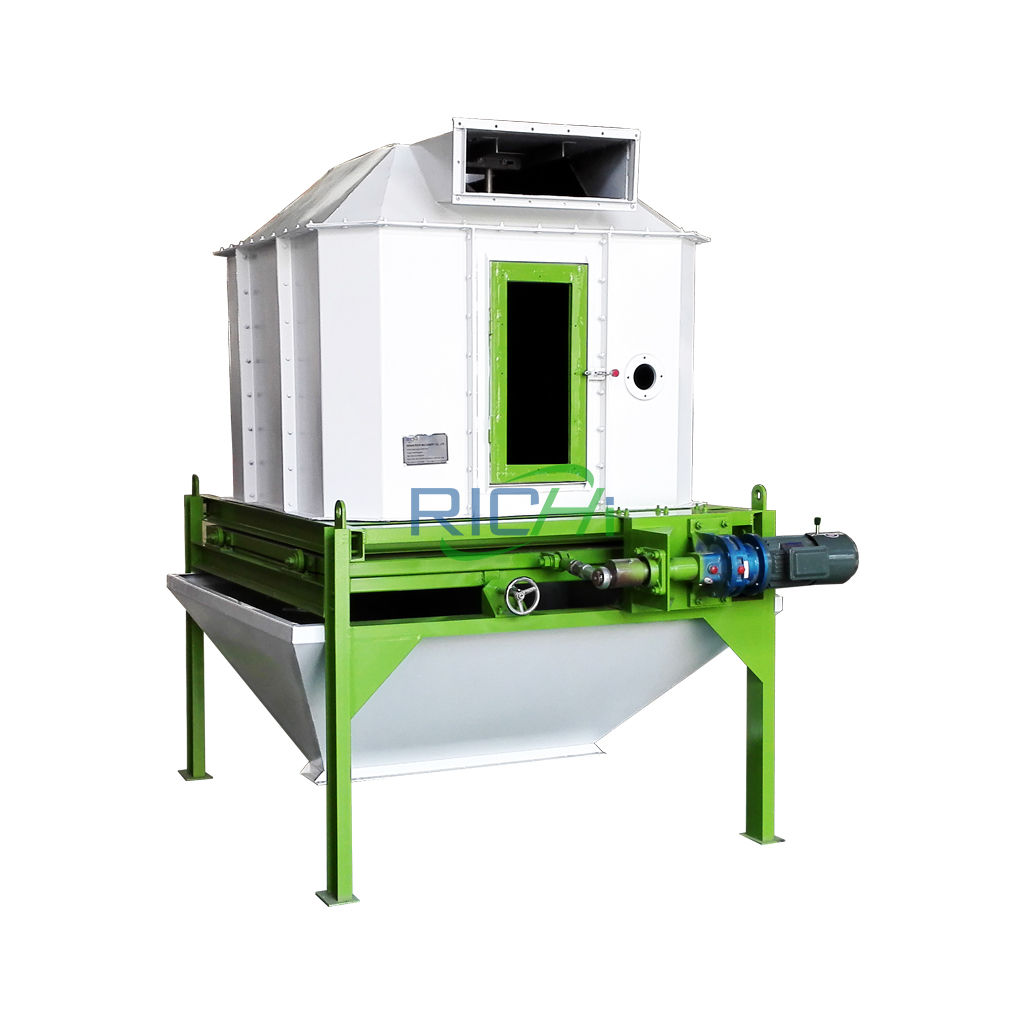

bamboo Pellet Cooler

bamboo Pellet Cooler

Capacity:
1.5-18T/H
Main Power:
0.75-2.05 KW
bamboo pellet Bagging Machine

bamboo pellet Bagging Machine

Speed:
6-12 Bags/Min
Main Power:
1.1-5KW
  • Hammer mill ( to grind the proper sized and dried bamboo materials into power for pelletizing)
  • Dryer (to get the moisture content ready for bamboo pelletizing)
  • Bamboo pellet machine ( to pelletize the prepared bamboo materials into pellets)
  • Cooler (to cooler down the newly extruded hot bamboo pellets and hard the pellets)
  • Packing machine( to bag bamboo pellets according to requirements).
  • Electric cabinet( to control equipment in the whole bamboo pellet processing line)

If you need to invest a bamboo pellet business or process your own bamboo pellet biomass raw materials, please leave RICHI messages for bamboo pellet machine and biomass pellet plant details and quotation.

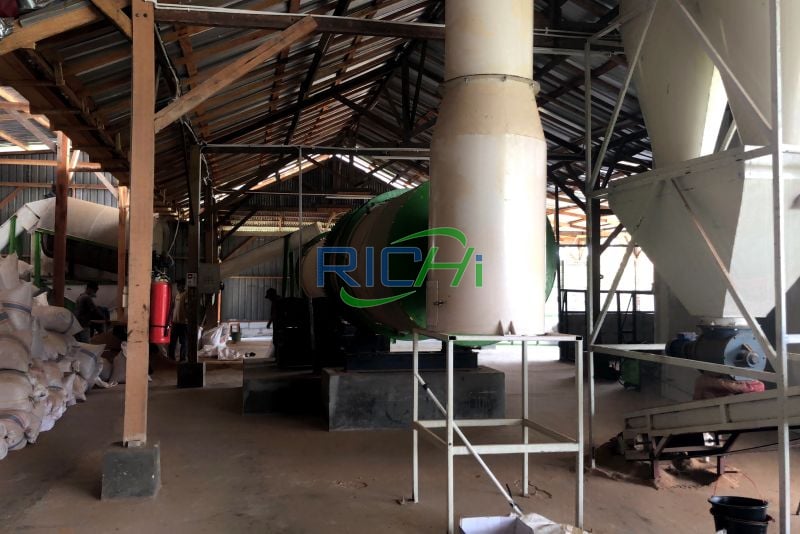

bamboo Pellet Machine & Pellet Plant projects

  • bamboo pellet plant in Australia

    bamboo pellet plant in Australia

  • bamboo pellet plant in Thailand

    bamboo pellet plant in Thailand

  • bamboo pellet plant in Indonesia

    bamboo pellet plant in Indonesia

  • bamboo pellet plant in Malaysia

    bamboo pellet plant in Malaysia

  • bamboo pellet plant in Mexico

    bamboo pellet plant in Mexico

  • bamboo pellet plant in India

    bamboo pellet plant in India

  • bamboo pellets plant in Senegal

    bamboo pellets plant in Senegal

  • bamboo pellets mill in Vietnam

    bamboo pellet line in Vietnam

As a matter of fact, across Southeast Asia, the influence of Pacific Ocean and the Indian Ocean Monsoon just bring a plenty of rain and stable heat which is an ideal ecological environment for bamboo growth and the areas thus become the center of bamboo distribution.

People from the regions owning bamboo forest have craved for establishment of bamboo pellet machines and bamboo pellet plants to handle their bamboo waste.

starting banboo pellet manufacturing plant project

Since the biomass fuel industry has bright future, it is time to seize opportunity to start your own business if there are rich source of bamboo. To set up a commercial bamboo pellet plant project, the most important step is choose the right bamboo pellet machine for bamboo pellets manufacturing.

Certainly, the selection of bamboo pellets machine should be based on the capacity, investment cost, and other factors. If you are interested in starting a biomass pellet plant for bamboo, we offer customized plan for your business, welcome to contact Richi Machinery for more details!
