Customer Guide Of Complete Pellet Plant For Sale
How does a pellet plant work?
How does a pellet plant work? What everyone needs to know is that the pellet making process, pellet plant operation mode, and post-maintenance methods of the feed pellet plant, biomass pellet plant, and organic fertilizer pellet plant are all different, not to mention other pelleting plants such as tire fiber pellet production plant, rubber pelletizing plant, cat litter pellet making plant. In addition, because the equipment configuration of different pellet production lines is also very different, their operation conditions are also different, so let's take a 20 ton per hour heavy duty wood pellet plant project we have done as an example to tell you how a large wood pellet factory works.

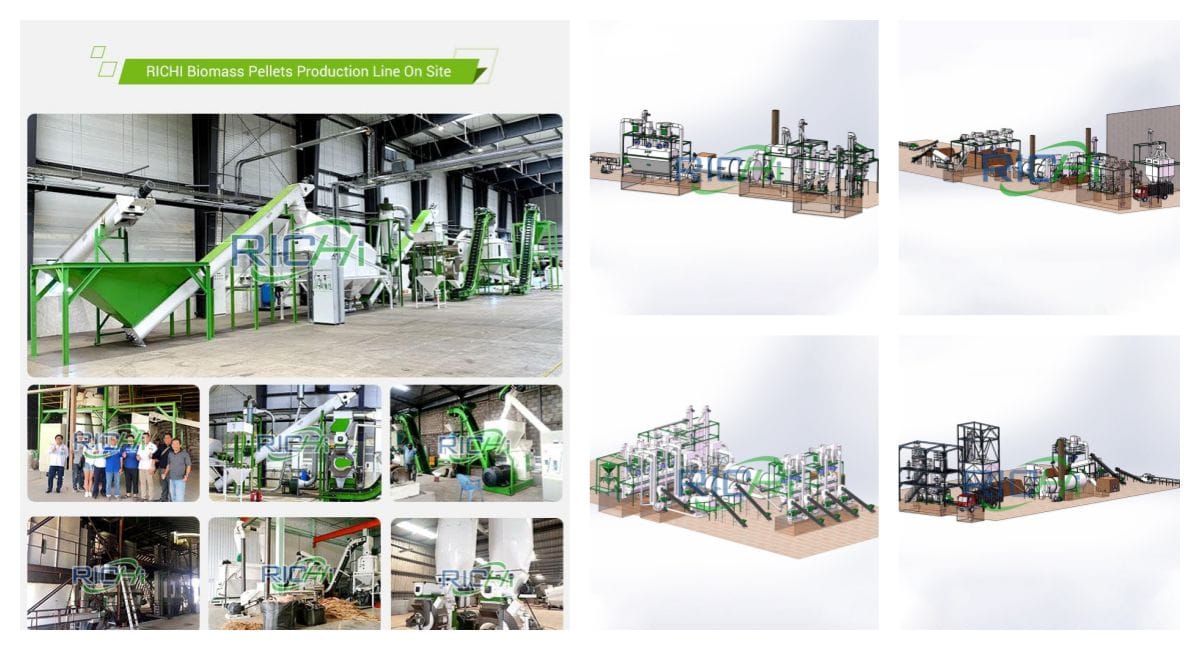

20TPH turn-key biomass pellet plant process flow:
After peeling the trunk of the log, enter the slicer and cut into small wood chips. The size of the wood chips is 20-30mm and the thickness is about 5-10mm. Then the wood is coarsely powdered by the grinder, and then the water content of 40% is removed by the three-layer tumble dryer. The raw material is dried to about 15%, and then finely powdered to 3-4mm sawdust with a wood pulverizer, and finally granulated. The diameter of the processed finished product is 6-10mm optional. After the granulation is cooled, it is packed by a small bag packaging scale. Into 20-50kg/bag. Convenient to transport and sell. This project is a 17.5-22.5 tons of raw wood pellet production line per hour. The total equipment power is about 5,027kw. The workshop covers an area of 10,000 square meters, including a raw material warehouse and a finished product warehouse. The entire pellet line is compact in design, reasonable in structure, and meets environmental protection requirements. And can carry out directional design according to customer requirements. (The applicable raw materials for this project mainly include logs of various trees such as pine, fir, albizia, zelkova, eucalyptus, and oak.)
- Debarking section: Raw material debarking can increase the combustion heat value of the finished particles, reduce the ash residue after the finished particles burn, and reduce emissions.
Stripping equipment (4 sets): power 45kw, design output 30m³ per hour.
- Slicing section: Process logs, etc. into wood chips with a size of 20-30mm and a thickness of about 5-10mm, and then enter the subsequent processing section.
Good quality wood chips pellet machine for pellet plant(4 sets): Slicing machine, main machine power 132kw, feed roller power 4kw, oil pump power 0.55kw, design output per hour 38m³.
- Coarse powder section: select a 20*20 square screen, carry out the first coarse powder, and then dry it.
Wood crushing equipment (4 sets): power 200kw, output 9-10T/H (raw material moisture 40%).
Cleaning equipment (3 sets): power 3kw, design output per hour: 5-8T.
- Drying section: Three-layer rotary drum dryer, the moisture of wood chips after drying is about 13-18%.
Rotary dryer for biomass sawdust pellet plant (4 sets): the drum diameter is 3.45m, the length is 11.6m, the power is 19kw, and the designed output is 5T per hour (raw material moisture 40%).
- Fine crushing section: There is no dust emission in this section. After crushing, the pulverizer will convey and discharge the material by the negative pressure suction air force of the fan. The pulverizer is a drop-shaped structure, and the pulverizing rotor can be operated positively and negatively to increase the service life of the hammer. The motor is directly connected to the transmission mode.
Crushing equipment (4 sets): power 160kw, output 6-8T/H (raw material moisture 15%).

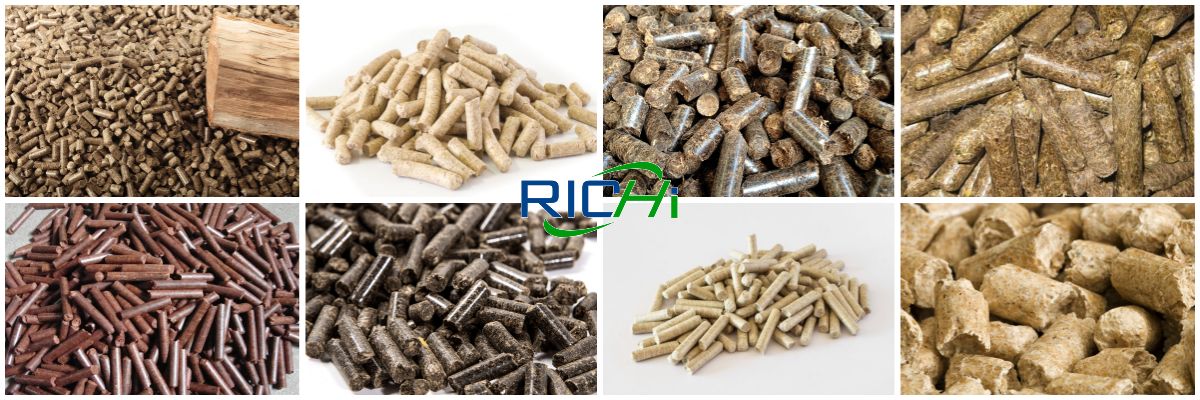

- Pelletizing section: The diameter of biomass pellets is 6-10mm. Biomass pellets have the characteristics of high calorific value, no pollution and low ash content. They can be widely used in biomass power plants, biomass steam boilers, household fireplaces, etc. Drying furnace and biomass gasification furnace, etc.
Biomass industrial wood pellet machine for pellet plant project (8 units): MZLH520, the main engine power is 132kw, the compulsory feeder power is 1.5kw, and the designed output is 2-2.5T/unit per hour.
Cooling equipment (2 sets): The volume of the cooling chamber is 6m³, and the designed output is 8-12T per hour.

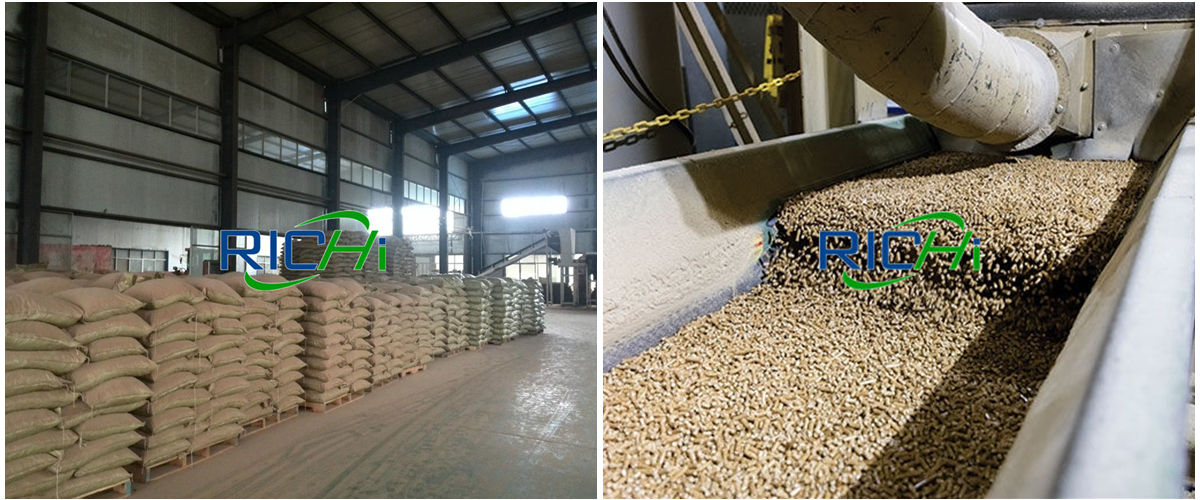

- Warehousing section: equipped with 2000 tons of finished product pellet storage warehouse, the manufactured finished product pellets can be stored in the finished product warehouse and shipped out in bulk.
The 20tph new design wood pellet plant design highlights and optimization points of the scheme:
- In this plan, the wet materials in the front section are piled in a storage yard (wet wood chips are less dusty), and the dry materials in the rear section are stored in storage bins (the dry wood chips are more dusty), which can effectively control dust pollution in the workshop and save costs.
- Since the client of this project requires all finished pellets to be distributed in bulk, various types of packaging equipment can be adjusted according to the client's requirements for finished product packaging.
How to set a chicken feed pellet manufacturing plant? Since our pellet plants are all customized, there is no exactly the same pellet manufacturing plant for RICHI. Let's take a 10 tons per hour chicken feed pellet plant as an example to tell you how to build a pellet factory. If you want to process biomass pellets, cat litter pellets, organic fertilizer pellets, rubber tire pellets, and plastic pellets, the configuration of the pellet factory is different, so please consult online for more details.
10T/H poultry feed pellet processing plant production process:
Poultry feed is characterized by moderate crushing fineness (sieve aperture 2-4mm), moderate maturation and conditioning requirements (poultry feed making machine for pellets mostly use double-layer conditioners), and the finished particles have a large diameter (particle diameter is about 2.5-4mm). The designed output of SZLH420 poultry feed is 10T/H. It adopts one crushing line, double-scale automatic batching, one mixing line, one granulating line and one packing line. The total power of the equipment is approximately: 390KW; the construction area of the production area is approximately: 16×11×26m; it is equipped with a 1T boiler. The whole line has compact design, reasonable structure, meets environmental protection requirements, and can be oriented design according to customer requirements.
- Raw material receiving and cleaning section: In this section, the pellet feeding cleaning and powder feeding cleaning are separated independently, and the dust is removed separately, and the dust removal effect is good.
Cleaning equipment: granular screen SCY80, designed output 20-30T/H; powder screen SQLZ60×50×100, designed output 10-15T/H.
- Crushing section: This section adopts one crusher and three smashing bins, which can alternately replace the crushed varieties. Before the raw materials enter the warehouse, impurities are removed by a magnetic separator to ensure the safe operation of the poultry feed hammer mill crusher.
Machinery for grinding poultry feeds: poultry feed grinder machine SFSP66×80, 110KW, designed output 10-15T/H.
- Batching mixing section: This section adopts 15 batching bins, and two batching scales are used for batching at the same time. It is controlled by the batching program independently developed by our company to realize accurate fast and slow feeding, fast batching speed and high precision.
Weighing equipment: batching scale PCS10/PCS05, batching accuracy: dynamic ≤ 3‰, static ≤ 1‰.
Mixing equipment: poultry feed mixing machine SHSJ2, (18.5KW, 1000kg/batch), with a design output of 10-15T/H. Mixing uniformity CV≤5%.
- Granulation section: This section adopts a double-layer quenched and tempered poultry feed pellet machine and two silos to be granulated. It is convenient to switch varieties when changing. After granulation, it enters into the cooler and the elevator to enter the rotary grading sieve for screening. The finished products enter the packing warehouse, and the rest are returned to the granulation or bag receiving.
Pellete machines for feed production of poultry (1 set): SZLH420 (110KW), with a design output of 10-12 T/H.
Cooling equipment: SKLN6, designed output 10-15T/H.
Crumbler machine: SSLG20x140 (11+1.1KW) has a design output of 6-10 T/H.
- Packing section: There are two finished product warehouses in this section, one of which is dedicated to storing finished pellets, and one powder and pellets can be stored. The powder finished product warehouse is designed with a unique anti-classification device. The pellets or powders are finally automatically weighed and packaged by the packaging scale.
Packing equipment: belt scale (both powder feed and pellet feed), packing range 20-50kg/bag, 6-8 bags/min.
- Auxiliary section: Dust removal system to improve the working environment of workers; grease addition system, which is added at the common poultry feed mixer to improve the palatability of feed.
According to the needs of different customers, the 10t/h poultry feed manufacturing plant solution can be optimized for configuration:
- This scheme uses a single-point dust removal mode, that is, each rotary distributor (powder) and granular material cleaning screen is equipped with a pulse dust collector, which has a good dust removal effect. Single-point dust removal is RICHI's humanized design, which provides a better working environment, but the cost increases. Customers can consider whether to adopt this configuration according to actual needs;
- The number of silos can also be adjusted according to the customer's formula, the characteristics of the raw materials and other factors to achieve the highest utilization rate and effectively control the production cost;
- The poultry feed pellet finished product section can add grease and spray the system to improve the quality of the finished poultry pellets feed.
Starting a wood pellet business is a good choice. Next, Richi Machinery will take a 2 ton per hour good quality wood pellet plant we have done as an example to tell you about its technology and the equipment needed.
2T/H best price wood pellet mill plant process characteristics:
This project is a biomass wood pellet production line with an hourly output of 1.5-2.5 tons. The total equipment power is about 210kw, and the workshop size is 30*20m. The whole line is compact in design, reasonable in structure, meets environmental protection requirements, and can be designed according to customer requirements. (The applicable raw materials for this plan are mainly dry wood chips and shavings produced by furniture factories, wood processing factories, wooden door manufacturers, wooden molds and pallet manufacturers, so there is no need to configure wood splitters, slicers and other large equipment.)
- Cleaning section: The dry wood chips with a moisture content of 13-18% are passed through a drum cleaning sieve (20*20mm square holes are selected for the sieve) to remove large impurities and then granulated.
Cleaning equipment: MCY120×300, power 1.5kw, design output per hour: 2-3T
- Granulation section: The diameter of biomass ppellets is 6-10mm. Biomass wood pellets have the characteristics of high heating value, no pollution and low ash content. They can be widely used in biomass power plants, biomass steam boilers, household fireplaces, etc., drying furnace and biomass gasification furnace, etc.
Wood granulating equipment (2 sets): MZLH420, main engine power 90kw, compulsory feeder power 0.75kw, design output 0.8-1.2T/set.
- Cooling and packing section: It is used to reduce the temperature of the pellets and reduce the moisture of the pellets. The pellet temperature after cooling is generally not higher than room temperature 5℃, the moisture of the pellets after cooling is about 8-10%, and the bulk density of the pellets is 650-750kg/m³. Packing can be based on the customer's local sales needs, choose the appropriate packing scale to facilitate the customer to sell the product, usually there are two specifications of small bag and ton bag, the packaging specification of the small bag packaging scale is: 20-50kg/bag, the packaging specification of the ton bag scale is: 500 -1000kg/bag.
Cooling equipment: SKLB1.5, cooling chamber volume 1.5m³, designed to produce 4T per hour.
Packing equipment: SDBLY-K, packing specification 20-50kg/bag, packing speed 3-5 packs/min.
According to the needs of different customers, the 2t/h wood pellet plant solution can be optimized for configuration:
- When the moisture content of the sawdust is higher than 20%, it is necessary to increase the drying equipment, use a dryer to dry to 13-15%, then granulate;
- The packaging equipment can be adjusted according to the customer's requirements for finished product packaging. It can also be stored in bulk or steel silo.
RICHI provides a complete set of production lines for biomass pelleting using corn stalks, wheat stalks, straw, etc. as raw materials, and tailors various complete equipment solutions for customers to meet the different needs of customers. The following will take a good quality cotton stalk biomass wood pellet plant project as an example to let everyone know about RICHI's low investment high return biomass wood straw pelletizing plant design.
5TPH reasonable layout new technology straw pellet plant manufacturing process:
The crop stalks are first coarsely powdered by a rotary cutter to 3-5cm, and then finely powdered by a hammer mill into fine grass clippings, the size is about 3-4mm. Then dry the raw materials with a moisture content of 40% to about 15% through a three-layer tumble dryer, and finally granulate. The processed finished product has a diameter of 6-10mm. After the granulation is cooled, it is packaged by a small bag packaging scale. 20-50kg/bag. Convenient to transport and sell.
This project is a biomass straw pellet plant with an output of 5-7 tons per hour. The total equipment power is about 1250kw. The workshop covers an area of 3000 square meters, including a raw material warehouse and a finished product warehouse. The entire pellet plant line is compact in design, reasonable in structure, and meets environmental protection requirements. Can carry out directional design according to customer requirements.
- Crushing section: The straw peeling machine is a pretreatment equipment for crop straw. It can crush long straw, straw and other materials to 3-5cm, and then fine powder by a straw powder mill, the size is about 3-4mm.
Rotary cutting machine (2 sets): LYXQ270, power 75kw, design output 4-5T per hour.
High capacity straw pulverizer (2 sets): MFSP68×100, power 132kw, design output 4-5T per hour.
- Drying section: Three-layer tumble dryer, the moisture of wood chips after drying is about 13-18%.
Straw rotary dryer: The drum has a diameter of 3.45m, a length of 11.6m, a power of 22kw, and a design output of 6T per hour.
- Granulation section: the diameter of biomass pellets is 6-10mm optional. The vertical ring die granulator is adopted, and the ring die adopts a flat-mounted structure, which directly enters the pressing chamber from the feed port, making it easier for materials to enter the pressing chamber, and is especially suitable for the granulation of straw-like raw materials.
Good straw pellet mill (6 units): MZLH508, main engine power 90kw, design output per hour 0.8-1.2T, quantity 6 units.
- Cooling and packing section: used to reduce particle temperature and particle moisture. The temperature of the particles after cooling is generally not higher than room temperature 5℃, the moisture of the particles after cooling is about 8-10%, and the bulk density of the particles is 650-750kg/m³. Packing can be based on the customer's local sales needs, and choose the appropriate packing scale to facilitate the customer to sell the product. There are usually two specifications of small bag and ton bag. The packaging specification of the small bag packaging scale is: 20-50kg/bag, and the packaging specification of the ton bag scale is: 500 -1000kg/bag.
Cooling equipment: the volume of the cooling chamber is 4m³, and the designed output is 6-8T per hour.
Packing equipment: packing specifications 20-50kg/bag, packing speed 3-5 bags/min.
According to the needs of different customers, the 5t/h straw pellet plant solution can be optimized for configuration:
- If required, buffer bins can be added between each section to replace the storage yard. The advantage is that it can increase the degree of automation of the production line and reduce the dust pollution in the workshop; the disadvantage is that it will increase the construction cost of the production line and is caused by crushing. The bulk density of the rear material is very light, and it is easy to form arches in the warehouse.
- If the moisture content of the raw material is not higher than 15%, it is not necessary to use a dryer and granulate directly after crushing; if it is higher than 15% but lower than 20%, consider using dry and wet materials to mix After the moisture is neutralized and reduced, granulation is carried out;
- The packaging equipment can be adjusted according to the customer's requirements for finished product packaging. It can also be stored in bulk or steel silo.
