Wood Pellet Mill

Wood pellet mill is a machine used to pelletize different wood raw materials. They are often utilized in fuel pellet production, forest waste recycling and in wood cat litter operations. RICHI MACHINERY offering covers different wood pellet mills – optimized for any organic waste pelleting need.

Organic Fertilizer Pellet Machine

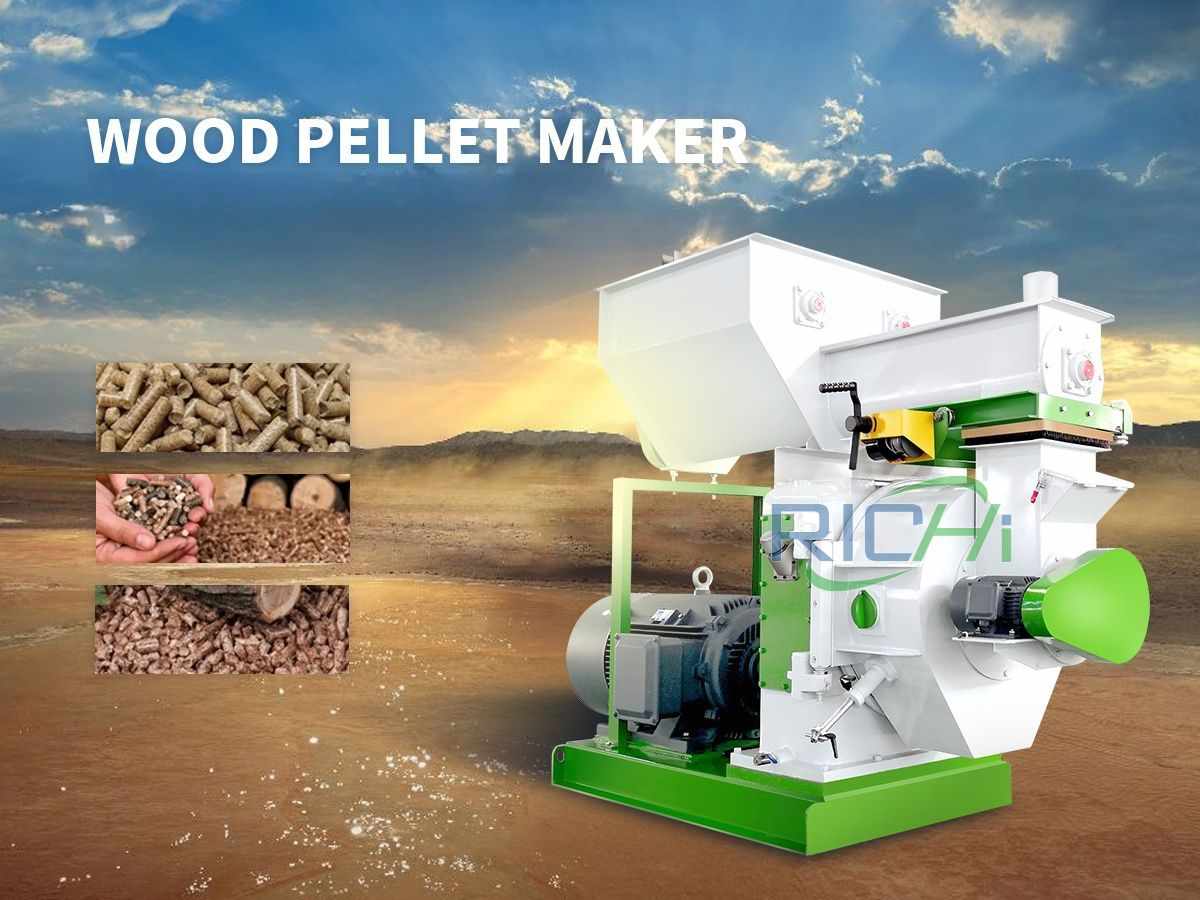

wood Pellet Mill manufacturer

Wood pellet mill is a special equipment for processing wood pellets. It can use agricultural and forestry waste of different types, shapes, sizes and moisture contents as raw materials. It can realize pellet processing of one or more materials. The world's most popular modern pelletizer, the ring die wood pellet mill, is going through an evolution. Efficiency is the key to meet wood pelletizing industries needs such as maximum performance in throughput, increasing the molding rate and the service life of the ring die.. The new MZLH range offers performance and uptime in a more sustainable way. Our wood pelletizer machine is designed with the highest engineering quality ot withstand high performance over a long period of time.

Wood is by far one of the oldest and most abundant types of biomass raw materials. In addition to cord word, other types of forest products residues such as tree tops, branches, bark, logging slash, and saw mill waste can be used as sources of biomass energy. Our equipment is also suitable for processing many special raw materials, such as all agricultural waste, efb, bamboo, waste paper, cartons, coal, pyrolytic carbon, activated carbon, animal manure, bentonite, zeolite, waste tires, RDF, etc.

Whether you run a complete wood pellet plant or wood pellet business, RICHI MACHINERY is a partner you can rely on. Our ISO and CE certified equipment and parts are built to last as we have decades of experience in pelleting. Backed up with the most extensive service and support in the industry we help you to elevate your business to a whole new level. Get in touch today!

MZLH

Equipment Model

0.2-4.0

Production Capacity (T/H)

1.5-8.5

Cost(Ten thousand USD)

RICHI

Company & Brand

Applications Of Wood Pellet Mill

Wood pellet mill machiness are mainly used to process various wood-based pellets. The processed pellets are mainly used as fuel (replacing traditional energy sources such as coal and natural gas), animal litter (cat litter, litter for stables and poultry farms), industrial raw materials (activated carbon, cellulosic ethanol, etc.), home fireplace fuel, barbecue charcoal substitutes, etc.

Generally speaking, the following customers will invest in wood pellet mill and wood peleltizing systems:

  • Wood processing and forestry enterprises: sawmills, furniture factories, plywood factories, paper mills and other wood processing enterprises.
  • Biomass energy producers: energy companies, power stations, rural cooperatives, family workshops, etc.
  • Agriculture and breeding operators: large farms (such as dairy farms, chicken farms), equestrian clubs, pet bedding suppliers, cat litter companies, pet supplies companies, etc.
  • Industrial boilers and heating companies: food processing plants, textile mills and other industrial enterprises that require a stable heat source. Regional heating companies (such as central heating systems)
  • Others: households and small users, governments and non-profit organizations, traders and exporters, scientific research institutions and universities, etc.
RICHI MACHINERY
Wood Pellet Plant
Sawmills
Forest Logging Companies
Furniture Factories

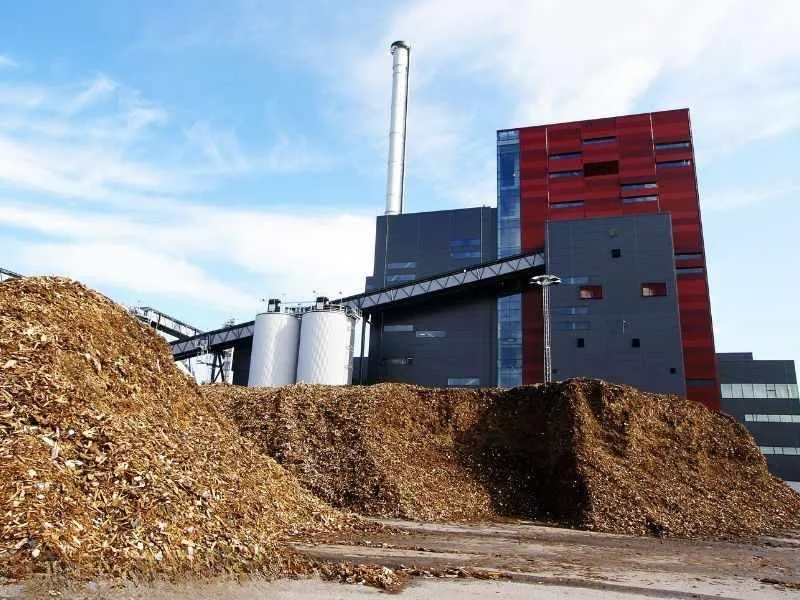

Biomass Power Plants

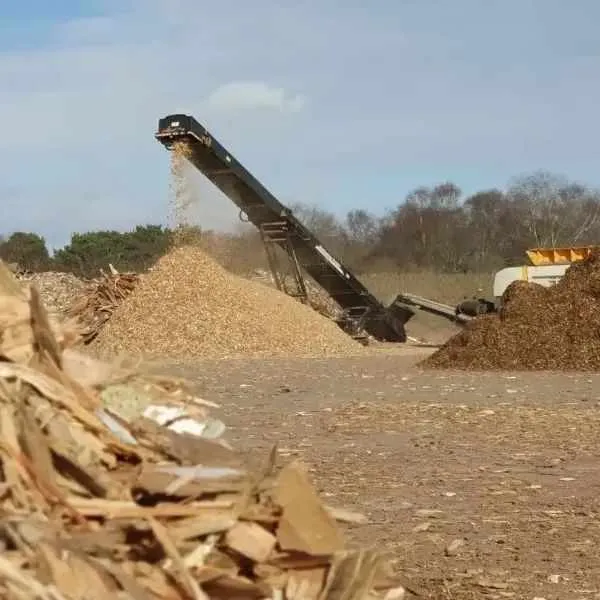

Waste Wood Recycling Companies

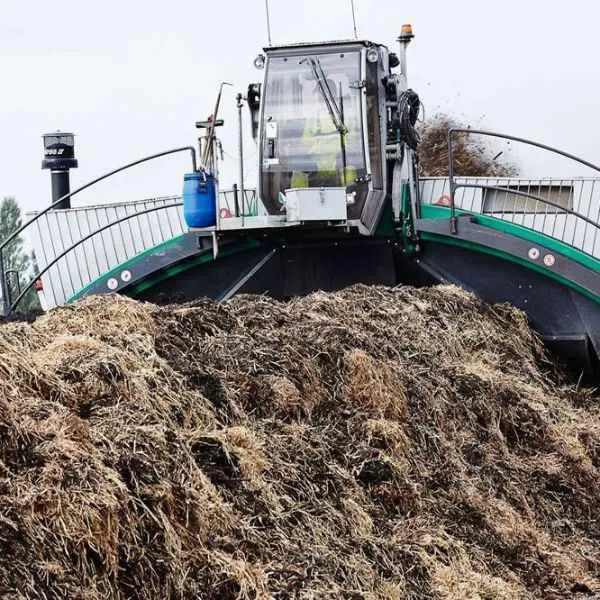

Municipal Garden Waste Treatment

[Video] wood pellet mill introduction

In this video, each part of the wood biomass pellet machine will be briefly introduced. You can learn about the components of a wood pellet machine in this video. Get the most out of your wood pelleting circuit. Whether you are looking to minimize downtime, increase capacity, lower your cost per ton, improve sustainability, or meet specific pelleting requirements – RICHI can support you.

【Video】wood pellet mill Trial run

This is a test video of a wood pellet machine. Usually, according to customer needs, we will test the equipment before shipment. Whatever your material type and whatever its hardness, our wide range of equipment, parts and services help you to achieve optimal cost-per-ton with dependable solutions. Even if you want to produce ENplus A1 and DINplus grade wood pellets, you can do it.

wood pellet mill types

What would you like to produce? From which material? How much? How many end products? What is the size of your end product? Do you focus on one application or would you like to expand your offering? We offer different types of wood pellet mills. It all starts with the right selection of equipment and services for your needs.

  • According to the applicability of raw materials, wood pellet mills can be divided into sawdust pellet machines, wood chip pellet machines, log pellet machines, wooden pallet pellet machines, etc.
  • According to the output (capacity), wood pellet mills can be divided into small, medium and large, 1t/h, 2t/h, 3t/h, etc.
  • According to the particle size, wood pellet mills can be divided into 6mm wood pellet mills, 8mm wood pellet mills, 10mm wood pellet mills, etc.
  • According to the technical structure, wood pellet mills can be divided into horizontal ring die pellet machines, vertical ring die pellet machines, flat die pellet machines, etc.
  • ...

Our range of wood pellet mill machines are developed for different wood pelleting jobs, applications and material types. We can assist you to find the right equipment for your requirements. Whatever your wood pellet equipment needs, our team can help.

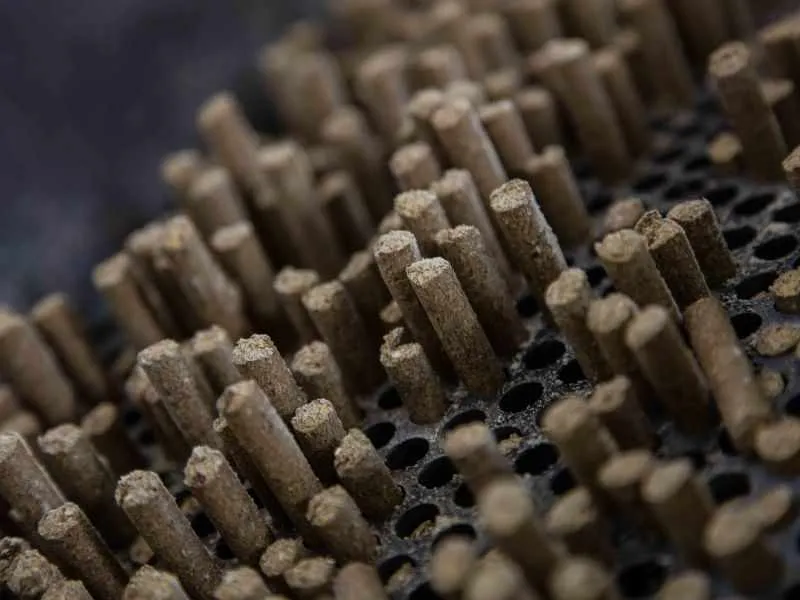

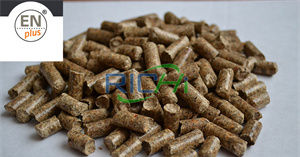

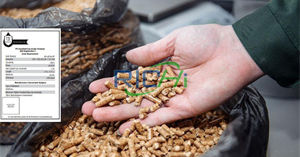

Wood Pellets
wood pellet

Raw materials for wood pelleting

The raw materials used in wood pellets processing mainly come from by-products of forestry and wood processing industries or energy forests planted specifically, including direct forestry raw materials (sawdust, wood chips, Forest residues), wood industry by-products (Shavings, Off-cuts, Plywood/MDF waste), energy forests and fast-growing tree species (Willow, Poplar, Eucalyptus, Pine, Spruce), agricultural waste (corn stalks, rice husks, sugarcane bagasse, peanut shells, sunflower shells, Palm kernel shells, olive branches, grapevines, etc.), recycled wood (construction waste wood, pallets, packaging boxes, park branches, shrub prunings), etc.

As can be seen from the above, the raw materials of wood pellets are mainly forestry and wood processing residues, supplemented by energy forests and agricultural waste. You can use a single raw material or multiple raw materials at the same time. When selecting raw materials, cost, sustainability, combustion efficiency and local resource endowment should be comprehensively considered.

Agricultural waste

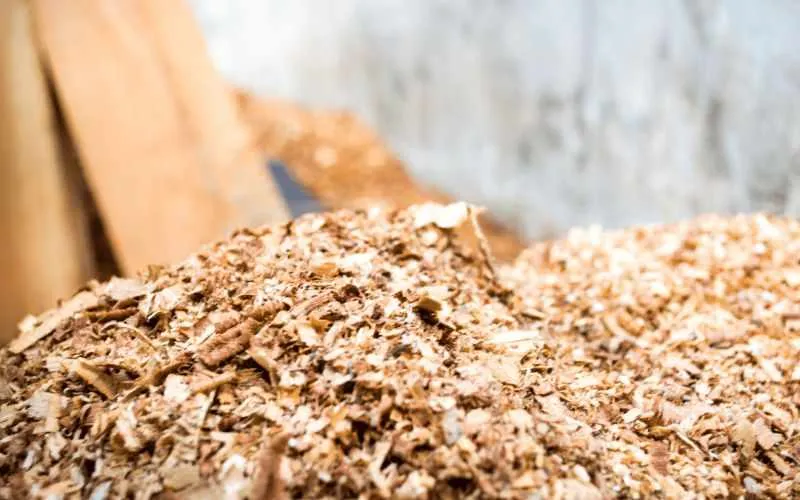

Wood Sawdust


wood

Wood Chips


wood

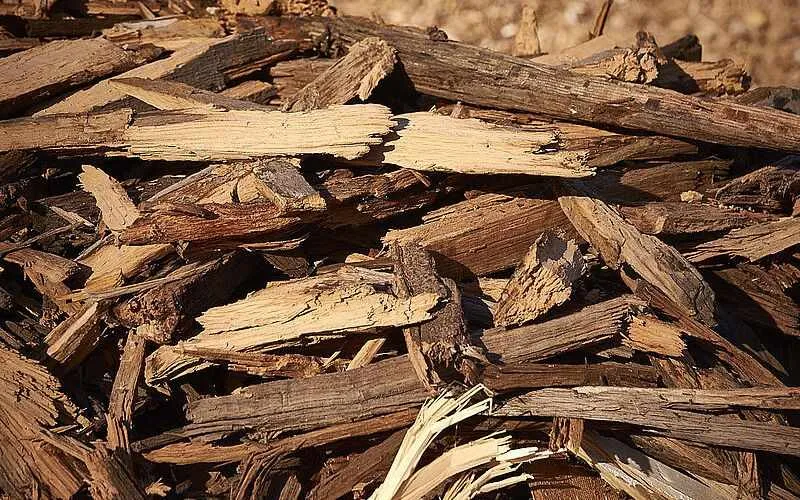

Tree Root


wood

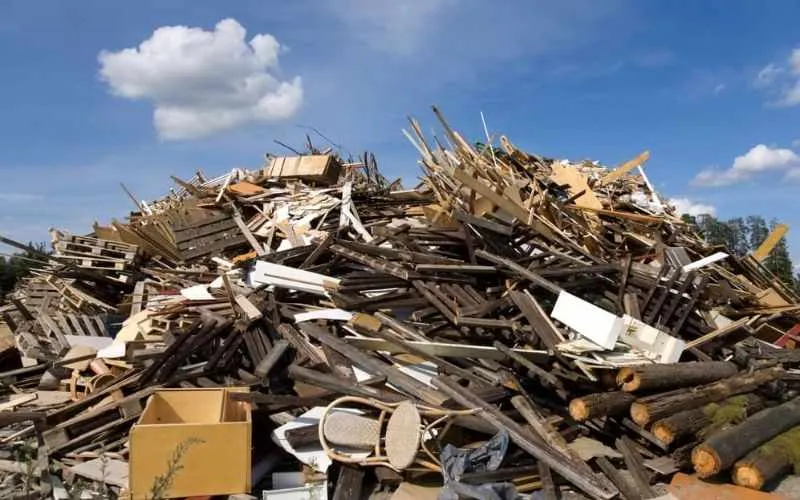

Recycled Wood


wood

Wood Strips


wood

Urban Greening Trimmings


wood

Tree Stump


wood

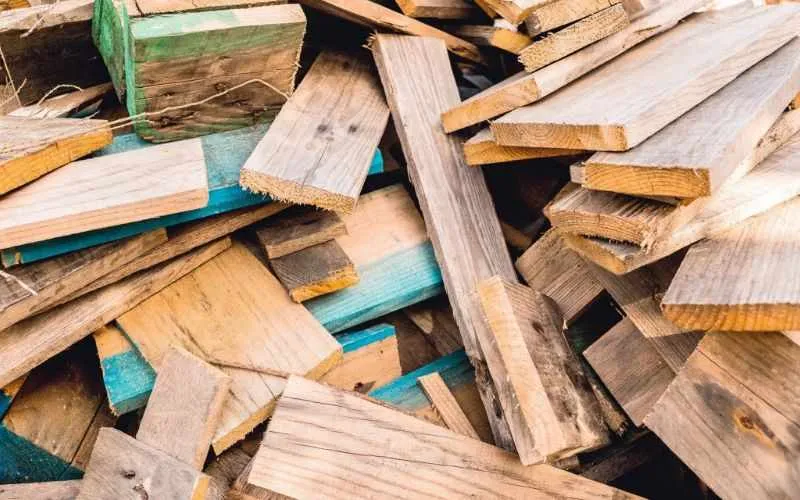

Wooden Pallets


wood

Forestry Residues


wood

Wood Board


wood

Furniture Waste


Customisation for Unique Requirements

At RICHI Company, we understand that one size doesn't fit all. We offer bespoke solutions tailored to the specific needs and constraints of each client. Whether it's production capacity, raw material types, raw material physical state, product type to be processed, wood pellet plant structure, or integration with existing systems (be it ours or another manufacturer's), our expert team collaborates closely with clients to deliver customised.

TALK TO AN EXPERT

It is believed that with the continuous advancement of technology, wood pellet mills will play a more important role in the future. Let us work together to promote the development of energy science and technology and jointly build a green and sustainable production environment. With a strong reputation for reliability and excellence, RICHI Machinery is your go-to supplier for high-quality wood pellet mill. Our wood pellet making machines are designed for optimal performance, ensuring consistent and efficient pellet production. What sets RICHI apart is our comprehensive approach – we also offer complete wood pellet mill plant solutions tailored to your specific needs. From initial design and installation to ongoing support and maintenance, we are committed to your success.

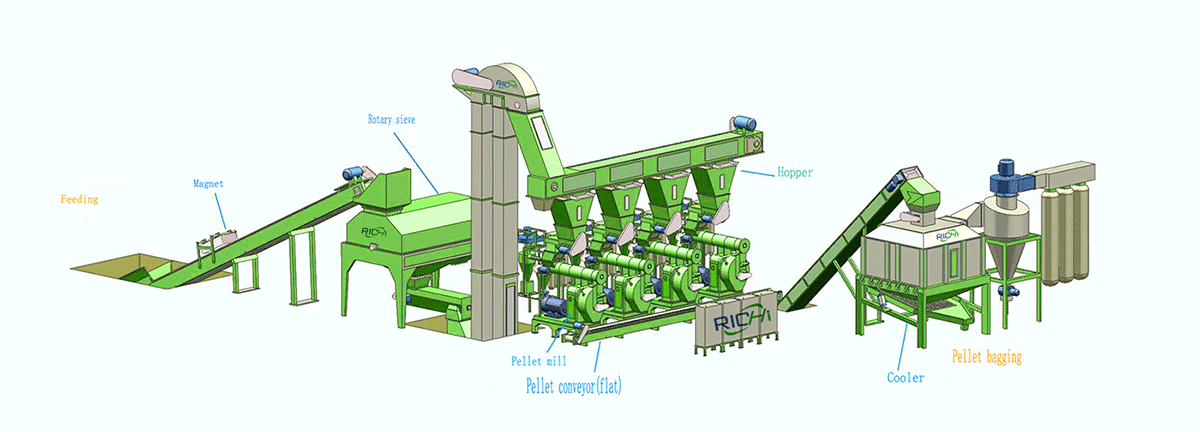

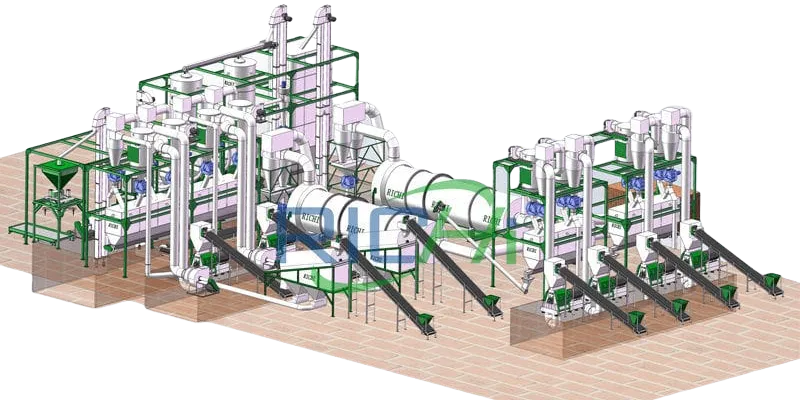

wood pellet line

RICHI MACHINERY

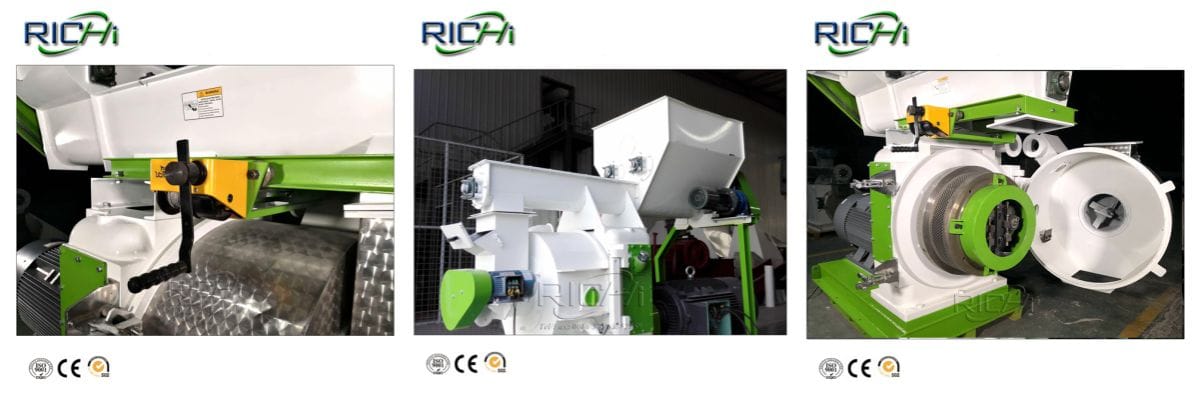

Technical characteristics of wood pellet mill

Our extensive range of wood pellet mill equipment has been engineered for the most rugged and demanding applications within fuel, logging, recycling and other industries with abundant wood waste resources. We are proud to offer multiple variations of wood pelletizing solutions, supported by a global service network. We also have an expert engineering team on hand with extensive knowledge and experience.They are able to advise, design and supply customised solutions for single wood pellet mill machines and entire plants, in addition to providing expert service and aftermarket wear parts.

Technical Characteristics Of Wood Pellet Mill
The wood pellet mill main shaft system uses double support structure without shake to offer more extrusion force from ring die; The control device of ring die and roller is external to realize gap adjustment without stop-working.
Technical Characteristics Of Wood Pellet Mill

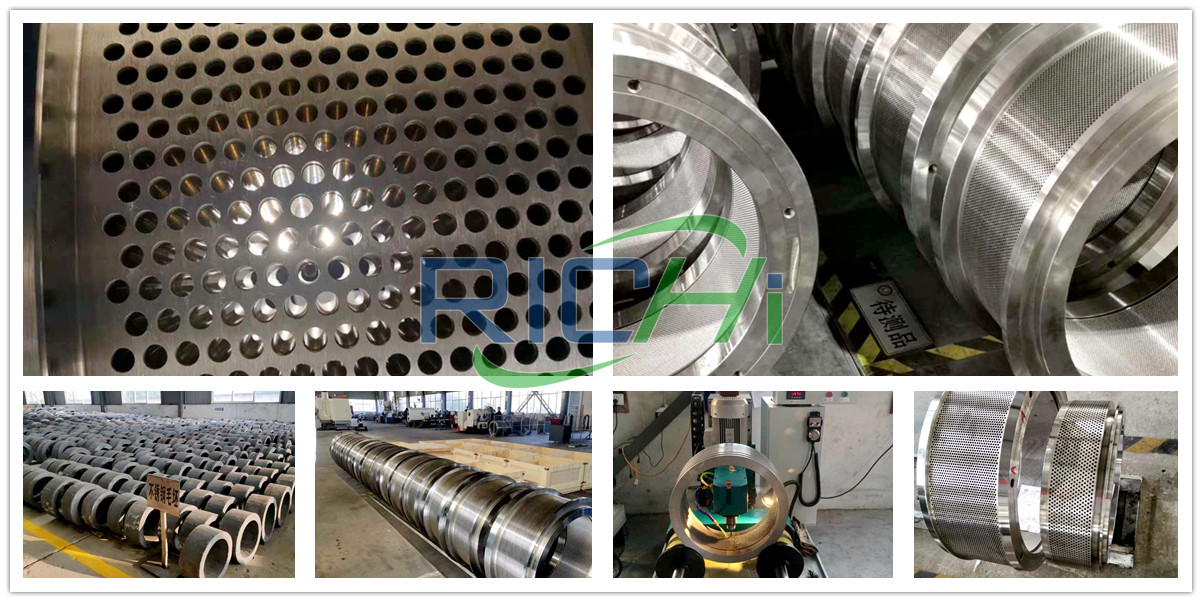

The ring die is the heart part of wood pellet mill, and it's one the most easy wearing spare parts as well. This model is available in a variety of aperture between Φ2-Φ14 mm, the user can arbitrarily chosen according to different needs,in order to obtain the best technical and economic benefits.
Technical Characteristics Of Wood Pellet Mill
Strengthen the working strength of the main working parts from the materials, heat treatment and other processes to meet the granulation requirements of wood pellets.
Technical Characteristics Of Wood Pellet Mill
The international advanced level compensation serpentine spring coupling has the characteristics of novel structure, compact, safe, low failure and so on.
Technical Characteristics Of Wood Pellet Mill
Technical Characteristics Of Wood Pellet Mill
Door is made by stainless steel material, durable use; The cutter assembly - To control the length of final wood pellets, means through adjust the distance between cutter and ring die to get thedifferent length of wood pellets.
Technical Characteristics Of Wood Pellet Mill

The material is transported into the conditioner through the frequency speed regulating feeder speed regulating feeder. This model adopts the advanced variable frequency motor feeding,with overload protection devices and machines outside the nesting organization.

Technical Characteristics Of Wood Pellet Mill

Siemens is one of the world's largest electrical and electronics companies, Siemens electric motors are synonymous with quality, innovation and the highest efficiency.

Technical Characteristics Of Wood Pellet Mill

High-quality imported bearings and oil seals are used in the transmission part of the whole machine to ensure efficient, stable and low noise.

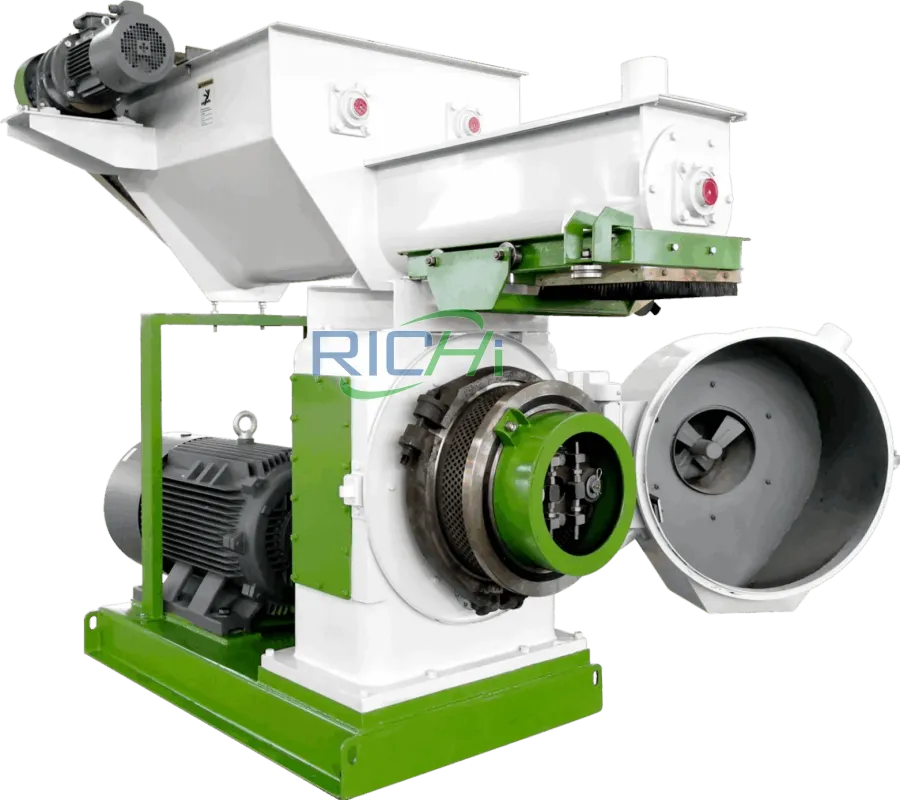

Advantages of wood pellet mill

Advanced Technology

The wood biomass pellet mill adopts advanced granulation technology, which can convert bulk raw materials into pellet form, improving the utilization rate of wood waste. Feeding, pressing, cooling, and packaging can be completed in one package.

Waste into treasure

Convert wood processing residues (such as sawdust, scraps) and agricultural and forestry waste (such as branches and straw) into high-value-added pellet fuels to reduce waste accumulation and incineration pollution.

Renewable energy

The raw materials used in the wood pellet mill are renewable resources such as wood waste and bamboo waste, which have little impact on the environment and can be reused after use, which is in line with the current development trend of green environmental protection.

High efficiency

The wood pellet mill can press raw materials of various shapes into neat pellets, which improves the utilization rate of raw materials and production efficiency, and can significantly reduce production costs.

Energy-saving design

RICHI wood pellet mill use frequency conversion technology and intelligent control systems to reduce energy consumption, and the heat recovery rate of some models can reach more than 90%.

Low failure rate

Key components (such as rollers and molds) use alloy steel quenching technology, with a life of more than 500~1000 hours and easy maintenance. The PLC system monitors temperature, pressure, and humidity in real time, automatically adjusts the mold pressure, and avoids blockage or overload.

Advantages Of Wood Pellet Mill

How it works



The wood pellet mill is mainly composed of a feed port, a compression chamber, a discharge port and an electrical control system. Among them, the compression chamber is the core part of the granulator. It is composed of multiple compression molds and can compress waste wood materials such as sawdust into pellets. The quality and quantity of compression molds are important factors affecting the performance of the wood pellet mill machine.

With the gravity power, the centrifugal force generated by the rotation of the ring die, and the feeding scraper, the steam conditioned powder materials will be evenly fed into the two pressing areas in the ring die, which is a wedge-shaped space formed by the ring die and the two rollers.

Under the strong pressure between the ring die and the pressing rollers, the materials are gradually compacted, squeezed into the die hole of the ring die and formed to pellets in the die hole.

Because the extrusion of the material between the die and the roller is continuous, the formed material is continuously discharged from the die hole in the shape of a column, and then cut by the cutter into particles with the required length.

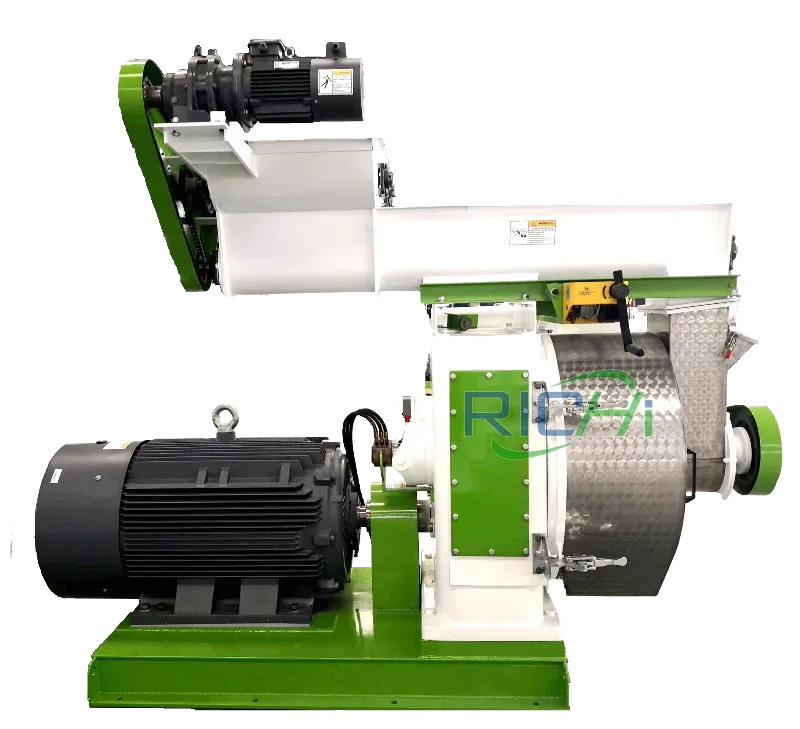

Parameters and specifications

At RICHI, we offer a diverse portfolio of wood pellet mill machinery and comminution processing equipment designed to perform in the toughest of applications. Our wood pellet mills set the standard for production and efficiency. Our range of powerful wood pelletizer boast all the latest features, from forced feeding + variable frequency feeding system, to automation and telematics systems. Which model is more suitable for you, please contact us directly and let RICHI engineers make professional recommendations for you. (In addition to the following standard models, we also provide stand-alone customized services.)

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH678 MZLH768
Capacity (t/h) 0.2~0.3 0.3~0.5 1.0~1.2 1.5~2.0 2.5~3.0 3.0~4.0
Main motor power (kw) 22 37 90 132 185 250
Main motor series 8P
Ring die diameter (mm) 320 350 420 520 673 762
Finished pellet diameter (mm) 4-12
Device Configuration Ring die material: 42CrMo
Stainless steel feeder: with anti-caking function
Door of pelleting room: 6mm /SUS304
Forced feeding: Worm gear reducer
Gear box: HT250
Gear: 42CrMo
Gear shaft: 42CrMo
Spindle: 42CrMo
Empty shaft: 42CrMo
Bearings: The gear shaft and main shaft bearings are SKF, and the pressure roller bearings are domestic high-quality bearings
Oil seal: Germany/Taiwan
Overload mechanical protection: safety pin
Serpentine spring coupling drive

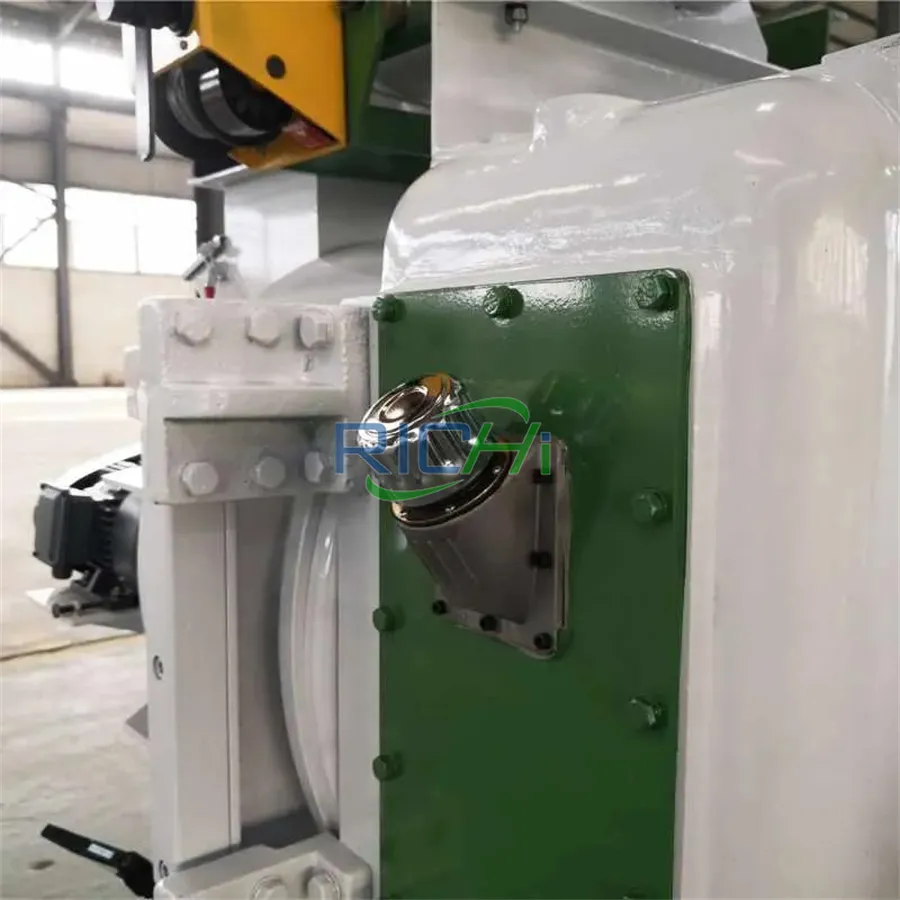

Lubrication system: Configurable automatic oil injection system

All pellet Mill types for your wood pelleting needs

Model - MZLH320

  • Capacirty(T/H): 0.2-0.3
  • Main Power(KW): 22
  • Ring die inner diameter(mm): 250
  • Cost: 15,000-18,000 $
+INFO

Model - MZLH350

  • Capacirty(T/H): 0.3-0.5
  • Main Power(KW): 37
  • Ring die inner diameter(mm): 320
  • Cost: 20,000-25,000 $
+INFO

Model - MZLH420

  • Capacirty(T/H): 1-1.2
  • Main Power(KW): 90
  • Ring die inner diameter(mm): 350
  • Cost: 29,000-32,000 $
+INFO

Model - MZLH520

  • Capacirty(T/H): 1.5-2
  • Main Power(KW): 132
  • Ring die inner diameter(mm): 420
  • Cost: 45,000-50,000 $
+INFO

Model - MZLH678

  • Capacirty(T/H): 2.5-3
  • Main Power(KW): 185
  • Ring die inner diameter(mm): 520
  • Cost: 67,000-70,000 $
+INFO

Model - MZLH768

  • Capacirty(T/H): 3-4
  • Main Power(KW): 250
  • Ring die inner diameter(mm): 673
  • Cost: 80,000-85,000 $
+INFO

Are you looking for a competent partner for wood pellet production? Then you have found the right partner!

Talk To An Expert

RICHI equipment are made to deliver the highest customer value.

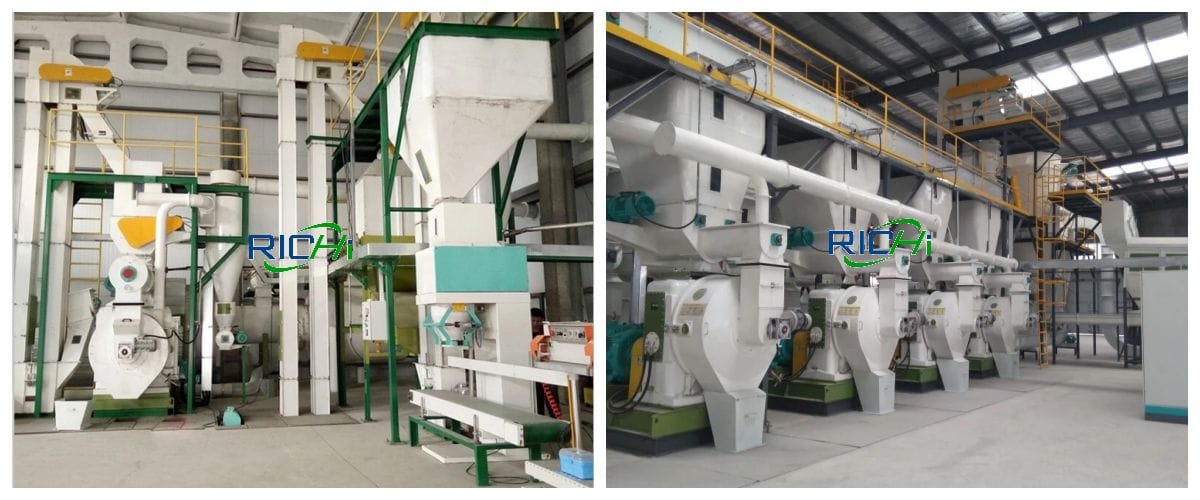

Up to now, we have built wood pellet mill plant around the world, such as Indonesia, United States, Thailand, Canada, Germany, United Kingdom, Australia, Malaysia, Italy, Brazil, Russia, Argentina, Colombia, South Africa, Japan, Mexico, Tunisia, Kazakhstan, Tanzania, Romania, Serbia, Lithuania, France, United Kingdom, Morocco, Philippines, Vietnam, South Korea, Ghana, Portugual, Chile and more. Committed to our guiding principle "Vision of Pelleting", we continuously and successfully translate our ideas and visions of state-of-the-art wood pelleting technologies into trend-setting and innovative technical solutions. This way, we inspire our customers time and again. Below we give you an insight into the successful realization and implementation of customer projects.

Wood Pellet Mill For Sale Germany

wood pellet mill for sale Germany

This German wood pellet processing project has an output of 2-3t/h. The raw materials used by the customer are sawmill residues, and the purchased wood pellet mill model is MZLH520, 1 unit.

Wood Pellet Mill Machine For Sale Indonesia

wood pellet mill machine for sale indonesia

This Indonesia wood pellet project has an output of 1-1.5t/h. The raw materials used by the customer are EFB and rubber wood waste. The purchased wood pellet mill model is MZLH420, 1 unit.

Hardwood Pellet Mill For Sale Brazil

Hardwood Pellet Mill for sale brazil

This Brazilian wood pellet processing project has an output of 2t/h. The raw materials used by the customer are eucalyptus and bagasse. The purchased wood pellet mill model is MZLH520, 1 unit.

Electric Wood Pellet Mill In Romania

Electric Wood Pellet Mill in romania

This Romanian wood pellet processing project has an output of 2-2.5t/h. The raw materials used by the customer are oak hardwood and pine. The purchased wood pellet mill model is MZLH520, 1 unit.

Biomass Wood Pellet Mill For Sale Canada

Biomass Wood Pellet Mill for sale canada

This Canadian wood pellet processing project has an output of 2-3t/h. The raw materials used by the customer are pine/spruce sawdust. The purchased wood pellet mill model is MZLH520, 1 unit.

Commercial Wood Pellet Mill In Turkey

Commercial Wood Pellet Mill in turkey

This Turkish wood pellet processing project has an output of 3t/h. The raw materials used by the customer are pine/hazelnut pruning branches. The purchased wood pellet mill model is MZLH678, 1 unit.

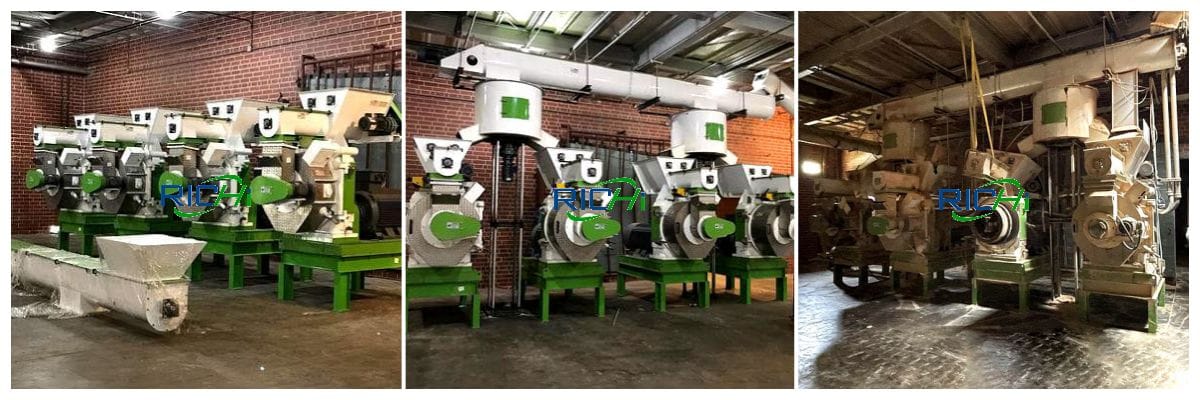

Wood Pellet Mill For Sale United States

Wood Pellet Mill For Sale united States

This American wood pelleting project has an output of 10t/h. The raw materials used by the customer are pine and oak hardwood. The purchased wood pellet mill model is MZLH520, 4 units.

Wood Pellet Mill For Sale Australia

wood pellet mill for sale australia

This Australian wood pellet processing project has an output of 2-2.5t/h. The raw material used by the customer is eucalyptus. The purchased wood pellet mill model is MZLH520, 1 unit.

Wood Pellet Mill Machine For Sale Austria

wood pellet mill machine for sale austria

This Austrian wood pellet processing project has an output of 5t/h. The raw material used by the customer is spruce/larch sawdust. The purchased wood pellet mill model is MZLH520, 2 units.

Industrial Wood Pellet Mill For Sale Colombia

industrial wood pellet mill for sale Colombia

This Colombian wood pellet project has an output of 16t/h. The raw materials used by the customer are oil palm waste and eucalyptus. The purchased wood pellet mill model is MZLH768, 4 units.

Ring Die Wood Pellet Mill For Sale Poland

ring die wood pellet mill for sale poland

This Polish wood pellet processing project has a production capacity of 4t/h. The raw materials used by the customer are pine/birch mixture. The purchased wood pellet mill model is MZLH768, 1 unit.

Wood Pellet Mill Machine For Sale South Africa

wood pellet mill machine in south africa

This South African wood pellet processing project has a production capacity of 1t/h. The raw materials used by the customer are Acacia mearnsii and pine. The purchased wood pellet mill model is MZLH420, 1 unit.

Biomass Wood Pellet Mill For Malaysia

biomass wood pellet mill for Malaysia

This Malaysia wood pellet project has a production capacity of 0.5t/h. The raw materials used by the customer are EFB, palm fiber, and rubber wood. The purchased wood pellet mill model is MZLH350, 1 unit.

Wood Pellet Mill For Sale New Zealand

wood pellet mill for sale New Zealand

This New Zealand wood pellet processing project has a production capacity of 8t/h. The raw materials used by the customer are Pinus radiata. The purchased wood pellet mill model is MZLH520, 4 units.

Industrial Wood Pellet Mill For Sale Argentina

industrial wood pellet mill for sale Argentina

This Argentine wood pellet processing project has an output of 15t/h. The raw materials used by the customer are eucalyptus/willow. The purchased wood pellet mill model is MZLH678, 5 units.

Commercial Wood Pellet Mill For Sale Uk

commercial wood pellet mill for sale uK

This British wood pellet processing plant project has an output of 12t/h. The raw materials used by the customer are pine/spruce. The purchased wood pellet mill model is MZLH768, 3 units.

Large Wood Pellet Mill For Sale Russia

large wood pellet mill for sale russia

This Russian wood pellet processing project has an output of 16t/h. The raw materials used by the customer are forestry waste. The purchased wood pellet mill model is MZLH768, 4 units.

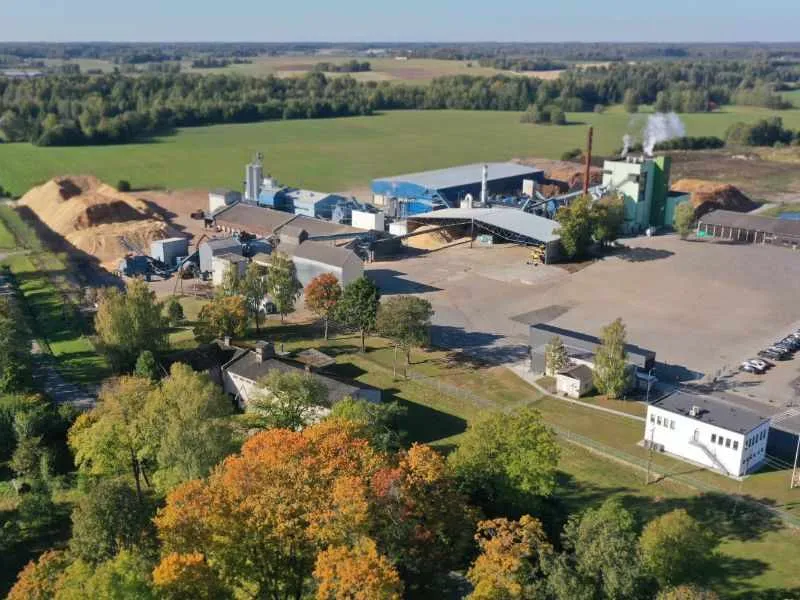

Complete Wood Pellet Mill For Sale Vietnam

complete wood pellet mill for sale Vietnam

This Vietnamese wood pellet project has an output of 8t/h. The raw materials used by the customer are a mixture of rubber wood and rice husks. The purchased wood pellet mill model is MZLH520, 4 units.

View Biomass Pellet Project

WHAT OUR CLIENTS HAVE TO SAY

"Many thanks to the RICHI team. The team’s approach to assist to get any of my issues or questions resolved was greatly appreciated as well as your willingness to assist where and as required. As we discussed I am very impressed with the RICHI work on the pellet mill and the manufacturing team have done an excellent job, with the equipment very high quality, including good steel, equipment layout and installation. Again, the manufacturing team were more than happy to help with any of my questions on wood pellet mill and it was a pleasure to work with your group."

Glen Robles

Engineering Director, From Wood Pellet Plant in USA

Your Trusted Partner in wood pellet Processing

Customized Turnkey Design/Top-Quality Equipment/Expert Installation/Complete Training and Support
At RICHI MACHINERY, we believe in seeing projects through. We'll be with you every step of the way to deliver a premium product to your customers. Our wood pellet manufacturing plant solution ensure a seamless transition from project conception to completion. Our process starts with a goal and is only complete when wood pellet product has been successfully delivered. RICHI has over 30 years of experience making business better for our customers. Contact us to get started streamlining your production today.

RICHI MACHINERY

Why choose ring die wood pellet mill?

A full line of ring die wood pellet mills designed for the most challenging applications. Processing the most abrasive hard wood without equipment fatigue. Tough enough to work for these applications, powerful enough to work for you, no matter what you’re pelleting. Many customers compare ring die pellet mills with flat die pellet mills and screw extrusion pellet mills. Here, we will briefly compare these equipment for you.

ring die type wood pellet mill

Ring die wood pellet mill mainly adopts ring die + horizontal pressure roller structure, and the raw material is forced to squeeze through the die hole to form. High pressure (100~300 bar) and high temperature (60~90℃ friction heat) plasticize lignin and naturally bond. Suitable for various scale production (0.2~10+ tons/h).

Industrial design, single machine capacity can reach 4-5 tons/h, much higher than flat die.

High pressure molding makes pellet density (≥1.0 g/cm³) and durability (≥97.5%) better, meeting ENplus/DINplus certification requirements.

Unit power consumption is 70~100 kWh/ton, which saves more than 20% energy compared with screw extruder (≥120 kWh/ton).

Ring die uses 42CrMo, which has high wear resistance and can reach 800~1000 hours, while flat die only has 300~500 hours.

Supports PLC fully automatic control (feeding, lubrication, alarm), suitable for continuous pellet production.

Flat die pelletizer/spiral extrusion pelletizer

Flat die wood pellet mill machine adopts vertical pressure roller + horizontal die, with simple structure. Screw extrusion wood pellet machine pushes the raw material to form under high temperature and high pressure through the screw shaft. These devices are only suitable for small farms and experimental production.

The maximum production capacity is usually ≤1 ton/h, which cannot meet industrial needs.

Flat die press has low molding pressure and pellets are fragile (durability ≤ 95%); screw extruder pellets have uneven density.

Screw extruders rely on high temperature and high pressure, with unit power consumption ≥120 kWh/ton and high operating costs.

Flat die molds are frequently replaced (especially when processing hardwood), and screw extruder screws are prone to corrosion (high-fiber raw materials).

Flat die pelletizers are sensitive to moisture content, screw extruders are only suitable for special biomass.

TURNKEY PRODUCTION LINES
FOR WOOD PELELTS

OUR EXPERIENCE, YOUR BENEFIT

RICHI is committed to producing a complete wood pellet manufacturing line for customers to make fuel, animal bedding, cat litter, fertilizer, etc. We can make customized wood pellet lines according to customer needs. Our company can provide customized project designing services and comprehensive turnkey line solutions for customers, including planning, designing, manufacturing, delivery and after-sales services. After the installation, our service team will provide debugging, testing and optimization services, including equipment adjustment, system debugging, troubleshooting and parameter optimization.

PERSONALIZED SERVICE

Custom wood pellet plants are configured to meet the customer's specific requirements. Each component is tailor-designed for unique parts or difficult manufacturing processes. We develop customized wood pelletizing solutions for your product requirements, raw materials, plant size and structure, investment budget and other special process needs. We can design a complete wood pellet production line or a certain system module, such as pelletizing system design, crushing system design, drying system design, cooling system design, packaging system design, etc. Whether you are after an entire plant or a particular unit, we are happy to tailor a solution for you.

organic fertilizer plant design

Technological process

Generally speaking, the standard wood pellet processing process includes raw material preparation, raw material cleaning, raw material crushing, raw material drying, raw material granulation, pellet cooling, pellet screening, and pellet packaging. Of course, the processing flow of wood pellets is different for different raw materials. In addition, different systems can be flexibly modularized according to customer needs. If you want to start a wood pellet processing business, feel free to contact us for a free customized wood pellet processing process flow chart.

1 Preparation

Preparation
Prepare raw materials according to actual conditions. Common raw materials mainly include forestry residues (sawdust, wood chips, branches, etc.), wood processing waste (shavings, scraps), and energy forests (fast-growing eucalyptus, willow, etc.).

2 Cleaning

Cleaning
Remove impurities (such as mud, metal, plastic, etc.) from raw materials. This section mainly selects equipment such as magnetic separators (to remove iron filings), vibrating screens (to separate large impurities), and cyclone dust collectors (to remove light debris such as leaves and dust).

3 Crushing

Crushing
Crushing the raw materials to less than 3~5mm to ensure uniform particle formation. Different crusher combinations will be used according to the raw materials. Usually only sawdust, rice husks, etc. do not need to be crushed. The size of the particles after crushing affects the molding rate.

4 Mixing

Mixing
Ensure that the raw material composition is uniform (such as mixing sawdust from different tree species, or adding adhesives). In many actual projects, this process is optional. If the customer only uses one raw material, there is no need to configure this section.

5 Drying

Drying
Reduce the moisture content of raw materials to 10%~20% (too high will cause loose particles, too low may affect adhesion). According to customer needs, rotary dryers (gas/biomass hot air heating, suitable for large-scale production) and belt dryers are usually available.

6 Pelleting

Pelleting
This is the core section of the entire wood pellet processing, and it is also the section where the wood pellet mill is located. Here, wood chips are compressed into pellets by high pressure. Different raw materials, mold compression ratio and molding temperature will be different.

7 Cooling

Cooling
The temperature of the wood particles just out of the mold is high, and they need to be cooled to shape and reduce the moisture content. After cooling, the particle temperature is ≤ ambient temperature + 5℃, and the moisture content is further reduced to 8%~10% (improving storage stability).

8 Screening

Screening
Remove the broken pieces and unformed particles to improve the yield. The diameter error of the finished wood pellets is ±0.5mm, and the length is 10~30mm. In this section, a vibrating screen is usually used (qualified pellet enter the packaging, and the broken pieces are re-granulated).

9 Packaging

Packaging
The available packaging methods include small bag packaging (15~25kg/bag, household market), ton bag packaging (500~1000kg/bag, industrial users), bulk tank truck (directly transported to power plants). Heat plastic sealing is also available.

10 Auxiliary Systems

Auxiliary Systems
In addition to the above main processing technologies, some auxiliary systems are also crucial, including dust removal systems, automatic control systems, conveying systems, silo systems, etc.

View Wood Pellet Production Line Solution

Auxiliary equipment of wood pellet mill

The offering for wood pellet manufacturers covers pre-designed and tailored complete wood pellet plants and modules (pelleting system, crushing system, packaging system, etc.). In addition to single wood pellet mill machine, the range contains equipment such as shredders, wood chippers, hammer mill crushers, wood dryers, screens, feeders, conveyors, packaging machine and other equipment and auxiliary machines for wood pellet production lines. Many machines are also available as mobile or portable versions. The whole offering is backed up with our thorough process knowledge and extensive global service network. RICHI MACHINERY offers you expert guidance in choosing the right equipment to put together an efficient, cost-effective wood pellet processing system for your particular application.

Wood Chipper Machine

Wood Chipper Machine

Wood Dryer Machine

Wood Dryer Machine

Belt Dryer Machine

Belt Dryer Machine

Wood Pellet Cooler

Wood Pellet Cooler

Wood Bagging Machine

Wood Bagging Machine

Ton Bag Packaging Machine

Ton Bag Packaging Machine

Scraper Conveyor

Scraper Conveyor

Control Cabinet

Control Cabinet

Dust Removal Equipment

Dust Removal Equipment

Wood Shredder

Wood Shredder

Belt Conveyor

Bucket Elevator

Steam Boiler

Steam Boiler

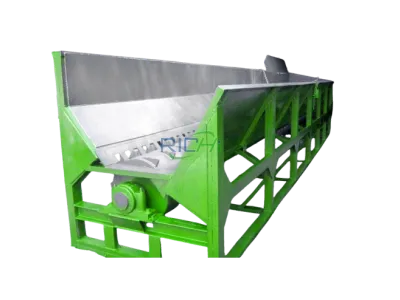

Debarking Machine

Debarking Machine

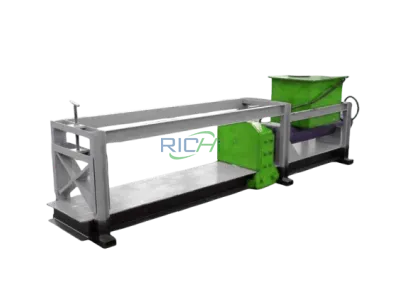

Wood splitter

Wood Splitter

Small Chipper Machine

Small Chipper Machine

Multifunctional wood crusher

Multifunctional Wood Crusher

Frequently Asked Questions

You may want to know the energy consumption of wood pellet machines, what raw materials they are suitable for, and what are the requirements of wood pellet machines for raw materials. . . Below are some FAQs we have listed briefly. If you have any questions, please contact us now for technical support.

The price of wood pellet mill ranges from 15,000 USD to 85,000 USD, depending on the equipment type, capacity, technical configuration and market factors.

Single wood pellet mill price (FOB Qingdao Price), including : anti-arching feeder, force feeder, pelletizer, control cabient.

  • MZLH320 (22KW) : 0.2-3T/H & 14,100 -17,000 $
  • MZLH350 (37KW) : 0.3-0.5T/H & 18,500 -22,000 $
  • MZLH420: (90KW) : 1-1.2T/H & 26,600 -32,000 $
  • MZLH520 (132KW) : 1.5-2T/H & 43,100 -50,000 $
  • MZLH678 (200KW) : 2.5-3T/H & 65,100 -70,000 $
  • MZLH768 (315KW) : 3-4T/H & 76,500 - 85,000 $

The wood pellet mill cost will be affected by factors such as equipment type and capacity, core component material, automation and intelligent control, brand and origin, energy and environmental protection configuration, market and supply chain factors, etc. If you want to get the accurate cost of wood pellet mill machine, please feel free to contact us to get the quotation of wood pellet machine, freight and other information.

Wood pellet mills have clear requirements for raw material size to ensure efficient pressing and pellet quality. Before entering the wood pellet mill, the raw materials need to meet the corresponding requirements. The following are specific requirements and related details:

1. Core requirements for raw material size

Optimal particle size range:

  • 3~5mm (length/width): This is the ideal feed size for most flat die and ring die pellet mills. Too large will easily clog the die, and too small may affect molding.
  • Thickness ≤1mm: Such as the natural form of sawdust and shavings, no additional crushing is required.

Exceptions:

  • Hardwood raw materials (such as oak and birch): require finer particles (≤3mm) because the wood fibers are dense and difficult to compress.
  • Softwood or straw: slightly larger size (≤8mm) can be tolerated, but the die pressure needs to be adjusted.

2. The impact of unqualified raw material size

  • If the raw material size is too large (>8mm): it will clog the die hole and reduce production; increase roller wear and shorten die life; the particle surface is rough and easy to break.
  • If the raw material size is too small (powder): - poor fluidity, uneven feeding; low particle density, easy to loose; ash content increases during combustion.

3. Pretreatment equipment recommendation

If the raw material does not meet the size requirements, it needs to be pretreated by the following equipment:

  • Wood crusher: crush wood chips and branches to 10~20mm (primary processing).
  • Hammer mill: further grind the crushed material to 3~5mm (suitable for hardwood).
  • Drum screening machine: separate qualified and unqualified particles and crush them in a cycle.

The wood pellet mill requires the raw material size to be within the range of 3~5mm, and can be flexibly adapted to different raw materials through pretreatment and equipment selection. Accurate size control can increase production by more than 30% and extend mold life.

The control of the moisture content of raw materials is crucial for wood pellet mills, which directly affects the molding efficiency, pellet quality and equipment life. The following are detailed requirements and relevant technical analysis:

1. Core moisture requirements

Optimal range:

  • 10%~15%: The ideal moisture range for most ring die/flat die pellet machines.
  • <10%: The raw material is too dry, the lignin is difficult to soften, the pellets are easy to loosen, and the molding rate is low.
  • >15%: The raw material is too wet, it is easy to stick to the mold and clog during extrusion, and the pellets need to be dried additionally.

2. Special raw material adjustment:

  • Hardwood (such as oak, birch): tolerate slightly lower moisture (8%~12%) because of the tight fiber structure.
  • Softwood or agricultural waste (such as straw, rice husk): can be relaxed to 12%~18%, but the mold temperature needs to be increased.

3. Moisture control methods:

  • Natural drying: suitable for small-scale production, low cost but time-consuming (1~3 days on sunny days).
  • Drum dryer: commonly used in large production lines, with a temperature of 80~120℃ and a processing capacity of 1~20 tons/hour.
  • Conditioner: add steam at the inlet of the pellet machine (soften lignin and improve the molding rate).

4. Linkage control of moisture and production parameters

  • Mold temperature: when the moisture content is high, the mold temperature needs to be increased (to 80~100℃) to accelerate evaporation.
  • Compression ratio: high-moisture raw materials need to reduce the mold compression ratio (such as 1:6 adjusted to 1:5) to reduce the risk of mold blocking.
  • Capacity adjustment: for every 2% increase in moisture, the output decreases by about 5%~10%, and the feed rate needs to be reduced accordingly.

In general, the wood pellet mill equipment requires that the moisture content of the raw materials is strictly controlled at 10%~15%, which needs to be accurately adjusted by drying, conditioning and other means. The moisture content that meets the standard can increase the molding rate to more than 95%, while reducing mold wear by 30%~50%. It is recommended to equip with automated testing equipment to monitor moisture fluctuations in real time.

Complete wood pellet manufacturing process is shown below:

  1. In global market, wood pellets are mostly produced from sawdust, wood shavings and other woody byproducts. Traditionally, wood pellet production line units are located on or nearby sawmills and other wood processing sites, representing complementary outlet for these wood pellet manufacturing plants. In this context, a first crucial step for wood pellet producers consists of grinding and drying the moist wood residues.
  2. The energy needed for this is mainly made available by the burning of bark or any low quality wood, which likewise accumulates on site. In many cases, not only is heat produced by burning the bark, but also electricity that can be optimally used to run unit. After the wood waste is dried, it is fed into a biomass wood pellet mill. Within the wood pellet maker, dry woody materials are squeezed through a die with holes of the required size (normally 6 mm diameter, sometimes 8 mm or larger) called a matrix.
  3. The high pressure of the wood pellet pressing machine causes the temperature of the wood to increase greatly, causing the surface to plasticise slightly to form a natural "glue" that binds the wood pellet together as it cools. To facilitate the wood pellet pressing process and improve quality parameters, small quantities (max. 2%) of natural binder such as starch can be added, but no glues enter the composition of wood pellets.
  4. Newly compressed pellets are now ready to be cooled and sieved to remove any residual particles. Finally, wood pellets can be stored and/or bagged by wood pellet packing machine prior being delivered to end consumers.

Typically any wood raw material will require some form of processing prior to being pelletized. This can range from debarking if using whole logs (round wood) to shredding or grinding of pallets, or ag products. Once the product is shredded or ground, it could require further processing through a wood pellet hammer mill, depending on how it was received.

If the wood waste raw material is wet (over 15%) it will need to be dried. After sizing and drying if needed, the product is now ready to be pelletized. Pellets can be made in a wide range of diameters and bulk densities, which is typically determined by the end use of the pellet. The wood pellet mill ring die specifications can be changed, allowing for multiple sizes to be produced from the same wood waste pellet machine.

In most cases pellets will exit the wood pellet mill hot (100-170 degrees) and must be cooled. This is done with a pellet cooler by pulling ambient air through the pellets.

Once the wood pellet is cooled to ambient temperature, the pellets are screened to remove any fines that may have been created during the wood pellet production process. The wood pellets are now ready to be packaged by wood pellet packing machine, stored or sold in bulk.

When purchasing a wood pellet milling machine, you need to consider factors such as equipment performance, production requirements, cost-effectiveness, and long-term operation and maintenance.

1. Matching raw material characteristics

Raw material types:

  • Hardwood (oak, birch) requires higher pressure (compression ratio ≥1:6), softwood (pine) or straw can be adapted to ordinary molds.
  • Mixed raw materials require equipment with adjustable mold pressure and multi-stage crushing functions.
  • Moisture requirements: Make sure the equipment can handle raw materials with 10%-15% moisture, or a matching drying system (+5,000−20,000).
  • Impurity tolerance: Raw materials containing sand or metal need to be equipped with magnetic separation devices and wear-resistant molds (+3,000−8,000).

2. Capacity and scale adaptation

  • The actual capacity is usually 80% of the nominal value (considering raw material differences and downtime).
  • Overload operation will shorten the mold life by 30%-50%.

3. Core component quality

The quality of core components such as molds and rollers, transmission systems, and motor efficiency will affect their later use.

4. Automation and control systems

Select equipment and systems with different degrees of automation according to different application scenarios and budgets.

5. Energy consumption and operating costs

Unit power consumption:

  • High-quality equipment: ≤50kWh/ton; low-end equipment: ≥80kWh/ton (annual difference of $15,000, calculated at 2 tons/day).
  • Heat recovery: Some models can recover drying heat, saving 20%-30% of fuel costs.

Cost of wearing parts:

  • Mold: 1,000-3,000/set, replaced 2-4 times a year (depending on the hardness of the raw material).
  • Roller: 500-2,000/pair, replaced 1-2 times a year.

6. Environmental protection and safety compliance

Dust control:

  • Cyclone dust removal (1,000-5,000) vs pulse bag dust removal (8,000-20,000, filtration efficiency 99%).
  • Noise standard: EU requires <85dB (plus soundproof cover + 3,000-10,000).
  • Certification requirements: CE (EU) and EPA (US) certified equipment have a premium of 15%-25%, but avoid legal risks.

7. After-sales service and supply chain

Warranty terms:

  • Chinese brands: 1-2 years (core components), response time 1-7 days.
  • European and American brands: 3-5 years, longer response time (spare parts price 30%-50% higher).

Local support:

Confirm whether the agent has a technical team to avoid relying on overseas remote guidance.

8. Trial and performance verification

  • Must-check indicators: Particle density (≥1.1g/cm³), molding rate (≥95%), ash content (≤3%).
  • Trial raw materials: Use own raw materials for testing to avoid suppliers using "ideal raw materials" to confuse.
  • Continuous operation test: At least 4 hours without failure, observe whether the temperature rise and vibration are abnormal.

9. Procurement process suggestions

  • Requirement list: clarify raw materials, production capacity, budget, and certification requirements.
  • Supplier screening: compare 3-5 suppliers, and require customer cases and trial videos.

In general, the key to purchasing a wood pellet mill is to balance initial investment with long-term benefits. Prioritize equipment that is compatible with your own raw materials, has reliable after-sales service, and has the lowest unit production cost ($/ton), rather than simply pursuing low prices or high configurations. Industrial users are advised to give priority to modular design to facilitate future expansion.

The compression ratio of the wood pellet mill (i.e. the ratio of the die aperture length to the diameter, such as 1:6 means the aperture length is 6 times the diameter) needs to be adjusted according to the characteristics of the raw materials to balance the molding quality and equipment load. The following are the recommended compression ratios for different raw materials:

Raw material type Recommended compression ratio Adjustment basis Applicable mold aperture (mm)
Hardwood (oak, birch) 1:6 ~ 1:8 High fiber density, requires greater compression pressure 6-8
Softwood (pine, fir) 1:5 ~ 1:6 Lignin is easy to soften, pressure can be slightly lower 8-10
Straw/rice husk 1:4 ~ 1:5 Loose structure, easy to coke if compressed too much 8-12
Mixed wood chips 1:5 ~ 1:7 Adjust according to the proportion of hardwood 6-10
Bark/sawdust 1:5 ~ 1:6 Need to balance adhesion and fluidity 6-8

In general

  • High compression ratio (1:6~1:8) for hardwood and low compression ratio (1:4~1:6) for softwood/agricultural waste.
  • Preferably choose adjustable compression ratio molds (fine-tuning within ±1 range) to adapt to multiple raw material scenarios.
  • For industrial production, it is recommended to equip a library of molds with different compression ratios to cope with raw material fluctuations.

According to the shape of the pressing die, pellet mill for sale can be classified as:

In both cases, there has to be a rotary element, which can be the die or the rollers. In the case of flat dies, the rollers are the moving element, whereas the most common design of ring dies is where the die is powered and rotating, and the rollers move due to the friction and movement of the die.

  • Ring die pellet mills, which are applied to small, medium and large-scale pellet production industries. In other words, unless it is a scale of tens of kilograms or less than 100 kilograms, the ring die wood pelletizer can be applied to any size of wood pellet production business.

    In the wood pellet mill ring die, there are radial slots throughout the die. The die is positioned vertically, powder is fed into the centre of the die and spreaders evenly distribute the powder. Two or more rollers then compress the powder through the die holes. Two cutters are used to cut the wood pellets free from the outside of the die.
  • Flat die wood pellet mills, is a kind of homemade wood pellet machine, which are used for very small scale wood pellet manufacturing (for home use, for mini scale). Flat die wood pellet makers use a flat die with slots. The powder is introduced into the top of the die and, as the die rotates, a roller presses the powder through the holes in the die. A wood pellet mill cutter on the other side of the die cuts the exposed pellet free.
01 RICHI Equipment

Although we also design and manufacture flat die wood pelletizers, with the continuous improvement of the processing technology of wood pellets, the characteristics of the flat die wood pellet manufacturing equipoment are not as good as the absolute advantages of the ring die wood pellet press machine.

As a professional wood pellet mill manufacturer, we must sincerely tell everyone that the wood granulator technology must move forward, and the ring die wood granulator is the final trend. Considering the quality of equipment, durability, maintenance cost, and quality of finished pellets and other aspects, if the output you need allows, try to choose a ring die wood pelleting machine.

Usually you can see many flat die wood pellet makers on the Internet, which will confuse many customers who are in the wood pellet processing industry for the first time. In fact, well-known and professional wood pellet mill manufacturers do not recommend purchasing flat die pellet mills for wood and biomass pellets, because the quality of the actual processed pellets is not good, and the output cannot keep up.

When you browse the official websites of groups such as CPM and Buhler, you can easily see that there is only a ring die pellet mill machine (which can also be a wood pellet extruder or feed pellet extruder), and there will never be a flat die biomass wood pellet making machine.

There are different die types of RICHI ring die pellet mill for wood pellet plant that vary with regard to hole depth, hole pitch, hole width and die material.

  • The depth of the hole is not related to the length of the pellet. It establishes the time the material is exposed to heat and pressure. Longer holes are recommended for materials with low lignin content to achieve better melting and, therefore, a harder, denser pellet.
  • The pitch angle of the hole influences pellet compression, and it should be designed according to the feedstock.
  • For biomass pellets, the most common diameters are 6 and 8 mm. These diameters, as well as the length of the pellets, are limited by the Pellet Standards to assure that the wood pellets can be fed by the screw conveyors of standardized stoves and boilers without blocking the feeding systems.

    Experience has shown that thinner pellets allow a more uniform combustion rate than thicker ones, especially in small furnaces. The length of the pellets affects the fuel feeding properties: the shorter the pellets, the easier to arrange for continuous flow.
  • Wood pellet pressing machine ring dies are made from several different types of metal. Dies for wood pellet makers must be resistant to abrasion, strong enough to handle the forces of pellet production and corrosion resistant without negatively affecting productivity.

    The materials most often used are carbon steel alloy, stainless steel alloy and high chrome alloy. Obviously, the most expensive materials ensure higher resistances and productivities of the wood waste pellet machines.

These parameters have to be optimized in view of the particular feedstock to guarantee good productivity and to avoid blocking the wood pelletizing machine dies. Blocked dies can be found when:


  • The wood pellet raw material generates more resistant force while passing through the die than the force generated by the roller;
  • The wood pellet mill die hole is corroded.

If the wood pellet making machine ring die gets blocked, the material has to be drilled out. To facilitate this process, it is best to work when the die is still warm, previous to the formation of hard pellets within the die holes.

The application of wood residue pellets is increasingly widespread, but the application as fuel pellets is still dominant. Therefore, it is still necessary to discuss the raw materials of wood pellets.

Raw material KJ/Kg (KiloJoule/Kg) Kcal/Kg (Kilo calories/Kg)
  lower calorific value higher calorific value lower calorific value higher calorific value
Oak wood 17400 18800 4159 4493
Birch wood 18700 20100 4469 4804
Pine wood 19500 20800 4661 4971
Douglas pine wood 19700 21000 4708 5019
Spruce wood 18500 19800 4422 4732
Cherry wood 17900 19100 4278 4565
Cypress wood 21500 23000 5139 5497
Elm wood 19000 20500 4541 4900
Eucalyptus wood 18300 19600 4374 4684
Maple wood 18700 20000 4469 4780
Larch wood 18700 20100 4469 4804
Poplar wood 19400 20800 4637 4971
Teak wood 18900 20200 4517 4828
Coconut trunk wood 16600 17800 3967 4254
Willow wood 17300 18600 4135 4445
Hardwood bark 18300 19600 4374 4684
Oak bark 18300 19300 4374 4613
Pine bark 19700 21000 4708 5019
Spruce bark 19100 20300 4565 4852
Cedar bark 19800 21100 4732 5043
Douglas fir bark 20800 22100 4971 5282
Eucalyptus bark 17.300 18.500 4135 4422

lf you need further information, please contact us

service & support

Consultation and Definitions

With over 30 years of experience, we can identify issues and provide effective solutions in your wood pellet production lines. We can advise on a consultancy basis whether you have questions about the right solution for your problem, or simply want to better understand the options available to you.

Project Planning and Budgeting

When we begin a new design-build wood pellet machine plant construction project, our team will plan out and analyze every aspect of the proposed design to make sure it will elevate your current business model and address specific concerns in the wood pellet production process.

Design and Engineering

RICHI team manages every aspect of the wood pellet plant build process, including the design, planning, engineering, and construction of your new system. With expertise across the agricultural, industrial and manufacturing industries, we can create a custom solution for your facility.

Equipment Manufacturing

Our self-designed and manufactured equipment and products are all made to meet the regulations and quality requirements of various countries, which applies to the execution of different types of wood fuel pellet processing plants and wood cat litter plants.

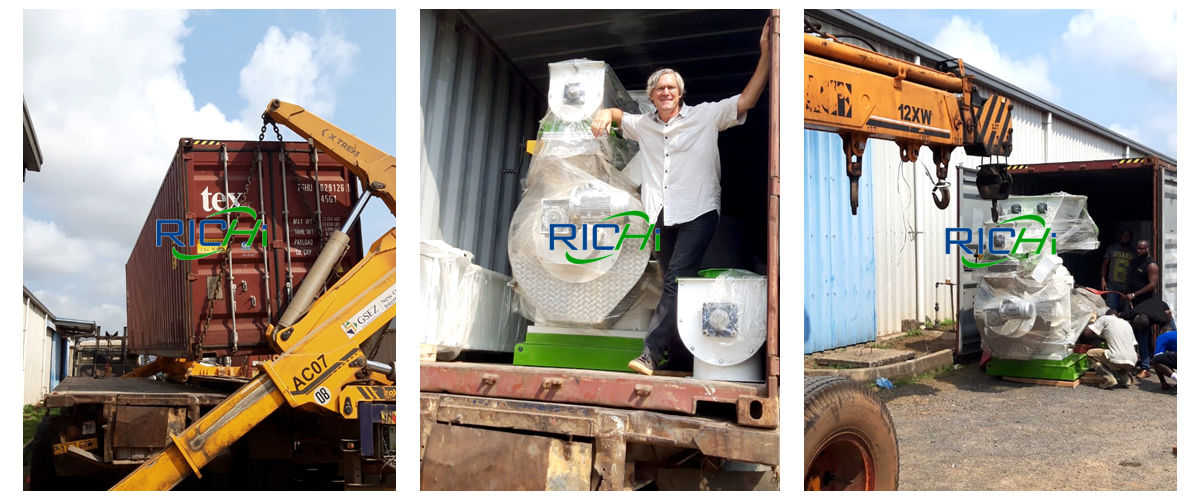

Equipment delivery

RICHI has been working hard to make every detail perfect, especially in the equipment preparation and shipment stage. In the equipment packing and packaging, we use professional packaging and modular solutions to ensure the safe and damage-free delivery of the equipment.

Fabrication Services

We offer comprehensive steel detailing and drafting services, encompassing detailed drawings, erection plans, shop drawings, isometric details, fabrication cut sheets, weld procedures, quality control documentation, and powder coating.

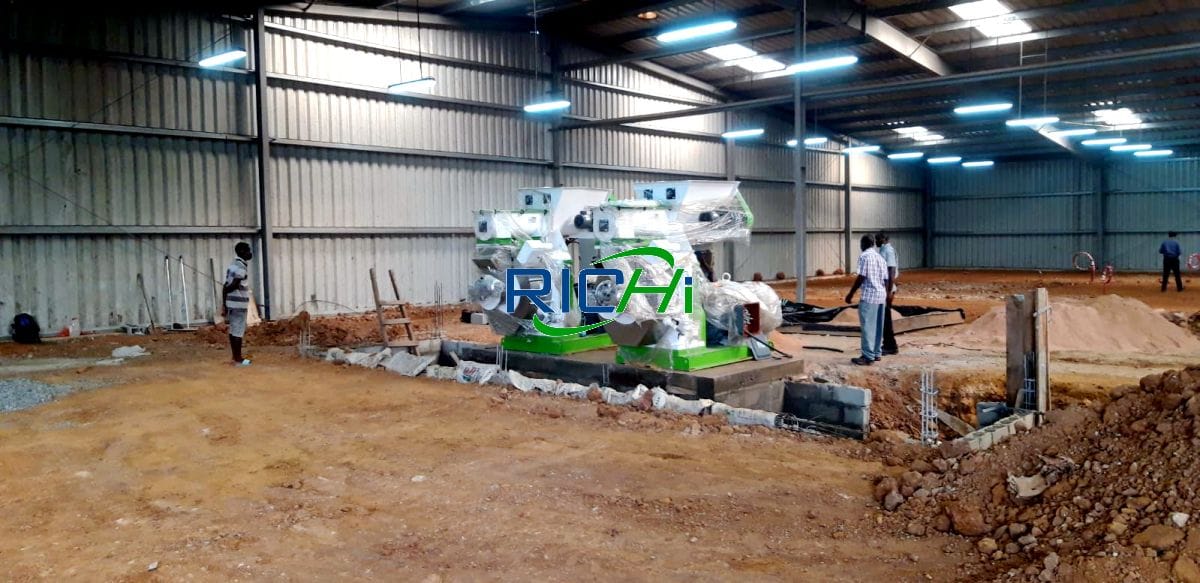

Equipment Installation

According to customer needs, Richi Machinery installation engineers will guide the construction of site infrastructure, equipment installation and commissioning, and trial operation of the entire wood pellet production factory.

Maintenance & Support

With continually rising demand and quality standards, many pellet manufcturers are struggling to cope and have significant engineering challenges. Timely repairs and maintenance are critical to avoid costly downtime and disruption.

Evaluation

Design

Manufacturing

Delivery

Engineering

Installation

Training

Automation

biomass pellet machine video

Our waste-to-fuel biomass pelleting plant solutions reduce landfill use and greenhouse gas emissions while providing a sustainable energy source that can replace traditional fossil fuels.

RICHI's innovative biomass pelletizing technology makes it an industry leader in fueling eco-friendly waste-to-fuel and waste-to-energy processes, offering advanced solutions for densification, size reduction, and all waste material processing needs.

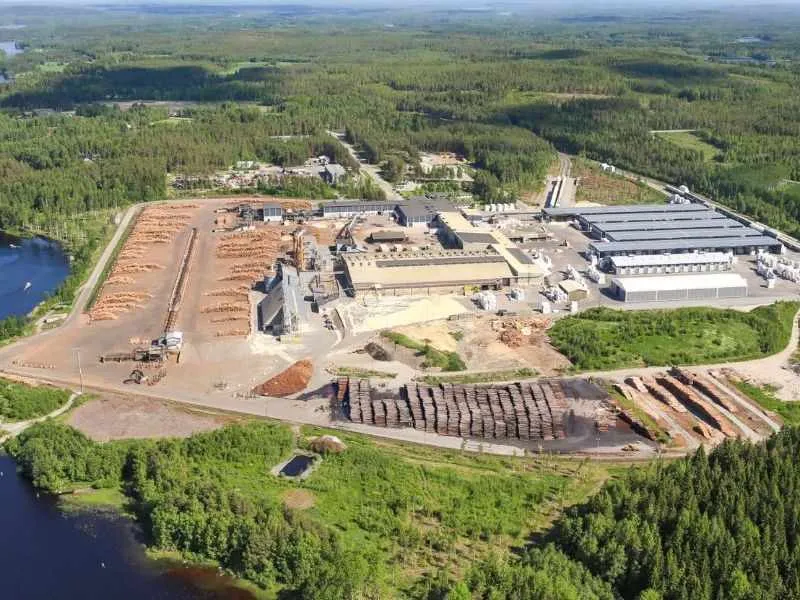

wood pellet plant

Join forces with RICHI to access innovative biomass processing solutions that advance your sustainability goals. Our technologies are at the forefront of the green energy transition, helping to build a more environmentally responsible future.

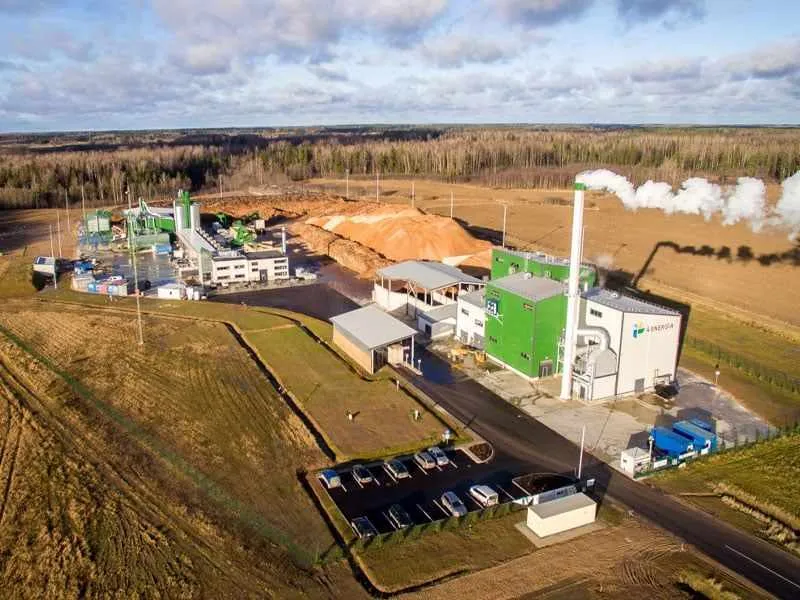

biomass pellet plant
RICHI Machinery
richi machinery

POSITION IN INDUSTRY

Meet global product demands and quality standards with industry-leading pellet plant design, engineering, equipment, and construction services for pellet processors.

pellet plant
earth

Global Reach, China base

Your Partner Beyond Project Completion

2000+ cases

RICHI is the leading designer, manufacturer and builder of pellet plants in the world, completing over 2000 projects in 140 countries across 6 continents.

Read More

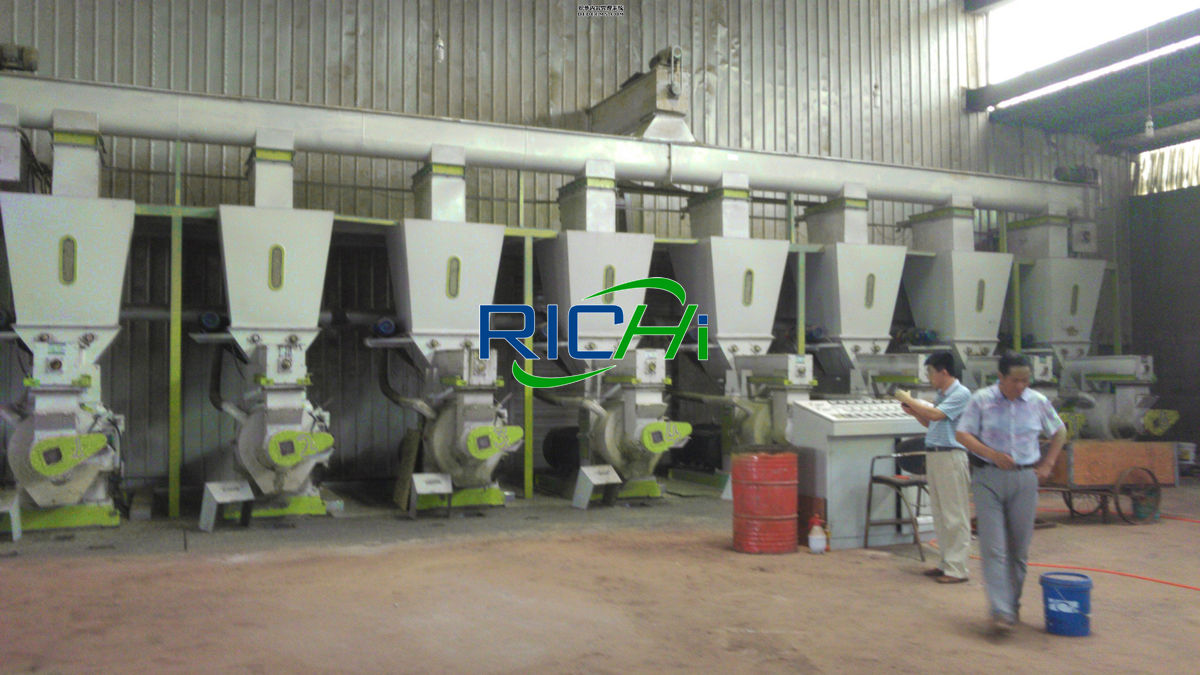

pellet machine plant

The Right Combination


With biomass pellet mills, hammer mills, biomass dryers, coolers and more, plus aftermarket parts and service, our biomass portfolio is expansive and offers customers the flexibility they need to run a smooth operation.

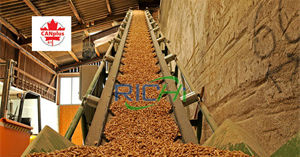

biomass pellet

Industries We Serve

For nearly 30 years, RICHI Machinery has had the opportunity to work with a variety of industries – learning the complexities of diverse materials, navigating unique industry challenges, and discovering innovative pellet plant solutions along the way. Whether you work with feed, biomass, wood, organic fertilizer or cat litter products, RICHI is committed to being your partner in innovation, success, and operational excellence.



ANIMAL FEED

BIOMASS

WOOD

ORGANIC FERTILIZER

AQUA FEED

CAT LITTER

MUNICIPAL WASTE RECYCLING

SPECIAL PELLET PRODUCTION

RICHI MACHINERY

Founded in 1995, RICHI Machinery began as a pellet machine manufacturer and pellet plant system provider that steadily grew into the comprehensive service and equipment provider it is today. We pride ourselves on the knowledge and skill that each team member possesses – from our technical sales team to our process design engineers. You can count on RICHI to take your operation to the next level of success.

Learn More

Expertise

With our expert team, we precisely implement your process engineering requirements in pellet mill and pelletizing plant systems. No matter which industry you’re in – we understand your needs and deliver solutions that meet the highest standards.

Quality

At RICHI, quality comes first. Our pellet making machine and related pellet line equipment undergo rigorous quality controls to ensure they meet the highest standards. Rely on products that are durable, safe, and efficient.

Experience

With decades of experience in pellet machine and pellet production line production, we have earned a reputation as a trusted partner in various industries. Our expertise allows us to cover a wide range of applications.

service

Not only do we offer premium pelleting equipment, but we are also experts at designing, building, installing, and maintaining facilities from the ground up. Our expertise is within pellt plant process design, discovering the most efficient, productive, and profitable way to handle your materials in an end-to-end cycle.

contact us

Keeping in touch with us is an effective way to solve all your problems. If you have any needs or questions, please leave your contact information, then RICHI technical consultants will send design, quotation, videos to your mailbox. You can also contact us directly via WhatsApp: +86 13838389622

Application:

* We will store the information you have provided us. We will only use this information for the purpose of helping to answer your inquiries. We will not disclose your information to third parties.

Copyright©2015-2024 by HENAN RICHI MACHINERY CO., LTD. All rights reserved.
