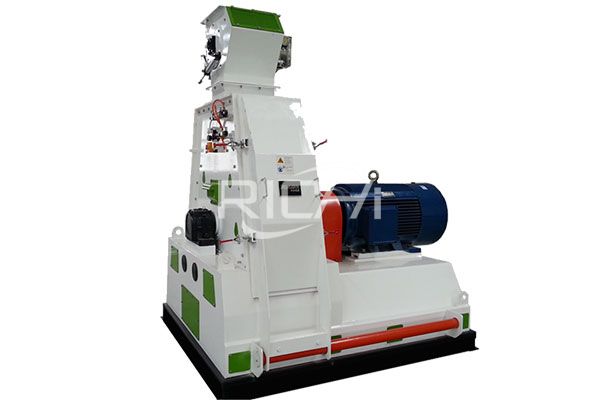

Animal Feed Grinding Machine

Animal Feed Grinding Machine

APPLICATION: Grain grinder for feed
CAPACITY: 3-25T/H
MAIN POWER: 30-160KW
MODEL: SFSP
WhatsApp: +86 138 3838 9622

The crushing of feed ingredients is a very important part of animal feed mill processing. When producing powdered compound feed, the power consumption of the crushing section accounts for more than 60% of the entire animal feed mill. The animal feed grinding machine has the advantages of small size, high efficiency, convenient operation and maintenance, simple process configuration, and low power consumption. Therefore, hammer type animal feed grinders are commonly used in animal feed processing.

24 hours to reply to technical inquiries

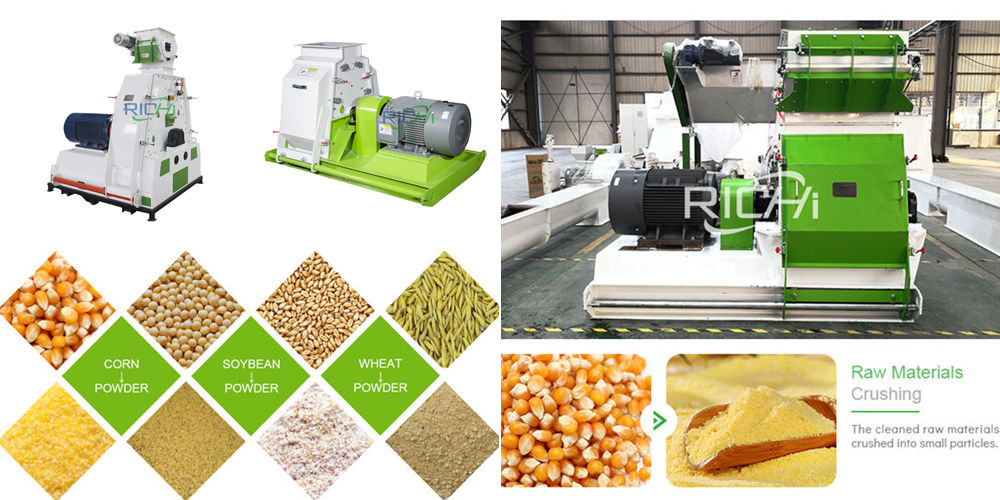

Applications Of Animal Feed Grinding Machine

This type of animal feed grinding machine uses high-speed, rotating hammers to break the material. Its simple structure, convenient operation, low price and wide adaptability can crush almost all feed materials except for feed materials with higher water content.

Such as cereals with higher starch content, cakes with higher oil content, husks and straws with higher fiber content. At present, domestic and foreign feed factories generally use this type of animal feed grinding machine.
Feed processing machine livestock feed mill grinder and mixer

Crushing refers to the process of changing the physical properties of materials through mechanical force, destroying their internal cohesive force, and turning large bulk materials into small particles that meet the requirements of feed production particle size.

The crushing process is an important part of the animal feed processing in feed mills and farms. The crushing degree is directly related to the subsequent animal feed processing procedures and the quality of feed products.
rabbit duck cock hen poultry fodder grinder to make animal feed

The hammer-type feed grinder for animals is a kind of impact feed crushing equipment. It has high versatility, small footprint, good crushing quality, quick start without load, flexible transmission connection mode, and weak temperature sensitivity to feed, high productivity and convenient use and maintenance, etc., have been widely used in the feed processing industry at home and abroad.

Get Animal Feed Grinding Machine Price

Technical Features Of Animal Feed Grinding Machine

  1. The Animal feed grinding machine can be equipped with bearing vibration, temperature remote detection system, alarm and stop automatically when out of order.
  2. The Animal feed grinding machine adopts international advanced technique, crush room is designed as water drop figure.
  3. U-shape twice striking tank is set in the bottom of the crushing chamber to greatly improve the production.
  4. All of our animal feed grinding machine rotors pass an accurate dynamic balancing test, resulting in low noise and smooth running.
  5. A variety of animal feed grinding machine screen sizes are available to choose and the wrap angle of the sieve is large up to 300°.
  6. The particles made by animal feed grinder machine are more uniform. UseΦ1.2mm below and large aperture screen to produce thick, medium, thin or super powder materials, higher efficiency and no sticking screen phenomenon.
Get Animal Feed Grinding Machine Price
Animal Feed Grinding Machine
Animal Feed Grinding Machine
Click the Button to Consult Online

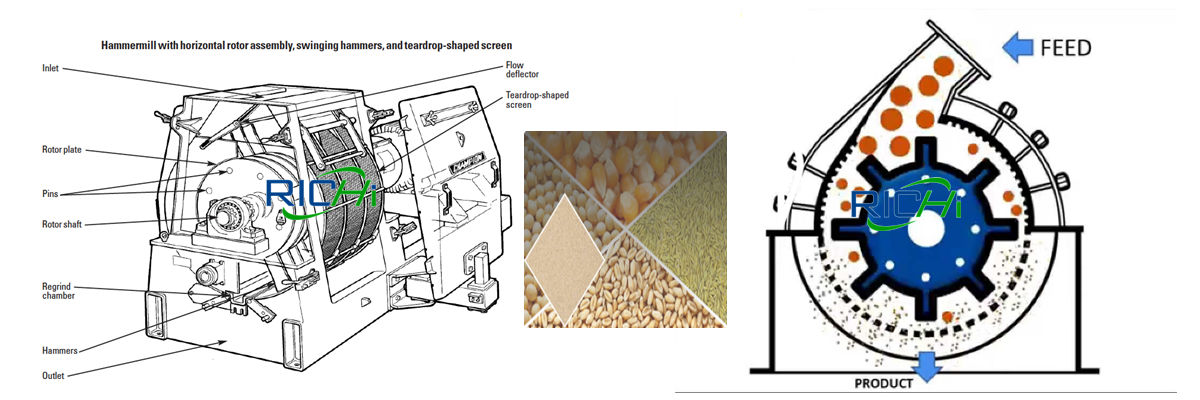

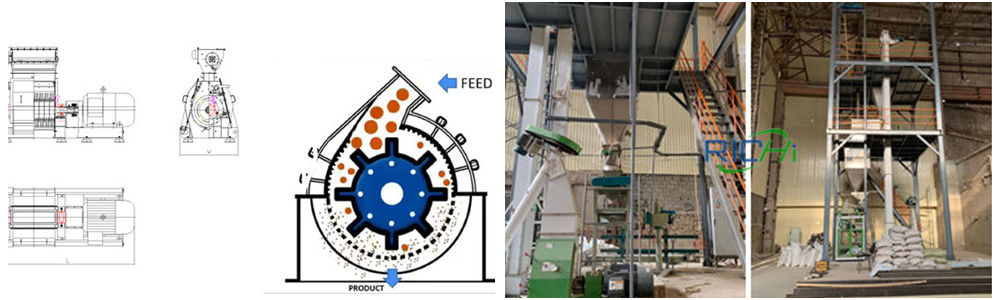

Working Principle Of Animal Feed Grinding Machine

The working principle of the animal feed grinding machine

The raw material falls into the inlet of the animal feed grinding machine by gravity from the top of the crusher, and the falling speed is about 1.64~3.28m/s. The raw material is hit by the hammer for the first time on the top of the rotor.

In the initial crushing zone, due to the raw material The speed at the end of the hammer is very different, and most of the material flow is crushed or broken.

This area is also the only area in the crushing chamber where the material flow is geometrically perpendicular to the animal feed grinding machine screen surface, and the screening capacity of the entire diameter of the screen can be used.
Feed processing machine grain wheat corn grinder for animal feed animal chicken feed mixer and grinder

Subsequently, the flow of granular material is accelerated by the hammers to form an annular layer that moves along the inner surface of the animal feed grinding machine screen.

The speed of the annular layer is slightly lower than the speed at the end of the hammer. The speed of the material layer closer to the screen surface is lower, and the speed of the material layer closer to the end of the hammer is higher. This area is narrow and is called the acceleration zone.

The crushed material is to be discharged through the sieve holes, and its speed should reach a discharge speed perpendicular to the screen surface.
electric small corn mill grinder for animal feed stable design small animal feed grinder

The crushed materials close to the screen surface are affected by the friction of the animal feed grinding machine screen surface to reduce its circulation velocity, and are subjected to centrifugal force, pressure and airflow perpendicular to the screen surface to allow it to be discharged out of the animal feed grinding machine screen.

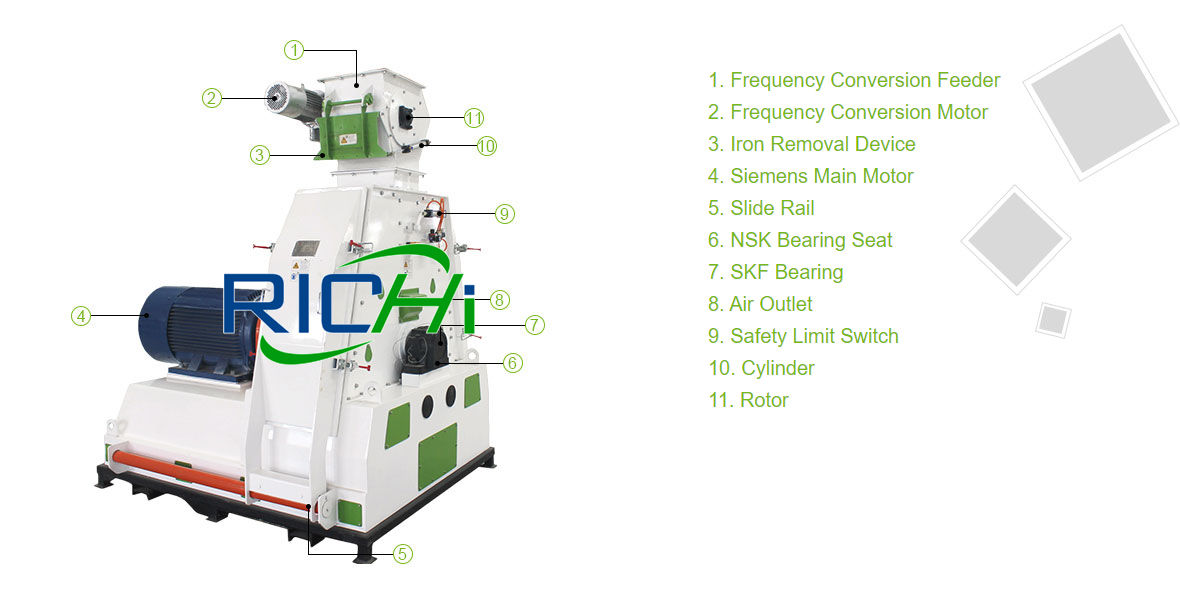

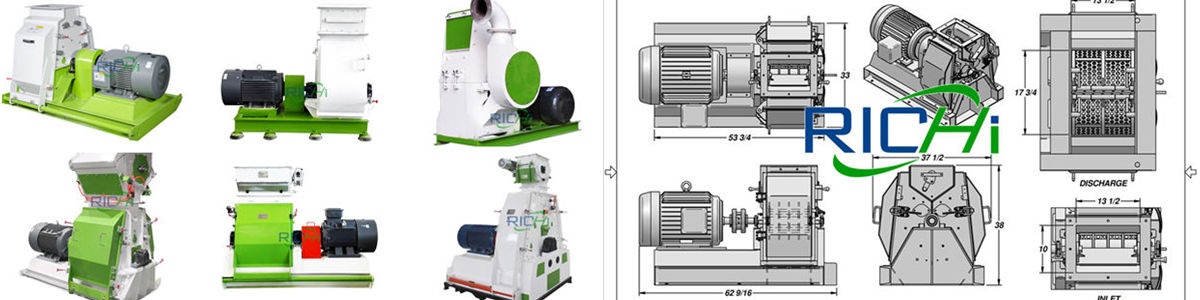

The structure of the animal feed grinding machine

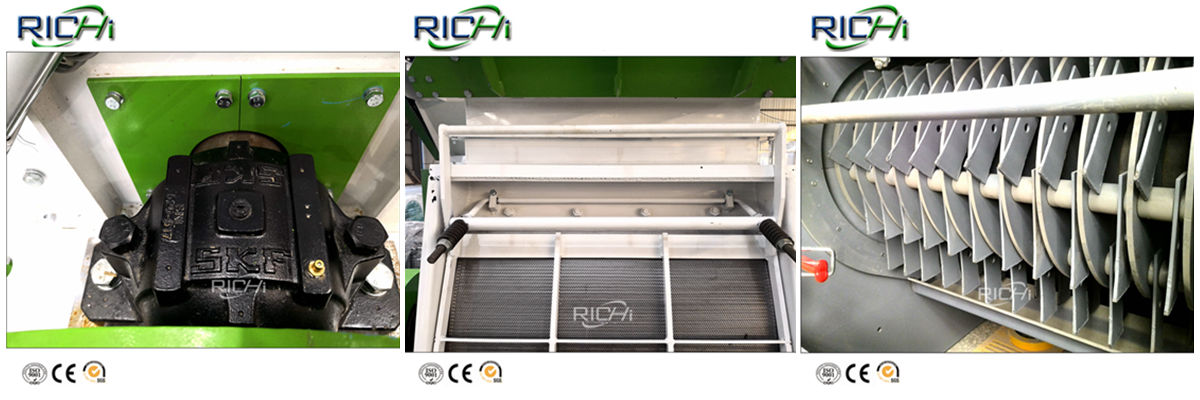

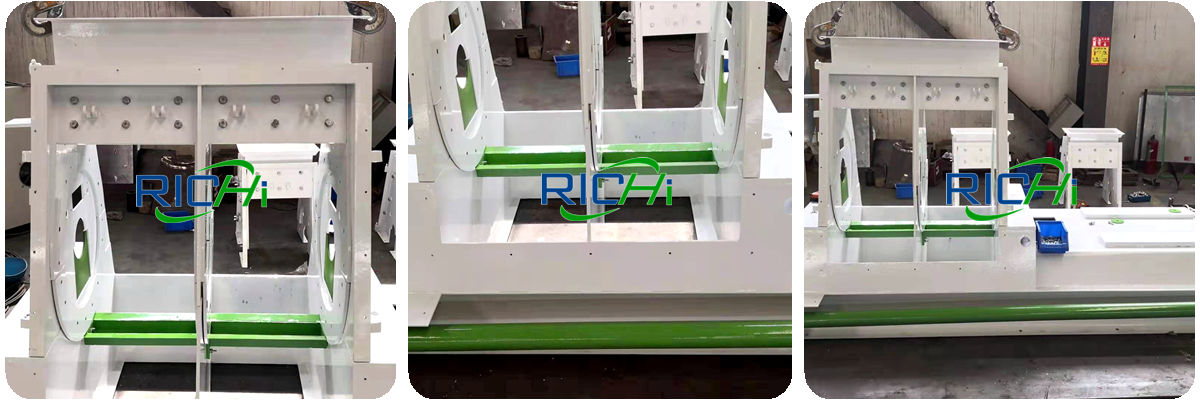

  1. The animal feed grinder base is the installation foundation of the animal feed crusher, and generally adopts a steel plate welded structure to support and connect the rotor of the crusher and other components.

    The animal feed grinder base requires good rigidity and firmness, so as to achieve the purpose of reducing vibration, increasing reliability and prolonging service life. The lower part of the animal feed grinder base is the discharge port for crushed materials.
    farm use hen cow feed grinder alfalfa pellet machine 500KG/H pig horse cattle feed grinder machine

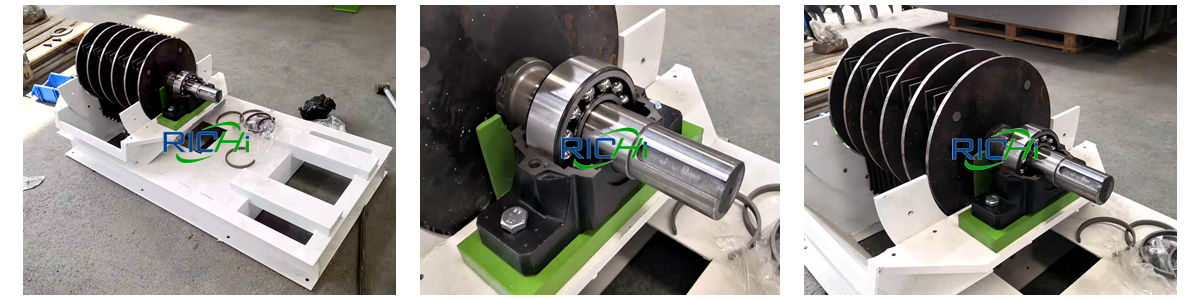

  2. The rotor is the main moving part of the whole animal feed grinder crusher, which is mainly composed of the main shaft, bearing, bearing seat, hammer frame plate, pin shaft, hammer piece and other parts. Because of its high speed during movement, it is necessary before use. It is required that a dynamic balance check must be carried out.

    The rotor is the core component of the animal feed grinder pulverizer and one of the rotating transmission components. It forms a pulverizing chamber with the animal feed grinder screen to crush the materials and screen them. Each part of the rotor can vibrate during the animal feed grinder working process.

    The animal feed grinder rotor assembly and the motor are connected through a coupling and rotate at a high speed. During the rotation of the animal feed grinder, they collide with the material to break the material.
    manual hand small animal feed corn grinders for sale industrial electric cattle feed corn mill grinder for sale

  3. The animal feed grinder hammer is worn due to high-speed rotation at work, so it is one of the worn workpieces. For this reason, it is required to have a certain degree of hardness, strength and wear resistance.

    In addition, the material, structure and arrangement of the animal feed grinder hammer have an impact on the efficiency of material crushing. Therefore, it is generally heat treated before use to increase its strength and wear resistance.

    In addition, the arrangement of the hammers also has an impact on the efficiency of the animal feed grinder crusher. There are generally 4 arrangements, namely symmetrical arrangement, spiral arrangement, symmetrical staggered arrangement and staggered arrangement.
    small animal feed grinder plant electric corn animal feed grinder for chicken feed

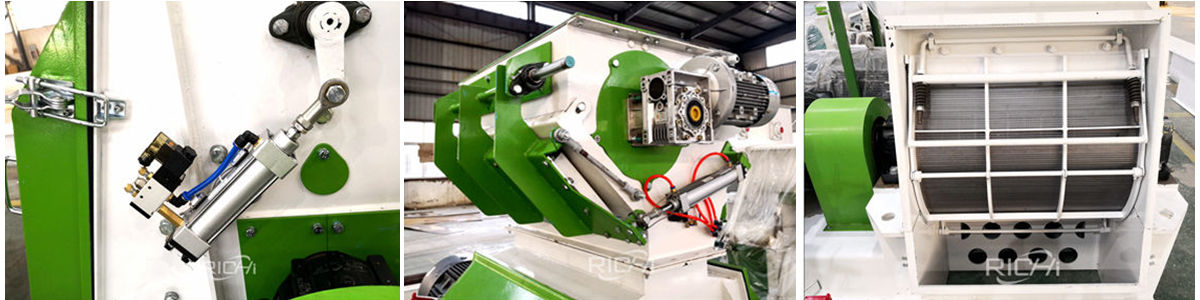

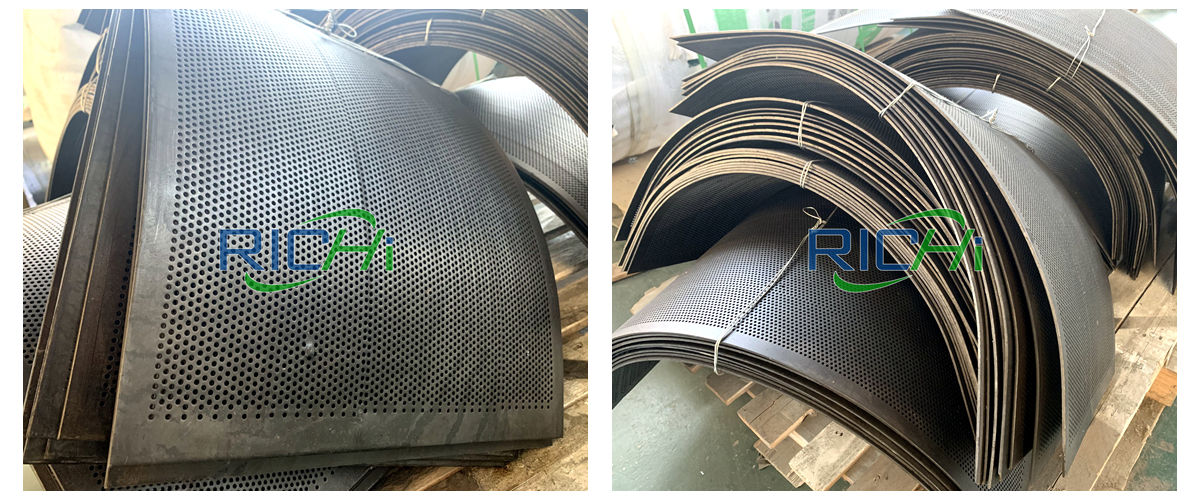

  4. The sieve is also one of the easily worn parts in the animal feed grinder pulverizer, which can control the particle size of the pulverized product.

    The animal feed grinder screen pieces are fixed on the machine body through the pressing window of the operating door to form a closed crushing chamber. After crushing, the materials will be sieved out of the screen holes to meet the crushing requirements.

    The particle size of the material after crushing is controlled by the size of the sieve aperture, that is, the aperture of the sieve must be determined according to the crushing particle size.
    poultry feed mixer grinder machine grain feed  grinder poultry feed grinder and mixer

  5. The lower part of the operating door is equipped with a roller, which can be moved to the other side after opening it. The animal feed grinding machine screen is compressed by a special pressing mechanism, which is usually opened when the hammer or screen is replaced.

  6. The upper part of the upper casing has a feed inlet, the lower part is connected with the base, and the two sides of the animal feed grinder are equipped with sieve plates respectively, and the base forms a crushing chamber for crushing materials.

  7. Feeding guide mechanism. According to the rotation direction of the animal feed grinder rotor, the material is guided into the crushing chamber from the right or the left.

Get Animal Feed Grinding Machine Price

Animal Feed Grinding Machine Price And Parameter

Model SFSP56*40a SFSP56*40b SFSP66*60a SFSP66*60b SFSP66*80a SFSP66*80b SFSP66*100 SFSP138*30E SFSP138*40E
Power 30kw 37kw 55kw 75kw 90kw 110kw 132kw 110/132kw 132/160kw
Capacity 3-5T/H 4-6T/H 5-8T/H 6-9T/H 8-10T/H 10-13T/H 12-16T/H 15-20T/H 18-25T/H
Speed 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 1440r/min 1440r/min
Animal feed grinder price 5000-35000 USD
Get Animal Feed Grinding Machine Price

Ce Approval Animal Feed Grinding Machine For Sale Animal Feed Mills And Farms

Strong product research and development strength, top-level assembly technology, and superb production and construction team have won the long-term trust and support of customers for Richi Machinery.

It has established cooperative relations with many well-known group companies; our animal feed grinder machine has been successful Export to Russia, the Netherlands, Poland, the United States, Canada, the United Kingdom, Slovakia, Estonia, Latvia, Australia, Egypt, Kenya, Kazakhstan, Afghanistan, Uzbekistan, Saudi Arabia, Angola, Algeria, Tanzania, Ethiopia, South Africa, Bolivia, Ecuador , Ecuador, Senegal, Senegal, Oman and many other countries and regions.
chicken feed grinding machine hammer mill mash sizes for poultry feed

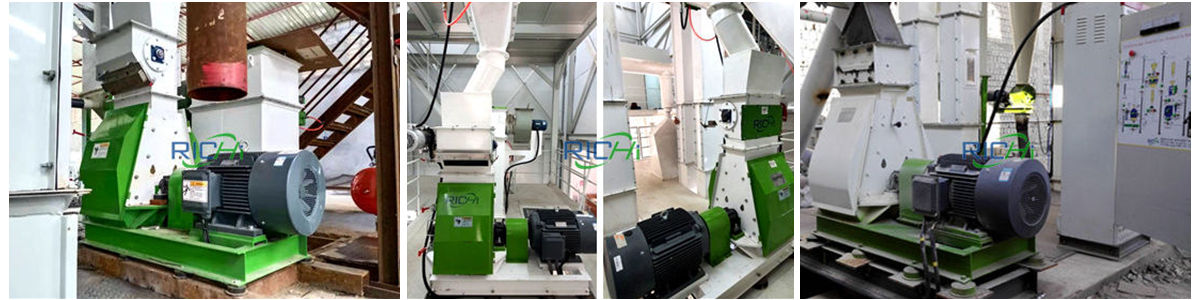

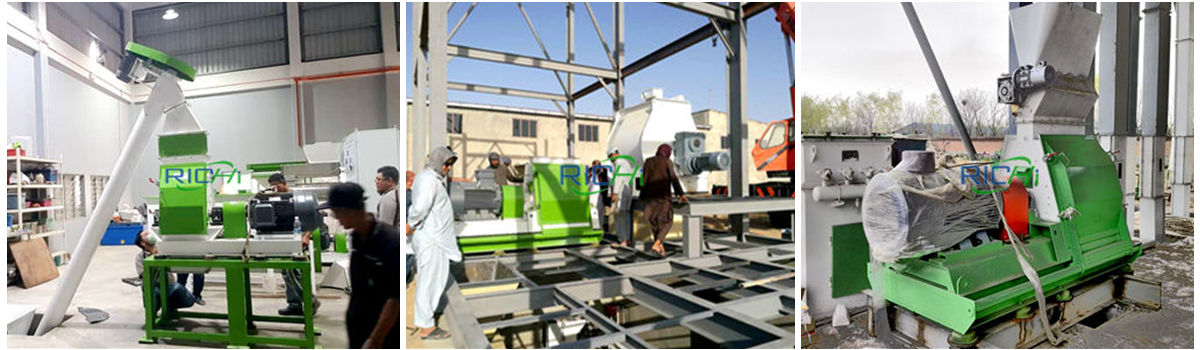

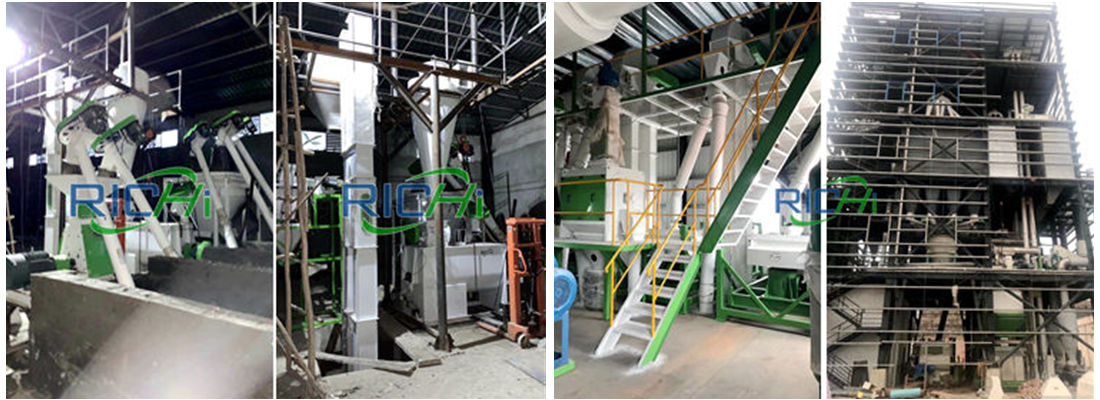

Different animal feed processing plants have different crusher configurations, the following is a list of animal feed grinder machine projects that we have exported in recent years, you can refer to which parameters of the animal feed grinder machine machines are required for different output

Feed hammer mill type Project Country Animal feed hammer mill parameters
Poultry feed grinder 10T/H Poultry Premix Feed Plant Thailand SFSP66*80 (110KW)
Chicken feed grinding mill 1-2T/H Poultry Feed Pelletizing Plant Cape Verde SFSP56*40 (30KW)
Corn grinder for chicken feed 1-2T/H Poultry Chicken Broiler Feed Production Plant Malawi SFSP56*40 (30KW)
Poultry feed grinder 3-5T/H Poultry Feed Mill Plant Senegal SFSP56*60 (37KW)
Poultry chicken feed grinding machine 1-2T/H Small Poultry Feed Mill Belgium SFSP56*40 (30KW)
Poultry chicken feed grinding machine 10-15T/H Poultry Feed Factory Algeria SFSP66*80 (110KW)
Poultry feed grinding machine 3-5 T/H Poultry Powder Feed Mill Plant & 1T/H Hay Grass Hay Pellet Plant Uzbekistan SFSP56*60 (37KW)
Grinding machine for poultry feed 1-2T/H Chicken Powder Feed Mill For Farm Uzbekistan SFSP56*40 (30KW)
Poultry feed grinding machine 3-5 Tons/Hour Poultry Feed Mill Plant Uzbekistan SFSP56*60 (37KW)
Grinder for chicken feed 10-15T/H Automatic Chicken Feed Mill Project Afghanistan SFSP66*80 (110KW)
Poultry feed grinding machine 10T/H Poultry Feed Plant & 5T/H Premix Production Plant Uzbekistan SFSP66*80 +SFSP66*60 (110KW+75KW)
Poultry feed grinding machine 15-16T/H poultry and cattle feed plant Saudi Arabia SFSP66*100 (132KW)
Poultry feed grinding machine 3-5T/H Broiler Feed Mill Zimbabwe SFSP56*60 (37KW)
Poultry feed grinding machine Complete 5T/H Poultry Feed Mill Kenya SFSP66*60 (75KW)
Poultry feed grinding machine 1-2T/H Small Chicken Feed Plant Papua New Guinea SFSP56*40 (30KW)
Chicken feed grinding machine Two Sets 3-5T/H Poultry Feed Mill Algeria 2*SFSP56*60 (37KW)
Poultry feed grinder machine 3-5T/H Chicken Feed Plant Uzbekistan SFSP56*60 (37KW)
Chicken feed grinding machine 1-2T/H Chicken Feed Mill Plant Australia SFSP56*40 (30KW)
Poultry feed grinder  10-15T/H Poultry Feed Mill Plant Uzbekistan SFSP66*80 (110KW)
Poultry feed grinding machine 5-6T/H Laying Hen Feed Mill Ethiopia SFSP66*60 (75KW)
Poultry feed grinder machine 3-5T/H Animal Chicken Feed Plant New Zealand SFSP56*60 (37KW)
Poultry chicken feed grinder 3-5T/H Animal Livestock Poultry Feed Mill Plant Tanzania SFSP56*60 (37KW)
Chicken feed grinder machine 1-1.2T/H Bird And Camel Feed Pelleting Plant Qatar SFSP56*40 (30KW)
Poultry feed hammer mill 1-2T/H Poultry Farm Use Poultry Feed Making Plant Sudan SFSP56*40 (30KW)
Grinder for chicken feed 1-2T/H Chicken Feed Plant Iraq SFSP56*40 (30KW)
Poultry feed crushing machine 3-5T/H Poultry Mash Feed Plant Malaysia SFSP56*60 (37KW)
Grain grinding machine for chicken feed 1-2T/H Chicken Feed Production Plant Gambia SFSP56*40 (30KW)
Grain grinder for chicken feed 1-2T/H Chicken Feed Processing Plant Tanzania SFSP56*40 (30KW)
Grinder for chicken feed 1-2T/H Chicken Feed Pellet Plant Rwanda SFSP56*40 (30KW)
Poultry grinder hammer mill 120,000 Tons/year Poultry Feed Factory China 4*SFSP138*40E (160KW)
Hammer mill on corn feeds for poultry 15 T/H chicken compound feed plant China SFSP66*100 (132KW)
Chicken feed grinder machine Large 60T/H Animal Feed Company China 3*SFSP138*30E (132KW)
Hammer mill machine for poultry feed 50T/H Poultry Feed Mill Factory China 2*SFSP138*40E (160KW)
Hammer mills for livestock feed and poultry feed 40-42T/H Poultry Feed Company China 2*SFSP138*30E (132KW)
Cattle feed grinding machine 10-12 T/H Cattle Feed Plant (Hemp Pellet Feed) United States SFSP66*80 (110KW)
Cattle feed grinding machine 10T/H Cattle Feed Mill Plant  South Africa SFSP66*80 (110KW)
Corn grinder for cattle 0.8-4T/H Cattle Livestock Feed Mill South Africa SFSP56*60 (37KW)
Hammer mill for maize stock feed 0.8-1.2 T/H Cattle Sheep Feed Production Line Uzbekistan SFSP56*40 (30KW)
Hammer mill for cattle feed 5-6T/H cattle feed manufacturing plant Saudi Arabia SFSP66*60 (75KW)
Cattle feed grinder machine 3-5T/H Ruminant Sheep Cow Feed Plant  Indonesia SFSP56*60 (37KW)
Cattle feed grinder 3-4T/H Ruminant Cattle Feed Mill Hong Kong, China SFSP56*60 (37KW)
Cattle feed grinding machine 1-1.2T/H Ruminant Camel Feed Pellet Plant Qatar SFSP56*40 (30KW)
Grinder machine for cattle feed 1-2TPH Cattle Feed Plant (Extruded Feed) Uzbekistan SFSP56*40 (30KW)
Livestock feed grinding machine 10T/H Livestock Cattle Feed Plant Mauritania SFSP66*80 (110KW)
Livestock feed grinder 5-6T/H Livestock Cattle Feed Plant  Somalia SFSP66*60 (75KW)
Cattle grinder 1-2T/H Livestock Feed Pellet Plant Botswana SFSP56*40 (30KW)
Grinding machine for shrimp feed 1-2T/H Shrimp Feed Mill Plant Ecuador SFSP56*40 (30KW)
Hammer mill for fish feed 5T/H Sinking Fish Feed Mill Uzbekistan SFSP66*60 (75KW)
Grinder machine for fish feed 2T/H Fish Feed Mill Plant Bolivia SFSP56*40 (30KW)
Hammer mill for fish prawns crab feed 15T/H Aqua Feed Plant China SFSP110/132kw
Hammer mill for fish feed 25T/H Aqua Prawn Fish Feed Manufacturing Plant China SFSP138*40E (160kw)
Grinder machine for fish feed 4T/H Fish And Pet Feed Mill China SFSP56*60 (37KW)
Grinder machine for fish feed poultry feed 20T/H Poultry Fish Feed Mill Plant China SFSP138*40E (160kw)
Get Animal Feed Grinding Machine Price

Methods to reduce maintenance costs with careful animal feed grinding machine selection

Keeping your animal feed grinding machine maintenance costs low starts before the animal feed grinding machine is installed at your animal feed plant.

By carefully selecting the animal feed grinding machine's wear parts and determining the best way to operate the feed milling machine in your application, you can minimize required maintenance while ensuring that the animal feed grinder mill provides top grinding performance.

To speed and simplify maintenance, you also should select wear parts designed for easy replacement.
chicken feed mixer and grinder feed grinder and mixer machine cattle feed grinder and mixer

  1. Selecting the screen area.

    The animal feed grinder should have at least 14 square inches of screen area per horsepower for most applications. Too little screen area will make the animal feed grinder inefficient and cause your material to heat up during grinding.

    When using a very fine screen (with holes less than 5⁄64 inch), you may need to use more screen area per horsepower because the screen has less open area.

  2. Selecting the hammer pattern.

    The number of hammers in your animal feed grinder is called the hammer pattern. For a large-diameter animal feed grinder (with a diameter of 38 inches or more) that uses hammers more than 10 inches long, the number of hammers you'll need for a screen with large (at least ⅛-inch) holes is typically one hammer per every 2.5 to 3.5 horsepower.

    For a large-diameter animal feed grinder with the same hammer size but smaller screen holes, you may need more hammers to prevent them from "rocking" back and forth on their pins and quickly wearing and enlarging the hammer holes. To produce a finer grind, you should also use more hammers.
    animal feed mixer grinder corn mill grinder corn grinder for animal feed

  3. Setting the tip-to-screen clearance.

    In most applications, the clearance between the hammer tip and screen has only minor influence on grinding performance. Generally, a larger tip-to-screen clearance provides the greatest grinding capacity and efficiency.

    For a fribrous or other tough-to-grind material, however, setting the hammer tip near the animal feed grinder screen can achieve a finer grind, but this can also increase screen and hammer wear.
    horse feed grinder machine corn grinder mixer machine corn grinder machine pig feed grinder mixer feed grinder machine

  4. Setting the tip speed.

    To achieve a finer final size when using a feed grinder screen with holes smaller than ⅛ inch, you should use a high tip speed (greater than 18,000 fpm).

    This speed is more efficient in producing finer grinds and permits the hammer to do more of the grinding work, minimizing screen wear. Use a lower tip speed and a screen with larger holes to produce a coarser, more uniform grind.

Get Animal Feed Grinding Machine Price

Several different types of livestock and poultry have requirements for feed particle size

In livestock and poultry breeding, proper crushing and processing of feed is not only convenient for mixing ratio, but also can improve the palatability of feed, which is favored by livestock and poultry. At the same time, it is conducive to the digestion and absorption of livestock and poultry, and improves the effective utilization rate of feed.

However, due to the different types of livestock and poultry, the granularity of feed crushing and processing is also different. According to the survey of relevant data, various feeds for piglets have a feed particle size of 0.85~0.95mm in diameter compared with a diameter of 1.7~1.8mm.
animal pig electric feed grinder mixer small poultry feed grinder mill feed grinder small poultry livestock animal feed mixer grinder

The percentage increase in digestibility is: organic matter 3~4%, crude protein 4~5%, crude fat 10~14%, crude fiber 5~6%, nitrogen-free extract 2~3%. It is not difficult to see from this that an appropriate feed particle size is one of the necessary ways to improve feed quality and increase feed remuneration.

The particle size of feed products after crushed feed materials should be determined according to the species of raw materials and different types of livestock and poultry. Several different types of livestock and poultry have different requirements for feed particle size:
feed machinery grain wheat sorghum corn grinder mixer machine

Chicken feed particle size requirements

  1. Young chickens: less than 1.0 mm in diameter
  2. Medium chicken: 2.0 mm in diameter
  3. Adult chicken: 2.0~2.5mm in diameter

Pig feed particle size requirements

  1. Suckling piglets: less than 1.0 mm in diameter
  2. Piglets: 1.0 mm in diameter
  3. Early fattening: 1.0~1.2mm in diameter
  4. Late fattening period: 1.2~1.5mm in diameter

The particle size requirements of dairy cow feed

  1. Suckling calves: less than 1.0 mm in diameter
  2. Young cattle: less than 2.0 mm in diameter
  3. Calf: Diameter less than 2.2 mm (6.0 mm for pellets)
  4. Adult dairy cows: less than 2.5 mm in diameter (15.0 mm for pellets)
Get Animal Feed Grinding Machine Price

Why Choose Richi

why choose richi
why choose richi
Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields. All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Get Price & Service

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization. Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Get Price & Service
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Get Price & Service
Quality Control

Delivery And Installation

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment. According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Get Price & Service
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training
After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs. After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.

Get Price & Service
Related Project
Contact Us

GET A QUOTATION

Application:

Demands: (Submit your requirement here, eg. equipment, materials, product type, production size, etc.)

* We will store the information you have provided us. We will only use this information for the purpose of helping to answer your inquiries. We will not disclose your information to third parties.

Copyright © 2015-2022 by HENAN RICHI MACHINERY CO,LTD.All rights reserved.
×
Fill Out The Form To Get Quotation
