Name：Complete sawdust pellet production line
Capacity：40,000 tons per year
The install period：60 Days
Wood pellet plant investment cost：1,502,500 USD
In order to develop the local economy, improve the comprehensive utilization rate and utilization efficiency of straw, turn waste into treasure, protect the ecological environment, and take the road of sustainable development, this wood pellet production business project client, Jianhe New Energy Technology Co., Ltd. started a high return wood pellet plant project of 40,000 tons of hardwood sawdust pellets.

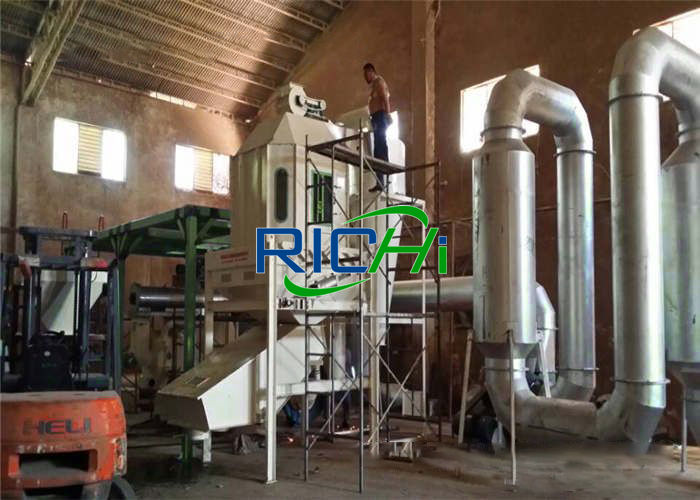

The large 13-14t/h high efficiency industrial wood pellet plant for making wood pellets from sawdust project leased a vacant factory building and warehouse to build the wood pellet production line.
The 13-14t/h heavy duty wood pellet plant project covers an area of 1800㎡ and the total area of the leased house is 1800㎡, including 1500㎡ of production workshop, 300㎡ of warehouse, and 20㎡ of office and living space.
The supporting construction includes auxiliary projects such as roads, greening, environmental protection, fire protection, power transformation and distribution.
The large 13-14t/h high efficiency industrial sawdust wood pellet plant project with an annual output of 40,000 tons of compressed sawdust pellets covers an area of 1800㎡, with a total construction area of 1800㎡, including production workshops, warehouses and offices, etc.;
Purchase of auxiliary facilities and machine that makes wood pellets such as peelers, industrial wood chipper, high quality wood hammer mill to grinding wood chips, and sawdust pellet maker.
After the industrial wood pellet mill plant project is completed, the maximum production capacity is 40,000 tons of sawdust wood pellets per year. The specific wood sawdust pellet plant with 13-14tph project content is as follows:
|No.||Project Name||Main construction content|
|(1)||Production Workshop||The production workshop is 1500㎡, equipped with 1 sawdust pellet production line.|
|(2)||Storage and transportation project||There is no independent raw material warehouse, and the 150㎡ of the south part of the wood pellet plant workshop is used as a finished product warehouse.|
|There is no independent finished product warehouse, use the 150㎡ of the north side of the wood pellet plant workshop as the finished product warehouse|
|(1)||Powered||Powered by local power system|
|(2)||Water supply||Local water network water supply|
|(3)||Drainage||There is no production wastewater in the industrial wood pellet plant project; domestic sewage is discharged into the municipal sewage pipe network after being treated in septic tanks, and then discharged into nearby rivers after reaching the local sewage treatment plant.|
|(1)||Office||Office and auxiliary space 20㎡, no canteen and dormitory|
|4.||Environmental Protection Project|
|(1)||Wastewater||The domestic sewage is discharged into the municipal sewage pipe network after being treated in the septic tank, and then discharged into the nearby rivers after being treated by the local sewage treatment plant up to the standard.|
|(2)||Exhaust gas||Project silo feed dust is collected by bag filter|
|(3)||Noise||Measures such as noise reduction, vibration reduction, vehicle noise isolation, etc.|
|(4)||Solid Waste||Production leftovers: reused for production; domestic waste: disposed of by the sanitation department.|
|Product Name||Annual production (tons|
|Compressed hardwood sawdust pellets||40000|
|Material Name||Annual Usage||Source and Shipping|
|Wood block, wood sawdust||40,000t/a||Outsourcing, Auto Transportation|
|Sawdust pellet machine name||Quantity|
|Wood chipper for making 3-5m chips||1|
|Hammer mill for wood pellets||1|
|Sawdust pelletizing machine (sawdust compactor machine)||1|

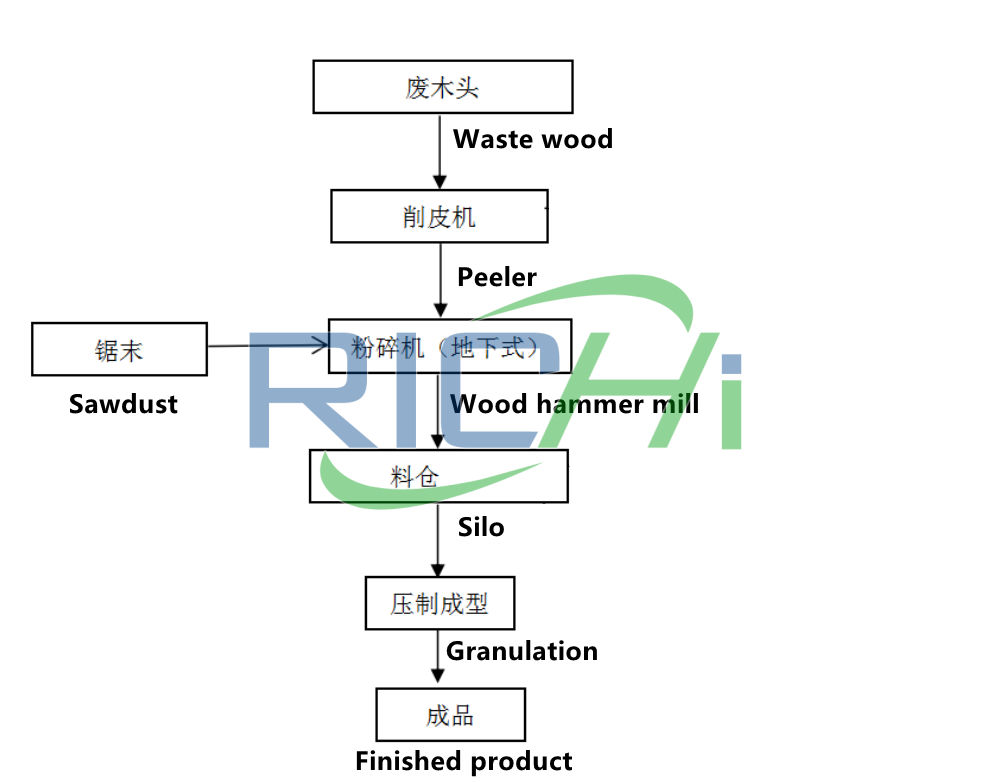

Chipping large pieces of waste wood to size suitable for production with an on selling 3-5 ton per hour industrial wood chipper shredder.
The high quality wood hammer mill to grinding wood chips is an underground closed type, and the raw materials are pulverized by the super quality wood hammer mill for wood sawdust.
The crushed waste wood sawdust materials are led to the silo by the fan, and the generated dust is processed by the bag filter, and the dust generated by the bag filter is reused for production.

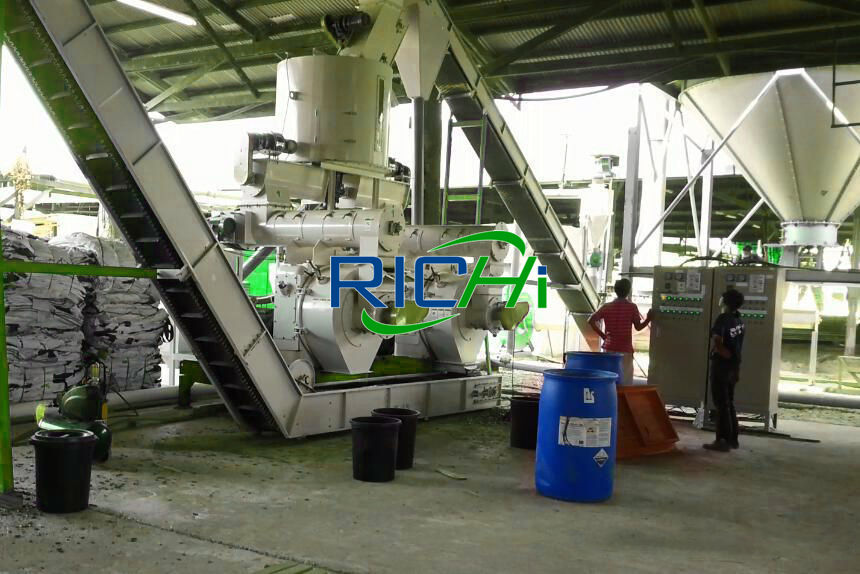

In this wood pelleting process, the wood sawdust material is made into a round solid fuel with a diameter of 5mm by sawdust pellet press machine under high pressure and high temperature conditions.
The sawdust pellet press machine's working principle is to use the inherent characteristics of wood raw materials to combine biomass wood materials under high pressure and high temperature (using electric energy), and lignocellulose in wood raw materials to combine fibers to form finished sawdust fuel pellet products.
The annual output of 40,000 tons of hardwood sawdust pellets plant construction project is located in Jingchengbei Town Industrial Park, Lixin County, with Chengbei Road on the south and Harmony Avenue on the west. The land used for construction is in line with the overall land use planning of Lixin County.
The 13-14tph industrial wood pellet plant land area has good infrastructure, guaranteed supply of water and electricity, and convenient transportation. There are no scenic spots and ecological fragile zones around the wood pellet plant project. Therefore, the compeltely industrial wood pellet plant project site selection is reasonable.
