Good Quality 6T/H Renewable Energy Turn-key Biomass Wood Pellet Mill Plant For Bamboo Wood Pellets Production

Because, its processing produces a lot of bamboo waste. In order to comprehensively utilize these wastes and increase the company's income, the customer decided to invest in the construction of a complete wood bamboo pellet production line.

Good Quality 6T/H Renewable Energy Turn-key Biomass Wood Pellet Mill Plant For Bamboo Wood Pellets Production

OVERVIEW

The client of this new design biomass wood pellet mill plant project, Longyou Weiye Bamboo & Wood Products Co., Ltd., is a company that processes bamboo mats, bamboo reclining chairs and other products from the main raw materials of bamboo.

Because, its processing produces a lot of bamboo waste. In order to comprehensively utilize these wastes and increase the company's income, the customer decided to invest in the construction of a complete bamboo wood pellet production line.

  • Name:

    China hot selling bamboo waste pellet machine plant

  • Country:

    China

  • Date:

    August 2017

  • Capacity:

    15,000 tons/year

  • Pellet Size:

    8mm

  • The install period:

    30 Days

  • Control Mode:

    Automatic

  • Professional ce pellet machine price for bamboo pellets:

    659,400 USD

In addition to the company's bamboo waste, customers will also purchase wood sawdust and bamboo chips from surrounding furniture factories and wire drawing factories, forming an annual output of 15,000 tons of biomass bamboo wood pellets.

Labor quota and work hours of the 6 tons per hour renewable energy biomass wood pellet mill plant

The number of employees in this 6 tons per hour bamboo wood pellet mill plant project remains unchanged before and after the technical transformation. The number of employees is 20. The production is 8 hours a day, and the annual production days are 300 days. The bamboo wood pellet mill plant project does not provide accommodation.

In addition, according to the working system, it can be calculated that the output of the turn-key wood  biomass pellet mill plant for bamboo wood pellets production is 6t/h, 50t/d, 1250t/m.

General floor plan of the 6 tons per hour renewable energy biomass wood pellet mill plant

The client company rented an idle local workshop for production. This 6 tons per hour bamboo wood pellet mill plant project rented the west part of the whole workshop with a total of 1500㎡.

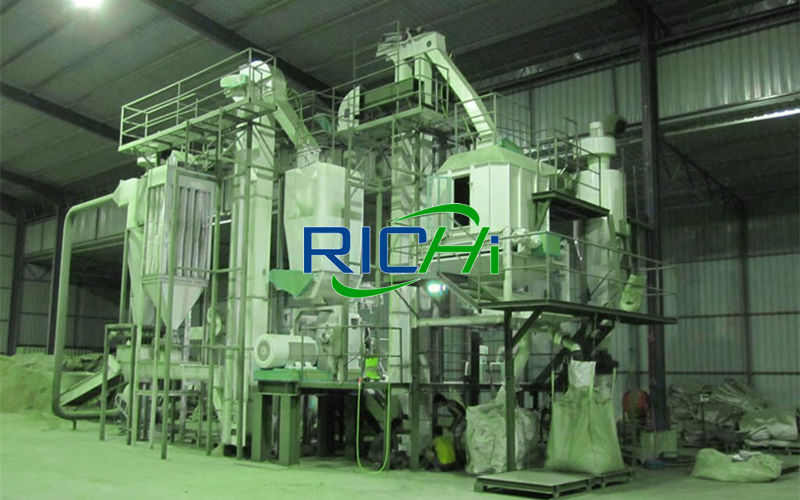

china hot selling bamboo waste pellet machine professional ce pellet machine price for bamboo pellets

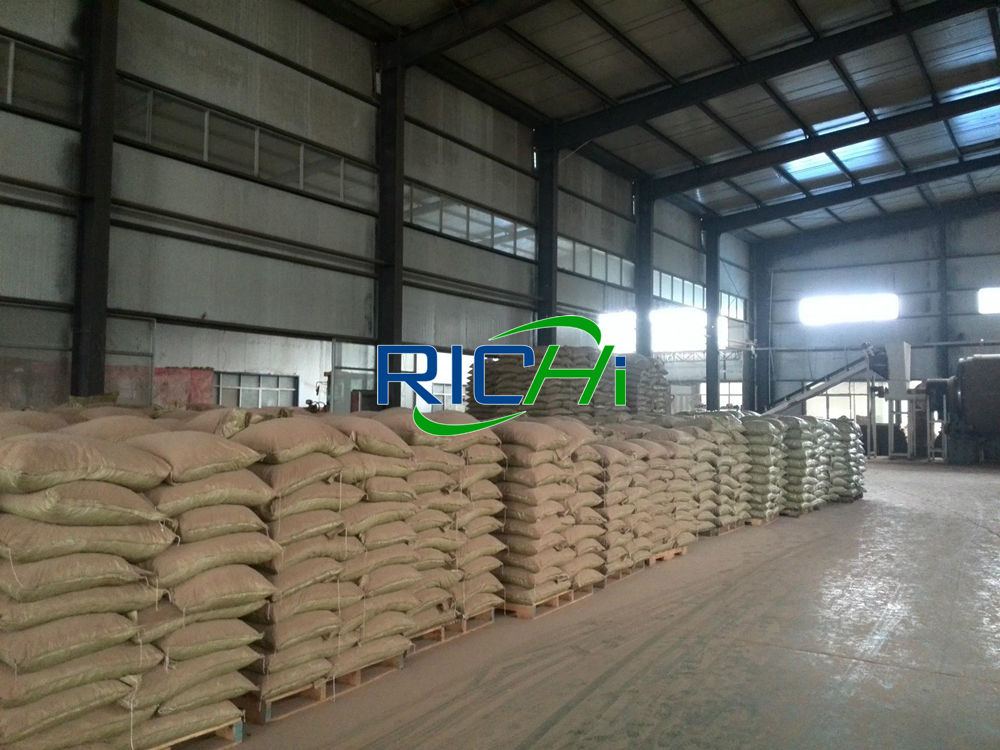

The north side of the wood bamboo pellet mill plant workshop is the raw material storage yard, and the south side are top quality bamboo pellet machine, hot selling bamboo processing wood chipper, wood bamboo pellet cooler, packaging machine.

The layout of the wood bamboo pellet mill plant's functional partitions is standardized, and the overall layout of the wood bamboo pellet mill plant is reasonable.

Product solutions of 6 t/h biomass wood pellet mill plant for bamboo wood pellets production

Product name Annual Production Remarks
Biomass bamboo wood pellets 15000t/a 100t of which is used as the fuel for the dryer of this 6t/h wood bamboo pellet mill plant factory project.

Raw materials and energy consumption

Name Annual consumption Remarks
Wood sawdust 6000t/a Automobile transportation, finished product outsourcing

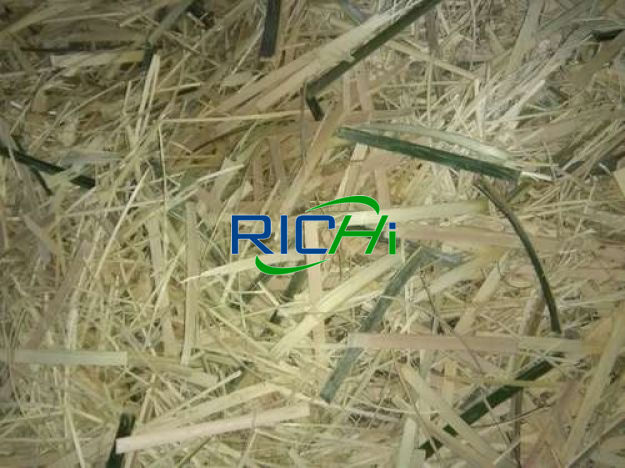

Bamboo Chips 18000t/a Automobile transportation, finished product outsourcing
Packaging bags 596000 Auto transport, finished product outsourcing, specification 25kg
Water 300t/a Local water network supply
Electrical 200,000 KwH/a Local grid supply

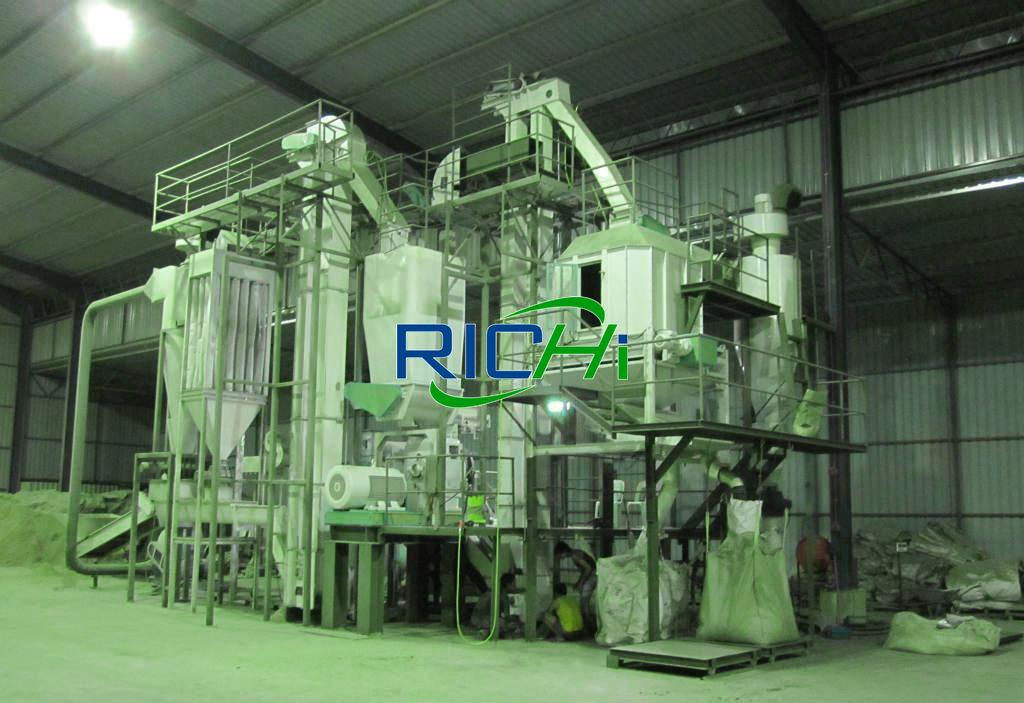

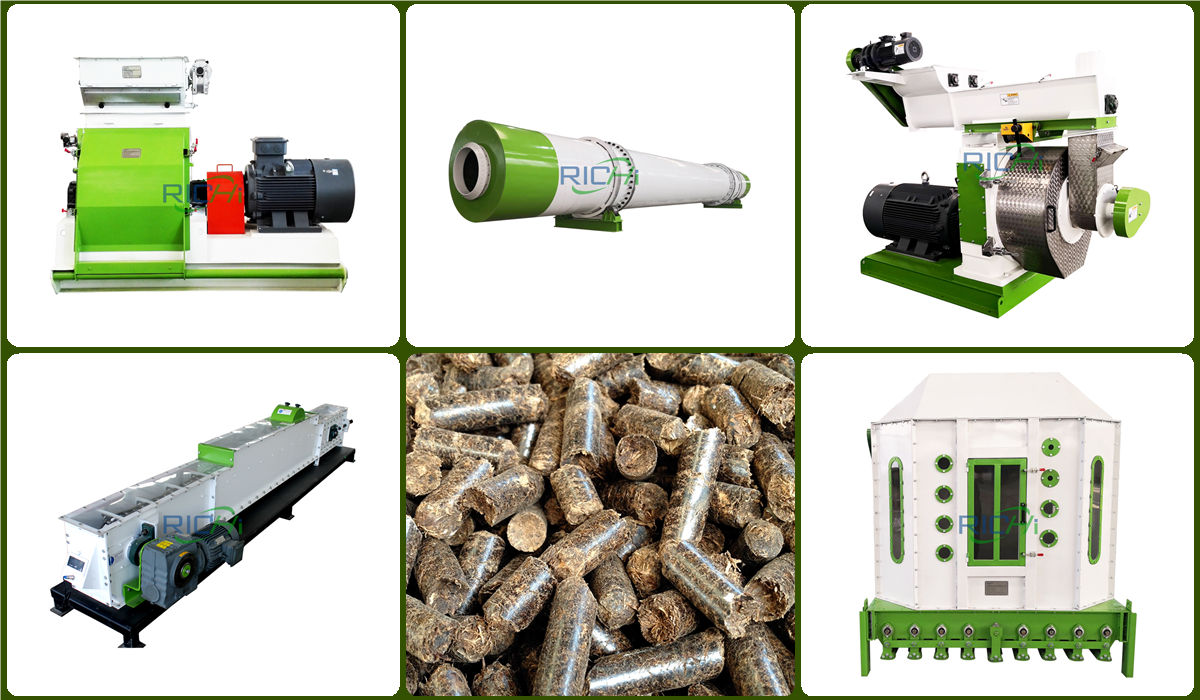

Main wood bamboo pellet machine of the 6 t/h biomass wood pellet mill plant

Wood bamboo machinery name Number
Big diameter bamboo wood chipper 1
Biomass bamboo pellet machine 3
Bamboo dust rotary dryer 1
Forklift 2
Conveyor 3
Bamboo pellet packer 3
Bamboo pellet cooler 3
Dust removal equipment 2

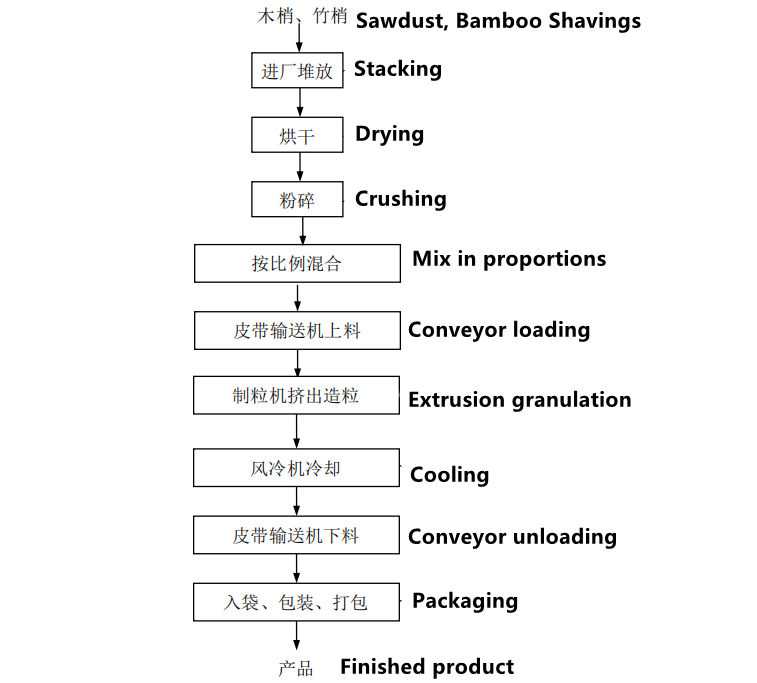

Complete bamboo wood pellets production process

  1. Drying section

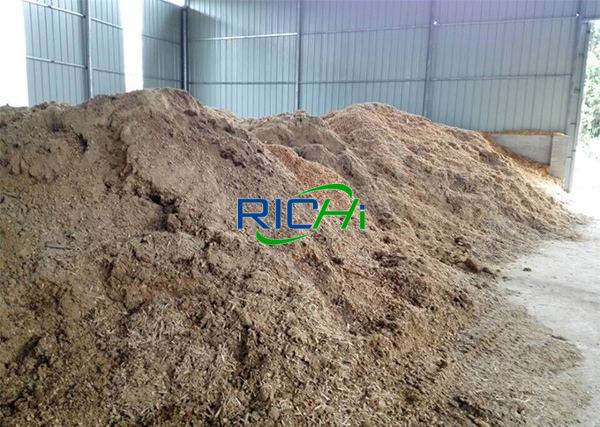

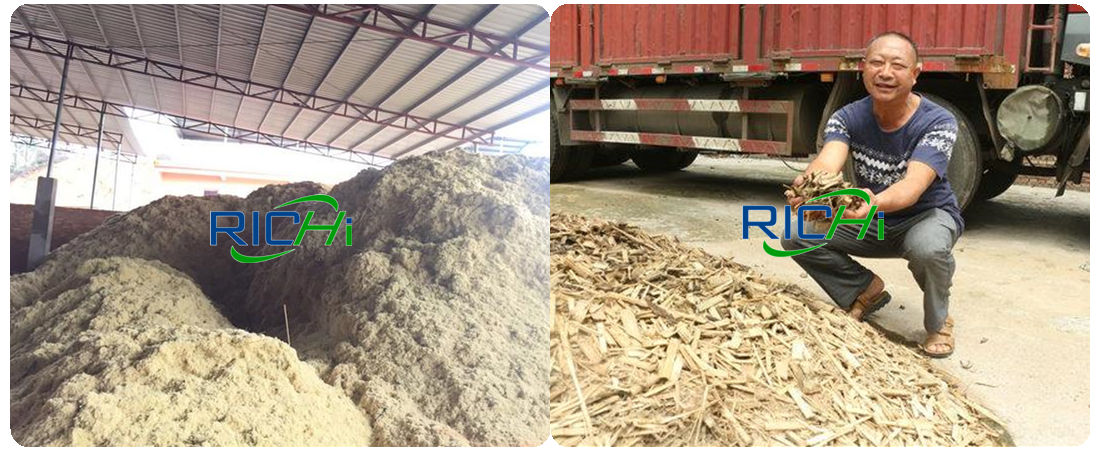

    The wood chips and bamboo chips purchased from the surrounding furniture factories and wire drawing factories are separated and stacked after entering the wood bamboo pellet factory.

    The moisture content of the purchased raw materials for this wood bamboo pellet mill plant project is high, so drying treatment is required to ensure that the moisture content of the materials is less than 25%.

    The wood bamboo pellet mill plant project uses biomass pellets for drying, and the required fuel biomass wood bamboo waste pellets are provided by the 6t/h bamboo wood pellet machine line project itself.

  2. Crushing section

    The size of the raw materials purchased from the wood bamboo pellet mill plant project are large, so the raw materials need to be crushed by wood bamboo wastes hammer mill.

  3. Mixing section

    The raw materials that meet the wood bamboo pellet production needs are manually mixed according to a certain proportion.

  4. Granulation and cooling section

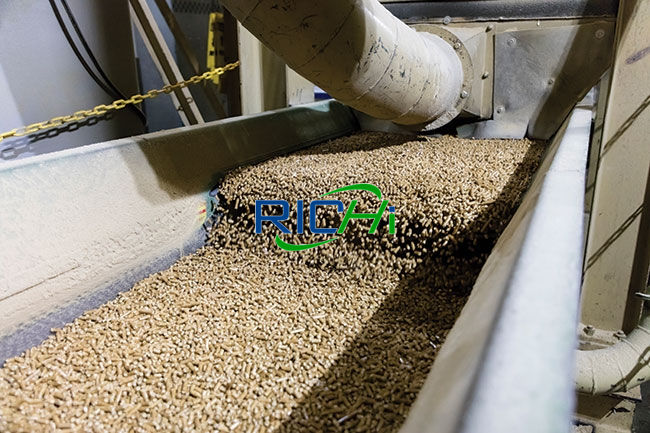

    The mixture is sent to the pellet machine for bamboo pellets through the belt conveyor for extrusion granulation. The hot selling bamboo waste pellet machine pelletizing process does not require heating or adding moisture, it is a purely mechanical extrusion process. The extruded bamboo wood pellets are cooled by an air cooler.

  5. Packaging section

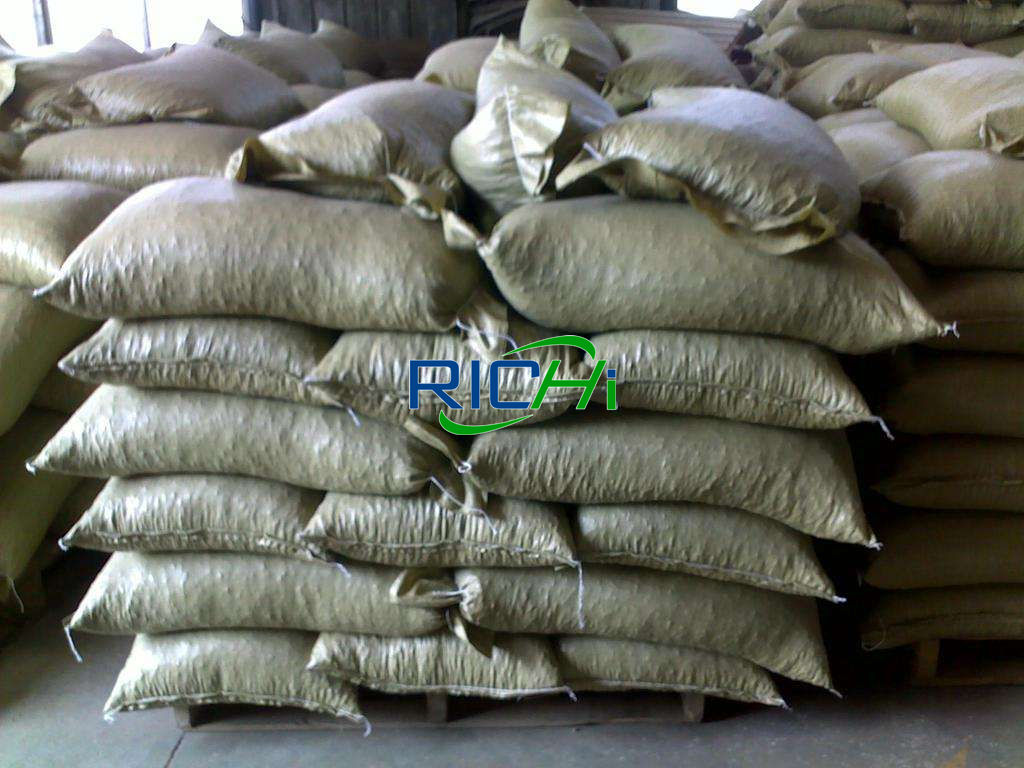

    After cooling, it is sent to the baler by the belt conveyor for direct bagging and packing to obtain the product.

Note that the raw materials purchased from the project are directly shipped into the wood bamboo biomass pellet plant factory by trucks, and the trucks are covered with covers or tarpaulins; In the raw material storage area, there is no independent and closed warehouse for raw material storage.

Utilities of the good quality 6 t/h biomass wood pellet mill plant for bamboo wood pellets production

  • Water supply:

    The 6t/h bamboo wood biomass pellet production line project water is supplied by the local water pipe network.

  • Drainage:

    Drainage is based on the principles of "cleaning and diverting sewage" and "separating rain and sewage". Rainwater is discharged through rainwater pipes; domestic sewage is pretreated by the lessor's existing sewage treatment facilities (septic tanks) to reach local sewage.

    new type wood pallets biomass wood pellet production line biomass fuel wood pellet production line

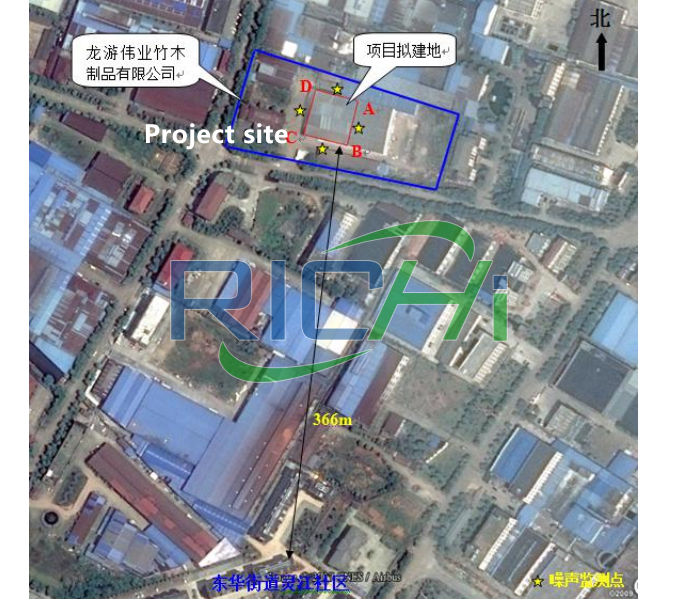

    The 6t/h wood bamboo powder pellet plant project and surrounding

    After the discharge standard, it will be discharged into the urban sewage pipe network, and after being treated by the local sewage treatment plant, it will be discharged into the nearby river after reaching the first-class A standard in the pollutant discharge standard of the urban sewage treatment plant.

  • Power supply:

    The electricity for this 6t/h bamboo wood pellet mill plant project is supplied by the local power grid.
