Sawdust Pellet Press

MZLH Series 0.3-4.5T/H Production Capacity

  • MZLH320 pellet press for sale
  • MZLH350 pellet press for sale
  • MZLH420 pellet mill press for sale
  • MZLH520 pelleting press for sale
  • MZLH768 pelletizer press for sale
  • MZLH858 sawdust pellet press for sale

Sawdust pellet press is the key component in a complete sawdust pellet plant. It is mostly used to process wood materials like wood chips, sawdust, tree branches, logs, and so on, so it is a kind of large scale wood pellet maker. Also, it can process other raw materials like palm fiber, sugarcane bagasse, peanut shell, corn stalk, wheat straw and many other agro-wastes.

We have a professional technical team to tailor a personalized sawdust pellet plant system plan for you, and provide one-stop services from early design, manufacturing to later construction, maintenance and other services. Committed to providing global customers with "safe, reliable, energy-saving" stand-alone products, and strive to create high-quality, low-energy, strong and stable quality pellet production projects.

Get Price & Support
Apply Our Best Quotation

Sawdust pellet press for sale

How to make sawdust pellets? By sawdust pellet press machine. So, what is pellet press? The granulator, as the name suggests, is used to compress granules, can also be called granulator machine, pellet mill, pellet swaging press, etc. RICHI's pellet pressing machine can be used to process a variety of granules. There is a saying in RICHI, "As long as you need, all materials can be granulated". Such a statement is of course based on the powerful applicability of our sawdust wood pellet pressing machine.
sawdust pellet press wood pellet press for sale wood pellet compressor

After RICHI has analyzed the cost and profit of the wood pellet processing industry and the sawdust pellet machine processing plant, it can be understood that the investment in the ring die sawdust pelletizing machine is very promising and there is also a profit margin. If you want to join the wood pellet processing industry, or need to purchase a sawdust pellet making machine, you can contact Richi Machinery.

Click the Button to Consult Online

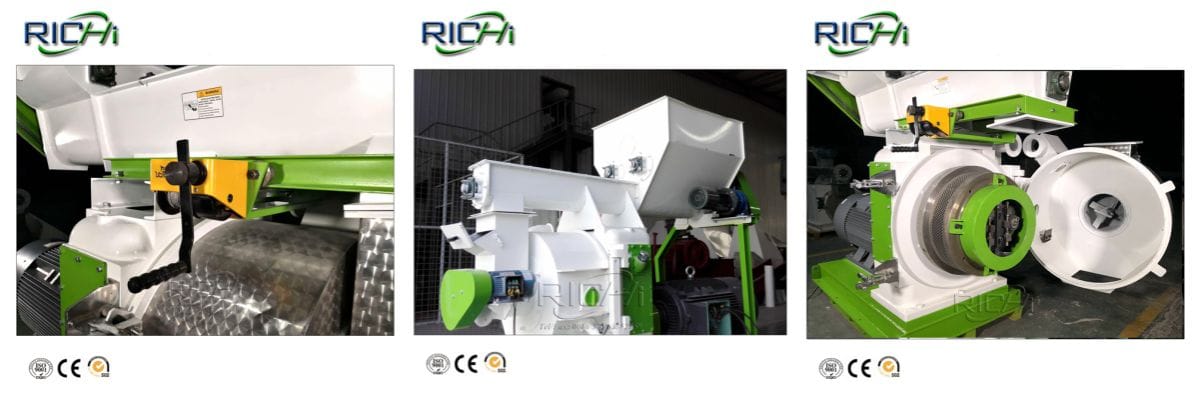

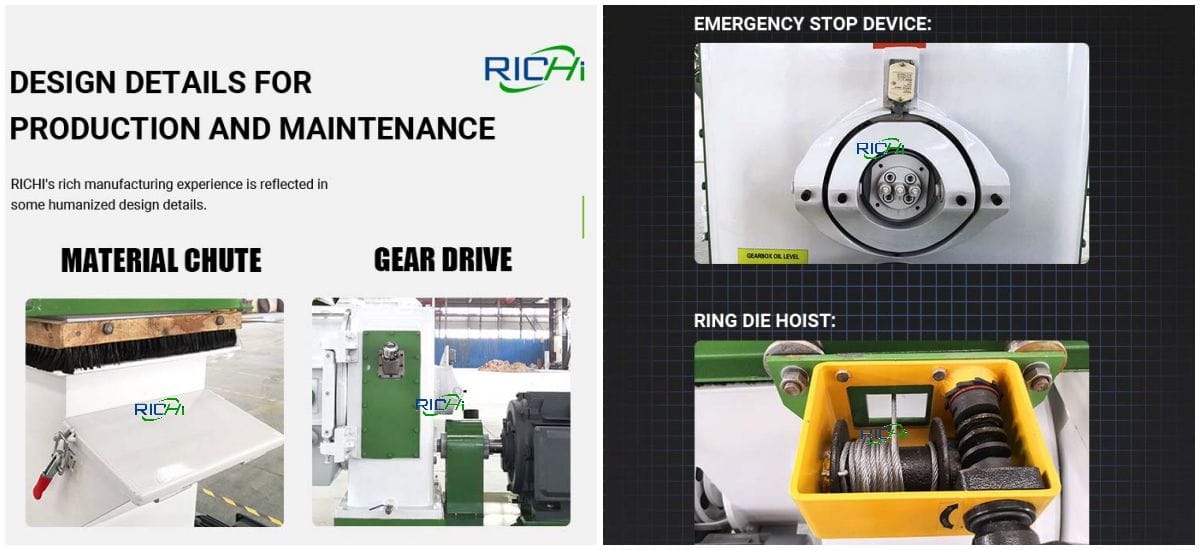

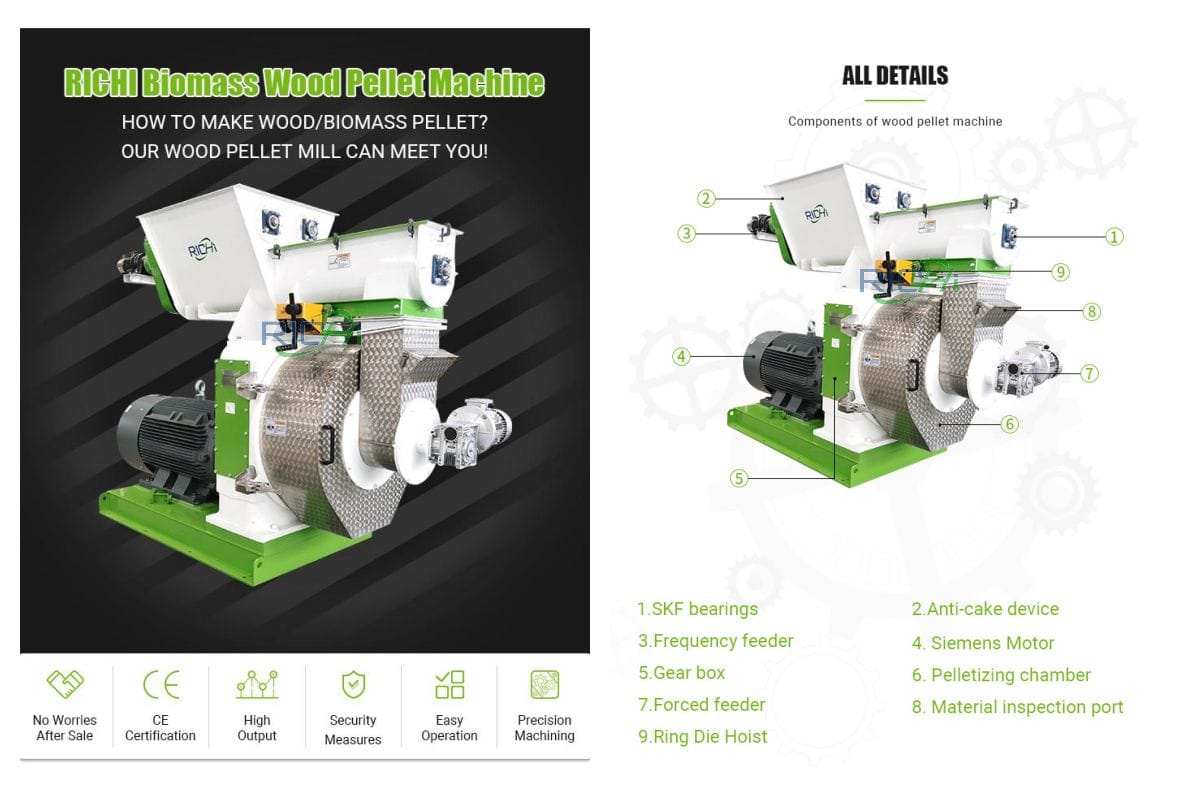

Features of sawdust pellet press

Biomass wood sawdust pellet mill machine is a kind of pellet equipment commonly used in the biomass energy industry. It is a new type of fuel forming machine that crushes biomass raw materials such as branches and straw into rod-shaped pellets to replace coal. Common raw materials: pine, poplar, fir, branches, bark, wood chips, shavings, etc.

Parameters of sawdust pellet press

Model MZLH320 MZLH350 MZLH420 MZLH520 MZLH768 MZLH858
Power 37KW 55KW 90KW 132KW 250KW 280KW
Capacity 300-400KG/H 500-700KG/H 1.0-1.2 T/H 2.0-2.5 T/H 2.5-4 T/H 3-4.5 T/H
Final Pellet 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm 6-12mm
Weight(KG) 2500 3500 4000 4500 5000 5500
sawdust pellet press wood pellet press for sale wood pellet press

Sawdust Pellet Press Price

What's sawdust pelleting press price? How much is a wood pellet press machine? Because different customers have different requirements for pellets, there will be many differences in the details of our pellet press design. Therefore, the actual saw dust pellet mill press machine price for different projects are different. Even if the customer wants to produce the same type of pellets, such as wood pellets, if the customer's raw material moisture, raw material type, plant area, special requirements and technology are different, the pellet press ring die, conditioner, etc. will be different.

Pellet Press For Sawdust Price (USD)
MZLH320 10000-20000
MZLH350 20000-30000
MZLH420 30000-40000
MZLH520 40000-60000
MZLH768 50000-80000
MZLH858 60000-100000
Our pellet press machines can be customized according to customer
needs, including customization of voltage, conditioner, appearance, etc.

Video of sawdust pellet press

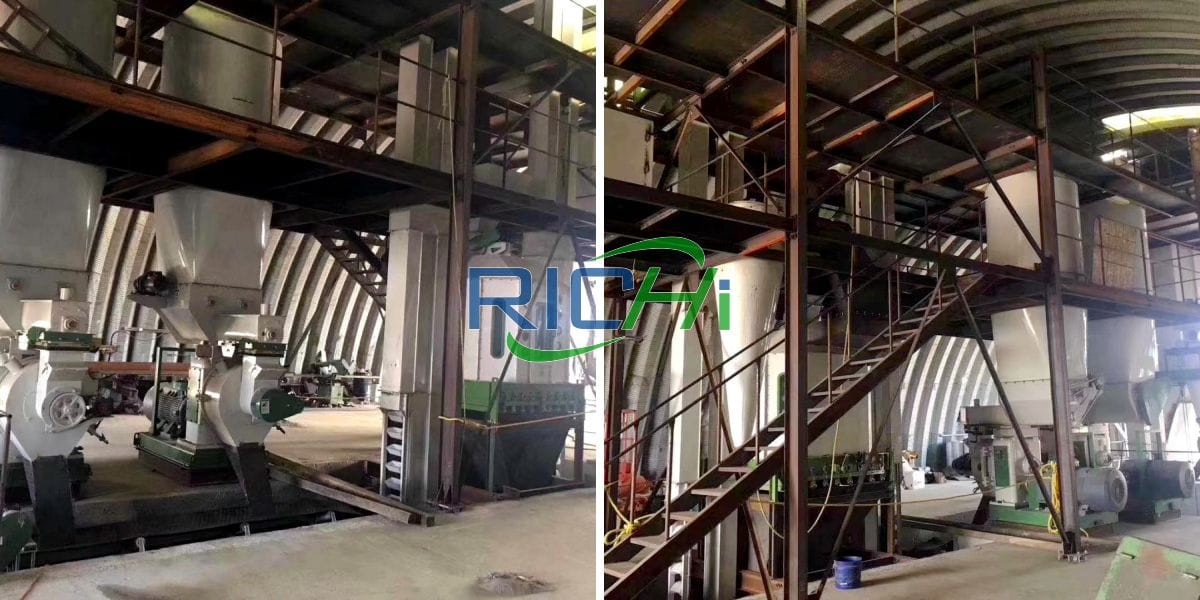

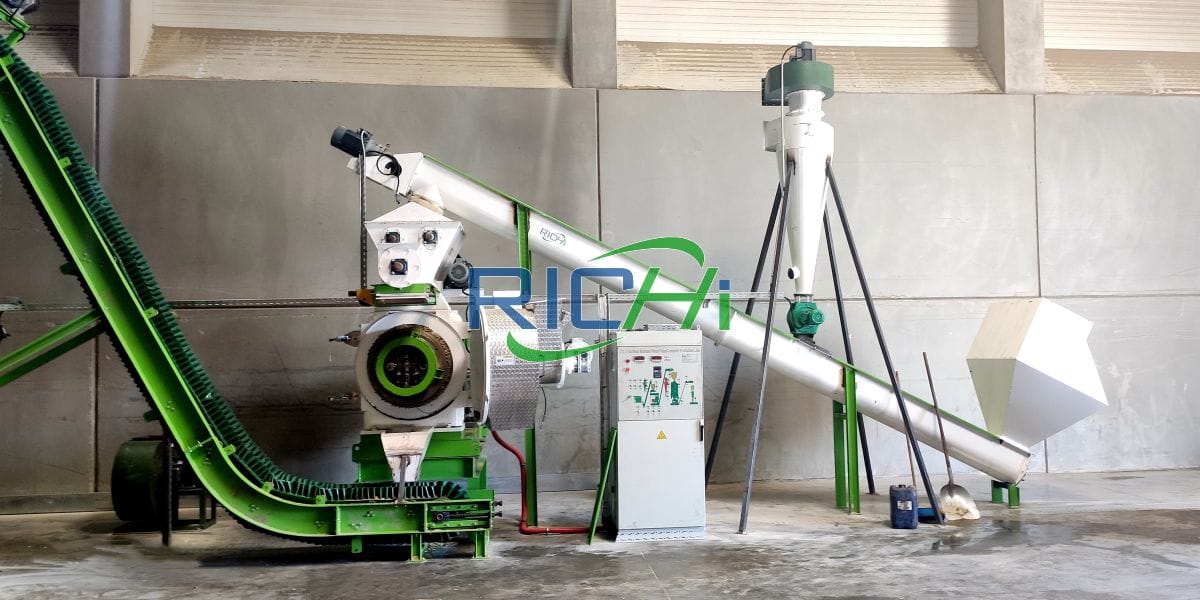

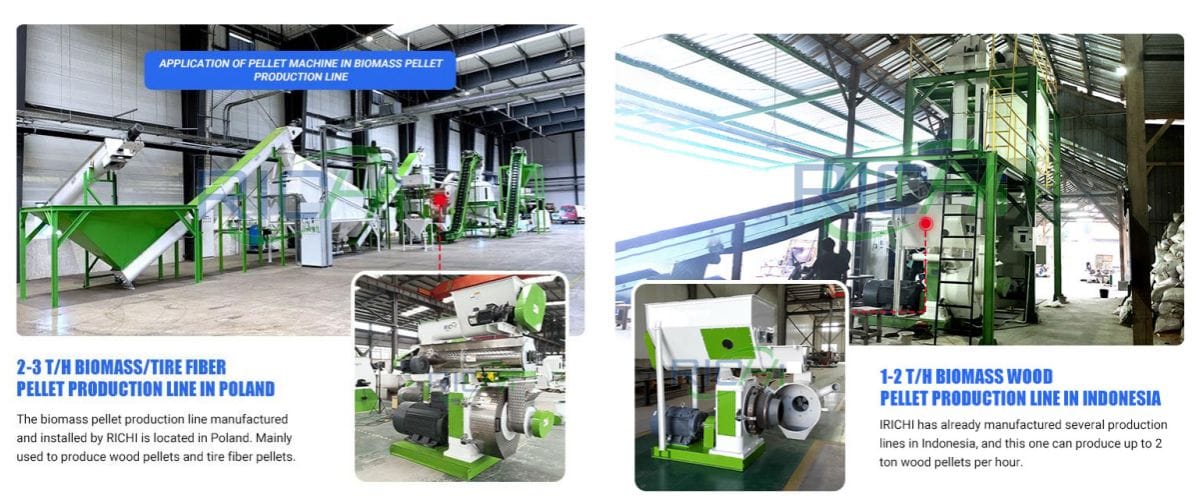

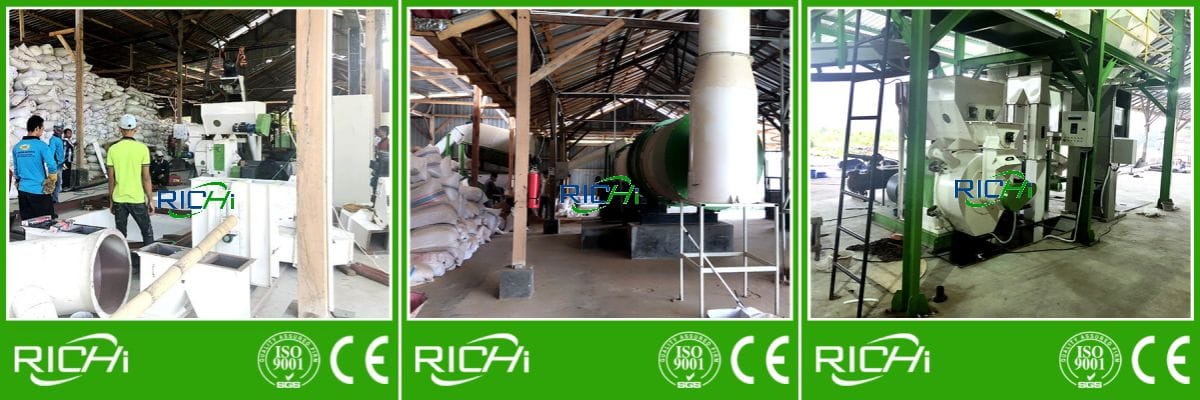

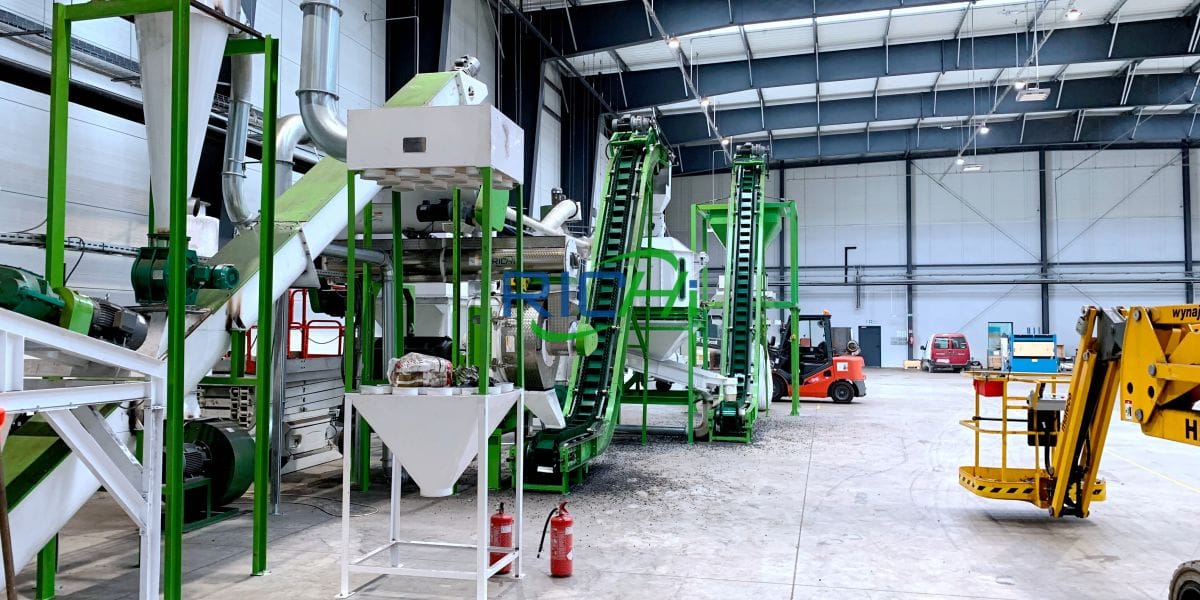

Projects of sawdust pellet press

sawdust pellet press wood pellet press machine wood pellet press for sale

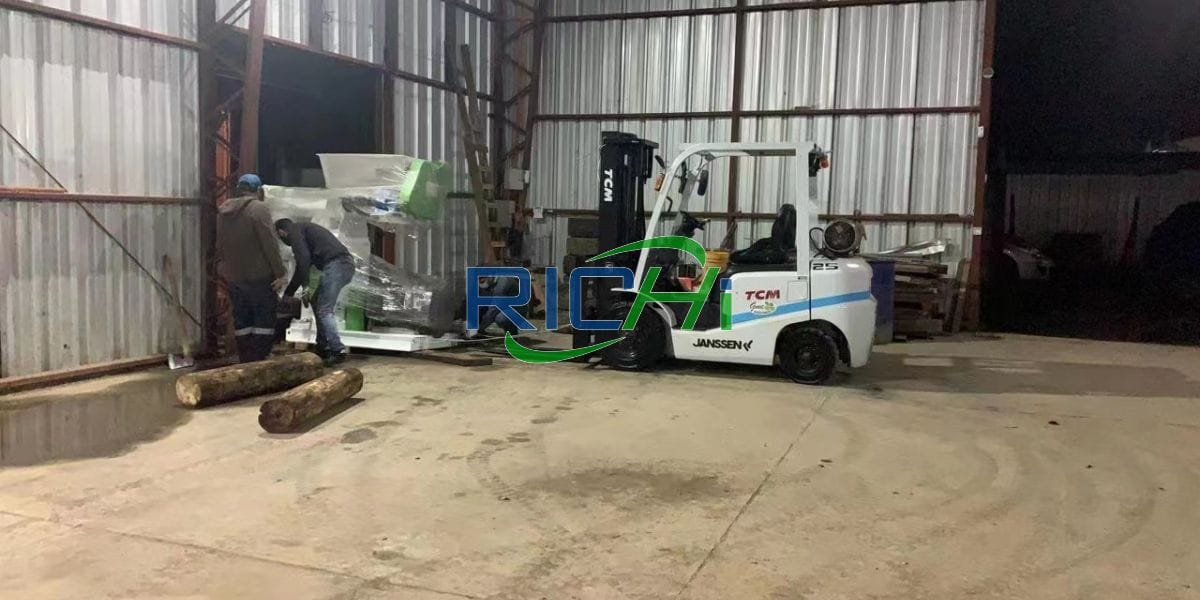

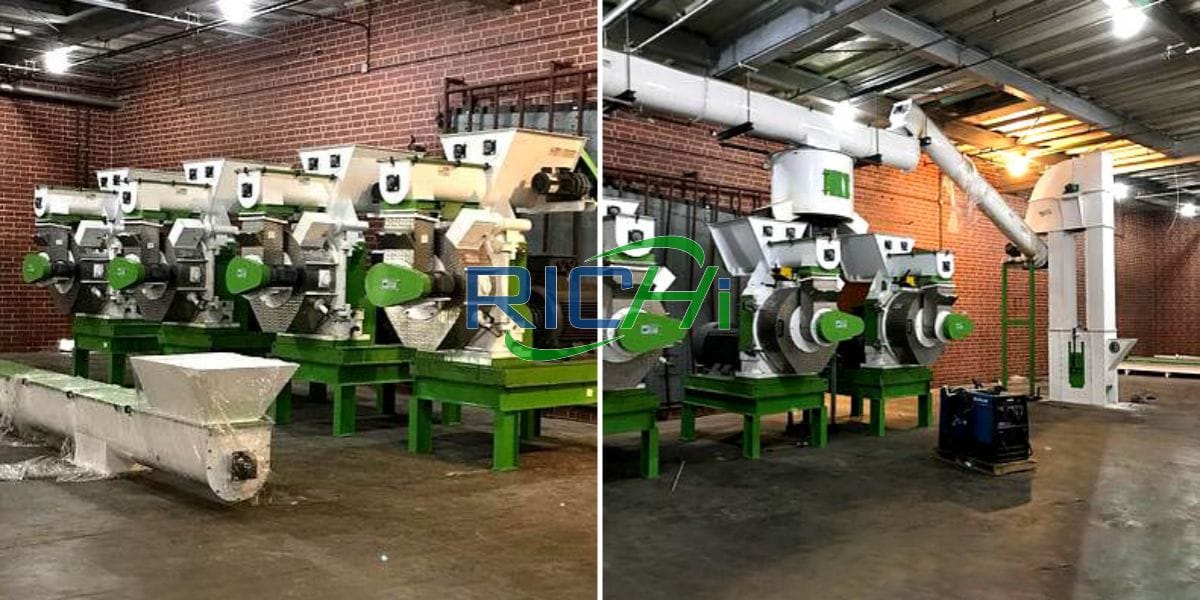

Sawdust Pelletizer Machine For Sale U.S.

sawdust pellet press wood pellet press machine compressed wood pellets

Sawdust Pellet Making Machine For Sale Romania

sawdust pellet press pellet mill pellet press 2.2 kw 230v woodworking wood pellet press

Sawdust Pellet Machine For Sale Indonesia

sawdust pellet press wood pellet press wood pellet press for sale

Sawdust Pelletizer Machine For Sale Chile

sawdust pellet press wood pellet press machine wood pellet press for sale

Sawdust Pellet Making Machine For Sale Poland

sawdust pellet press pellet press pellet mill pellet machine wood pellets biomass fuel woodworking

Sawdust Pellet Machine For Sale Canada

Mechanism of Sawdust Pellet Press

Raw material granulation standard: about 15% moisture

The main material form of biomass is pellets of different sizes. The filling characteristics, flow characteristics and compression characteristics of particles during the compression process have a great influence on the compression molding of biomass. Usually biomass compression molding is divided into two stages.  (Related product: Wood Pellet Mill)

  • The first stage: In the early stage of compression, the lower pressure is transmitted to the sawdust pellets, which changes the arrangement structure of the solid particles that were originally loosely packed, and reduces the internal void ratio of the biomass.
  • The second stage: when the pressure is gradually increased, the large biomass particles are broken under the pressure and become finer particles, and deformation or plastic flow occurs, and the particles begin to fill the gaps, and the particles are more closely contacted and meshed with each other. Part of the residual stress is stored inside the forming block, which makes the combination between particles stronger. Pressure, water content and particle size are the main factors affecting the change of sawdust particles during compression.

Raw materials requirements for sawdust pellet press machine

There are many factors that affect the formation of biomass wood sawdust pellets. In addition to the performance of the sawdust pelletizing equipment, it largely depends on the performance of the raw material and the wood sawdust pelletizing process.

  • Wood: waste wood chips and shavings from board factories and furniture factories, waste sawdust from logging yards, scraps, building board waste, garden pruning, forest logs and other miscellaneous wood.
  • Bamboo scraps: Bamboo handicraft waste, such as chopsticks, toothpick factories and other waste.sawdust pellet press wood pellet presses pellet mill pellet press 2.2 kw 230v other woodworking supplies
  • Grass stalks: cotton corn stalks, soybean stalks, rape flower stalks, wheat straws, rice straws, cassava stalks, bagasse, tobacco stalks, seabuckthorn stalks and other herbaceous plant stalks, energy grass, elephant grass, giant king grass, Alfalfa grass (for cattle and sheep feed).
  • Other categories: rice husk, peanut shell, bagasse, palm fiber (fruit bunch), coconut shell, cow dung, pomace, etc.

Taking wood as an example, waste wood chips from board factories and furniture factories do not need to be crushed and dried, and can be used after screening; building board waste needs to be crushed before use, and the particle ash content is relatively large; waste sawdust and leftover materials in lumber yards do not need to be crushed, However, it needs to be dried, and the particle ash content is low; while garden pruning, forest logs, etc. may also need to be peeled. (Related case: Canada 2-3T/H Wood Pellet Plant)

According to different raw materials, the pellets can be divided into biomass peanut hulls, rice hull pellets, miscellaneous wood pellets, pine wood pellets, sylvestris pine pellets and so on. The type of raw material determines the calorific value of the produced biomass pellet fuel.

Why is the ring die sawdust pellet press popular with investors?

01

Good market prospects

Traditional energy can no longer meet the needs of the global market. Biomass wood pellet fuel, as a substitute for coal, can just make up for this energy gap.

02

Sufficient source of raw materials

The annual output of biomass energy such as straw exceeds the total energy demand, and as a renewable resource, their reserves are very abundant. Therefore, it currently has a good market prospect as an energy source.
sawdust pellet press wood pellet press manufacturers wood pellet press machine

03

High profit

The raw materials of the ring die sawdust pellet press machine are crop stalks and so on. The cost of these materials is low, the cost per ton is low, and the processing output of the sawdust pellet mill machine is high. In the face of huge market demand, the industry has considerable profits. (Related solution: Biomass Pellet Plant)

How much wood pellets can be produced from 1 ton sawdust raw materials?

Customers who want to get involved in the sawdust pellet production industry have a question: how many pellets can be produced from one ton of wood chips? RICHI believes that this problem can be considered from three aspects: raw material moisture, raw material purity, and sawdust granulation equipment.

01

Look at the purity of raw materials

Look at the purity of the raw material. The higher the purity, the higher the particle yield. If the raw material has been screened, crushed, and dried, one ton of raw material can produce more than 0.9 tons of pellets. (Related post: 5T/H Wood Pellet Factory In Austria)

02

Pay attention to the humidity of raw materials

The temperature of finished granules and raw materials is inseparable, and the moisture content of raw materials is strictly required during granulation, which should be controlled at 13-18%. If the raw material is too wet, it needs to be dried, and the drying process will take away part of the water, so the greater the moisture in the raw material, the less raw material will be obtained after drying, and the output of finished pellets will be less.
sawdust pellet press wood pellets press machine

03

Good sawdust pellet press

If you want to produce more finished granules, it is not enough to only look at the purity and humidity of the raw materials, you also need to have good sawdust pellet press. With a wood sawdust pellet pressing machine with high output and low energy consumption, the pressure roller and the mold are properly matched, and the forming rate of the pellets can reach more than 95%.

If you encounter unqualified equipment, the forming rate can reach 50%, which is already good. Therefore, when purchasing, you must purchase equipment from regular manufacturers, so as not to affect production efficiency and cause economic losses.

04

Daily maintenance of sawdust pellet pressing equipment

In recent years, biomass projects have become more and more popular, but some friends do not pay attention to maintenance after normal production, which has caused an invisible increase in costs, so that the gains outweigh the losses. The maintenance of sawdust pellet equipment is the key to control energy consumption. After maintenance, the life of the machine will be longer and the quality of pellets will be better.

  • Neat. The tools are placed neatly, the safety protection devices are complete, and the pipelines are complete.
  • Clean. The inside and outside of the workplace and equipment are always kept clean, free of dust accumulation and grease stickiness, etc., and all kinds of workplaces and equipment do not leak materials, oil, water, or air during operation, and clean up garbage and leftovers.sawdust pellet press pellet press pellet mill pellet machine wood pellets biomass fuel
  • Lubricate. Refuel and change the oil regularly, the oil quality meets the requirements, the oil pot and the oil cup are complete, the linoleum, the oil line, the oil mark are clean, and the oil passage is smooth. (Related solution: Wood Pellet Production Line)
  • Security. Workers must abide by the operating procedures. All kinds of power equipment and main operating machines have the specified load operation conditions. There are no missing parts, rope binding, strange sound and smell, abnormal vibration or swing of various equipment, and all kinds of measuring instruments are working normally. Regularly check various protective devices and power equipment.

What is the difference between a vertical and horizontal sawdust pellet press?

There are two commonly used biomass pellet machines, the first is a vertical pellet machine for sawdust, and the second is a horizontal pellet machine. At present, all well-known manufacturers in the world adopt the structure of horizontal ring die sawdust granulator. What are the specific differences between these two models? Today, RICHI will tell you the difference.

01

Discharge method

  • Vertical saw dust granulator: transported up to the silo by the conveyor belt.
  • Horizontal saw dust granulator: free fall to the discharge port.

02

Motor Power

  • Vertical sawdust pellet granulator: The power of the motor is small, and the production is generally overloaded, basically reaching the power value of the model data.
  • Horizontal sawdust pellet granulator: The power of the motor is large, and it is not easy to overload the production.sawdust wood pellet press for sale wood pellet press machine

03

Feeding method

  • Vertical sawdust pellet machine: feeding vertically by the auger.
  • Horizontal sawdust pellet machine: uniform feeding, composed of feeding and modulator, uniform feeding.

04

Mechanical structure

  • Vertical sawdust pellet making machine: The gear reducer is a rigid transmission, with small power loss and relatively high noise. The key to the coupling connection is the reliability of the concentricity connection. (Related project: 1-1.5T/H Wood Pellet Production Line in Indonesia)
  • Horizontal sawdust pellet making machine: The belt transmission is stable, the installation requirements are low, the noise is small, and the overload protection is easy to realize.

The above is the comparison between the vertical pellet press granulator and the horizontal pellet press granulator. It can be seen that:

The vertical sawdust pellet press has a simple structure, a small footprint, low price, short life, easy to break down, and frequent and troublesome replacement parts. The horizontal saw dust pelleting press machine has a reasonable structure, heavy weight, large floor space, high price, and a long service life that is three times longer than the vertical pellet machine. It is efficient, high hourly output, low maintenance, and low frequency of replacement of wearing parts.

To sum up the above points, combined with the difference between the horizontal pellet machine and the vertical pellet machine in the production process, the following points are obtained: the horizontal pellet machine produces stable pellets, the sawdust pellet processing machine has few failures and is easy to maintain, the hourly output is high, and the motor power is stable.

Precautions for sawdust pellet press operation

  • Operators should carefully read the instruction manual and be familiar with the various technological processes of the equipment before using the machine.
  • During the production process, it is necessary to operate strictly in accordance with the regulations and sequence, and perform installation operations according to its requirements.
  • The host equipment needs to be installed and fixed on the horizontal concrete floor, and the screws should be tightened.
  • Smoking and open flames are strictly prohibited in the production site.
  • Investigate the marketing channels and determine the type of feed to be produced. Including feed quality and output requirements, and determining the formula for feed processing.sawdust pellet press presswood pellet wood pellets press machine
  • After each start-up, it needs to idle for a few minutes first, and confirm that the pressure roller fits the mold and rotates before feeding.
  • It is strictly forbidden to add hard debris such as stones and metals to the feeding device, and remove iron before granulation to avoid damage to the granulation chamber.
  • During the operation of the equipment, it is strictly forbidden to use hands or other tools to remove materials to avoid danger.
  • If there is abnormal noise during the production process, the power supply must be cut off immediately, and the machine can be started to continue production after checking and handling the abnormal situation.
  • Before shutting down, first stop the auxiliary feeding, and then put in the oil, and wait until the mold hole is filled with oil and the granulation chamber is empty of oil before shutting down. The purpose of feeding oil is to make it easier to discharge during the next production.

Correctly operate the sawdust pellet press machine as required, and pay attention to relevant matters as required, not only can improve the output and operating performance of the equipment, but also prolong the service life of the equipment.

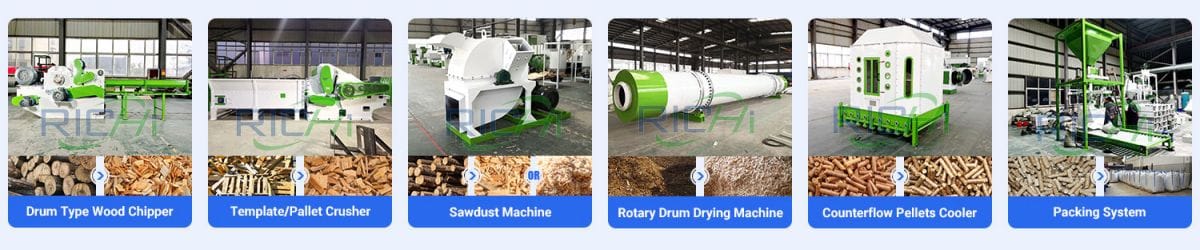

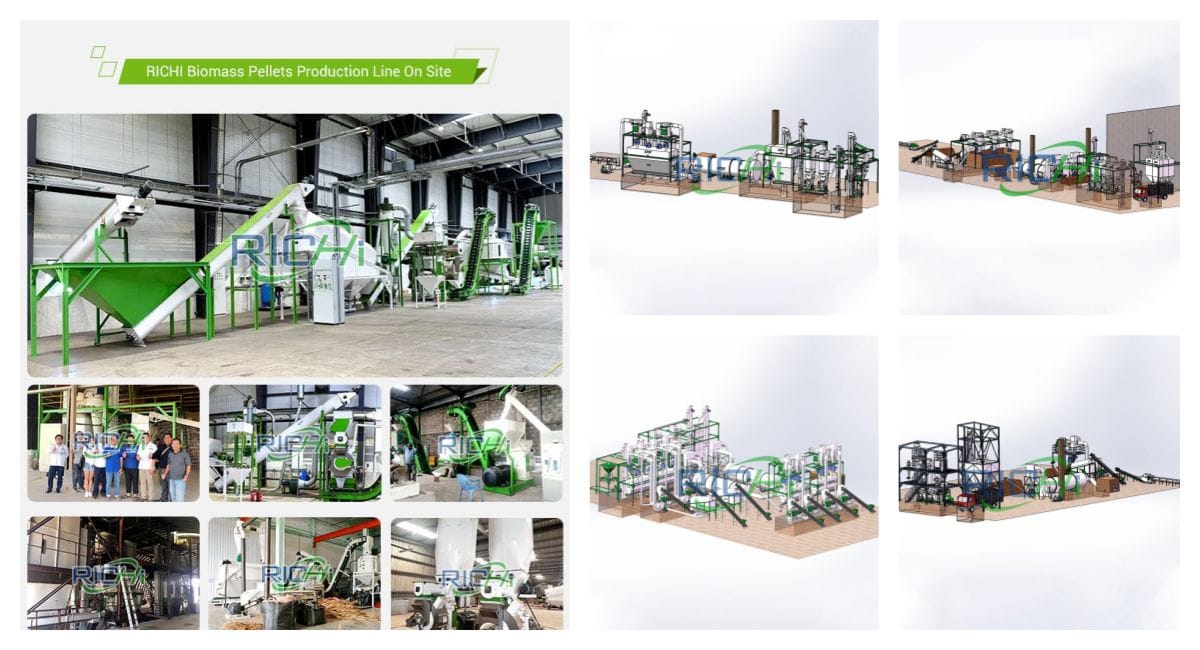

Complete sawdust pellet pressing system design

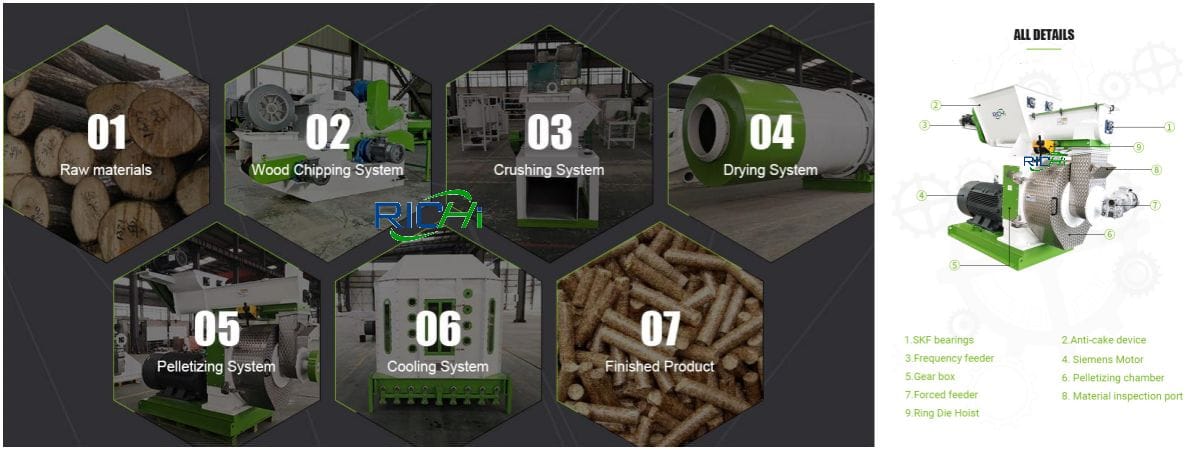

A full set of processing technology for making wood scraps into pellets:

RICHI provides a series of biomass wood sawdust pellet production solutions, from process design, equipment manufacturing, installation and commissioning to after-sales guidance, we provide a full range of services.

  • Crushing: Wood chippers are used to coarsely pulverize boards, blocks, edges, branches, branches, trunks, and building templates; if it is pure sawdust, it does not need to be crushed.
  • Sieving: the large wood is screened out and crushed again, and the fine material enters the dryer for drying;
  • Drying: The wood chips are dried by a drum dryer, and the drying is reduced to 10%-15%;
  • Hydraulic silo: The dried coarse powder enters the silo and waits for the fine powder;
  • Fine powder: The material is further pulverized by a high-efficiency pulverizer to meet the granulation requirements;
  • Hydraulic silo: The crushed material enters the silo and waits for granulation;sawdust pellet press wood pellet presses
  • Granulation: according to the output, one or more sawdust pellet mill machines can be equipped for granulation;
  • Cooling: The temperature of the granules coming out of the granulator needs to be cooled before packaging when the temperature is above 90 degrees;
  • Packing: can be equipped with ton packing scales and granule packing scales.
  • Dust removal: A large amount of dust will be generated in the process of material crushing, drying and granulation, which will not only cause harm to the workers but also damage the machine. According to local environmental protection requirements, closed production can be adopted and an overall dust removal system can be configured.

With years of experience in biomass wood fuels, we are willing to provide consulting services for all kinds of wood fuels and to help our customers solve problems in their sawdust pellets production plant projects.

We are the leading ring die wood pellet machine in China manufacture and we are also have strong capacity to offer the auxiliary equipment in a sawdust pellet factory. Just get in touch with us to get the latest price and technical parameters of sawdust pellet press equipment!

Customer Guide Of Sawdust Pellet Press

How does a sawdust pellet press machine work?

How a pellet press works? The working principle of the animal feed pellet press and the wood pellet mill granulator is based on the working principle of the ring die pellet pressing machine. However, due to the different materials to be pressed, there are differences in the specific equipment configuration, so here, RICHI explaines the working principle of the two types of pellet press equipment separately.

The wood sawdust pellet press can be used to compress various biomass raw materials, agricultural and forestry waste, urban waste, organic fertilizer, waste tires, organic plastics and other pellets. The wood pellet pressing machine is operated in direct connection with a motor. The motor is connected to the shaft of the reducer through a gear coupling. After a 90°change of direction, the horizontal motor drives the vertical casting hollow transfer spindle, and the spindle drives the roller to roll the die. The inner surface completes the pressing process.
wood pellet press for sale sawdust pellet press

When working, the biomass wood material falls vertically from the feed inlet, and the material is continuously and evenly distributed on the surface of the mold cavity through the rotation of the pressure roller (the contact surface of the pressure roller and the pressing die), and the powdery material is crushed by the pressure roller holes through the mold (holes evenly distributed on the inner surface of the die). In this process, the material is subjected to high pressure and high temperature to produce physical changes or appropriate chemical changes (according to the material), which promotes the powdery material to form a continuously elongated cylindrical solid body, and then the pellets are cut by a knife and discharged from the discharge port. The pressing process of the pellets is completed.

Where to buy a pellet press for sawdust?

Where can I find a pellet press from sawdust? Where can I buy a wood sawdust pelletizer? come here! Not only are there more choices, but the prices are also favorable! As far as the global market is concerned, in fact, pellet milling machines can be bought in many regions, but compared to other countries and regions, it is more cost-effective to buy in China, especially from Chinese factory direct sellers, and it is more cost-effective and many types to choose.

(1)Multiple equipment options

In addition to the conventional sawdust pellet press, feed pellet maker, wood pelletizing machine, organic fertilizer pellet maker, and pasture pelletizer, the pelleting equipment produced by RICHI also includes an upgraded version of cat litter pelletizer and PET plastic pelletizer. There are many models and types available for users to choose from, such as the machine, waste tire rubber pellet press.
sawdust pellet press wood pellet press for sale

(2)The equipment price is more favorable

First of all, RICHI is a local company in Henan, China, where prices are not high, thus laying the foundation for RICHI to take the people-friendly route; secondly, RICHI is a factory direct sales sawdust pellet press manufacturer from China, customers can directly pick up the goods from the factory, and the price is better; finally, as China As a large-scale export pellet press production base in China, during the epidemic period, RICHI started a profit-sharing activity in this quarter to give more benefits to users. Therefore, it is definitely more cost-effective to come to the factory to purchase stone crusher equipment during this period.

(3)Responsible for strength and service first, to ensure that you can buy with peace of mind

RICHI is located in Zhengzhou High-tech Development Zone, Henan, China, covering an area of 200,000 square meters, with 100,000 square meters of standardized heavy-duty industrial plants, more than 20 R&D engineers, more than 100 large and medium-sized digital processing equipment, more than 50 first-line technicians, and more than 50 professional after-sales service personnel , to ensure your smooth production.

(4) Good reputation

RICHI customers come from 109 countries, and the reputation is well-known abroad. Many customers are introduced. If there is no good reputation, how can they stand for more than 20 years? It can be seen that the RICHI brand is still trustworthy.
wood pellet press for sale sawdust pellet press

Where to buy a pellet press for sawdust?

Where can I find a pellet press from sawdust? Where can I buy a wood sawdust pelletizer? come here! Not only are there more choices, but the prices are also favorable! As far as the global market is concerned, in fact, pellet milling machines can be bought in many regions, but compared to other countries and regions, it is more cost-effective to buy in China, especially from Chinese factory direct sellers, and it is more cost-effective and many types to choose.

(1)Multiple equipment options

In addition to the conventional sawdust pellet press, feed pellet maker, wood pelletizing machine, organic fertilizer pellet maker, and pasture pelletizer, the pelleting equipment produced by RICHI also includes an upgraded version of cat litter pelletizer and PET plastic pelletizer. There are many models and types available for users to choose from, such as the machine, waste tire rubber pellet press.

(2)The equipment price is more favorable

First of all, RICHI is a local company in Henan, China, where prices are not high, thus laying the foundation for RICHI to take the people-friendly route; secondly, RICHI is a factory direct sales sawdust pellet press manufacturer from China, customers can directly pick up the goods from the factory, and the price is better; finally, as China As a large-scale export pellet press production base in China, during the epidemic period, RICHI started a profit-sharing activity in this quarter to give more benefits to users. Therefore, it is definitely more cost-effective to come to the factory to purchase stone crusher equipment during this period.
small wood pellet press sawdust pellet press

(3)Responsible for strength and service first, to ensure that you can buy with peace of mind

RICHI is located in Zhengzhou High-tech Development Zone, Henan, China, covering an area of 200,000 square meters, with 100,000 square meters of standardized heavy-duty industrial plants, more than 20 R&D engineers, more than 100 large and medium-sized digital processing equipment, more than 50 first-line technicians, and more than 50 professional after-sales service personnel , to ensure your smooth production.

(4) Good reputation

RICHI customers come from 109 countries, and the reputation is well-known abroad. Many customers are introduced. If there is no good reputation, how can they stand for more than 20 years? It can be seen that the RICHI brand is still trustworthy.

How to choose sawdust fuel pellet press manufacturers in China?

With the rapid development of feed, biomass energy, organic fertilizer, chemical industry and other industries, the market demand for pellet mills is also increasing year by year. At present, most of the pellet press manufacturers are small and medium-sized, and the production technology is also at the stage of gradual maturity, and the product quality of the pellet press is also uneven. Therefore, you must pay attention to a few points when choosing a pellet press manufacturer, because after all, you are not buying a small item, so you must be cautious when buying equipment.
wood pellets press machine sawdust pellet press

  1. First of all, we must inspect several pellet making machine manufacturers, and investigate the strength, reputation, scale, etc. of the pellet mill manufacturer in all aspects.
  2. Try to visit the production plant of the pellet press manufacturer as much as possible, and inspect the company's product quality, production technology, technical level, and production maturity. If possible, it is best to let the manufacturer of pellet press take the customer to visit the production site they make for the customer, because the user's on-site speaking is authoritative and convincing.
  3. Choose the appropriate equipment according to the customer's own site conditions and planned output. In addition, if the equipment should fail during operation, how to solve it, you should have a clear after-sales plan with the manufacturer.
  4. When signing the order contract with the pellet press manufacturer, you should carefully read the order contract. If you find any omissions, you should add it in time to avoid unnecessary economic disputes after signing the contract.
  5. The pellet press manufacturer is providing customers with on-site installation services. The company will send technical service personnel to participate in the unpacking acceptance and guide the installation and commissioning work until the equipment is operating normally, and provide corresponding technical training services.
  6. Finally, it is necessary to explain that customers should pay special attention when choosing equipment, and determine those companies that have entities and which are non-physical companies, so that customers can avoid detours when purchasing equipment and avoid unnecessary economic losses.

How to use a pellet press for wood sawdust?

(Note that due to the different operating methods of different sawdust pelle pressing machines, only the feed pelletizer is used as an example to explain. Each pellet granulator machine will be equipped with a detailed equipment instruction manual, and there are technicians to train and guide the customer's granulator operators offline or online, so you don't have to worry about after-sales service.)
sawdust pellet press mini pellet mill press machine wood pellets biomass feed

Attention points for operation

Note: When operating, not only should the safety attention points be strictly followed, but also the safety specifications and variety regulations for protection against accident enacted by the owner's enterprise need to be obeyed.

  1. Pay attention to the place where dangerous marks are attached.
  2. The safety protection devices can never be dismounted, covered or overlapped at will.

Preparation work

Prior to start, the following work should be done:

  1. Open the main door and its sided protection guard;
  2. Clean the pelleting chamber, check the feeder and conditioner;
  3. Check the installation condition for rind die, and check the proper adjustment for press rollers.
  4. Check and adjust the intervals between the pellet cutting knives and outer surface of ring die;
  5. Fill lubricating oil;
  6. Check the steam system. The delivery pressure should be within 0.7-1.0Mpa and the working pressure should be between 0.1-0.4Mpa.

Pelleting operation

★Start up

Following work should be prepared before startup:

  1. Open the front door;
  2. Clean the pelleting chamber, check the feeder and conditioner;
  3. Check the installation condition for ring die and the proper adjustment for press rollers. Pay attention to the gap between press rollers and ring die;
  4. Fill lubricating oil;
  5. Start up the feeder motors for feeder and the conditioner without load to check if the rotation direction is correct and there is any noise; and then shut them down when the feeder operates at low speed;
  6. Start up the motor of cooling system and the main motor. Firstly check and ensure that all the pellet press components are operating correctly; check and ensure the ring die rotates clockwise from front view. Then inspect the contact condition between the press rollers and the inner surface of pellet pressing die, which should rotate smoothly;
  7. Check the steam system. The pressure for the steam enters conditioner should be 0.1~0.4MPa. If there exist jacket, the steam pressure enters the jacket should be within 0.1MPa.sawdust pellet press automatic diesel pellet press biomas wood pelletshammer mill animal feed other agriculture farming

★Pelleting

To start up a new pellet press or the pellet pressing machine with new installed pellet press dry pressing die, the following procedures should be followed:

  1. Start up the motor of cooling system and the main motor of the pellet press mill.
  2. Feed certain amount of oily coarse mash to the inlet of the pellet pressing mill manually, and continue feeding until feed pellet is formed. This is the primary lubrication for the ring die before normal production.
  3. Start up the main motor of conditioner.
  4. Start up the feeder motor, adjust the frequency converter to low frequency and let the feed enters conditioner slowly. Do not add any steam in the beginning of pelleting. Increase the feeding speed slowly according to the current of main motor.
  5. Open the steam valve a little, then increase the feeding rate until the pointer of ammeter is falling; when the ammeter`s pointer of the main motor reaches the normal load, add steam amount to allow the ammeter`s pointer to fall back. Repeat this procedure until the maximum output and the best quality of pellet are obtained under the rated load.
  6. See pellet pressing process. The feeding amount and steam supply are different depending on the different types of ring dies and formulas, which results different pellet qualities. So that the pellet press operator should be rick in operating experience.

★ Shutdown

The shutdown procedures of pellet press machine are described below:

  1. Turn off the steam control valve of pellet press equipment.
  2. Cut off the feeder motor.
  3. Shutdown the conditioner motor.
  4. Keep the pelleting machine running until no pellet is produced.
  5. If the machine needs certain time to be stopped, for instance, during the end of working day, oily mash material can be fed into the manual-feeding inlet after working until the pellet is formed. As such, it is convenient for the ring die to start up next time.
  6. Shut down the motor of cooling system and the main motor of pellet press mill when it stopped extruding oily pellet.wood pellet press homemade sawdust pellet press

The countermeasure of sawdust pellet press machine

In order to ensure normal and safe operation, the following safety countermeasures should be obeyed.


  1. Overload protective device
    This pellet processing machine is equipped with an overload protective device associated with shear pin and limit switch on the main shaft end. When hard impurities enters the pelleting chamber or when the material flow rate is too high with unstable steam flow, the pressure between rollers and pellet press ring die will exceed the normal working pressure. The pellet press roller will drive main shaft to rotate since rollers are installed on the main shaft and the ring die is installed on the rotor. When the torque of the main shaft exceeds the normal design value, shear force on the safety pin exceeds its limit; the shear pin is sheared off. At this time, limit switch stops the motor of pellet press mill and shutdown the machine.
  2. Pneumatic emergency discharge
    A by-pass is provided at the conical feeding inlet. When the materials enters ring die too fast, it will cause accumulation in the pelleting chamber and increase the load of motor. Under such condition, the by-pass will be automatically opened via the pneumatic system, and the feed will be discharged through the by-pass. When the motor load returns normal, the by-pass will be closed automatically and the whole system will continue operating normally.
  3. Safety switch of main door access
    For the safety consideration, the limit switch will cut the power supply and stop the machine from running when the main access pellet press door is opened.
  4. Gearbox cooling system
    Refer to the operation manual of cooling system for further information.
  5. Magnetic separating device
    In order to ensure the cleanness and safety of gearbox, magnetic separating device is located under the gearbox, which can prevent the effect of moving components generated by the scrap iron impurities in lubrication system, and increase the service life for gear, shaft and seals.wood pellet press sawdust pellet press

How to adjust the gap between pellet press rollers and pellet press die?

The correct gap adjustment of press roller is very important, it concerns to whether the sawdust pellet pressing machine can function normally and the service life of pellet pressing roller and pellet pressing ring die. Generally speaking, the gap in press rollers should be controlled within 0.2 ~ 0.5mm. At this time, the roller can only touch the high spots of ring die when the ring die is running at a low speed.

Adjustment procedures:

  1. Loosen the lock bolt of front support assembly.
  2. Adjust the adjusting screw to make the roller move closer to the ring die counterclockwise. In the meanwhile, runt the ring die and roller for one circle. It is better to make the highest spot of inner surface of ring die contacts with that of the outer surface of press roller slightly.
  3. If the adjusting screw has reached its limited position during adjustment, but the gap between roller and ring die is not adjusted properly yet. It is necessary to dismount the adjustor, which is 5 in Fig.5-5 (a), turn it to another position, re-install and continue the adjustment.
  4. Adjust another roller by following the same procedure.
  5. Fasten the lock bolt of press roller.

Suggestion:

The press rollers are to be adjusted in accordance with materials. For instance, the gap between the sawdust pellet press machine roller and ring die can be slightly larger when the material has high content of corn or easy to be pressed.

Click the Button to Consult Online

Why Choose Richi

why choose richi
why choose richi

Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields. All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Get Price & Service

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization. Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Get Price & Service
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan

Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Get Price & Service
Quality Control

Delivery And Installation

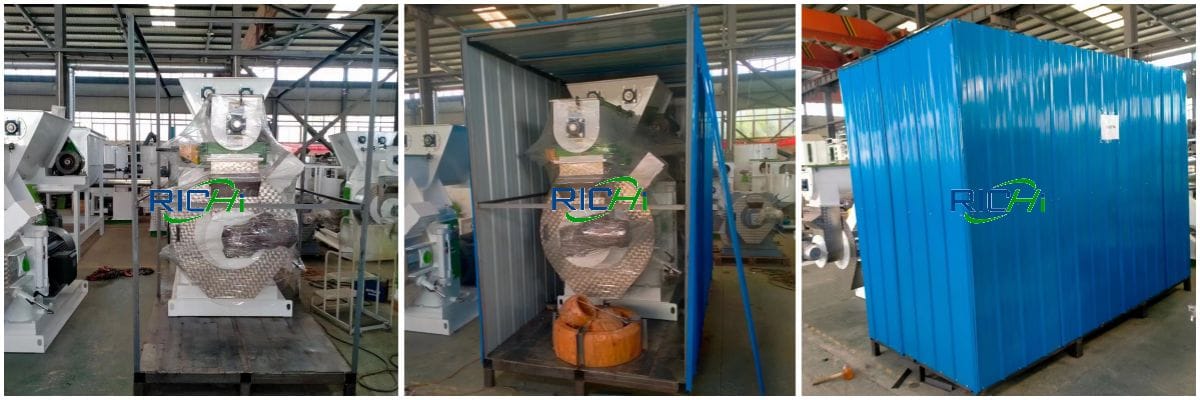

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment. According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Get Price & Service
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training

After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs. After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.

Get Price & Service
Contact Us

GET A QUOTATION

Application:

Demands: (Submit your requirement here, eg. equipment, materials, product type, production size, etc.)

* We will store the information you have provided us. We will only use this information for the purpose of helping to answer your inquiries. We will not disclose your information to third parties.

Copyright © 2015-2023 by HENAN RICHI MACHINERY CO,LTD.All rights reserved.
×
Fill Out The Form To Get Quotation
