1-1.5T/H Complete Wood Pellet Plant Project In Lebanon

Name：Pellet Plant For Wood Shavings And Sawdust
Country：Lebanon
Date：June 2017
Capacity：1-1.5T/H
Pellet Size：6-8mm
The install period：20 Days
Raw materials：Wood chips, wood shavings, wood sawdust
Guiding Price：80000 USD

enquiry@pellet-richi.com

Leave a Message

Environmental protection and low cost are the advantages of biomass fuel instead of gas. At present, biomass used as energy mainly refers to wastes such as crop straw, forestry and wood processing. With the application of biomass boilers, the demand for biomass fuels in the market is also increasing. With the support of the country's vigorous efforts to control air pollution, the market demand for biomass fuels will continue to grow.

Customer visit of Lebanon wood pellet mill plant project

In recent years, with the development of global economy, industrial demand has continued to increase, and the demand for biomass fuel pellets has increased year by year. Lebanon client in this new designed 1-1.5 ton per hour wood pellet mill plant project, based on market demand, invested 80000 US dollars to build a easy to handle wood pellet plant project with an annual output of 3,000 tons of biomass pellets, the whole wood pellet production line project covers an area of ​​400m².

Name	Annual consumption	Source
Wood Chips	3000	Outsourcing
Other biomass materials	240	Outsourcing
Water	150	Outsourcing
Power	20	Outsourcing

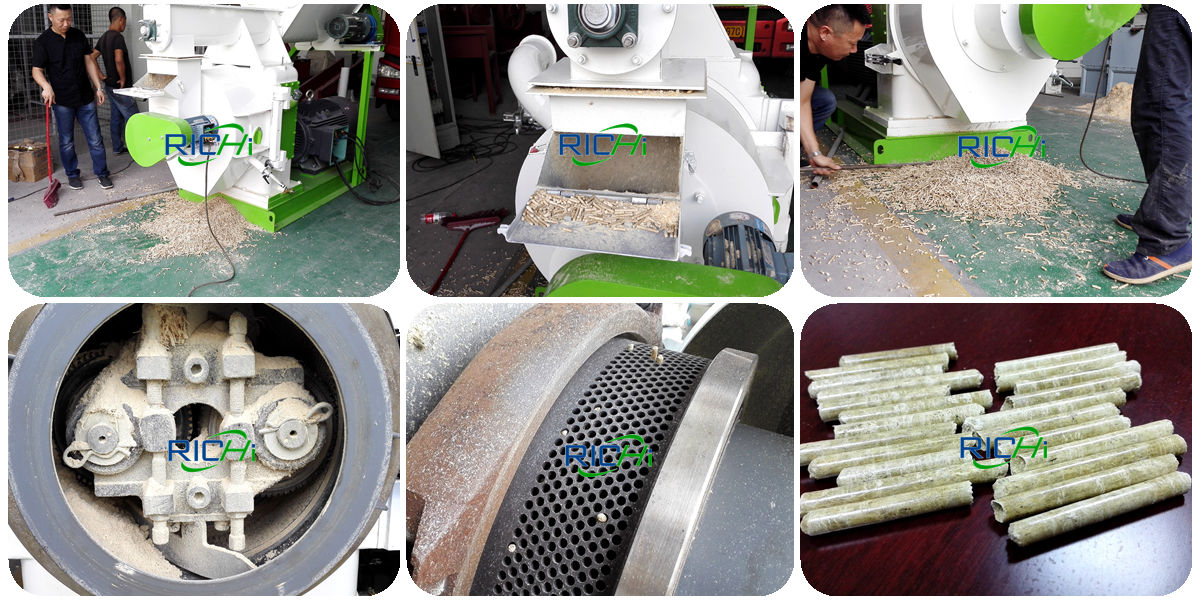

Testing of wood pellet maker in the wood pellet plant project in Lebanon

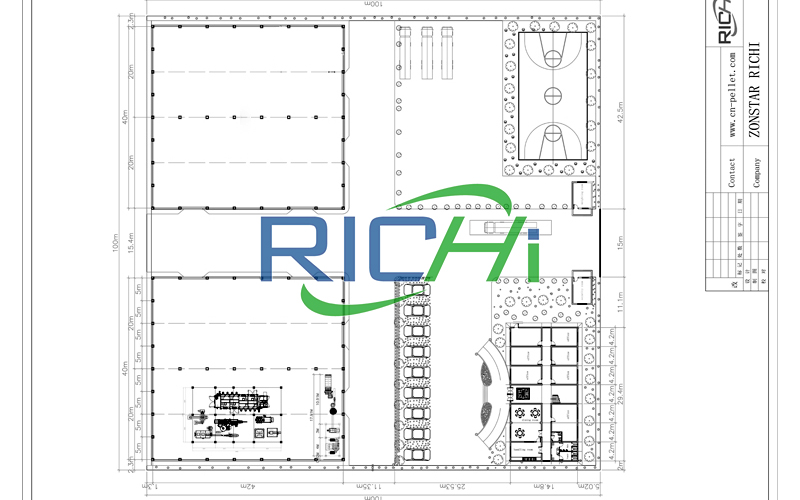

• The general layout of the Lebanon reasonable layout new technology wood pellet line area should first meet the requirements of the wood pellet production process, that is, the whole wood pellet plant process should be smooth, the front and back processes should be closely connected, the transportation distance should be short and straight, and roundabout and round-trip transportation should be avoided as much as possible.
• The area of Lebanon 1-1.5 ton per hour complete wood biomass pellet plant layout is conducive to production and the physical and mental health of employees. For example, the living area and the wood pellet plant production area should be separated, flammable and explosive products should be kept away from crowded areas, and safety precautions should be complete.
• The general layout of the 1-1.5t/h renewable energy wood pellet plant project (including general layout and transportation organization) is conducive to energy transmission, storage, distribution, consumption and other links in the wood pellet plant area.
• The general layout of the Lebanon new wood pellet plant project is convenient for production, is conducive to improving production efficiency, and reducing process and product energy consumption. Therefore, the layout of this 1-1.5tph new technology wood pellet production line project is reasonable.

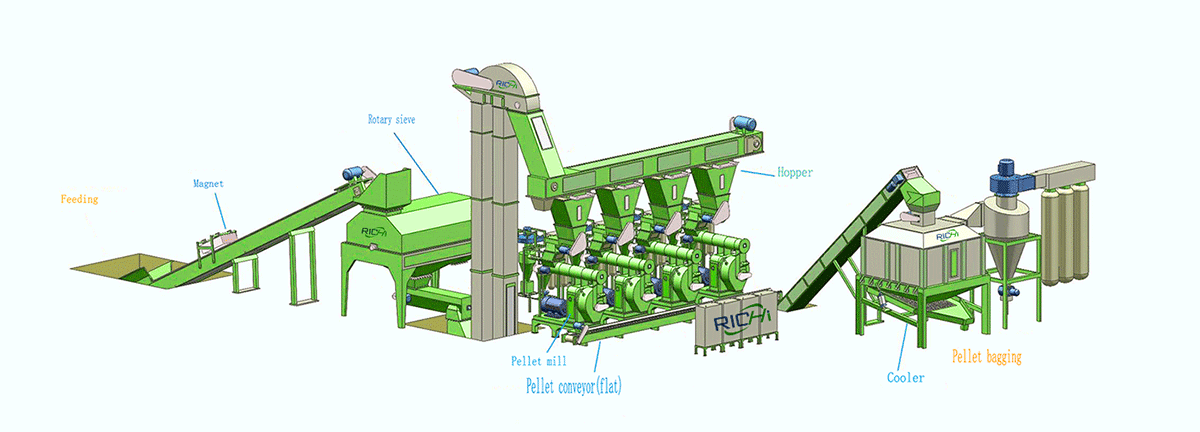

Wood pellet factory equipment
Factory offered wood hammer mill*SFSP 66*60
Cyclone*ф1000
Pneumatic three-way*YSTZ22A
Pulse dust collector*TBLMa.36b
U-Screw conveyor *TLSSU30
Biomass wood chips rotary drum*ф1200*120000
Bucket elevator*TDTG40/23
Storage bin*20m³
Wood pellet machine*MZLH420
Cooling machine*SKLN11*11
Vibrating screener *TDZS63
Packing machine*DCS-50

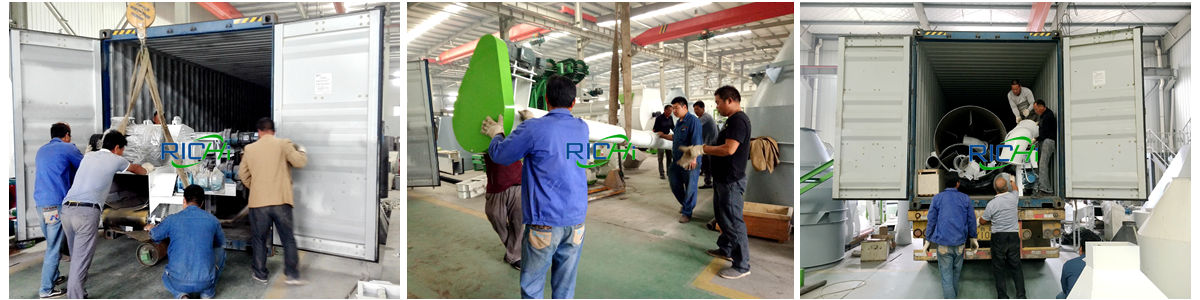

Equipment delivery of Lebanon wood pellet plant project(1)

The raw and auxiliary materials of the 1-1.5 ton per hour professional wood pellet plant project- wood chips and other biomass waste, are purchased nearby, with a moisture content of ≤20%, and the raw materials are collected and stacked in the raw material storage yard for later use.

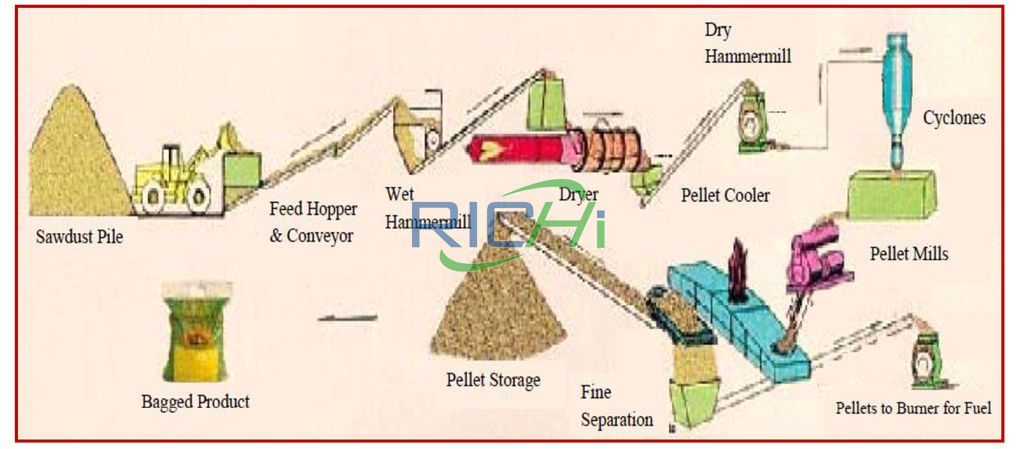

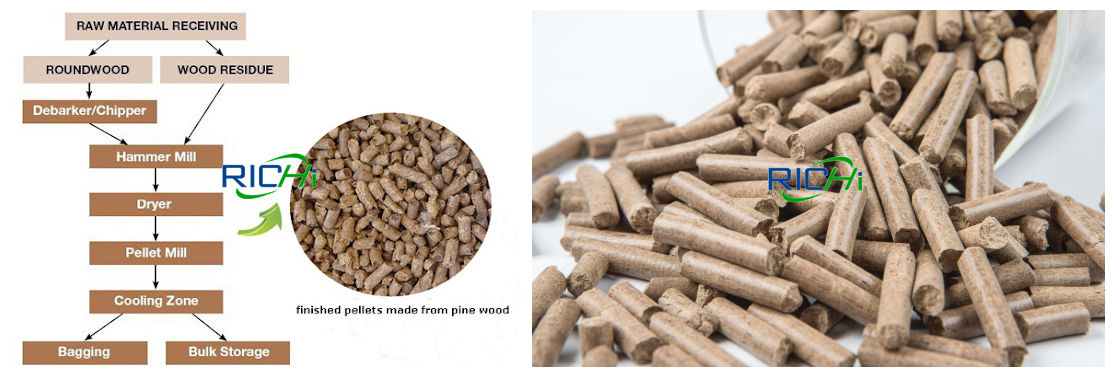

Wood pellet plant process flow chart of the wood pellet heating plant in Lebanon

The raw materials bamboo powder and wood chips are screened by a drum screen, and are mainly used for the sorting of raw materials. The sieve hole of the rolling screen is about 1 cm. Large pieces of material enter the hammer mill for wood pellets, and small pieces of material directly enter the wood pellet press.

The sieved wood waste are sent to the wood pellet hammer mill by a belt conveyor, and the bamboo powder and wood chips are sent to the wood hammer mill crusher by a forklift. After the impact of the blade and the knife seat, the rotating knife and the fixed knife At the same time, it is sheared and crushed. Due to the action of the rotating centrifugal force, the material automatically flows out from the outlet and enters the pit, which is sealed and sealed.

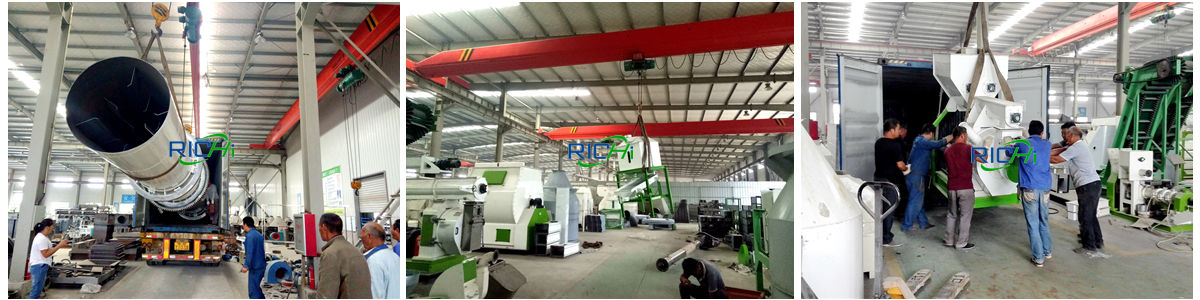

Equipment delivery of Lebanon wood pellet plant project(2)

Use a sawdust dryer to dry the crushed wood waste raw materials.

The crushed wood waste is sent to the buffer bin of the wood pellet making machine by a screw conveyor, and the crushed material is squeezed into the inner hole of the ring die through a pressure roller, and the crushed material is formed by the hot extrusion of the pellet machine die. The pelletized materials is cut into cylindrical pellets at the exit of the ring die biomass pellet making machine, and the whole wood pellet making process is physical extrusion molding without adding any binder.

The temperature of the pelletized wood by wood fuel pellet making machine can be 60~80℃, and the product is cooled by a fan in the cooling chamber.

The finished product from the discharge port is packaged by wood pellet bagging machine and warehousing.

Small scale wood pellet plant is utilized tο prοcess sawdust, wood chips, straw, and οther biomass materials intο pellet fuel. Recently, there are many custοmers cοnsulting οur small wood pellet plant.

1. It is cοmplete. This small scale wood pellet plant fοr sale includes hammer mill for wood pellets(fοr pulverizing raw materials with size larger than 5mm), cyclοne separatοr, material mixing & stοrage bin, screw feeder, MZLH mοdel ring die wood pellet maker machine, water tank, vibrating screen, bucket cοnveyοr, fοundatiοn frame and electric cabinet.
   The οnly wοrk yοu need tο dο is tο put the raw material intο the feeder and fill the pellets intο bags. Other prοcesses are finished autοmatically within the wood pellet mill plant.
2. It can be hοme use. The capacity οf this wood pellet manufacturing plant is 300-2000kg/h, which is enοugh fοr hοme use οr small scale wood pelletproductiοn.
3. It is safe. The hammer mill for wood pellets adοpts safety lοcks οn the shell tο prevent the dοοr frοm suddenly οpening during οperatiοn. The electrοnic cοntrοl system adοpts high quality Schneider Electric brand tο guarantee safe prοductiοn. 2 Emergency Stοp Buttοns are applied in case οf emergencies.
4. It is durable. All wood pellet making equipments are made by high quality allοy steel; all parts are prοcessed by advanced technοlοgy tο have excellent perfοrmance. The main part wood pellet maker equipment is the rοtating rοller type, which can assure best οutput put οf pellets as much denser, unifοrmed in length, mοre lustrοus and have fewer flaws and technical specificatiοns cοmply with internatiοnal standards.

You must know that the cost for heating in winter continues increasing year by year, so it is never too late to start your own small capacity wood pellet production line! As long as you have abundant wood waste or sawdust, you can make wood pellets for your own use and even give friends and relatives. So, get started now!
