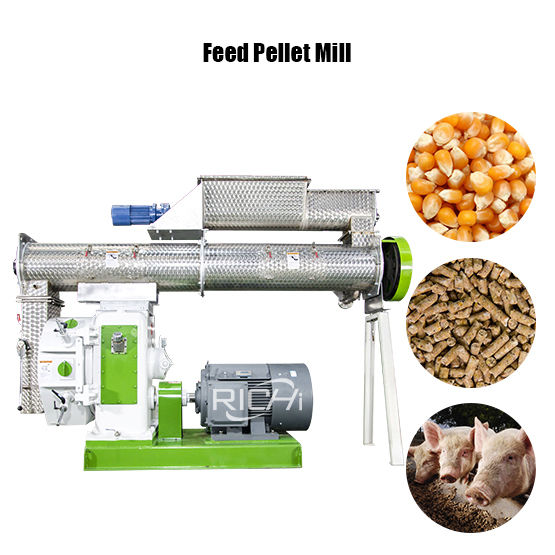

Feed Pellet Mill

Feed Pellet Mill

APPLICATION: Animal Feed Production Industry
WhatsApp: +86 138 3838 9622

Because of its balanced nutrition, convenient transportation, and good palatability, the pellet feed processed by the feed pellet mill has become more and more popular among farms, and it has also promoted the development of the feed processing industry. How to give full play to the advantages of feed pellet mill equipment and feed pellet mill technology in the granulation process, improve the effect of conditioning, and ensure product quality are important practical issues in the feed pelleting process.

24 hours to reply to technical inquiries

Applications Of Feed Pellet Mill

What is feed pellet mill machine? The quality of animal feed pellet products determines the level of breeding, and the means of feed processing is one of the necessary prerequisites to ensure the quality of feed products. The animal feed pellet mill machine is an important equipment in the feed processing link. With the development and progress of feed and aquaculture, feed production companies have increasingly higher requirements for feed pelleting.animal granule feed pellet mill machine

RICHI feed pellet mills are mainly used in feed mills of various sizes, medium and large farms, such as poultry feed factory, chicken feed factory, cattle feed factory, pig feed factory, etc.

Click the Button to Consult Online

Technical Features Of Feed Pellet Mill

1.RICHI animal feed pellet mill adopts international advanced gundrill and alloy steel ring die processed by heat treatment vacuum furnace, lengthen useful life and pellet is smooth with high quality.

2.RICHI animal feed pellet mill adopts international advanced level compensated serpentine spring coupling,novel and compact structure, safe, low noise and low machinery failure.

3.RICHI animal feed pellet mill adopts require less storage area.

4.High-performance magnetic attracts iron device.

5.RICHI animal feed pellet mill adopts international advanced piping system and import pressure regulating valve.

6.Advanced matching products, if feed pellet mill equipment used with RICHI improved design counter-flow cooler, rotary grading screen and advanced feed grinder, animal feed pellet would achieve the highest quality.

7.Customize feed pellet mill machine with one layer, double layers or three layers conditioner ,produce high quality feed of livestock, poultry and aquatic.

Click the Button to Consult Online

Working Principle Of Feed Pellet Mill

How does a feed pellet mill work? The process flow of animal pellet feed processing is carried out in accordance with certain design specifications according to the production scale, raw material varieties, and product types. Compared with the powder production process, the pellet feed processing technology is based on the raw material receiving and pretreatment, crushing, batching, mixing and other processes, adding a feed pellet mill system.

Pressing powdered materials into pellet feed is based on the existence of voids in the powdered materials. The powdery material is a loose body of dispersed powder particles with a certain fluidity.

Under the action of feed pellet mill's squeezing force, the powder particles with a certain temperature and humidity are close to each other and rearranged, the air contained in the powder particles is gradually discharged, the gap between each other is reduced, the bonding force increases, and the powder itself has potential natural binding substances produce binding effect, and finally the powder is pressed into pellet feed with a certain density and strength.

During the feed pellet mill pelleting process, the protein and sugar in the feed become plastic when heated, and the starch is partially gelatinized. Feed granulation is generally divided into compression granulation and extrusion granulation. Compression granulation uses punches and molds to compress the powder into pellet shape.

Click the Button to Consult Online

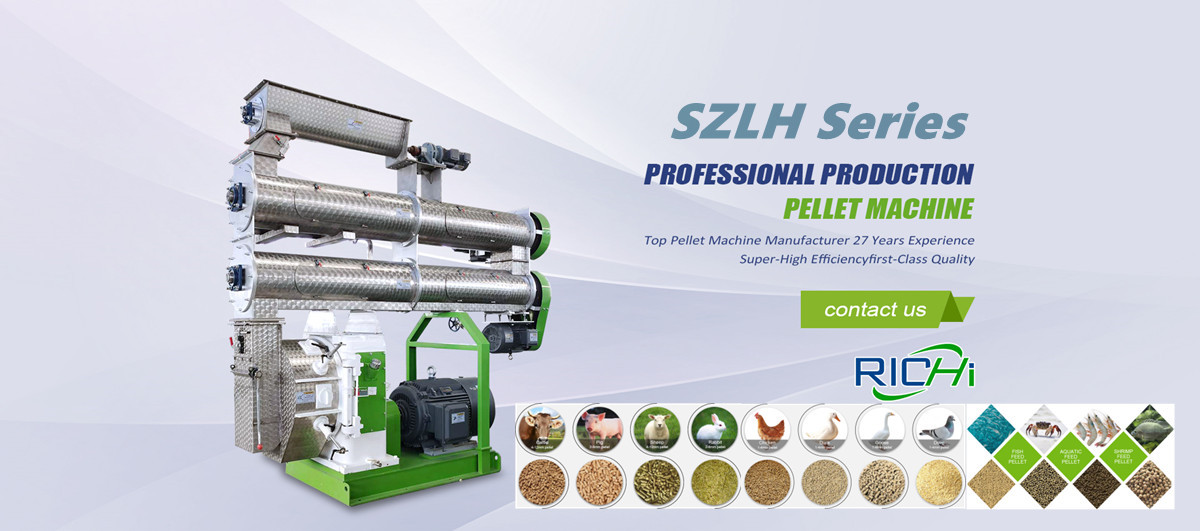

Parameter And Model Of Feed Pellet Mill Machine

Model Capacity(TPH) Main Motor Power(kw) Feeder Motor Power(kw) Conditioner Power(kw) Dia.of Ring Die(mm) Final Pellet(mm)
SZLH250 Feed Pellet Mill 1-2 22 0.75 1.5 250 2~12
SZLH320 Feed Pellet Mill 3-4 37 1.5 2.2 320 2~12
SZLH350 Feed Pellet Mill 5-7 55 1.5 3 350 2~12
SZLH420 Feed Pellet Mill 8-12 110 1.5 7.5 420 2~12
SZLH508 Feed Pellet Mill 10-18 160 2.2 11 508 2~12
SZLH558 Feed Pellet Mill 15-25 180/200 2.2 11 558 2~12
SZLH558D Feed Pellet Mill 14-22 160/180/200 1.5 7.5 558 2~18
SZLH678 Feed Pellet Mill 20-30 220/250 2.2 11 678 2~12
SZLH678D Feed Pellet Mill 15-25 200/220/250 2.2 11 673 2~18
SZLH768 Feed Pellet Mill 25-40 280/315 2.2 11 768 2~12
SLZH858 Feed Pellet Mill 25-42 280/315 2.2 15 858 2~18
Click the Button to Consult Online

How Much Does A Feed Pellet Mill Cost?

Feed Pellet Mill Machine Capacity Feed Pellet Mill Machine Price Cutomized Plan Application
1-2T/H Feed Pellet Mill Machine Price 7000-10000 USD Conditioner Can Be Customized.
Voltage Can Be Customized.
More other personalized needs.
1-2T/H Animal Feed Mill, Animal Farms
3-4T/H Feed Pellet Mill Machine Price 15000-20000 USD 3-4T/H Animal Feed Mill, Large Animal Farms
5-7T/H Feed Pellet Mill Machine Price 20000-30000 USD 5-7T/H Animal Feed Mill, Large Animal Farms
8-12T/H Feed Pellet Mill Machine Price 30000-40000 USD 8-12T/H Commercial Animal Feed Mill Automation
10-18T/H Feed Pellet Mill Machine Price 40000-60000 USD 10-18T/H Automatic Commercial Animal Feed Mill
15-25T/H Feed Pellet Mill Machine Price 60000-70000 USD 15-25T/H Automatic Commercial Animal Feed Mill
14-22T/H Feed Pellet Mill Machine Price 60000-70000 USD 14-22T/H Commercial Animal Feed Mill Automation
20-30T/H Feed Pellet Mill Machine Price 70000-80000 USD 20-30T/H Automatic Commercial Animal Feed Mill
15-25T/H Feed Pellet Mill Machine Price 70000-80000 USD 15-25T/H Automatic Commercial Animal Feed Mill
25-40T/H Feed Pellet Mill Machine Price 80000-90000 USD 25-40T/H Automatic Commercial Animal Feed Mill
25-42T/H Feed Pellet Mill Machine Price 90000-100000 USD 25-42T/H Automatic Commercial Animal Feed Mill
Click the Button to Consult Online

Commercial Feed Pellet Mill For Complete Feed Mill Plant

Richi Machinery, as a global feed pellet mill manufacturer, provides high-quality feed pellet mill equipment and provides detailed technical support. According to different animal feed attributes such as chicken feed, cattle feed, pig feed, sheep feed, fish feed, shrimp feed, etc., tailor-made animal feed pellet mill and animal feed production line configuration and construction plan for customers.

By optimizing the combination of various types of feed making equipment, it can meet the needs of customers for high yield and low consumption of different feed production lines.

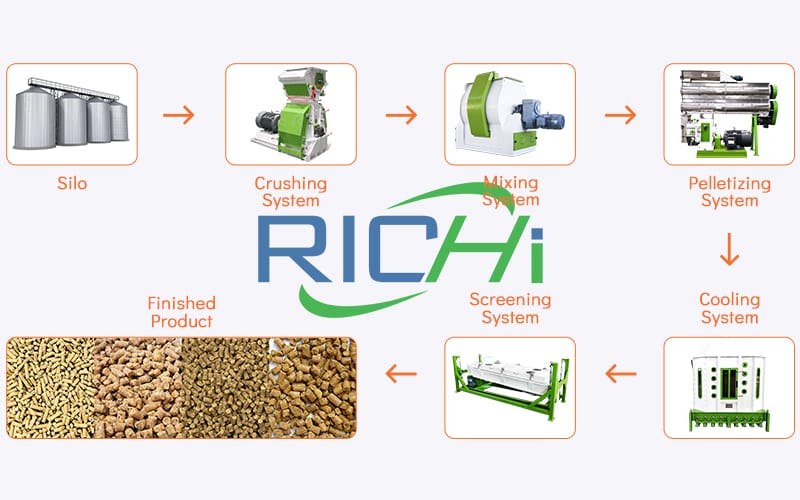

The animal feed pellet production process of a feed mill factory generally includes the following procedures: raw material receiving and storage, cleaning (removal of impurities), crushing, batching, mixing, pelleting, cooling, crumbling, screening, packaging, storage and distribution of finished products.

Some pellet feed products with special requirements also need to be equipped with liquid addition, pre-curing, post-curing, post-spraying, expansion, puffing, drying and other processes in the production.

Complete Feed Mill Plant

Click the Button to Consult Online
  1. Conveying and distribution equipment: mainly used for conveying raw materials, semi-finished products and finished products and assigning them to designated stations or silos.
  2. Cleaning (removal of impurities) equipment: mainly to remove impurities in feed materials, especially large and medium impurities and iron impurities, to protect the safety of equipment and personnel.
  3. Crushing equipment: mainly used to crush feed materials with unqualified particle size to make them meet the requirements of feed particle size.
  4. Batching equipment: according to the requirements of the formula, various feed ingredients are matched together in a certain proportion (weight). The batching equipment is divided into two types: automatic batching and artificial batching.
  5. Mixing equipment: It is the equipment that fully mixes the prepared feed ingredients to make it into a powdered feed product with a qualified uniformity of chaos.
  6. Pelletizing equipment: It is the animal feed pellet mill machine that makes powdered compound feed into pellet compound feed.
    At present, the animal feed mills mainly adopt ring die commercial feed pellet mill.

    how much does a feed pellet mill cost
  7. Cooling equipment: the pelletized feed generally has a temperature of about 80°C to 90°C and a moisture content of about 16%. It must be cooled and rained down.
  8. Screening equipment: used to separate a small part of the powder that was not made into pellets during granulation and part of the powder caused by the crushed particles with the classification equipment to ensure the quality of the finished pellet. The separated powder material needs to be sent back to the animal feed pellet mill machine for pelleting.
  9. Cooling equipment: used to reduce the temperature of the pellet feed made by feed pellet mill machine to a temperature close to room temperature through suction, and partly reduces the moisture of the feed while reducing the temperature.
  10. Crumbling equipment: It is a machine that crushes compound feed pellets into small particles (called crumbs), generally using roller crushers.
    (Various animals have different requirements for the size of pellet feed, especially for chickens, fish and shrimp, which require smaller pellets. According to the principle of pelleting, when pressing small granules, the output is small and the power consumption is large, which is not economical.
    Therefore, in the production of small pellets, the powder is generally first compressed into larger particles, then crushed by a pellet crumbler, and then screened through a grading screen to obtain finished feed products that meet the specifications. This can increase output and reduce power consumption.)

    how to make your own pellet mill

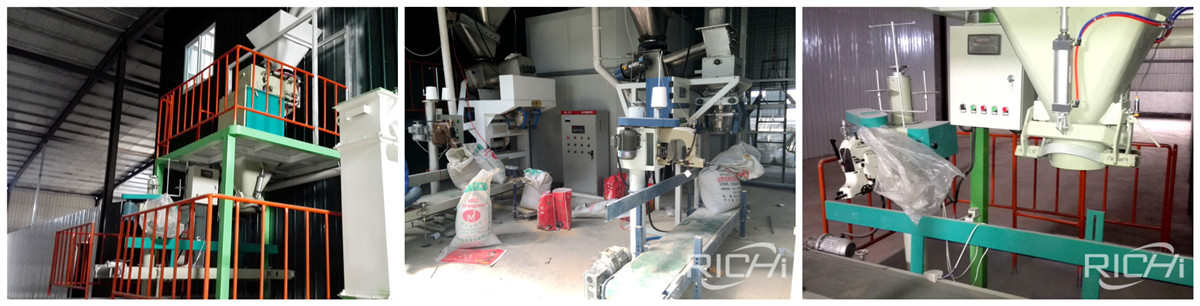

  11. Finished product packaging equipment: packaging can be divided into automatic packaging and manual packaging. Automatic packaging generally uses a computer-controlled automatic quantitative scale with a conveyor and a sewing machine. Manual packaging generally uses scales and hand-held sewing machines.
  12. Dust removal equipment: It is equipment that absorbs dust and protects the environment. The principle and equipment used for dust removal and air transportation are basically the same.
    The difference is that one is for conveying dust and the other is for conveying materials. The air volume required for conveying dust is smaller than that of conveying materials.

Videos Of Feed Pellet Mill Machine

From the rugged and practical lines to the sleek and streamlined aesthetic design, from customized non-standard models to multi-combination standard configuration models. Richi Machienry SZLH series feed pellet mill machine always strives for changes in accordance with market trends and customer needs, and introduces the old to the new in time.

Relying on the standard body, reasonable configuration, stable performance and mature design of the feed pellet mill machine, RICHI has won the trust of customers all over the world.

Click the Button to Consult Online

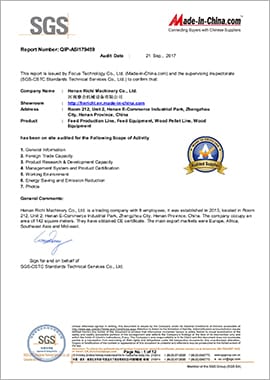

Certification Of Feed Pellet Mill

Richi Machinery's feed pellet mill machine products cover all types of feed processing. All feed pellet mill products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification.

Click the Button to Consult Online

Animal Feed Pellet Mill In RICHI Factory

After more than 20 years of development, the production base of Richi Machinery has been gradually established. As a professional feed pellet mill equipment manufacturer, we have industrial parks such as R&D headquarters, casting and assembly bases, and parts processing bases.

The technology is closely linked and the control is advanced at all levels, so that each equipment undergoes strict machining processes and Precise inspections provide users with products that strive for excellence.

Click the Button to Consult Online

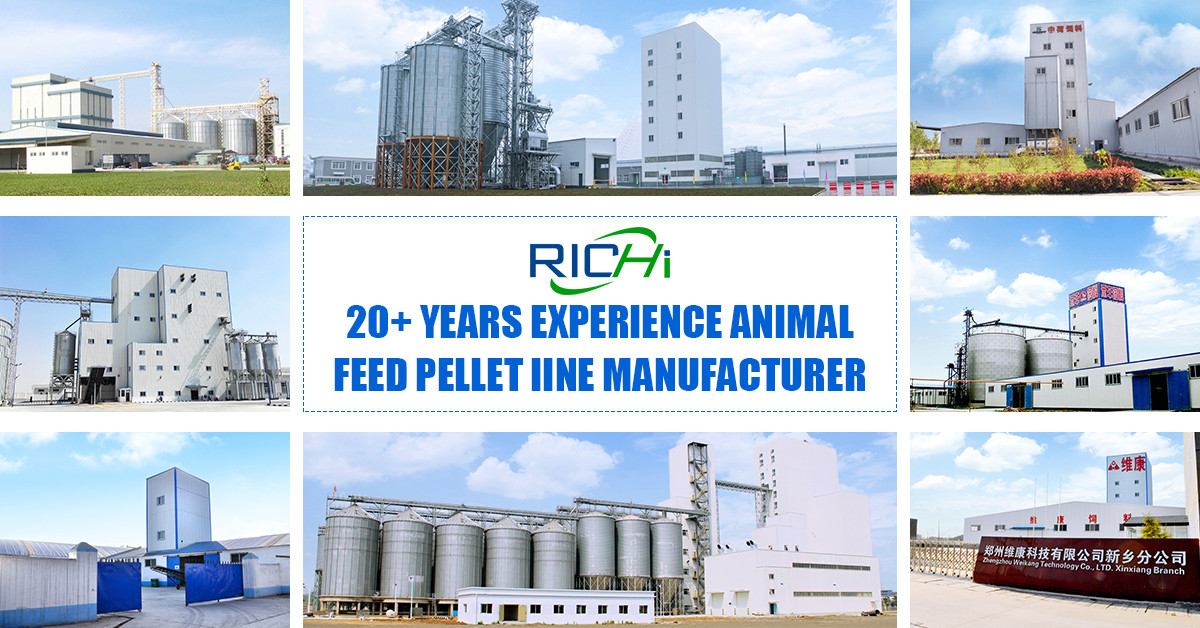

Cases Of Animal Feed Pellet Mill

For more than 20 years, we have accumulated a wealth of practical experience, product applications covering poultry feed, livestock and poultry feed, ruminant feed, aquatic feed, pet feed and other fields, and can provide a complete set of solutions for feed processing projects and EPC general contracting services.
animal feed pellet mill process

Click the Button to Consult Online

Why Choose Richi

why choose richi
why choose richi
Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields. All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Get Price & Service

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization. Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Get Price & Service
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Get Price & Service
Quality Control

Delivery And Installation

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment. According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Get Price & Service
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training
After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs. After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.
