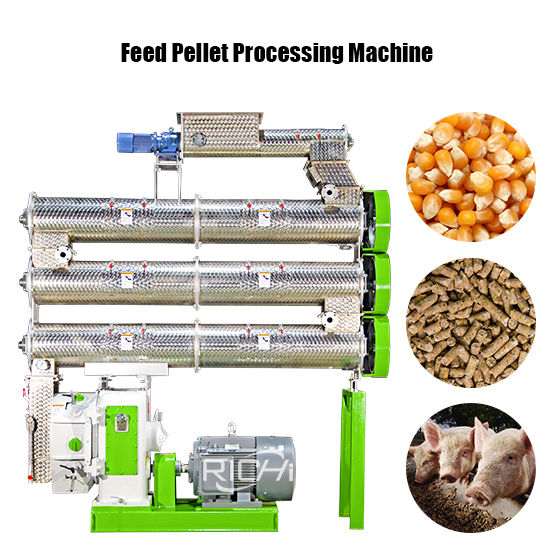

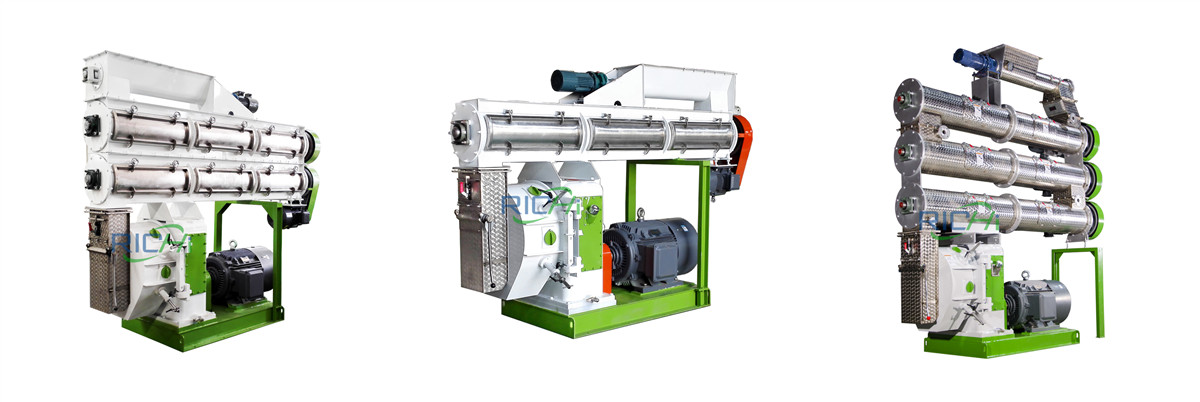

Feed Pellet Processing Machine

Home > Feed Pellet Machine >
Feed Pellet Processing Machine
APPLICATION: Animal Pellet Feed Industry
CAPACITY: 1-42 T/H
MAIN POWER: 22-315 KW
MODEL: SZLH
WhatsApp: +86 138 3838 9622

Pellet feed processing machine is a key equipment for producing pellet feed, with high output, good performance, low energy consumption, low noise and beautiful appearance characters. It is the ideal equipment for pressing poultry, livestock and fish pellet feed.

24 hours to reply to technical inquiries

videos of Feed Pellet Processing Machine

At present, more than 3,000 sets of feed processing machine & equipment have been provided to more than 1,000 feed companies around the world. In addition, high-efficiency animal feed mill machines such as feed grinders, feed mixers, feed dryers, feed pellet coolers are widely used in pellet feed processing machine projects at home and abroad.

Applications Of Feed Pellet Processing Machine

RICHI has completed more than 3,000 pellet feed processing machine projects at home and abroad, involving livestock and poultry feed, aquatic feed and special aquatic feed, pet feed, pasture feed, etc. After more than 20 years of research and development, it has become a well-known pellet feed processing machine manufacturer and animal feed production line manufacturer in China's feed machinery industry.

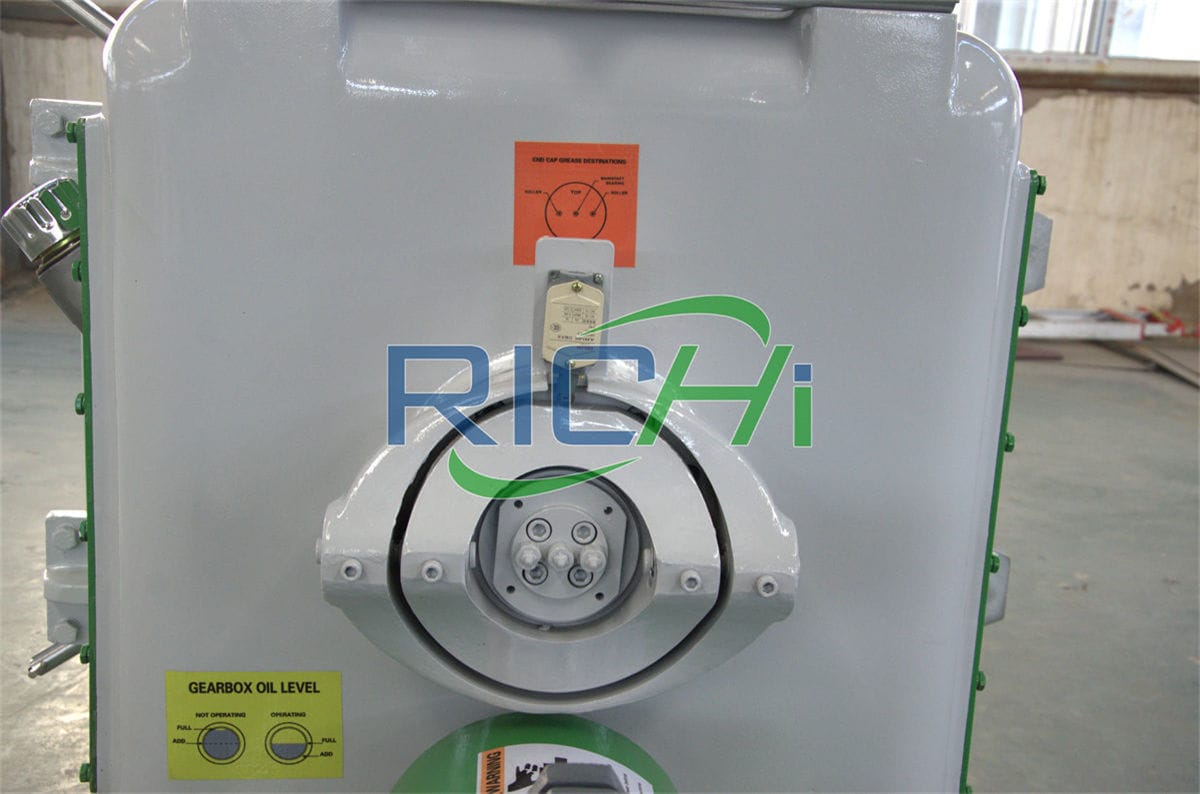

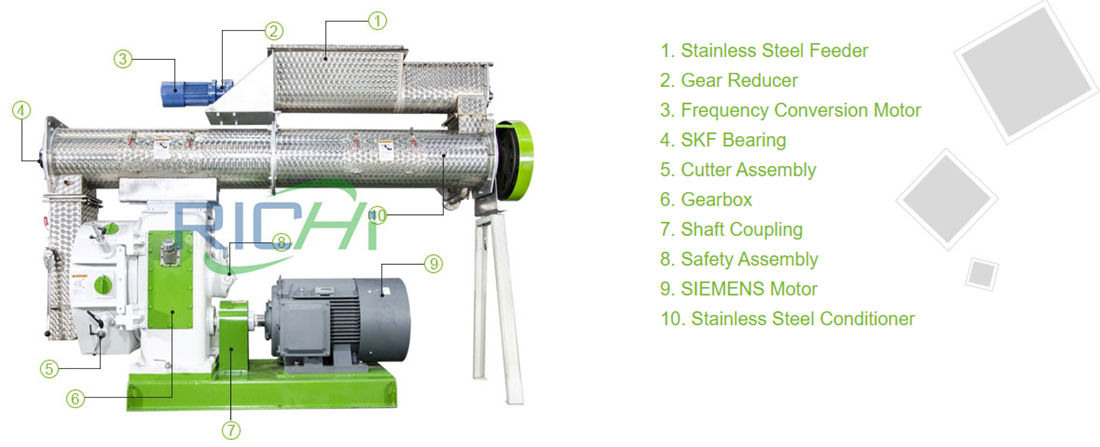

Technical Features Of Feed Pellet Processing Machine

  • The feeding system of animal pellet feed processing machine adopts stepless speed changing motor control, adjust speed conveniently and reliably. Could be equipped with microcomputer automatic control system adjusts feed-in quantity and throttle flow automatically,make pellet mill in the best working condition all the time.

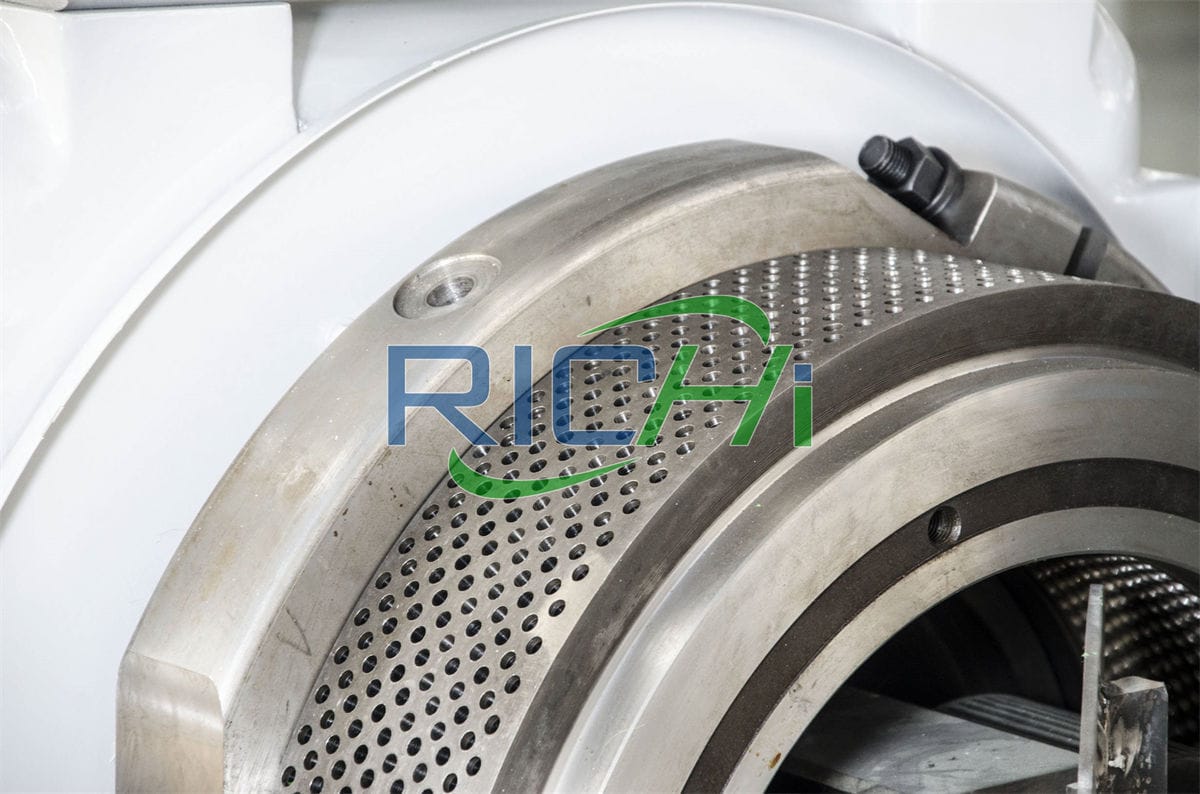

  • Main engine drives with high precision gear,ring die in quick detaching encircling hoop type, output higher 20% than belt drive.
  • The complete animal pellet feed processing machine transmission parts include electric motor with Switzerland high quality bearing,ensure high-efficiency,stable and low noise drive.
  • The pellet feed processing machine has larger type strengthen feeding conditioner in entire stainless steel with frequency speed control,ensure the high quality of pellet feed.
Technical Features Of Feed Pellet Processing Machine
Technical Features Of Feed Pellet Processing Machine
Technical Features Of Feed Pellet Processing Machine
Technical Features Of Feed Pellet Processing Machine

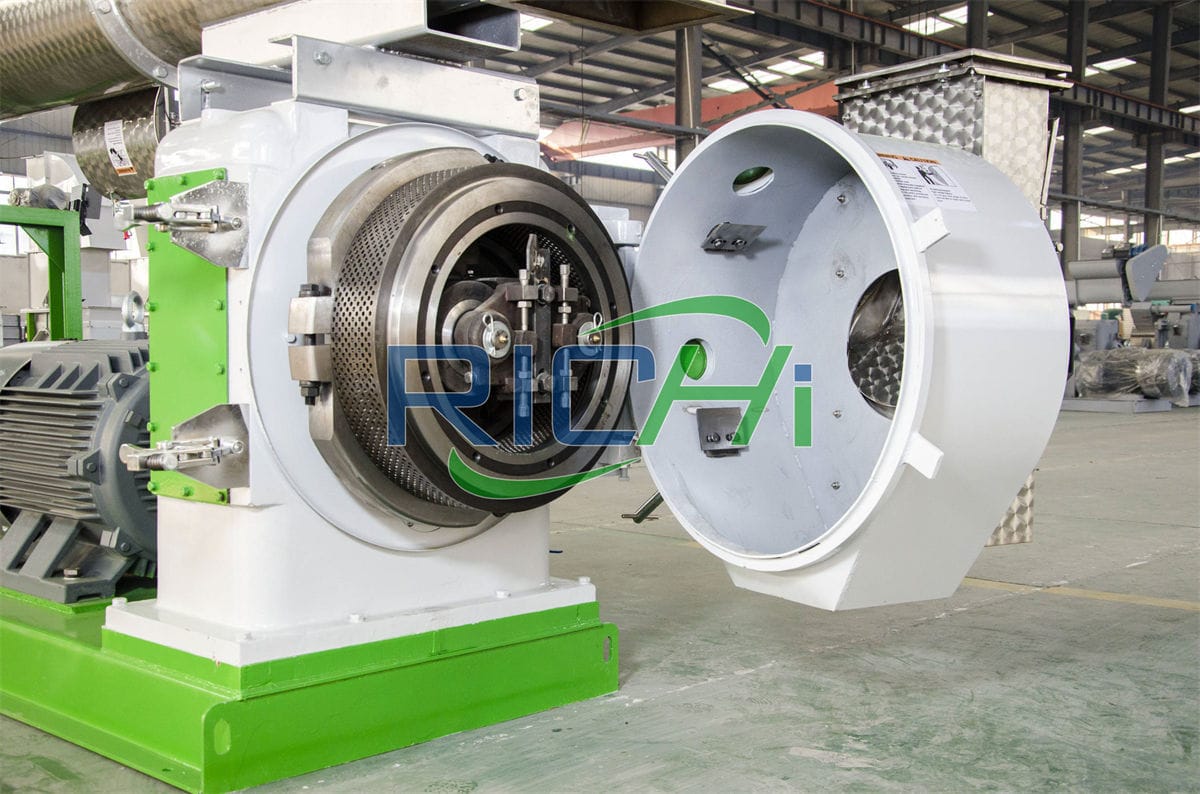

Working Principle Of Feed Pellet Processing Machine

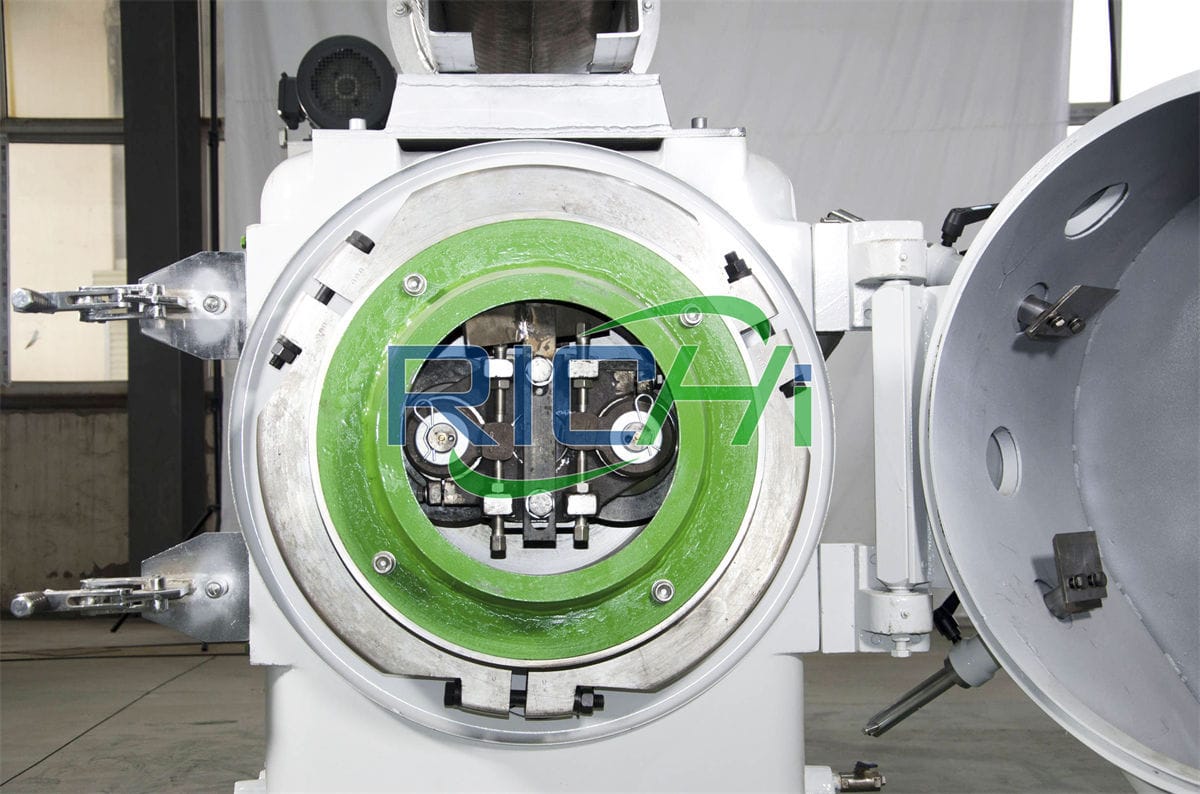

The pellet feed processing machine is mainly composed of a feeder, a conditioner, a pellet maker, an adjustment mechanism and a lubrication system. In the feed industry, the process of polymerizing and forming powdered feed materials or powdered feed through water, heat conditioning, mechanical compression and forced passage through the ring die hole is called pelleting.

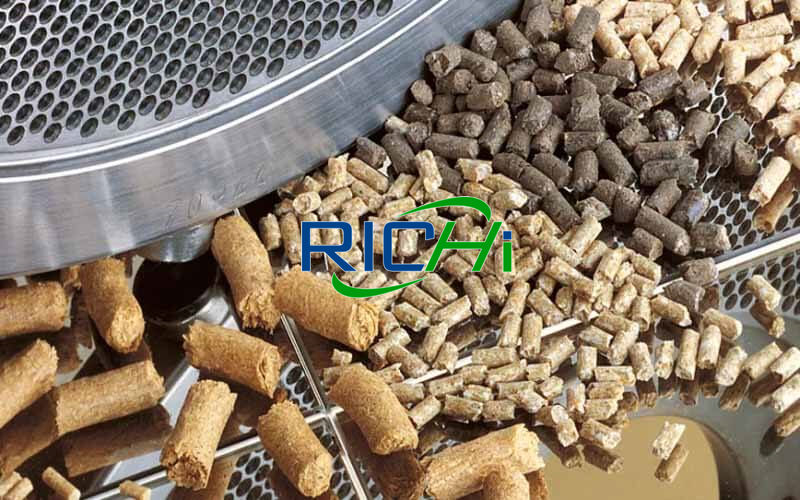

To study the particle mechanism of the ring die pellet feed processing machine is to study the process of pellet forming.

Working Principle Of Feed Pellet Processing Machine

During the working process of the pellet feed processing machine, the ring die is driven by the main power of the motor to rotate clockwise at a certain speed; as the quenched and tempered material enters the granulation chamber, the material begins to be taken into the working area, and the press roller uses the working area effect of internal friction also begins to rotate clockwise.

With the rotation of the die roll, the ingested material moves forward faster, and the squeezing force and the density of the material gradually increase.

When the squeezing force is increased enough to overcome the friction between the material in the die hole and the inner wall, the material with a certain density and cohesive force is squeezed into the ring die hole.

Due to the continuous rotation of the die roll, the material is continuously squeezed into the ring die hole. Therefore, the material in the ring die hole is continuously squeezed out of the ring die hole after being formed, and is cut by a cutter to form pellet feed.

Parameter And Model Of Pellet Feed Processing Machiney

Feed Processing Machinery Type Capacity(TPH) Model Main Motor Power(kw) Final Pellet(mm) Feed Processing Machinery Price
Poultry Feed Processing Machinery 1-42 SZLH 22-315 2-12 7000-100000USD
Chicken Feed Processing Machinery 1-42
Cattle Feed Processing Machinery 1.5-48
Sheep Feed Processing Machinery 1.5-48
Livestock Feed Processing Machinery 1-48
Ruminant Feed Processing Machinery 1.5-48
Pig Feed Processing Machinery 1-45
Fish Feed Processing Machinery 0.6-27

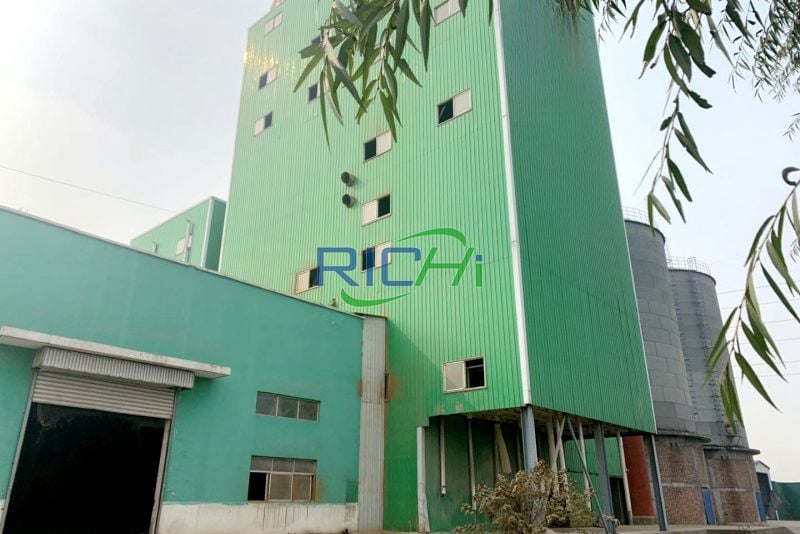

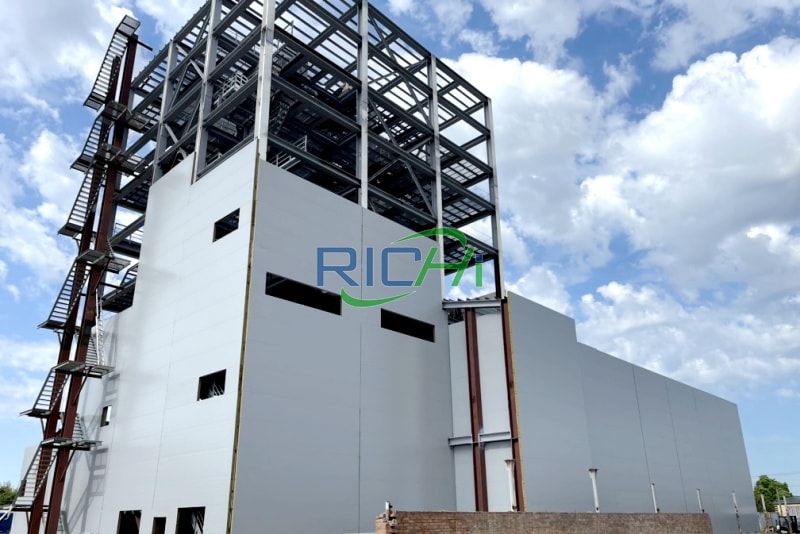

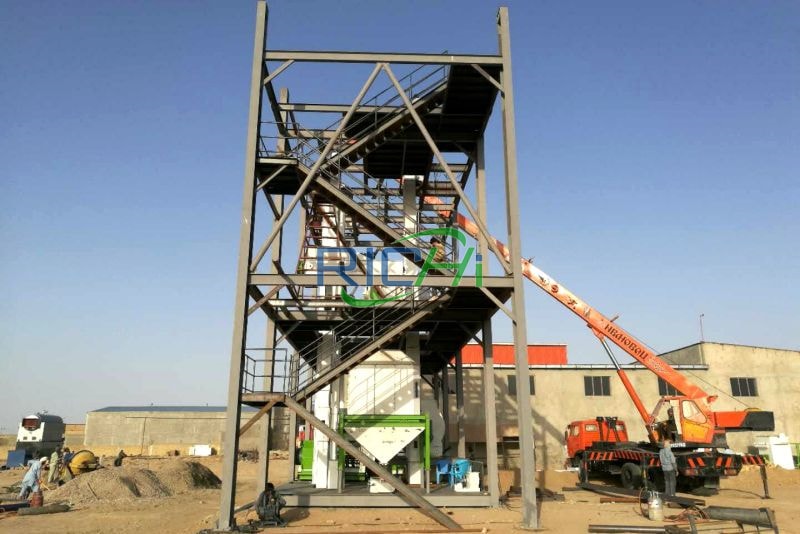

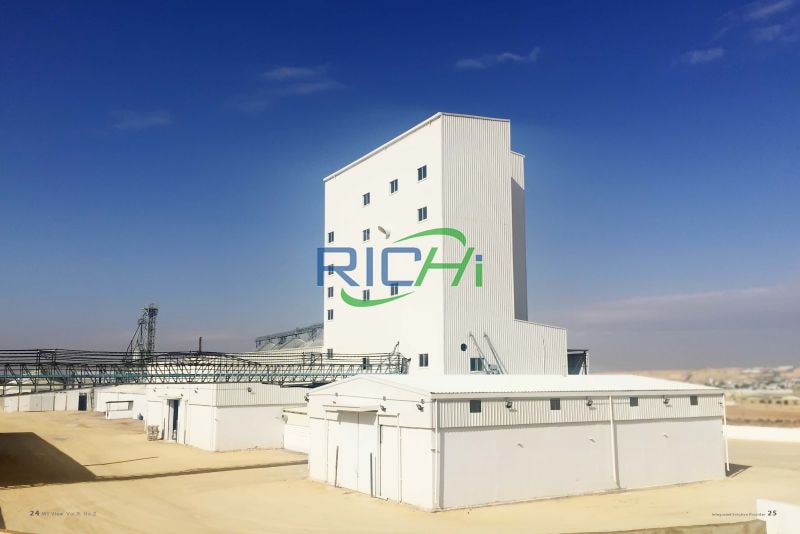

Feed Processing Machinery Cases

RICHI series pellet feed processing machine and complete feed pelletizing projects cover all provinces, municipalities and autonomous regions in China, with business covering more than 100 countries and regions including Southeast Asia, the Middle East, Africa, Europe, Oceania, South America, and North America.

Feed Processing Machinery Cases
Feed Processing Machinery Cases
Feed Processing Machinery Cases
Feed Processing Machinery Cases

Why Make Pellet Feed By Pellet Feed Processing Machine?

  • Animal Feed Processing Machine can improve the digestibility of feed, and generally can increase the feed conversion rate by 10%;
  • Animal Feed Processing Machine can ensure balanced nutrition and prevent picky eaters;
  • Pellet Feed Processing Machine can avoid grading of feed during packaging, transportation, and feeding;
  • By using pellet feed processing machine, the density of pellet feed is increased by 40-80% compared with powder feed, which reduces the storage and transportation volume, thereby reducing the storage and transportation costs;
    manufacture selling feed processing machines
  • The pellets made by pellet feed processing machine have good fluidity and will not be arched during production, storage and feeding;
  • Animal Feed Processing Machine can shorten the feeding time of livestock and poultry and increase the feed intake;
  • The high temperature and high pressure in the animal feed processing machine can pelleting process help to eliminate Salmonella in the feed, which can cause gastrointestinal diseases and is harmful to animals and humans;
  • Animal Feed Processing Machine can reduce loss and waste. The loss caused by wind blowing in the nourishment and feeding, and the waste caused by factors such as unclean eating during feeding, can generally reach 8-10%; 
  • The pellets made by pellet feed processing machine are easy for livestock and poultry to accept when the feed formula is changed (different formulas are required for different growth periods).

How To Reduce Energy Consumption And Cost Of Pellet Feed Processing Machine?

  • The power consumption of the pellet feed processing machine accounts for about 30% of the total power consumption of the animal feed mill factory. The three key operating parameters of the feed pellet processing machine are effectively controlled to reduce the power consumption in the feed pellet production process and save power costs.
  • Effectively control the amount of feed processing machine steam (in theory, the amount of steam used should be less than 5% of the total granulation) and steam quality (ensure granulation efficiency and pellet quality, reduce raw material loss), ensure the continuous production of the pellet feed processing machine, and finally Avoid wasting steam costs.
  • Ensure the quality (warranty, service life, wear resistance, etc.) of the pellet feed processing machine ring die and other accessories to reduce the cost of use. Note that even if they are all stainless steel ring dies, the quality varies from manufacturer to manufacturer and requires careful evaluation.
  • Reasonably control maintenance costs. The failure of the feed pellet processing machine should be mainly to prevent, supplemented by repair. Through the perfect routine maintenance process, the failure rate can be greatly reduced and the normal pellet production can be ensured.

    Complete animal feed processing machine
  • Speed ​​up the upgrading of animal feed mill machine. We should actively adopt feed pellet processing machines that can save energy, reduce consumption, and have low operating costs, especially for those animal feed mill plants and feed pellet processing machine that have been in operation for many years, with high energy consumption, low productivity, and poor safety performance. We should increase the intensity of technical transformation and reduce the overall cost of production.
  • Pay attention to cultivating the ability of operators of feed pellet processing machine. The quality of the staff in the feed mill factory determines the cost and quality of the production process in the animal feed mill factory. Among them, the level of personnel operating level of the animal feed pellet processing machine directly affects the efficiency of the feed pellet processing machine and the cost of pellet feed processing.

Why Choose Richi

why choose richi
why choose richi

Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields.

All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization.

Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan

Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Quality Control

Delivery And Installation

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment.

According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training

After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs.

After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.
