Name：Chicken Feed Pellet Production Line
Date：July 6, 2020
Capacity：3-5 Tons Per Hour
Feed Pellet Size：Powder feed,1-2mm small baby chicken feed, 3mm,4mm broiler chicken feed
The install period：30 Days
Workshop size(L*W*H)：9m*7m*13m (L*W*H)
In the face of increasingly fierce market competition, Uzbekistan's customer plans to build a 3-5 tons/hour poultry feed pellet processing plant to produce chicken feed. The customer previously bought a small flat mold poultry feed pellet production line in Richi, and he trusted Richi's product quality and after-sales service. The customer found us again to reach a cooperation. The project was signed on July 6, 2020 and is expected to be put into production in the second half of 2021.
Before the project started, we provided the customer with a comprehensive design program from the overall planning, layout design, process design, equipment personalization, installation and commissioning, electrical control, to production technology, etc.

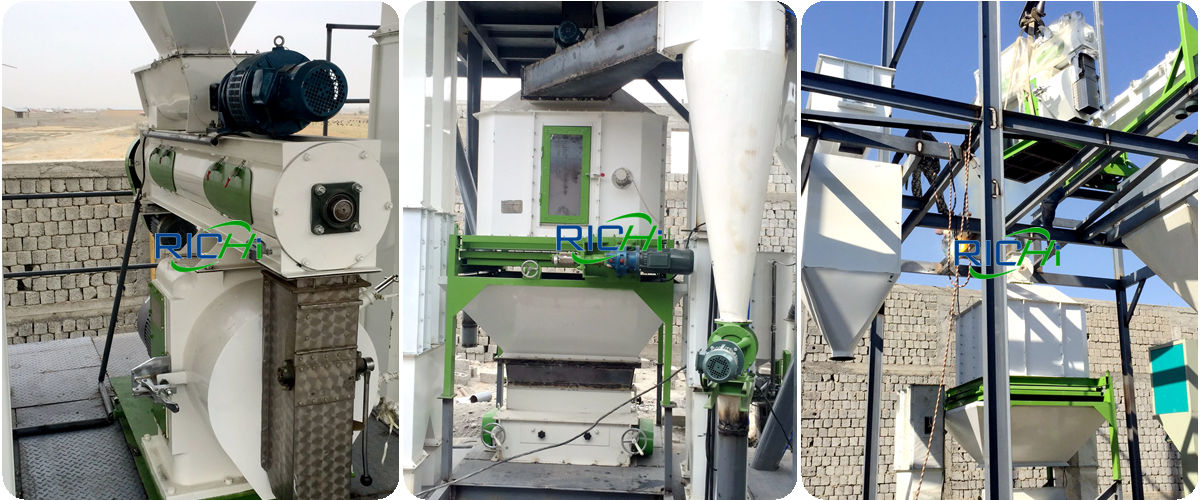

Main equipments list:
1.37KW animal feed hammer mill
Reach perfect balance between fineness and production. It is suitable for the pulverization of poultry feed, livestock feed, ruminant feed, and raw materials for small animals in large and medium-sized feed factory.
2.Good quality 500kg/batch poultry chicken feed mixing machine
High mixing uniformity (Cv≤2.5%), can add a variety of liquids.The full-length door structure and door locking structure can stop the leakage of material.
3.37KW ring die chicken feed pellet making machine
Scientific structure, balance operation. High production capacity, low energy consumption and long service life.
4.SSLG15*80 chicken feed pellet crumbler machine
It uses the differential speed principle of rollers to extrude and shear the materials, which breaks the large particles into irregular small particles.Roll protection device makes the roll automatically avoid collision when encountering hard foreign bodies, and protects the roll from damage.
5.SKLN14*14 Counter-flow Cooler
Use counter-flow cooling principle, full and uniform cooling.Use special slide valve discharging mechanism to discharge.The discharging mechanism runs smoothly and reliably, the discharging is smooth.Use mechanical leveling device, the discharging is accurate and sensitive.
6.DCS Automatic Packing Machine
The reasonable feeding structure ensures smooth flowing of materials.All parameters can be input by the panel.Automatic control of fast/slow feeding, bag clamping and loosening.
For the various problems during the commissioning phase, our engineers timely took appropriate measures to optimize the entire process system, ensuring stable, safe and efficient chicken feed production.
“Focus, Stability, Credibility, Innovation, Harmony with Heart, Value & Result-Oriented”--- these centennial business mottos have always infused us with vitality. Richi Machinery will strive to create greater value for customers, keep innovating, and build truly valuable animal feed production lines for customers.
With the sales contract, the order tracking clerk checks the models and quantities of each machine and spare parts.
Quality Test Before Delivery
Upon completion of the manufacturing of equipment, tthe quality inspector strictly checks quality of every machine with the checklist.
Check Items When Packing
Before packaging and shipment, the order tracking clerk checks the packaged items again with the packing list to avoid loss of items.
Sign the contract
Adopting international common standards for accurate design of product packaging, prevent product damage rate and the effective use of transport tools, which ensure the perfect delivery of products.
