Fish Feed Pellet Mill

Fish Feed Pellet Mill

APPLICATION: Fish Feed Industry
CAPACITY: 0.6-30T/H
MAIN POWER: 22-315KW
MODEL: SZLH
WhatsApp: +86 138 3838 9622

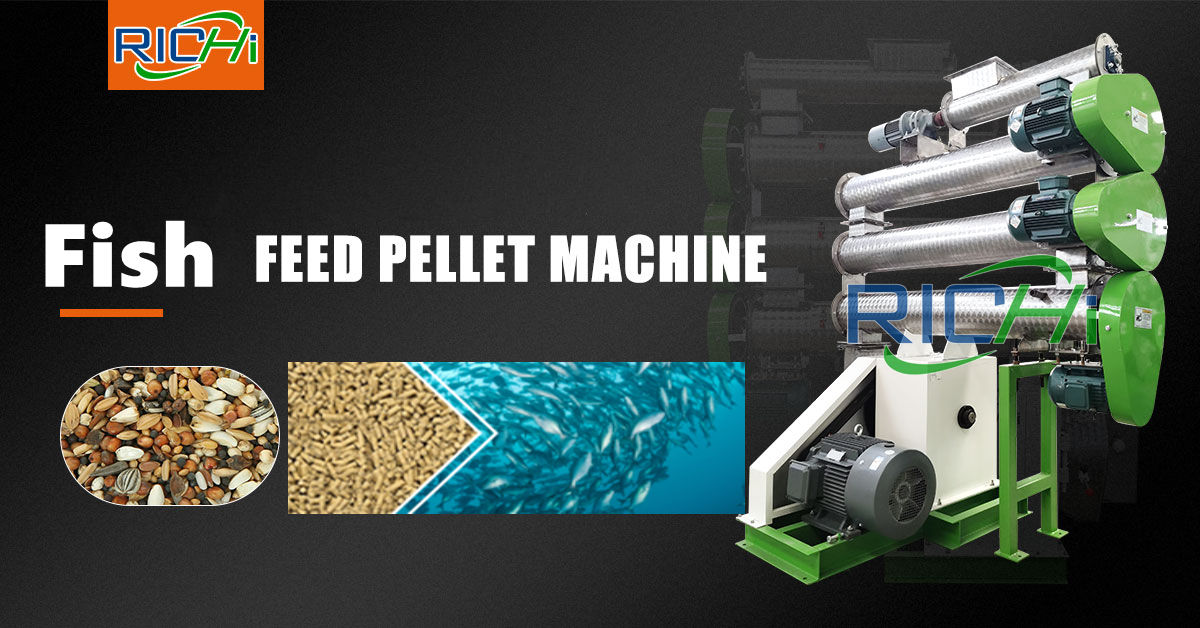

Fish feed pellet mill is the pelleting machine that directly pressed the crushing material like corn, soybean meal, straw, grass, rice husk into feed pellets. It is widely used in large, medium and small aquaculture, livestock farms, poultry farms, and large, medium and small animal feed processing plant. When used as a fish feed pellet maker machine, it must be equipped with at least two layers of conditioners.

24 hours to reply to technical inquiries

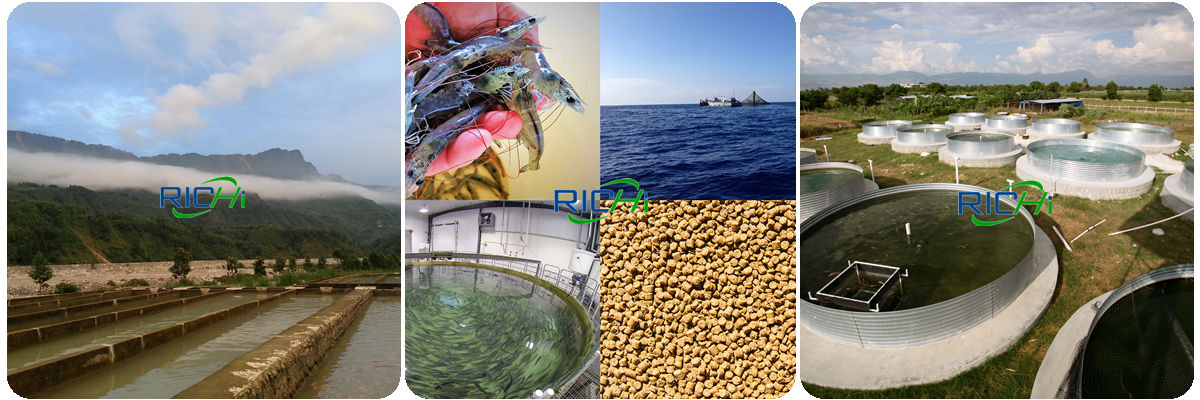

Applications Of Fish Feed Pellet Mill

With the increasingly strict ban on marine juvenile fish in various countries in the future, the price of chilled fish will rise or even be replaced. Moreover, the penetration rate of aquatic feed is relatively low.

Compared with the penetration rate of industrial feed for poultry feed and pig feed, there is a lot of room for development. Therefore, aquaculture will gradually increase the proportion of feed use in the future.
fish feed production line with scraps off meet and fish

Richi Machinery designs and manufactures all key fish feed making machines and offers complete fish feed plant solutions to the global animal feed and aqua industry. Our fish feed processing technologies are available in various models and with optional accessories to offer the optimum solution for your specific fish feed production needs.

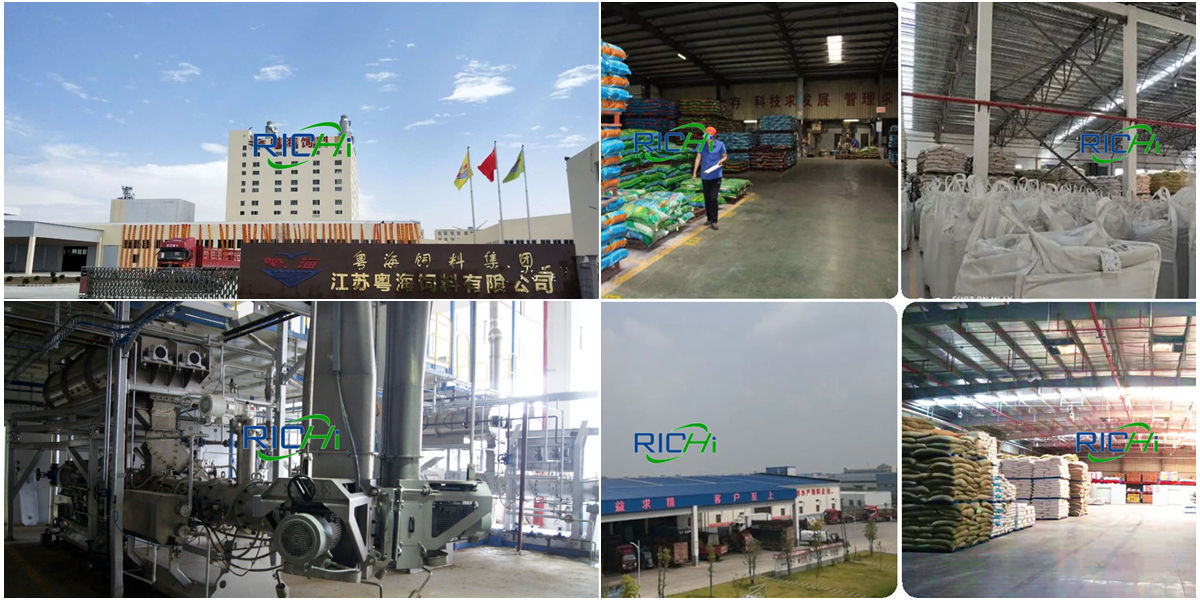

The fish feed making machine and fish feed plant project we have done

Pellet Richi is one of the fish feed machine manufacturers and fish feed plant suppliers in China, we have rich experience of providing complete fish feed plant solutuions and fish feed making machine for various fish feed, shrimp feed, etc.
fish feed manufacturing plant project report

5-6T/H Trout Fish Feed Plant For Sale Russia Uzbekistan 1T/H Floating Fish Feed Plant For Sale Uzbekistan (Tashkent)
1T/H floating fish feed plant for sale Uzbekistan(Gizak) 5T/H sinking fish feed mill for sale Uzbekistan
China 30000 Tons Per Year Feed Mill For Fish And Pet Feed Pellets 25T/H Full Automatic Aqua Prawn Fish Feed Manufacturing Plant
15T/H Aqua Feed Plant For Fish Prawns Crab Feed Production In China 1T/H floating fish feed plant for sale Zimbabwe
Simple Design Small Fish Feed Pellet Line For Sale UK Commercial Fish Food Making Machine For Sale Austria
Floating fish feed production line for sale Lithuania Small 200kg/h floating fish feed production line Moldova
Wet fish feed making machine DSP-120B for sale Russia 100-150kg/h floating fish feed plant foe sale Ukraine
1T/H sinking fish feed plant Thailand DGP-50 small electric fish food making machine for sale Singapore
DGP90-B floating fish food making machine for sale Turkmenistan 1T/H Fish Feed Machine For Sale Puerto Rico
DGP80-B floating fish food making machine for sale Honduras 2T/H floating fish feed extruder machine for sale Bolivia
Simple Design 2T/H Fish Feed Production Plant For Sale Bolivia 1T/H Fish Food Making Machine For Sale Dominica
150kg/h Small Floating Fish Feed Production Plant For Sale Tanzania 1T/H floating fish feed plant in Senegal
1T/H Fish Food Making Machine For Sale Senegal 150KG/H Small Floating Fish Feed Mill Plant In Nigeria
1T/H Fish Food Making Machine For Sale Nigeria 1T/H Fish Food Making Machine For Sale Cote d'Ivoire
150KG/H small fish feed mill plant for sale Burkina Faso 70B fish food making machine for sale Cameroon
150KG/H Small Floating Fish Feed Line For Sale Botswana DGP90 Fish Food Making Machine For Sale South Africa
40C small electric fish food making machine for sale Philippines Small electric fish food making machine for sale Lebanon
DGP60-C floating fish food making machine for sale Pakistan 500-600kg/h fish food making machine for sale UAE
1T/H Fish Food Making Machine For Sale Mozambique DGP50C Small Fish Food Making Machine For Sale Tashkent

The above fish feed plant project and fish feed machine project are real transaction information. If you want to get project-related information, pictures, and videos, please contact us.

Click the Button to Consult Online

Technical Features Of Fish Feed Pellet Mill

  1. Main drive key bearing of the fish feed pellet mill adopted temperature monitoring system to guarantee the equipment running safe;
  2. The fish feed pellet mill adopts oil circulation cooling lubricating system, improves cooling and lubricating effect of the key shaft in the main driving system to make sure the equipment working long time stably;
  3. The fish feed pellet mill adopts automatic grease lubrication system, add grease at a definite time and by a definite quantity without stop-working;
  4. The fish feed pellet mill series are fitted with automatic ring lifting device easy to disassembly ring and reduce labor intensity;
  5. The fish feed pellet mill adopts automatic cutting adjusting structure, improve the accuracy of clearance adjustment by operation screen.
Click the Button to Consult Online

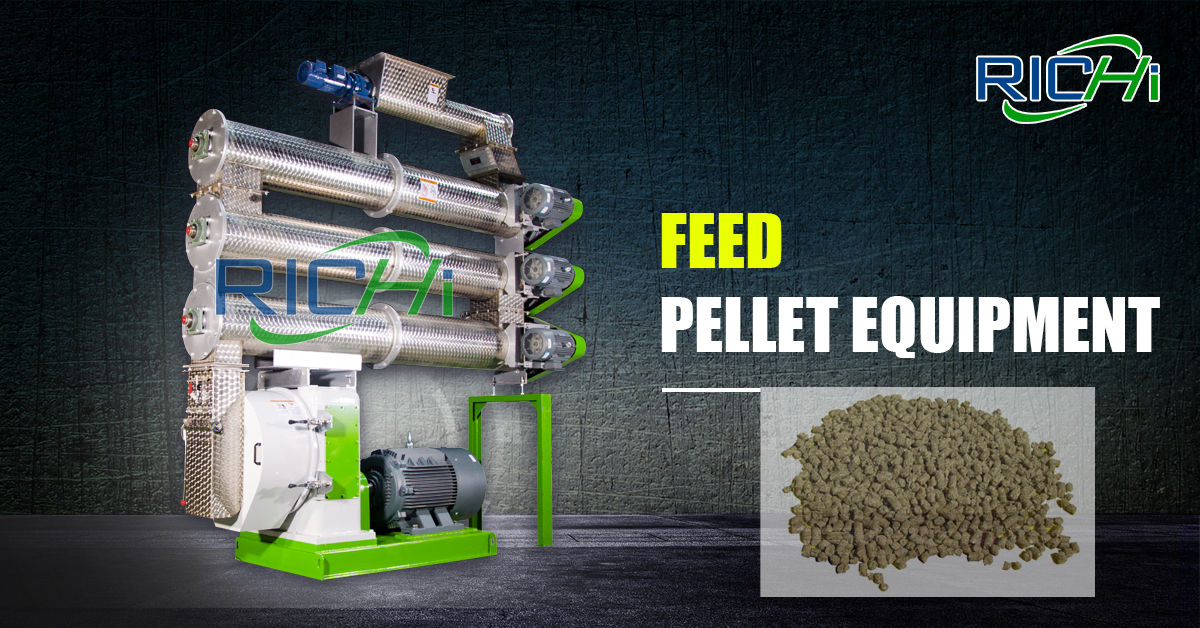

Fish Feed Pellet Mill
Fish Feed Pellet Mill
Click the Button to Consult Online

Working Principle Of Fish Feed Pellet Mill

First, we put the raw materials into the crushing chamber through a feed hopper, and there are flailing hammers spinning quickly and close to a perforated screen. Then the broken materials are moved along the rotor outer-edge and go through a continuous collision and friction against hammer, toothed plate and sieve. Then the broken material is totally crushed.

If the particle size is smaller than the holes on the screen after processing, feed powder can pass through the screen. Finally, the feed particles discharge to the fan, and products are blown through the cyclone and delivered into storage bags under the suction force of working fan.

fish feed production machine from China
Click the Button to Consult Online

Parameter And Model Of Fish Feed Pellet Mill

Model Capacity(TPH) Main Motor Power(kw) Feeder Motor Power(kw) Conditioner Power(kw) Dia.of Ring Die(mm) Final Pellet(mm)
SZLH250 0.6-1.4 22 0.75 1.5 250 1.5~12
SZLH320 1.8-2.8 37 1.5 2.2 320 1.5~12
SZLH350 3-5 55 1.5 3 350 1.5~12
SZLH420 4.8-8.5 90 1.5 7.5 420 1.5~12
SZLH508 6-12.5 132 2.2 11 508 1.5~12
SZLH558 9-17.5 180/200 2.2 11 558 1.5~12
SZLH558D 8.4-15.5 160/180/200 1.5 7.5 558 1.5~12
SZLH678 12-21 220/250 2.2 11 678 1.5~12
SZLH678D 9-17.5 200/220/250 2.2 11 673 1.5~12
SZLH768 15-28 280/315 2.2 11 768 1.5~12
SLZH858 15-30 280/315 2.2 15 858 1.5~12
Click the Button to Consult Online

Classification of pelleted aquatic feed made by fish feed pellet mill

Do you really know aquatic pellet feed? The first thing to say is that our fish feed pelleting machine processes aquatic compound feed. So what is compound feed?

Aquatic compound feed is a feed with a certain shape that is properly processed by mixing various raw materials in a certain proportion according to the animal's nutritional needs, according to the fish feed formula.
fish feed processing machine price in dollar fish feed making machine price in bangladesh

For aquaculture animals, different breeding objects or the same breeding object at different development stages and different breeding modes have different nutritional requirements, and the formula, nutritional composition and characteristics of the feed made fish feed machines are also different.

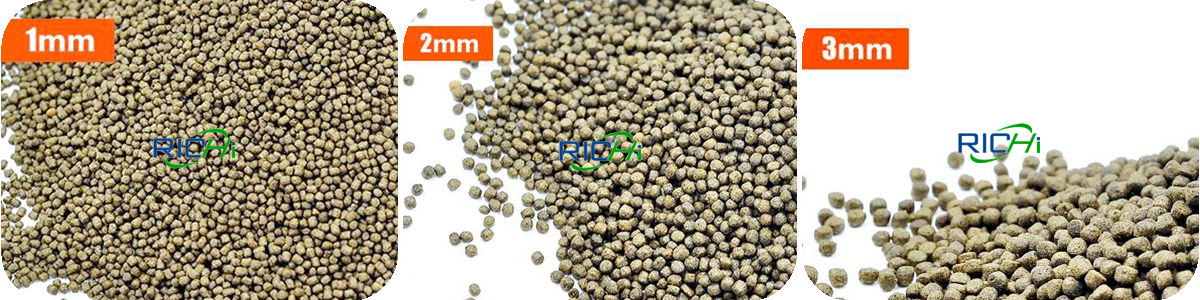

Fish feed pellet can be divided into hard pellet feed, soft pellet feed and extruded feed.

Hard pellets

Hard pellet feed is the main product form of aquatic feed. The powdered feed material is quenched and tempered by steam at high temperature, granulated by a fish feed pellet mill machine, and then cooled and dried to make a cylindrical feed with a certain hardness and shape.

Due to the fine structure of the hard fish food pellets, the high stability in water, the insoluble nutrient components, and the suitability for large-scale fish feed production, it has the largest production capacity in the field of aquatic feed.
floating fish feed making machine material needed for fish feed production

For hard pellet feeds, the main concern in the future is how to improve the processing quality of feeds so as to be more suitable for the digestion, absorption and retention of nutrients by aquaculture animals.

For example, improving the pulverization fineness of feed ingredients has a quantitative effect on the improvement of digestion and utilization, how to improve the quality of feed under low temperature conditions, and improve the bonding performance of feed.
which machine can use to make fish and layer farm feed exit strategy for hatchery and fish feed processing plant

Soft pellet feed

Soft pellet feed is a pellet feed with a soft texture and a water content of 25%-30% produced by a fish feed pellet mill for powdered feed. (The difference from hard pellets is mainly the compression ratio of fish feed pellet mill).

The soft pellet feed is produced and shaped at room temperature, with less loss and destruction of nutrients, but it is not easy to store, and it is generally processed temporarily during use. It should be noted that the binder used in the production of soft pellets has a great influence on its stability in the water.
fish feed pellet machine in austria germany procees of fish feed production

Extruded pellet feed

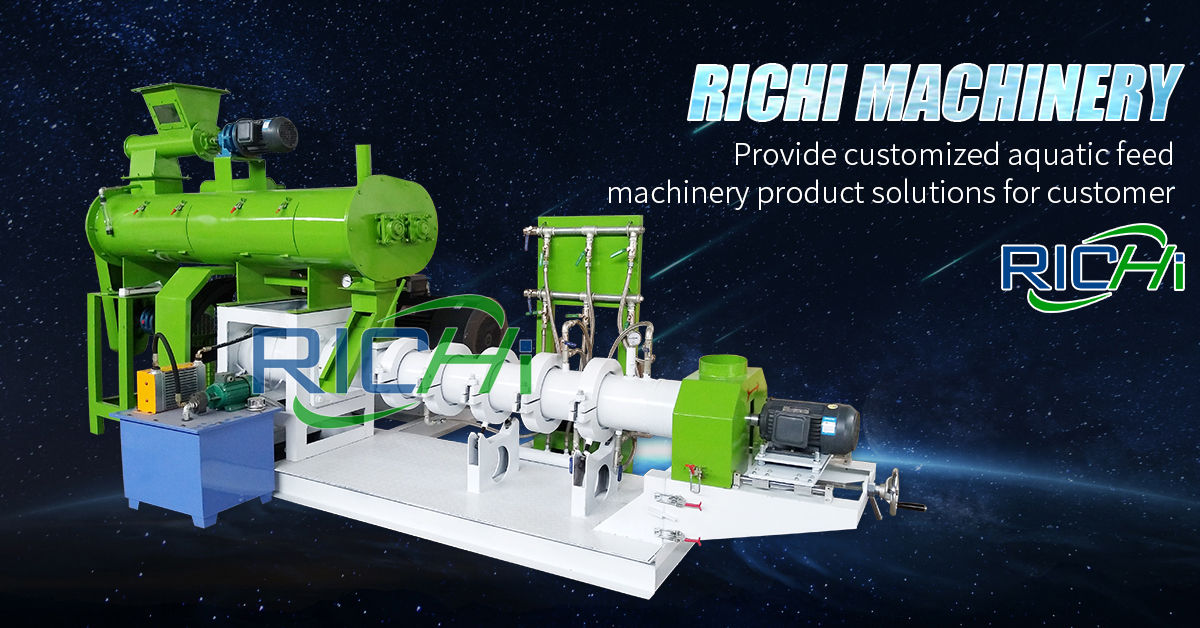

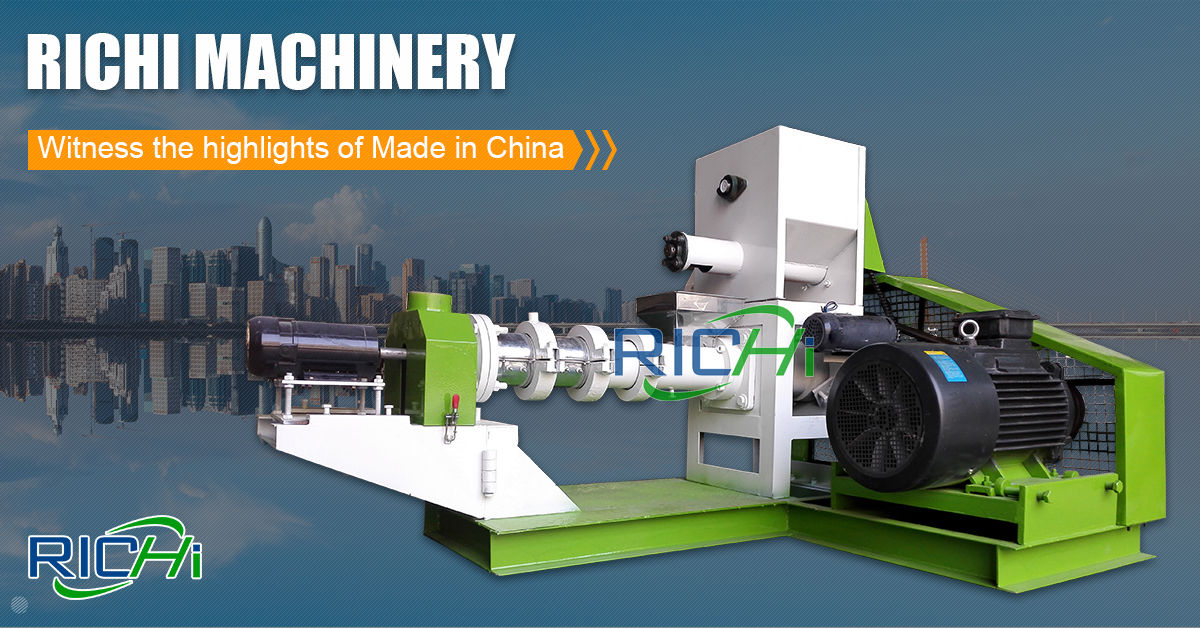

Puffed pellet feed made by fish feed extruder machine is a process of mixing, conditioning, heating, pressurizing, extruding die holes, sudden pressure reduction, pelletizing, drying, etc. of powdered feed in an feed extruder for aqua fish shrimp. Kind of fluffy porous pellet feed.

Extruded pellet feed made by fish feed extruder machine includes two types: sinking and floating. Generally, the water content is about 8% and the density is less than 1g/cm3, which is a floating feed. The main parameter is to control the density of the feed. The density can be changed by adjusting the amount of coarse ash and starch in the feed, as well as adjusting the expansion pressure and the shape of the fish feed pellet.
comparison between single twin screw extruder for fish feed pellets fish pellet food machines

Extruded fish feed pellet has the advantages of gelatinizing starch, denaturing protein, promoting digestion and absorption of animals, killing pathogenic bacteria in feed, improving feed efficiency, saving feed consumption, and storage durability. But the shortcomings are also obvious, such as destroying heat-sensitive substances in the feed, large investment in production equipment, and low depreciation.

Matured hard pellet feed

At present, there is also a feed production method that is between the production process of hard pellets and extruded pellets, called mature hard pellets. It basically adopts the technical parameter requirements of extruded feed in fish feed production equipment and process configuration, but does not use extruded pelletizing equipment, but uses hard fish feed pellet mill.
fish pellets machine in kenya extruders for floating fish feed how to assemble a fish feed peletizer

For example, a double-rotor fish feed pulverizer is used for raw material crushing, so that the crushed raw materials can pass through a 60-mesh sieve. At the same time, the maturation process and equipment are added before and after the granulation by fish feed pellet mill, and the primary or secondary conditioning equipment is added, and the heat preservation and conditioning equipment are added.

The length of time significantly increases the maturity and denaturation of the feed. But at the same time, it also avoids the loss of heat-sensitive substances caused by high temperature.

Click the Button to Consult Online

Customized fish feed mill plant supplier

RICHI designs and manufactures all key fish feed making machines and offers complete fish feed pelletizing plant solutions to the global aqua industry.

All RICHI auqa feed mill and complete aqua feed processing plants are tailor-made to suit the customer's specific requirement, which also implies a close dialogue with the client regarding present and future requirements as well as local conditions.
cost to operate fish feed processing plant fish feed food make machine near small price

When designing a customer specific aqua feed plant solution, we always take account of the account for:

Some fish feed manufacturing plant project reports for you:
