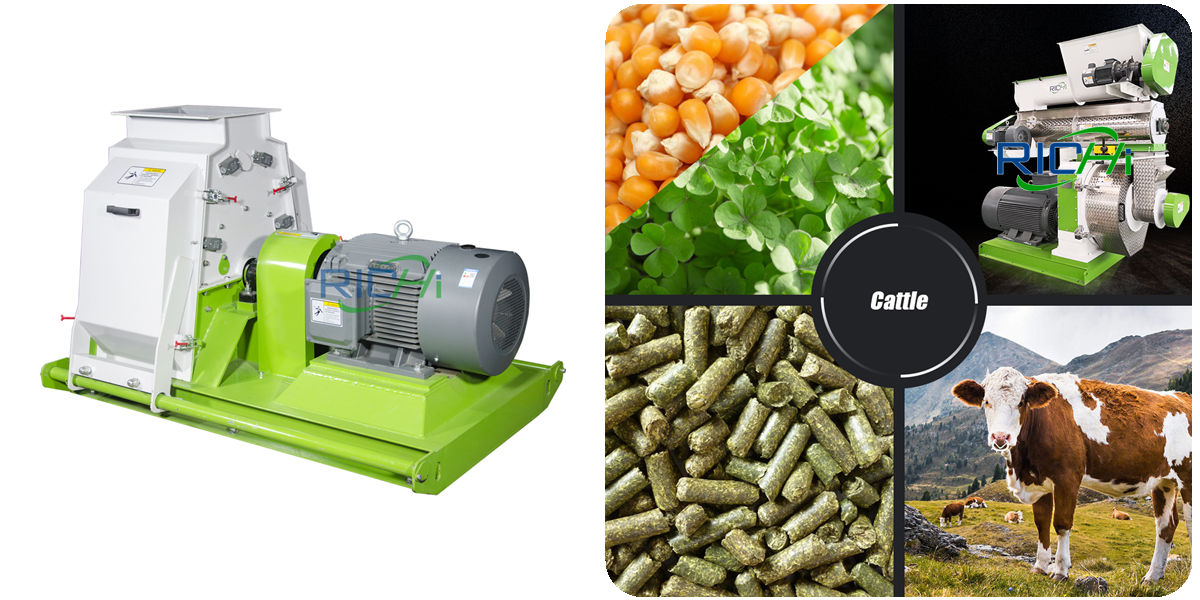

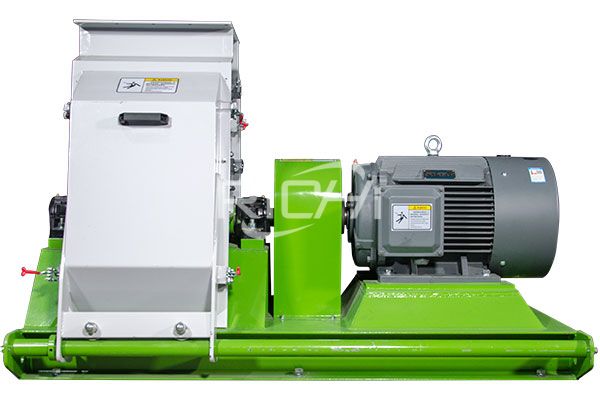

Applications Of SFSP Fine Grain Hammer Mill

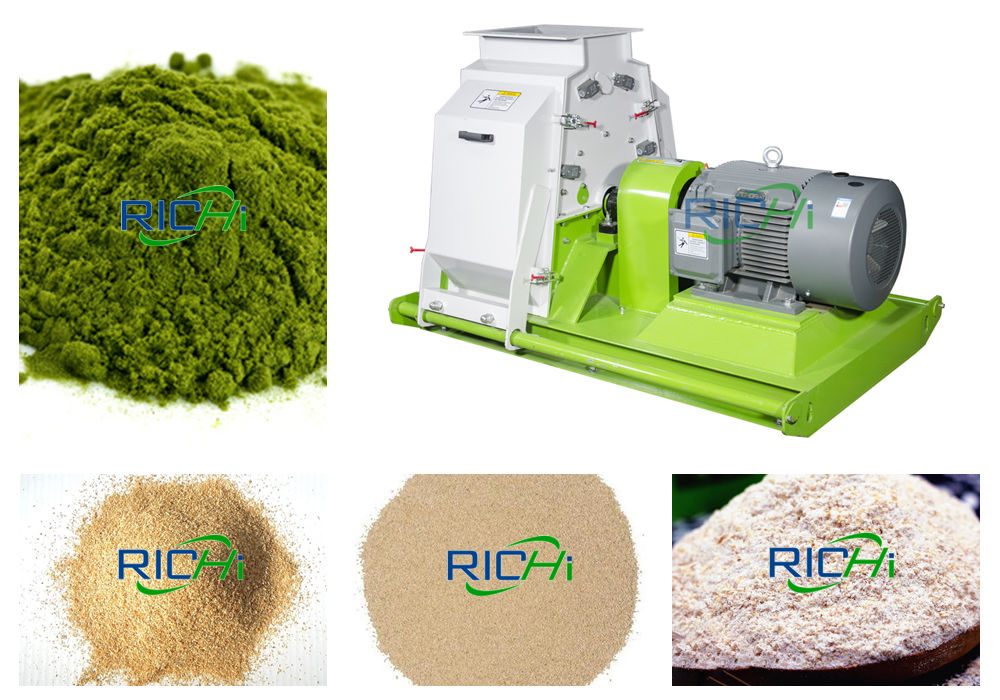

Henan Richi Machinery SFSP-series fine grain hammer mill is suitable for corn, soybean, wheat, grain grinding. Especially suitable for the pulverization of baby pig, fish feed, poultry and livestock Feed. It's widely used in animal feed processing, brewing, chemical and biological industry.
Patented ventilating from shaft end system, output of small aperture material increase by more than 25%. Widened grinding surface, fully optimized hammer arrangement, wonderful performance in micro grinding. High-precision dynamic balance detecting rotor, little vibration, low noise.
1.SFSP Series Feed Hammer Mill widely used in animal feed processing, brewing, chemical and biological industry.
2.Patented ventilating from shaft end system, output of small aperture material increase by more than 25%.
3.Widened grinding surface, fully optimized hammer arrangement, wonderful performance in micro grinding.
4.High-precision dynamic balance detecting rotor, little vibration, low noise.
5.We use the new-type adjustable sieve pressure plate, adjustable back gauge and tuning technique, to destroy the material circulation layer, and equipped with safety interlocking device for safety.
Working Principle Of SFSP Fine Grain Hammer Mill
When the rotor of the hammer mill rotates at high speed, the hammer becomes radial due to the centrifugal force (for the rotor of a hanging hammer). Corn, soybeans and other grain raw materials enters the machine after being pressed by the feeding roller, and is immediately broken into particles by the impact of the hammer and tearing. The granular grains is discharged from the outlet sieve hole of the machine. Block until the hammer strikes again until it passes through the screen. The hammer mill does not rely on the full energy of the rotor components to break the grains, but mainly uses the work done by the hammer's kinetic energy to complete the crushing of the grains.

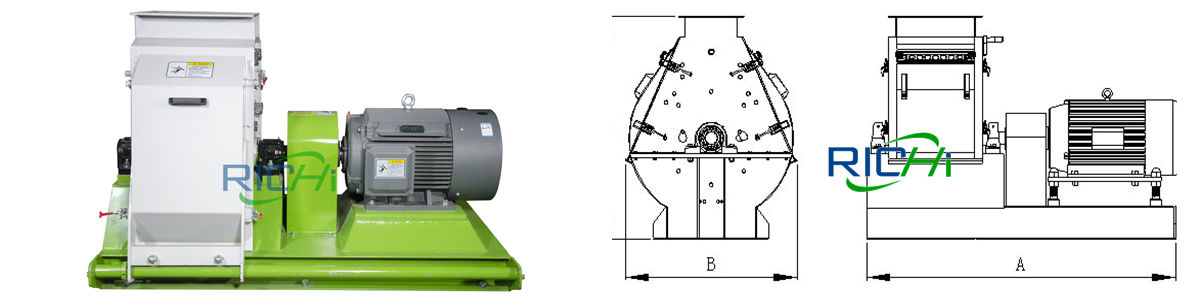

| Model |
SFSP56*40a |
SFSP56*40b |
SFSP66*60a |
SFSP66*60b |
SFSP66*80a |
SFSP66*80b |
SFSP66*100 |
SFSP138*30E |
SFSP138*40E |
| Power |
30kw |
37kw |
55kw |
75kw |
90kw |
110kw |
132kw |
110/132kw |
132/160kw |
| Capacity |
3-5T/H |
4-6T/H |
5-8T/H |
6-9T/H |
8-10T/H |
10-13T/H |
12-16T/H |
15-20T/H |
18-25T/H |
| Speed |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
1440r/min |
1440r/min |
