Low Cost High Return 8T/H Wood Pellet Factory Project Report For Agricultural And Forestry Waste
- Date: 2022-04-25 09:18:41
- From: www.pellet-richi.com
- Clicks:
Project overview of the 8t/h renewable energy wood pellet factory for sawdust straw rice husk pellets——wood pellet factory project report
Biomass pellet and briquette fuel technology uses wood chips produced in forestry production and processing and waste materials such as crop straws and rice husks generated in agricultural production as raw materials to undergo professional mechanical treatment and compression to produce compact molded fuel pellets.
Mainly used in fireplaces, biomass boilers and various combustion equipment suitable for particulate fuels. It is a new type of environmentally friendly and energy-saving material that replaces coal and diesel.
The customer of this low cost high return 8t/h wood pellet factory for agricultural and forestry waste project, Anhui Yuandong Biomass Fuel Co., Ltd., invested 5 million yuan (785,000 USD) to build a 100,000-ton biomass pellet fuel production project located in Xinhe Town Industrial Park, Anhui Province, China.
In November 2017, the company used self-purchased factory to purchase wood biomass agricultural and forestry waste manufacturing equipment such as feeding screw conveyors and biomass rice husk sawdust straw wood pellet machines. The 8 ton per hour agriculture waste biomass wood pellet factory project is constructed in two phases.
- In the first phase, a local factory building is rented to build a production line (8T/H) with an annual output of 20,000 tons of biomass fuel pellets;
- The second phase plans to build a new self-owned factory building through the purchase of land use rights. Increase equipment to increase the annual production capacity to 100,000 tons.
The low investment 8 tons per hour agricultural and forestry waste wood pellet factory project has a labor quota of 10 people, an annual effective production of 300 days, an 8-hour work day during the day, and a total of 2,400 hours of production throughout the year.
It can be calculated that the output of the agricultural and forestry waste wood pellet factory is 42 tons per hour, 8333 tons per month, 333 tons per day. However, the customer's wood pellet factory project is constructed in two phases, so the output of the first phase of the wood pellet factory project we undertook is 8 tons per hour.
In addition, the customer's total investment for the good quality rice husk stalk biomass wood pellet factory is 5 million yuan (785,000 USD), and the wood pellet factory equipment investment for the first phase of the project is about 200,000 USD.

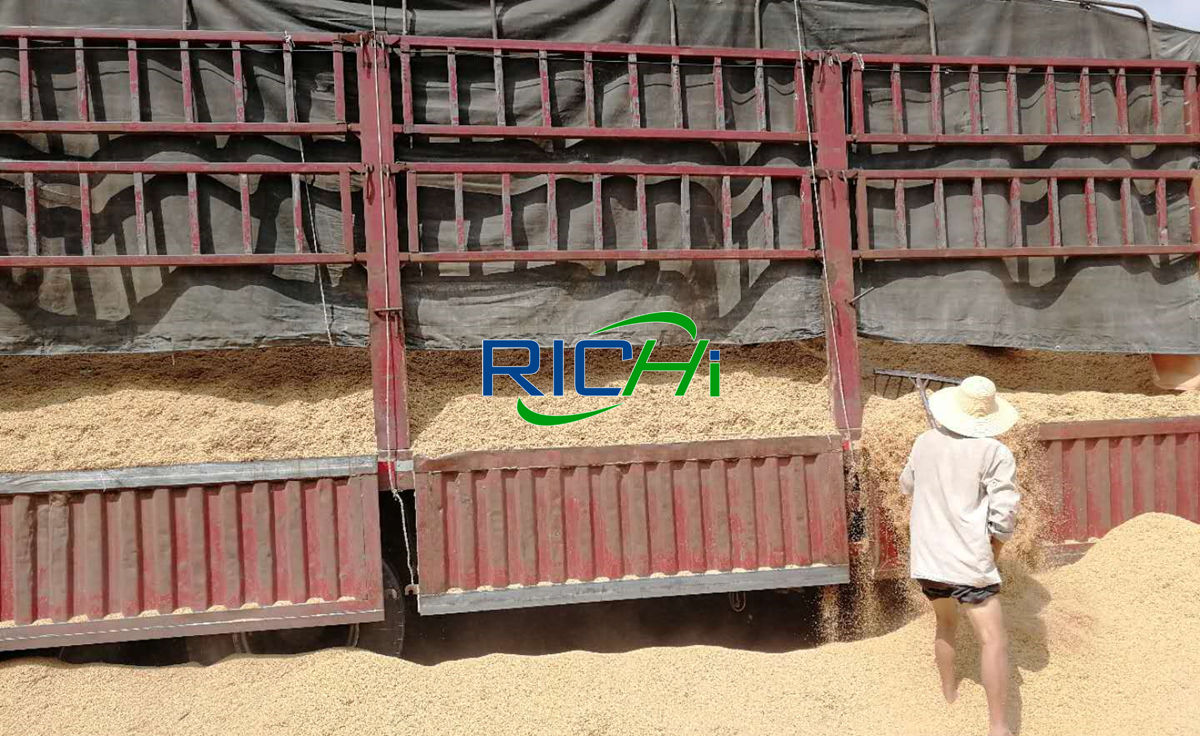

Raw material rice husk unloading
Product plan of the field installation provided 8 tons per hour wood pellet factory for agricultural and forestry waste——wood pellet factory project report

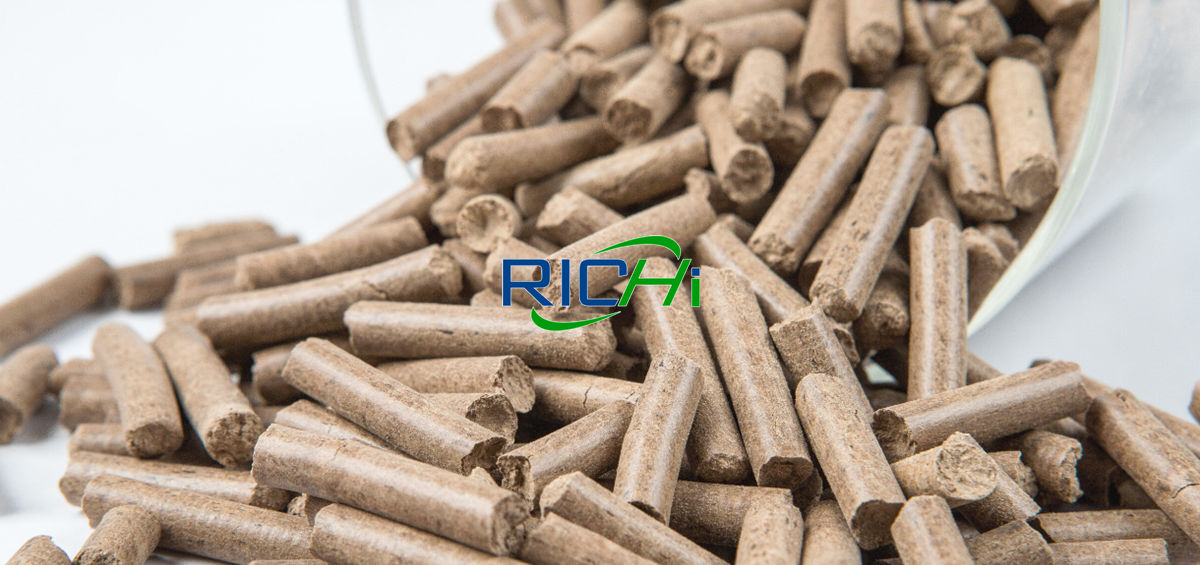

The product of this field installation provided 8 tons per hour wood pellet factory project is biomass pellets. Use wood sawdust, straws and rice husks to compress and process them into finished pellets. After the complete wood pellet factory project is completed, 100,000 tons of biofuel pellets will be produced annually.
| Name | Yield |
|---|---|
| Biomass pellet fuel | 100,000 tons/year |
Construction content of the high return 8 tons per hour wood pellet factory for agricultural and forestry waste——wood pellet factory project report

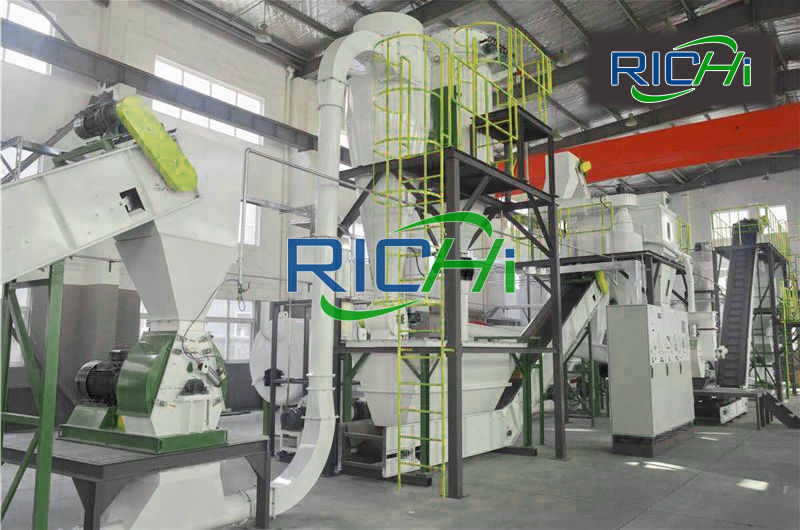

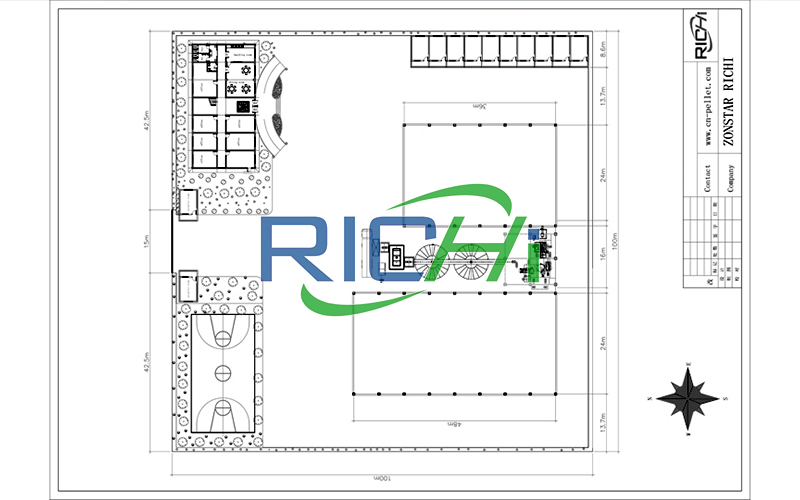

This 8tph automatic wood pellet factory project (Phase 1) is located in the factory area with two factories, a one-story steel structure factory building with a construction area of 1531.82 m²; a two-story steel concrete structure office building with a construction area of 352.91 m². The main construction content of this 8t/h agricultural and forestry waste wood pellet factory project is shown in the table below.
| Construction category | Construction name | Construction content and scale |
|---|---|---|
| Main Construction | Production workshop | A one-story steel structure building with a total construction area of 1531.82m². The wood pellet factory workshop mainly includes a raw material storage room and a pelletizing workshop. |
| Auxiliary Construction | Office building | A two-story steel-concrete structure, adjacent to the wood pellet factory building, on its west side, with a construction area of 352.91m². |
| Storage and transportation engineering | Raw material warehouse | Set in the wood pellet factory workshop, the building area is about 1000m². The raw materials are directly transported to the wood pellet mill press machine through the feeding auger for processing, and there is no raw material transfer and dosing process, thereby reducing dust pollution. |

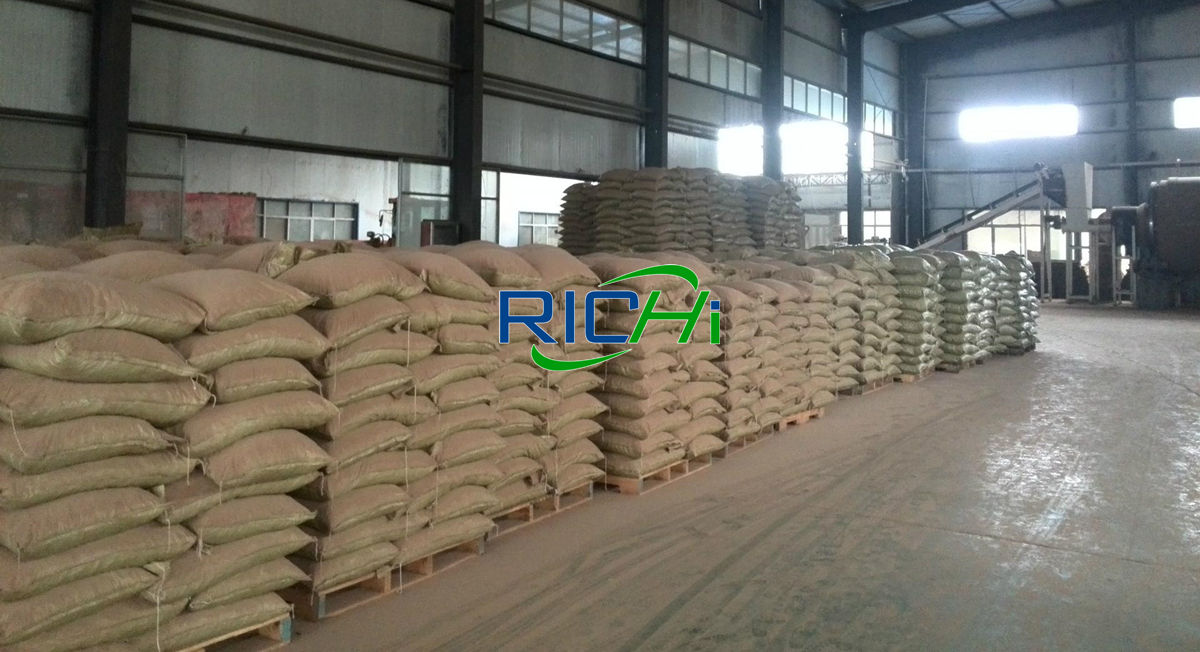

| Finished product warehouse | The building area is about 200m2, located on the south side of the wood pellet factory production workshop, mainly used for the temporary storage of finished products. | |
| Transportation Engineering | Raw material transportation | The raw materials are transported by trucks, and airtight measures are adopted to prevent the materials from dusting during transportation. After the truck enters the wood pellet factory, it directly enters the raw material stacking room in the wood pellet factory for unloading, thereby minimizing the dust pollution during the transportation and unloading of the raw materials. |
| Utilities | Water supply system | Supplied by the water supply network of the industrial park |
| Drainage system | Using "rain and sewage diversion", rainwater is discharged into the rainwater pipe network of the industrial park, and domestic sewage is discharged into the sewage pipe network of the industrial park after collection and treatment. | |
| Power supply system | Supplied by the power supply system of the industrial park | |

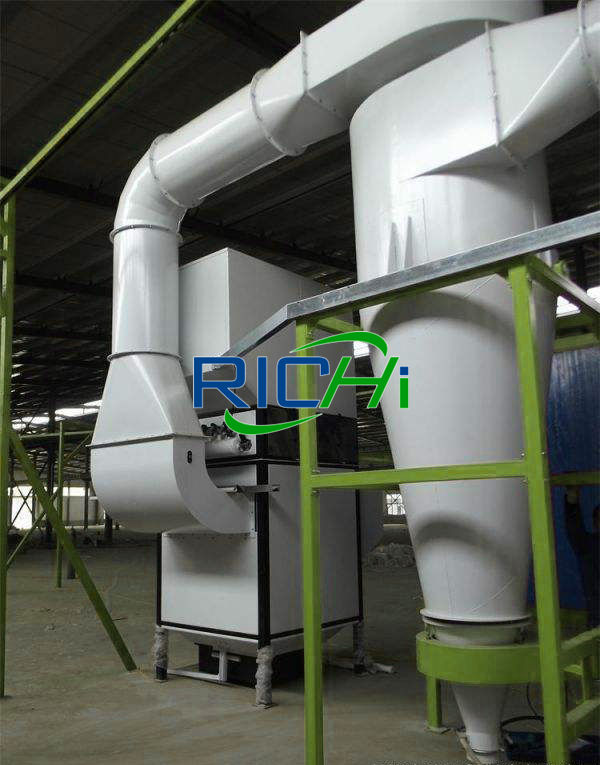

| Environmental protection project | Exhaust gas treatment | The raw material stacking room is a closed compartment, which is connected with the pelletizing workshop through the feeding screw auger. The dust generated by the wood sawdust biomass wood pellet mill granulator is led to the bag filter through the exhaust port on the hot selling good quality wood pellet mill sawdust pellet machine, and the exhaust gas is discharged through the 1#15m high exhaust pipe. |
| Noise prevention | Noise reduction measures such as sound insulation and vibration reduction | |
| Solid waste disposal | Set up a hazardous waste temporary storage room that meets the requirements for storing waste oil drums. |
Main raw and auxiliary materials and energy consumption of the field installation provided 8tph wood pellet factory for agricultural and forestry waste——wood pellet factory project report
| Name | Consumption | Remarks |
|---|---|---|
| Sawdust, straw, rice husk, etc. | 100,000 t/a | The first phase of this 8 tons wood pellet factory for fuel project only purchases raw materials that meet the requirements of direct granulation processing (water content <15%, particle size <4cm). There are no crushing, drying and other processes in the first phase of the wood pellet factory project. |
| Electricity | 300,000 kWh/a | / |
| Water | 150t/a | / |
Wood pellet production process and new agricultural waste wood pellet machine for the 8t/h wood pellet factory——wood pellet factory project report
Wood pellet factory process flow
The 8 tons hr industrial straw rice husk sawdust wood pellet factory project is produced by purchasing raw materials such as sawdust, straw and rice husk that meet the requirements of direct granulation processing. The first phase of the 8tph wood pellet factory project has no crushing and drying processes.

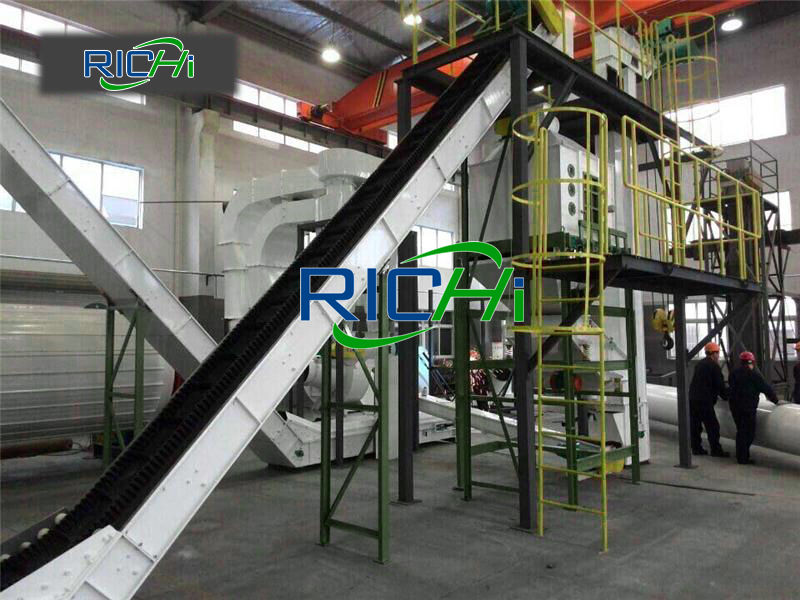

The raw materials are stored in the wood pellet factory workshop, and the raw materials are automatically transported to the rice husk sawdust straw granulator through the feeding auger. The raw materials are compressed and molded in the rice husk sawdust straw granulator and stored in the wood pellet factory warehouse.
After the feed auger sucks in the raw materials from the raw material room, they are transported to the biomass wood pellet machine in a closed manner, and the wood pellet factory process is dust-free production. Dust mainly comes from the wood pelletizer equipment granulation process.
Main wood pellet fuel machines for the 8 tons per hour low investment high return wood pellet factory——wood pellet factory project report
The main wood pellet mill equipment of this 8 ton per hour complete wood pellet factory project is shown in the table below.
| Wood pellet factory equipment name | Quantity | |
|---|---|---|
| Phase I | Phase II | |
| CE wood pellet machine for wood pellets | 4 units | 5 units |
| Feeding screw conveyor | 4 units | 5 units |
| Wood shredder hammer mill | 0 | 2 units |
| Best price sawdust dryer machine | 0 | 1 set |
