Bucket Elevator

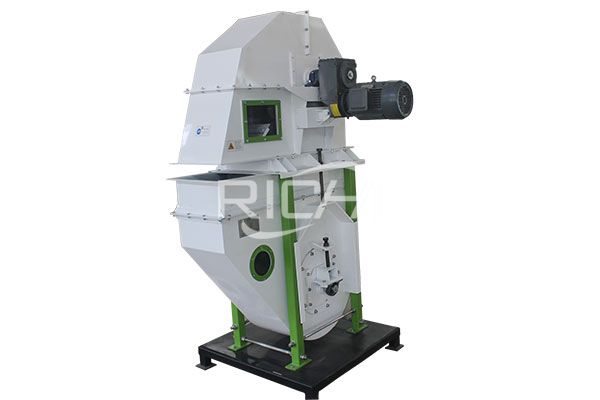

Bucket Elevator

CAPACITY: 60M³
MAIN POWER: 5.5KW
MODEL: TDTG40/28
APPLICATION: Feed, Food, Chemical Industry

The bucket elevator is the enabling technology that permitted the construction of grain elevators. A diverter at the top of the elevator allows the grain to be sent to the chosen bin.

WhatsApp: 0086-18574103366
Bucket Elevator

Applications Of Bucket Elevator

Centrifugal bucket elevators are chosen when there is a need to move large amounts of material quickly. Instead of direct loading, buckets serve as the loading apparatus, scooping material up from the boot or inlet section. For this reason, durable buckets should be selected with this design. Centrifugal force at the head pulley “throws” material from the buckets into the discharge chute. The buckets are spaced in wider intervals to prevent discharge interference from the preceding bucket and to assure maximum fill of the buckets at the boot end while moving at a higher speed. The design of this style yields optimized material fill and reduced interference between buckets.

Technical Features Of Bucket Elevator

1.Removable top covers

2.Access doors for easy maintenance

3.Horizontally and vertically heavy-reinforced, jig welded head, boot, and intermediate sections

4.Adjustable throat plate at discharge

5.Inspection doors on both sides of discharge

6.Service platforms and access ladders available

7.Heavy-duty construction

8.Custom design

9.Various bucket designs available

10.Centrifugal

Working Principle Of Bucket Elevator

Material is fed into the buckets from an inlet chute. Buckets are designed for gentle discharge; the buckets are closely spaced on the belt or chain to allow the material to flow over the backside of the preceding bucket, whose extended sides form a chute to guide the material into the discharge spout. Direct loading of the material, combined with the slow speed of this elevator type, avoids the “throwing” action associated with centrifugal style elevators, making it ideal for use with fragile materials.

Model Linear velocity of the belt(m/s) Bucket volume(L) Power(kw) Reducer Maximum height(m) Conveying volume(m³/h)
TDTG26/18 1.23 1.3 2.2 XWD4-17-2.2 3-10 20
TDTG26/18 1.23 1.3 3 XWD4-17-3 10-20 20
TDTG26/18 1.23 1.3 4 XWD4-17-4 20-35 20
TDTG26/18 1.23 1.3 5.5 XWD5-17-5.5 35-56 20
TDTG40/23 1.71 2.27 3 XWD4-17-3 3-9 50
TDTG40/23 1.71 2.27 4 XWD4-17-4 9-15 50
TDTG40/23 1.71 2.27 5.5 XWD5-17-5.5 15-23 50
TDTG40/23 1.71 2.27 7.5 XWD5-17-7.5 23-35 50
TDTG40/23 1.71 2.27 11 XWD6-17-11 35-54 50
TDTG40/28 1.71 2.7 3 XWD4-17-3 3-8 60
TDTG40/28 1.71 2.7 4 XWD4-17-4 8-12 60
TDTG40/28 1.71 2.7 5.5 XWD5-17-5.5 12-19 60
TDTG40/28 1.71 2.7 7.5 XWD5-17-7.5 19-29 60
TDTG40/28 1.71 2.7 11 XWD6-17-11 29-45 60
TDTG50/23 2.14 2.27 3 XWD4-17-3 3-7 60
TDTG50/23 2.14 2.27 4 XWD4-17-4 7-12 60
TDTG50/23 2.14 2.27 5.5 XWD5-17-5.5 12-19 60
TDTG50/23 2.14 2.27 7.5 XWD5-17-7.5 19-28 60
TDTG50/23 2.14 2.27 11 XWD6-17-11 28-43 60
TDTG50/28 2.14 2.7 3 XWD4-17-3 3-6 70
TDTG50/28 2.14 2.7 4 XWD4-17-4 6-10 70
TDTG50/28 2.14 2.7 5.5 XWD5-17-5.5 10-16 70
TDTG50/28 2.14 2.7 7.5 XWD5-17-7.5 16-23 70
TDTG50/28 2.14 2.7 11 XWD6-17-11 23-36 70
TDTGK63/28 2.87 3.9 5.5 XWD5-17-5.5 3-8 140
TDTGK63/28 2.87 3.9 7.5 XWD5-17-7.5 8-12 140
TDTGK63/28 2.87 3.9 11 XWD6-17-11 12-19 140
TDTGK63/28 2.87 3.9 15 XWD7-17-15 19-27 140
TDTGK63/28 2.87 3.9 18.5 Helical Gear 17-34 140
TDTGK63/28 2.87 3.9 22 Helical Gear 34-41 140
