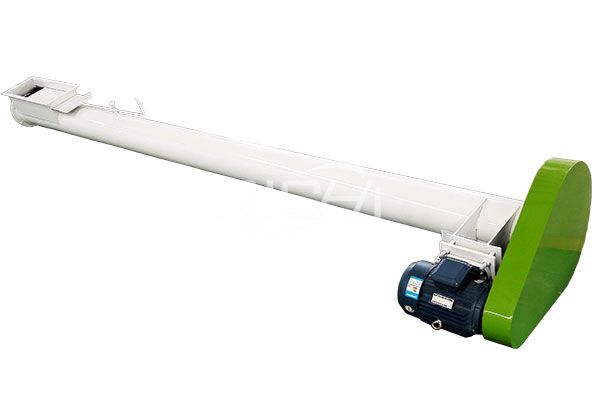

Spiral Conveyor

Spiral Conveyor

CAPACITY: 10-15M³/H
MAIN POWER: 2.2KW
MODEL: TSLL25
APPLICATION: Building Materials, Chemicals, Food, Feed

The screw conveyor is a machine that uses a motor to drive the screw to rotate and push the material to achieve the purpose of conveying. It can be transported horizontally, obliquely or vertically.

WhatsApp: 0086-15837153047
Spiral Conveyor

Applications Of Spiral Conveyor

Spiral Conveyor can be used in wide range of level and small inclination (0° ~ 20°) transport for powdery, pellet and small block materials.When working, raw materials is transported from inlet to conveyor trough, and pushed to outlet by thrust of spiral blade’s rotation.

Technical Features Of Spiral Conveyor

    1.big inlet,avoid raw material block.

    2.bearing sealing, bearing insulate end plate,avoid bearing into impurity.

    3.use to high precision materials,such as light calcium,mountain flour,pre-mix etc.

    4.Small size,low noise,flexible position arrangement of inlet and outlet.

    5.Optional anti-blocking warning speed alarm.

Working Principle Of Spiral Conveyor

During work, the material enters the conveying trough from the inlet of the conveyor, and a thrust is generated on the material by the rotation of the spiral blades, which pushes the material from the inlet to the outlet.

Model TSLL16 TSLL25 TSLL30
Spiral diameter(m) 0.12 0.2 0.26
Rotating speed 127 127 127
Conveying distance(m) 1-6 1-6 1-6
Capacity(m³/h) 3-6 10-15 20-25
Power(kw) 2.2 2.2 3
Related Project
Related News

From Order To Delivery

Checking Order

With the sales contract, the order tracking clerk checks the models and quantities of each machine and spare parts.

Quality Test Before Delivery

Upon completion of the manufacturing of equipment, tthe quality inspector strictly checks quality of every machine with the checklist.

Check Items When Packing

Before packaging and shipment, the order tracking clerk checks the packaged items again with the packing list to avoid loss of items.

Sign the contract

Adopting international common standards for accurate design of product packaging, prevent product damage rate and the effective use of transport tools, which ensure the perfect delivery of products.
