Caragana korshinskii is a perennial shrub. It is widely distributed in sandy areas and warm and dry areas. It can not only prevent wind and sand, maintain water and soil, beautify the environment, but also provide processing and utilization resources such as feed and fuel, which has significant ecological and economic benefits. The molding processing technology of RICHI Caragana Korshinskii Pelletizing Machine can not only process pellets with high nutritional value, but also process molded fuels with good combustion performance.
Caragana korshinskii is a perennial leguminous shrub, which is characterized by drought resistance, cold tolerance, and vigorous growth. It can play a role in wind-proof and sand-fixing and soil and water conservation. In addition, Caragana is an important feed resource for animal husbandry. Caragana korshinskii is rich in nutritional value, and has different nutritional value in different growth periods, and has high feeding value. At the same time, Caragana korshinskii can also be made into biomass fuel pellets for use in biomass power plants, boiler combustion and household heating.
The branches, leaves, flowers, pods, and seeds of Caragana korshinskii are rich in crude protein and crude fat required by livestock. They have a higher content than corn stalks and have significantly better digestibility. They are the main protein feed in forages in arid hills and deserts. One of the sources. Therefore, Caragana korshinskii is an excellent livestock feed.
Processing it into shaped pellet feed has a great positive effect on the production of livestock breeding, and it is easy to transport and store. It solves the problem of shortage of animal forage in spring and winter, and can also promote Realizing the captive breeding of cattle and sheep and reducing stocking play an important role in returning grazing to forests and reducing desertification.
Caragana korshinskii branches have a waxy layer on the surface, which is easy to ignite, strong firepower, and heat generation. It is a high-quality bio-energy. Caragana korshinskii has a low ash content (and the main ash content is SO₂). If the korshinsk is made into bio-energy combustion, the environmental pollution hazard will be drastically reduced.
The calorific value of Caragana korshinskii can reach 4376.1J/kg, which is equivalent to high-quality coal and is an excellent biomass energy source. 1.6kg of dry Caragana korshinskii is equivalent to the calorific value of 1kg standard coal. As long as you know how to operate, Caragana is an "inexhaustible inexhaustible" high-quality bioenergy.
In summary, caragana korshinskii is rich in resources, and the application of Caragana korshinski pellets in pellet fuel and feed has very good application significance. Therefore, Richi Machienry specially designed a caragana korshinskii pelletizing machine that can produce both karanga pellets and pellet fuel.
Considering the requirements of production, the application scope and purpose of the korshinski pellets and pellet fuels are different, and their density and hardness are different. It is necessary to study the factors (moisture content, particle size, etc.) that affect the molding of pellets and pellet fuels and the design of the molding parts.
For this reason, here we will analyze the design parameter selection of caragana korshinskii pellet maker machine and its influencing factors, so that everyone can have a deeper understanding of RICHI caragana korshinskii pelletizers.

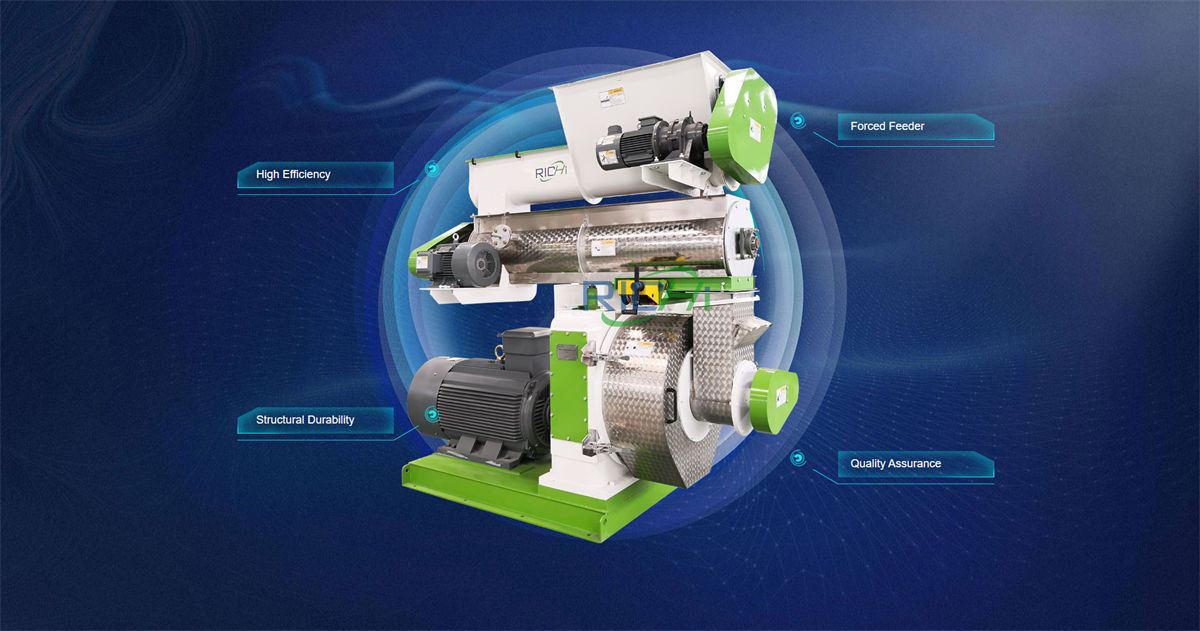

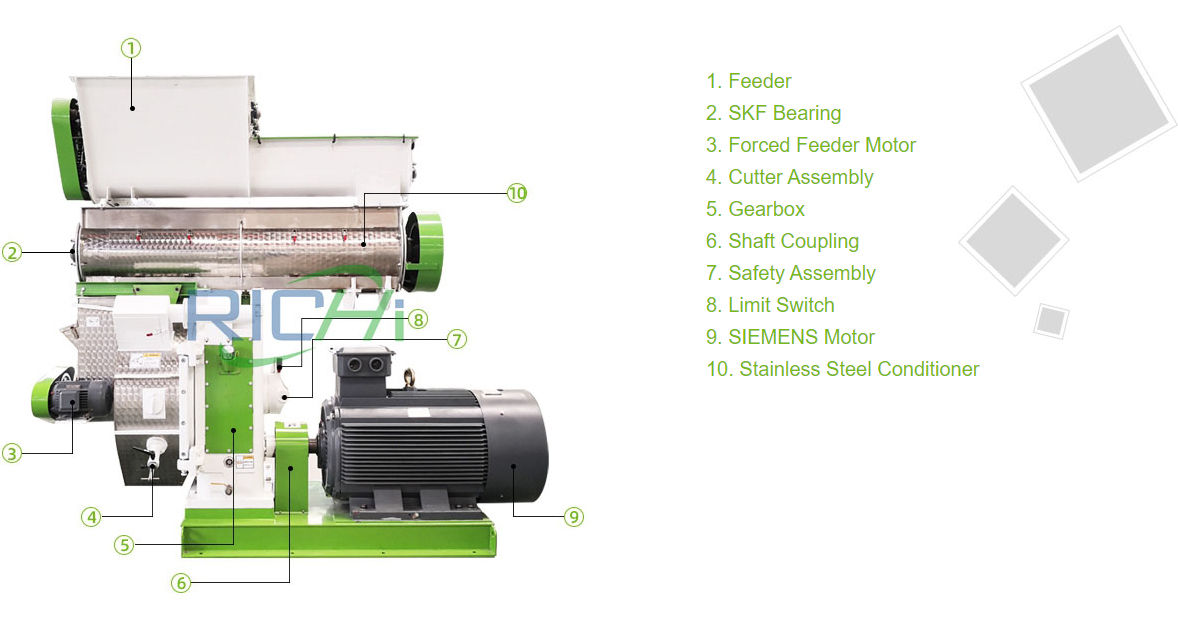

1. Advanced gear-driving system with motors on this caragana korshinskii pellet machine, stable and reliable.
2. Adopting high-qualified components on this caragana korshinskii pellet mill, with stable performance, long service life and low noise.
3. Whole transmission parts (including motor) of this caragana korshinskii pellet making machine chooses high-quality SKF bearings to ensure the transmission efficient, stable, low noise. Main motor choose Siemens.
4. This caragana korshinskii pelletizer is equipped with full single layer stainless steel feeder, forced feeder, ring die and cutter .
5. The optimized pelletizing chamber structure ensures the that the pressing material is evenly divided and maximizes the working potential of the caragana korshinskii pelleting machine.
The caragana korshinskii pellet pressing machine process: crushed caragana korshinskii material is fed evenly by the forced feeding device, the centrifugal force generated by the rotation of the ring die, and the action of the feeding scraper. The two pressing areas in the ring die are in the wedge-shaped space formed by the two press rollers and the ring die.

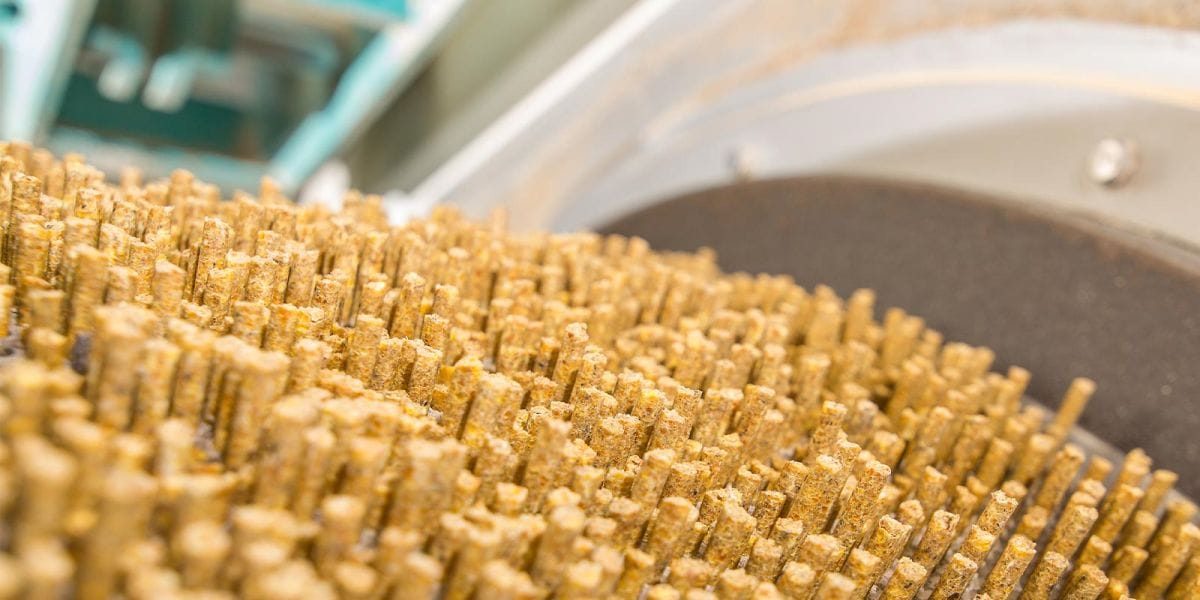

Under the strong squeezing action of the ring die and the press roller, the caragana korshinskii material is gradually compacted, squeezed into the die hole of the ring die and shaped in the die hole. Because the extrusion of the material between the die and the roller is continuous, the formed caragana korshinskii material is continuously discharged from the die hole in a columnar shape, and then cut into caragana korshinskii pellets of the required length by the cutter, and then enters the next process.
|Capacity||600-800KG/H||800-1000KG/H||1.5-2 T/H||3-4 T/H||5-7 T/H||8-10 T/H|
|Caragana Korshinskii Pellet Mill Price||10000-100000USD|
The raw material of the karagan pellet fuel is usually relatively simple, and generally does not add any additives. Caragana pellets usually need to add some protein, starch, fat, sugar and other auxiliary ingredients to the raw materials, the purpose of which is to increase the nutritional content and palatability of the pellets. At the same time, because the feed formula is the main factor that affects the forming, various additives can promote the forming of the pellets.
The protein is easily denatured and plasticized after being stressed during the molding process, which is conducive to the molding of the particles. Fat is a good lubricant and helps reduce the wear of the mold. The higher the cellulose content, the more developed the mechanical organization of plant cells, and the greater the pressure required for particle formation.
The cellulose content of Caragana korshinskii is as high as 72.71%, which is 2.6 times the cellulose content of corn stover. It can be seen that the forming of Caragana particles requires more pressure than straw forming. The forming of Caragana particles is much more difficult than the molding of corn stalks. The molding of Caragana particles has higher requirements for abrasive tools.
The particle size of materials can be divided into coarse, medium and fine particles. Generally, raw materials smaller than 3mm have a higher density and a larger surface to absorb steam and cause physical and chemical reactions. Therefore, medium and fine granules have better granulation ability, which can increase the output and quality of granules, reduce energy consumption, and extend the life of the press mold, while coarse granules are likely to cause the formed granules to crack.
The diameter of Caragana korshinskii pellet feed is generally 4-6mm, and the crushed material is selected as medium grains with a material between 2 and 2.5mm or fine grains with a size of less than 2mm. The diameter of Caragana pellets is generally 8-10mm, and the pulverized material can be medium particles with a size of 2～2.5mm or coarse particles larger than 3mm.
From the perspective of raw material moisture, moisture content has a significant impact on the output and quality of pellets. This is because during the pressing process, moisture can form a water film on the surface of the material particles, making it easy to pass through the die holes and prolong the life of the press die. However, if the moisture content is too much, the material will slip easily and the pellets will not be easily formed.
When the moisture content of the raw material is too high, the steam generated during the heating process cannot be smoothly discharged, resulting in cracks on the surface of the korshinsk compression molding particles; when the moisture content of the raw material is too low, compression molding is difficult, because suitable moisture affects the wood The softening and plasticizing of vegetarian has a promoting effect.
The moisture in the pellet feed mainly comes from the raw material itself and the additives added. In order to ensure the quality of the caragana pellet feed, the moisture content requirements are strict. The moisture content of the raw material itself is preferably 12%-13%, and the total moisture content of the material is 16%. -18% is appropriate. Caragana korshinskii pellet fuel has a wide range of requirements for moisture content, generally 15%-20% moisture content.
