Small capacity silo

Small capacity silo

CAPACITY: 3-300 t/h
DIAMETER: 1.83 -7.3 m
CERTIFICATION: CE,ISO
SILO BOTTOM: Flat or Tapered

Hopper silos are designed to store grains, seeds, legumes, pellets and other products that require special storage conditions. The stored product stays off the ground to prevent moisture and lower the possibility of breakage.

WhatsApp: 0086-18574103366
Small capacity silo

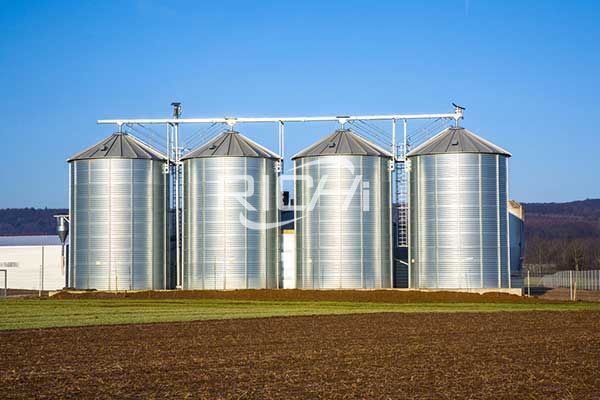

Applications Of Small capacity silo

Silo is a structure that overcome various loads in solidity and safety, normally we consider combination of fixed load, live load, vibration load, temperature and climate pressure influence, seismic, snow disaster, wind pressure etc. Each of SRON silo structure is by scientific and proven calculation abiding by China national standards and verified by international Owner local building and structure codes.

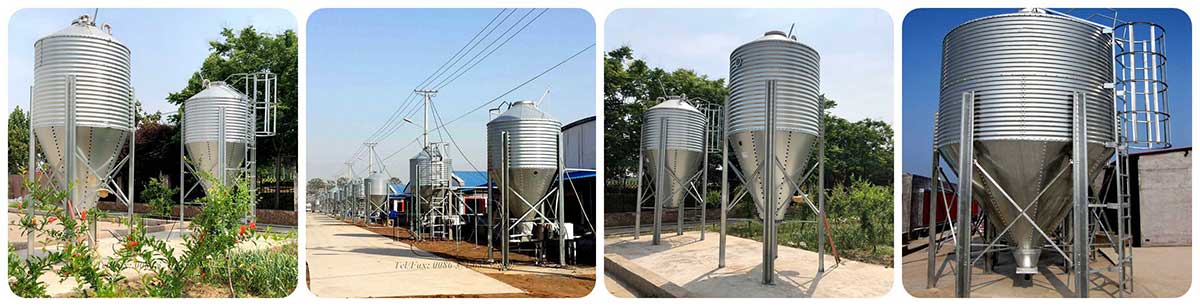

Small capacity silo project real shot
Small capacity silo project real shot

Technical Features Of Small capacity silo

1. Nice appearance; small volume; simple structure

2. Such small silos are used widely in poultry farms.

3. Small capacity can satisfy with daily feeding requirement.

4. Even they can be installed inside of workshop.

5. For silo loading,users can fill silos by inclined movable screw or belt conveyor.

6. Automatic-flow unloading, Save resources and costs;

7. Hopper angles can be 45° and 60°,Could be movable, Easily to be installed;

8. Do not need a serious concrete, labor and energy cost;

9. Less grain residues in steel grain silo;

10. Hopper structure prevents loss of time and money during the unloading period

Working Principle Of Small capacity silo

Support structure

1. The support structure, which is made up of hot-dip galvanised structural profile columns braced together with laminate profiles, guarantees high silo resistance against external forces.

2. For easier assembly, the silo is supplied with chemical anchoring elements which may be installed once the silo is completely assembled to prevent problems with the construction work.

Cones / slopes

1. Cones with slopes of 45º and 60º may be supplied for proper silo unloading and to guarantee cleaning afterwards. Our cones are meticulously designed to this end to prevent any area where material may accumulate and, thus, contaminate the product during later uses.

2. The silo outlet dimensions vary between Ø270 mm and Ø1200 mm, and may be completed with a wide range of accessories to adjust the outlet dimensions to your needs.

3. The clearance between the silo unloading and the ground may be 1 or 1.5 m, depending on the requirements for each system. This height may be customised upon request.

NO. Model Parameters Capacity
1 RI1830-1.0 1-Diameter 1.83m, One layer, Height 4.16m, Volume 5.32m³
2- The upper layer and the tower body are 1.0mm thick
3- The lower layer is 1.2mm thick
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6-With ladder and guardrail, stainless steel air-vent
3.5 ton
2 RI1830-1.5 1-Diameter 1.83m, 1.5 Layer,Height 4.64m, Volume 6.58m³
2- The upper layer and the tower body are 1.0mm thick
3- The lower layer is 1.2mm thick
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail, stainless steel air-vent
4 ton
3 RI1830-2.0 1-Diameter 1.83m, 2 Layer,Height 5.28m, Volume 8.27m³
2- The upper layer and the tower body are 1.0mm thick
3- The lower layer is 1.2mm thick
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
5 ton
4 RI1830-2.5 1-Diameter 1.83m, 2.5 Layer,Height 5.76m, Volume 9.53m³
2- The upper layer and the tower body are 1.0mm thick
3- The lower layer is 1.2mm thick
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
6 ton
5 RI1830-3.0 1-Diameter 1.83m, 3 Layer,Height 6.55m, Volume 11.21m³
2- The upper layer and the tower body are 1.0mm thick
3- The lower layer is 1.2mm thick
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail,stainless steel air-vent
7 ton
6 RI1830-3.5 1-Diameter 1.83m, 3.5 Layer,Height 6.88m, Volume 12.48 m³
2- The upper layer and the tower body are 1.0mm thick;
3- The lower layer is 1.2mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail,stainless steel air-vent
8 ton
7 RI2200-2.0 1-Diameter 2.2m, 2 Layer, Height 5.82m, Volume 12.68 m³
2- The upper layer and the tower body are 1.0mm thick;
3- The lower layer is 1.2mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
8 ton
8 RI2200-2.5 1-Diameter 2.2m, 2.5 Layer, Height 6.3m, Volume 14.05 m³
2- The upper layer and the tower body are 1.0mm thick;
3- The lower layer is 1.2mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
9 ton
9 RI2750-1.0 1-Diameter 2.75m, 1 Layer, Height 4.96m, Volume 13.52 m³
2- The upper layer and the tower body are 1.0mm thick;
3- The lower layer is 1.2mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
8.5 ton
10 RI2750-1.5 1-Diameter 2.75m, 1.5 Layer, Height 5.46m, Volume 16.52 m³
2- The upper layer and the tower body are 1.0mm thick;
3- The lower layer is 1.2mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
10 ton
11 RI2750-2.0 1-Diameter 2.75m, 2 Layer, Height 6.08m, Volume 20.17 m³
2- The upper layer and the tower body are 1.0mm thick;
3- The lower layer is 1.2mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
12.5 ton
12 RI2750-2.5 1-Diameter 2.75m, 2.5 Layer, Height 6.58m, Volume 23.17 m³
2- The upper layer and the tower body are 1.2mm thick;
3- The lower layer is 1.5mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
14 ton
13 RI2750-3.0 1-Diameter 2.75m, 3 Layer, Height 7.2m, Volume 26.82 m³
2- The upper layer and the tower body are 1.2mm thick;
3- The lower layer is 1.5mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
16 ton
14 RI2750-3.5 1-Diameter 2.75m, 3.5 Layer, Height 7.7m, Volume 29.82 m³
2- The upper layer and the tower body are 1.2mm thick;
3- The lower layer is 1.5mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
17.5 ton
15 RI3670-1.0 1-Diameter 3.67m, 1 Layer, Height 5.94m, Volume 27.17 m³
2- The upper layer and the tower body are 1.2mm thick;
3- The lower layer is 1.5mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
17 ton
16 RI3670-1.5 1-Diameter 3.67m, 1.5 Layer, Height 6.44m, Volume 32.67 m³
2- The upper layer and the tower body are 1.2mm thick;
3- The lower layer is 1.5mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail ,stainless steel air-vent
21 ton
17 RI3670-2.0 1-Diameter 3.67m, 2 Layer, Height 7.06m, Volume 38.99 m³
2- The upper layer and the tower body are 1.2mm thick;
3- The lower layer is 1.5mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail , stainless steel air-vent
23.5 ton
18 RI3670-1.5 1-Diameter 3.67m, 2.5 Layer, Height 7.56m, Volume 44.5 m³
2- The upper layer and the tower body are 1.2mm thick;
3- The lower layer is 1.5mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail , stainless steel air-vent
27 ton
19 RI3670-3.0 1-Diameter 3.67m, 3 Layer, Height 8.18m, Volume 50.82 m³
2- The upper layer and the tower body are 1.2mm thick;
3- The lower layer is 1.5mm thick;
4- The colume is 3.0mm thick
5- The thickness of hop dip galvanized ≥275g/m2
6- With ladder and guardrail, stainless steel air-vent
30.5 ton
20 RI4500-3.0 1-Size Ø 4.5 m * 7030 mm, 3 Layers, Volume : 64.5m³;
2-Inclination of silo top is 25 °, feeding month is Ø 300 mm;
3-The thickness of hop dip galvanized ≥275g/m2(Double side);
4- Thickness of silo body is 1.5mm;
5- The colume is made 1c-3c 2.5mm Q345 stainless steel;
6- With ladder, guradrail , 2 sets stainless steel air-vent
50 ton
21 RI5500-4.0 1-Size Ø 5.5 m * 9984 mm, 4 Layers, Volume : 146m³;
2-Inclination of silo top is 25 °, feeding month is Ø 300 mm;
3-The thickness of hop dip galvanized ≥275g/m2(Double side);
4- Thickness of silo body is 1.5mm;
5- The colume is made 1c-3c 2.5mm Q345 stainless steel;
6- With ladder, guradrail , 2 sets stainless steel air-vent
100 ton
22 RI6400-7.0 1-Size Ø 6.4 m * 12.6 m, 7 Layers, Volume : 270m³;
2-Inclination of silo top is 25 °, feeding month is Ø 300 mm;
3-The thickness of hop dip galvanized ≥275g/m2(Double side);
4- Thickness of silo body is 2.0mm;
5- The colume is made 1c-3c 3.5mm Q345 stainless steel;
6- With ladder, guradrail , 2 sets stainless steel air-vent
200 ton
23 RI7300-7.0 1-Size Ø 7.3 m * 13.35 m, 7 Layers, Volume : 405m³;
2-Inclination of silo top is 25 °, feeding month is Ø 300 mm;
3-The thickness of hop dip galvanized ≥275g/m2(Double side);
4- Thickness of silo body is 2.0mm;
5- The colume is made 1c-3c 4.0mm Q345 stainless steel;
6- With ladder, guradrail , 2 sets stainless steel air-vent
300 ton
