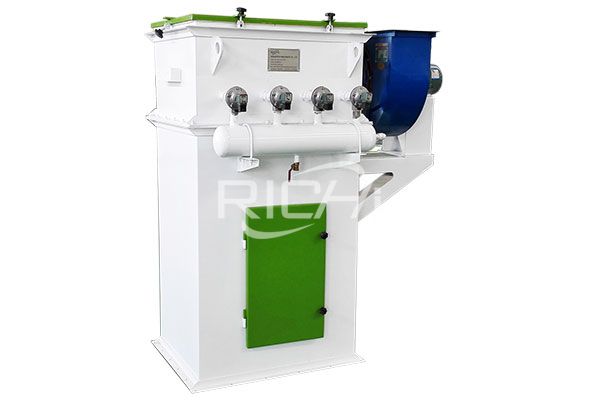

Pulse Dust Collector

Pulse Dust Collector

:
MAIN POWER: 1.5KW
MODEL: TBLMa.6A
APPLICATION: Food And Feed Processing Industry

A pulse-jet dust collector also known as pulse jet baghouse and pulse jet fabric filter refers to a dust collector using a pulse-jet cleaning system to remove the collected dust particles from the surface of the filter media by injecting high-pressure compressed air

WhatsApp: +86-15003890639
Features

    1.High-tech famous products with novel structure and compact process.

    2.Double air inlet, flexible process layout and small floor space.

    3.Dusting Efficiency : ≥99.5%.

    4.Dismountable bag structures with skeletons ,and unique jet devices, to clean the bags

    5.Equipped with observation hole, easy to maintain .

    6.Adopt bag fast loading and unloading mechanism patent technology,when open the door, worker can remove the filter bag one by one.

    7.Mainly applied for filtering feed mill, in food or oil processing plants and in chemical industry etc.

    8.Select the air inlet position according to the need.

Overview

The pulse dust collector uses compressed air as the dust removal power, and uses the pulse blowing mechanism to release the compressed air instantly, and induces multiple times of secondary air to be taken into the filter bag at high speed, which makes the filter bag expand rapidly, relying on shock vibration and reverse air flow And dust remover.

Pulse type dust collector is a kind of high-efficiency dust removal and purification equipment. It adopts pulsed ash cleaning method, which has the advantages of good ash cleaning effect, high purification efficiency, large processing gas volume, long filter bag life, small maintenance workload and safe and reliable operation However, compressed air is required, and when the pressure of the supplied compressed air cannot meet the requirements, the return effect will be greatly reduced. Due to the outstanding advantages of the pulse bag type dust collector, its application is more and more widely.

Working Principle

The pulse dust collector has several sets of pulse valves according to the size of the dust collector, all of which are controlled by the pulse controller or PLC, so this can make the pulse dust collector work while removing dust.

When the pulse dust collector is working, the dust-containing gas enters the ash hopper from the air inlet duct, and the large-diameter dust particles can directly fall on the bottom of the ash hopper, while the small-diameter dust particles turn with the airflow and enter the middle box and the bottom. In the cabinet, the filtered dust is directly deposited on the outer surface of the filter bag, and the filtered gas directly enters the upper cabinet to the exhaust duct of the clean air collecting pipe, and is discharged into the atmosphere through the exhaust fan.

Parameters
Model TBLMa.4A TBLMa.6A TBLMa.8A/TBLMa.8B TBLMa12A/TBLMa12B TBLMa18A/TBLMa18B TBLMa24A/TBLMa24B TBLMa36A/TBLMa36B TBLMa48A
Fan Power 0.75KW 1.5KW 1.5KW 2.2KW 3KW 5.5KW 11KW 15KW
