Home > Crusher & Mixer >

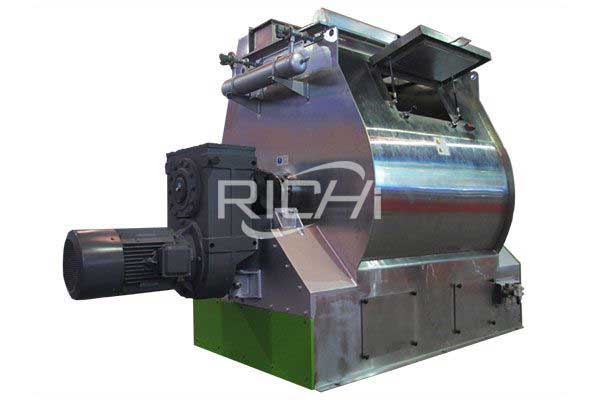

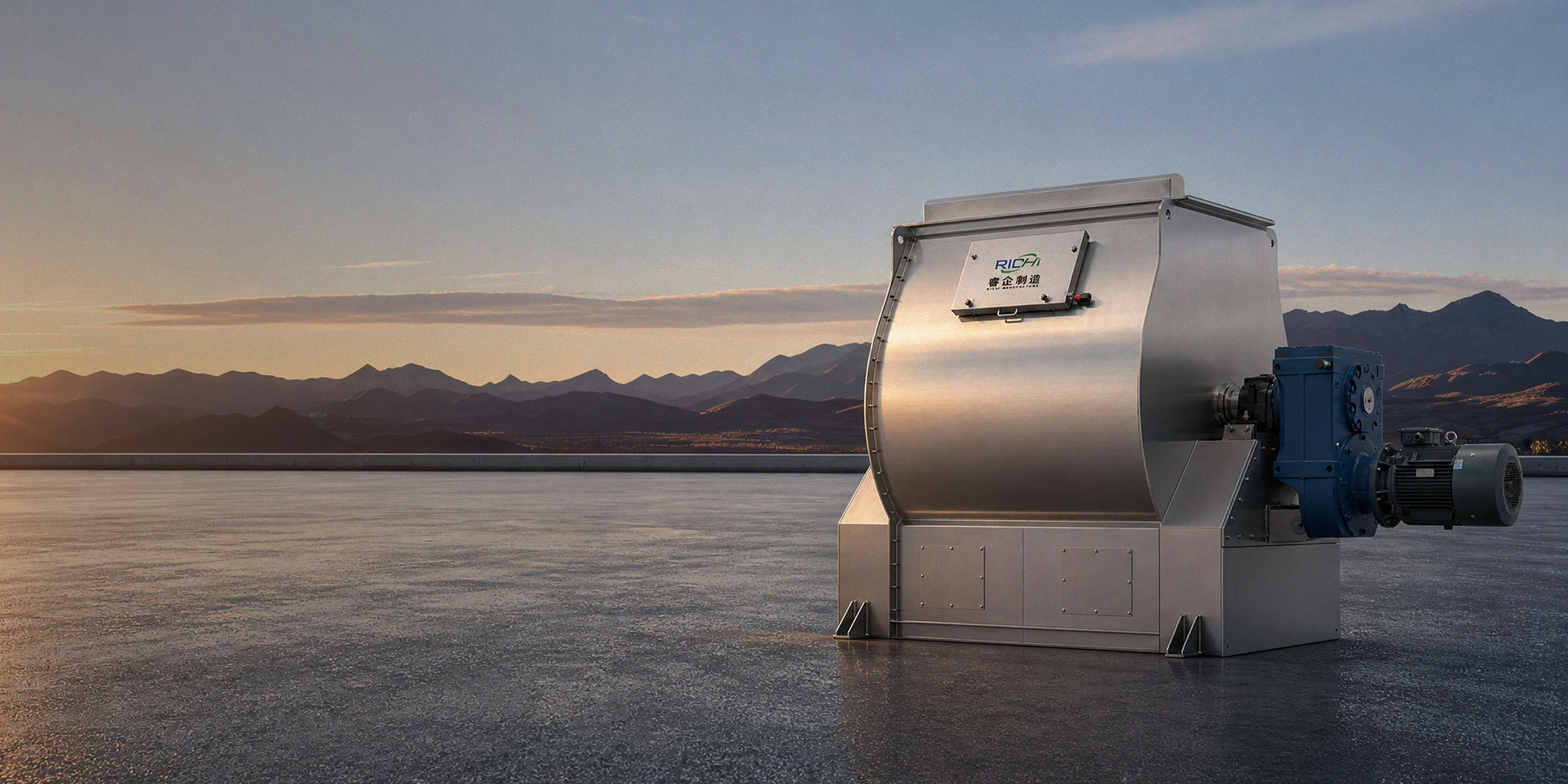

Stainless Steel Feed Mixer

Stainless Steel Feed Mixer

APPLICATION: Animalfeed, Aquatic Feed, Additives, Chemical And Medicine Industries, Etc.
CAPACITY: 1000KG/BATCH
MAIN POWER: 22KW
MODEL: SLHJ2B
WhatsApp: +86 138 3838 9622

Stainless Steel Feed Mixer achieves unmatchable effects for feed material mixing, addictive adding, powder material mixing, etc. It plays an irreplaceable role in the complete feed pellets production process.

24 hours to reply to technical inquiries

Applications Of Stainless Steel Feed Mixer

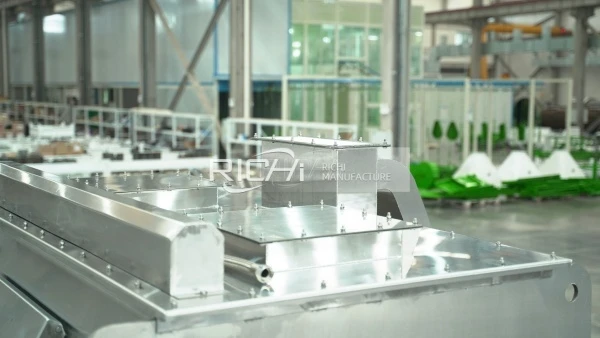

RICHI Stainless Steel Feed Mixer widely used in feed mills, for mixing powder materials, guarantee uniformity and quality of complete feed.Due to the stainless steel body, the process of mixing the materials is not corroded, ensuring the quality of the feed production and reducing the maintenance cost of the equipment.

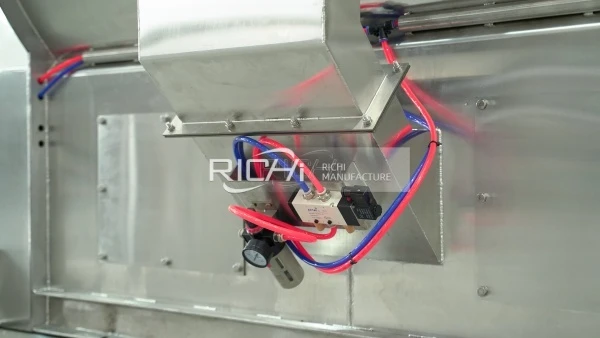

Mixing and mixing mild, high uniformity, no segregation; smooth transmission, low wear; can be equipped with multiple atomizing nozzles for liquid addition; easy maintenance.

Technical Features Of Stainless Steel Feed Mixer

1. Cross section of cylinder round, mixing without dead corner,mixing time: 30-90s,barrel wall plot-free.

2. Enlargement in length opened discharge door at the bottom to reduce residues; Mixed: CV ≤ 5.

3. Opening angle greater than 90 degrees, the door self-locking, discharge door does not open at cylinder pressure loss.

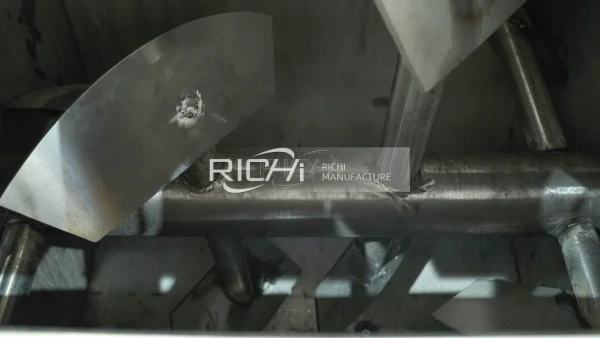

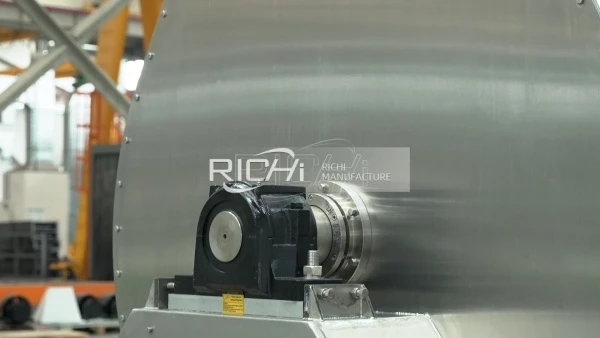

4. The mixing chamber is “W” horizontal shell shape, Double shaft and many paddles.

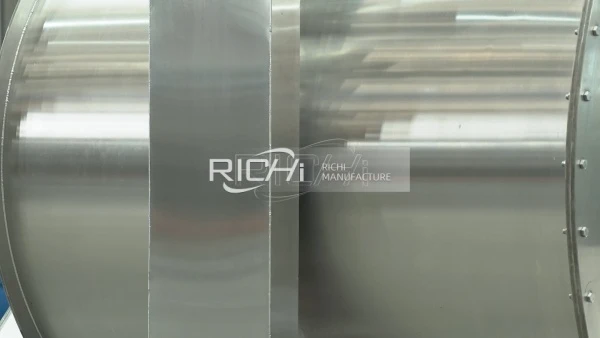

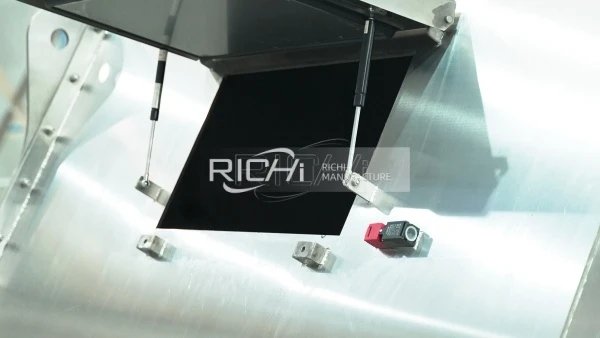

5. Specially designed discharger has big door-opening angle and quick discharging with little residue. Good tightness and no products leakage.

6. High mixing speed and homogeneity. It makes materials can be mixed and no influenced for bulk density, filling degree in state of loss weight.

7. It is widely used for mixing of powder, granular, flake, block, irregular and sticky materials in the industries of feed, cereal, food, chemicals, medicines, pesticides, etc.

Working Principle Of Stainless Steel Feed Mixer

Stainless steel mixer is a mechanical equipment that uses mechanical force and gravity to uniformly mix two or more materials. During the mixing process, the contact surface area of the materials can also be increased to promote chemical reactions and accelerate physical changes.

Model SLHJ1A SLHJ1B SLHJ2A SLHJ2B SLHJ2L SLHJ3A SLHJ4L SLHJ4A SLHJ6A
Material quality carbon steel Stainless steel carbon steel Stainless steel carbon steel carbon steel carbon steel carbon steel carbon steel
Power 11kw 11kw 22kw 22kw 22kw 30kw 30kw 37kw 55kw
Mixed weight 500kg/batch 500kg/batch 1000kg/batch 1000kg/batch 1000kg/batch 1500kg/batch 2000kg/batch 2000kg/batch 3000kg/batch

Why Choose Richi

why choose richi
why choose richi
Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields. All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Get Price & Service

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization. Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Get Price & Service
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Get Price & Service
Quality Control

Delivery And Installation

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment. According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Get Price & Service
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training
After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs. After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.

Get Price & Service

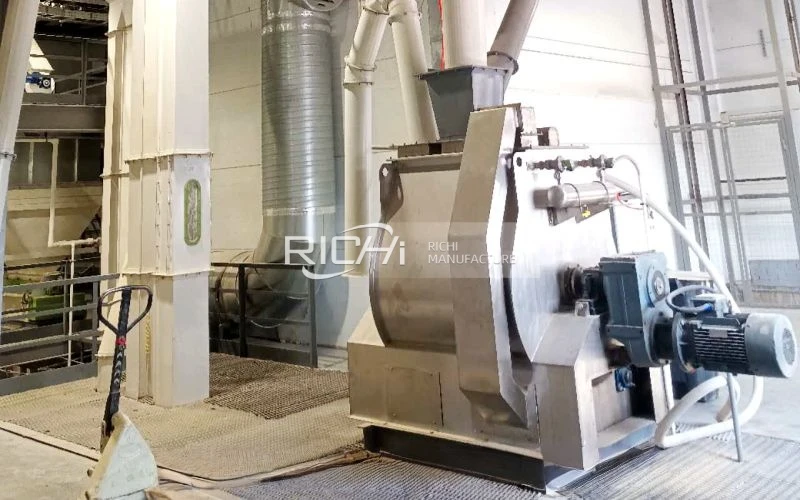

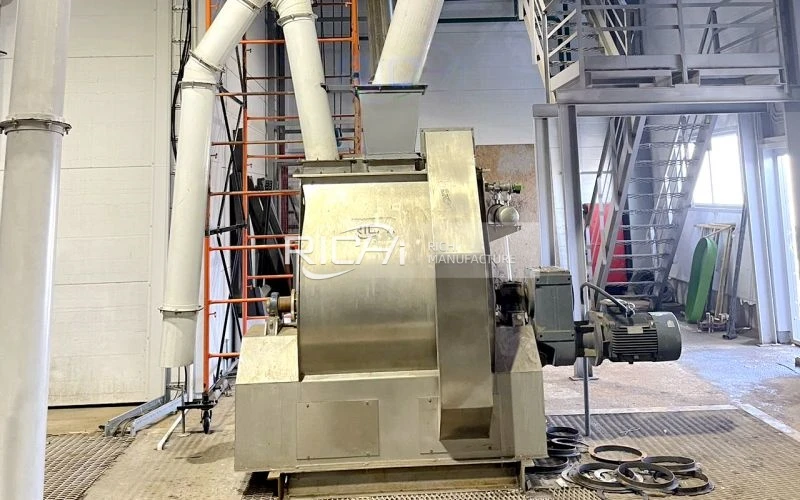

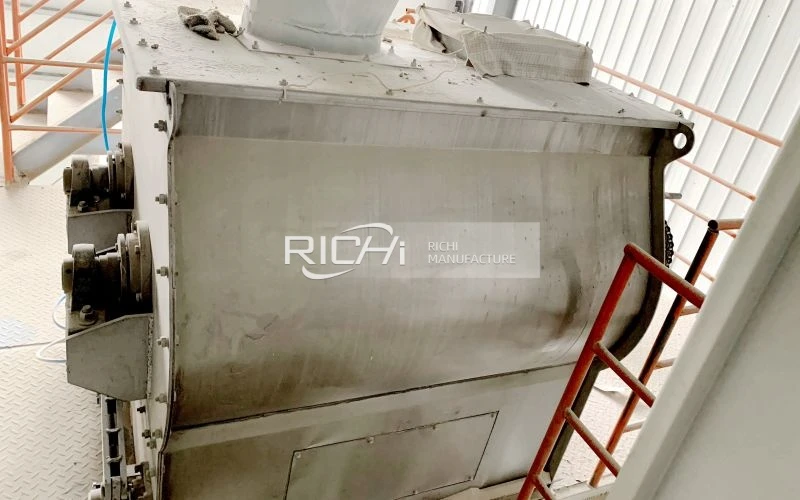

Related Project
