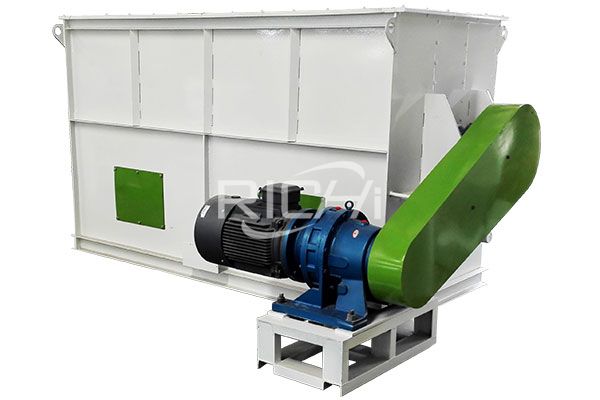

SLHY Single Shaft Screw Mixing Machine

SLHY Single Shaft Screw Mixing Machine

CAPACITY: 1000KG/BATCH
MAIN POWER: 15KW
MODEL: SLHY2.5L
APPLICATION: Feed, Chemical, Pharmaceutical, Pesticide And Other Industries

The single-shaft screw mixer is a horizontal cylinder, and the inner rotor is composed of a ribbon spiral blade, a shaft, a ring and a support rod.

WhatsApp: +86-15003890639
Features

    1.Under the feasibility factor, the mixing effect of the horizontal ribbon mixer is not affected by the size and density of the particles, and it has a good mixing effect for viscous materials.

    2.The stable mixing process reduces the damage to the fragile materials, and the installation of the flying knife structure also plays a role of crushing.

    3.the horizontal structure of the lower body height, easy to install.

    4.In the stirring structure, the forward and reverse rotating spiral bars are installed on the same horizontal axis, forming a low-power and efficient mixing environment.

    5.The horizontal ribbon mixer is mainly used for the production of putty powder, and can also be used as an entry-level thermal insulation mortar mixer.

Overview

The rotor of the single-axis spiral mixer is composed of two belt-type spirals with opposite driving directions. It has strong stirring ability, short time required for mixing materials, good mixing uniformity, large bottom door, pneumatic discharge, minimal residual Missing material.

Working Principle

Single shaft screw mixer rotor is consist of two aspects pivot near the band or spiral, whose stirring time is short, strong stirring, high yield and high mixing uniformity, and it is ideal equipment for feed, dry powder and compound fertilizer factory.

The machine includes lid, rotor, casing, discharging device and other parts. Raw materials are premix materials are put into mixing room from upper inlet, rotor driven by reducer motor and composed of different directions ribbon screw blade and main shaft. When rotor working, left hand helix and right hand helix will make materials push in the opposite direction so that the materials can be mixed uniformly.

Parameters
Model SLHY0.5A SLHY1.0A SLHY1.0A SLHY2.5L SLHY5.0L
Power 4kw 7.5kw 7.5kw 15kw 30kw
Mixed weight 250kg/P 500kg/P 500kg/P 1000kg/P 2000kg/P
Volume 0.5m³ 1m³ 1m³ 2.5m³ 5m³
