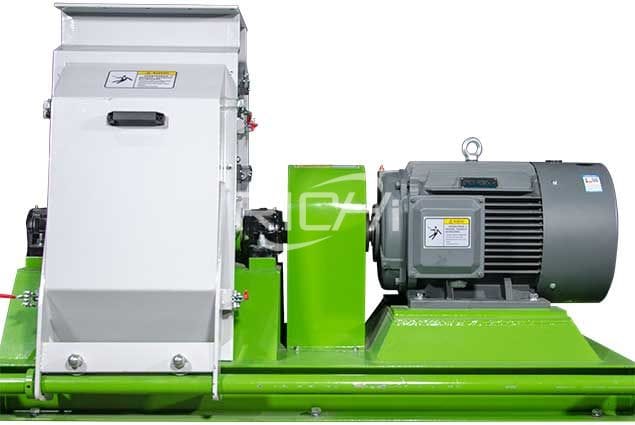

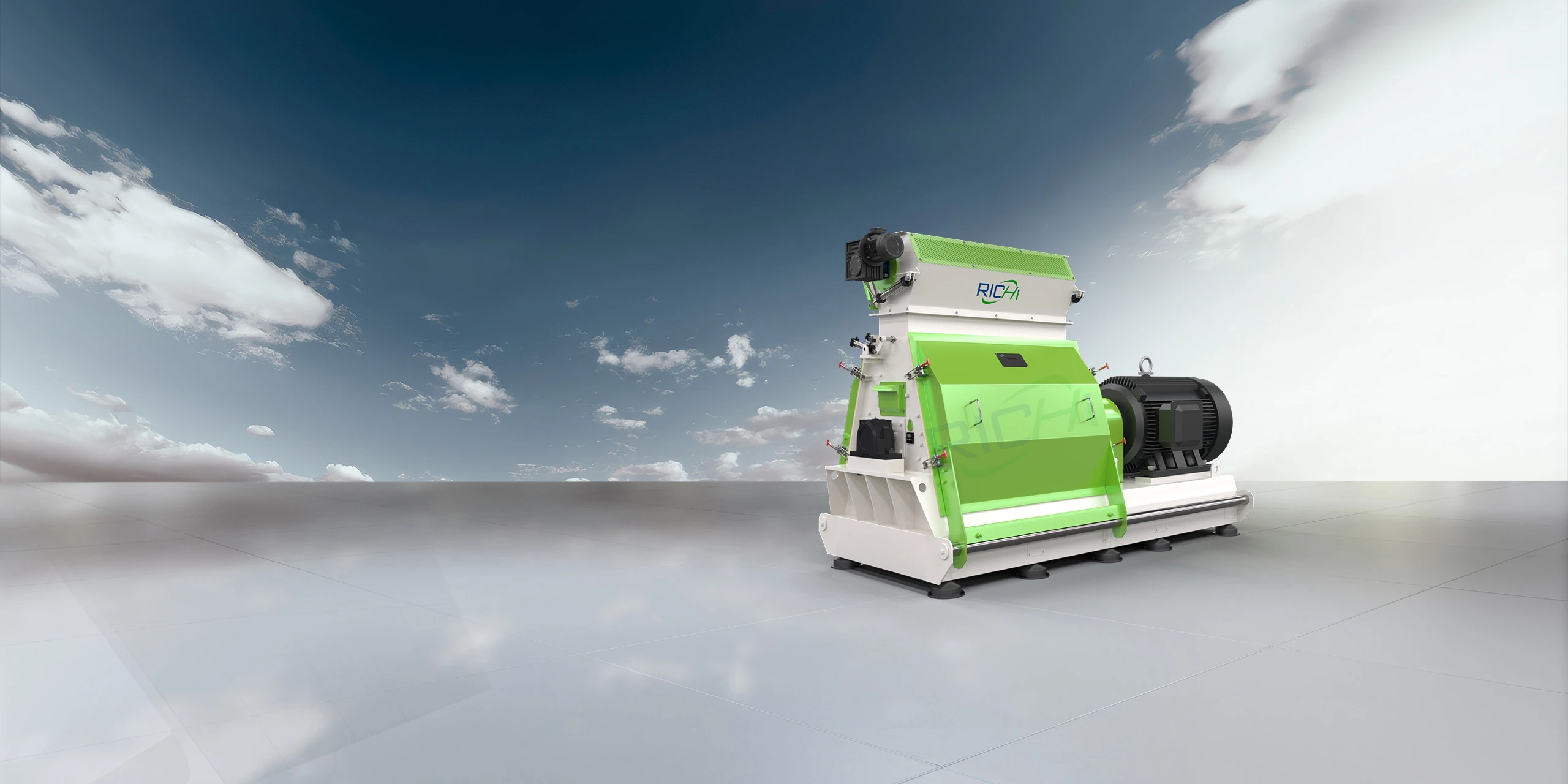

Applications Of SFSP Water Drop Wood Hammer Mill

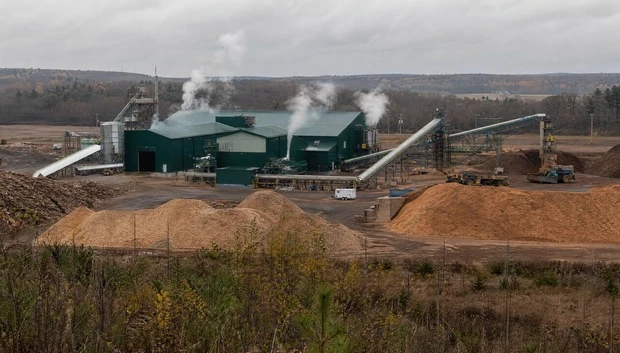

SFSP water drop wood hammer mill is popular with many industries and we recommand it as well if you are considering biomass industry investment. Biomass fuel takes wood chips, wood sawdust, peanut stalks, corn straws and so on as materials and water drop wood hammer mill can crush these materials into 3mm-5mm wood materials for pellet mill use. Wood hammer mill is endowed with many advantages compared to other kind of crushers such as large reduction rate, high production capacity, even crushed effects, low energy consumption and simple structure, etc. It can be used to crush hard, soft and weakly corrosive materials. After crushing, raw materials are uniform and with proper moisture content to meet further processing.

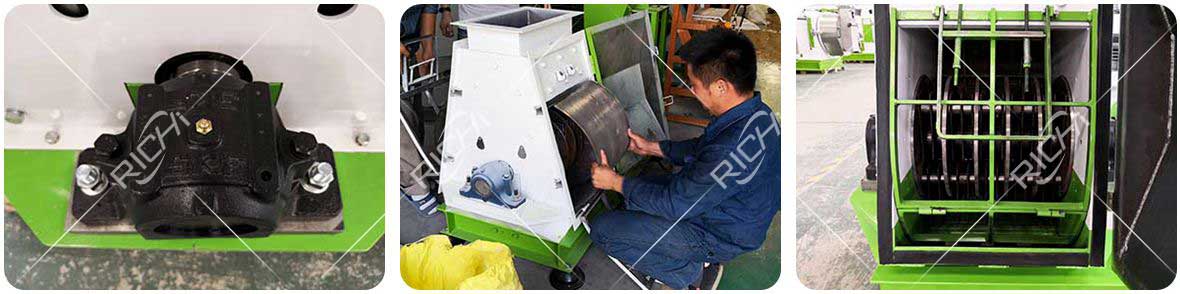

sfsp water drop wood hammer mill details
Equipped with safety interlocking device for safety.

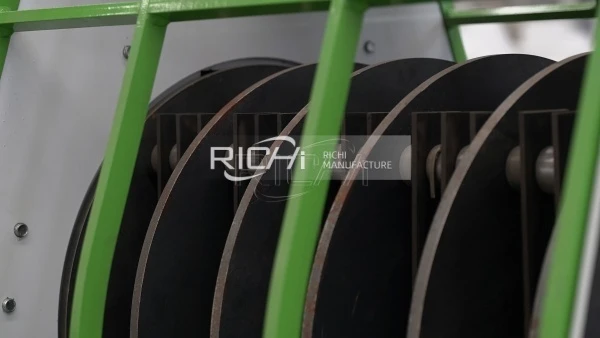

Widened grinding surface, fully optimized hammer arrangement, wonderful performance in micro grinding.
Using the new-type adjustable sieve pressure plate, adjustable back gauge and tuning technique, to destroy the material circul ation layer.
Advanced teardrop-shaped crushing chamber design, reasonable structure of the secondary crushing, output increase by 25% compared to other models

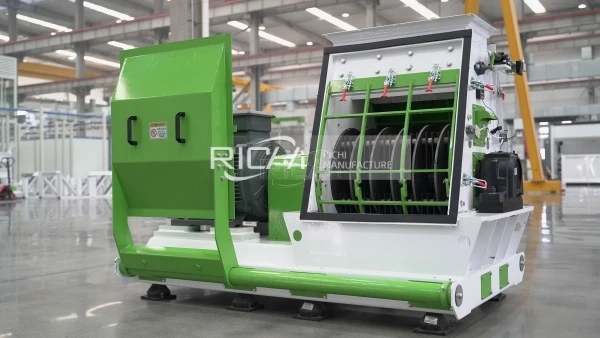

Movable operating door and linkage sieve press structure, more convenient for operation and maintenance.
Forward and reverse work of rotor, longer service life of hammer.
High-precision dynamic balance detecting rotor, little vibration, low noise.
Patented ventilating from shaft end system, output of small aperture material increase by more than 25%.
Working Principle Of SFSP Water Drop Wood Hammer Mill

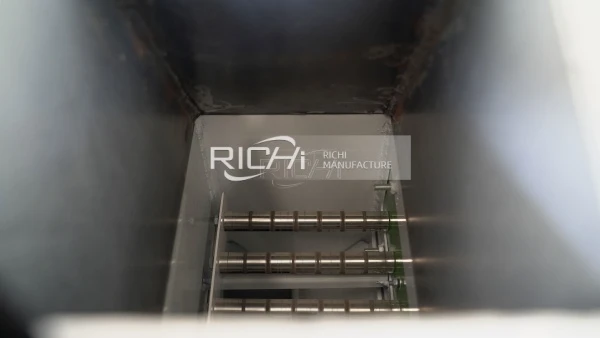

The material to be crushed is fed from the top feeding port through the feeding mechanism matched with the machine. It enters the crushing chamber from the left or right through the turning plate mechanism. Under the impact of the high-speed rotating hammer and the friction of the sieve, the material is gradually crushed. Under the action of centrifugal force and airflow, it passes through the sieve hole and is discharged from the base outlet.
| Model |
SFSP56*40a |
SFSP56*40b |
SFSP66*60a |
SFSP66*60b |
SFSP66*80a |
SFSP66*80b |
SFSP66*100 |
SFSP138*30E |
SFSP138*40E |
| Power |
30kw |
37kw |
55kw |
75kw |
90kw |
110kw |
132kw |
110/132kw |
132/160kw |
| Capacity |
3-5T/H |
4-6T/H |
5-8T/H |
6-9T/H |
8-10T/H |
10-13T/H |
12-16T/H |
15-20T/H |
18-25T/H |
| Speed |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
2980r/min |
1440r/min |
1440r/min |
