Pallet Shredder

Home > Crusher & Mixer >
Pallet Shredder
APPLICATION: Crushing pallet, board, etc.
Capacity: 3-20T/H
Main Power: 50-110KW
Model: MCP
WhatsApp: +86 138 3838 9622

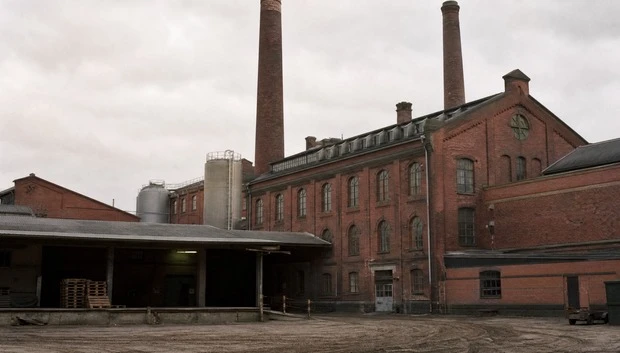

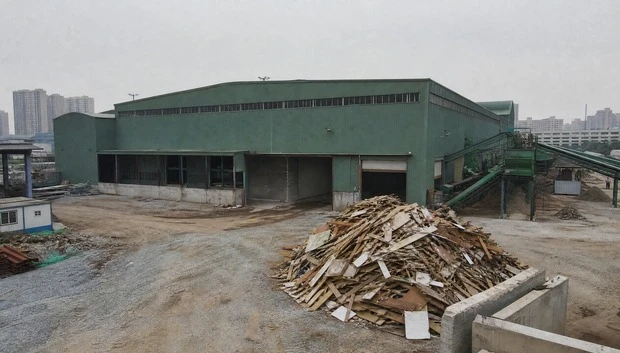

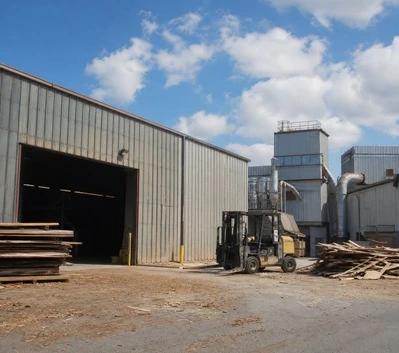

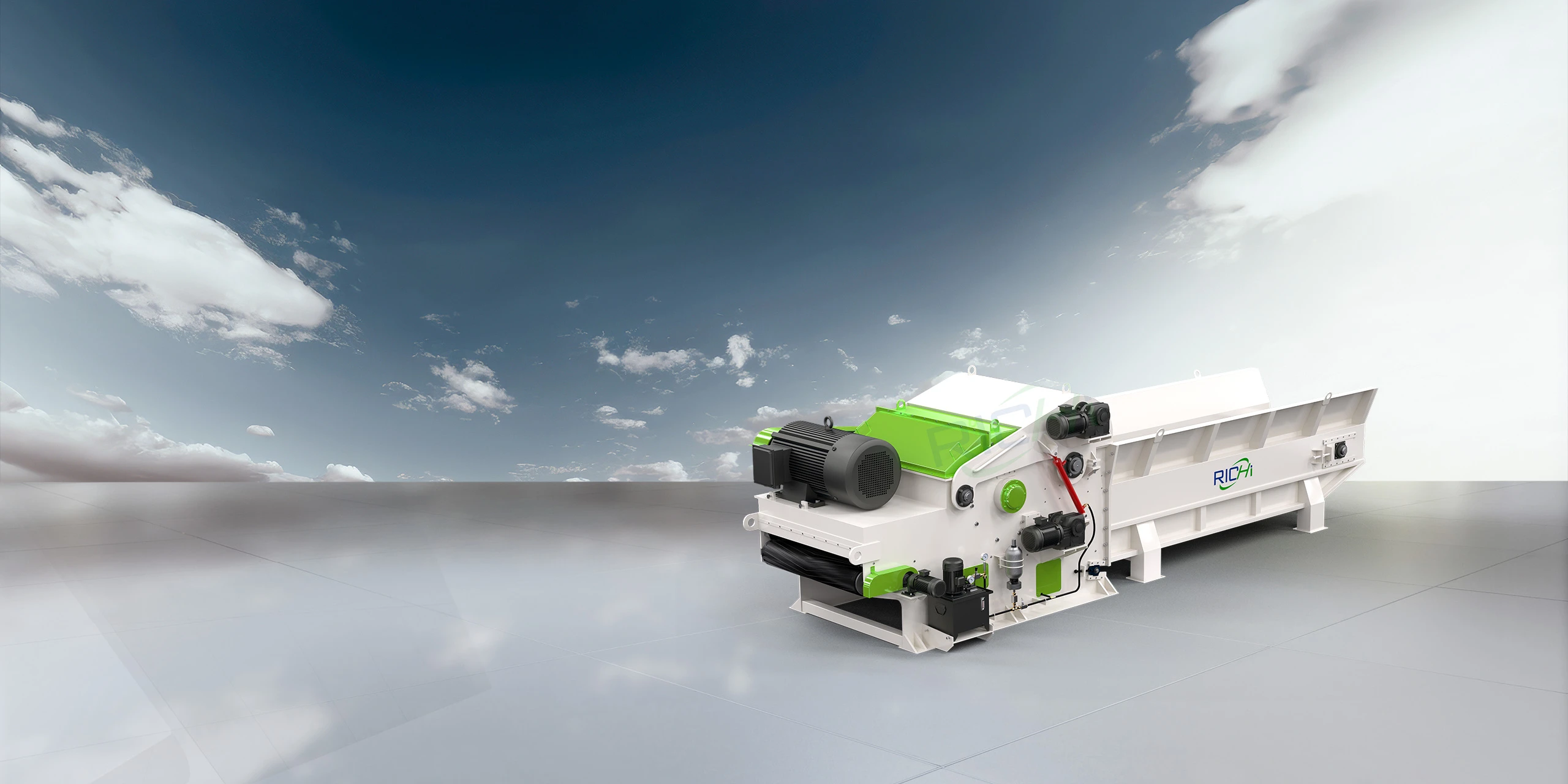

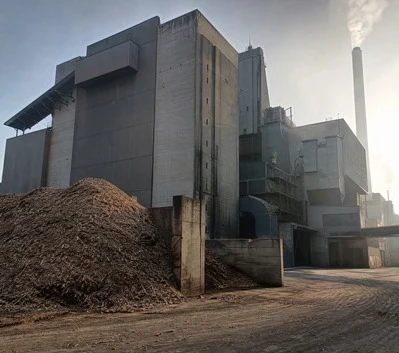

Pallet shredder, also known as pallet crusher, wooden pallet shredder, pallet crushing machine, pallet chipper, wood pallet grinder, industrial pallet shredder, etc., is a kind of large-scale industrial wood crushing equipment developed for brackets, pallets, wooden boxes, boards, etc., can be widely used in waste formwork processing plants, bamboo plywood processing plants, wood-based panel plants, composite board plants, power plant boiler raw material combustion, etc., and wood processing plants.

24 hours to reply to technical inquiries

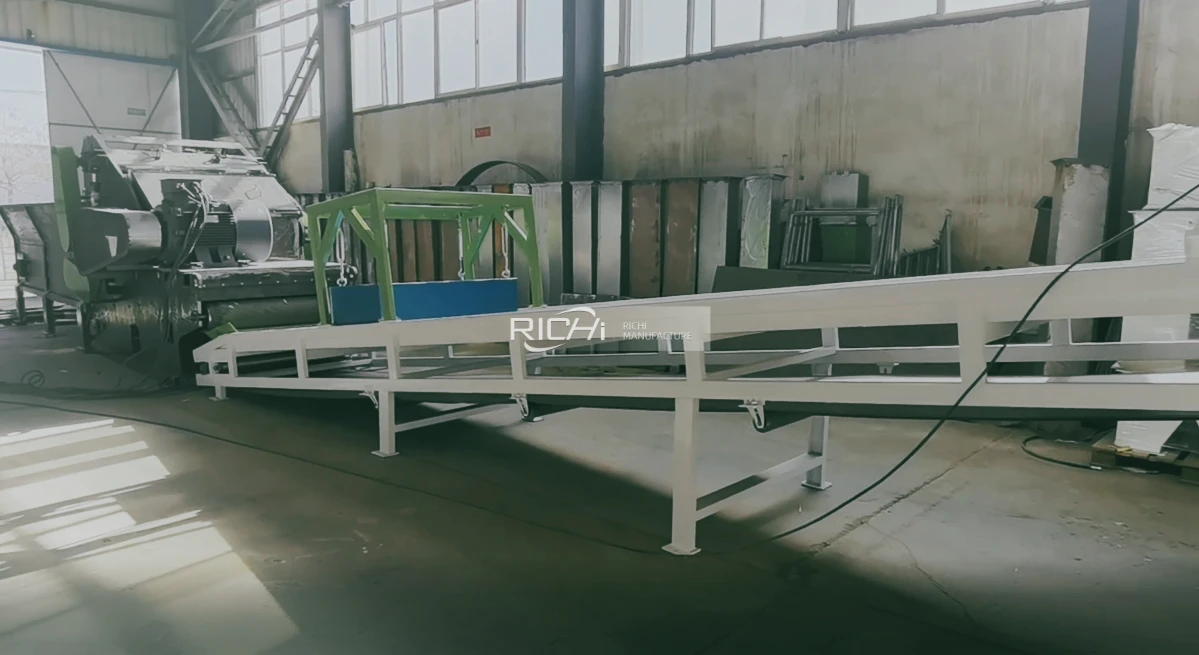

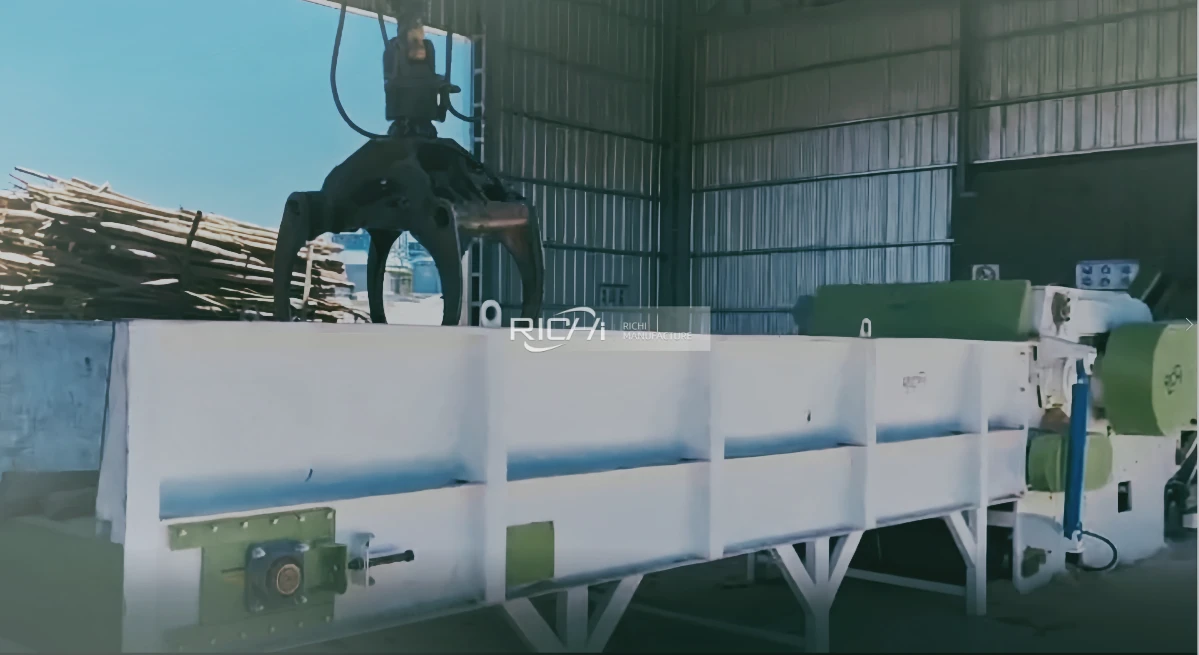

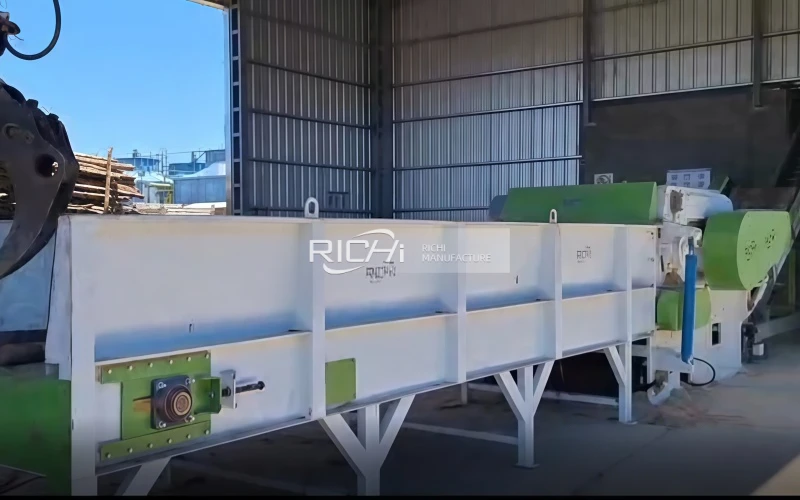

videos Of Pallet Shredder

Applications Of Pallet Shredder

In construction sites, you can often see some waste timber construction templates and timber shelves for some goods. These timber items are construction waste for the construction site after being used, but some timber resources are directly combined with other construction waste.

It is also a pity to throw it away. It is directly lit with fire or sold directly to waste collection. Now that the construction industry is so popular, this is a waste of wood resources. As an indispensable building template in building construction, it will inevitably embark on a green road.

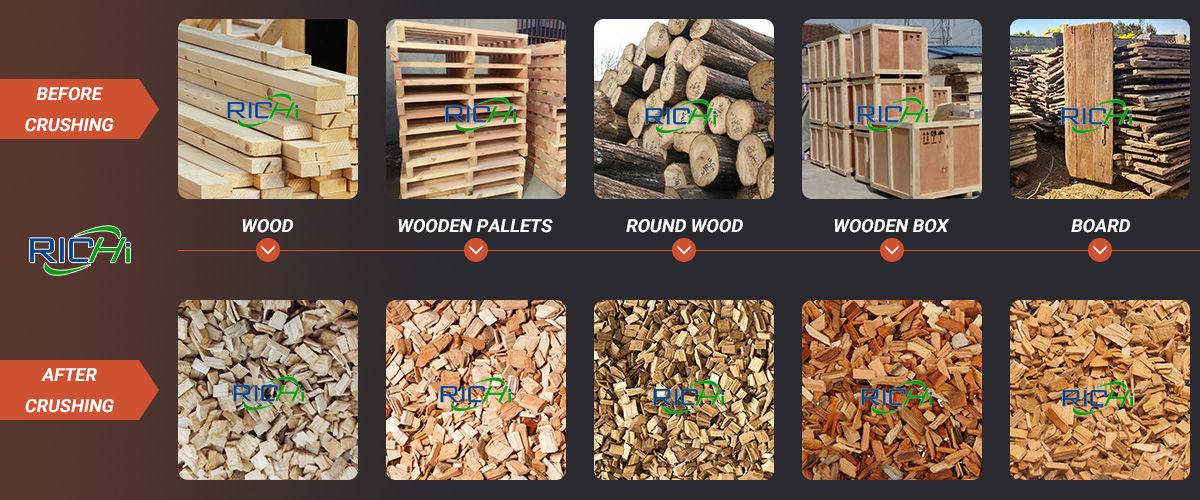

Applications Of Pallet Shredder

So, how to use and solve the construction pallet waste? The pallet shredder (template crusher) is the most correct answer. The pallet shredder can crush templates, boards, wooden pallets and other materials. The highlight of this wooden pallet shredder equipment is that it is not afraid of nails and some small iron products.

The materials processed by the template shredder are mainly waste wood such as waste building templates, wooden pallets, containers, and packing boxes. Among these woods, nails are unavoidable. Processing with ordinary sawdust will damage the blades of the other types of wood pallet crusher machine.

But the new pallet shredder produced by RICHI is not afraid of the nails on the bamboo plywood or cargo pallets on the construction site. It is also professionally used to crush bamboo glue. Ideal for materials such as boards, scrap templates on construction sites, wooden pallets, etc.

Technical Features Of Pallet Shredder

  • Intermeshing blades completely crush the material;
  • Choose special blades, the blade hardness is not less than HRC55 (the HRC hardness of the file is 51 degrees);
  • Strong structure, densely distributed stiffener plate to ensure the strength of the box;
  • Automatic button control, safe and convenient;
  • Safety signs and safety labels to ensure safe use;
  • Can be equipped with conveyor belt for feeding.
  • Low noise, simple structure and compact layout.
Technical Features Of Pallet Shredder
Technical Features Of Pallet Shredder
Technical Features Of Pallet Shredder

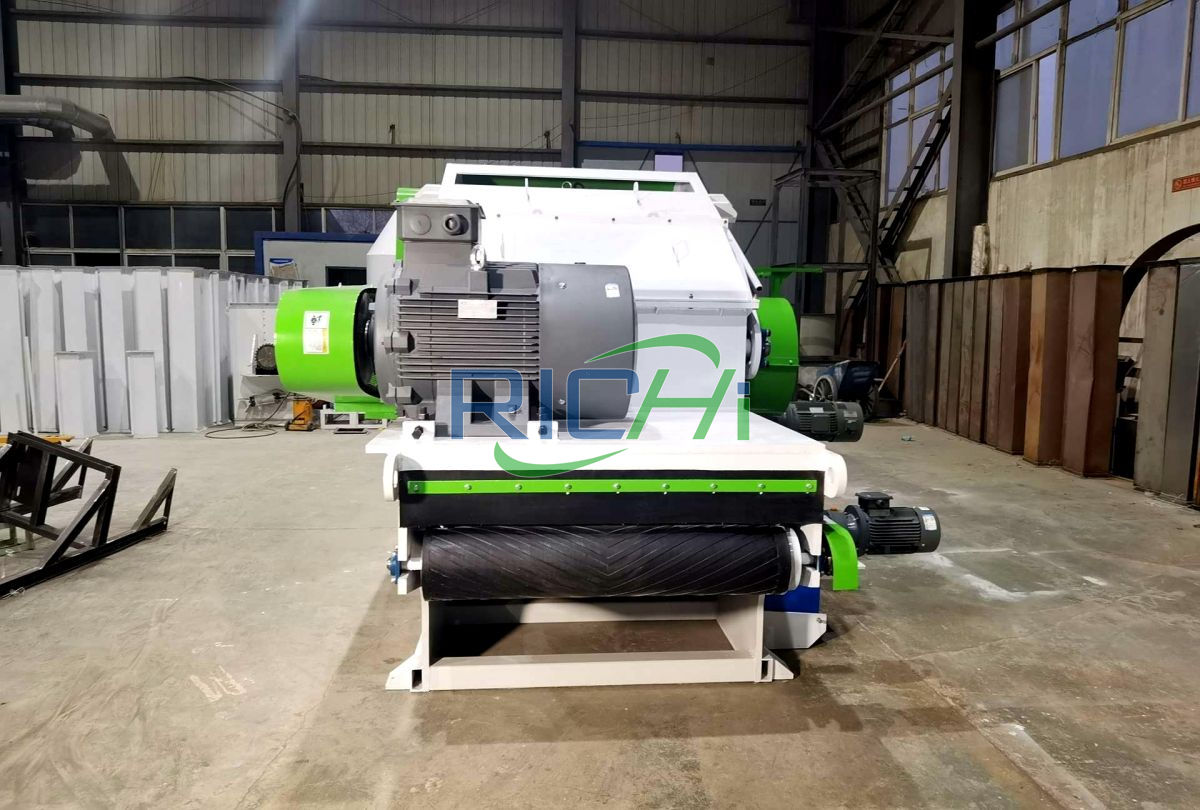

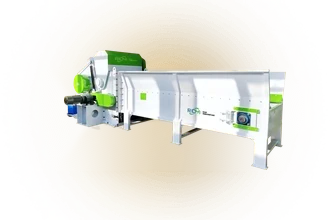

Structure of industrial pallet shredder with ce

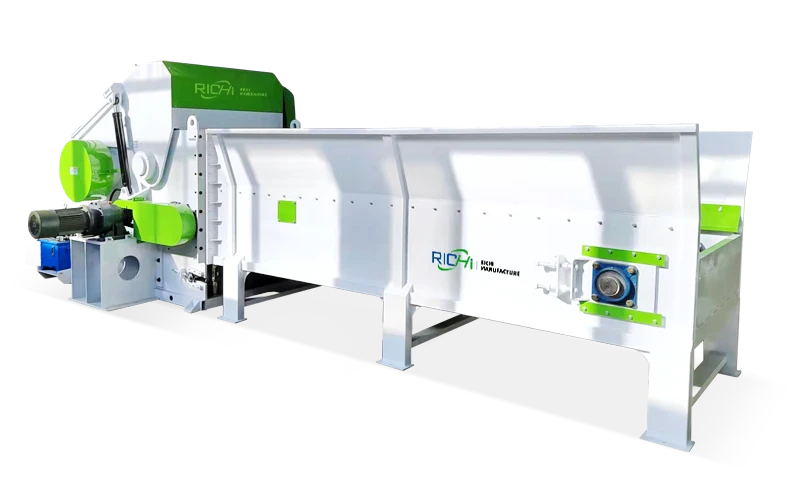

The wood pallet shredder has always been a product of RICHI's key research and development. According to market demand, a new generation of special template crushing has been developed for building template crushing. It mainly consists of working platforms, feed rollers and conveyors.

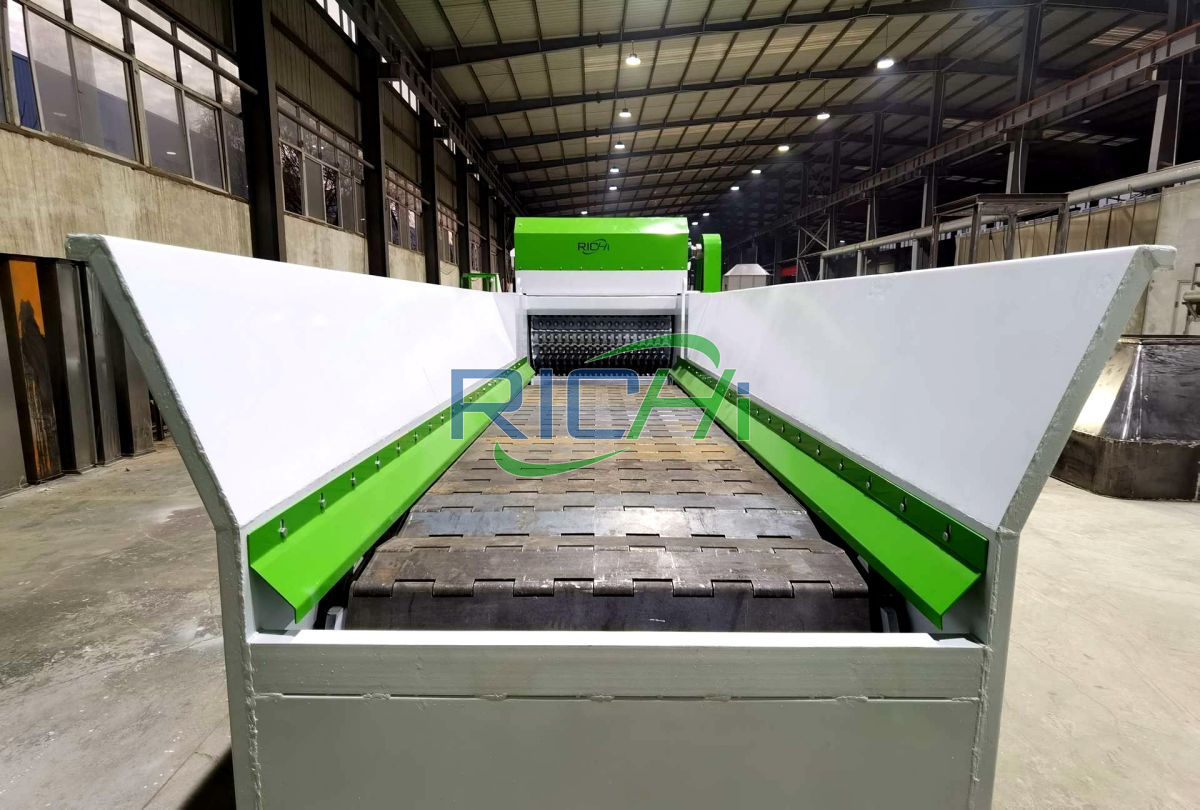

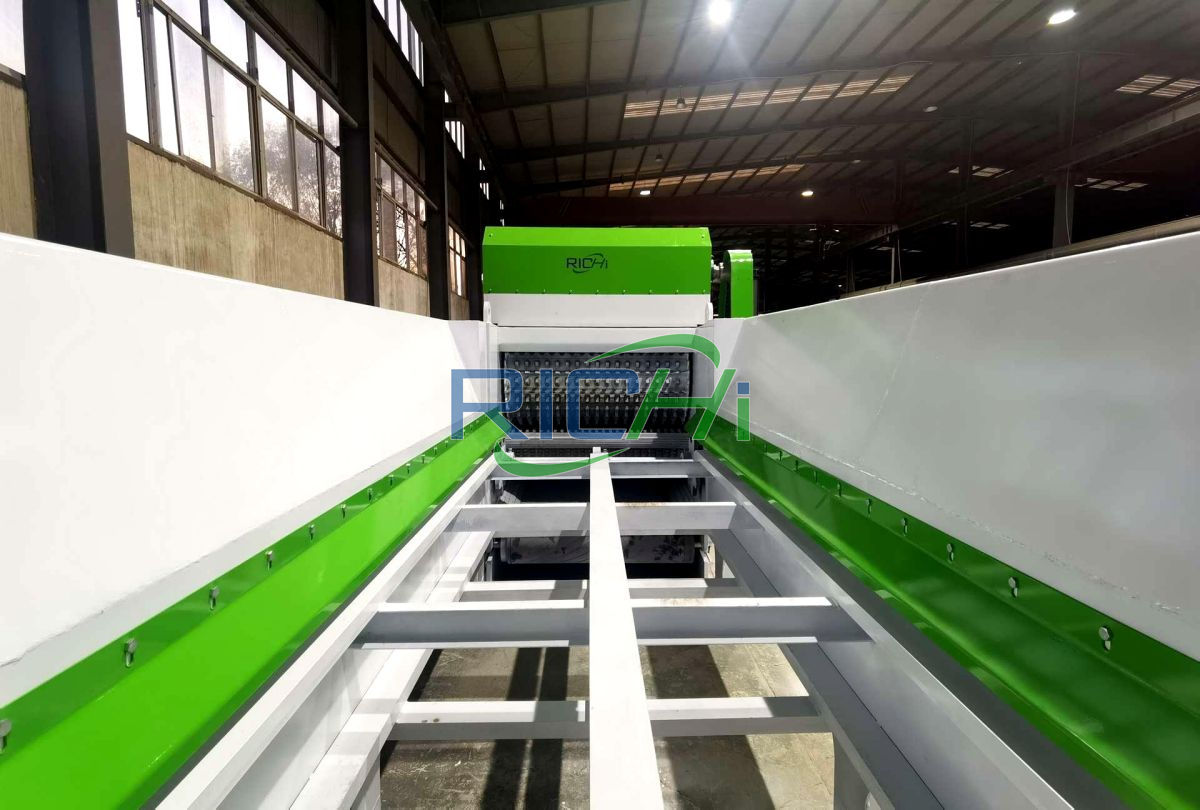

  • Feeding and conveying: placing wood boards to be broken;

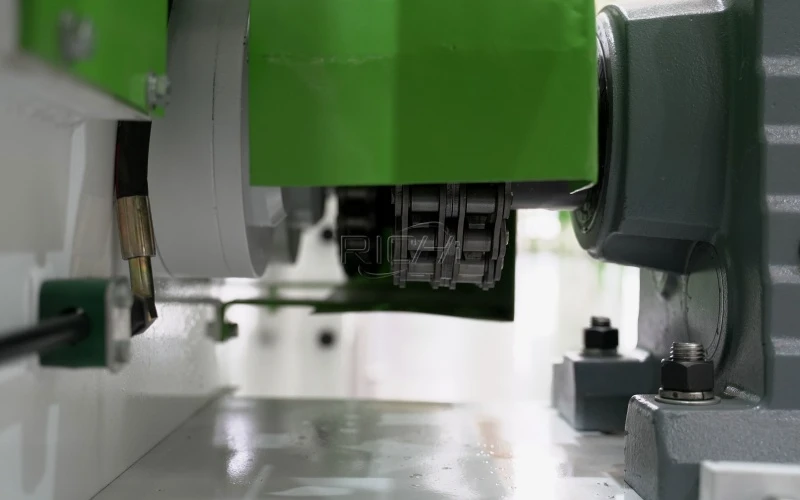

  • Feeding roller: control the feeding speed and keep the sheet from slipping and not feeding;

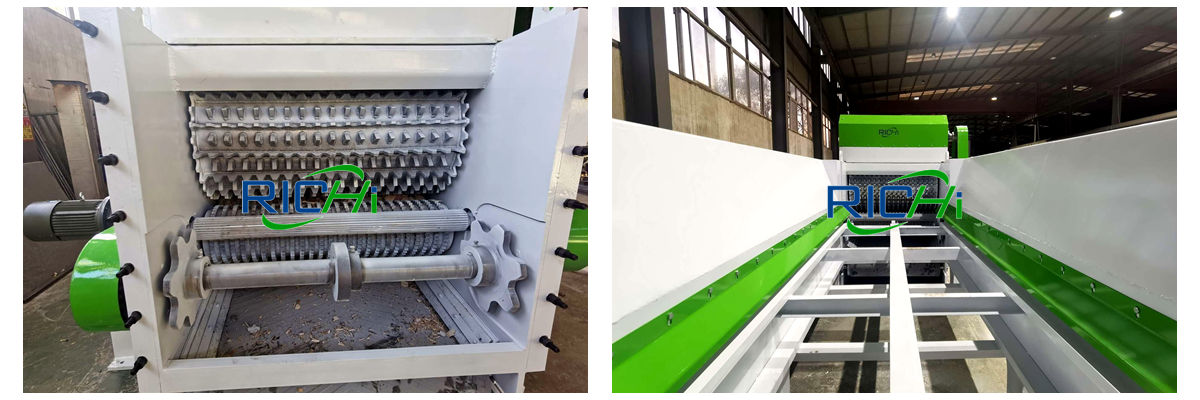

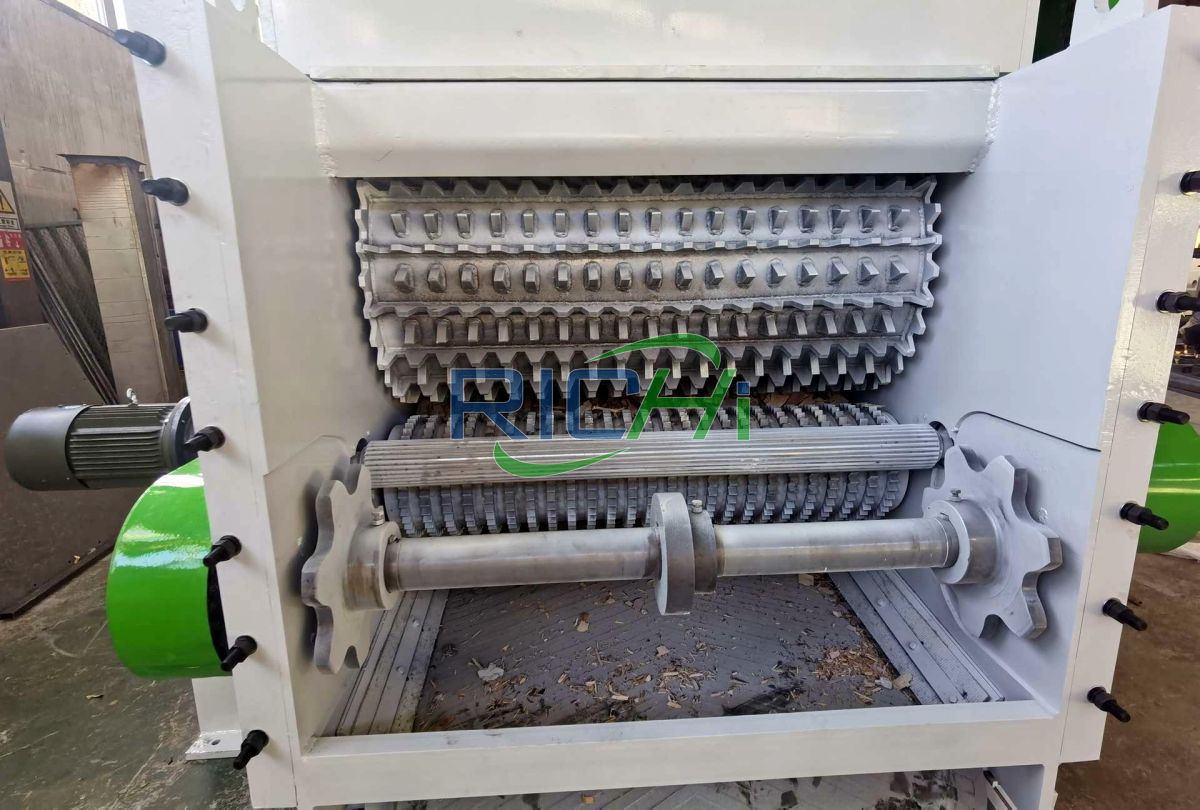

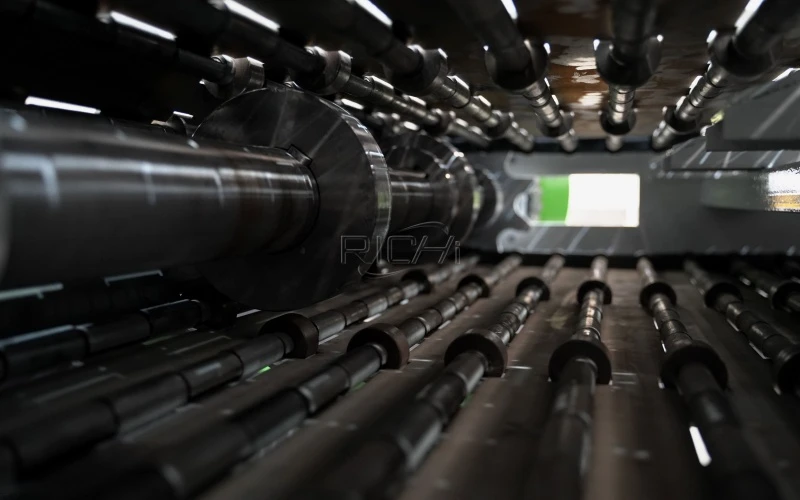

  • Spiral crushing roller: Welding cutters are uniformly distributed on the roller along the circumferential direction to ensure that the crushing roller receives the same force in the circumferential direction at all times;
  • The template crushing has the synchronization of feeding and crushing to achieve uniform crushing;

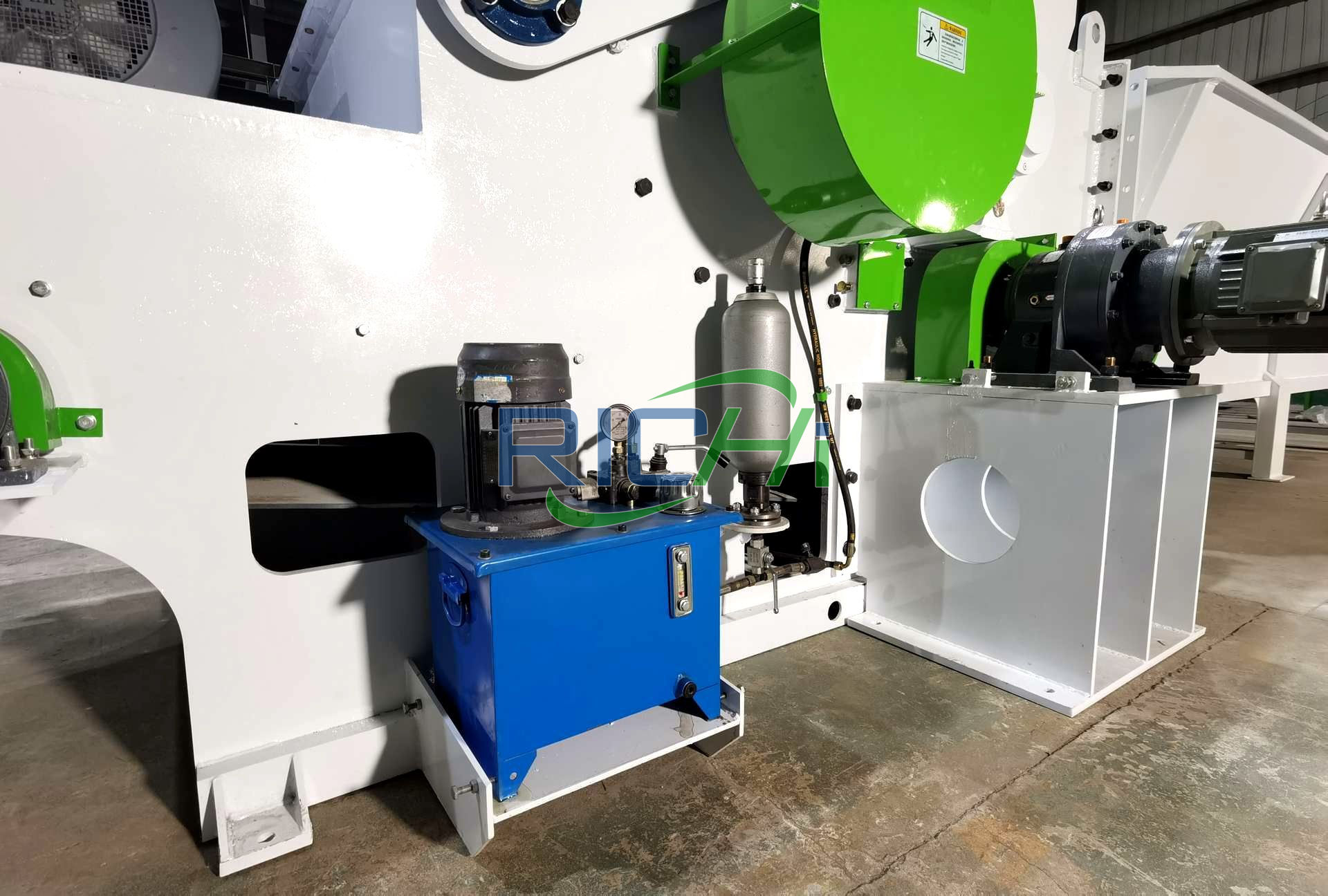

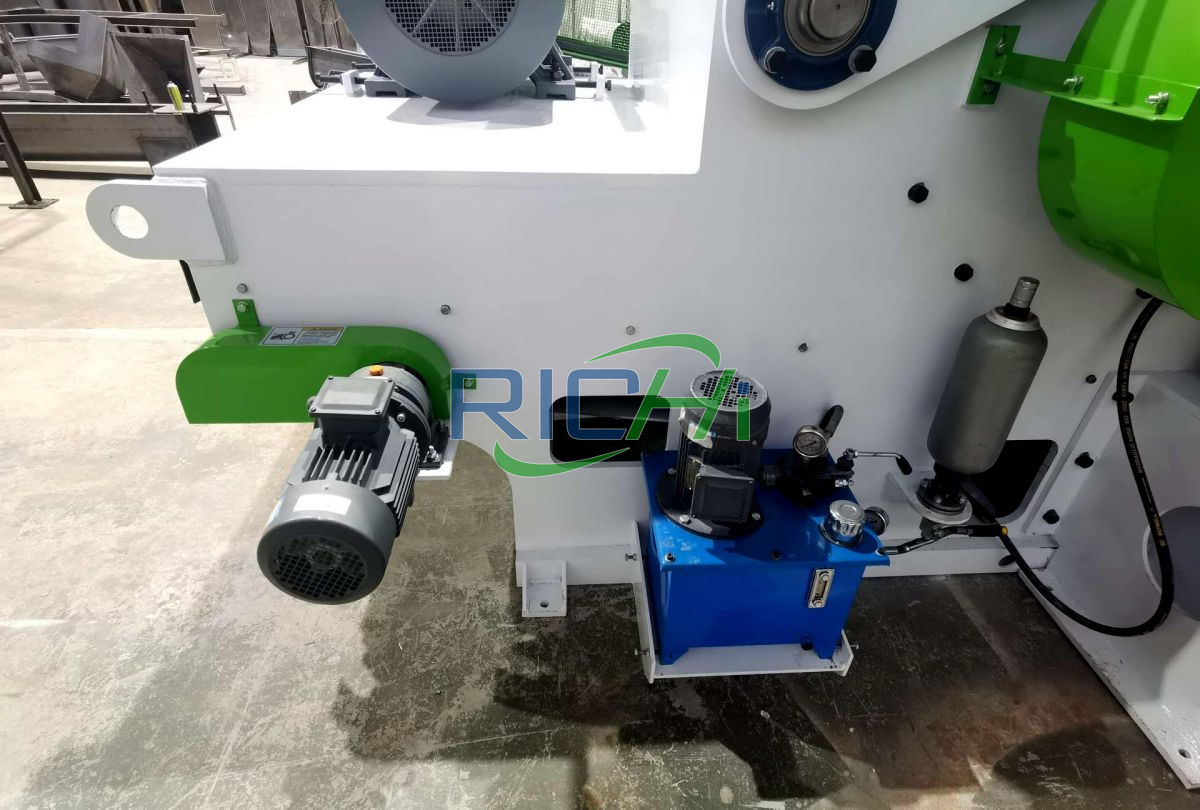

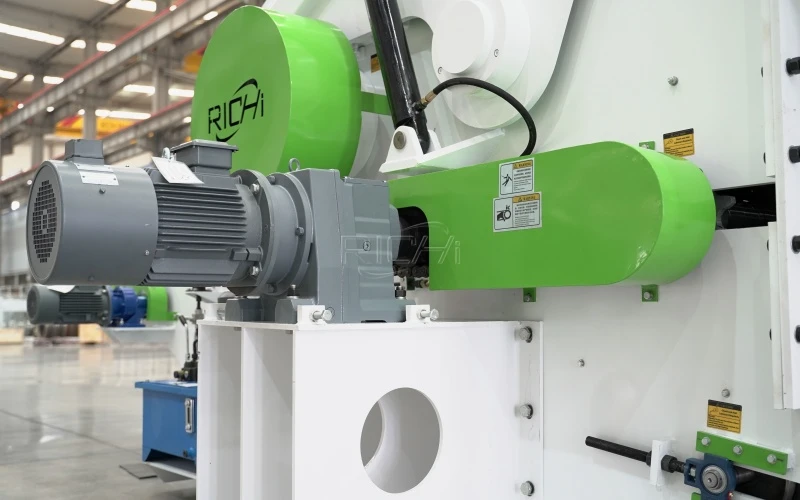

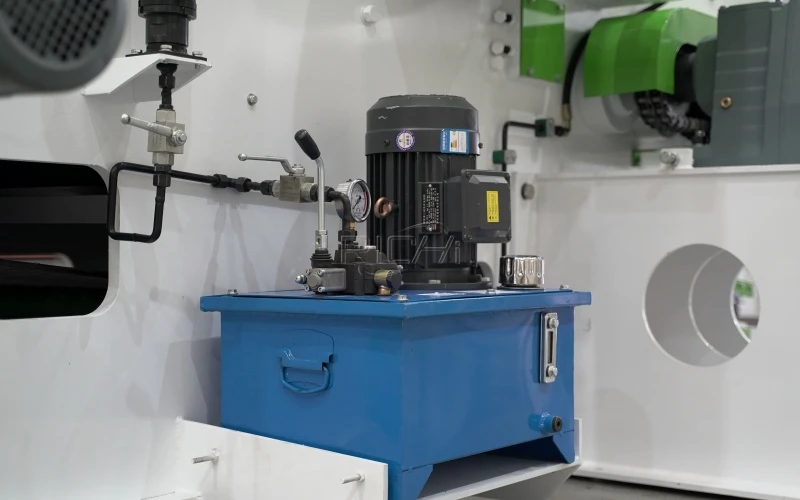

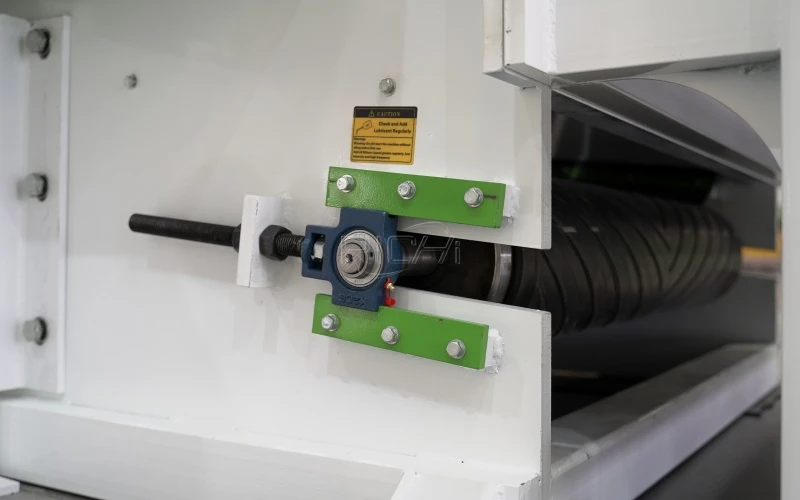

  • The feed pressure roller adopts SKF series bearings and spring compression mechanism, which can be adapted to the crushing of different sheet thicknesses;
  • The feed pressure roller and the crushing roller adopt different power systems, which are easy to control.
Structure of industrial pallet shredder with ce
Structure of industrial pallet shredder with ce
Structure of industrial pallet shredder with ce

Working Principle Of Pallet Shredder

Working Principle Of Pallet Shredder

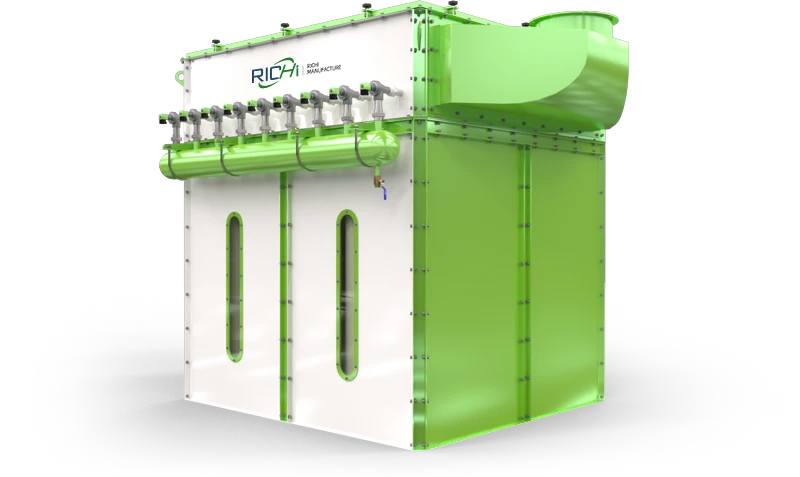

The pallet shredder crusher breaks the traditional process structure mode and uses the principle of hammer beating. The whole pallet crushing machine has the integrated linkage control of conveying, feeding, pressing plate and crushing, plus screw conveying and induced draft fan extraction to complete the operation process.

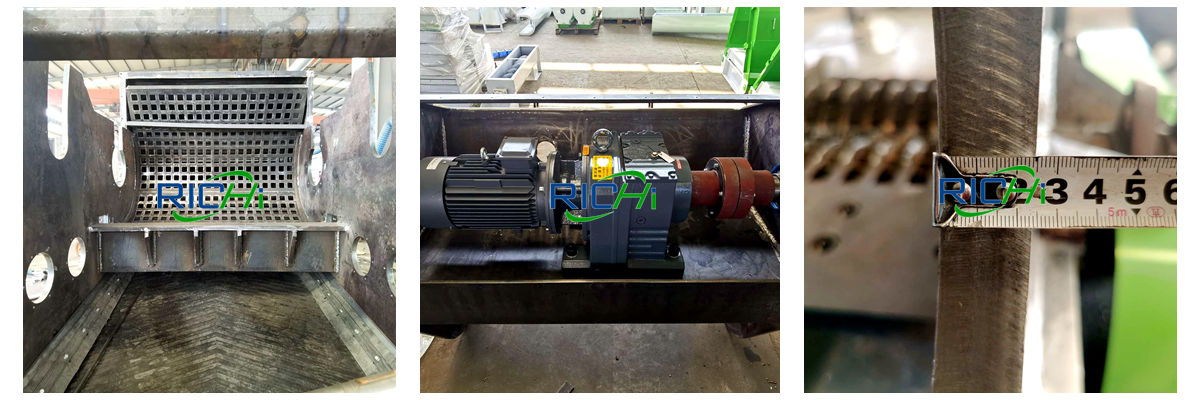

The final finished material is about the same size as a matchstick. Because the raw material is large, the thicker screen (14MM) is used. The minimum screen hole can only be processed with an aperture of 22 mm, so the processed finished material is a bit large, belonging to coarse crushing, the hourly output is about 1-25 tons.

If you want to crush sawdust, or even finer, you must use a multi-functional steel plate crusher with a small aperture screen.

Parameter And Model Of Pallet Shredder For Sale

Model of wood pallet shredder machine MCPS600 MCPS1200 MCPS1500
Capacity(T/H) 3-5 10-12 15-20
Feeding conveyor width 600 1200 1500
Inlet size (mm) 600*300 1200*500 1500*600
Main motor power (kw) 55 90/110 110
The power of the feeding motor of the roller (kw) 7.5 7.5 18.5
Feeding speed (m/s) 0.8 0.8 1.3
Conveyor speed (r/min) 650 650 650
Speed ​​of crusher (r/min) 680 680 680
Pallet shredder price(USD) 20000-30000 40000-50000 55000-65000

We can customize various types of industrial wooden pallet shredder according to customer requirements.

Why Choose Richi

why choose richi
why choose richi

Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields.

All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization.

Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan

Quality Control
Richi Machinery

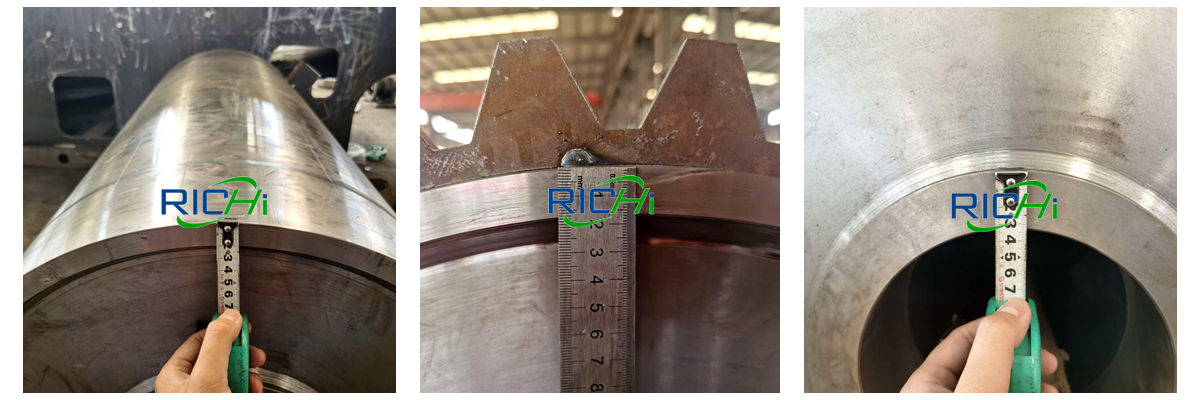

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Quality Control

Delivery And Installation

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment.

According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training

After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs.

After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.

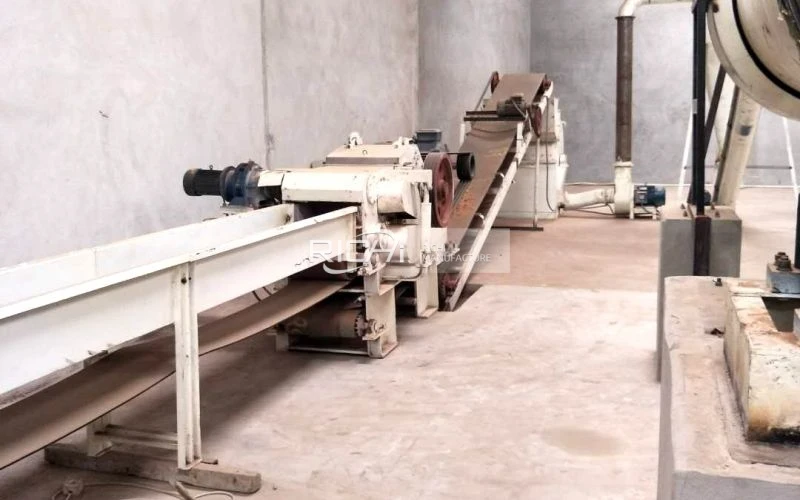

Related Project
