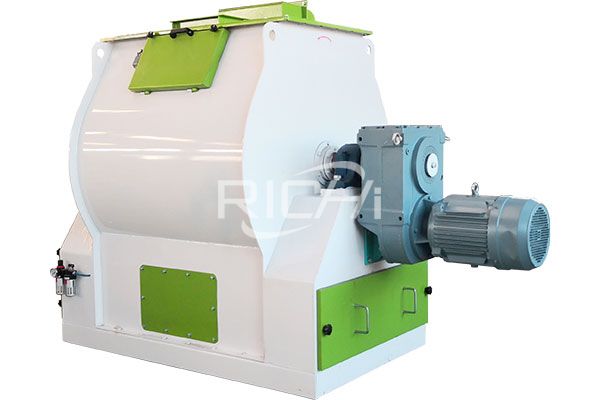

High Efficiency Feed Mixer

Home > Crusher & Mixer >
High Efficiency Feed Mixer
APPLICATION: Feed ,additives , Chemical And Medicine Industries, Etc.
CAPACITY: 1500KG/BATCH
MAIN POWER: 30KW
MODEL: SLHJ3A
WhatsApp: +86 138 3838 9622

High Efficiency Feed Mixer mainly uses the paddle to turn the materials to make it fully mixed so that increases the surface contact area of the material to promote chemical reactions and accelerates physical changes.

24 hours to reply to technical inquiries

Technical Features Of High Efficiency Feed Mixer

1.Advanced structure, convenient operation, and safety.

2.The mixing speed is fast and the quality is uniform.

3.The energy-saving effect is remarkable

4.The wear and pressure feeding of the granular material is small, and the superheat reaction of the heat-sensitive material does not occur.

5.The mixed preparation is stable without delamination and segregation.

6.This machine is sealed without dust, easy to operate, convenient to maintain, and long in service life. In addition, the cone can make it into a pressure vessel for pressurization or vacuum operation according to user requirements.

7.The autobiography and revolution of this machine are completed by a set of motor and cycloidal needle reducer.

Applications Of High Efficiency Feed Mixer

The main drive of the high efficiency feed mixer adopts double reducer to drive, which is more flat; the liquid(such as water, molasses, oil, etc.)is added under a certain positive air condition, which is more accurate and uniform. It adopts pneumatic discharge mechanism with self-locking function, discharge door sealing with silica rubber, no leakage. Large access door, reasonable design, convenient for cleaning and maintenance.

Working Principle Of High Efficiency Feed Mixer

The pellets move around the wall of the cone due to the revolution of the biaxial.Due to the auto-transmission of the spiral blade, the powder is discharged radially toward the center of the cone.The powder flows upward from the bottom of the cone and discharged to the outer peripheral surface of the spiral for material mixing.

The downward flow of the particles caused by the spiral rotation is precisely due to the combination of the revolution and the rotation of the spiral in the mixer, forming four kinds of flow forms of the powder: convective, shearing, diffusion, and infiltration. Therefore, the powder can quickly reach uniform mixing in the mixer.

Model SLHJ1A SLHJ1B SLHJ2A SLHJ2B SLHJ2L SLHJ3A SLHJ4L SLHJ4A SLHJ6A
Material quality carbon steel Stainless steel carbon steel Stainless steel carbon steel carbon steel carbon steel carbon steel carbon steel
Power 11kw 11kw 22kw 22kw 22kw 30kw 30kw 37kw 55kw
Mixed weight 500kg/batch 500kg/batch 1000kg/batch 1000kg/batch 1000kg/batch 1500kg/batch 2000kg/batch 2000kg/batch 3000kg/batch
