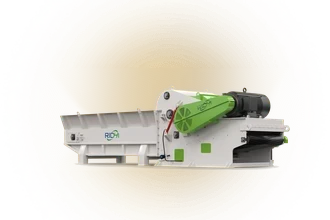

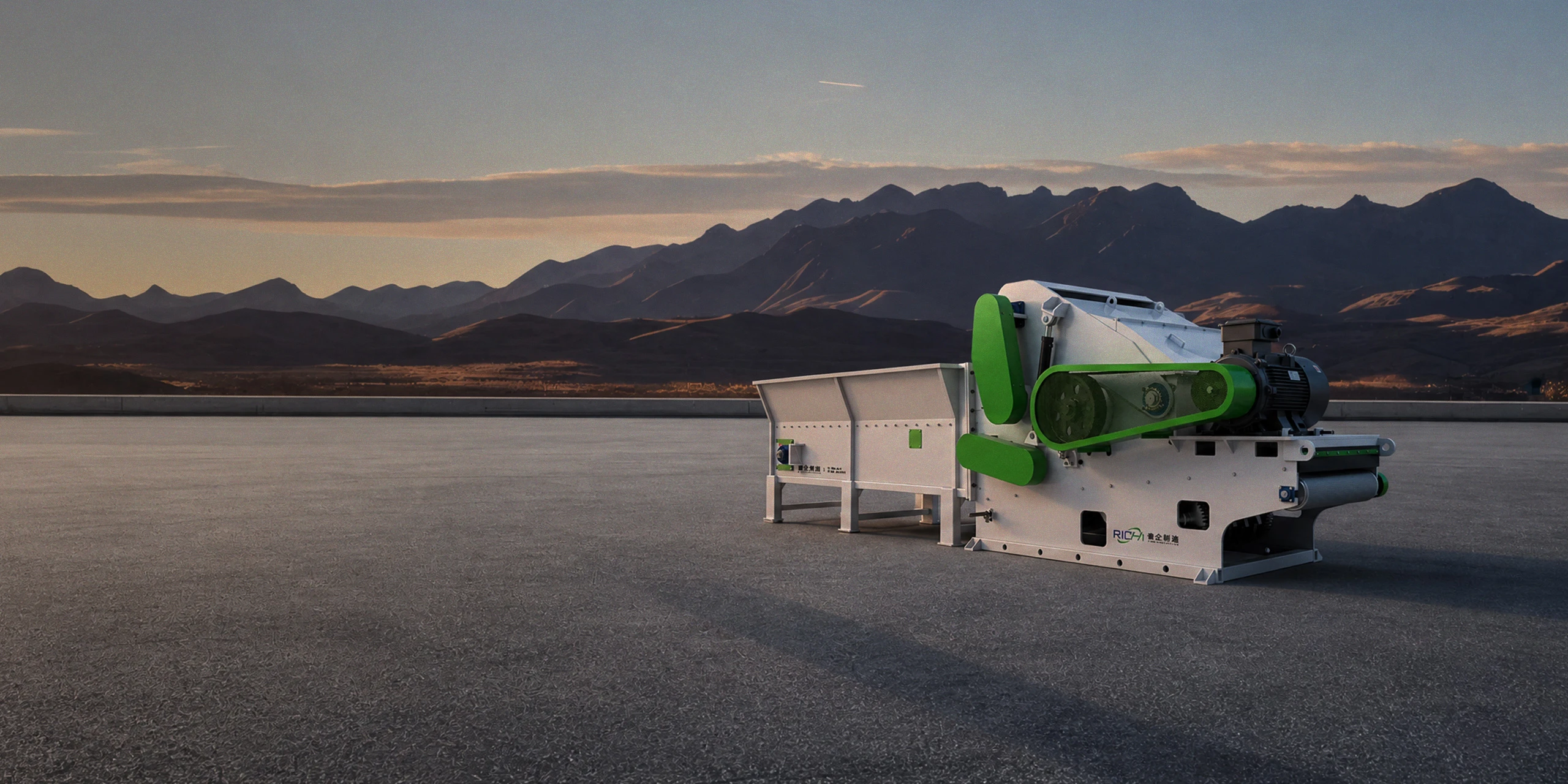

High Efficiency Drum Wood Chipper

Home > Crusher & Mixer >
High Efficiency Drum Wood Chipper
Application:: Wood biomass pellet plant
Model:: W-Drum
Capacity:: 3-18 t/h
Certification:: CE & ISO
WhatsApp: +86 138 3838 9622

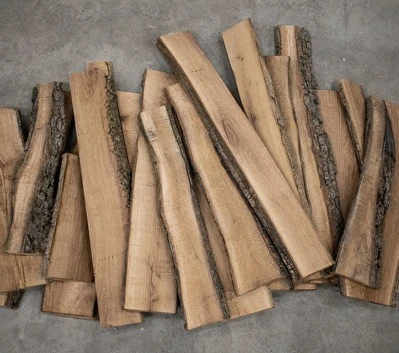

High efficiency drum wood chipper is a wood crushing equipment with high efficiency, low consumption and long life. The main raw materials for cutting are small-diameter wood, timber harvesting, processing residues (Such as branches, slabs, crusts, log cores, waste veneers, etc.), and can also be used to cut non-wood raw materials (such as sugar cane, reeds, moso bamboo) Wait).

24 hours to reply to technical inquiries

Applications Of High Efficiency Drum Wood Chipper

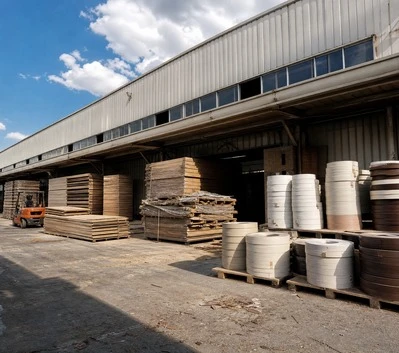

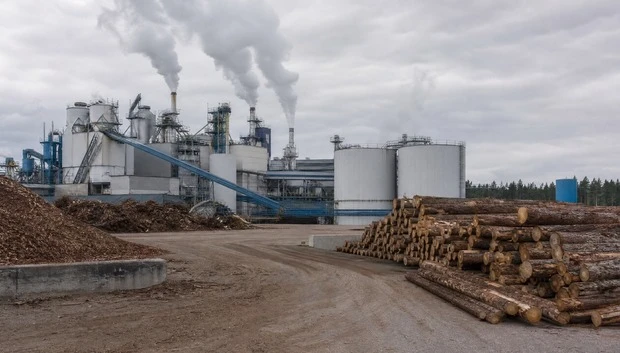

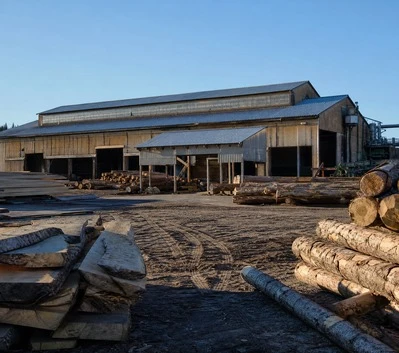

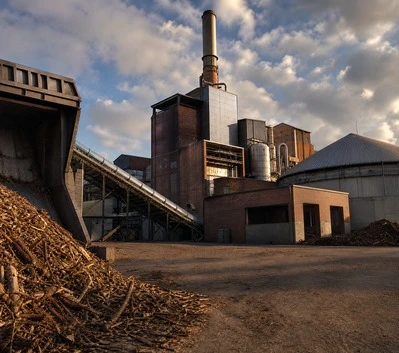

High efficiency drum wood chipper is a special equipment for the production of wood chips. It is widely used in particle board factory, medium and high density fiberboard factory, straw factory, bio power plant, wood chip factory and other industries and manufacturer in the production of the preferred equipment before the preparation section.

Technical Features Of High Efficiency Drum Wood Chipper

  • The size and model can be customized according to the customer's end use and production capacity.

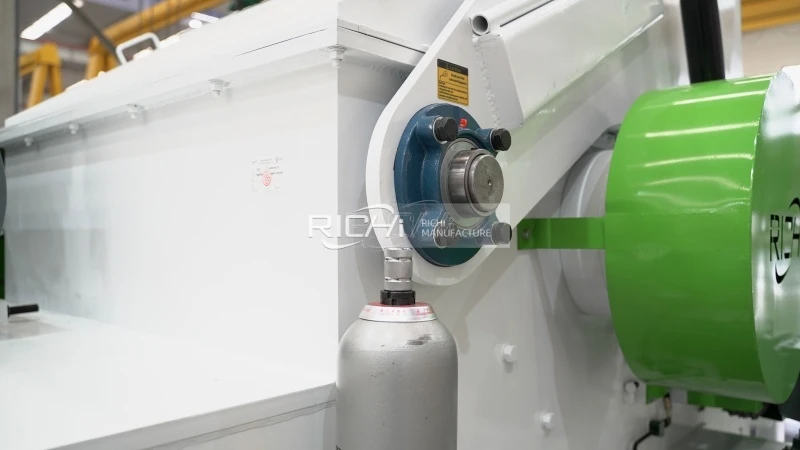

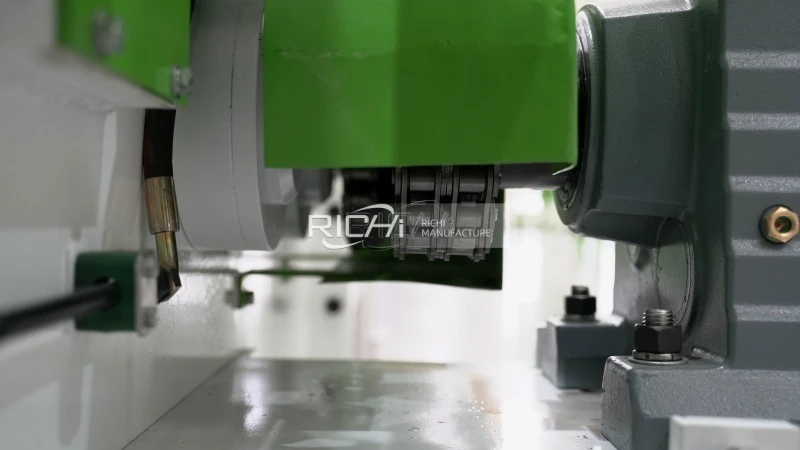

  • The use of heavy-duty self-centering bearings, even if the equipment is in continuous operation at full load, also has a long service life.
  • Materials after cutting will discharge through screen hole, those which don't meet the requirement will be cut again in machine until reaching standard.
  • It can be widely used in particle board factories, medium and high-density fiberboard factories, furniture factories, biomass power plants, wood chip factories, and biomass preparation industries in the biomass energy industry.

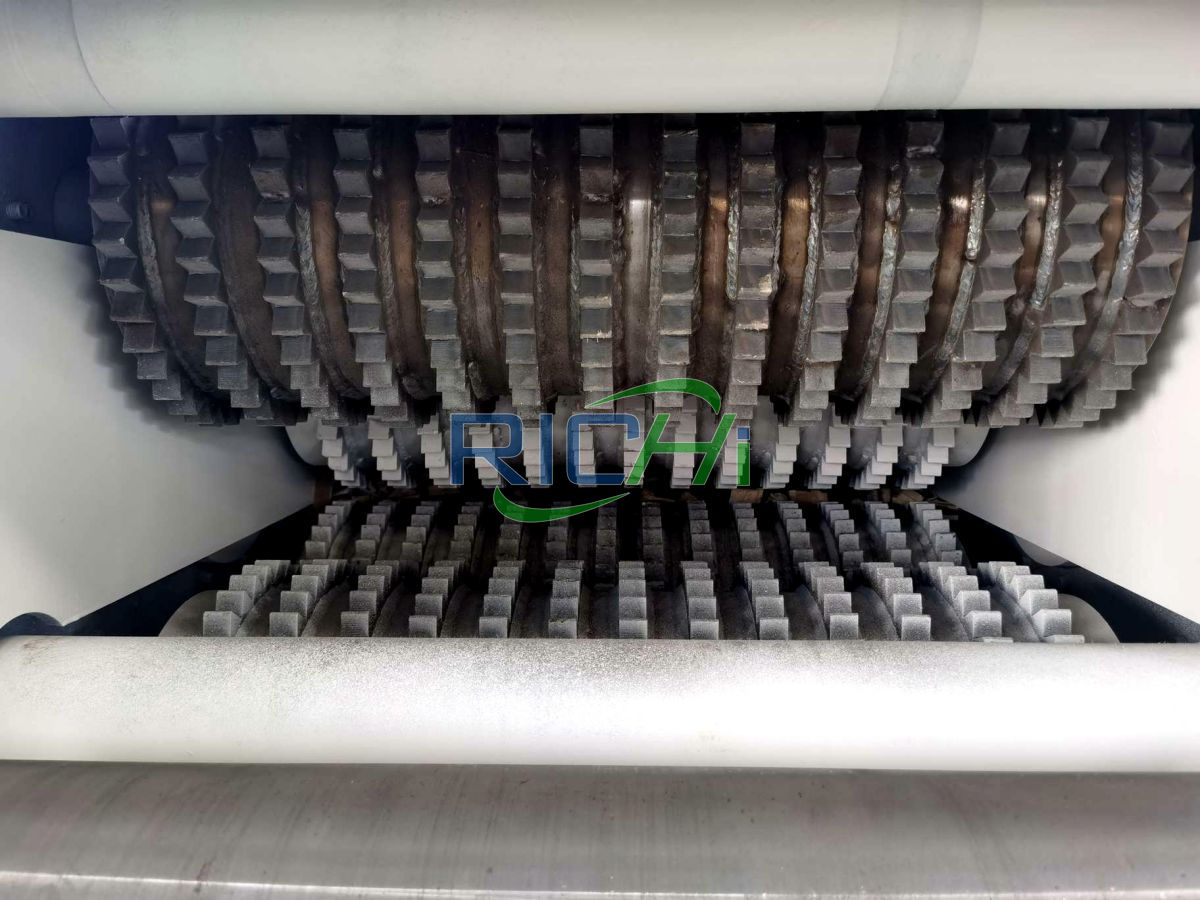

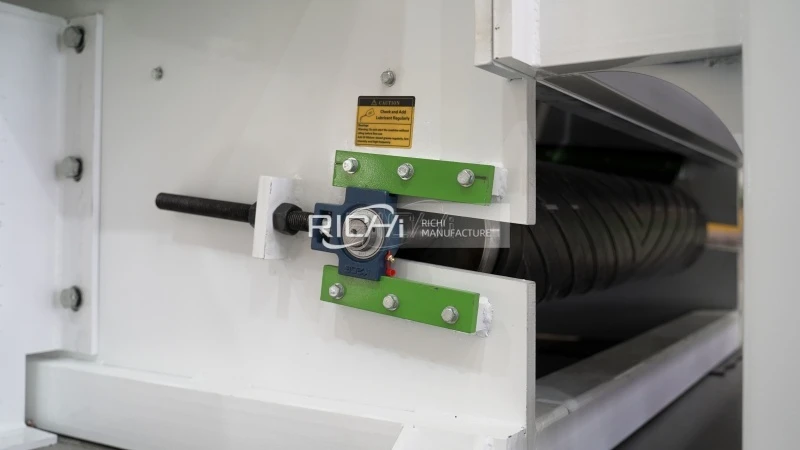

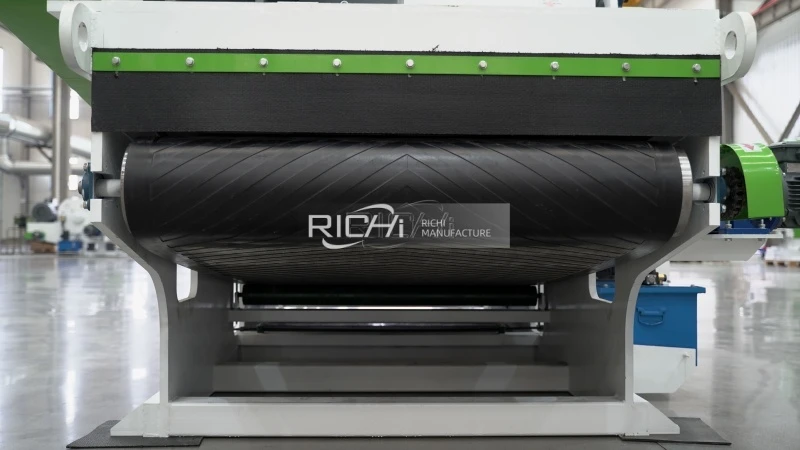

  • Upper feeding roller assembly can float up and down within the prescribed scope under effect of hydraulic, in order to achieve function of cutting raw materials with different thickness.

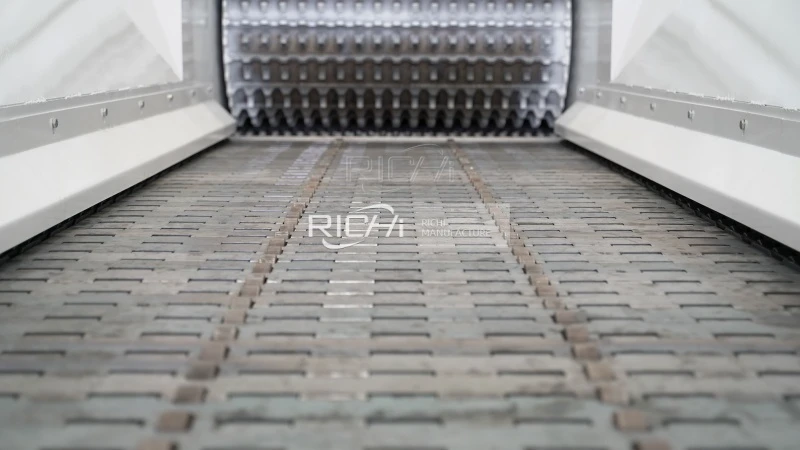

  • The chipping machine is equipped with a crushing screen to realize the secondary refinement of oversized wood blocks.
high quality industrial wood chipper machine
wood chipper price
large wood chipper
Bamboo Cutting Wood Chipper Machine
logs electric wood shredder chipper
Industrial Electric Wood Chipper
electric wood chipper machine
acacia wood log chipper

Working Principle Of High Efficiency Drum Wood Chipper

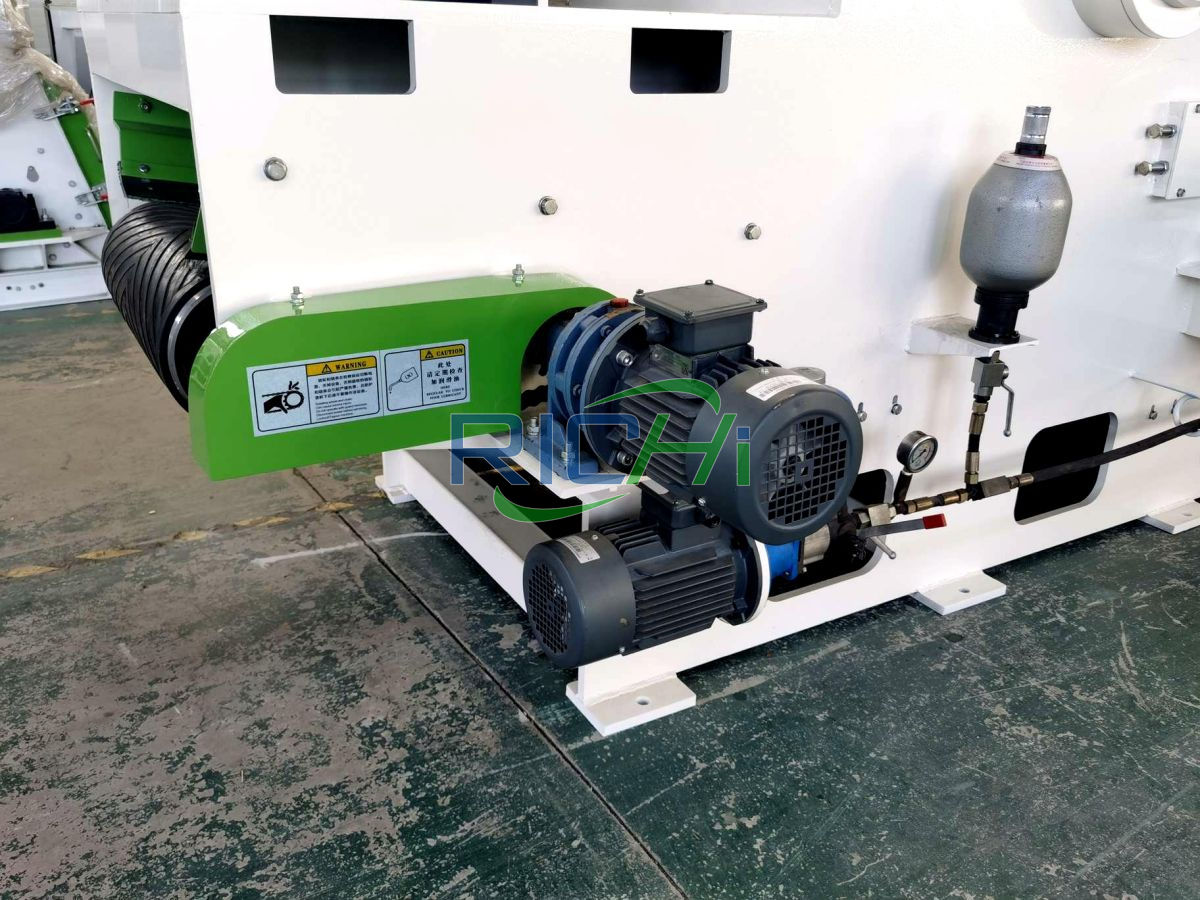

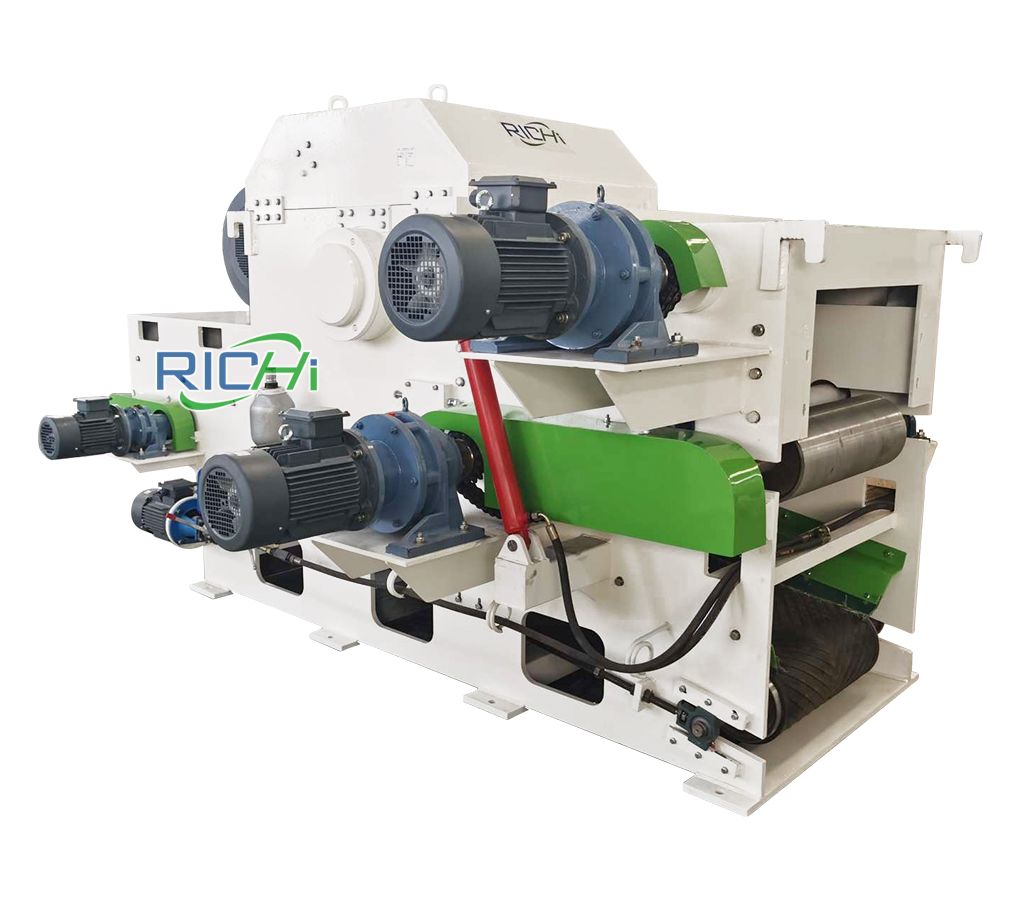

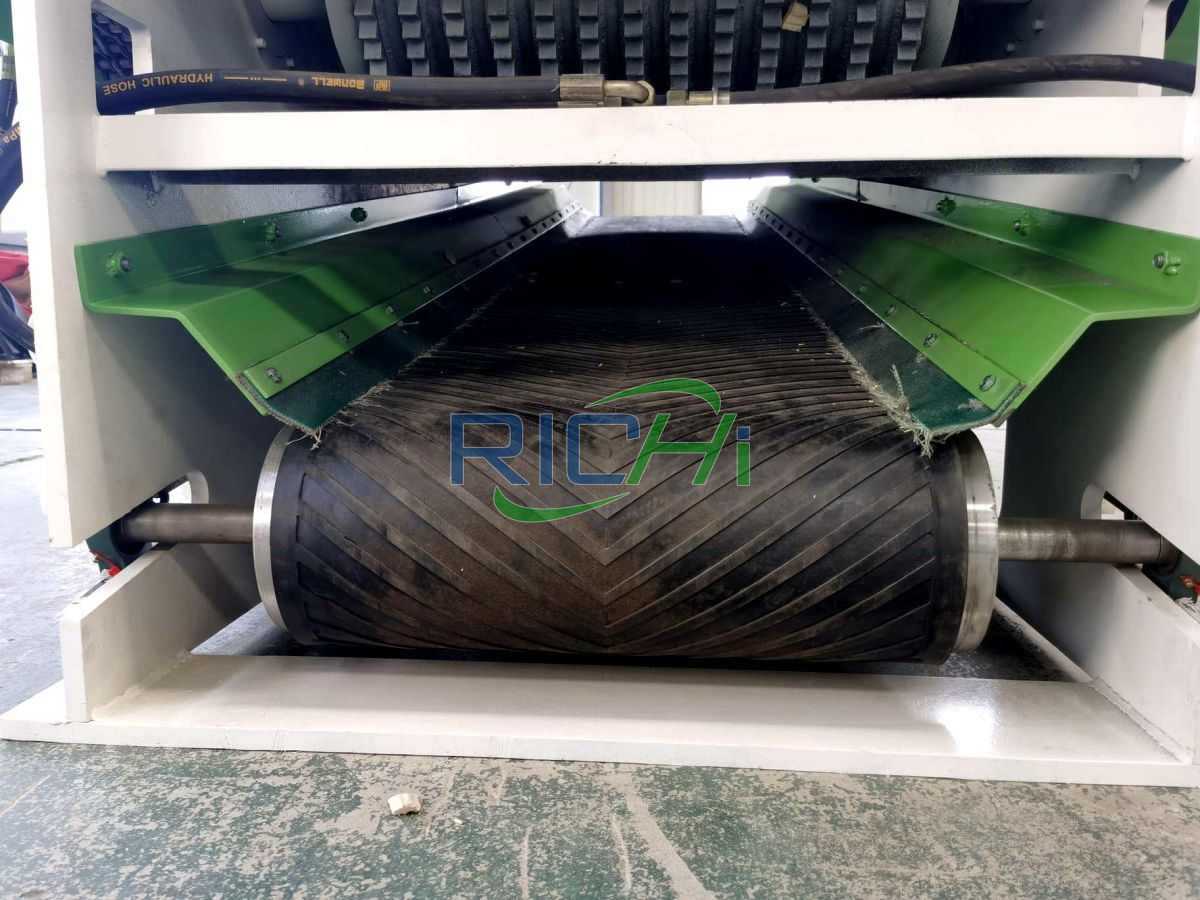

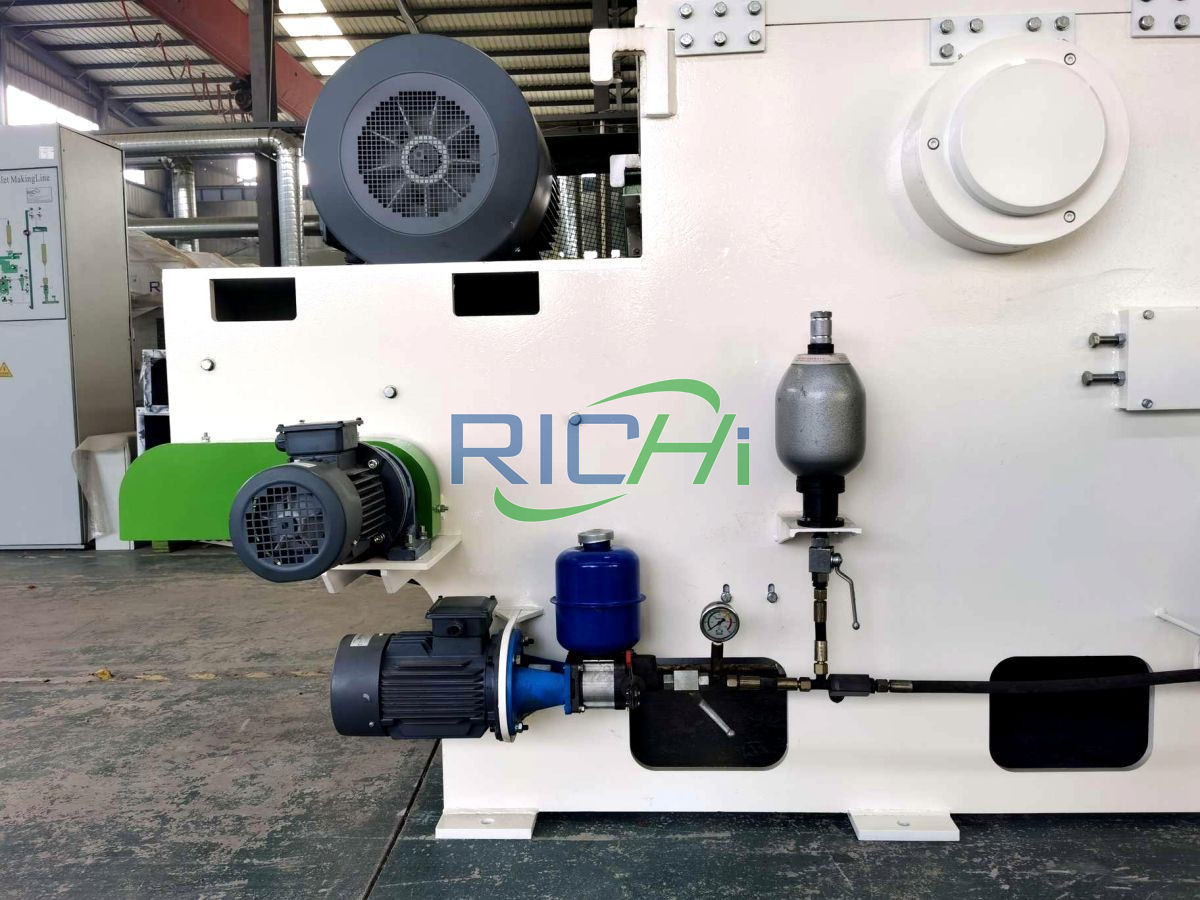

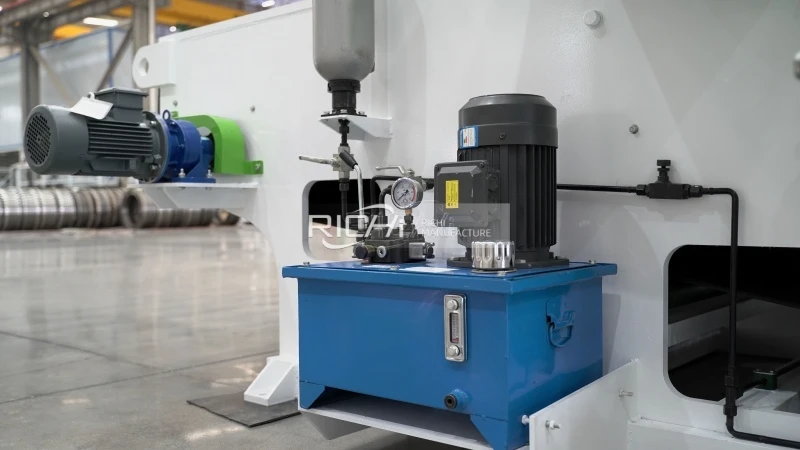

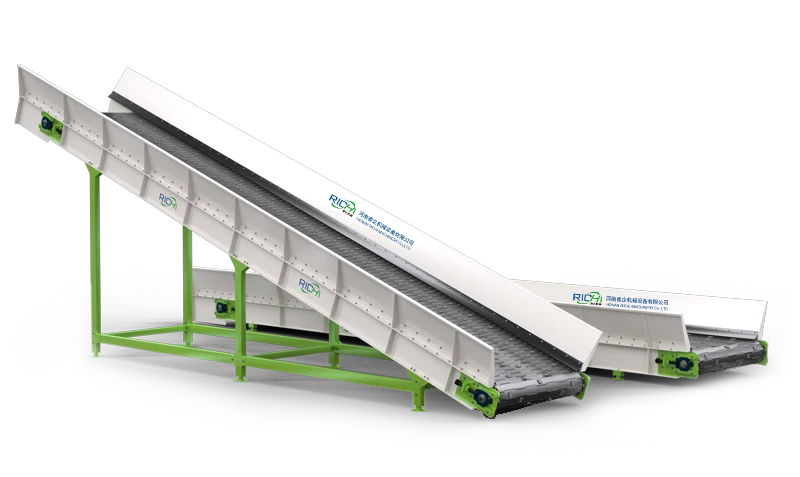

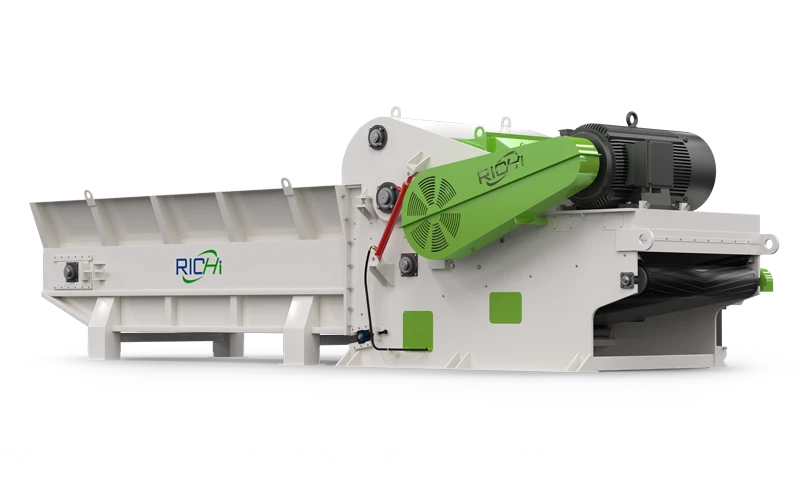

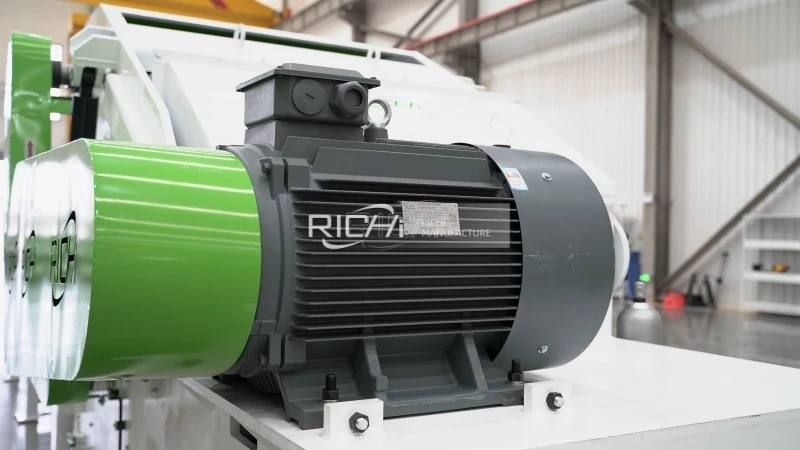

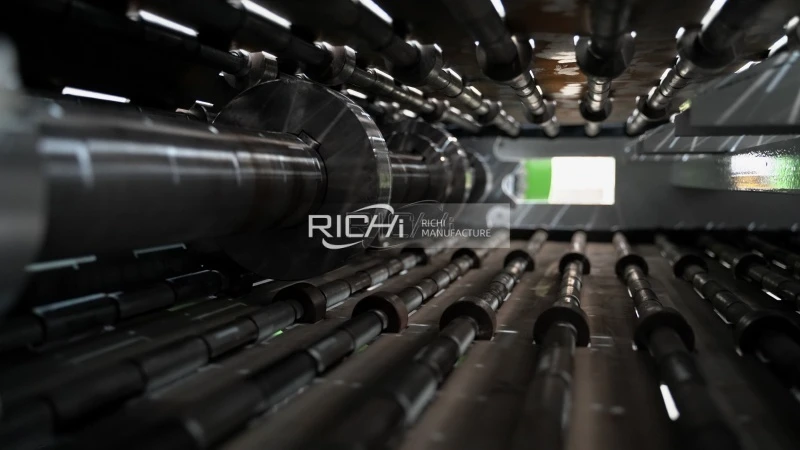

The high efficiency drum wood chipper chipping machine is composed of a body, a knife roller, an upper and lower feeding roller, a conveyor belt, and a hydraulic system. The body is welded with high-strength steel plates, which is the supporting foundation of the entire machine. Two or three or four flying knives are installed on the knife roller, and the flying knife is fixed on the knife roller by a professional flying knife bolt through a pressure block.

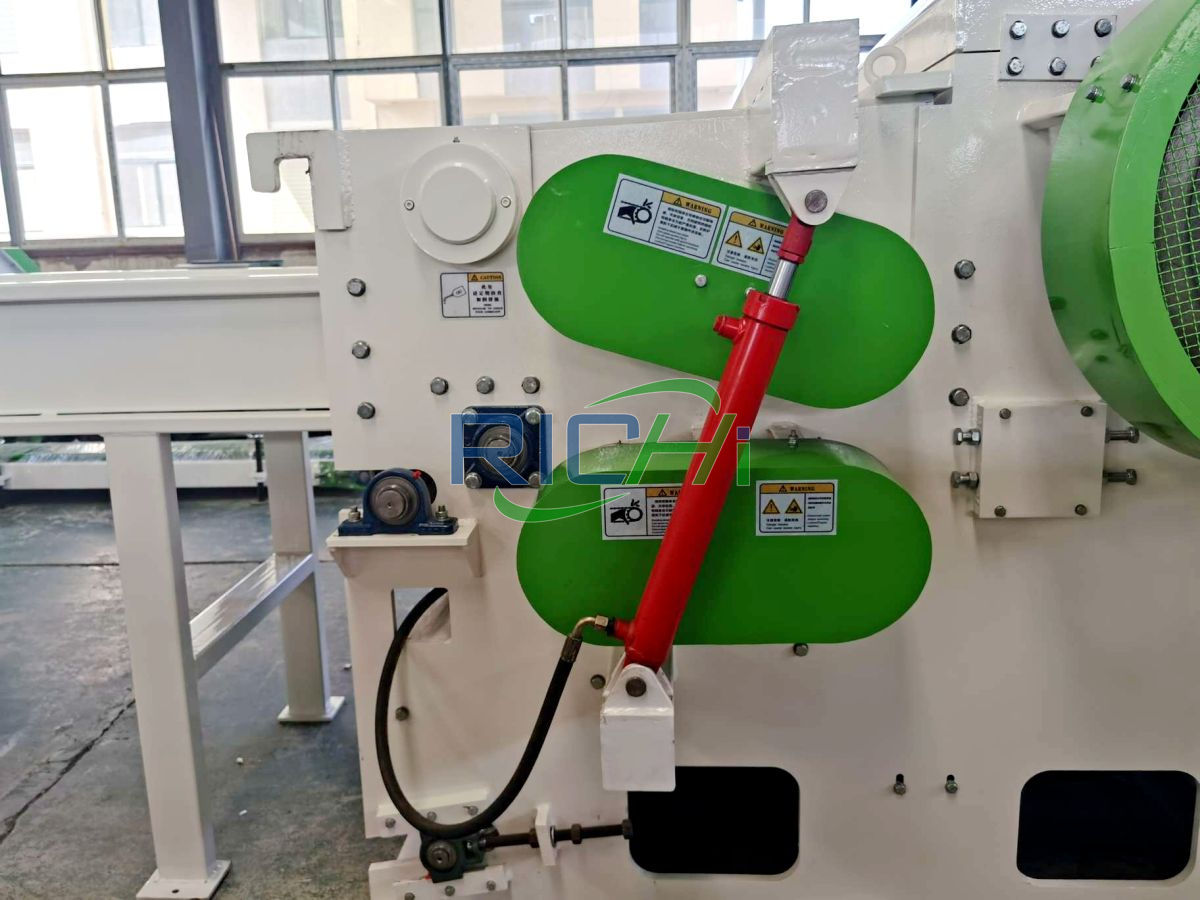

Depending on the thickness of the material being cut, the upper feed roller assembly can float up and down within a certain range by means of a hydraulic system. The cut qualified pieces fall through the screen holes and are discharged from the bottom. Large pieces will be cut in the machine.

Technical Parameters Of High Efficiency Drum Wood Chipper

Model W-Drum-215 W-Drum-216 W-Drum-218
Feeding Size(mm) 160*400 230*590 300*680
Number of blade (pic) 2 2 2
Rotated Speed (r/min) 590 590 650
Capacity(t/h) 3-5 8-10 14-18

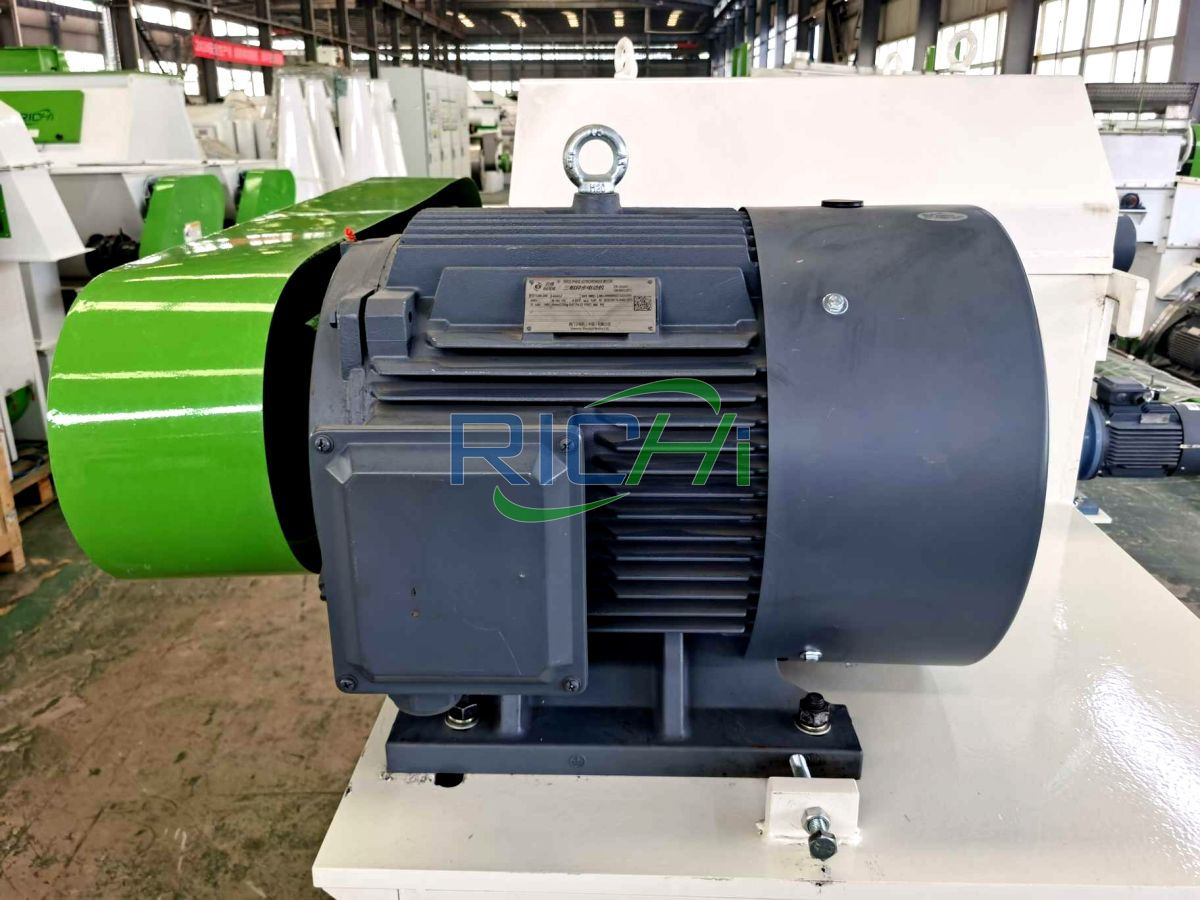

Main Motor Power(kw) 4-45 4-55 4-110

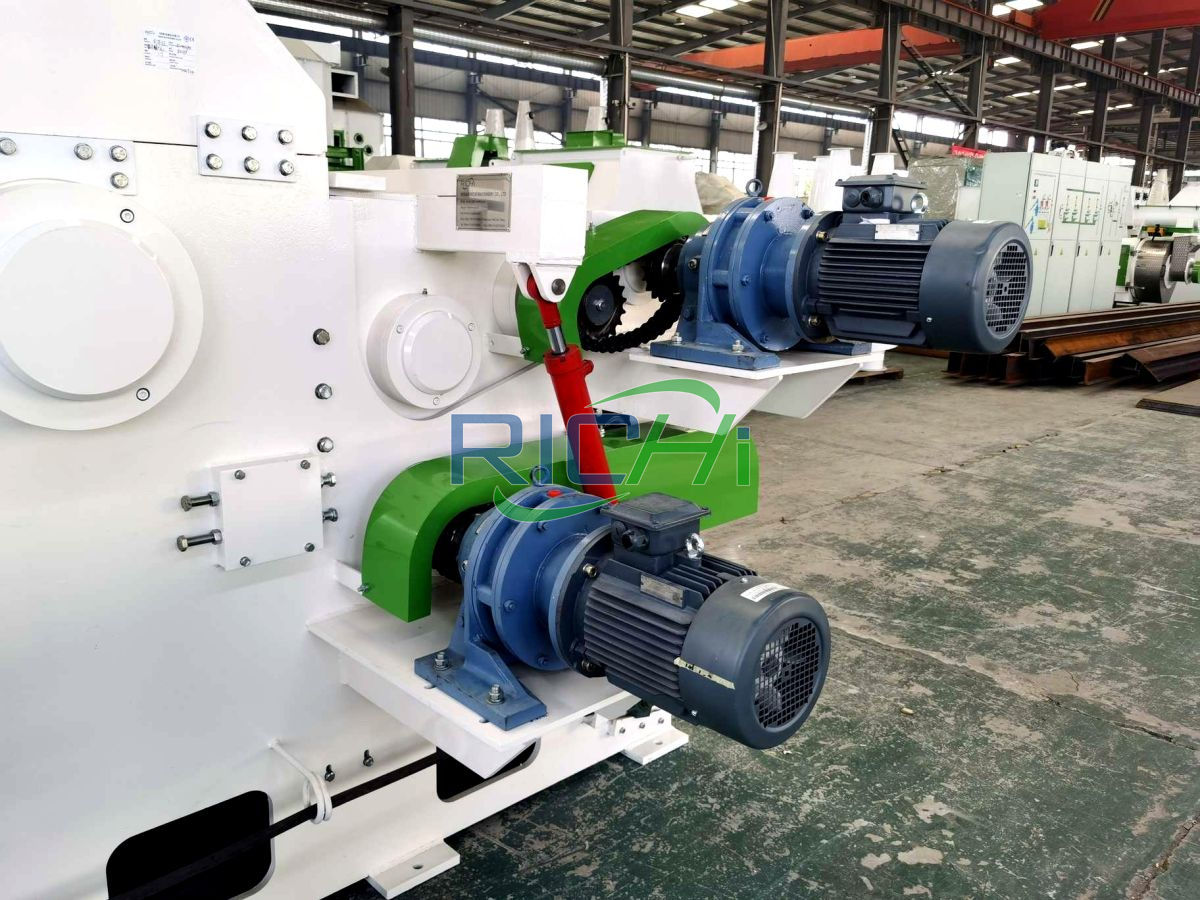

Feeder Power(kw) (2.2-3)*2 (3-4) *2 (4-5.5) *2
Oil Pump Power(kw) 1.5 1.5 1.5
Transportation Power(kw) 3 3 4
Weight(kg) 2990 5030 7000
Dimension(mm) 1470*1550*970 1800*1900*1210 2200*2150*1500

Why Choose Richi

why choose richi
why choose richi

Introduction of RICHI
Strength certification

Richi Machinery is a professional manufacturing enterprise integrating scientific research and development, manufacturing, sales and service. We have developed and manufactured multifunctional pelletizers, grinders, mixers, dryers and more than ten categories and more than 30 models of complete machine products are widely used in feed, biomass, organic fertilizer, pet supplies, solid waste recycling, chemical industry, road construction and other fields.

All RICHI products have passed ISO9001:2008 international quality system certification, EU CE certification and Customs Union CU-TR certification, successfully serving more than 2,000 customers in more than 100 countries and regions around the world.

Customized Design And Business Plan

In RICHI, every equipment and every pellet production line business plant can be customized. We will formulate multiple sets of pellet production process plans for comparative analysis according to the actual needs of customers, select a reasonable plan, and realize private customization.

Our services run through all aspects of on-site terrain and environment survey, production line process design, raw material testing, cost requirement analysis, project investment budget, equipment installation and commissioning.

Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan
Customized Design And Business Plan

Quality Control
Richi Machinery

We adhere to the ISO9001 quality management system, and strictly implement international standards for product design and manufacturing processes. In terms of management systems, there are product quality accountability systems, product quality accountability systems, and safety production management systems; in terms of management tools, QC quality control management, SPC statistical process control, sampling inspection and measurement system analysis are used for quality control, to achieve effective control of the entire process of equipment production, and never let go of any quality hidden dangers that may affect customer operations.

Quality Control

Delivery And Installation

RICHI has always been adhering to the spirit of craftsmanship to make every detail good, especially in the link of equipment preparation and delivery, we follow the standardized process: preparation order check-equipment factory quality inspection-packing list re-inspection-scientific packaging and transportation, ensure the safe and non-destructive delivery of equipment.

According to customer needs, RICHI installation engineers will guide the construction of site infrastructure, equipment installation and commissioning and trial operation of the entire production line throughout the process. When the relevant project indicators reach the design standards, the client will carry out the project acceptance.

Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
Delivery And Installation
After-sales And Training

After-sales And Training
Richi Machinery

We have built a team of nearly 100 technical engineers to solve a series of problems in the project from consultation, site survey, sample analysis to plan design, installation and commissioning, and maintenance. We provide comprehensive and systematic training for the technical staff of each customer to better serve the customer's project needs.

After the technicians have finished their studies, RICHI will provide follow-up technical support services, and the training engineers will follow up the project use effects in the later stage to ensure the stable operation of the customer's project.

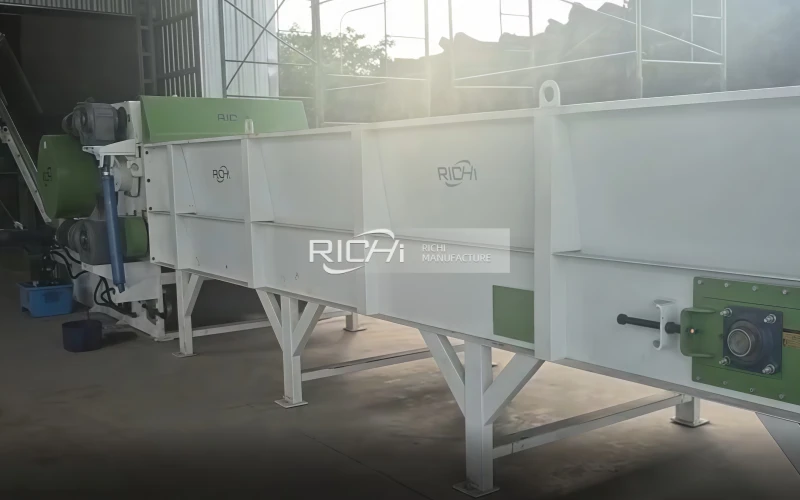

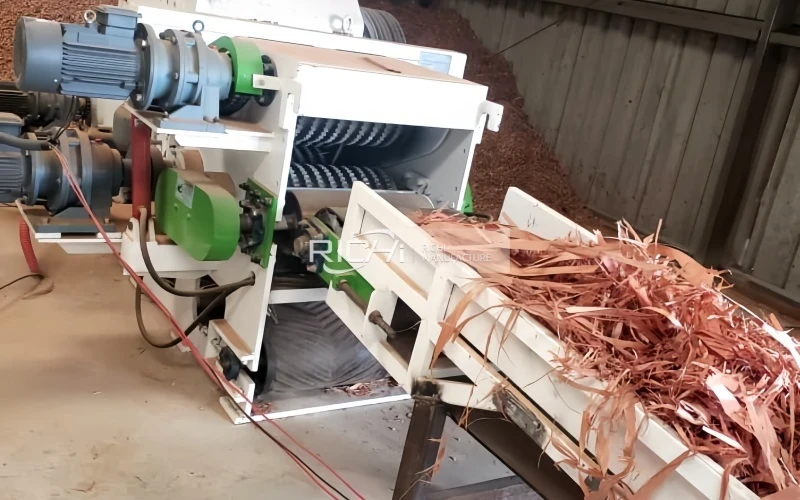

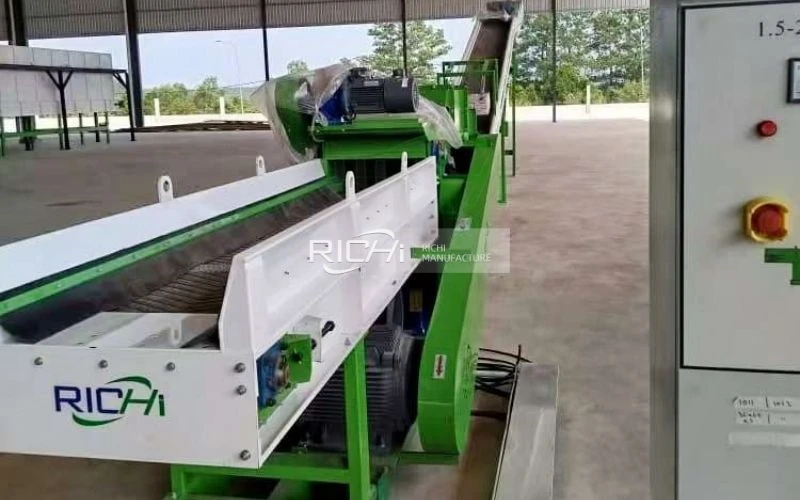

Related Project
