Home > Crusher & Mixer >

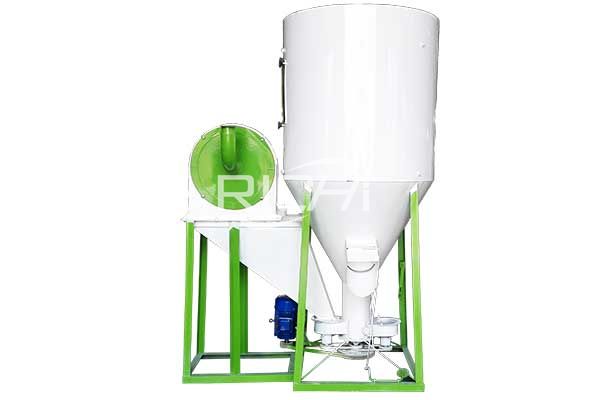

feed crushing and mixing machine

feed crushing and mixing machine

CAPACITY: 0.5-4 t/h
POWER: 7.5-15kw
CERTIFICATION: CE, ISO
MODEL: R500-R2000

This type vertical animal feed crushing and mixing machine is concentrated with conveyor,feed crushing machine,feed mixing machine into one equipment which makes it occupy a small room and high cost performance.

WhatsApp: 0086-18574103366
feed crushing and mixing machine

Applications Of feed crushing and mixing machine

This feed crushing and mixing machine is mainly used to crushing and mixing kinds of raw materials to produce poultry feed, livestock feed and animal feed. This 2 in 1 poultry feed crushing and mixing machine is vertical type which saves your room and saves your price cost and absorb the raw materials by itself,completely automatically feeding. The crushing part is hammer mill grinder with feature of absorbing the raw materials automatically,the mixing part is vertical screw type,feeding raw materials through a screw conveyor.

This type vertical animal feed crushing and mixing machine is concentrated with conveyor,feed crushing machine,feed mixing machine into one equipment which makes it occupy a small room and high cost performance.The production scale is from 500 kilograms per hour to 4000 kilograms per hour which is suitable for small poultry farm or home use to make powder animal feed.it is usually used with feed pellet machine to set up a small feed pellet production plant. because of the impressed feature of 2 in 1,you save using separated feed crusher machine and feed mixer machine .



Application:

1. crush all kinds of cereal( grain, like corn, wheat, bean, etc) to fish or chicken feed

2. Working Stage: first crushing, Second transfer feed to mix tank mixing, last transfer to feeding hopper

3. Power: 4KW to 17KW, 380V

4. Usage : Chicken farm or livestock farm

5. Capacity: 500KG, 8000KG, 1t, 2t,3t ,4t

Technical Features Of feed crushing and mixing machine

1. can be mixed in the state of weightlessness, no restrictions, you can add all kinds of liquid.

2. grinding work time is short, short mixing time, high mixing evenness, Large exhaust air volume, self-priming, Roughly 1/3 of save power than similar products.

3. no leakage, quickly on the material processed, no residue ,

4. charging system is good, which can be equipped with compressed air blowing system.

5. suitable for livestock and poultry industry, aquatic feed additives, chemical, pharmaceutical and other industries.

The machine consists of a feeding machine, grinder, mixer.

Working Principle Of feed crushing and mixing machine

Materials mixed go by the inlet below on the feed mixer, the blender's ascension will spiral material feed from the feed hopper of vertical agitator vertical screw conveyor, up to the top, with umbrella type fly again, falling around the edges of the mixing tube from the bottom of the sleeve back into the vertical screw conveyor, the gaps is up again, the cycle and stir until mixed evenly, open the discharging mouth,material will be discharged.

Usually it is matched using for the pellet machine for the animal feed processing

1. The crushing structure:

There are two ways to input the materials: automatically or manually. When the raw materials were put into the crushing room, with the beating of the hammer leaf and the scrubbing of the air, the raw materials will be crushed into mealiness or graininess. Then under the effect of the centrifugal air, the mealiness or the graininess will get in to the A impeller casing through the sieve pore.

2. The materials mixing structure:

with the whirling of the thruster, the materials will be transferred into the material pipeline by the B hammer room by force. There, the materials will be lifted to the top of the room and be totally mixed up and down and spinned from left to right via the air. Thus the materials can be evenly mixed which is quite ideal.

Model Screw feeding(kw) Stirring power(kw)  Diameter*height(m) Capacity(t/batch)
R500 3kw 7.5kw Φ1*1.5 0.5
R1000 3kw 7.5-11kw Φ1.1*2.3 1
4kw 7.5-15kw Φ1.24*2.75 1.5
R2000 5.5kw 7.5-15kw Φ1.68*2.95 2-3
