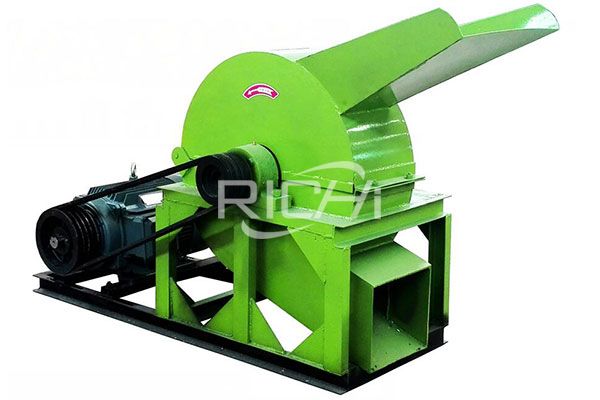

Efficient Wood Crusher

CAPACITY: 3-5T/H

MAIN POWER: 30KW

MODEL: W-Disc-800

APPLICATION: Textile, Paper, Pulp, Wood-based Panels And Other Industries

The efficient wood crusher series can cut the raw materials including logs, boards, veneers, bamboo, and other non-wood fiber rods into uniform sheets.

Email: sales@cnrichi.cn

WhatsApp: 0086-18574103366

Get Price & Service

Applications Of Efficient Wood Crusher

The efficient wood crusher is composed of chips cutting device and crushing device, and it could be equipped with cutter, could be used for shredding logs, slab, veneer, bamboo, brushwood etc.

Efficient wood crusher impact blade cutting and high speed air flow, collision double crush functions in an organic whole, and can complete the material separation processing process at the same time. Produced in the process of blade cutting grinding, rotor high-speed airflow, along with the blade cutting direction, materials in the airflow speed, and repeated shocks make material by double crush at the same time, accelerated material crushing rate.

Technical Features Of Efficient Wood Crusher

1.Rational design, compact structure, safe and durable, high productivity.

2.Low noise, simple structure, compact layout, competitive price.

3.Stable work, low consumption, high efficiency, high quality, low cost,Energy saving.

4.The raw material could be wood chips, nut shell, logs, branches, coconut sheel, bean stem, slab, waste veneer, bamboo, cotton stalk and other non-wood fiber stems, etc.

5.The final product is sawdust powder. and the partical size of the final product could be adjusted by using different size of sieve.

Working Principle Of Efficient Wood Crusher

The materials are impacted by high speed rotary hammers as soon as they enter the wood chips hammer mill. The broken materials strike repeatedly with the rotating hammers.There are spaces where crushed materials are squeezed out. Because of the reasonable design and high quality materials, sawdust wood crusher machine works in a stable way.

Model	W-Disc-800	W-Disc-1000	W-Disc-1200	W-Disc-1400
Diam. Of Blade Disc (mm)	800	1000	1200	1400
Rotated Speed (r/min)	610	610	490	490
Feeding size (mm)	200*200	300*320	330*350	360*370
Capacity (t/h)	3-5	4-6	6-8	8-10
Power (kw)	30	37	45	55-75
Max. Feeding Diam. (mm)	Φ190	Φ290	Φ330	Φ350
Weight (kg)	1680	2720	3560	4120
Dimension (mm)	18007001200	210010001300	220012001850	260013001900
