1.Reducer: connection the main shaft and motor.
2.Siemens motor: we equip the super brand Siemens motor in our machine.
3.Main mixing chamber: the paddle is inisde. the paddle and the main mixing chamber could be made of complete stainless steel. just depend on your requirement if necessary.
4.Ventilating duct: keep the balance of air pressure in the mixing chamber.
5.Bearing: we adopt the super brand durable bearing in our machine.
6.Monitor window: we could monitor the running situation.
7.High Homogeneity : Patented double-circle paddle rotor, mixing homogeneity >= 97.7%. ( CV <= 2.3% ).
8.Hygienic design : Optimized paddle-to-wall gap and fully open discharge doors, no residue, no contamination, unique air-sac sealing, no leakage; optional corrosion-resistant steel design.
9.Easy maintenance : large access door for cleaning and maintenance, save your time.
10.High efficiency : high mixing homogeneity with short dry mixing (60-90 second per batch) and discharging time.
Overview

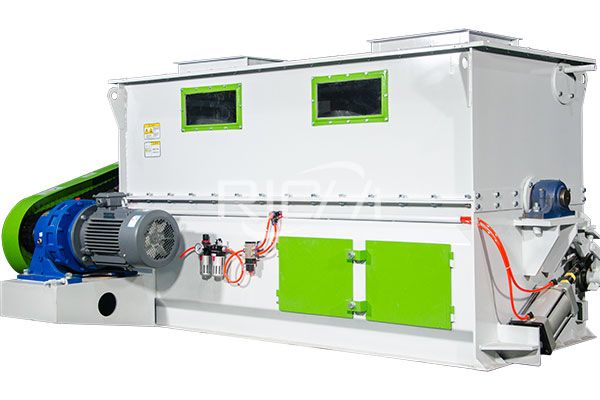

RICHI SLHY Series Animal Feed Mixing Machine widely used in feed mills, for mixing powder materials, guarantee uniformity and quality of complete feed. Cross section of cylinder round, mixing without dead corner,mixing time: 2-4 minutes,barrel wall plot-free; Enlargement in length opened discharge door at the bottom to reduce residues; Mixed: CV ≤ 7, Opening angle greater than 90 degrees, the door self-locking, discharge door does not open at cylinder pressure loss.
Working Principle
Animal feed mixing machine is a mechanical equipment that uses mechanical force and gravity to uniformly mix two or more materials. During the mixing process, the contact surface area of the materials can also be increased to promote chemical reactions and accelerate physical changes.
Parameters
| Model |
SLHY0.5A |
SLHY1.0A |
SLHY1.0A |
SLHY2.5L |
SLHY5.0L |
| Power |
4kw |
7.5kw |
7.5kw |
15kw |
30kw |
| Mixed weight |
250kg/P |
500kg/P |
500kg/P |
1000kg/P |
2000kg/P |
| Volume |
0.5m³ |
1m³ |
1m³ |
2.5m³ |
5m³ |
