Recently, a Nigerian customer wrote to say:"I am a fish feed producer here in Nigeria. I need 1-1.2t/h wood pellet machine."
If you only need a 1-1.2t/h wood pellet machine, it is recommended that the user purchase a flat die pellet machine. If you want to standardize and normalize production, it is recommended to purchase a complete wood pellet machine production line. Of course, the price of a production line equipment is much more expensive than a wood pellet machine, and the user needs to set it according to his actual situation and budget.

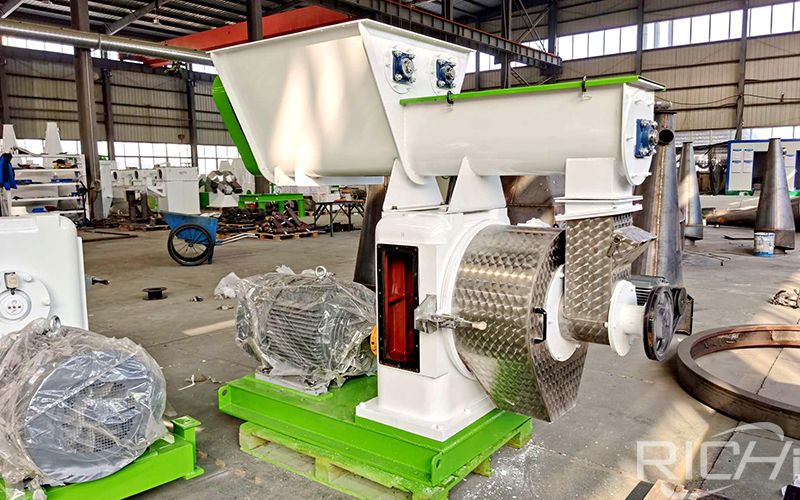

1-1.2t/h Wood Pellet Machine
1. Feeder: feeding raw material into the pellet making chamber.the feeder is made of stainless steel.
2. Forced feeding unit: since the raw material is fluffy, and the bulking value is higher, we equip the force feeding device.
3. Pellet making unit: ring die and press roller inside work together to make the biomass wood raw material into wood pellet.
4. Main motor: driving the pellet making system.
5. We adopt the super quality Siemens brand motor in our machine.
There are no pellet classifications based on wood type. Traditionally wood pellets are classified according to the amount of the ash produced. There are three grades in this classification;
Ash Content: The ash is the residue left after a complete combustion. The lower the ash content, the cleaner the pellet will burn and the more efficiently your boiler will function. Low ash content reduces routine cleaning and maintenance.
Ash Melting Temperature: Ashes showing low melting temperature will tend to melt in the hottest parts of the combustion chamber and solidify once they leave these areas. This solid ash, called “slag,” might create several issues including effecting the combustion process, blocking the equipment and increasing maintenance costs.
Length, Diameter and Bulk Density: Length and diameter are straightforward parameters while the bulk density must be explained as a measurement of the weight of pellet per volume of pellets (kg/m³). Having a pellet with a consistent length, diameter and bulk density is important, as wood pellet boilers are designed to use pellets with a standard energetic density (i.e. energy content per unit of volume). Using the wrong sized pellet will affect the energetic density. In case of excessive energetic density, the energy input of the boiler will be too high resulting in an overheating of the combustion chamber, while an insufficient energy density will affect the efficiency and might not generate sufficient heat for the system to work.
Dust: The small wood particles that can be found in pellet storage or bags, low dust content is an important factor as this might affect the storage, the handling, the maintenance, the combustion efficiency and the pollutant emissions.
Heating Value and moisture content: The lower heating value (LHV), expressed in kW/kg, reflects the energy content of the pellets. This is especially true for the LHV measure as received (a.r.) (taking into account the humidity of the fuel). The water content reflects the quantity of water contained in a defined quantity of pellets and is expressed in percentage. The lower the level of moisture in the wood pellets, the higher the heat output per kg. The usual LHV a.r. usually ranges from 4,6 to 5,1 kWh/kg.
Mechanical durability: This parameter reflects the pellet resistance to chocks. High mechanical durability means pellets are less prone to breakdown and crumbling during transport and in fuel feed augers, thus maintaining pellet consistency and reducing dust.
Nitrogen, Sulfur and Chlorine content: These parameters, expressed in percentage of the total weight of pellets, will affect the polluting emissions and the corrosion of the heating appliances.
Heavy metals: These parameters, expressed in mg/kg will affect the polluting emission, the combustion behaviour and the ash content of the pellets.
Other aspects are also controlled within the ENplus® certification scheme such as procedures, processes and documentation are controlled during the certification and surveillance processes
With the sales contract, the order tracking clerk checks the models and quantities of each machine and spare parts.
Quality Test Before Delivery
Upon completion of the manufacturing of equipment, tthe quality inspector strictly checks quality of every machine with the checklist.
Check Items When Packing
Before packaging and shipment, the order tracking clerk checks the packaged items again with the packing list to avoid loss of items.
Sign the contract
Adopting international common standards for accurate design of product packaging, prevent product damage rate and the effective use of transport tools, which ensure the perfect delivery of products.
