Cost-effective 5-7 T/h Animal Pellet Production Line Manufacturers

  • Clicks:

I need a quotation for an equipment with Capacity in 5-7 Tons per hour: at least 5-7 tons/hour of animal feed (Animal), pellet diameter: 3,5 mm or 4mm.

5-7 T/h Animal Pellet Production Line
5-7 T/h Animal Pellet Production Line

Please feel free to suggest the equipment that meet these parameters. Please, include in the quotation:

1) 20 year of spare parts (according to the machine Preventive maintenance program or all the pieces that needs to be replaced in 01 or 02 years after the machine starts up)

2) Shipping and handling costs to La Guaira Port in Venezuela (FOB price)

IMPORTANT!: All the product documentation as Handbook, user manuals, electrical drawings, etc., must be writen in spanish as a first ption or writen in english as a secondary option. Also, I need to know about your clients, after sales service, product waranty, etc. Thanks in advance and waiting for a soon reply from you! Rob

1. 5-7 T/H Feed Pellet Machine Parameter

Model Capacity(TPH) Main Motor Power(kw) Feeder Motor Power(kw) Conditioner Power(kw) Dia.of Ring Die(mm) Final Pellet(mm)
SZLH350 5-7 55 1.5 3 350 2~12

2. 5-7 T/H Animal Pellet Production Line Process

5-7 T/h Animal Pellet Production Line Flow Chart

(1) Raw Material Crushing Section:

The feed grinder can grind the raw material ingredients to the required size. The grind fitness is different of different grinders. We supply four types of feed grinders. The hammer mills are suitable for small-sized or medium-sized feed pelletizing plants. The wide chamber fine grinders and water drop hammer mills are usually used in large-sized and medium-sized feed pelletizing factories. The ultra fine feed grinder is designed for grinding raw materials of special aquatic feed.

(2) Feed Material Mixing Section:

Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality. We supply two kinds of high efficiency feed mixers: twin-shaft mixer for mixing powdered or particle materials and screw belt mixer for mixing powdered materials. Both of them can be equipped with atomizing spraying system to add needed liquids, which can improve the feed pellet quality.

(3) Feed Pelletizing Section:

Feed pellet mill is the main equipment of the whole production line. There are two common kind of feed pellet mills: ring die feed pellet mill and flat die feed pellet mill. If you want to produce feed pellets with large quantity, the ring die feed pellet mill is the ideal choice. If your demanded quantity is small, you can choose the flat die feed pellet mill. Also, we supply the aquatic feed pellet mill for pressing fish feed pellets and shrimp feed pellets etc. If you have more question about customized feed pellet production requirement, please feel free toleave message or send email for more support.

(4) Feed Pellet Cooling Section:

The feed pellets pressed out by the feed pellet mill are hot and moist. They can't be crushed, screened or packed immediately. Counterflow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following Sectiones.

(5) Feed Pellet Crushing Section:

Different Animal, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing Animal feed, such as chicken feed, duck feed and goose feed etc. Three-roll feed pellet crumbler is suitable to crush aquatic feed including fish feed and shrimp feed etc.

(6) Feed Pellet Screening and Grading Section:

The crushed feed pellets are with different sizes, and there may be some powder. Therotary grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.

(7) Feed Pellet Packing Section:

The feed pellets should be packed for transporting, storing or selling. Automatic weighing and packing machine can weigh and pack the pellets automatically with high accuracy.

(8) Automatic PLC Control System:

With the automatic PLC control system, the production line is with high efficiency and convenient operation.

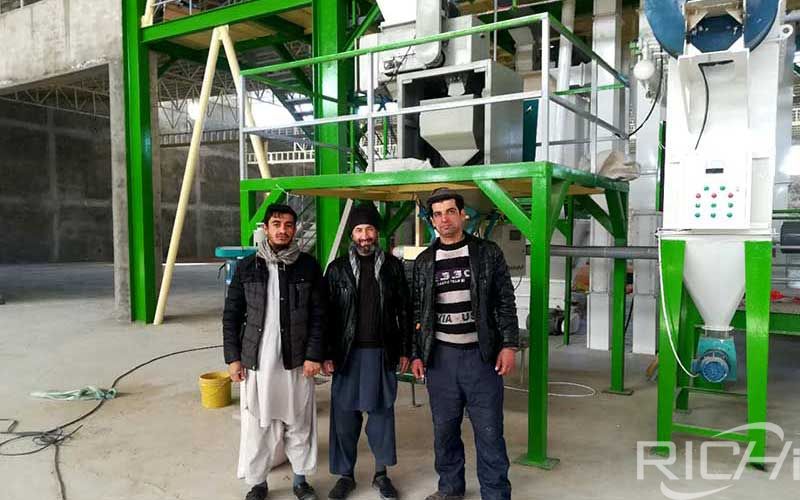

5-7 T/H Animal Pellet Production Line Project

5-7 T/H Animal Pellet Production Line Project

1. Saudi Arabia 5-6T/H Cattle Feed+10T/H Chicken Feed Pellet Production Line

Name:Alfalfa Feed Pellet Production Line

Country:Saudi Arabia

Date:March 30th,2018

Capacity:5-6T/H Cattle Feed+10T/H Chicken Feed

Feed Pellet Size:1-2mm pellet

The install period:60 Days

Workshop size(L*W*H):16m*8m*12m

Main Raw material:grass, alfalfa , corn, soybean meal

2. Kenya 5T/H Computer Batching Powder Production Line

Name:Powder Chicken Feed Pellet Line

Country:Kenya

Date:Sep 3th,2018

Capacity:5T/H

Feed Pellet Size:powder feed

The install period:30 Days

Workshop size(L*W*H):9m*5m*13m

Main Raw material:Corn

Main Machines in this complete line: 1. Hammer mill * 37 kw ; 2. Mixer * 1000kg/batch ; 3. Cooling machine* 1.5kw ; 4. screen machine*1.5kw, 5.auto packing machine and other subsidiary equipment, It's one set full automatic contral system.
