3 T/H Wood Sawdust and Chaff Pellet Production Line Project

  • Clicks:

In the new production line of the biomass pellet plant, the raw materials are generally unused agricultural and forestry wastes. The project introduced today is a production project with an annual output of 15,000 tons of shaped biomass pellets, with an average daily production of 50 tons, equivalent to 3t/h. The raw materials are generally rice husk, chaff, sawdust not used in furniture factories, wood, etc.

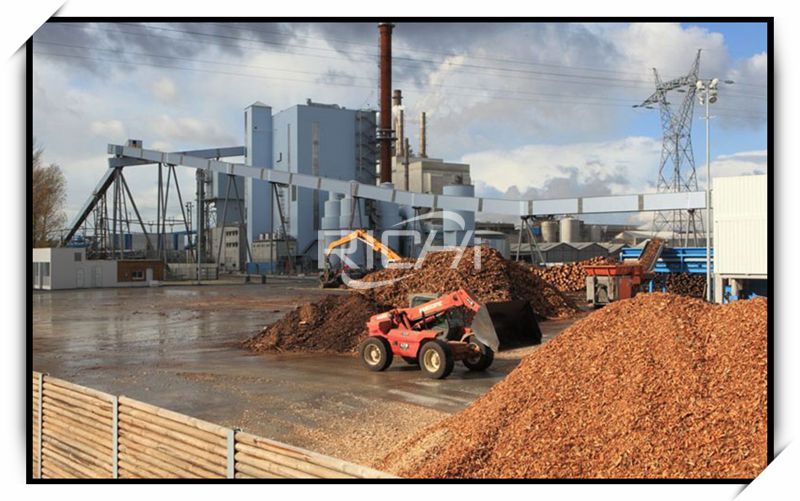

3 t/h Wood Sawdust and Chaff Pellet Production Line Project
3 t/h Wood Sawdust and Chaff Pellet Production Line Project

1. Main Construction Content of the Project

Table 1 List of main construction contents of the project

Serial number Environmental impact assessment construction The actual construction situation
conditions



structural work



Production workshop
The production workshop includes crushing area, crushing area, granulating area and packaging area. Brick-concrete structure, located on the first floor, with a building area of ​​about 1300m2 and a height of 6m. It is planned to set up 2 production lines with a production scale of 15,000 tons/year. Equipped with drum wood chip machine, high-efficiency pulverizer, pellet machine, bag filter, cyclone dust collector and other equipment. The building where the project is located has a total of four floors. The production workshop is the first floor, the second floor is the office and living area (this project contains 20m2), and the third and fourth floors are the residential area (not
part of the project)



Consistent with EIA


Storage and Transportation Engineering

Raw material library
Building material yard area of about 450m2 (15m × 30m), a height of 15m, raw
material library construction area of about (18m × 12m) 216m2, height 6m, raw material for stacking the library collection.


Consistent with EIA
Finished product library The finished product warehouse area is about 108m2 (10.5m×12m-3*6), which is used for stacking
the finished products in bags and sealing.


Auxiliary engineering
office Brick structure, located on the second floor area of 20m2, two-story office with a
public room, kitchen.


Consistent with EIA
Weighbridge Located at the entrance and exit of the project, it is easy to weigh. The maximum weighing capacity is 120t.
Floor Located on the south side of the project, the area is about 180m2 (5m×36m).


Public works
Water supply Water for the plant is provided by the water plant. Consistent with EIA
powered by The power for the plant is supplied uniformly by the local power supply network. There is a
300KVA transformer in the factory .
Consistent with EIA
drain Rain and sewage diversion system Consistent with EIA








Environmental Engineering

Wastewater treatment
No production wastewater is produced in this project. Domestic sewage is treated by grease traps and septic tanks and used as agricultural fertilizers, and is not discharged; the initial rainwater is collected by the roof water collection tank and discharged to the
outside water body.

Consistent with EIA




Waste gas treatment
The plant is enclosed in partitions; the dust generated in the conveying process adopts a U-shaped trough conveyor and is equipped with a U-shaped cover to reduce dust escape; the dust generated in the crushing process is processed by the cyclone dust collector; the dust generated in the granulation process is equipped with a bag for dust removal The water vapor produced by granulation is discharged to the outside through the pipeline; 2# and 3# rolling gates are installed with suction fans to reduce dust from escaping to the external environment; the east side of the raw material warehouse is installed with a suction fan to collect the dust in the factory and carry out gravity in the raw material warehouse Settlement: The settled dust is manually cleaned, and the unorganized waste gas can be discharged up to the standard through the above measures. Household kitchen fume hood through the exhaust gas can be treated to standard exhaust
discharge.




Consistent with EIA

Solid waste treatment
The collected dust is reused in production; domestic garbage is uniformly removed and handled by the environmental sanitation department; waste lubricating oil is temporarily stored in the temporary storage room for hazardous waste, and then entrusted with relevant qualified
units for disposal.
Basically consistent with EIA
Noise prevention Use low-noise equipment, reasonable layout, vibration and sound insulation, and strengthen equipment maintenance Consistent with EIA

2. Project Product Plan

The project will produce 15,000 tons of shaped biomass pellets annually. The specific product plan is shown in Table 2.

Table 2 List of project product plans

name unit Annual output Remarks
Molded biomass pellets Ten thousand tons
1.5
The diameter is about 8mm, the length is about 50~70mm, the ash content is 2.0%~5%, the density is
≧1.1t/m3, and the low calorific value is 3200kg/kcal. The moisture content of the finished product is less than 8%.

3. Main Raw and Auxiliary Materials and Energy

Compared with the EIA report and its approval stage, the raw and auxiliary materials and energy usage are consistent, see Table 3 for details

Table 3 List of project raw and auxiliary materials consumption

Serial number name consumption Maximum storage capacity and storage location in the factory Remarks
1 Chaff About 5000 tons/a About 1000t, raw material warehouse Outsourcing market, surrounded by rice
plant
2 Furniture factory scraps About 7300 tons/a About 2000t/a, raw material warehouse Market outsourcing, surrounding furniture factories
3 Wood processing plant scraps About 3500 tons/a About 500t/a, raw material warehouse Outsourcing market, timber processing
factory
4 lubricating oil 100kg/a 100kg, tool room Market outsourcing
5 Electricity About 125,000 kW·h/a / Local grid
6 water 151t/a / Local well
Remarks:
  1. The moisture content of raw materials is less than or equal to 12%, and the raw materials with moisture content higher than 12% will not be collected and used;
  2. It is forbidden to collect and use scraps of boards that are stained with paint, adhesives and their compounds;
  3. The collection and use of broken scraps of boards contaminated with other toxic and harmful substances are prohibited in this project;
  4. The materials that cannot be crushed by the drum wood chip machine can be processed by the collection site before being collected and used.

4. The Main Production Equipment

Compared with the EIA report and its approval stage, the use of main production equipment is consistent, and the details are shown in Table 4:

Table 4 List of main equipment list

Serial number Equipment name Quantity unit Model or specification
Production equipment
I , crushing, crushing process
1 Drum wood chip machine (with conveyor belt) 1 station GX216 (4~6t/h)
2 High-efficiency pulverizer (with conveyor belt) 1 station GXP65*55
3 High efficiency centrifugal fan 1 station /
II . Granulation process
1 Rice Husk Pellet machine 1 station MZLH420 (1~1.5t/h)
2 Rice Husk Pellet Mill 1 station MZLH520 (2~3t/h)
3 Supporting cooling and dehumidifying fan unit 1 set /
4 Belt conveyor 2 set /

5. Production Process

Brief introduction of production process:

The process of this project has strict requirements on the moisture content of raw materials. According to the information provided by the construction unit, the moisture content of the raw materials purchased in this project is less than 12%, and the moisture content of the finished product is not higher than 8%. The whole process of this project does not require drying treatment, and the water loss process is the loss of water in the form of steam under the action of high temperature and high pressure during the granulation process.

①Raw materials

The raw materials of this project include chaff, furniture factory and wood processing factory waste scraps. The chaff can be directly pelletized. The furniture factory and wood processing factory waste scraps need to be crushed and crushed to be pelletized.

②Broken

The waste scraps from furniture factories and wood processing plants are sliced ​​into small pieces of wood chips by drum wood chip machines (commonly known as crushers). This process generates a small amount of dust and noise.

③Smash

The small pieces of wood chips after slicing are crushed under the action of a crusher to meet the requirements of granulation. The crushing process is equipped with a cyclone dust collector to remove dust. This process will generate a small amount of dust and noise.

④ Granulation

The crushed raw materials are stirred and then enter the pelletizer for granulation. Under the conditions of high temperature and high pressure, the moisture in the raw materials is condensed into liquid water through pipes and discharged to the outside environment in the form of steam. The conveyor transports to the next process. The granulation process adopts electric heating, and the granulation temperature is 80℃~120℃ (according to the information provided by the pellet machine manufacturer). This process generates a small amount of dust, water vapor and noise.

⑤Packing and storage

The shaped biomass particles output by the pellet machine enter the hopper under the action of the belt conveyor. This process adopts natural cooling or air cooling for cooling. At the same time, the shaped biomass particles are packed at the outlet of the hopper. The bagged finished products are temporarily stored in the finished product warehouse for external sale. This process generates a small amount of dust.

The entire production process of the project is divided into closed disposal. Two fans are installed on the 2# and 3# rolling gates to reduce dust escape from the plant; the raw material warehouse is closed around, and only one rolling gate is reserved, and the partition on the east side of the raw material warehouse Install dust-removing and suction fans on the upper part to suck the dust in the factory into the raw material warehouse for gravity sedimentation; the upper part of the feeding port of the pellet machine is closed and equipped with a bag filter; partitions or curtains are arranged around the granulation area, packaging area and finished product warehouse It is isolated from the outside world and connected to the bag filter through a pipe.

The above is the article for you: 3 T/H Wood Sawdust and Chaff Pellet Production Line Project. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: sales@cnrichi.cn
