Background of the large capacity fully automatic pig feed mill with an annual output of 550,000 tons
Laixi New Hope Liuhe Agriculture and Animal Husbandry Co., Ltd. invested 110 million yuan (17281000 USD) in the construction of New Hope Liuhe supporting animal feed processing project. This fully automatic large scale animal feed making plant project is one of the local EU standard pig industry integration construction projects.
The large capacity pig feed mill plant project is mainly for the processing of pig feed, and the annual output of pig feed will be 550,000 tons after it is completed and put into production. The entire full automatic pig feed mill factory equipment and control system are provided by Richi Machinery.
The piggery feed mill workshop is automated and highly intelligent. The whole pig animal feed production process of crushing, batching and pelleting realizes one-button start and pull production, reducing human intervention and ensuring feed quality.
The finished feed produced by this large pig feed mill project will be transported to various pig breeding bases to "prepare food" after being checked by laboratory inspectors and quality control personnel to provide safe, green and high-quality feed for each breeding farm.
At the same time, the annual conversion of 400,000 tons of corn can solve the local corn sales problem, and the annual output value can reach 2 billion yuan (314 million USD). This large pig feed mill can directly provide more than 200 jobs, indirectly drive more than 3,000 local jobs, and effectively promote local grain trade, logistics and transportation industry development.
The EU standard pig industry integration construction project is a key project signed by Sichuan Dekang Group with the district government at the 21st Western China International Investment and Trade Fair, and it is also a municipal key construction project.
The total investment of the project is about 2.4 billion yuan($377 million), and efforts will be made to implement the construction of the integrated pig industry project in terms of planting, raising, supply, processing, marketing, ecological environmental protection, and standardization.
The project includes the construction of 1 pig breeding farm, about 100 standard-scale surrogate farms for live pigs, 1 pig feed processing factory, 1 food processing factory (including science and technology research and development center), and organic fertilizer for comprehensive utilization of supporting livestock and poultry breeding wastes, all EU-standard pig industry integration construction projects are expected to be completed in early 2022.

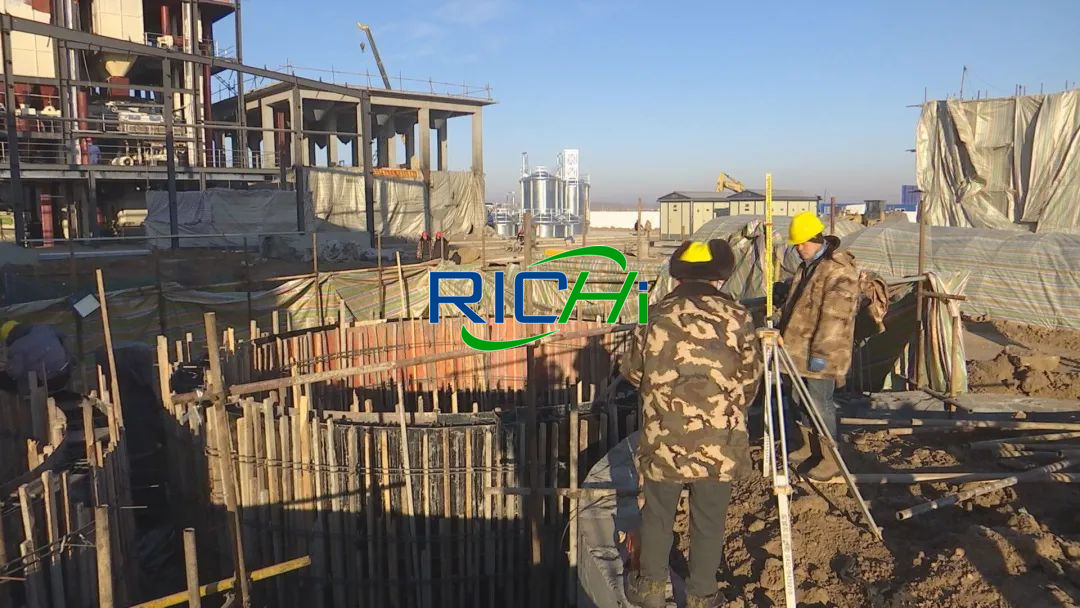

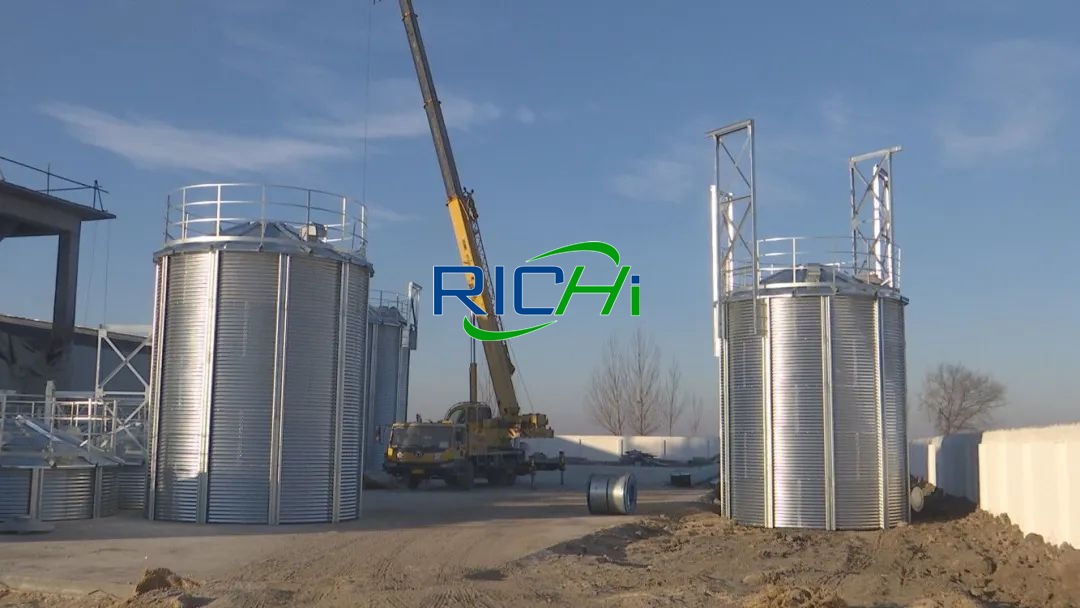

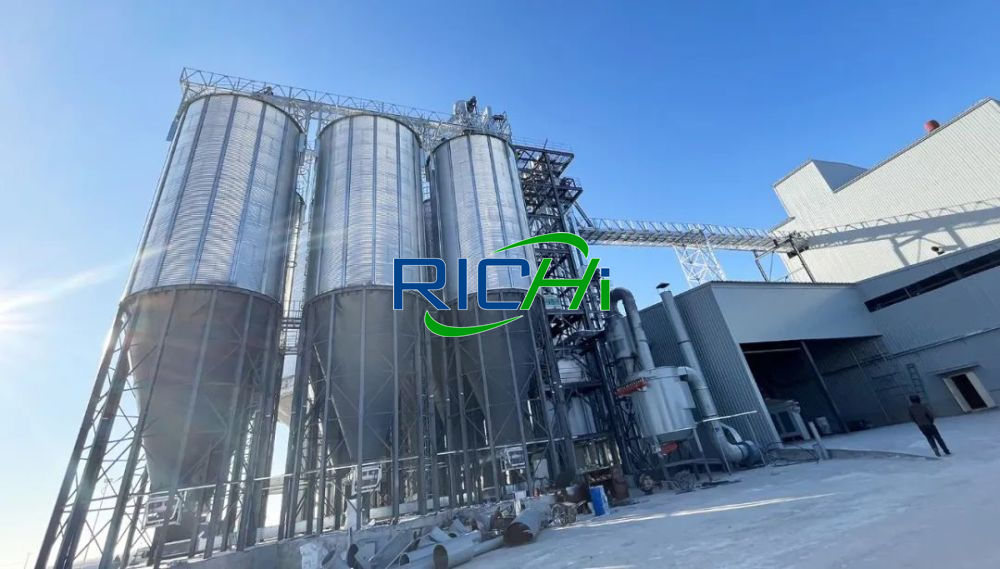

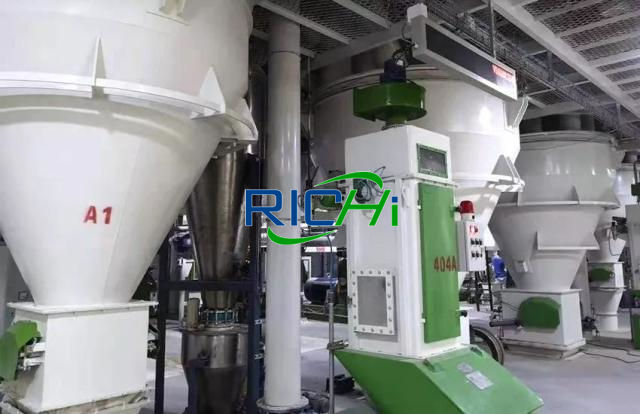

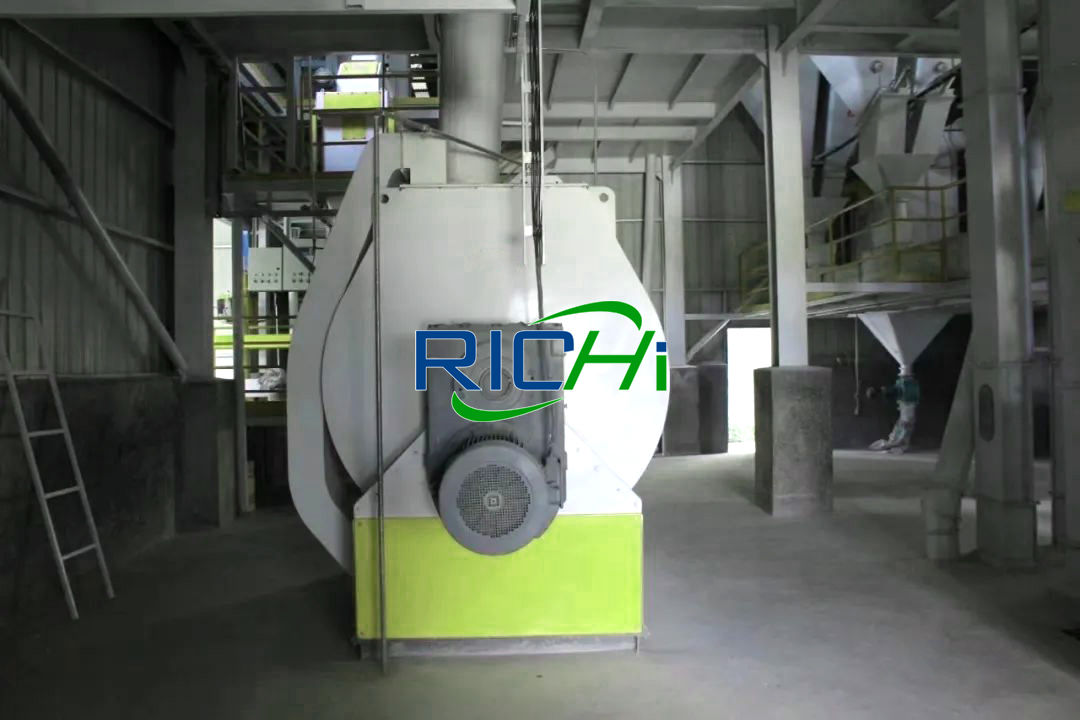

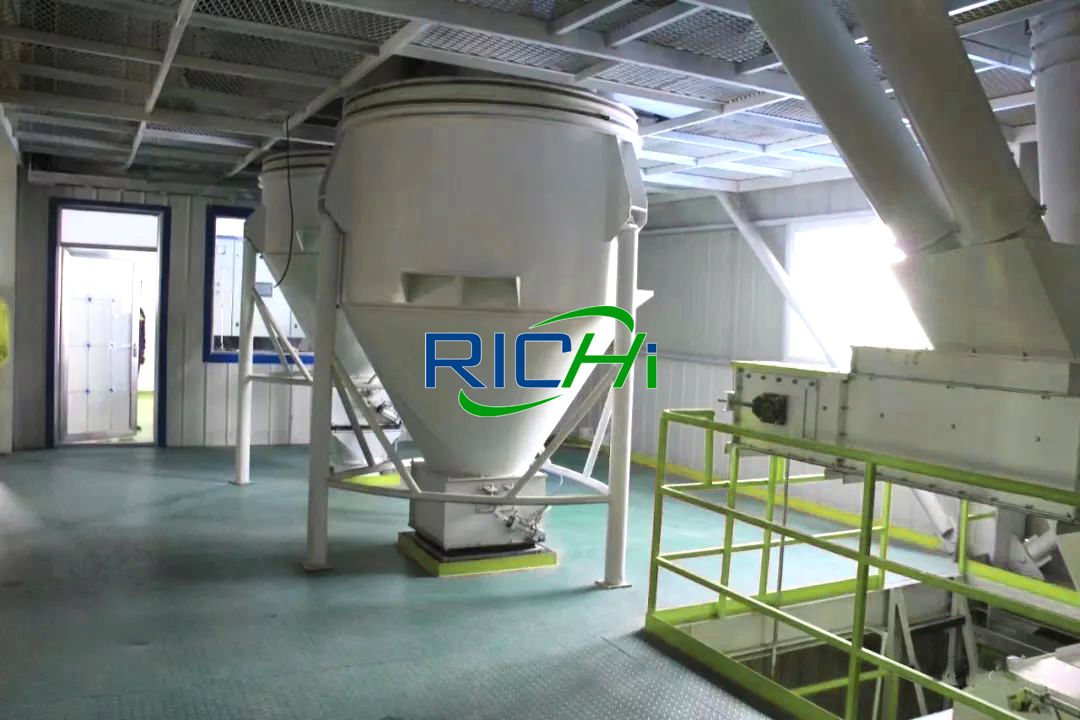

Construction site of the 63-64t/h pig feed mill

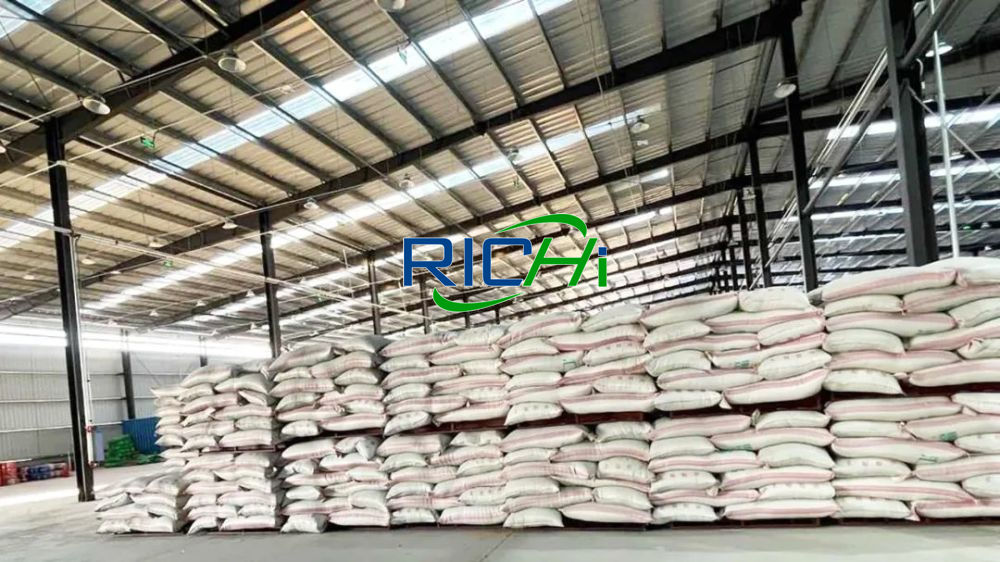

Combined with the upgrade requirements for the prevention and control of major pig epidemics at that time, the large scale pig feed factory has built a cleaning and disinfection center, independent separation channels for feed in and out, feed trucks and feed truck parking monitoring and inspection points, and standard warehouse for finished products.
Strictly follow the feed management and pipelines to establish a testing laboratory for analysis, equipped with advanced testing equipment (such as microplate reader, three-purpose spectrum analyzer, near-infrared detector, etc.), which can have basic ingredients or independently detect and disinfect indicators, melamine, left and right, trace elements and other health and safety indicators.

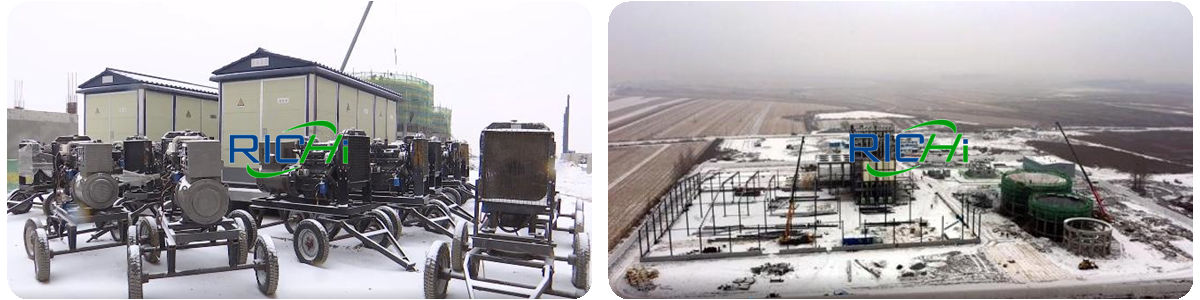

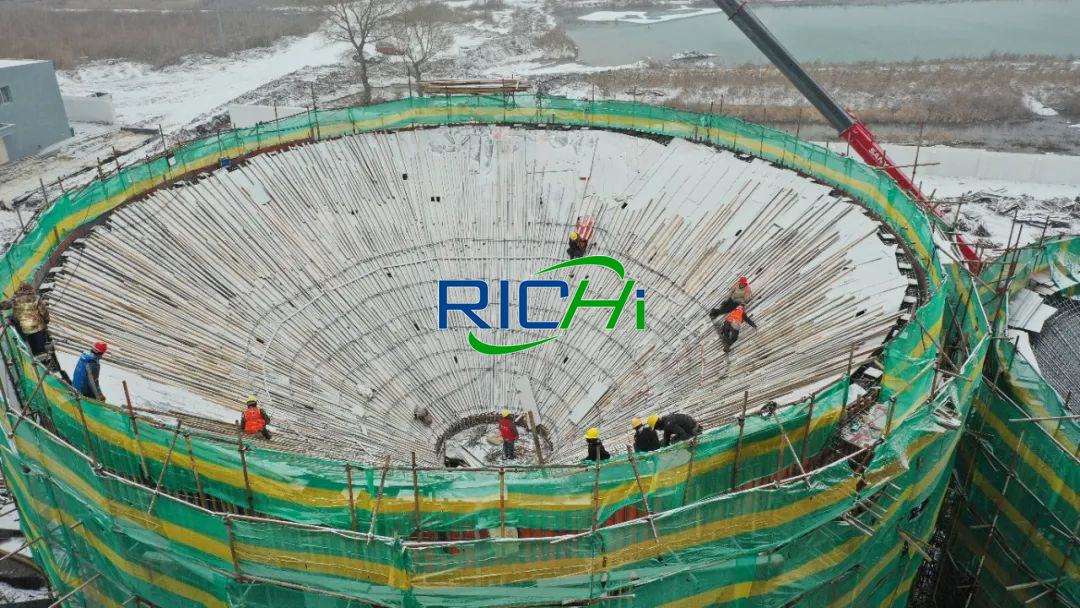

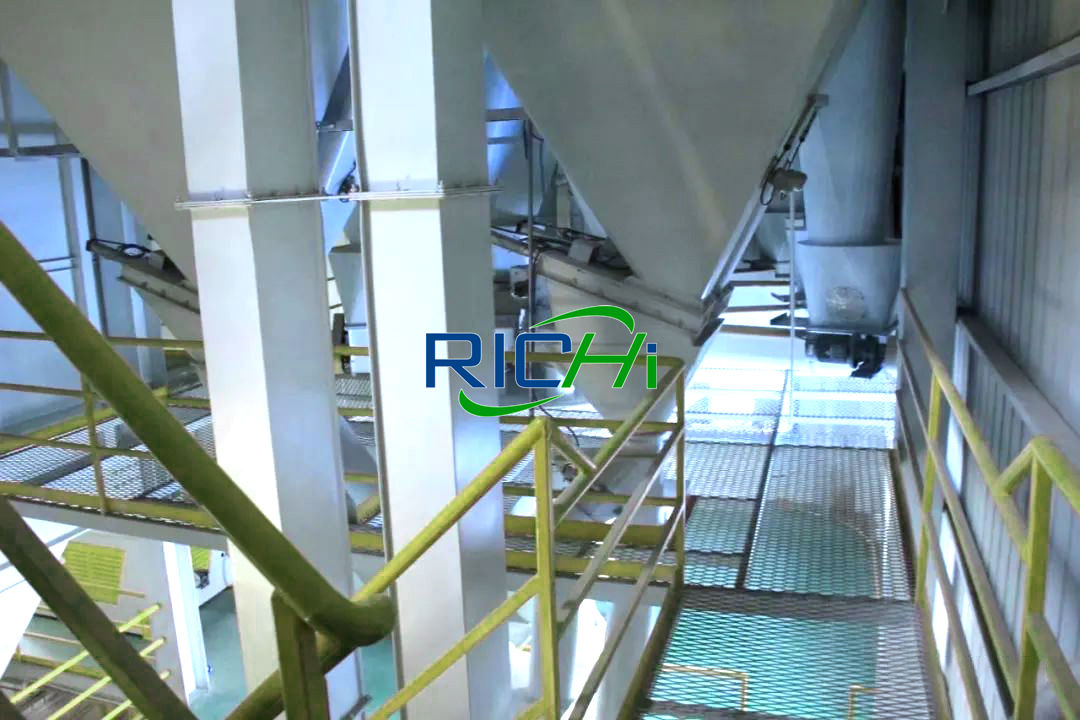

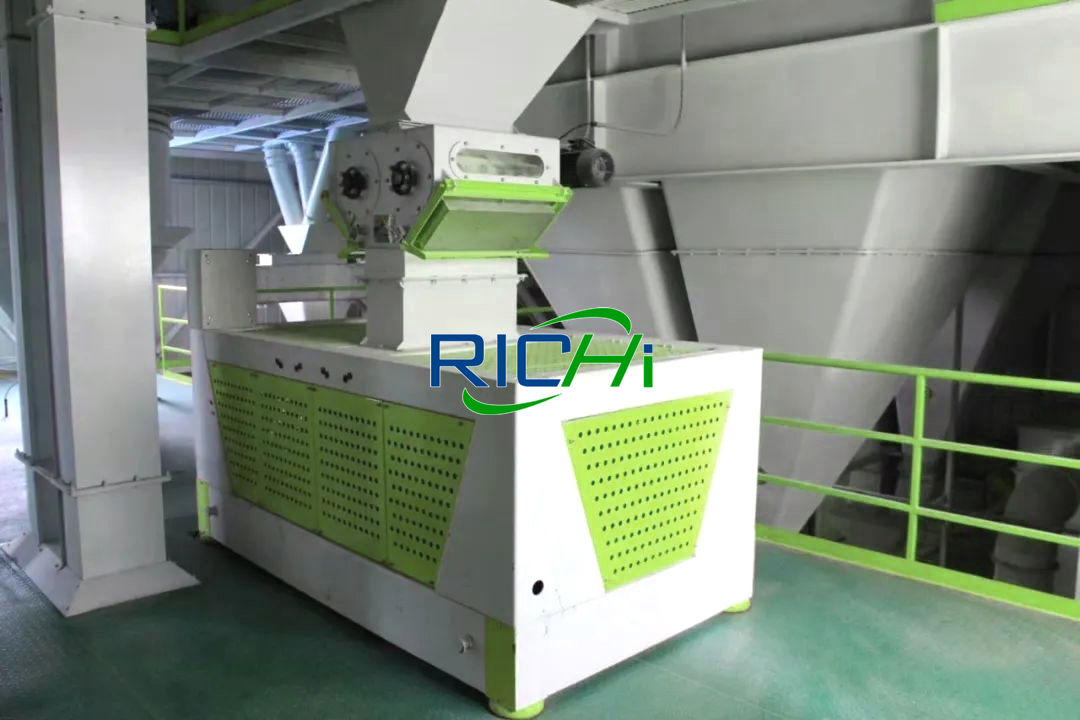

Construction site of the 63-64t/h pig feed mill
The advanced good quality 550000 tons per year pig feed mill plant project broke ground in January 2020, and it was fully constructed on February 1. Workers on the site implemented a 24-hour two-shift system. Each construction site and each work team has a dedicated person responsible for supervising and guiding the progress of the large pig feed mill project.
The advanced good quality customized 550000 tons per year pig feed mill plant project has been completed and put into production in August 2020. The automatic complete pig feed mill plant project has a labor force of 35 people, with board and lodging, 2 shifts, 12 hours per shift, and 360 days of work per year.
It can be calculated that the output of this large capacity best quality pig feed mill project is 63-64 tons per hour, 1527 tons per day, 45833 tons per month.

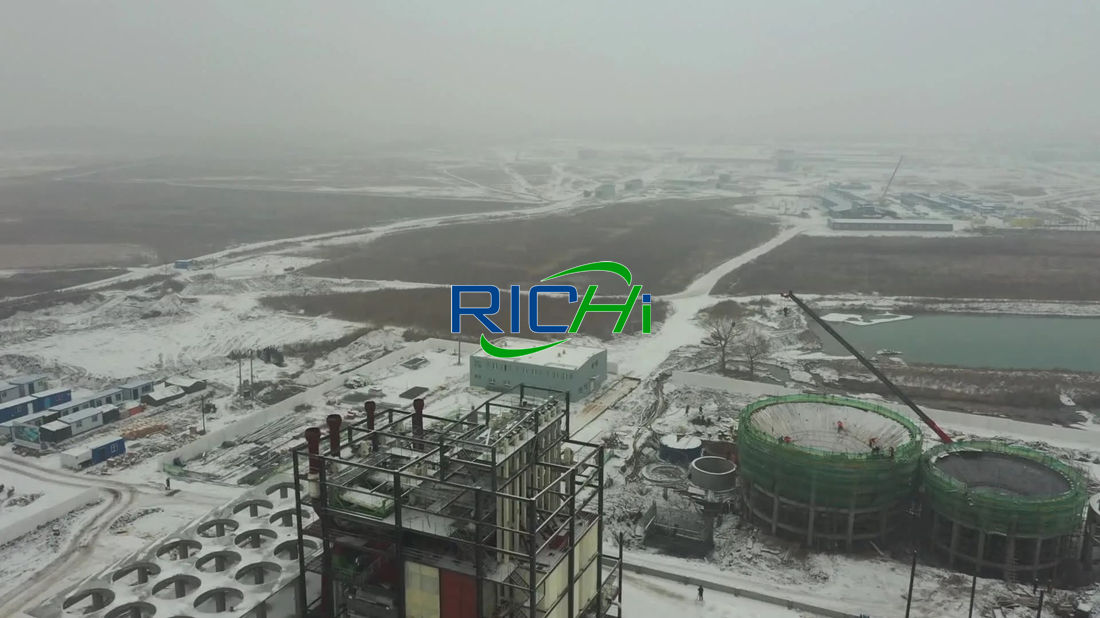

Construction site of the 63-64t/h pig feed mill
Construction content and scale of the high output high investment large capacity fully automatic pig feed mill with 63-64 tons per hour
The client pig feed company leases a local idle plant, covering an area of 33,300 m², with a total construction area of approximately 13,764 m², including 1 production workshop, 1 boiler room, and 2 disinfection sheds, silo group, 1 comprehensive building and ancillary supporting facilities.
| Project category | Project name | Remarks |
|---|---|---|
| Main project | Production workshop (1 set) | 6F, located on the south side of the 63-64t/h pig pellet mill plant, is divided into crushing area, batching area, extruding area, granulating area, cooling, etc. |
| Boiler room (1) | 1F, covering an area of 235m2, located on the southeast side of the 63-64t/h pig pellet mill plant. | |
| Silo group | Located in the middle of the 63-64t/h pig pellet mill plant, including 33000t corn silos and 6300t soybean meal silos. | |
| Disinfection shed (2 seats) | 1F, located at the northeast and southwest corners of the 63-64t/h pig feed pellet mill plant area. | |
| Auxiliary project | Comprehensive Building (Block 1) | 2F, located on the north side of the 63-64t/h pig feed pellet mill plant factory area. |
| Guardian Room (1 Block) | Located at the gate on the southwest side of the 63-64t/h pig feed pellet mill plant factory. | |
| Warehouse project | General solid waste temporary storage | It is temporarily stored in the workshop during production, and is cleared every day, not long-term storage in the 63-64t/h pig feed pellet mill plant. |
| Hazardous waste temporary storage room | Located on the southwest side of the 63-64t/h piggery feed production plant, temporarily storing hazardous waste. | |
| Utilities | Water supply | Supplementary water for boilers and domestic water for employees, total water consumption of the 63-64t/h piggery feed production plant is 24552t/a. |
| Drainage | The wastewater produced by the boiler is of relatively clean quality, and is used for dust reduction and sprinkling in the boiler room and piggery feed production plant area, and domestic sewage water is regularly cleaned and transported through the septic tank, and not drained. | |
| Power supply | The electricity for the piggery feed production plant project is supplied by the Lacey Power Supply Department. | |
| Heat supply | The 63-64t/h piggery feed mill project uses two 4t/h gas-fired steam boilers for heating, and office heating uses air conditioning |
Consumption of raw and auxiliary materials of the 63-64 tons per hour high output high investment large capacity fully automatic pig feed mill
| Serial number | Name | Annual consumption (t) | Form | Package form | Storage location |
|---|---|---|---|---|---|
| 1 | Corn, soybean meal, bran | 370750 | Solid state | Bagged | Raw material warehouse |
| 2 | Soybean oil | 80000 | Liquid | Barreled | |
| 3 | Trace elements | 70000 | Solid (powder) | Bagged | |
| 4 | Minerals | 30000 | Solid (powder) | Bagged | |
| Total | 550750 | ||||

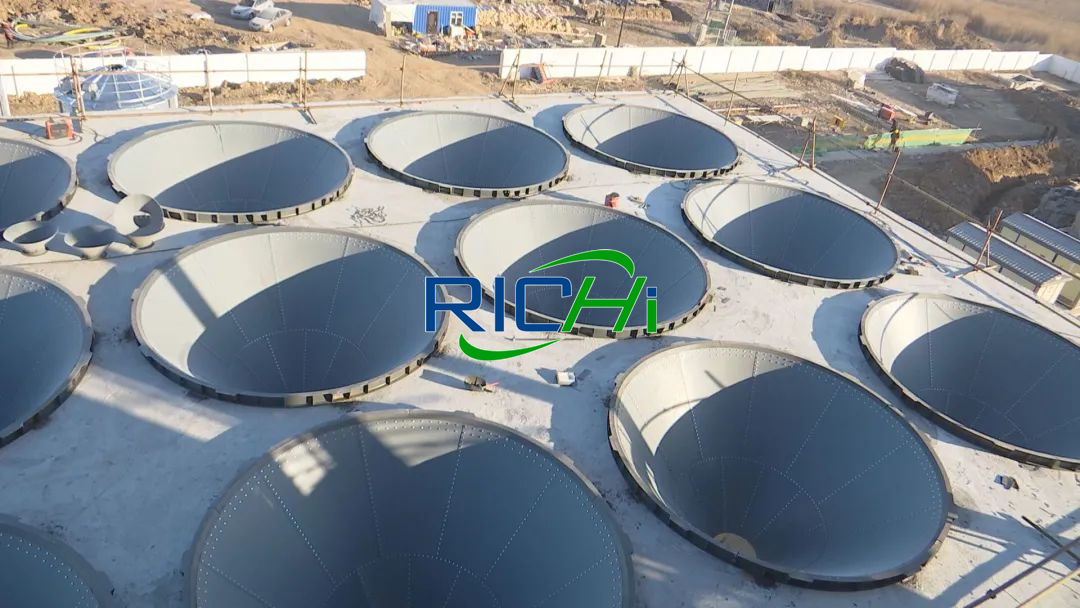

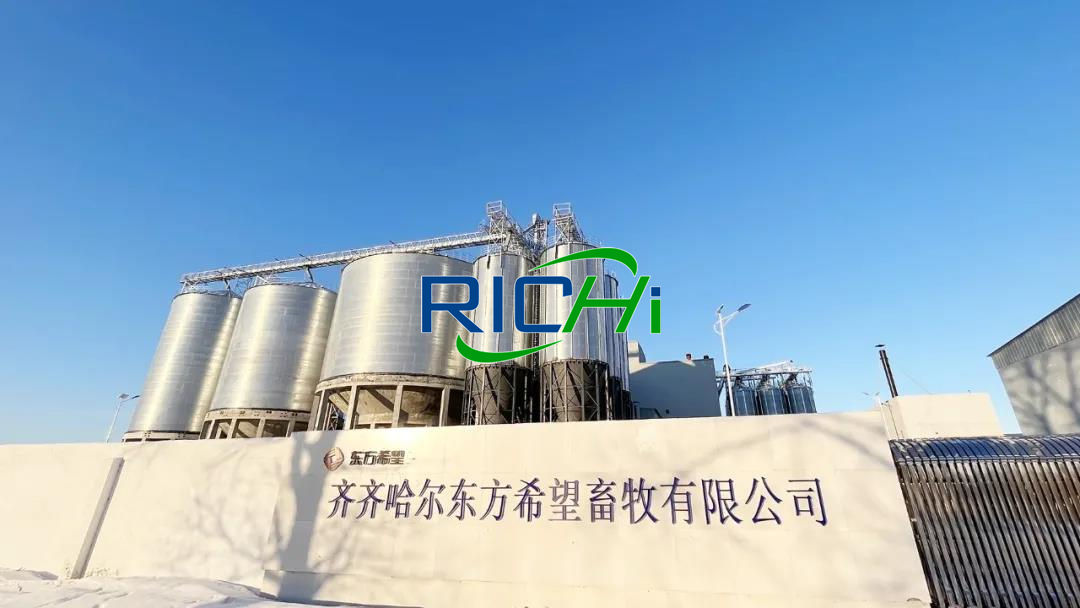

Construction site of the 63-64t/h pig feed mill
Trace elements: Animals contain almost all trace elements in nature. The trace elements that have important nutritional effects and must be supplemented by feed are generally iron, copper, zinc, manganese, selenium, cobalt, iodine, chromium, etc. Elements, the Chinese Ministry of Agriculture Document No. 1124 also stipulates the suitable edible amount and maximum limit of these 8 kinds of trace elements. Trace elements play multiple roles in the animal body.
Minerals: calcium powder, calcium hydrogen phosphate, shell powder after crushed shells are used as calcium sources, and various animal bones are crushed as calcium sources, such as fish bones, pigs, cattle and other bones. The amount is very small, and All are in bags and have no peculiar smell.
Main pig feed processing machine of the 63-64 tons per hour high output high investment large capacity fully automatic pig feed mill
| Piggery feed mill equipment | Model | Quantity |
|---|---|---|
| The pig feed machine in the initial clearing section of raw material receiving | ||
| Square dust collector | AHMB24L | 1 |
| Scraper conveyor | LLCA50 | 1 |
| Bucket elevator (self-cleaning) | TDTG500×280 | 1 |
| Permanent magnet cylinder | TCXT25 | 1 |
| Powder cleaning sieve | SQLZ90 | 1 |
| Permanent magnet cylinder | TCXT30 | 1 |
| Fan | TKV-012 | 1 |
| Rotary distributor | TFPX14×300 | 1 |
| Round dust collector | AHMY18 | 1 |
| Air shut-off device | GFDZY-10 | 1 |
| Rotary distributor | TFPX4×300 | 1 |
| Bucket elevator (self-cleaning) | TDTG500×320 | 1 |
| Pig feed machines in the first crushing section | ||
| The warehouse to be crushed | 30M3/pcs | 1 |
| Loader | LBFS-01$11.C/8055_9264 | 1 |
| Unloading level device | LBFS-01$11.C/8055_9264 | 6 |
| Pig feed milling equipment | / | 1 |
| Settlement chamber | / | 1 |
| Muffler | DN550 | 1 |
| Closed wind screw conveyor | AHSG315 | 1 |
| Bucket elevator (self-cleaning) | TDTG500×280 | 1 |
| Autosampler | SQYG250 | 1 |
| Stamped carbon steel round tee | AHBL250×60° | 1 |
| Rotary distributor | TFPX10×300 | 1 |
| Scraper conveyor | LLCA50 | 1 |
| Permanent magnet cylinder | TCXT25 | 1 |
| Wind-selected feeder | AHFW800 | 1 |
| Water drop pig food grinder | SFSP800 | 1 |
| Piggery feed manufacturing machine in the first batching and mixing section | ||
| Batching warehouse | 770M3/32 | 1 |
| Loader | LBFS-01$11.C/8055_9264 | 32 |
| Unloading level device | LBFS-01$11.C/8055_9264 | 32 |
| Out of warehouse machine | AHSG250 | 22 |
| Continuous liquid mixer | DPSD-6.23 | 1 |
| Pig feeds making machines in the trace element batching system | ||
| Ingredients weighing bucket | PCS-15 | 1 |
| Kolly pull sensor | PST-1T | 3 |
| Slide valve | TZMH60*60 | 1 |
| Round dust collector | AHMY1 | 1 |
| Fan | MKV-012 | 1 |
| Feeding port vibrating screen | AHFZ75B | 1 |
| Pneumatic gate | AHMQ40×40 | 1 |
| Double shaft paddle mixer for pig feed | AHHJ2 | 1 |
| Scraper conveyor | AHKA50 | 1 |
| Bucket elevator (self-cleaning) | TDTG500×280 | 1 |
| Autosampler | SQYG250 | 1 |
| Air shut-off device | GFDZY-16 | 1 |
| Rotary distributor | TFPX4×300 1 unit | 1 |
| Pig feed machines in the expansion section | ||
| The warehouse to be expanded | 50M3/2 | 1 |
| Loader | LBFS-01$11.C/8055_9264 | 2 |
| Unloading level device | LBFS-01$11.C/8055_9264 | 2 |
| Air hammer | AH40 | 2 |
| Buffer bucket | / | 1 |
| Feeder | SWLL20 | 1 |
| Jacketed conditioner | STZJg360 | 1 |
| Pig feed puffing machine host | / | 1 |
| Flip plate cooler | AHLB24×24 | 1 |
| Cooling air network system | / | 1 |
| Fan | 4-72-8C | 1 |
| Cyclone dust collector | AHHK1600 | 1 |
| Air shut-off device | GFDZY-16 | 1 |
| Screw feeder | AHAS250 | 1 |
| Grinder machine for animal feed pigs | SFSP0690 | 1 |
| Fan | 5-48-12-5A | 1 |
| Square dust collector | AHMB36L | 1 |
| Closed wind screw conveyor | AHSG250 | 1 |
| Scraper conveyor | LLCA50 | 1 |
| Rotary distributor | TFPX4×300 | 1 |
| Machine to make pig food in the granulation section | ||
| To be granulated bin | 20M3/pcs | 2 |
| To be granulated bin | 25M3/pcs | 4 |
| Loader | LBFS-01$11.C/8055_9264 | 6 |
| Unloading level device | LBFS-01$11.C/8055_9264 | 6 |
| Buffer bucket | / | 1 |
| Feeder | SWLL20A | 1 |
| Jacketed conditioner | STZJg420 | 1 |
| Jacketed conditioner of the animal pig feed pellet machine | STZJg420 | 1 |
| Pig feed pelletizer machine | SZLH858 | 1 |
| Impeller cooler | AHLC24×24 | 1 |
| Fan | 4-72N08C | 1 |
| Cyclone dust collector | AHXK1600 | 1 |
| Bucket elevator (self-cleaning) | TDTG400×230 | 1 |
| Stamped carbon steel round tee | AHBL250×60° | 2 |
| Rotary grading screen | AHJH140×2C | 1 |
| Scraper conveyor | LLCA50 | 5 |
| Machine for making pig feed in the auxiliary section | ||
| Liquid adding machine | SYTV120 | 1 |
| Liquid scale | SYTC50 | 1 |
| Liquid scale | SYTC300 | 1 |
| Liquid addition pipeline accessory system | / | 1 |
| Molasses add daily cans | / | 1 |
| Water addition tank | 2m³ | 1 |
| Air compressor | / | 2 |
| Gas tank | / | 1 |
| Air dryer | / | 1 |
| Feed mill machine for piggery in the finished product bulk section | ||
| Finished product bulk warehouse | 3000M3/20 pcs | 1 |
| Loader | LBFS-01$11.C/8055_9264 | 20 |
| Unloading level device | LBFS-01$11.C/8055_9264 | 20 |
| Others | ||
| Natural gas boiler | 4t/h | 2 |
| Soft water preparation system (ion exchange resin) | / | 1 |
Construction site of the 63-64t/h pig feed mill
Utilities of the customized 63-64 tons per hour high output high investment large capacity fully automatic pig feed mill
Main structure buildings of the large automatic pig feed mill plant 63-64 tons production capacity：
| Building name | Quantity | Building area (m2) |
|---|---|---|
| Production workshop | 1 seat | 10210 |
| Comprehensive Building | 1 seat | 1256 |
| Guardian Room | 1 seat | 29 |
| Hazardous waste temporary storage room | 1 seat | 15 |
| Silo group | / | 1608 |
| Disinfection shed A | 1 seat | 161 |
| Disinfection shed B | 1 seat | 161 |
| Boiler room | 1 seat | 234 |
| Total | / | 13674 |
Water supply and drainage of the customized 63-64 tons per hour high output high investment large capacity fully automatic commercial pig feed plant
- Water supply
Boiler water: The commercial pig feed plant project is equipped with 2 4t/h steam boilers. According to the maximum load, the working time is 2160h/a, the water consumption is 17280m³/a, and the boiler drainage is calculated at 3% of the maximum steam volume, and the boiler drainage is 518.4 m³/a;
The boiler water is provided by the effluent water of the soft water equipment. The soft water preparation efficiency is 75%, and the fresh water consumption of the soft water equipment is 23040m³/a. The loss is calculated as 2% of the water intake, and the loss is 460.8m³/a, and the drainage is 5299.2m³/a.
Construction site of the 63-64t/h pig feed millDomestic water: The commercial pig feed plant project has a labor force of 35 people. The pig feed mill factory has a dormitory and canteen. The water standard is 120L/(person•d). The annual work is 360 days. The domestic water consumption is 1512m³/a.
The water comes from tap water, which can meet the requirements of the 63-64t/h pig feed mill factory. Water requirements. In summary, the total fresh water consumption of the pig feed mill project is 24552m³/a.
- Drain
Drainage during the operation period of the pig feed mill project is mainly boiler sewage, concentrated water from soft water equipment and domestic sewage from employees. Boiler sewage and concentrated water from soft water equipment are used to sprinkle water and evaporate naturally after dust reduction.
Construction site of the 63-64t/h pig feed millThe amount of domestic sewage generated is 1285.2m³/a based on 85% of the water consumption. The domestic sewage is pretreated in a septic tank and then transported as agricultural fertilizer. The septic tank is treated with anti-seepage treatment, which can effectively prevent the leakage of wastewater. The impact on the surrounding water environment is small.
Power supply
Supplied by the municipal grid.
Heating, cooling
The 63-64t/h pig feed mill plant project uses 2 sets of 4t/h gas-fired steam boilers for heating. The annual natural gas consumption is about 200,000 kW•h, which is supplied by the municipal natural gas pipeline network. Air-conditioning is used for heating and cooling in the office.
Pig feed manufacturing process flow of the customized 63-64tph high investment high return large capacity fully automatic commercial pig feed plant
Receiving and cleaning section of the pig feed mill 63-64t/h

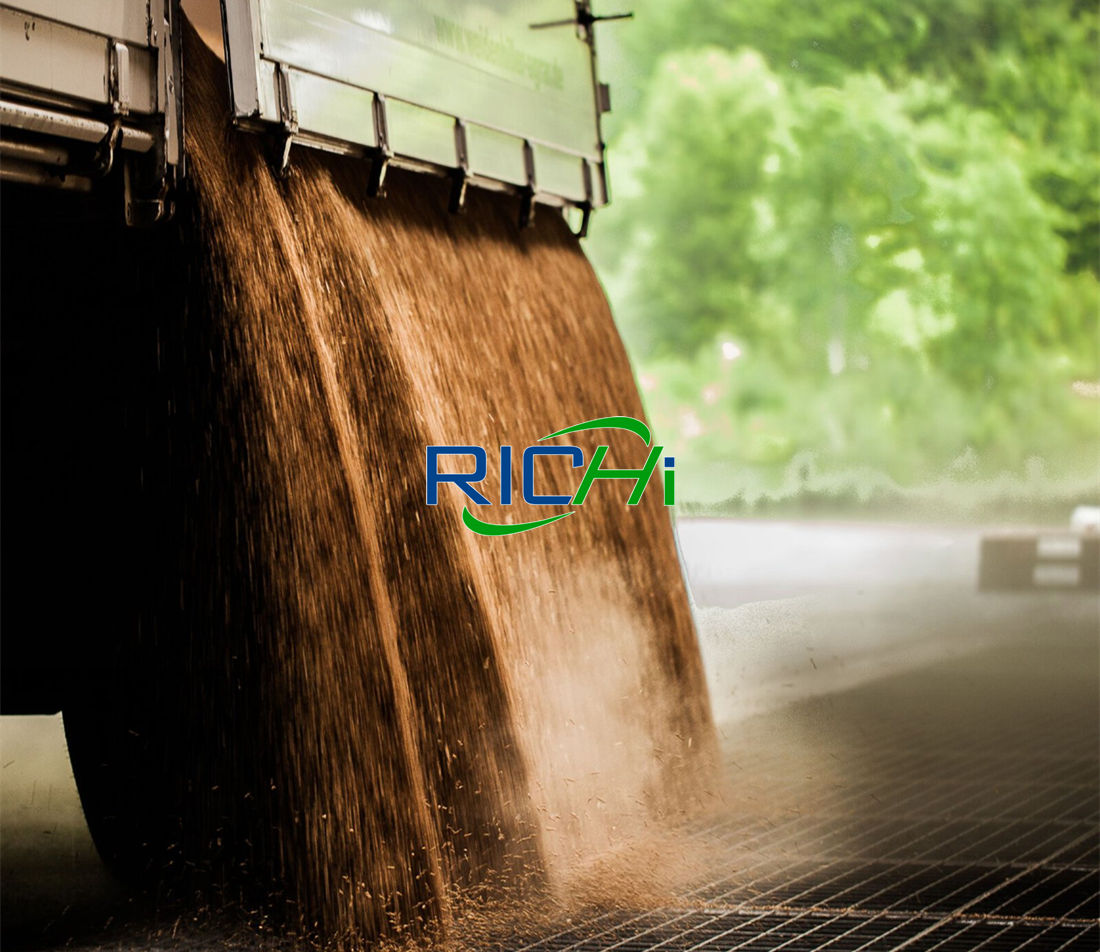

- Corn receiving
Pour the purchased corn into the grid screen, and send it to the cylinder cleaning screen through the scraper conveyor to remove the soft impurities such as large particles, ropes, stones and soil in the raw materials, and then pass the bucket elevator and sent to the silo for storage.
- Soybean meal/bran receiving
Introduce the soybean meal/bran purchased back to the pig feed factory into the grid screen, and send it to the primary cleaning screen through a scraper conveyor to remove large particles of impurities and twine and other soft impurities in the soybean meal, and then pass it through a bucket elevator, send to soybean meal steel silo for storage.
Grinding section of the pig feed mill 63-64t/h
The granular materials in the silo, soybean meal silo and warehouse are fed into the pulverizer to be crushed after being crushed. The crushing process is a fully enclosed type, and the crushed materials enter the batching silo through the dust settling chamber through the conveying equipment.
Feed mixing for pigs of the pig feed mill 63-64t/h
Powdered raw materials, trace elements, minerals, etc. temporarily stored in the batching warehouse are sent to the batching scale for measurement through the unloading machine, and the batching is carried out according to the product requirements, and the double-shaft high-efficiency pig feed mixer machine is in a closed state.
After mixing by paddle mixer for pig feed, it enters the buffer hopper and the scraper conveyor sends the materials to the granulation section.
Puffing, cooling, crushing, batching, tempering and granulating section of the pig feed mill 63-64t/h
The corn raw material is sent to the pig feed extruder through a closed screw feeder for expansion, and after the expansion is completed, it is cooled and crushed, and then sent to the batching warehouse to participate in the teaching of the batching of the trough material through the closed screw conveyor and bucket elevator;
After mixing, the materials are sent from the pelletizing bin to the pig food pellet maker conditioner through the closed screw feeder. The addition of steam can make the fiber in the feed soft and improve the pelleting effect.

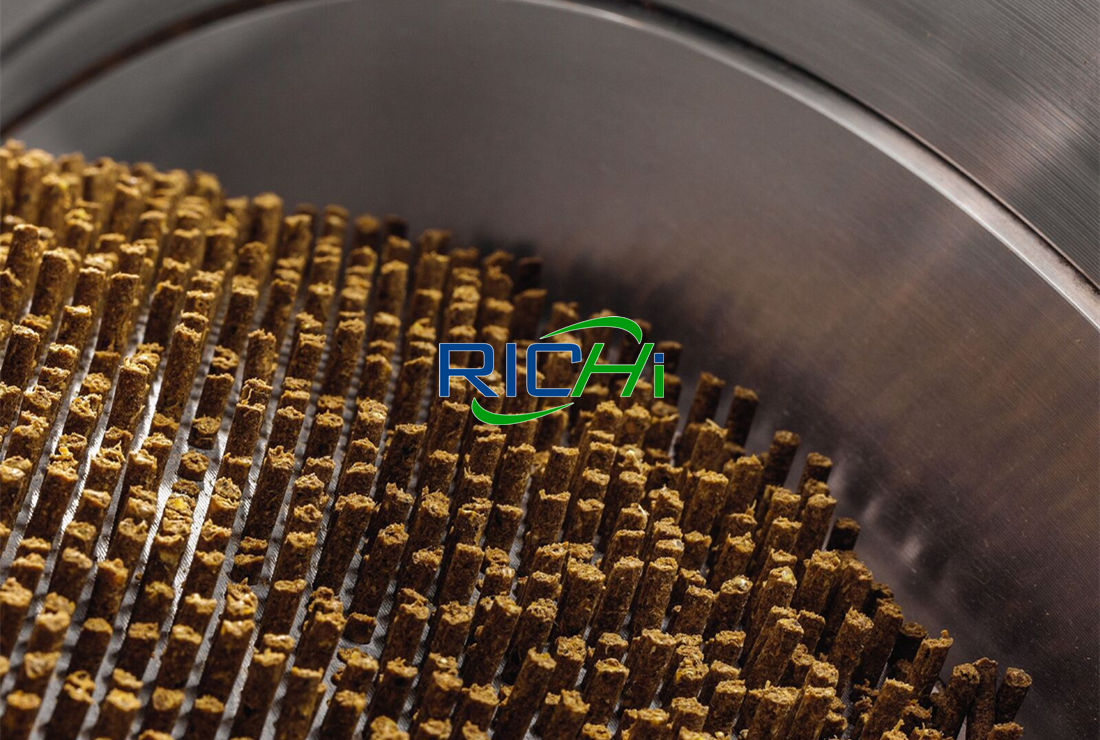

The temperature is generally maintained at about 85°C to keep the maximum water content at 13%～14%, it takes about 3 minutes to stay for tempering and maintaining. The tempered and maintained materials are sent to the pig feed pelletizer machine to press pellets.
Cooling and screening section of the pig feed mill 63-64t/h
The pig feed pellets produced in the pig feed pellet machine is cooled by a cooling air net, and then sorted by a rotary classification screen.
The screening process is a fully enclosed type, and the excessively long grains and powder produced during the granulation process are removed from the the product is separated, and the separated powder is sent to the quality section for re-granulation, and the finished product pellets that meet the product specifications are transported to the finished product bulk warehouse through the conveying equipment.
Packaging section of the pig feed mill 63-64t/h
The finished pig feed pellets products that enter the warehouse are sold in bulk and bags. The large pig feed mill project receiving section, crushing section, mixing section, expansion section, screening section, and bulk section are all equipped with pulse dust collectors, and the piggery feed mill equipment is fully enclosed.

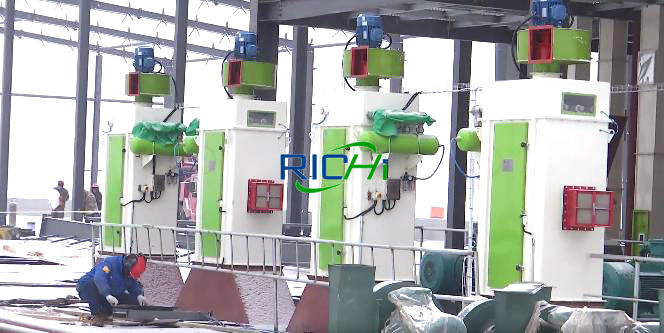

The dust collector used in the large automatic commercial pig feed mill project requires regular cleaning of the ash hopper during the raw material receiving process, and other dust collectors are directly pulsed back to make the materials return to the pig feed production process for use.
- Pulse dust collector:
The principle of dust removal is to set a number of cloth bags inside to filter the dust in the air and periodically blow compressed air into the filter bag to remove the dust in the filter bag. It has the advantages of high efficiency and large air volume. The dust removal efficiency of the dust collector is greater than 99.9%.
- Cyclone dust collector:
The cyclone dust collector is composed of intake pipe, exhaust pipe, cylinder, cone and ash bucket. The cyclone dust collector has a simple structure. Under normal operating conditions, the centrifugal force acting on the particles is 5 to 2500 times that of gravity.
It is suitable for the removal of non-sticky and non-fibrous dust, mostly used to remove particles above 5μm. The parallel multi-tube cyclone dust collector device also has a dust removal efficiency of 80-85% for 3μm particles. It belongs to Medium-efficiency dust collector.
