50,000 Tons of Cat Litter Pellet Manufacturing Line and Snacks Production Line Project

Clicks:

In 2019, China's urban pet (dog and cat) consumption market exceeded 200 billion RMB, and the overall consumption scale reached 202.4 billion RMB, an increase of 18.5% over 2018. Among them, pet products accounted for 61.40% of the overall consumption expenditure. This shows that the pet food and supplies industry has a very good prospect. Cat litter is an indispensable item for pet products. Cat litter pellet machine and cat litter pellet production line equipment are important mechanical equipment for producing cat litter. The following is a cat litter and snack production line project with an annual output of 50,000 tons, which is equivalent to a 10 t/h pet food cat litter pellet manufacturing line project.

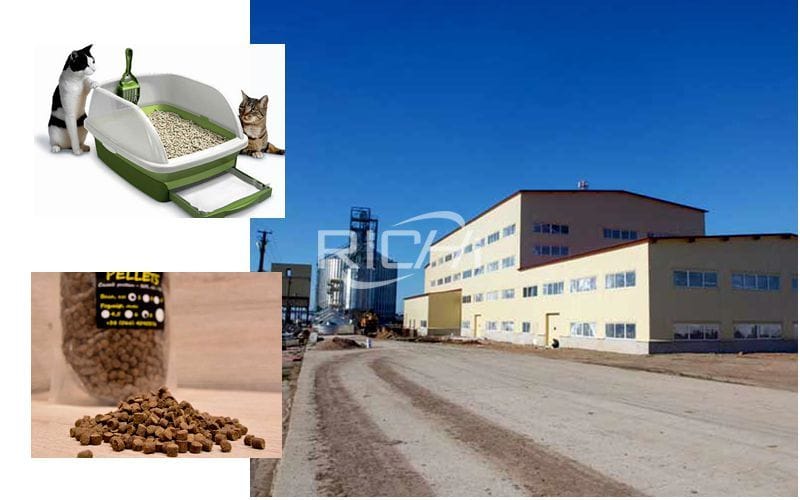

50,000 Tons of Cat Litter and Snacks Production Line Project
50,000 Tons of Cat Litter and Snacks Production Line Project

I.  50,000 Tons of Cat Litter and Snacks Production Line Project Overview

(1) Project name: Cat litter and snacks production line project with an annual output of 50,000 tons for a pet supplies company in Hebei

(2) Construction unit: a pet products company in Hebei

(3) Construction nature: new construction

(4) Construction site: Nanhe County, Xingtai City, Hebei Province

(5) Construction content and scale: The cat litter project with an annual output of 50,000 tons. The project covers an area of ​​2,000 square meters (3 acres), with a total construction area of ​​2,000 square meters. The main construction area includes a workshop of 2,000 square meters, and a raw material and finished product warehouse of 1,000. Square meters, 200 square meters of office area. The project will construct 2 production lines in two phases. After the project is completed, it will produce 50,000 tons of cat litter per year.

(6) Labor quota and work system: The project has a labor quota of 20 people, working 300 days a year, and adopts a two-shift 16-hour work system.

(7) Total investment: The total investment of the project is 12 million RMB, of which the environmental protection investment is 600,000 RMB, accounting for 5% of the total project investment.

(8) Annual production: 50,000 tons of cat litter and snacks production line project

(9) Nissan: Cat litter pellet production line with a daily output of 166 tons

(10) Hourly output: 10 t/h pet food cat litter pellet manufacturing line project

Table 1 List of project composition

project Engineering composition scale Remarks
structural work Plant One 1F, building area of ​​900 square meters, steel structure Lease existing
Auxiliary engineering warehouse One 1F, construction area of ​​1000 square meters, steel structure
Workspace One 1F, construction area of ​​100 square meters, steel structure
Public
works
Heating and cooling Electric heating is used in the production of this project. Electric heating or air-conditioning is used for office heating in winter, and air-conditioning is used for cooling in summer. There is no coal-fired boiler in the plant. /
powered by The electricity for production and living of this project is provided by the nearby power grid, and the electricity and voltage can meet the electricity demand of this project /
Water supply The water for this project is centrally supplied by the nearby water supply pipe network, and the water quality and quantity can meet the water demand of this project /
Environmental Engineering Exhaust The particulate matter produced in the batching, mixing, drying, cooling, and screening process of the project passes through the collection device + pulse dust collector + bag filter + 15m high exhaust tube /
Waste water No production wastewater is produced in this project; the produced wastewater is mainly domestic wastewater with a small amount of production, which is directly sprayed to suppress dust and not discharged. /
noise Priority is given to low-noise equipment, and noise-producing equipment shall be treated with measures such as plant sound insulation and foundation shock absorption. /
Solid waste General solid waste: the waste packaging generated during the production process of the project is collected and sold; unqualified products and dust ash collected by dust removal equipment are recycled for production; domestic waste is collected and sent to the designated location of the environmental sanitation department. /

II. Raw and Auxiliary Materials of 50,000 Tons of Cat Litter and Snacks Production Line Project

The main raw and auxiliary materials of this project are wheat flour, corn flour, bean curd residue, etc. The project area has a well-developed transportation network, raw and auxiliary materials can be purchased in the local and surrounding cities, and the market supply is sufficient to meet the production needs of the project. The consumption of raw and auxiliary materials is shown in Table 2.

Table 2 Raw and auxiliary materials consumption table of the project

Serial number Equipment name Quantity (sets, sets, strips)
1 Into the hopper 1
2 Pulse dust collector 7
3 Hoist 2
4 Mixed warehouse 1
5 Steam moving gate 1
6 Mixer 1
7 Buffer 1
8 Screw conveyor 1
9 Cat litter pellet mill 1
10 Dryer 1
11 Scraper conveyor belt 3
12 Flap cooler 1
13 Chakron 1
14 Windshield 1
15 Plane rotating screen 1
16 power supply system 3
17 Air compressor 1
18 Packing Machine 3
19 total 31

III. Production Equipment of 50,000 Tons of Cat Litter and Snacks Production Line Project

The main production equipment of the two phases of this project is the same, see Table 3 for details.

Table 3 List of project production equipment

Serial number name Dosage (t/a) Storage method
1 Okara 7500 Bagged and stored in warehouse
2 corn flour 7380 Bagged and stored in warehouse
3 Additives and pigments 130 Bagged and stored in warehouse
4 Cat litter accessories 10,000 sets Purchased finished products, not processed

IV. Production Process and Steps of Cat Litter Pellet Production Line

1. Ingredients

The crushed raw materials are mixed in a certain proportion.

2. Improve

The raw materials with good proportions are transported by elevator.

3. Mix

Pour the raw materials from the elevator into the mixer for mixing.

4. Improve

The mixed raw materials are transported by elevator.

5. Granulation

The mixed raw materials conveyed by the elevator are poured into the granulator for granulation.

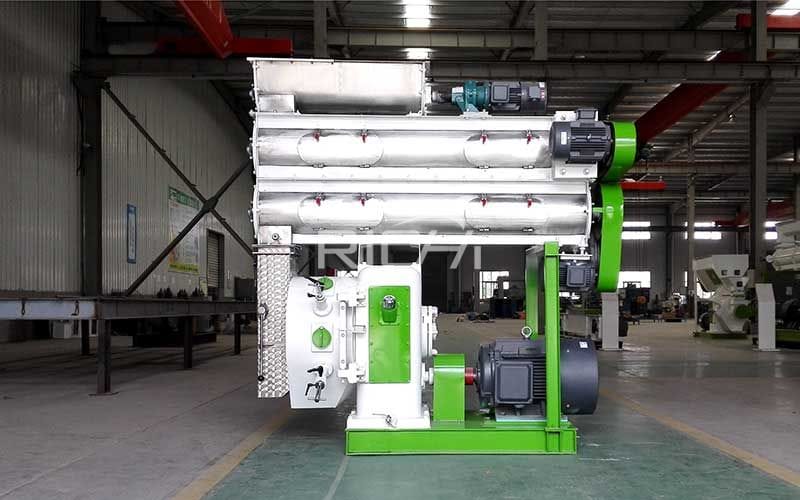

Cat litter pellet mill
Cat litter pellet mill

6. Scraper conveying

The prepared pellets are transported to the next process with a scraper conveyor.

7. Turning plate cooling

The conveyed particles are cooled with a flap cooler.

8. Scraper conveying

The cooled particles are transported to the next process with a scraper conveyor.

9. Screening

The conveyed particles are screened out of different sizes with a plane rotary screen.

10. Dry

Pour the screened particles into the drying box for drying

11. Turning plate cooling

The dried particles are cooled with a flap cooler.

12. Scraper conveying

The cooled particles are transported to the next process with a scraper conveyor.

13. Screening

The conveyed particles are screened by a plane rotary screen to screen out finished products with different particle sizes.

14. Finished product packaging

The finished product is packaged with a packaging scale, inspected and boxed after the package is completed, and sent to the finished product warehouse for sale.

Richi Machinery is a manufacturer of all kinds of cat litter pellet mill and production lines. It has 27 years of history since its establishment in 1995. If you want to know about cat litter production equipment, please contact us!
