10,000 Tons/year Large-scale Sawdust Rice Husk Pellet Machine Production Line Project

  • Date: 2020-11-30 08:24:43
  • From:
  • Clicks:

10,000 Tons/year large-scale sawdust rice husk pellet machine production line project, that is, 4t/h rice husk sawdust biomass pellet production line project. Only one is calculated based on annual output, and one is calculated based on hourly output. The project's raw materials are also very abundant, including wood chips, rice husks, branches, leftovers and waste. Of course, such a large-scale project requires a lot of equipment, among which the host equipment includes a grinder, a crusher, a biomass pellet machine, a drum dryer, and a belt conveyor.

10,000 Tons/year Large-scale Sawdust Rice Husk Pellet Machine Production Line Project
10,000 Tons/year Large-scale Sawdust Rice Husk Pellet Machine Production Line Project

Biomass solidified compact molding fuel uses wood chips, rice husks, etc. as raw materials. After pressurized molding, the volume decreases exponentially, the combustion is fierce, the combustion time is long, the amount of combustion pollutants is small, and the residue after combustion is still used to produce potash fertilizer The raw materials are basically free of residue. The product of the project is a solid briquette with an annual output of about 10,000 tons and a diameter of about 12mm.

I. Project Construction Overview

The project covers an area of ​​5000m2, with a total construction area of ​​1500m2. The main construction content includes production workshop, warehouse workshop, raw material storage yard, and office area. The main structures of the project are shown in Table 1, and the main equipment of the project is shown in Table 2.

Table 1 List of project composition

Serial number Types of name scale unit Remarks
1 structural work Production workshop 900 m2 Frame structure, 1 room Built
2 warehouse 600 m2 Metal frame structure, fully enclosed Built
3 Raw material storage yard 1500 m2 Semi-open frame structure, equipped with wind and rain shelter Built
4 Auxiliary engineering Workspace 30 m2 Brick structure Built
5 Public works powered by / / Township grid access
6 Water supply / / Township water supply network connection
7 drain / / The sewage of the project is treated in a tertiary septic tank and used as agricultural fertilizer without being discharged
8 Environmental Engineering Waste water Three-stage septic tank / / After being treated by a tertiary septic tank, it is used as fertilizer for surrounding farmland and vegetable fields
9 Exhaust / / / Crushing: cyclone + cloth bag dust removal, unorganized discharge; drying furnace: cyclone plus cloth bag + 15m exhaust cylinder discharge; granulation: cloth bag dust removal, unorganized discharge.
10 noise / / / Choose low-noise equipment, install vibration isolation pads on main production equipment, strengthen management, and arrange work time rationally, etc.
11 Solid waste       Garbage collection bin, general solid waste temporary storage room (50m 2 )

Table 2 List of main facilities and equipment of the project

Serial number Equipment name Quantity (unit) Remarks
1 grinder 1 set 1000 type
2 Crusher 1 set 1000 type
3 Granulator 2 sets MZLH520
4 Dryer 1 set
5 Belt conveyors 1 set

Consumption of raw and auxiliary materials

Table 3 List of raw and auxiliary materials of the project

Serial number Material name source Dosage
1 Sawdust Nearby towns 2,000 t/a
2 Rice Husk Nearby towns 5 million t/a
3 Branches Nearby towns 2,000 t/a
4 Leftovers Nearby towns 3 million t/a
5 Waste material Nearby towns 2,000 t/a
The moisture content of the raw materials is 38%, and the raw materials cannot use paint plates and formaldehyde-containing plates.

Table 4 Project material balance table unit: t/a

Order No. Invest in output
name Quantity t name Quantity t
1 Sawdust 2000 product Biomass pellet fuel 10000
2 Rice Husk 5000 Exhaust dust 3.31
3 Branches 2000 Moisture Moisture 3,996.69
4 Leftovers 3000
5 Waste material 2000
total 14000 total 14000
Note: The moisture content of raw materials is 38.55%, and the moisture content of products is 10%.

Table 5 List of project energy consumption

Serial number Energy name source Annual consumption Remarks
1 Electricity Township power supply line 6,000 degrees /
2 water Township water supply network 90t Only the staff's domestic water, no production water
3 Biomass fuel Production of this project 100t Water content 10%

II. Brief Description of Production Process

(1) Crushing: Due to the large size of various types of raw materials, they need to be crushed to 600mm by a crusher, and then directly transported to the airtight molding machine to be directly pressed into shape by pressure. This process generates dust G1 and noise N.

(2) Drying: Because the moisture in the raw materials may not meet the production requirements, the raw materials need to be dried. The drying process of this project uses biomass pellet fuel as energy. This process produces particulate matter, SO2, and NOXG2.

(3) Press molding: The dried straw material and saw foam are fed into the biomass pellet machine in a certain proportion, and compressed into the pellet shape in the pellet machine without any additives. The pellet machine is sealed. This process produces noise.

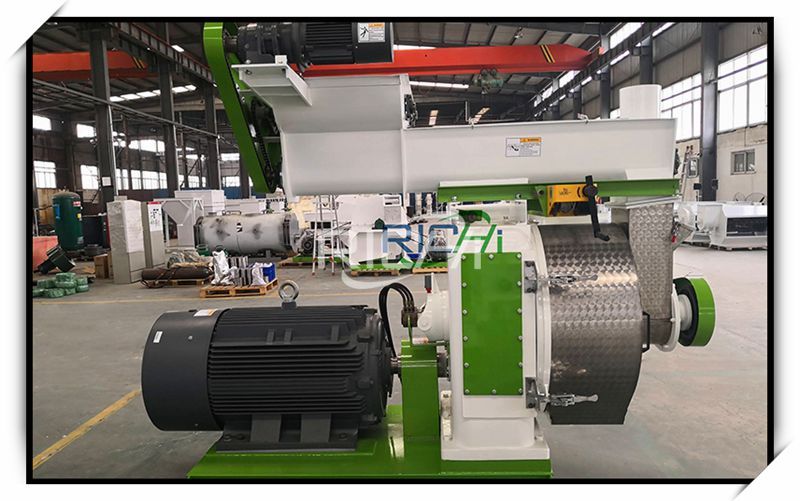

biomass pellet machine
biomass pellet machine

(4) Packing and storage: the qualified finished products produced are bagged and weighed, then packed, and stored in storage.

III. Number of Employees and Work System

Labor quota: The project has a labor quota of 6 people, none of whom live in the factory. The production shift is a one-shift system with 8 hours of work per shift and 300 days of work per year.

The above is the article for you: 10,000 Tons/year Large-scale Sawdust Rice Husk Pellet Machine Production Line Project.
